  1. High performance Throughput Les Cottrell – SLAC Lecture # 5a presented at the 26th International Nathiagali Summer College on Physics and Contemporary Needs, 25th June – 14th July, Nathiagali, Pakistan Partially funded by DOE/MICS Field Work Proposal on Internet End-to-end Performance Monitoring (IEPM), also supported by IUPAP

  2. How to measure • Selected about a dozen major collaborator sites in California, Colorado, Illinois, FR, CH, UK over last 9 months • Of interest to SLAC • Can get logon accounts • Use iperf • Choose window size and # parallel streams • Run for 10 seconds together with ping (loaded) • Stop iperf, run ping (unloaded) for 10 seconds • Change window or number of streams & repeat • Record streams, window, throughput (Mbits/s), loaded & unloaded ping responses

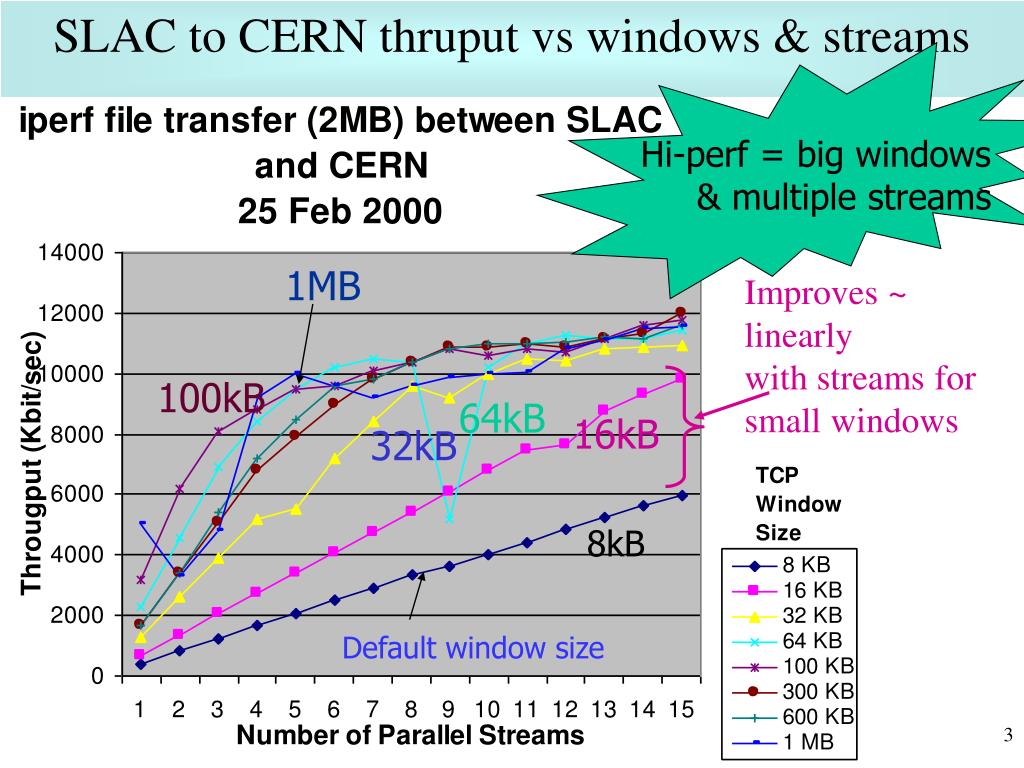

  3. SLAC to CERN thruput vs windows & streams Hi-perf = big windows & multiple streams Improves ~ linearly with streams for small windows Default window size 1MB 100kB 64kB 16kB 32kB 8kB

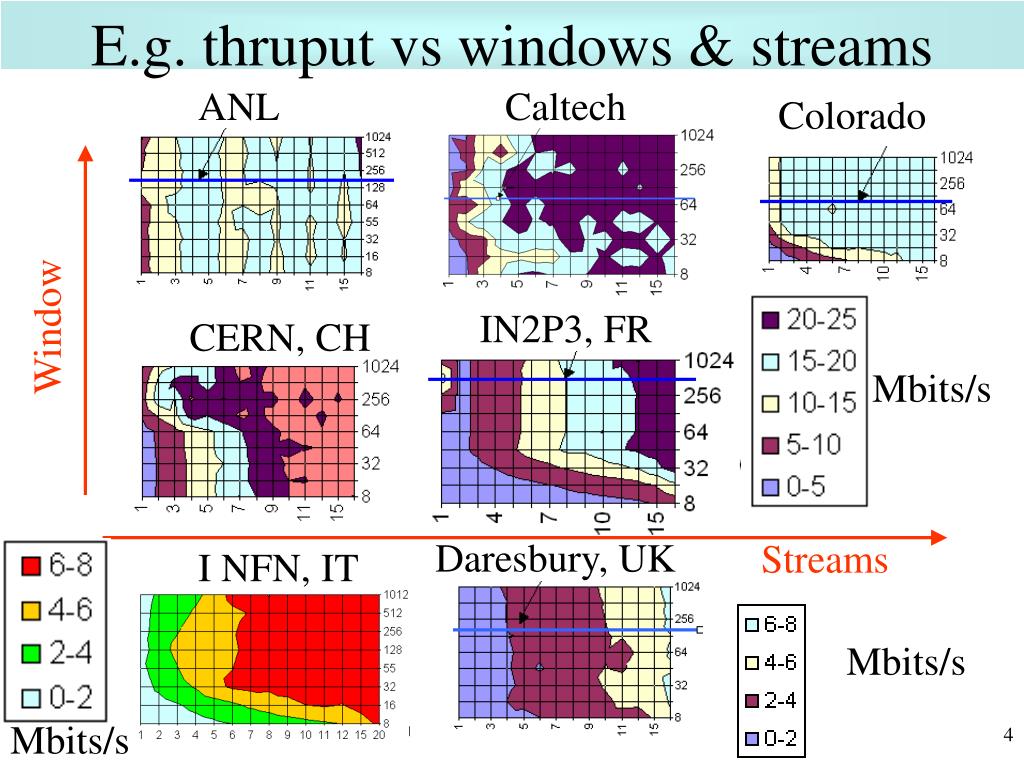

  4. E.g. thruput vs windows &streams ANL Caltech Colorado Window IN2P3, FR CERN, CH Mbits/s Daresbury, UK Streams I NFN, IT Mbits/s Mbits/s

  5. Progress towards goal:100 Mbytes/s Site-to-Site • Focus on SLAC – Caltech over NTON; • Using NTON wavelength division fibers up & down W. Coast US; • Replaced Exemplar with 8*OC3 & Suns with Pentium IIIs & OC12 (622Mbps) • SLAC Cisco 12000 with OC48 (2.4Gbps) and 2 ×OC12; • Caltech Juniper M160 & OC48 • ~500 Mbits/s single stream achieved recently over OC12.

  6. SC2000 WAN Challenge • SC2000, Dallas to SLAC RTT ~ 48msec • SLAC/FNAL booth: Dell PowerEdge PIII 2 * 550MHz with 64bit PCI + Dell 850MHz both running Linux, each with GigE, connected to Cat 6009 with 2GigE bonded to Extreme SC2000 floor switch • NTON: OC48 to GSR to Cat 5500 Gig E to Sun E4500 4*460MHz and Sun E4500 6*336MHz • Internet 2: 300 Mbits/s • NTON 960Mbits/s • Details: • www-iepm.slac.stanford.edu/monitoring/bulk/sc2k.html

  7. Iperf throughput conclusions 1/2 • Can saturate bottleneck links • For a given iperf measurement, streams share throughput equally. • For small window sizes throughput increases linearly with number of streams • Predicted optimum window sizes can be large (> Mbyte) • Need > 1 stream to get optimum performance • Can get close to max thruput with small (<=32Mbyte) with sufficient (5-10) streams • Improvements of 5 to 60 in thruput by using multiple streams & larger windows • Loss not sensitive to throughput

  8. Iperf thruput conclusions 2/2 Site Window Streams Throughput CERN 256kB 2 9.45Mbits/ CERN 64kB 8 26.8Mbits/s Caltech 256kB 2 1.7Mbits/s Caltech 64kB 8 4.6Mbits/s • For fixed streams*window product, streams are more effective than window size: • There is an optimum number of streams above which performance flattens out • See www-iepm.slac.stanford.edu/monitoring/bulk/

  9. Network Simulator (ns-2) • From UCB, simulates network • Choice of stack (Reno, Tahoe, Vegas, SACK…) • RTT, bandwidth, flows, windows, queue lengths … • Compare with measured results • Agrees well • Confirms observations (e.g. linear growth in throughput for small window sizes as increase number of flows)

  10. Agreement of ns2 with observed

  11. Ns-2 thruput & loss predict 90% • Indicates on unloaded link can get 70% of available bandwidth without causing noticeable packet loss • Can get over 80-90% of available bandwidth • Can overdrive: no extra throughput BUT extra loss

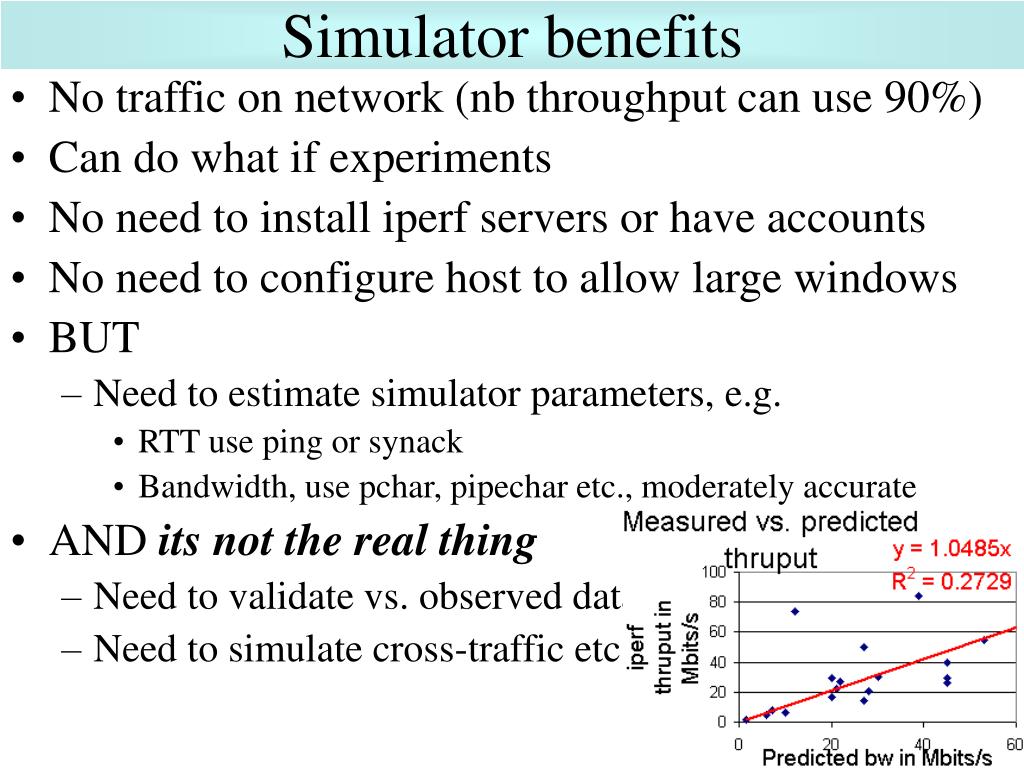

  12. Simulator benefits • No traffic on network (nb throughput can use 90%) • Can do what if experiments • No need to install iperf servers or have accounts • No need to configure host to allow large windows • BUT • Need to estimate simulator parameters, e.g. • RTT use ping or synack • Bandwidth, use pchar, pipechar etc., moderately accurate • AND its not the real thing • Need to validate vs. observed data • Need to simulate cross-traffic etc

  13. Impact of cross-traffic on Iperf between SLAC & GSFC/ Maryland All TCP traffic iperf HTTP bbftp SCP From SLAC To SLAC Iperf port traffic

  14. Impact on Others • Make ping measurements with & without iperf loading • Loss loaded(unloaded) • RTT

  15. Impact of applying QoS • Defined 3 classes of service, application marked packets: • Scavenger service (1%), Best effort, & Priority service (30%) • Used DiffServ features in Cisco 7507 with DS3 link • Appears to work as expected Measurements made by Dave Hartzell, of GreatPlains net, May 01

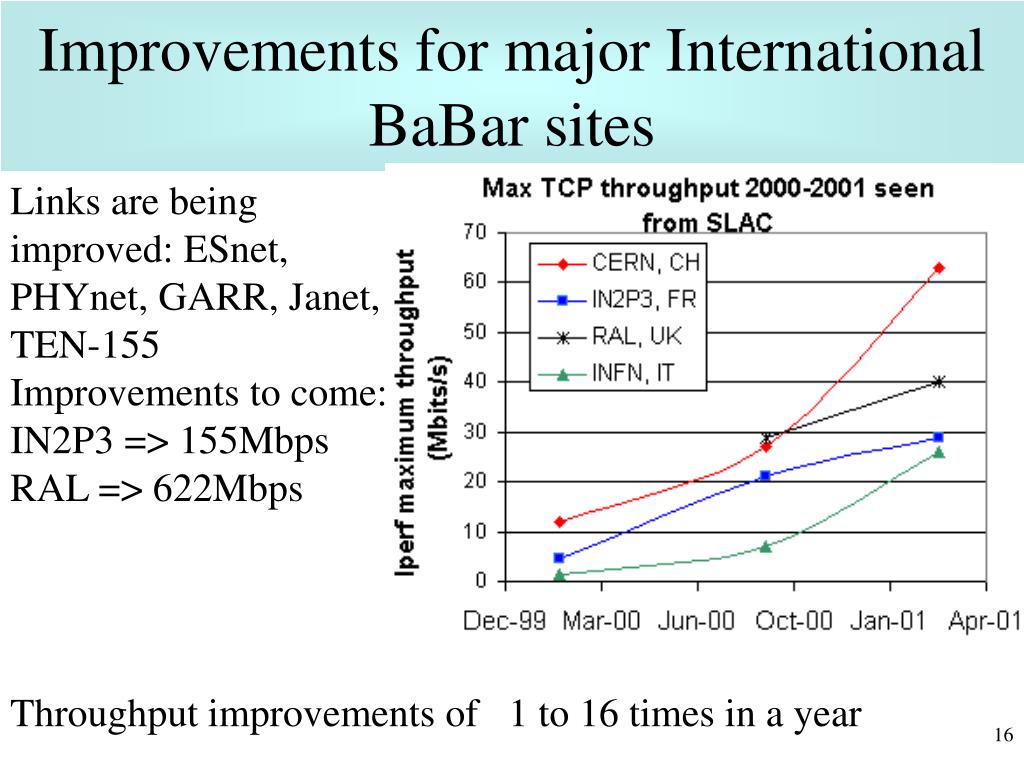

  16. Improvements for major International BaBar sites Links are being improved: ESnet, PHYnet, GARR, Janet, TEN-155 Improvements to come: IN2P3 => 155Mbps RAL => 622Mbps Throughput improvements of 1 to 16 times in a year

  17. Gigabit/second networking CERN • The start of a new era: • Very rapid progress towards 10Gbps networking in both the Local (LAN) and Wide area (WAN) networking environments are being made. • 40Gbps is in sight on WANs, but what after? • The success of the LHC computing Grid critically depends on the availability of Gbps links between CERN and LHC regional centers. • What does it mean? • In theory: • 1GB file transferred in 11 seconds over a 1Gbps circuit (*) • 1TB file transfer would still require 3 hours • and 1PB file transfer would require 4 months • In practice: • major transmission protocol issues will need to be addressed (*) according to the 75% empirical rule

  18. Very high speed file transfer (1) CERN • High performance switched LAN assumed: • requires time & money. • High performance WAN also assumed: • also requires money but is becoming possible. • very careful engineering mandatory. • Will remain very problematic especially over high bandwidth*delay paths: • Might force the use Jumbo Frames because of interactions between TCP/IP and link error rates. • Could possibly conflict with strong security requirements

  19. Very high speed file transfer (2) CERN • Following formula proposed by Matt Mathis/PSC (“The Macroscopic Behavior of the TCP Congestion Avoidance Algorithm”) to approximate the maximum TCP throughput under periodic packet loss: (MSS/RTT)*(1/sqrt(p)) • where MSS is the maximum segment size, 1460 bytes, in practice,and “p” is the packet loss rate. • Are TCP's "congestion avoidance" algorithms compatible with high speed, long distance networks. • The "cut transmit rate in half on single packet loss and then increase the rate additively (1 MSS by RTT)" algorithm may simply not work. • New TCP/IP adaptations may be needed in order to better cope with “lfn”, e.g. TCP Vegas

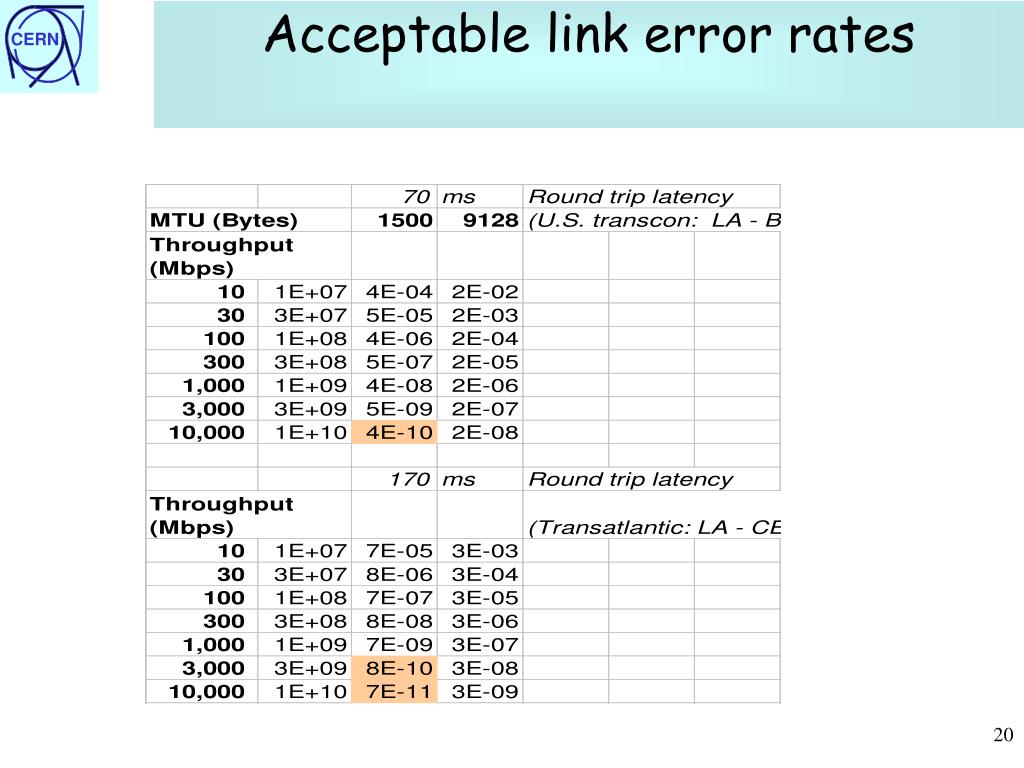

  20. Acceptable link error rates CERN

  21. Very high speed file transfer (tentative conclusions) CERN • Tcp/ip fairness only exist between similar flows, i.e. • similar duration, • similar RTTs. • Tcp/ip congestion avoidance algorithms need to be revisited (e.g. Vegas rather than Reno/NewReno) • faster recovery after loss, selective acknowledgment. • Current ways of circumventing the problem, e.g. • Multi-stream & parallel socket • just bandages or the practical solution to the problem? • Web100, a 3MUSD NSF project, might help enormously! • better TCP/IP instrumentation (MIB), will allow read/write to internal TCP parameters • self-tuning • tools for measuring performance • improved FTP implementation • applications can tune stack • Non-Tcp/ip based transport solution, use of Forward Error Corrections (FEC), Early Congestion Notifications (ECN) rather than active queue management techniques (RED/WRED)?

  22. Optimizing streams • Choose # streams to optimize throughput/impact • Measure RTT from Web100 • App controls # streams

  23. WAN thruput conclusions • High FTP performance across WAN links is possible • Even with 20-30Mbps bottleneck can do > 100Gbytes/day • OS must support big windows selectable by application • Need multiple parallel streams • Loss is important in particular interval between losses • Compression looks promising, but needs cpu power • Can get close to max thruput with small (<=32Mbyte) with sufficient (5-10) streams • Improvements of 5 to 60 in thruput by using multiple streams & larger windows • Impacts others users, need Less than Best Effort QoS service

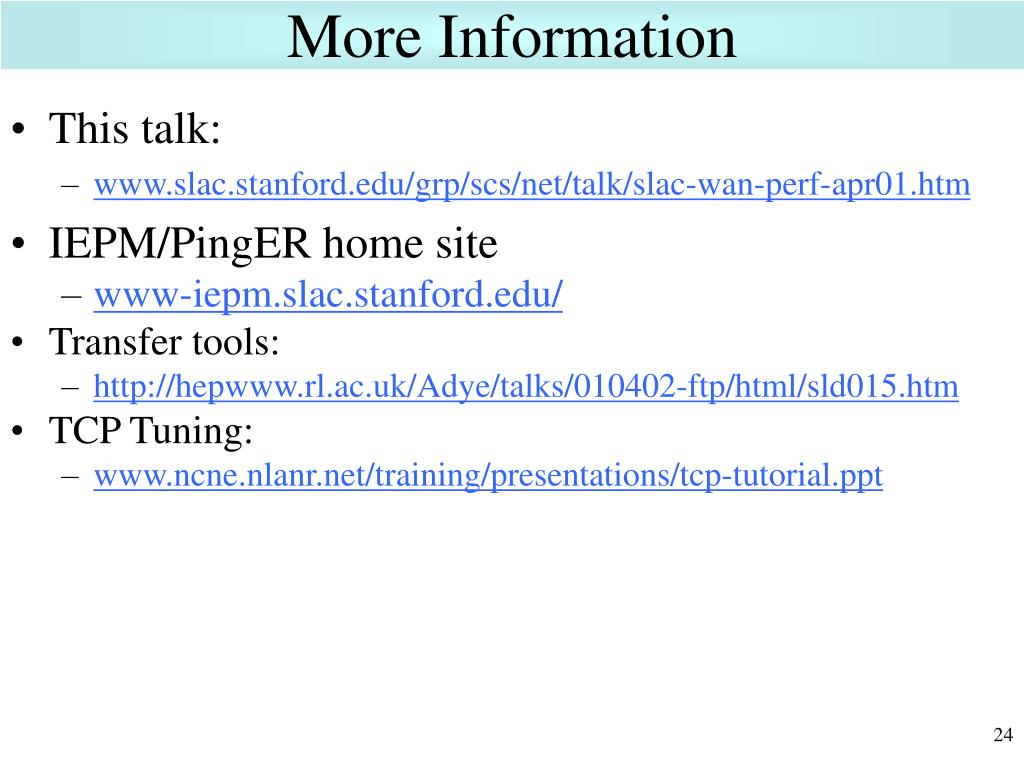

  24. More Information • This talk: • www.slac.stanford.edu/grp/scs/net/talk/slac-wan-perf-apr01.htm • IEPM/PingER home site • www-iepm.slac.stanford.edu/ • Transfer tools: • http://hepwww.rl.ac.uk/Adye/talks/010402-ftp/html/sld015.htm • TCP Tuning: • www.ncne.nlanr.net/training/presentations/tcp-tutorial.ppt

  25. High Speed Bulk Throughput • Driven by: • Data intensive science, e.g. data grids • HENP data rates, e.g. BaBar 300TB/year, collection doubling yearly, i.e. PBytes in couple of years • Data rate from experiment ~ 20MBytes/s ~ 200GBytes/d • Multiple regional computer centers (e.g. Lyon-FR, RAL-UK, INFN-IT, LBNL-CA, LLNL-CA, Caltech-CA) need copies of data • Boeing 747 high throughput, BUT poor latency (~ 2 weeks) & very people intensive • So need high-speed networks and ability to utilize • High speed today = few hundred GBytes/day (100GB/d ~ 10Mbits/s) Data vol Moore’s law
