Advanced Studio Configuration for GY-HM790 with HD-SDI Connectivity

Explore a sophisticated studio configuration designed for the GY-HM790 camera, featuring essential components such as the DT-Vxx monitor, RM-HP250DE viewfinder, and KM-H3000 mixer. This configuration supports HD-SDI, providing high-quality signal transmission over multi-core cables ranging from 10m to 100m. Enhance your mobile studio setup with optional components like the RM-LP25 and KA-M790 adapter. Perfect for professional broadcasting and film production, this setup ensures seamless connectivity and superior performance in any studio environment.

jescie-soto
Télécharger la présentation

Advanced Studio Configuration for GY-HM790 with HD-SDI Connectivity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Basic Studio Configuration GY-HM790 Monitor DT-Vxx KA-M790 Mixer KM-H3000 (HD)SDI (HD)SDI Core RM-HP250DE Tally Genlock (HD)SDI Core 10m: HK-VC10HDB-SDI 20m: HK-VC20HDB-SDI 25m: HK-VC25HDB-SDI 50m: HK-VC50HDB-SDI 100m: HK-VC100HDB-SDI HDSDI-Multicore 10~100m Distance

  2. Mobile Studio Configuration GY-HM790 Monitor DT-Vxx RM-LP25 (Optional) KA-M790 Mixer KM-H3000 (HD)SDI (HD)SDI Core RM-HP250DE Tally Genlock (HD)SDI Core 10m: HK-VC10HDB-SDI 20m: HK-VC20HDB-SDI 25m: HK-VC25HDB-SDI 50m: HK-VC50HDB-SDI 100m: HK-VC100HDB-SDI HDSDI-Multicore 10~100m Distance

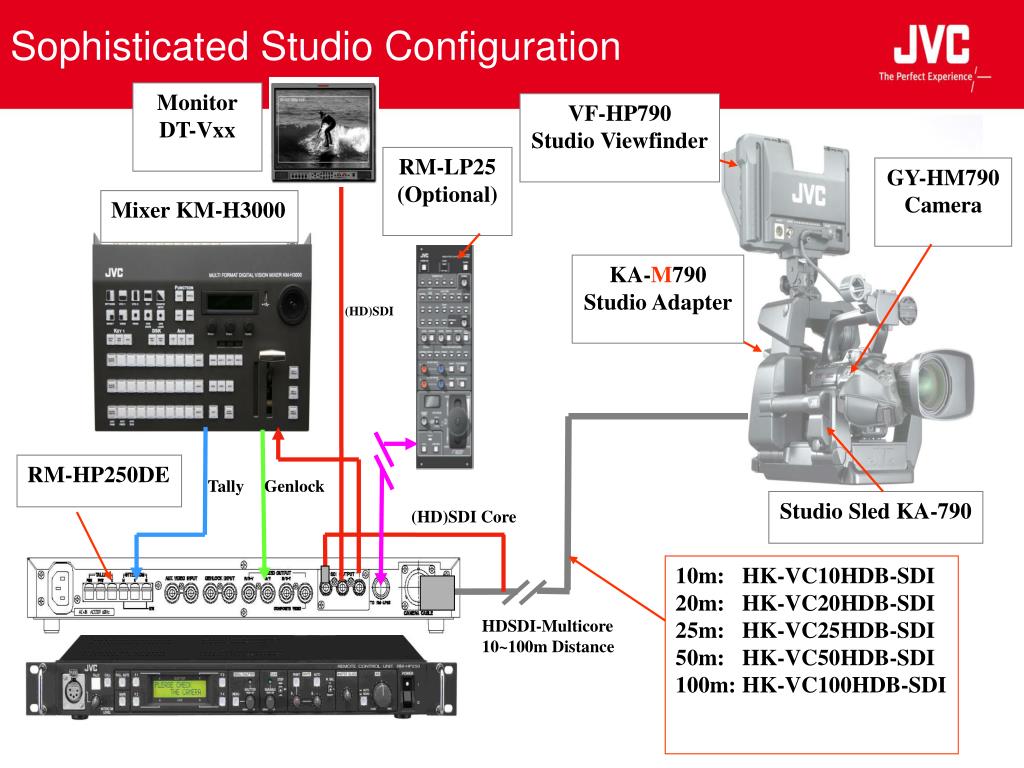

  3. Sophisticated Studio Configuration Monitor DT-Vxx VF-HP790 Studio Viewfinder RM-LP25 (Optional) GY-HM790 Camera Mixer KM-H3000 KA-M790 Studio Adapter (HD)SDI RM-HP250DE Tally Genlock Studio Sled KA-790 (HD)SDI Core 10m: HK-VC10HDB-SDI 20m: HK-VC20HDB-SDI 25m: HK-VC25HDB-SDI 50m: HK-VC50HDB-SDI 100m: HK-VC100HDB-SDI HDSDI-Multicore 10~100m Distance
