Functions of the parts of the Microscope

Functions of the parts of the Microscope . Ocular -contains lenses to increase magnification; the Leica DM E is binocular (contains two oculars) which can be focused independently. The right ocular also contains a pointer.

jess
Télécharger la présentation

Functions of the parts of the Microscope

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

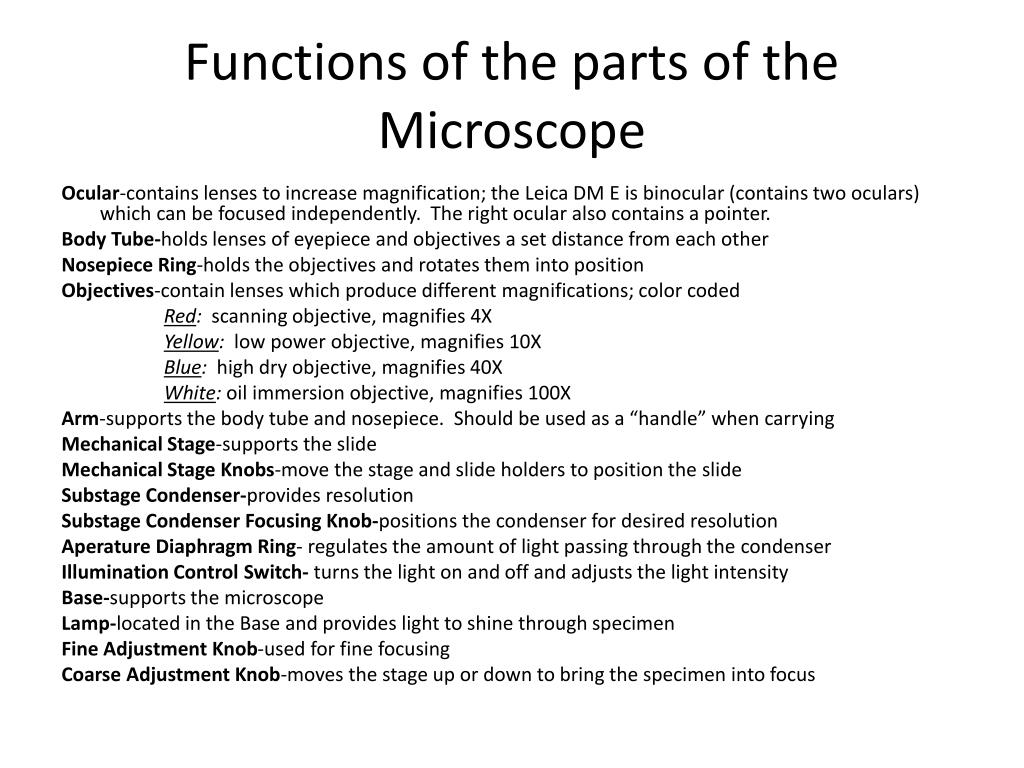

  1. Functions of the parts of the Microscope Ocular-contains lenses to increase magnification; the Leica DM E is binocular (contains two oculars) which can be focused independently. The right ocular also contains a pointer. Body Tube-holds lenses of eyepiece and objectives a set distance from each other Nosepiece Ring-holds the objectives and rotates them into position Objectives-contain lenses which produce different magnifications; color coded Red: scanning objective, magnifies 4X Yellow: low power objective, magnifies 10X Blue: high dry objective, magnifies 40X White: oil immersion objective, magnifies 100X Arm-supports the body tube and nosepiece. Should be used as a “handle” when carrying Mechanical Stage-supports the slide Mechanical Stage Knobs-move the stage and slide holders to position the slide SubstageCondenser-provides resolution SubstageCondenser Focusing Knob-positions the condenser for desired resolution AperatureDiaphragm Ring- regulates the amount of light passing through the condenser Illumination Control Switch- turns the light on and off and adjusts the light intensity Base-supports the microscope Lamp-located in the Base and provides light to shine through specimen Fine Adjustment Knob-used for fine focusing Coarse Adjustment Knob-moves the stage up or down to bring the specimen into focus
