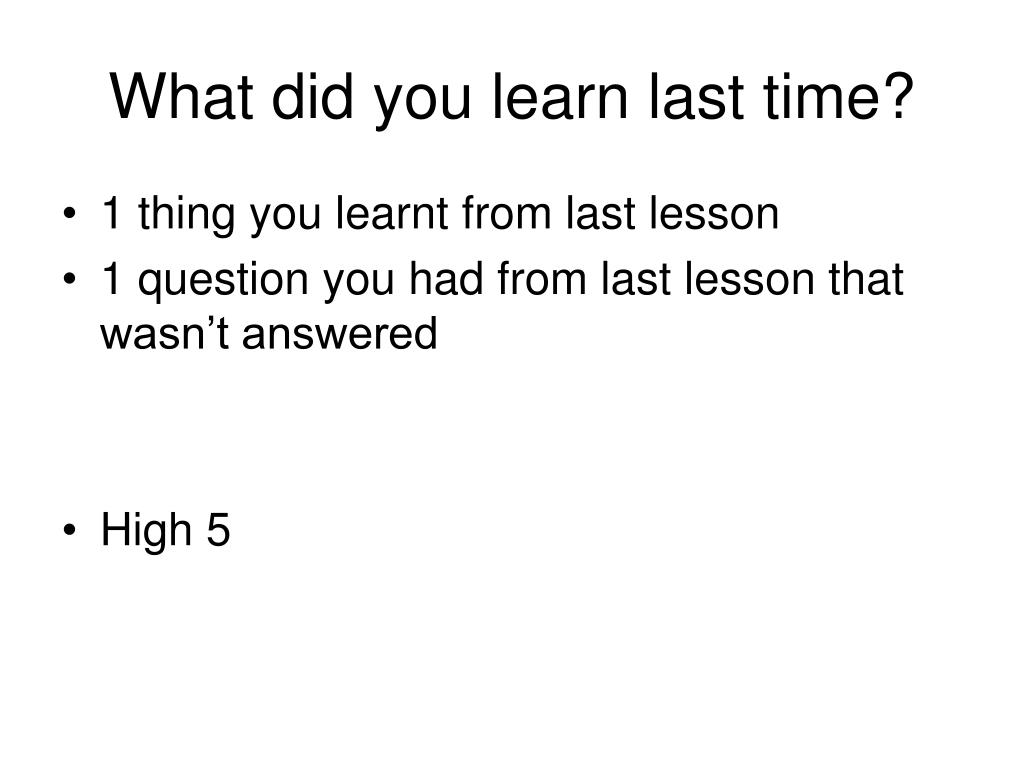

  1. What did you learn last time? • 1 thing you learnt from last lesson • 1 question you had from last lesson that wasn’t answered • High 5

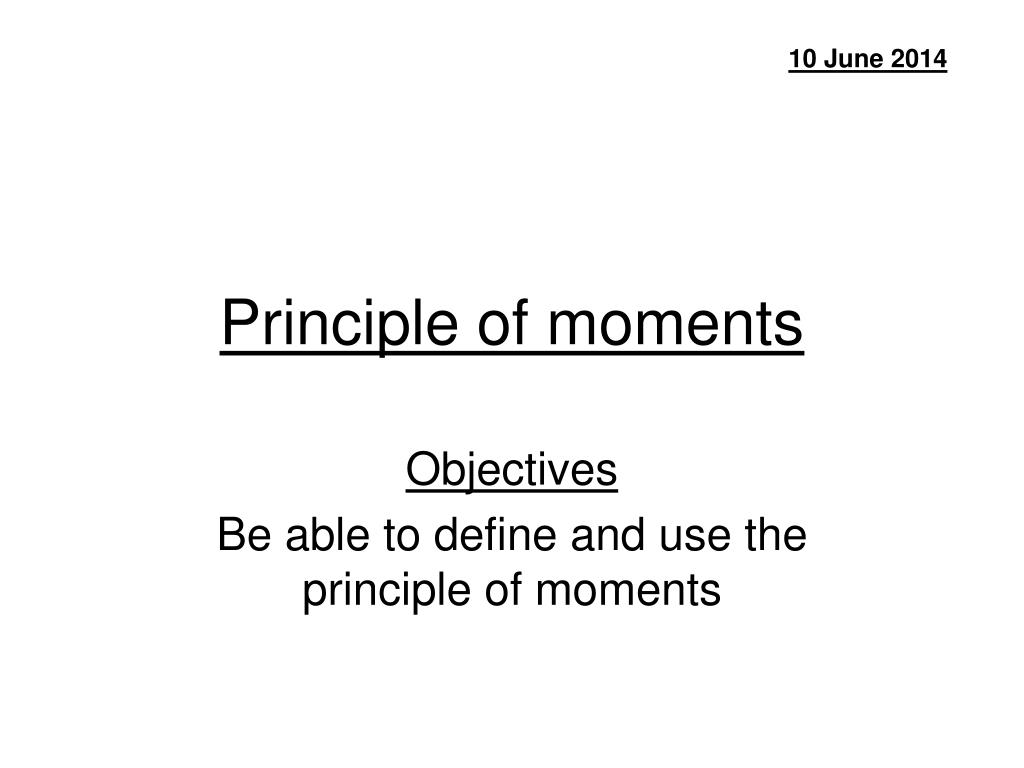

  2. 10 June 2014 Principle of moments Objectives Be able to define and use the principle of moments

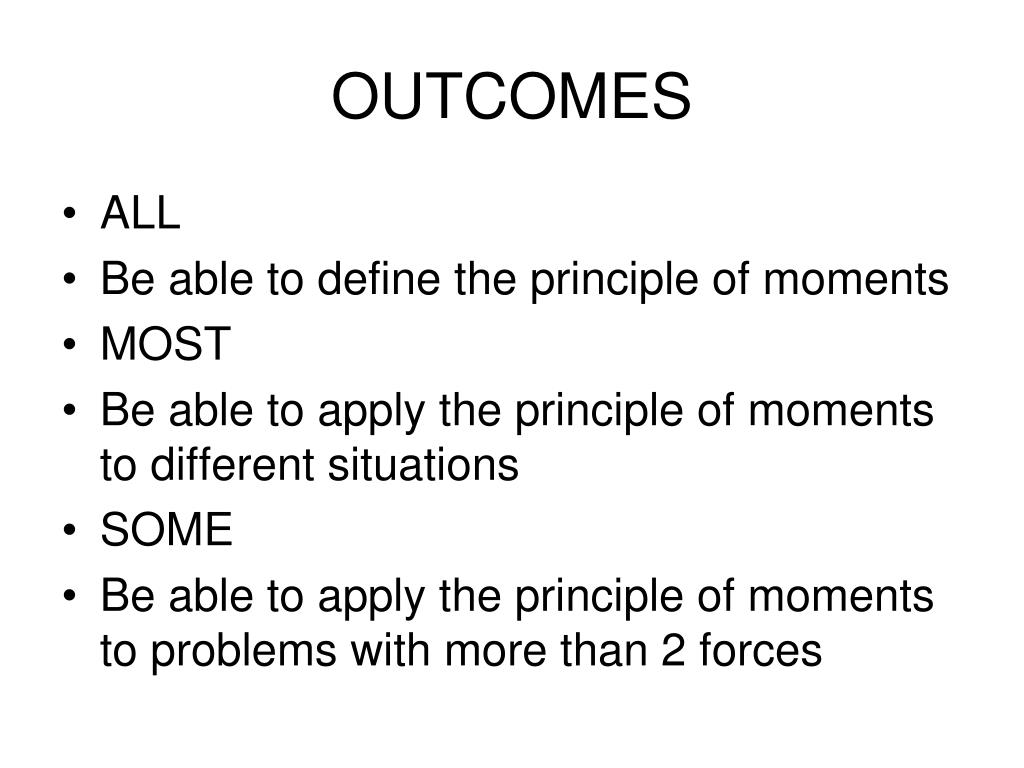

  3. OUTCOMES • ALL • Be able to define the principle of moments • MOST • Be able to apply the principle of moments to different situations • SOME • Be able to apply the principle of moments to problems with more than 2 forces

  4. Principle of Moments  Total anticlockwise moment Total clockwise moment =

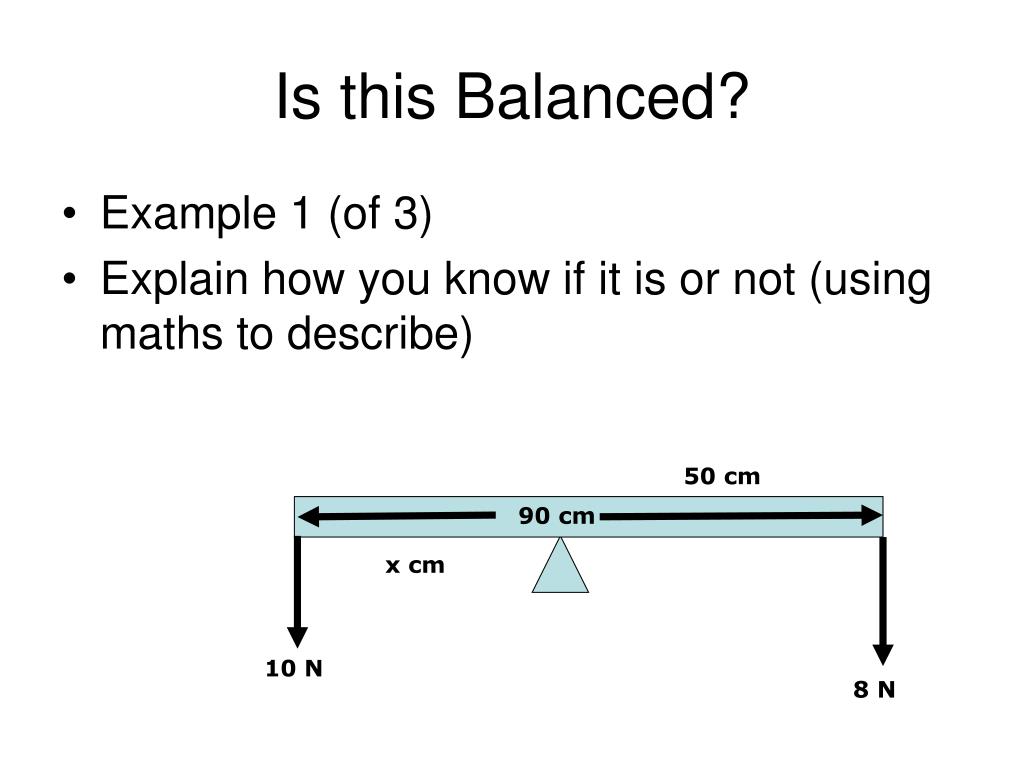

  5. Is this Balanced? • Example 1 (of 3) • Explain how you know if it is or not (using maths to describe) 50 cm 90 cm x cm 10 N 8 N

  6. Practical

  7. 20 N 90 cm 50 cm x cm 10 N 12 N Example 2 (of 3)  Take moments about the pivot to find the distance x. (system is obeying principle of moments)

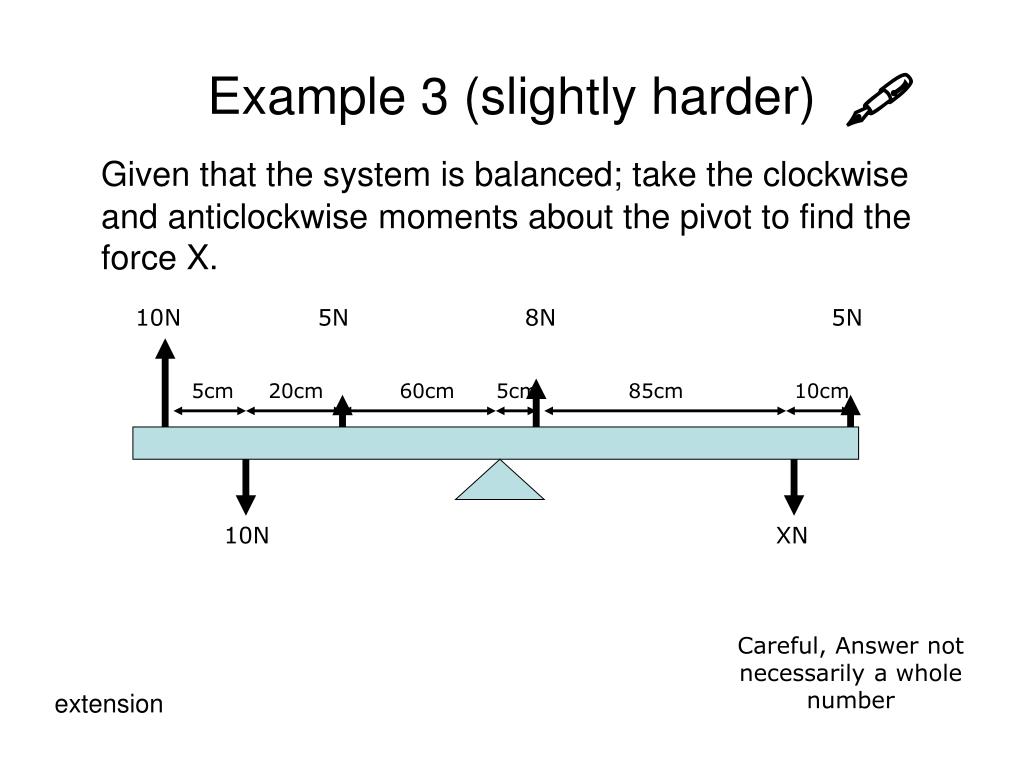

  8. Example 3 (slightly harder)  Given that the system is balanced; take the clockwise and anticlockwise moments about the pivot to find the force X. 10N 5N 8N 5N 5cm 20cm 60cm 5cm 85cm 10cm 10N XN Careful, Answer not necessarily a whole number extension

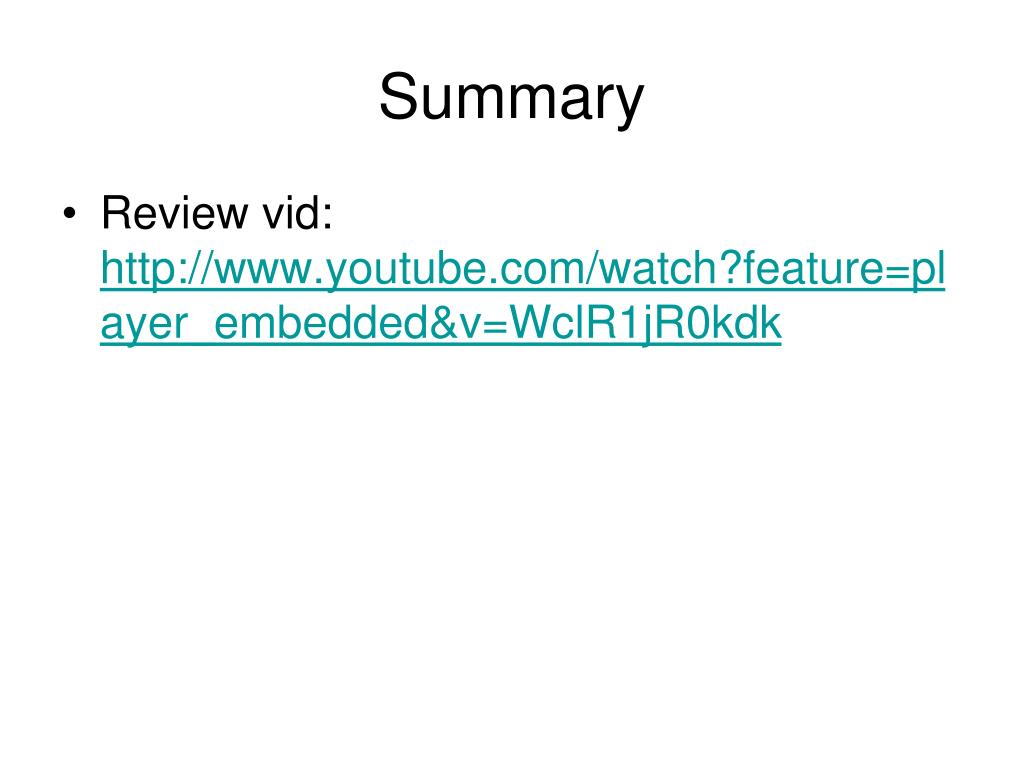

  9. Summary • Review vid: http://www.youtube.com/watch?feature=player_embedded&v=WclR1jR0kdk
