Fast Soft Self-Shadowing on Dynamic Height Fields

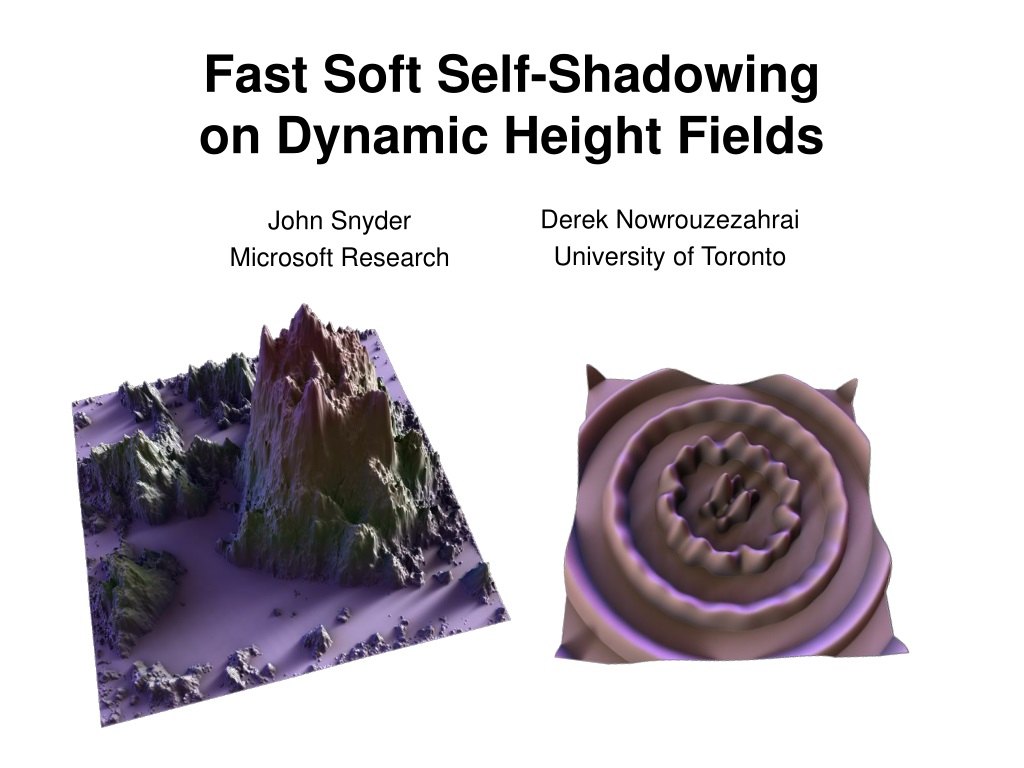

1. Derek Nowrouzezahrai University of Toronto Fast Soft Self-Shadowing on Dynamic Height Fields John Snyder Microsoft Research

2. [Sloan&Cohen00] Related Work • horizon mapping [Max88; …] • hard shadows • precomputed for static geometry

3. Related Work • shadow map filtering [Reeves87; …] • light “bleeding” artifacts • small light sources • no complex environmental lighting [Donnelly06]

4. Related Work • ambient occlusion [Bunnell05; Kontkanen05; …] • AO in screen-space [Shanmugam07;…] • “cone” blocker model [Heidrich00;…] [Dimitrov08] [Oat07]

5. Related Work • static relighting [Sloan02; Ng04; …] • dynamic relighting [Bunnell05, Ren06, Sloan07]

6. Goals • strong response to lighting direction (cast shadows) ambient occlusion low-frequency SH [Ren06]

7. Goals • strong response to lighting direction (cast shadows) • environmental + directional lighting

8. Goals • strong response to lighting direction (cast shadows) • environmental + directional lighting • dynamic geometry (not precomputed) • real-time performance • limitation: geometry is height field • applications: • terrain rendering (flight simulators, games, mapping/navigation) • data visualization

9. Summary of Main Ideas • approximate horizon map via multi-resolution • create height field pyramid [Burt81] • sample height differences from each pyramid level • use coarser levels as distance to receiver increases • reduces sampling • convert horizon map to SH visibility for soft shadowing • use visibility wedges [Dimitrov08] • get good directional lighting response • sharpen shadows by restricting wedges azimuthally • fast: {2D lookup + SH z rotation + Σ over wedges}

10. Horizon Map [Max88] height field: z=f(x)=f(x,y), point: p(x) = (x,f(x)) horizon angle: (x,) max angle horizon makes at p in azimuthal direction  Sample at all points xalong set of directions i.

11. Calculating the Horizon Map

12. Calculating the Horizon Map t

13. Calculating the Horizon Map t

14. Calculating the Horizon Map t

15. Calculating the Horizon Map t

16. Calculating the Horizon Map t

17. Calculating the Horizon Map t

18. Calculating the Horizon Map t

19. Calculating the Horizon Map t

20. Calculating the Horizon Map max t Problem: aliasing – need many samples in t. Solution: prefilter height field, apply multi-scale derivative.

21. Multi-Resolution Approximation multi-scale derivative pyramid level i d d d d i i-1 i-2 i-3 sampling distance for level i As t↑, i ↑ : sample coarser levels further from x. fi fi-1 fi-2 fi-3

22. ( ) - w = j 1 tan D ( f , x , , d ) i i i Multi-Resolution Horizon Angle horizon angle sample i d d d d i-3 i-1 i-2 i w w w w i-3 i i-1 i-2

23. w t j = t w j w j ( , x , ) b - spline ( , ( x , , d ),..., ( x , , d )) - - 0 0 1 1 N N Take max over sample knots and midpoints: w j » w t j ( x , ) max ( , x , ) t Î - { 0 , N 1 } Multi-Resolution Horizon Angle Up-sample coarser levels with 2D B-splines: w w w w i-3 i i-1 i-2 Reconstruct blocking angle function with 1D B-splines: knot mid

24. Pyramid Level Step • k = 1 (standard power-of-2 pyramid)  abrupt transitions • k = 4 smoothes transitions k = 1 k = 2 k = 3 k = 4

25. Pyramid Level Offset • pyramid level bias when sampling height differences • increasing bias increases shadow sharpness • increases sampling requirements o = 0 o = 1 o= 2 o = 3 o = 4

26. Summary of Main Ideas • approximate horizon map via multi-resolution • create height field pyramid [Burt81] • sample height differences from each pyramid level • use coarser levels as distance to receiver increases • reduces sampling • convert horizon map to SH visibility for soft shadowing • use visibility wedges [Dimitrov08] • get good directional lighting response • sharpen shadows by restricting wedges azimuthally • fast: {2D lookup + SH z rotation + Σ over wedges}

27. Reconstructing Visibility • so far discussed sampling in single azimuthal direction • large lights sample multiple azimuthal directions • linearly interpolate horizon angle as function of  • sequential pairs of idetermine visibility wedges

28. f Î f f q £ w f ì 0 , if [ , ] and ( ) + 1 f q = i i v ( , ) í 1, otherwise. î ò w w = w w v ( , ) v ( s , , ) y ( s ) ds i a b a b i S Projecting Visibility to SH • Visibility for a single wedge • Project visibility wedge to SH (order 4) • fix i = 0 and Δφ.Store as 2D table

29. Reconstruct Full Visibility • N azimuthal sampling directions  N horizon angles • (N – 1) adjacent horizon angle pairs (wedge boundaries) • (N – 1) table lookups + (N – 1) SH Z-rotations •  rotate wedge from i = 0 to azimuthal direction • Sum over all wedges • All operations (including horizon angle calculation) in a single • GPGPU shader. See [Snyder08] for full source code.

30. Azimuthal Swaths • azimuthal swaths contain many visibility wedges • key lights: restrict swath • get sharper shadows • acts as a geometric mask • only sample where necessary • env lights: use complete swath

31. å j rot ( , ) z i wedges N x H ( N ) x Soft Shadowed Shading with SH visibility vector at x diffuse reflectance: clamped cosine around normal Nx lighting environment

32. Soft Shadowed Shading with SH SH triple product H ( N ) x or BRDF x Visibility SH Product and dot with lighting

33. Comparison with Ground Truth ground truth k = 1, o = 1 k = 2, o = 2 k = 3, o = 3 k = 4, o = 4

34. Measured Performance

35. Image Results

36. Video Results Clip 1 Clip 2

37. Conclusions • multi-resolution approximation for horizon map • soft shadowing via fast SH projection • key + env lighting decomposition • simple GPU implementation • real-time up to 512x512 dynamic height fields • performance independent of geometric content

38. Thanks! Any questions?
