  1. EE4503Electrical Systems Design Load Calculation

  2. Topics • Load Calculation (E.I.T.) • Load Calculation by Adding Branch Circuit • Load Calculation for condominium • Load Estimation

  3. Load Calculation (E.I.T.)lighting

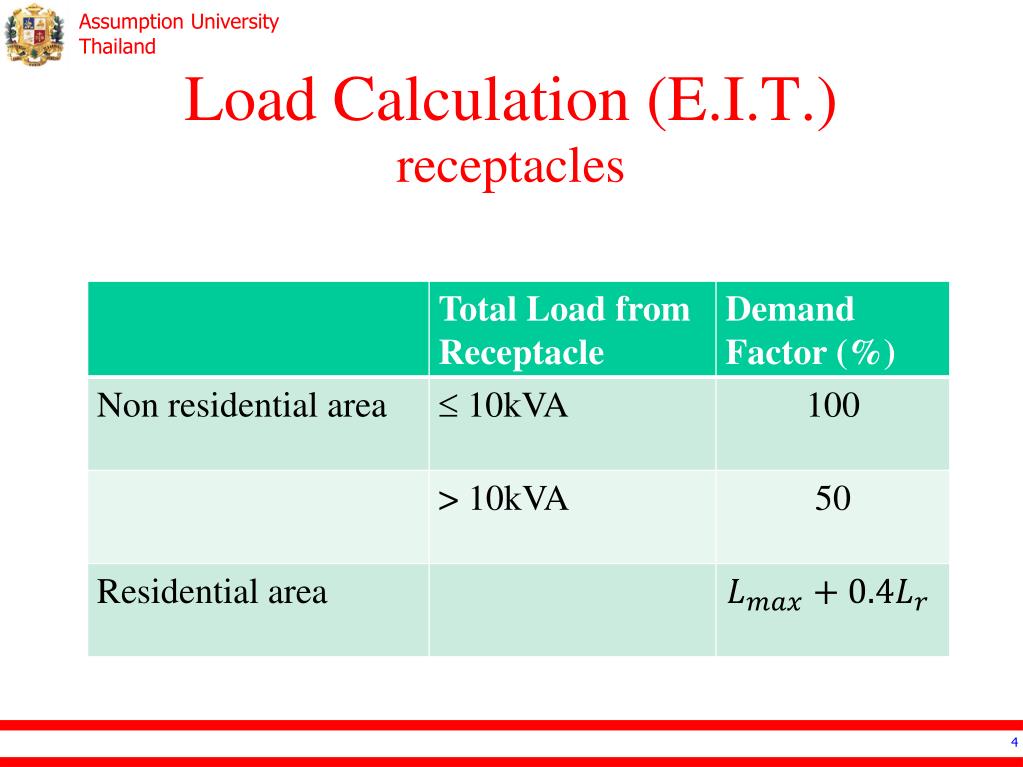

  4. Load Calculation (E.I.T.)receptacles

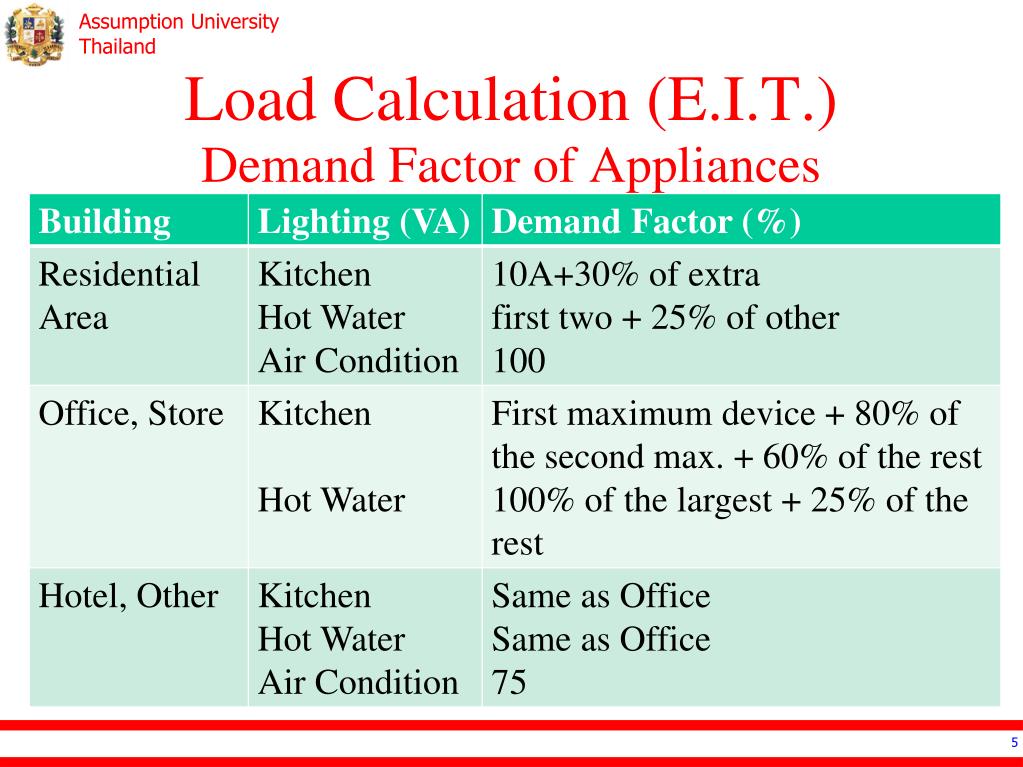

  5. Load Calculation (E.I.T.)Demand Factor of Appliances

  6. Load Calculationby Adding Branch Circuit • Add of all branch circuit • Then multiply by the demand factor

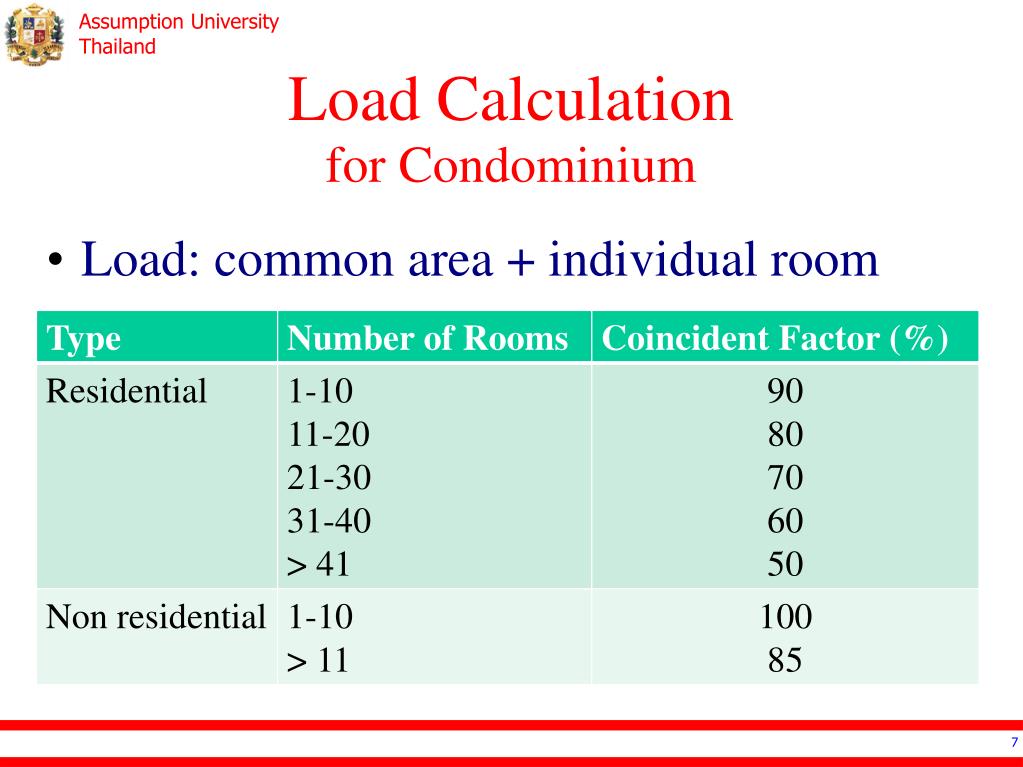

  7. Load Calculationfor Condominium • Load: common area + individual room

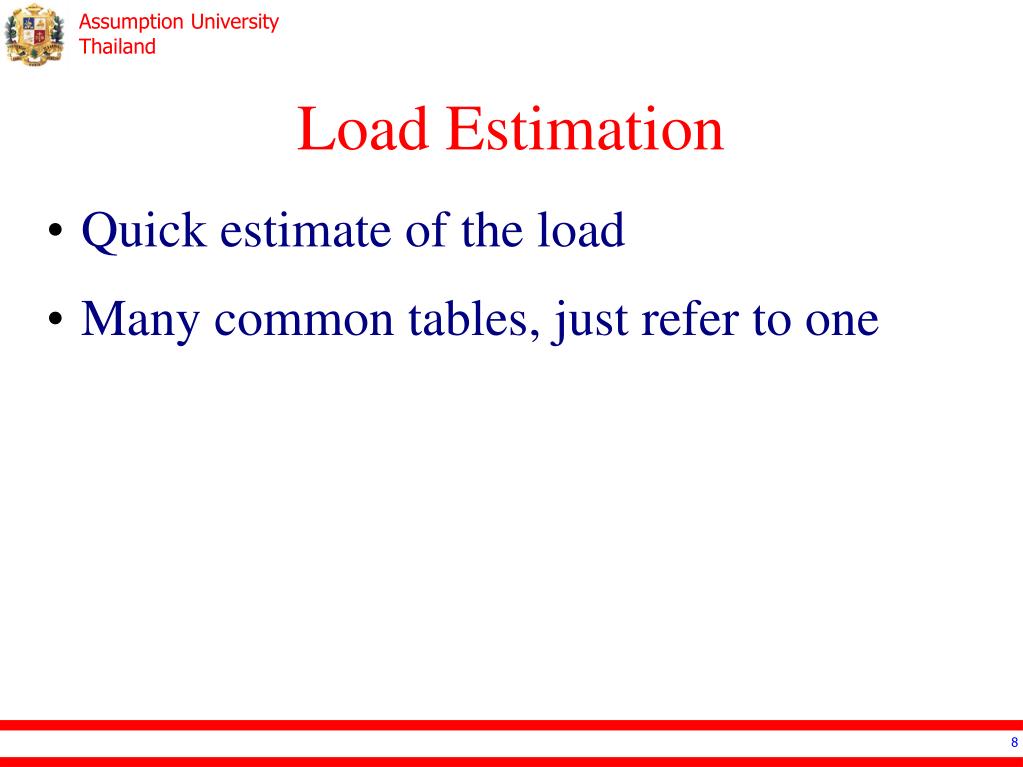

  8. Load Estimation • Quick estimate of the load • Many common tables, just refer to one

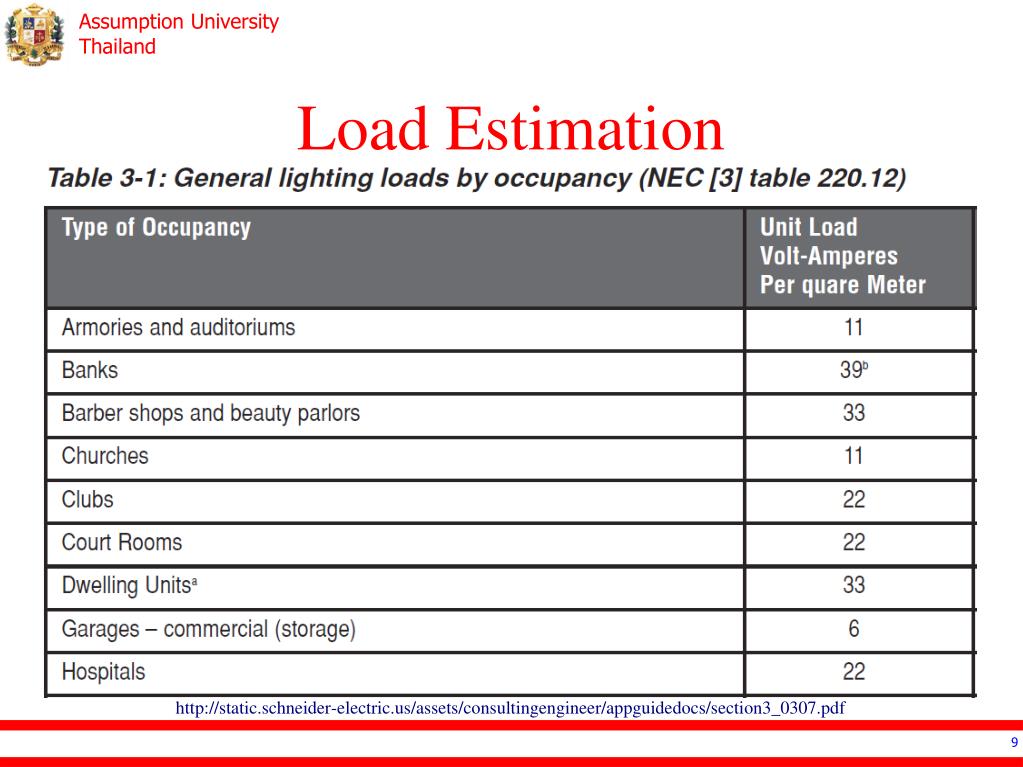

  9. Load Estimation http://static.schneider-electric.us/assets/consultingengineer/appguidedocs/section3_0307.pdf

  10. Load Estimation http://static.schneider-electric.us/assets/consultingengineer/appguidedocs/section3_0307.pdf

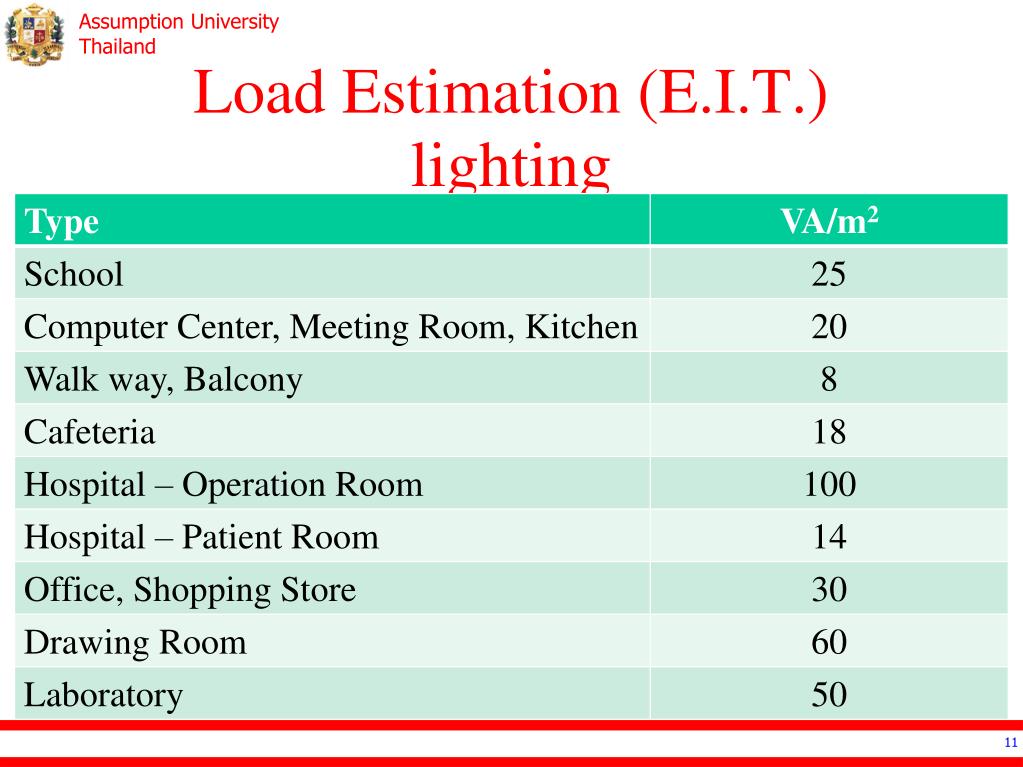

  11. Load Estimation (E.I.T.)lighting

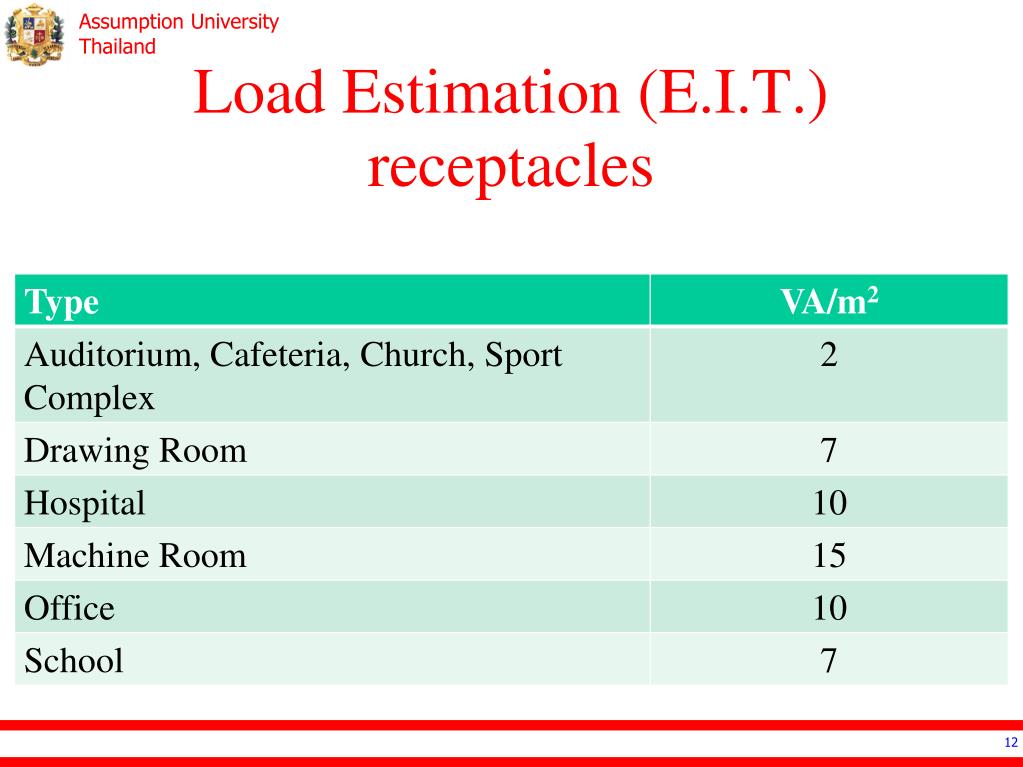

  12. Load Estimation (E.I.T.)receptacles

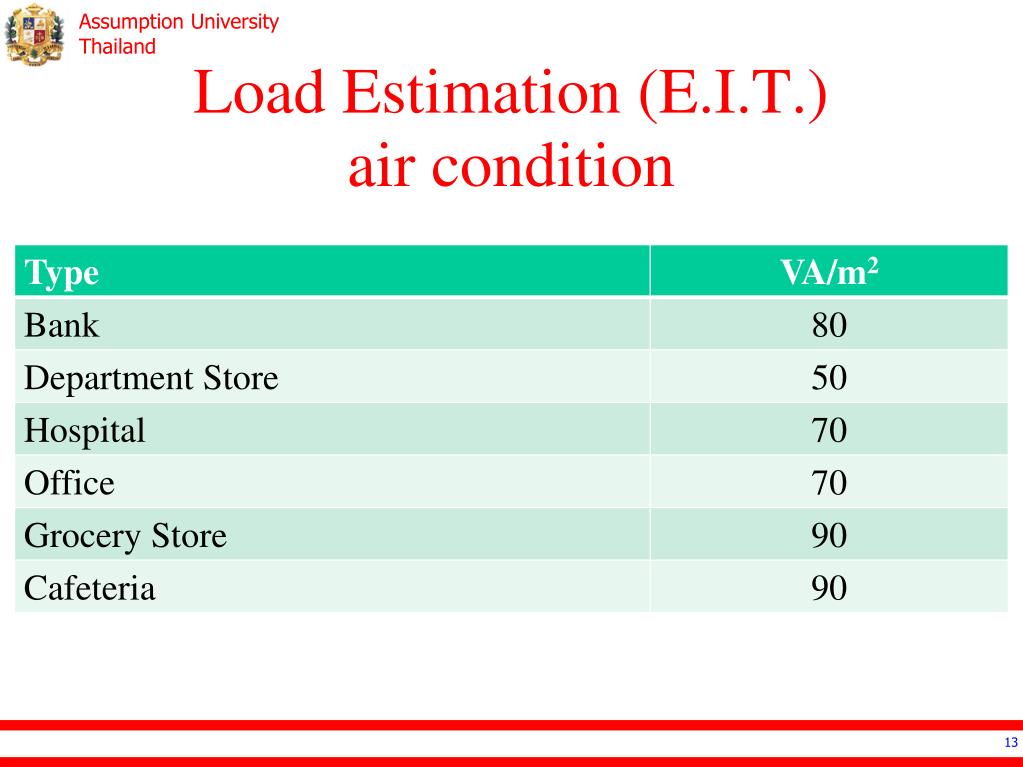

  13. Load Estimation (E.I.T.)air condition

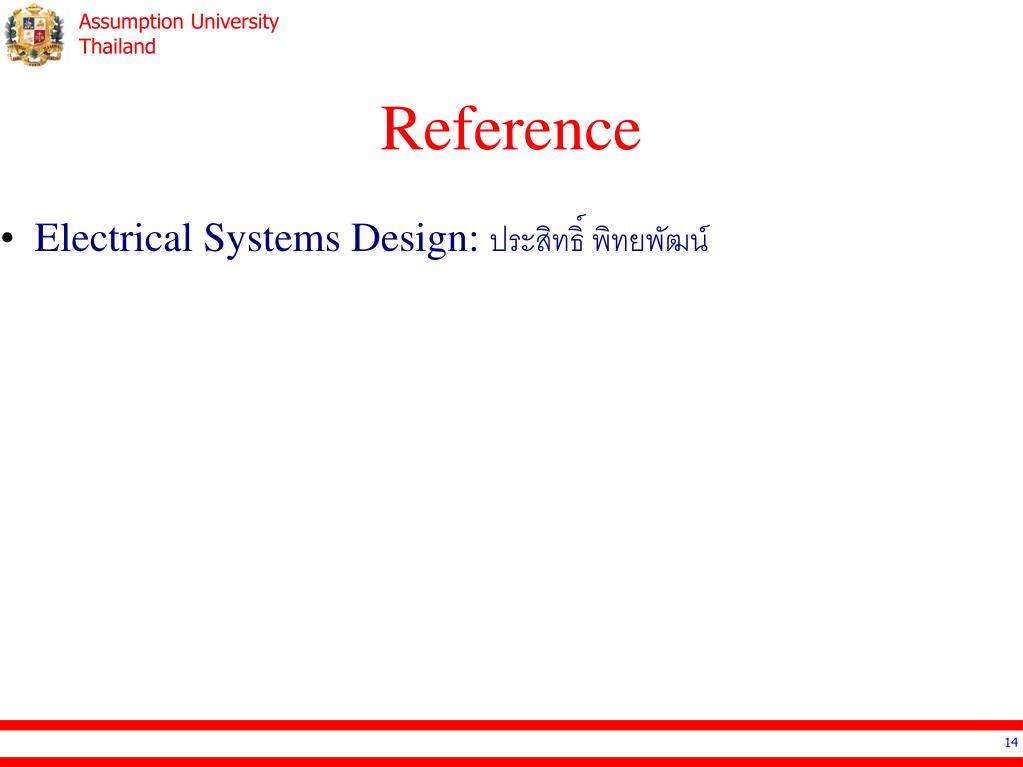

  14. Reference • Electrical Systems Design: ประสิทธิ์ พิทยพัฒน์
