  1. Fringe fields for stage V Iouri Ivaniouchenkov, Jim Rochford RAL MICE Video Conference, 9 April 2003

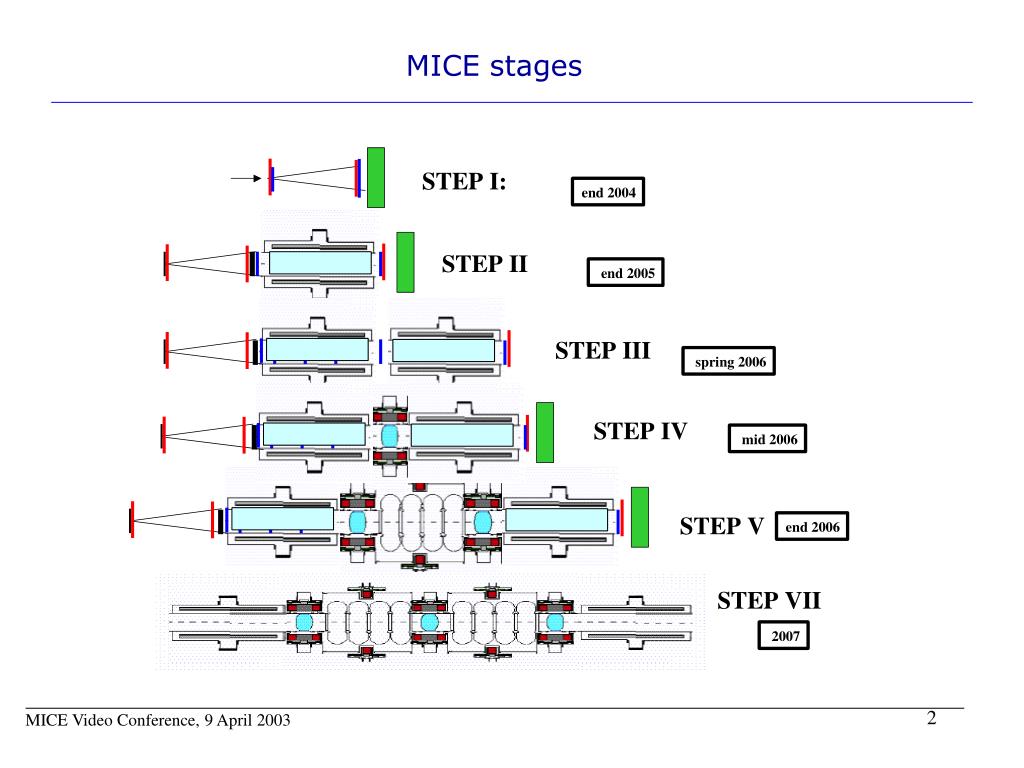

  2. MICE stages MICE Video Conference, 9 April 2003

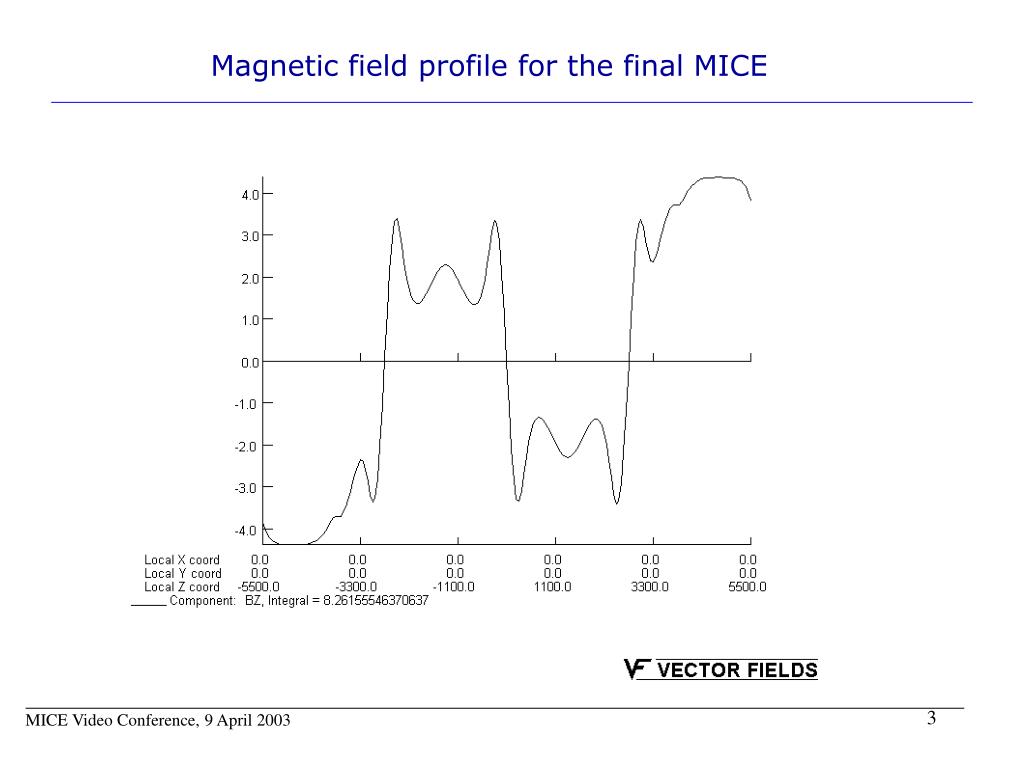

  3. Magnetic field profile for the final MICE MICE Video Conference, 9 April 2003

  4. Fringe fields for the MICE final stage Fringe fields for final MICE: 5 gauss - R~6800 mm, Z~13400 mm MICE Video Conference, 9 April 2003

  5. Magnetic field profile for the stage V MICE Video Conference, 9 April 2003

  6. Fringe fields for the stage V MICE Video Conference, 9 April 2003

  7. MICE magnetic field: Conclusion • MICE will produce magnetic field which extends outside experimental hall: Configuration 5 Gauss Line Final MICE R~6800 mm, Z~13400 mm Stage V R~8020 mm, Z~10900 mm MICE Video Conference, 9 April 2003

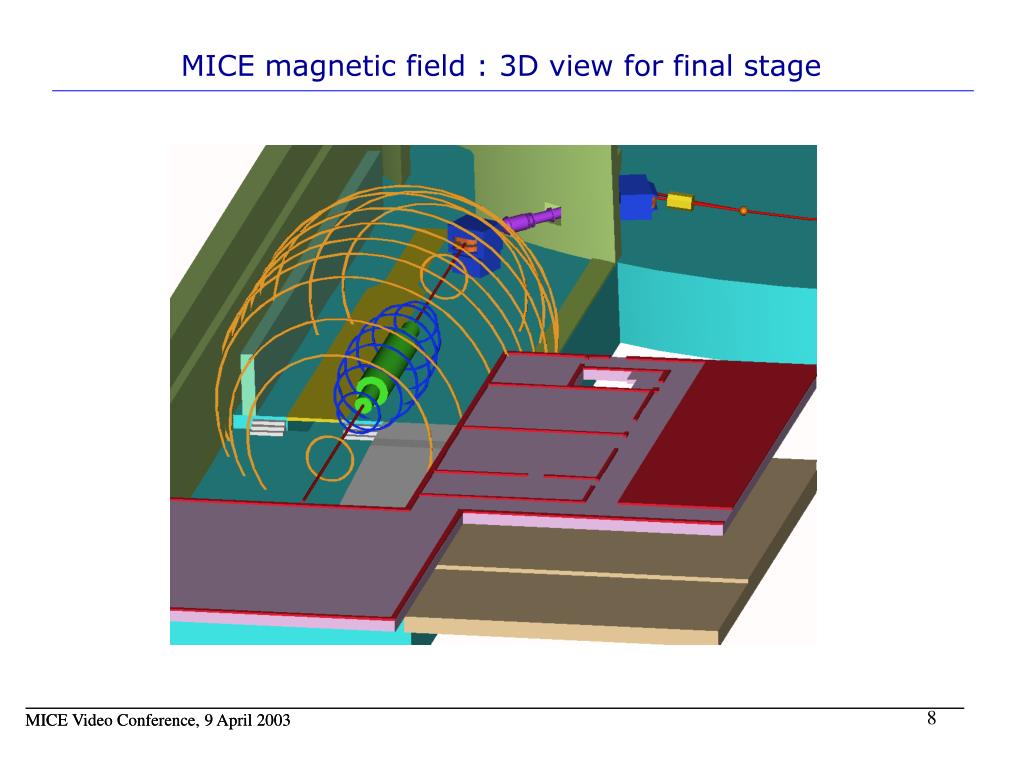

  8. MICE magnetic field : 3D view for final stage MICE Video Conference, 9 April 2003 MICE Video Conference, 9 April 2003
