  1. Matrix FactorizationModels, Algorithms and Applications

  2. Outline • Problem Definition • Overview • Taxonomy by targeted tasks • Taxonomy by models • Taxonomy by algorithms • Representative work • Summary and Discussion

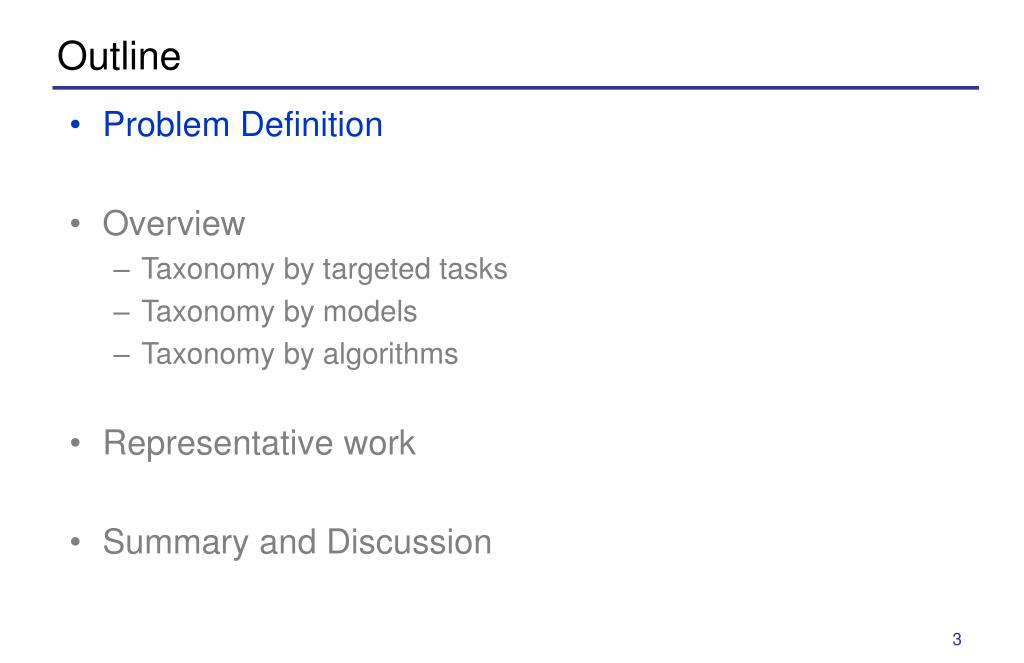

  3. Outline • Problem Definition • Overview • Taxonomy by targeted tasks • Taxonomy by models • Taxonomy by algorithms • Representative work • Summary and Discussion

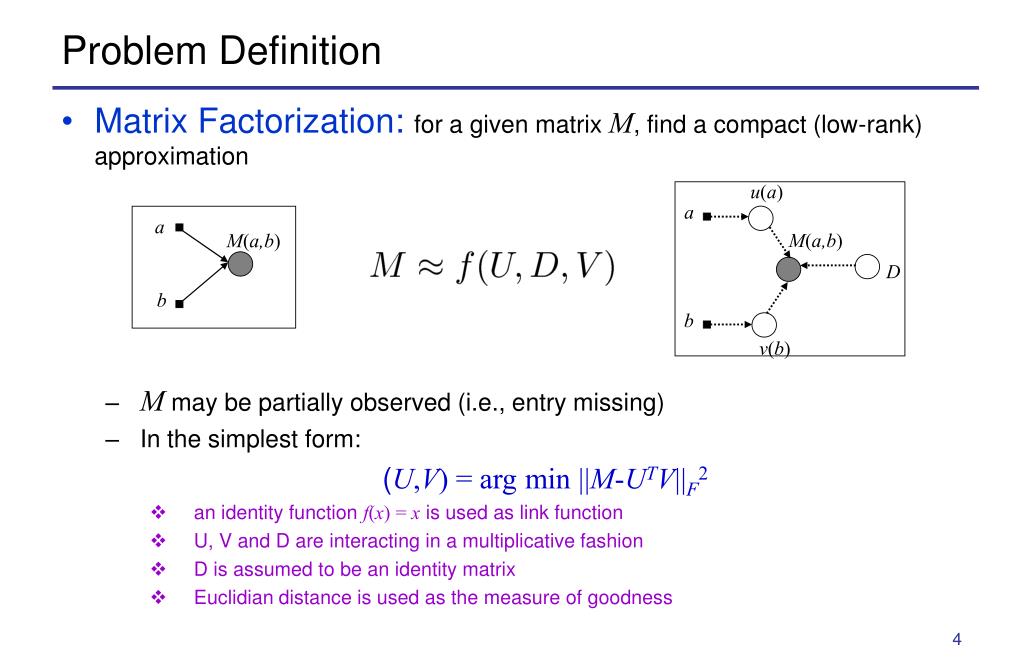

  4. a u(a) M(a,b) a M(a,b) b D b v(b) Problem Definition • Matrix Factorization: for a given matrix M, find a compact (low-rank) approximation • M may be partially observed (i.e., entry missing) • In the simplest form: (U,V) = argmin ||M-UTV||F2 • an identity function f(x)= x is used as link function • U, V and D are interacting in a multiplicative fashion • D is assumed to be an identity matrix • Euclidian distance is used as the measure of goodness

  5. a b c Problem Definition (cont) • Matrices Co-Factorization For a given set of related matrices {M}, find a coupled set of compact (low-rank) approximations • Each M represents an interaction observation between two entity • Multi-View MF: • Joint MF:

  6. Outline • Problem Definition • Overview • Taxonomy by targeted tasks • Taxonomy by models • Taxonomy by algorithms • Representative work • Summary and Discussion

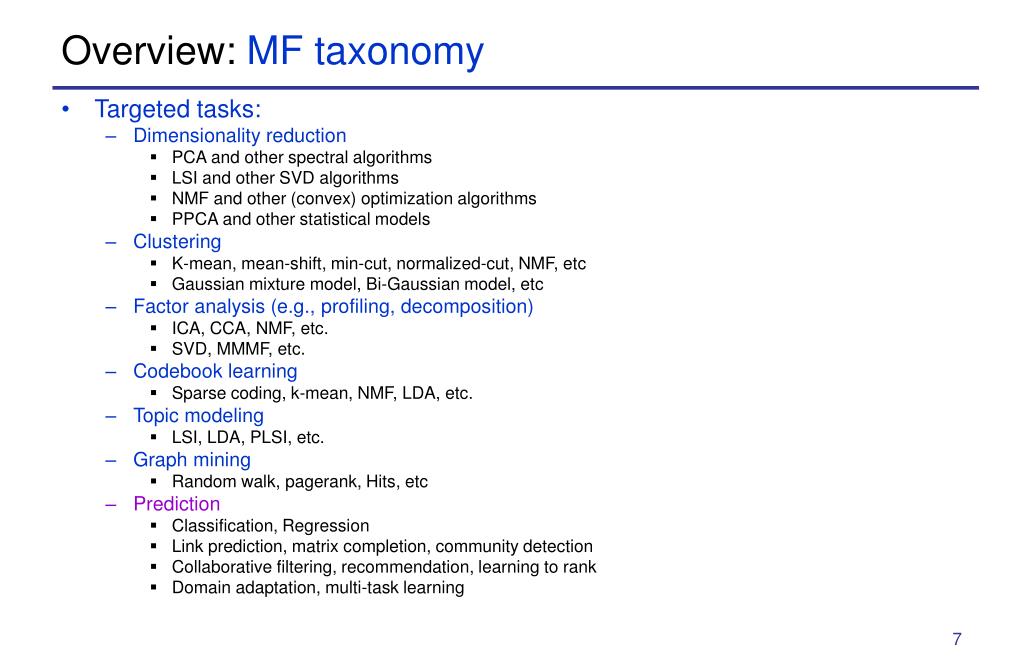

  7. Overview: MF taxonomy • Targeted tasks: • Dimensionality reduction • PCA and other spectral algorithms • LSI and other SVD algorithms • NMF and other (convex) optimization algorithms • PPCA and other statistical models • Clustering • K-mean, mean-shift, min-cut, normalized-cut, NMF, etc • Gaussian mixture model, Bi-Gaussian model, etc • Factor analysis (e.g., profiling, decomposition) • ICA, CCA, NMF, etc. • SVD, MMMF, etc. • Codebook learning • Sparse coding, k-mean, NMF, LDA, etc. • Topic modeling • LSI, LDA, PLSI, etc. • Graph mining • Random walk, pagerank, Hits, etc • Prediction • Classification, Regression • Link prediction, matrix completion, community detection • Collaborative filtering, recommendation, learning to rank • Domain adaptation, multi-task learning

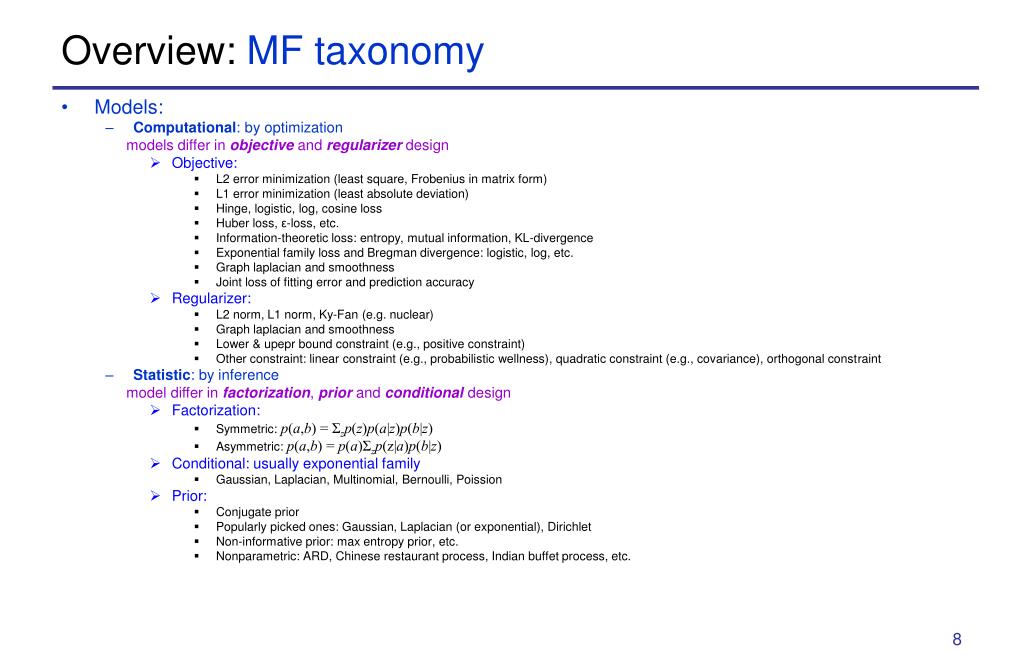

  8. Overview: MF taxonomy • Models: • Computational: by optimization models differ in objective and regularizer design • Objective: • L2 error minimization (least square, Frobenius in matrix form) • L1 error minimization (least absolute deviation) • Hinge, logistic, log, cosine loss • Huber loss, ε-loss, etc. • Information-theoretic loss: entropy, mutual information, KL-divergence • Exponential family loss and Bregman divergence: logistic, log, etc. • Graph laplacian and smoothness • Joint loss of fitting error and prediction accuracy • Regularizer: • L2 norm, L1 norm, Ky-Fan (e.g. nuclear) • Graph laplacian and smoothness • Lower & upepr bound constraint (e.g., positive constraint) • Other constraint: linear constraint (e.g., probabilistic wellness), quadratic constraint (e.g., covariance), orthogonal constraint • Statistic: by inference model differ in factorization, prior and conditional design • Factorization: • Symmetric: p(a,b) = Σzp(z)p(a|z)p(b|z) • Asymmetric: p(a,b) = p(a)Σzp(z|a)p(b|z) • Conditional: usually exponential family • Gaussian, Laplacian, Multinomial, Bernoulli, Poission • Prior: • Conjugate prior • Popularly picked ones: Gaussian, Laplacian (or exponential), Dirichlet • Non-informative prior: max entropy prior, etc. • Nonparametric: ARD, Chinese restaurant process, Indian buffet process, etc.

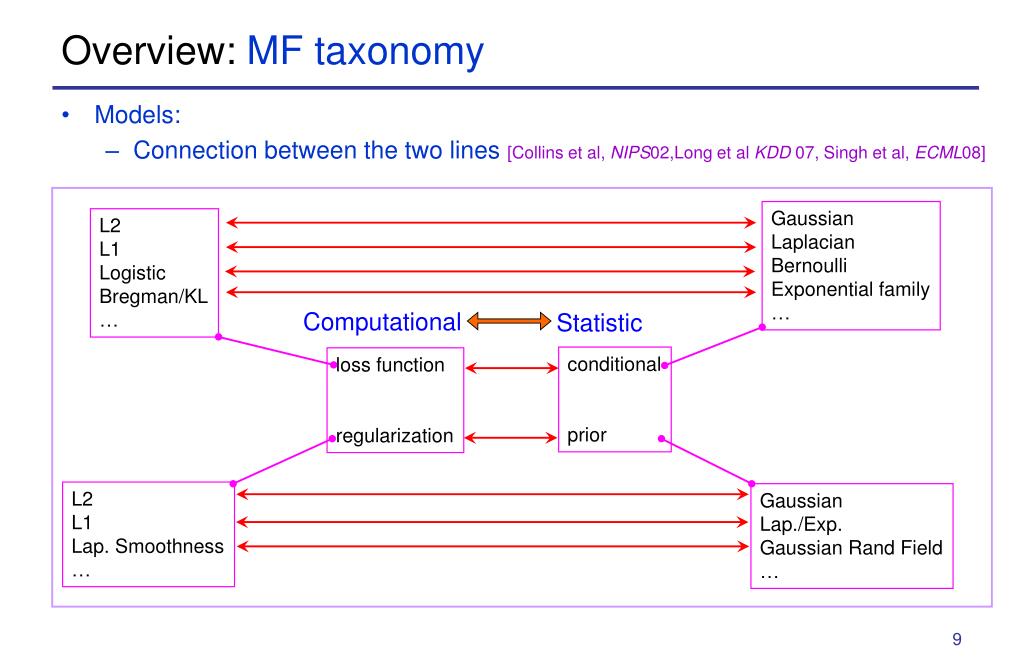

  9. Overview: MF taxonomy • Models: • Connection between the two lines [Collins et al, NIPS02,Long et al KDD 07, Singh et al, ECML08] Gaussian Laplacian Bernoulli Exponential family … L2 L1 Logistic Bregman/KL … Computational Statistic conditional prior loss function regularization L2 L1 Lap. Smoothness … Gaussian Lap./Exp. Gaussian Rand Field …

  10. Overview: MF taxonomy • Algorithm: • Deterministic: • Spectral analysis • Matrix decomposition: SVD, QR, LU • Solving linear system • Optimization: LP, gradient descent, conjugate gradient, quasi-Newton, SDP, etc. • Alternative coordinate descent • LARS, IRLS • EM • Mean field, Variational Bayesian, Expectation Propagation, collapsed VB • … • Stochastic: • Stochastic gradient descent (back propagation, message passing) • Monte Carlo: MCMC, Gibbs sampling, collapsed MCMC • Random walk • Simulated annealing, annealing EM • Randomized projection • …

  11. Outline • Problem Definition • Overview • Taxonomy by targeted tasks • Taxonomy by models • Taxonomy by algorithms • Representative work • Summary and Discussion

  12. Representative Work • Spectral dimensionality reduction / clustering: • PCA: • L2 loss + orthogonal constraint min ||M – UTV||F2, subject to: VTV = I • Solve by spectral analysis of MTM • Analogous to factor-based collaborative filtering • Laplacian eigenmap: • Laplacian smoothness + orthogonal constraint min wij||uiV-ujV||2, subject to: VTV = I • Graph encodes neighboring info, e.g., heat, kNN • Analogous to neighbor-based collaborative filtering

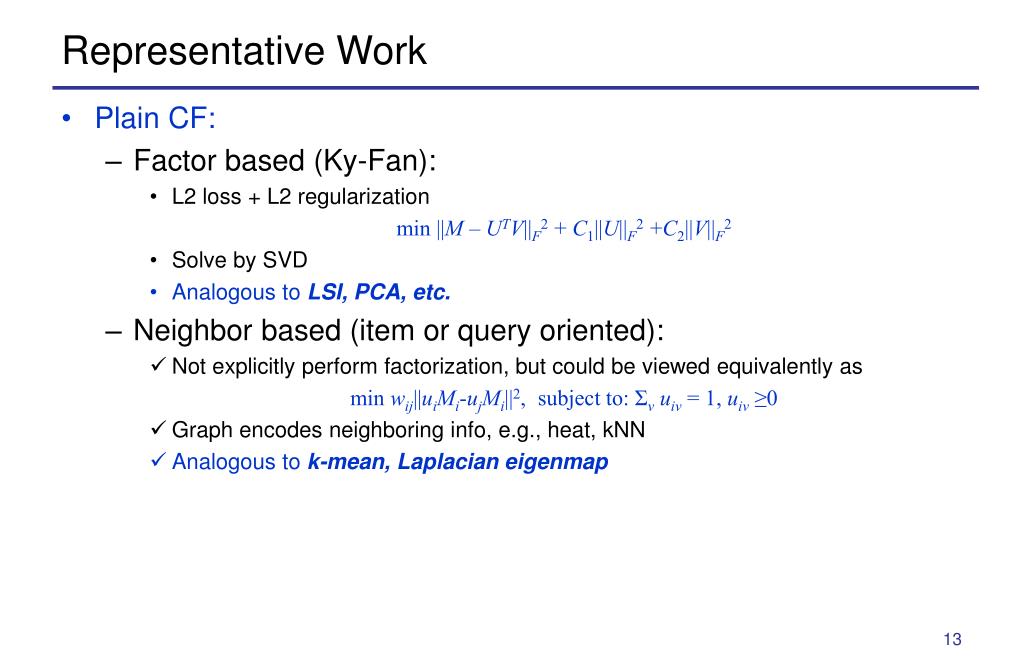

  13. Representative Work • Plain CF: • Factor based (Ky-Fan): • L2 loss + L2 regularization min ||M – UTV||F2 + C1||U||F2 +C2||V||F2 • Solve by SVD • Analogous to LSI, PCA, etc. • Neighbor based (item or query oriented): • Not explicitly perform factorization, but could be viewed equivalently as min wij||uiMi-ujMi||2, subject to: Σv uiv = 1, uiv ≥0 • Graph encodes neighboring info, e.g., heat, kNN • Analogous to k-mean, Laplacian eigenmap

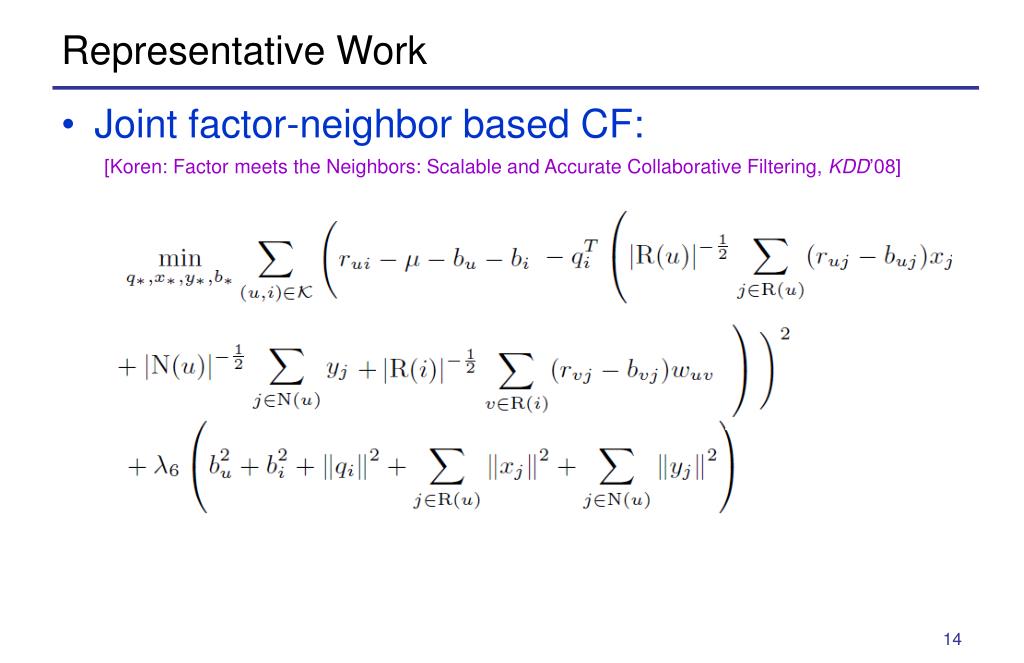

  14. Representative Work • Joint factor-neighbor based CF: [Koren: Factor meets the Neighbors: Scalable and Accurate Collaborative Filtering, KDD’08] • L2 loss + L2 regularization • Neighbor graph constructed by pearson correlation • Solve by stochastic gradient descent • Analogous to locality (Laplacian) regularizedPCA.

  15. Representative Work • Max-margin matrix factorization: • Max-margin dimensionality reduction: [a lot of work here] • Hinge loss + L2 regularization min h(yij – uiTDvj)+C1||D||F2+C2||U||F2 +C3||V||F2 • Solve by SDP, cutting plane, etc. • Max-Margin Matrix Factorization:[Srebro et al, NIPS 2005, ALT 2005] • Hinge loss + Ky-Fan min h(mij – uiTvj)+C1||U||F2+C2||V||F2 • Note: no constraint for the rank of U or V • Solve by SDP • CoFi-Rank: [Weimer et al, NIPS 2009] • NDCG + Ky-Fan min n(mij – uiTvj)+C1||U||F2+C2||V||F2 • Note: no constraint for the rank of U or V • Solve by SDP, bundle methods

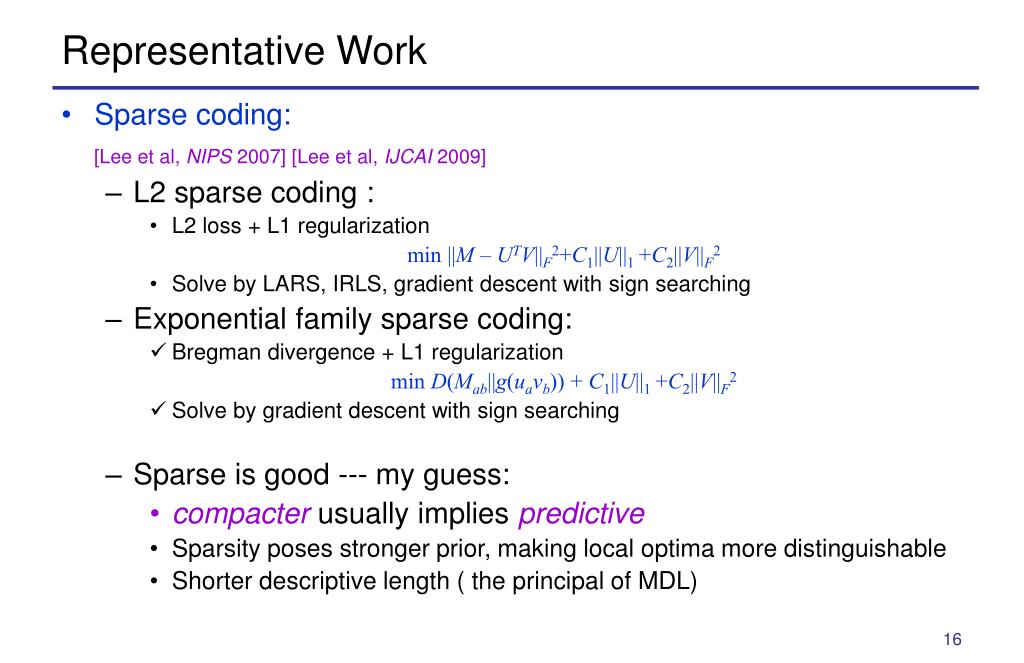

  16. Representative Work • Sparse coding: [Lee et al, NIPS 2007] [Lee et al, IJCAI 2009] • L2 sparse coding : • L2 loss + L1 regularization min ||M – UTV||F2+C1||U||1 +C2||V||F2 • Solve by LARS, IRLS, gradient descent with sign searching • Exponential family sparse coding: • Bregman divergence + L1 regularization min D(Mab||g(uavb)) + C1||U||1 +C2||V||F2 • Solve by gradient descent with sign searching • Sparse is good --- my guess: • compacter usually implies predictive • Sparsity poses stronger prior, making local optima more distinguishable • Shorter descriptive length ( the principal of MDL)

  17. Representative Work • NMF, LDA, and Exponential PCA • NMF: [Lee et al, NIPS 2001] • L2 loss + nonnegative constraint min ||M – UTV||F2, subject to: U≥0, V ≥0 • Solve by SDP, projected gradient descent, interior point • LDA: [Blei et al, NIPS 2002] • Asymmetric + Multinomial conditional + conjugate (Dirichlet) prior ua~ Dir(α), zab~Disc(ua), Mab~Mult(V, zab) • Variational Bayesian, EP, Gibbs sampling, collapsed VB/GS • Exponential PCA: [Collins et al, NIPS 2002] • Bregman divergence + orthogonal constraint min D(Mab||g(uavb)) , subject to: VTV = I • Solved by gradient descent • Essentially, these are equivalent to each other

  18. Representative Work • Link analysis: • Factor based / bi-clustering:[a lot of papers in co-clustering and social network analysis] • L2 loss + L2 regularization min ||M – UTDV||F2+C1||U||1 +C2||V||F2 +C3||D||F2 • To further simplify, assume diagonal or even identity D • Modern models use logistic regression • Bayesian Co-clustering [Shan et al ICDM 2008] Or Mixed membership stochastic block model [Airoldi et al, NIPS 2008] • Symmetric + Bernoulli conditional + Dirichlet prior ui~ Dir(α), zi~Disc(ui), Mij~sigmoid(ziTDzj) • Nonparametric feature model:[Miller et al, NIPS 2010] • Symmetric + Bernoulli conditional + Nonparametric prior zi~ IBP(α), Mij~sigmoid(ziTDzj) • In essence, equivalent

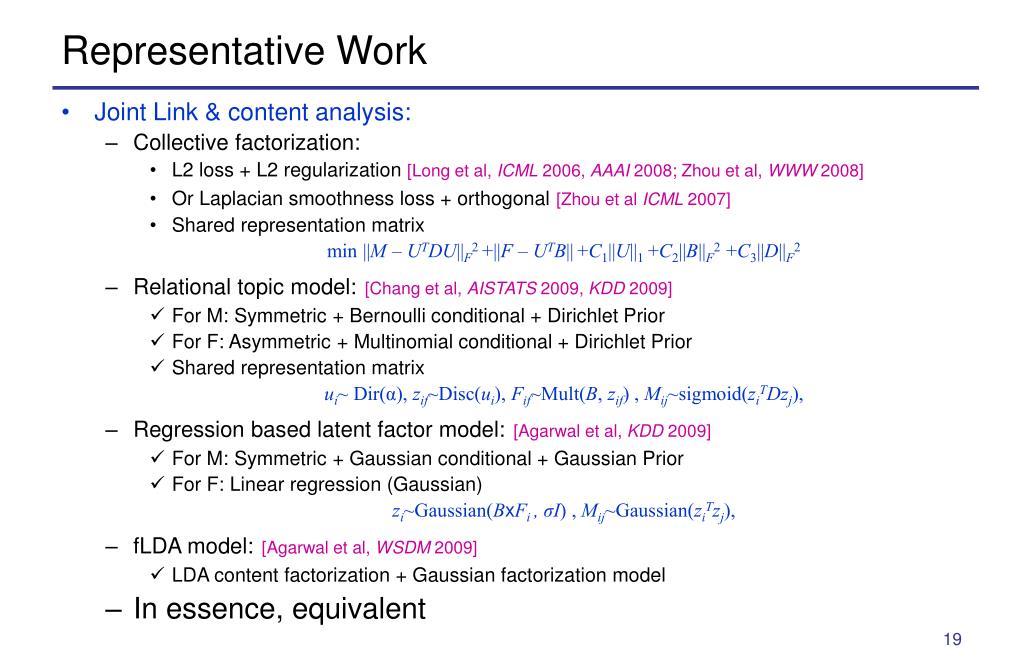

  19. Representative Work • Joint Link & content analysis: • Collective factorization: • L2 loss + L2 regularization [Long et al, ICML 2006, AAAI 2008; Zhou et al, WWW 2008] • Or Laplacian smoothness loss + orthogonal[Zhou et al ICML 2007] • Shared representation matrix min ||M – UTDU||F2 +||F – UTB||+C1||U||1 +C2||B||F2 +C3||D||F2 • Relational topic model:[Chang et al, AISTATS 2009, KDD 2009] • For M: Symmetric + Bernoulli conditional + Dirichlet Prior • For F: Asymmetric + Multinomial conditional + Dirichlet Prior • Shared representation matrix ui~ Dir(α), zif~Disc(ui), Fif~Mult(B, zif) , Mij~sigmoid(ziTDzj), • Regression based latent factor model:[Agarwal et al, KDD 2009] • For M: Symmetric + Gaussian conditional + Gaussian Prior • For F: Linear regression (Gaussian) zi~Gaussian(BxFi , σI) , Mij~Gaussian(ziTzj), • fLDA model:[Agarwal et al, WSDM 2009] • LDA content factorization + Gaussian factorization model • In essence, equivalent

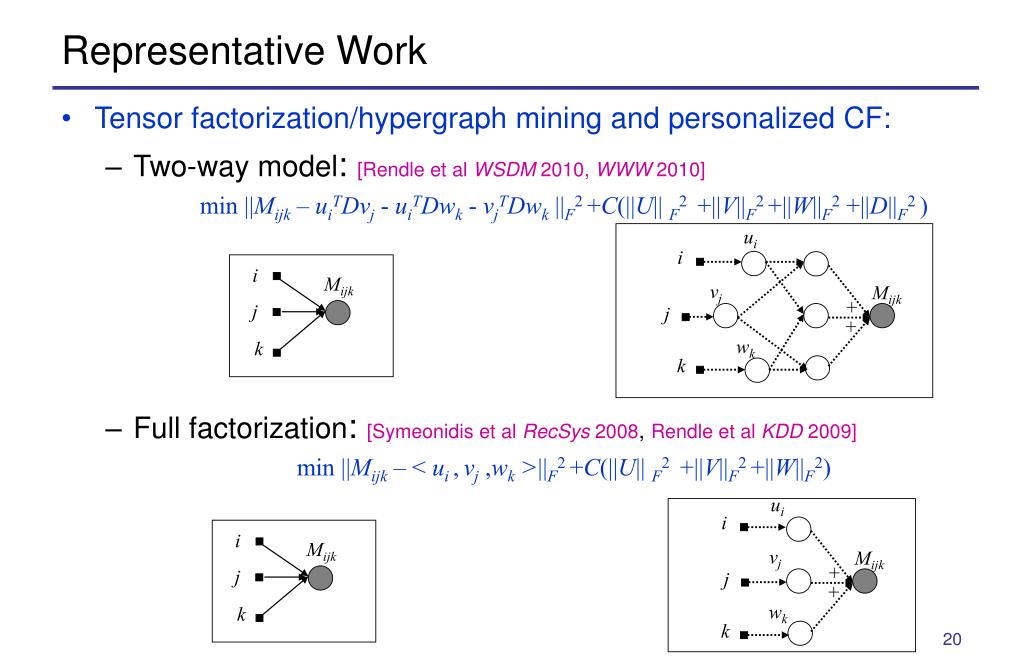

  20. ui ui i Mijk i i i j Mijk vj Mijk vj Mijk + + j j j k + + wk k wk k k Representative Work • Tensor factorization/hypergraph mining and personalized CF: • Two-way model: [Rendle et al WSDM 2010, WWW 2010] min ||Mijk – uiTDvj- uiTDwk- vjTDwk||F2 +C(||U|| F2+||V||F2 +||W||F2 +||D||F2 ) • Full factorization: [Symeonidis et al RecSys 2008, Rendle et al KDD 2009] min ||Mijk – < ui ,vj,wk >||F2 +C(||U|| F2+||V||F2 +||W||F2)

  21. Outline • Problem Definition • Overview • Taxonomy by targeted tasks • Taxonomy by models • Taxonomy by algorithms • Representative work • Summary and Discussion

  22. Summary and discussion • Recipe for design an MF model: • Step 1: Understand your task / data: • What is the goal of my task? • What is the underlying mechanism in the task? • Knowledge, patterns, heuristics, clues… • What data are available to support my task? • Are all the available data sources reliable and useful to achieve the goal? Any preprocessing/aggregation needed? • What is the basic characteristic of my data? • Symmetric, directional • positive, fractional, centralized, bounded • positive definite, triangle inequality • Which distribution is appropriate to interpret my data? • Any special concerns for the task? • Task requirement: is there a need for online operation? • Resources constraint: computational cost, labeled data,…

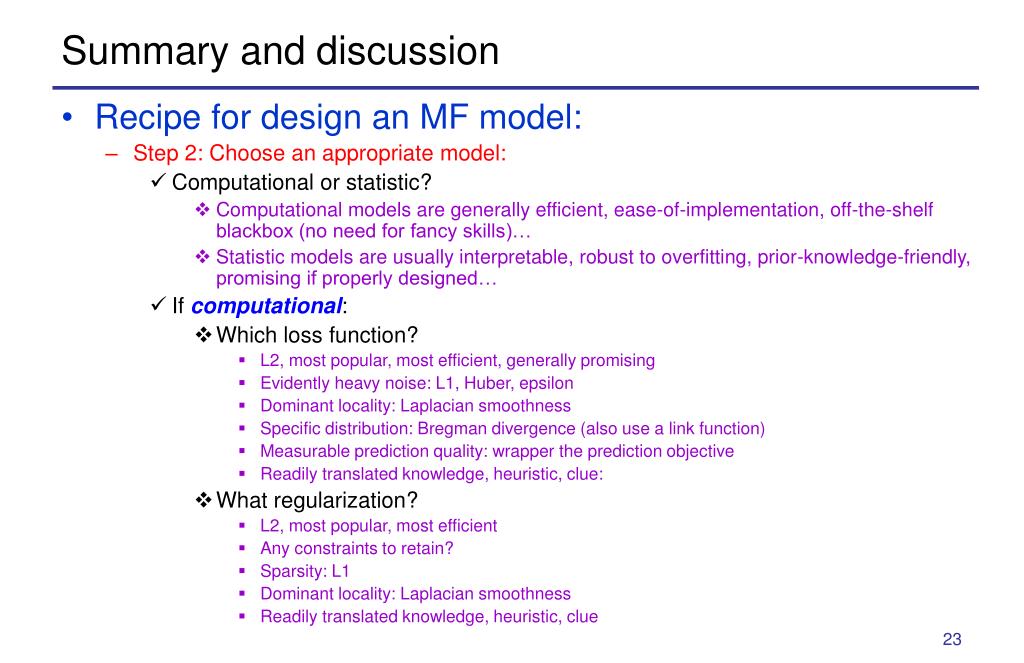

  23. Summary and discussion • Recipe for design an MF model: • Step 2: Choose an appropriate model: • Computational or statistic? • Computational models are generally efficient, ease-of-implementation, off-the-shelf blackbox (no need for fancy skills)… • Statistic models are usually interpretable, robust to overfitting, prior-knowledge-friendly, promising if properly designed… • If computational: • Which loss function? • L2, most popular, most efficient, generally promising • Evidently heavy noise: L1, Huber, epsilon • Dominant locality: Laplacian smoothness • Specific distribution: Bregman divergence (also use a link function) • Measurable prediction quality: wrapper the prediction objective • Readily translated knowledge, heuristic, clue: • What regularization? • L2, most popular, most efficient • Any constraints to retain? • Sparsity: L1 • Dominant locality: Laplacian smoothness • Readily translated knowledge, heuristic, clue

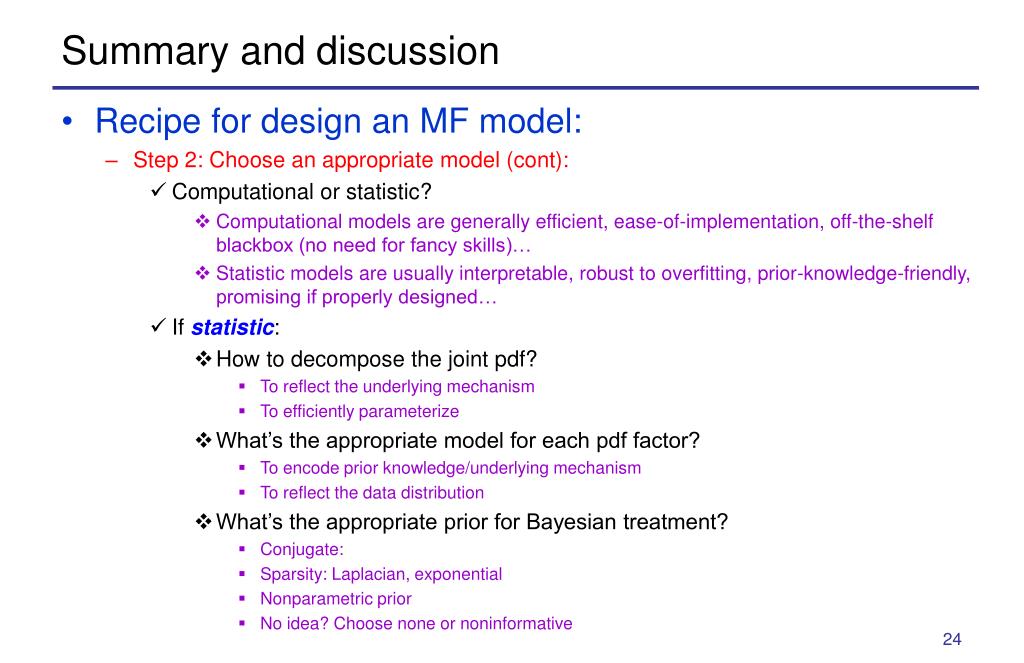

  24. Summary and discussion • Recipe for design an MF model: • Step 2: Choose an appropriate model (cont): • Computational or statistic? • Computational models are generally efficient, ease-of-implementation, off-the-shelf blackbox (no need for fancy skills)… • Statistic models are usually interpretable, robust to overfitting, prior-knowledge-friendly, promising if properly designed… • If statistic: • How to decompose the joint pdf? • To reflect the underlying mechanism • To efficiently parameterize • What’s the appropriate model for each pdf factor? • To encode prior knowledge/underlying mechanism • To reflect the data distribution • What’s the appropriate prior for Bayesian treatment? • Conjugate: • Sparsity: Laplacian, exponential • Nonparametric prior • No idea? Choose none or noninformative

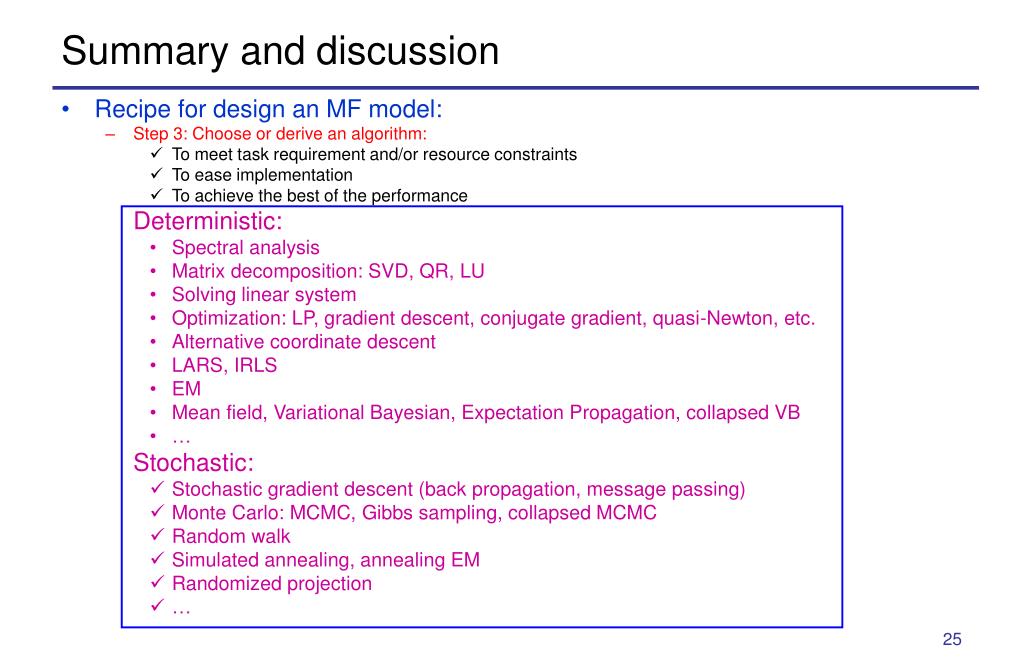

  25. Summary and discussion • Recipe for design an MF model: • Step 3: Choose or derive an algorithm: • To meet task requirement and/or resource constraints • To ease implementation • To achieve the best of the performance Deterministic: • Spectral analysis • Matrix decomposition: SVD, QR, LU • Solving linear system • Optimization: LP, gradient descent, conjugate gradient, quasi-Newton, etc. • Alternative coordinate descent • LARS, IRLS • EM • Mean field, Variational Bayesian, Expectation Propagation, collapsed VB • … Stochastic: • Stochastic gradient descent (back propagation, message passing) • Monte Carlo: MCMC, Gibbs sampling, collapsed MCMC • Random walk • Simulated annealing, annealing EM • Randomized projection • …

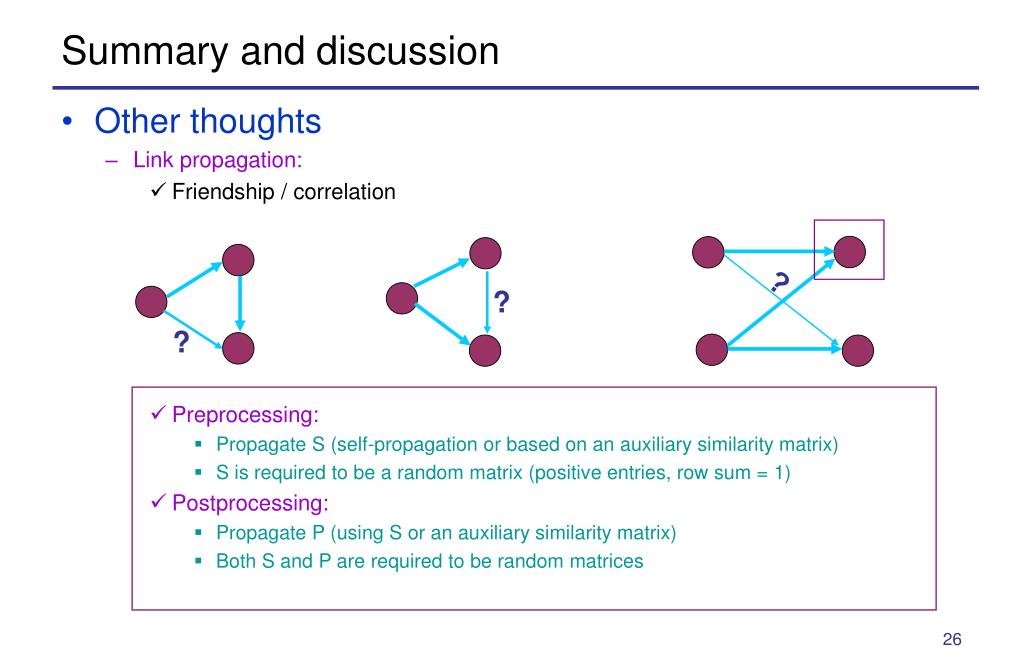

  26. Summary and discussion • Other thoughts • Link propagation: • Friendship / correlation • Preprocessing: • Propagate S (self-propagation or based on an auxiliary similarity matrix) • S is required to be a random matrix (positive entries, row sum = 1) • Postprocessing: • Propagate P (using S or an auxiliary similarity matrix) • Both S and P are required to be random matrices ? ? ?

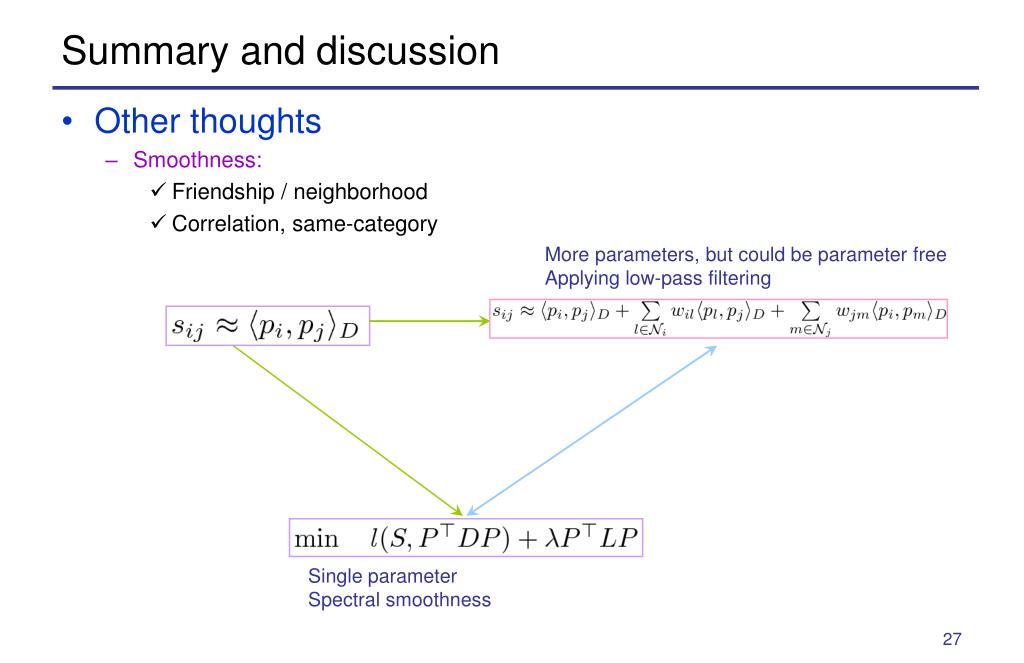

  27. Summary and discussion • Other thoughts • Smoothness: • Friendship / neighborhood • Correlation, same-category More parameters, but could be parameter free Applying low-pass filtering Single parameter Spectral smoothness

  28. Thanks! Any comments would be appreciated!
