  1. GIS • GIS (Geographic Information System) • 500 vehicles tracking at one time • Real time vehicle GPS coordinates and video image • Google Maps, Microsoft Virtual Earth and user-defined maps • Detection – Detour, Idle speed and Over speed • Customized landmark (interested points) • Remote monitoring and tracking through IE browser Dongle (Basic:1,3,5, 10 host/level, max. 500 host)

  2. GIS • GIS (Geographic Information System) connection diagram

  3. GIS GIS (Geographic Information System) setting requirement: • Internet connection • Map API • Mobile/Fix host connection

  4. GIS • GIS (Geographic Information System)

  5. GIS • Supported mobile host • GV Video server • VS02(V2) • VS02A • VS12 • VS04A • VS04H • GV Compact DVR • LX4C • LX4C2 • LX4C2V • LX4C3V

  6. GIS • Supported UMTS: • HUAWEI E169, E220, E1692, EC169C, E1750, E1752, E1756 USB Modem (HSDPA/UMTS/EDGE/GPRS/GSM) • Novatel MC950D, MC996D, MC998D (HSDPA/UMTS/EDGE/GPRS/GSM) • Onda MSA523HS • Verizon USB760 Modem (EVDO) • Vodafone K3565 (Rev 2)

  7. GIS • GPS receiver interface: • UART • 232

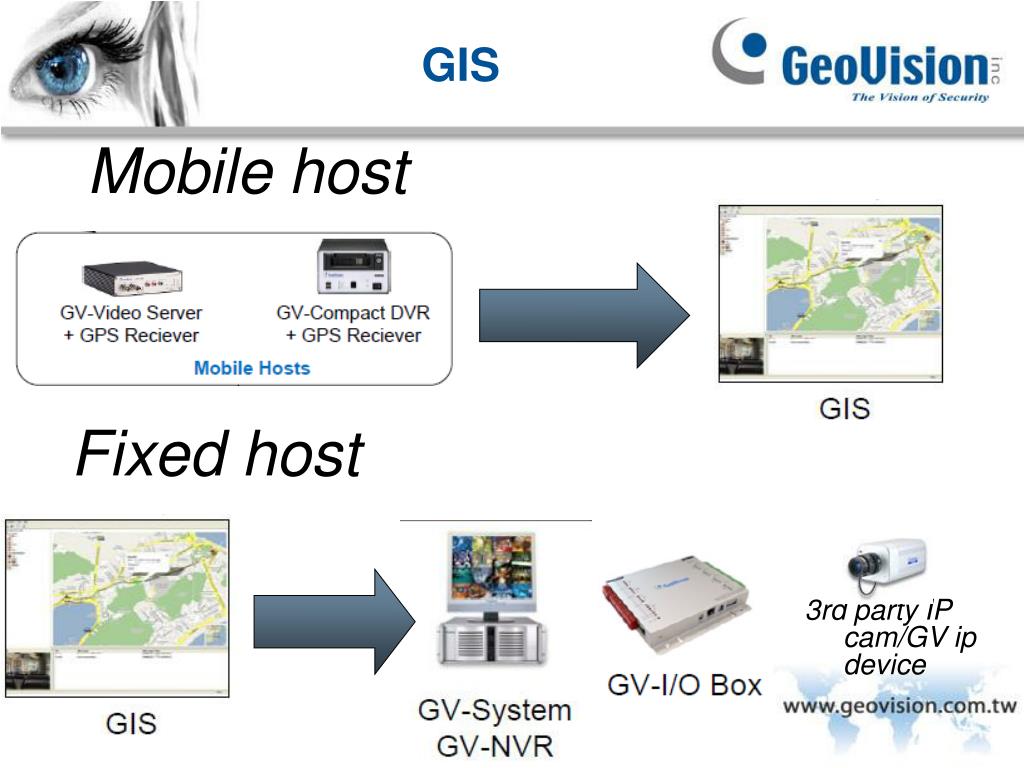

  8. GIS Mobile host • Fixed host • 3rd party IP cam/GV ip device

  9. GIS • Mobile host connection to GIS

  10. GIS • Fix host connection setting

  11. Mobile host map view • Tracking multiple host • Single window Multiple window, max.16

  12. GIS • Map event setting: • Set Detection Area • Set Detection Route • Idle speed check • Over speed detection

  13. GIS Maximum detection areas from 1 to 50 areas

  14. GIS • Set Detection Route

  15. GIS • Search the Nearest Entry Sending driving directions through e-mail and SMS

  16. GIS • Live viewing • Defog, stabilizer, PIP and PAP • Two way audio • PTZ • Visual automation • Snapshot • Zoom 1x, 2x and 3x • Colorful mode

  17. GIS • Playing back GPS Tracks • Displaying the longitude and latitude of a Mobile Host with its GPS track playback Remote viewlog

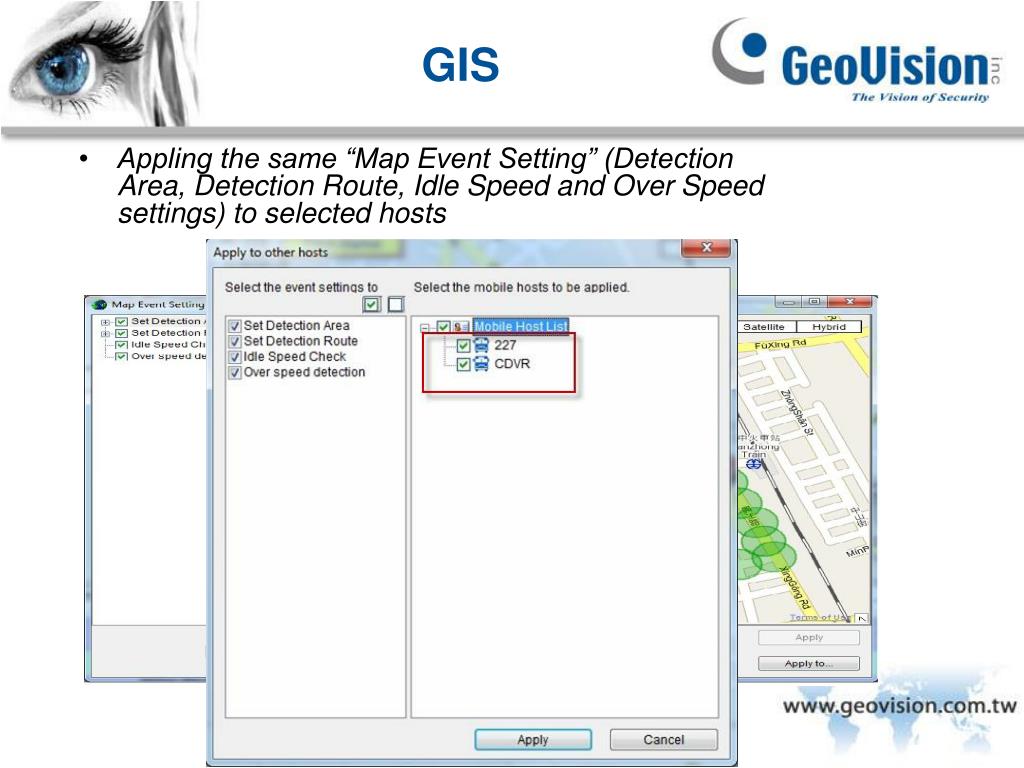

  18. GIS • Appling the same “Map Event Setting” (Detection Area, Detection Route, Idle Speed and Over Speed settings) to selected hosts

  19. GIS • GIS (Geographic Information System) spec continue

  20. GIS • Adv. operation • Emap • Visible Emap Icon setting • Point of interest • View marker • Driving directions • Self-Defining event color • Showing host position on an alarm event • Applying longitude and latitude position on fixed hosts • Monitoring GV-I/O box 8/16(run as fix host)

  21. GIS • GIS-Search place and device • Search for any devices and places within a defined area “Address, city, state” or “Address, city, ZIP”.

  22. GIS • GIS-Add maker/Saving a view • Every time when you click on the view marker, the map will return to the saved view • point of interest • desired view and zoom level

  23. GIS • GIS-Fail over support • You can configure up to two backup servers in case of the primary GV-GIS • server failure. Whenever the primary fails, the backup server takes over the connection from the primary server, providing uninterrupted GIS services. Once the primary station is ready to resume the services, it is required to close the backup station so the connection from subscribers can move back to the primary.
