Advancement in Distillation Process Modeling Using Complex Step Derivatives

joelle avatar
joelle
22 diapositives · 406 Views · Oct 09, 2014

This research update discusses the application of complex step derivatives in the modeling of distillation processes, interrupting traditional methods to enhance accuracy without roundoff errors. The focus is on stage-based versus continuous models, exploring material balance at steady state, the equilibrium model based on Raoult’s law, and various simulations ranging from simplified to detailed process models. Insights on convective transfer between stages and reaction dynamics are provided, along with MATLAB and AspenPlus implementations. The findings contribute to the improvement of efficiency in chemical separation processes.

#advancement in distillation process modeling using complex step derivatives #advancement in distillation process modeling using complex step derivatives ppt #powerpoint #presentation
Advancement in Distillation Process Modeling Using Complex Step Derivatives - slide 1
01 / 22Advancement in Distillation Process Modeling Using Complex Step Derivatives
1 / 17

Télécharger la présentation

Advancement in Distillation Process Modeling Using Complex Step Derivatives
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

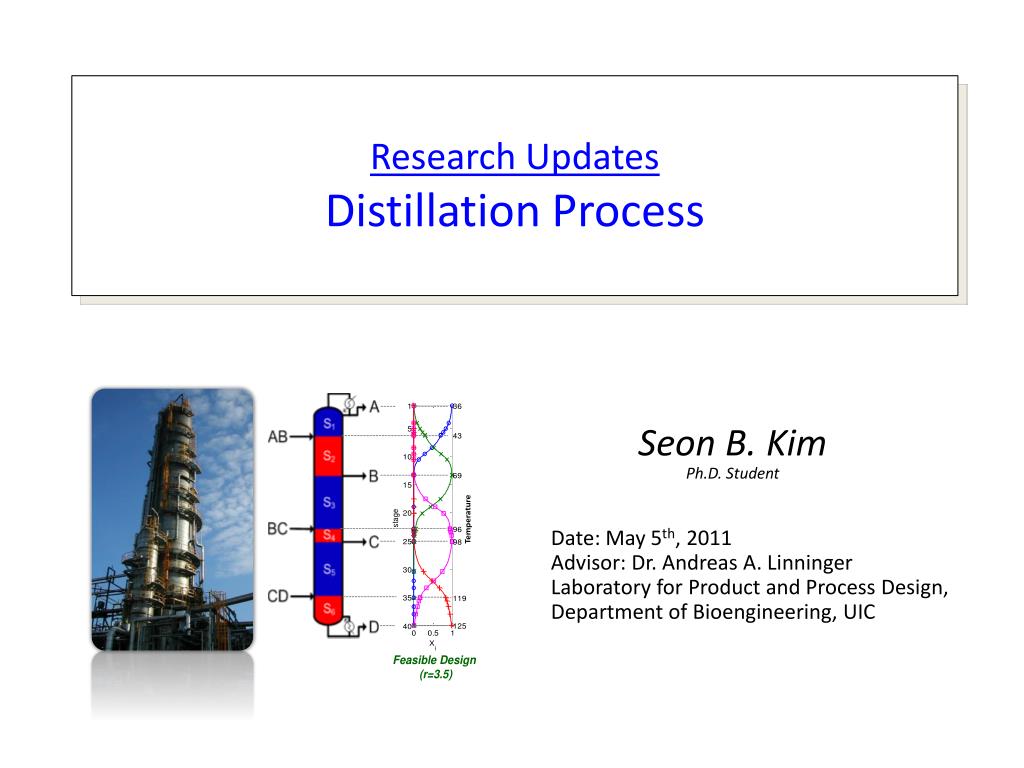

  1. Research UpdatesDistillation Process Seon B. Kim Ph.D. Student Date: May 5th, 2011 Advisor: Dr. Andreas A. Linninger Laboratory for Product and Process Design, Department of Bioengineering, UIC

  2. Updates • REU/RET activities

  3. Complex Step Derivatives F(x)=x3, x=0.5, dx=1e-05 F(x)=x3, x=0.5, dx=1e-10 • Possible reason of accuracy of complex step derivative • No roundoff error by substraction

  4. Stage-based VS continuous model • Stage-to-stage model • Material balance at steady state (rectifying section) • V = D + L (all molar flow rates) • Vyi= Dxi+ Lxi • Equilibrium model (Raoult’s law) • , when is equal to 1, then it becomes the ideal mixture model. x1 y1 • Discretized continuous model • Convective transfer between discretized stages • Reaction at equilibrium • Only changes by reaction between vapor and liquid phases. Rectifying section x2 y2 y3 x3 Reaction section x4 y4 x5 y5 Stripping section x6 y6

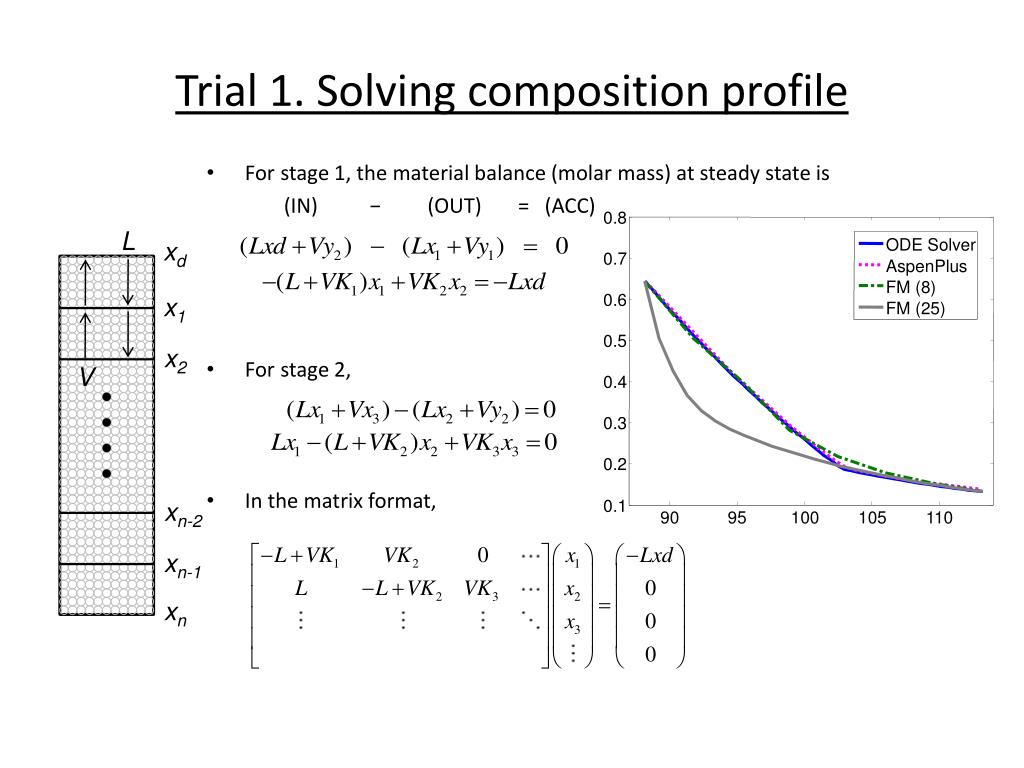

  5. 0.8 ODE Solver 0.7 AspenPlus FM (8) 0.6 FM (25) 0.5 0.4 0.3 0.2 0.1 90 95 100 105 110 Trial 1. Solving composition profile • For stage 1, the material balance (molar mass) at steady state is (IN) − (OUT) = (ACC) • For stage 2, • In the matrix format, L xd x1 x2 V xn-2 xn-1 xn

  6. Trial 2. Solving Tray-by-tray equation • Simplified 1 dimensional distillation column • Operating equation • Reaction (assuming 1st order reaction) • At dynamic state, • At steady state, • Here, I used Antoine parameters to find K x1 dh or dT x2

  7. Trial 2. Solving Tray-by-tray equation (cont’d) • Linear algebraic solution of tray-by-tray model x1 T1=37.6oC x2 dT=5oC x3 x4 x5 x6

  8. Trial 3. Solving Continuous model equation • Simplified 1 dimensional distillation column Operating equation • Diffusion • Discretization • Change Independent variable h T x1 dh or dT x2

  9. Trial 3. Solving Continuous model equation(cont’d) x1 T1=37.6oC x2 dT=5oC x3 x4 x5 x6

  10. Mole fraction in distillation column Reflux drum condenser V L reboiler

  11. Molar flowrate in distillation column Reflux drum condenser Reflux ratio reflux / distillate = 65.12 / 38.87 = 1.675 V L Reboil (Boilup) ratio Btm Vapor / Bottom = 103.99 / 61.12 = 1.701 reboiler

  12. Molar flowrate in distillation column (cont’d) - Mole fraction of y1 : y1=K1*x1=0.6431*1.2757=0.8202 - Molar flow rate of material 1 y1*V=0.8202*103.99=85.31 • - Mole fraction of x1=0.6431 • Molar flow rate of material 1 • x1*L=0.6431*65.12=41.88 0 10 20 30 40 88.22 100.45 113.20 113.17 V L • Mole fraction of x1=0.2472 • Molar flow rate of material 1 x1*L=0.2472*65.12=16.09 - Mole fraction of y1 : y1=K1*x1=0.2472*1.7989=0.4447 - Molar flow rate of material 1 y1*V=0.4447*103.99=46.24 20 40 60 80 20 40 60 80

  13. 18 basic structures of 4 component separation

  14. Delphi flowsheet demo 1-1. MATLAB (BPD: 7.807e-4) DELPHI (BPD: 1.708e-3) AspenPlus

  15. Delphi flowsheet demo 1-2. MATLAB (BPD: 0.0070, 0.0092) DELPHI (BPD: 0.0035, 0.0021) AspenPlus

  16. Delphi flowsheet demo 1-3. MATLAB (BPD: 2.72e-3, 0.0015) DELPHI (BPD: 2.48e-3, 3.26e-3) AspenPlus

  17. Delphi flowsheet demo 2-1. MATLAB (BPD: 1.886e-3) DELPHI (BPD: 1.623e-4)

  18. Delphi flowsheet demo 2-2. MATLAB (ΣBPD: 1.038e-2) DELPHI (ΣBPD: 1.398e-3)

  19. Delphi flowsheet demo 2-3. MATLAB (BPD: 4.214e-8) DELPHI (BPD: 1.078e-3)

  20. Thank you

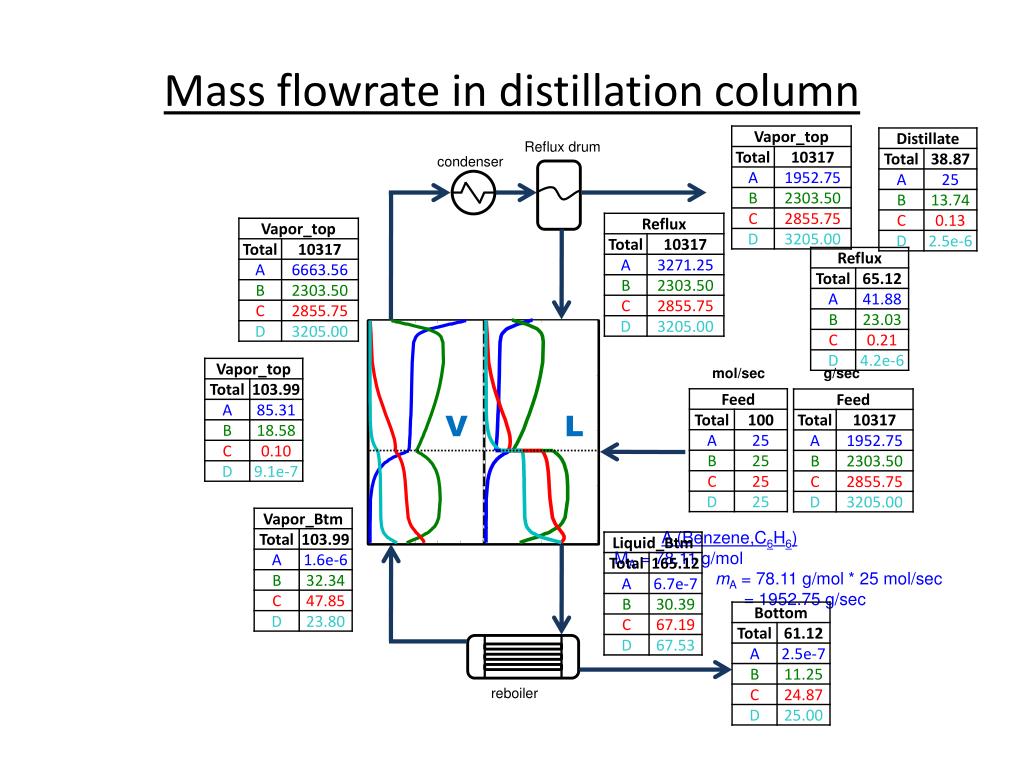

  21. Mass flowrate in distillation column Reflux drum condenser mol/sec g/sec V L A (Benzene,C6H6) MA = 78.11 g/mol mA = 78.11 g/mol * 25 mol/sec = 1952.75 g/sec reboiler

  22. Stage-based model • Equilibrium only on the stage • Between stages, just convective transfer • Continuous model • Equilibrium continuously through the column • Discretization necessary
