Depth First Search

Depth First Search. open site. dfs(0, 0). blocked site. reachable from top via open sites. 0. 1. 2. 3. 4. 0. 1. 2. 3. 4. Depth First Search. open site. dfs(0, 0). blocked site. reachable from top via open sites. 0. 1. 2. 3. 4.

joey
Télécharger la présentation

Depth First Search

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 0 1 2 3 4

  2. Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  3. mark down right left up dfs(0, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  4. mark down right left up dfs(0, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  5. mark down right left up mark down right left up dfs(0, 0) dfs(1, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  6. mark down right left up mark down right left up dfs(0, 0) dfs(1, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  7. mark down right left up mark down right left up dfs(0, 0) dfs(1, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  8. mark down right left up mark down right left up dfs(0, 0) dfs(1, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  9. mark down right left up mark down right left up dfs(0, 0) dfs(1, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  10. mark down right left up dfs(0, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  11. mark down right left up dfs(0, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  12. mark down right left up dfs(0, 0) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  13. Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  14. Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  15. mark down right left up dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  16. mark down right left up dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  17. mark down right left up mark down right left up dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  18. mark down right left up mark down right left up dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  19. mark down right left up mark down right left up mark down right left up dfs(2, 2) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  20. mark down right left up mark down right left up mark down right left up dfs(2, 2) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  21. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(3, 2) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  22. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(3, 2) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  23. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(3, 2) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  24. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(3, 2) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  25. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(3, 2) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  26. mark down right left up mark down right left up mark down right left up dfs(2, 2) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  27. mark down right left up mark down right left up mark down right left up dfs(2, 2) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  28. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(2, 1) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  29. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(2, 1) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  30. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(2, 1) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  31. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(2, 1) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  32. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(2, 1) dfs(2, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  33. mark down right left up mark down right left up mark down right left up dfs(2, 2) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  34. mark down right left up mark down right left up dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  35. mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  36. mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  37. mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  38. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(1, 4) dfs(1, 3) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  39. mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 2) dfs(1, 4) dfs(1, 3) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  40. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(2, 4) dfs(1, 4) dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  41. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(2, 4) dfs(1, 4) dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  42. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(3, 4) dfs(2, 4) dfs(1, 4) dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  43. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(3, 4) dfs(2, 4) dfs(1, 4) dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  44. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 4) dfs(0, 2) dfs(3, 4) dfs(4, 4) dfs(2, 4) dfs(1, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  45. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 4) dfs(0, 2) dfs(3, 4) dfs(4, 4) dfs(2, 4) dfs(1, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  46. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 4) dfs(0, 2) dfs(3, 4) dfs(4, 4) dfs(2, 4) dfs(1, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  47. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 4) dfs(0, 2) dfs(3, 4) dfs(4, 4) dfs(2, 4) dfs(1, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  48. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(1, 3) dfs(1, 4) dfs(0, 2) dfs(3, 4) dfs(4, 4) dfs(2, 4) dfs(1, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

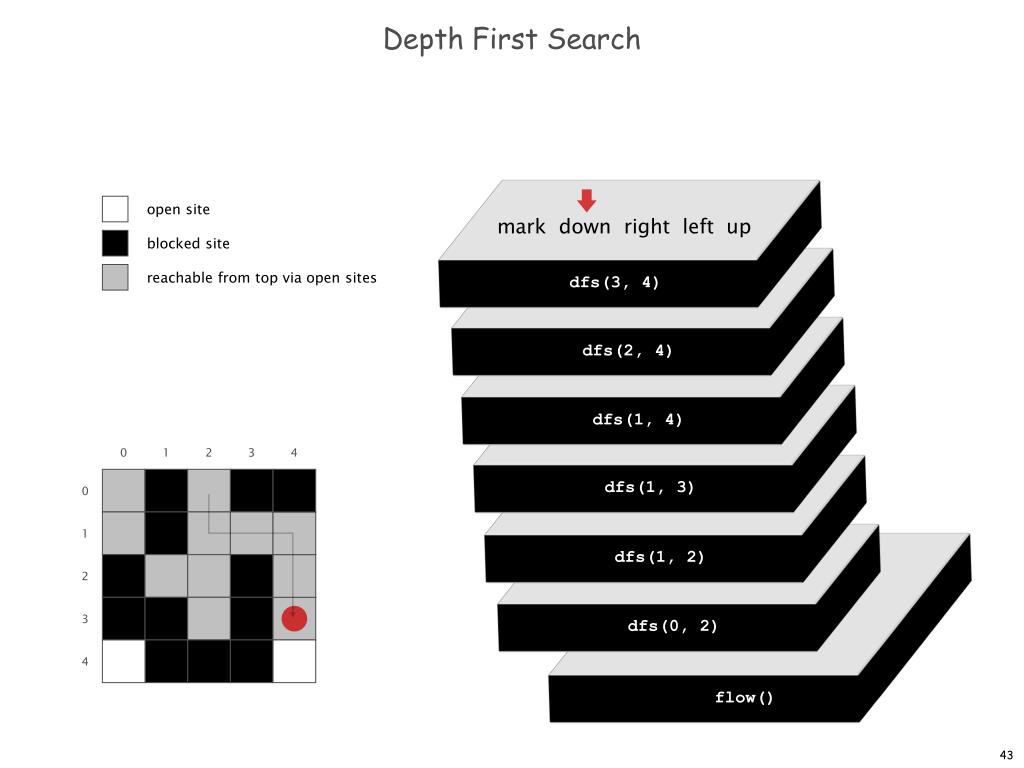

  49. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(3, 4) dfs(2, 4) dfs(1, 4) dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()

  50. mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up mark down right left up dfs(3, 4) dfs(2, 4) dfs(1, 4) dfs(1, 3) dfs(1, 2) dfs(0, 2) Depth First Search open site dfs(0, 0) blocked site reachable from top via open sites 0 1 2 3 4 dfs(0, 0) dfs(0, 1) dfs(0, 2) dfs(0, 3) dfs(0, 4) 0 1 2 3 4 flow()
