  1. Depletion of the North Sea and its Significance for Western Europe (a growing supply imbalance) J. Peter Gerling & Hilmar Rempel Federal Institute for Geosciences and Natural Resources (BGR), Hannover, Germany IWOOD2002 - Uppsala, 24.05.2002

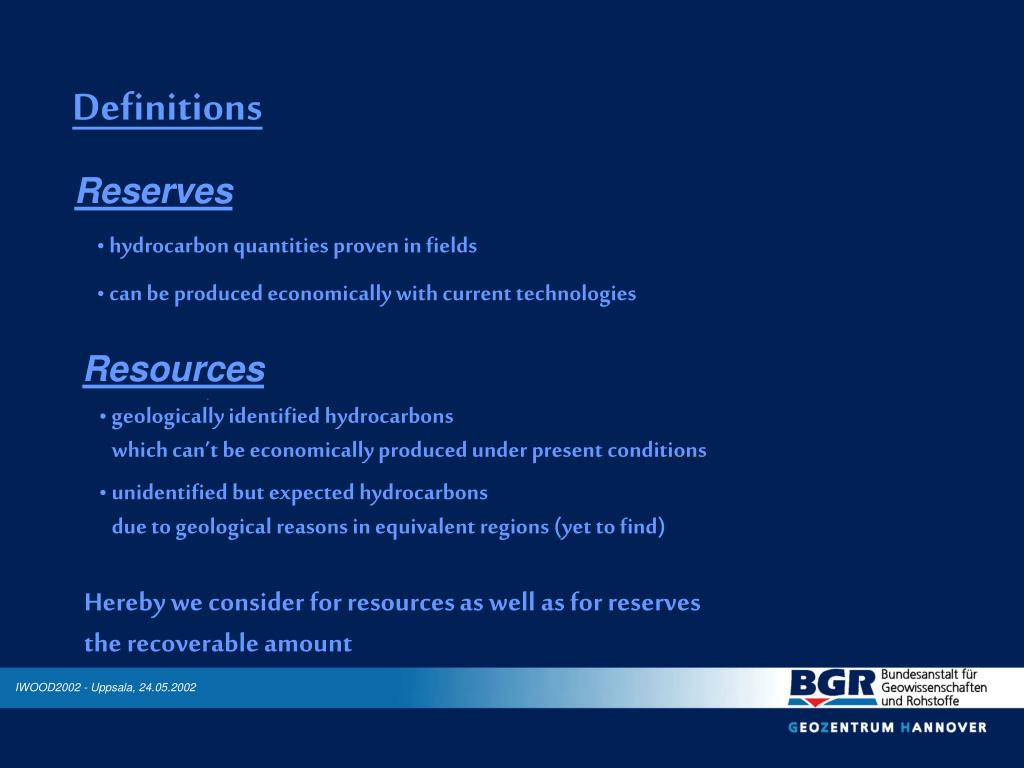

  2. Definitions . Reserves • hydrocarbon quantities proven in fields • can be produced economically with current technologies Resources • geologically identified hydrocarbons • which can’t be economically produced under present conditions • unidentified but expected hydrocarbons • due to geological reasons in equivalent regions (yet to find) Hereby we consider for resources as well as for reserves the recoverable amount IWOOD2002 - Uppsala, 24.05.2002

  3. Basic data Area : 575.000 km2 Surrounding countries : UK, NO, DK, GE Water depth : avg. 70 m, max. 725 m HC provinces : Northern North Sea (Oil + G) Central North Sea (Oil + C + G) Southern North Sea (Gas) NOT included : Norwegian Sea, Barents Sea Atlantic margin IWOOD2002 - Uppsala, 24.05.2002

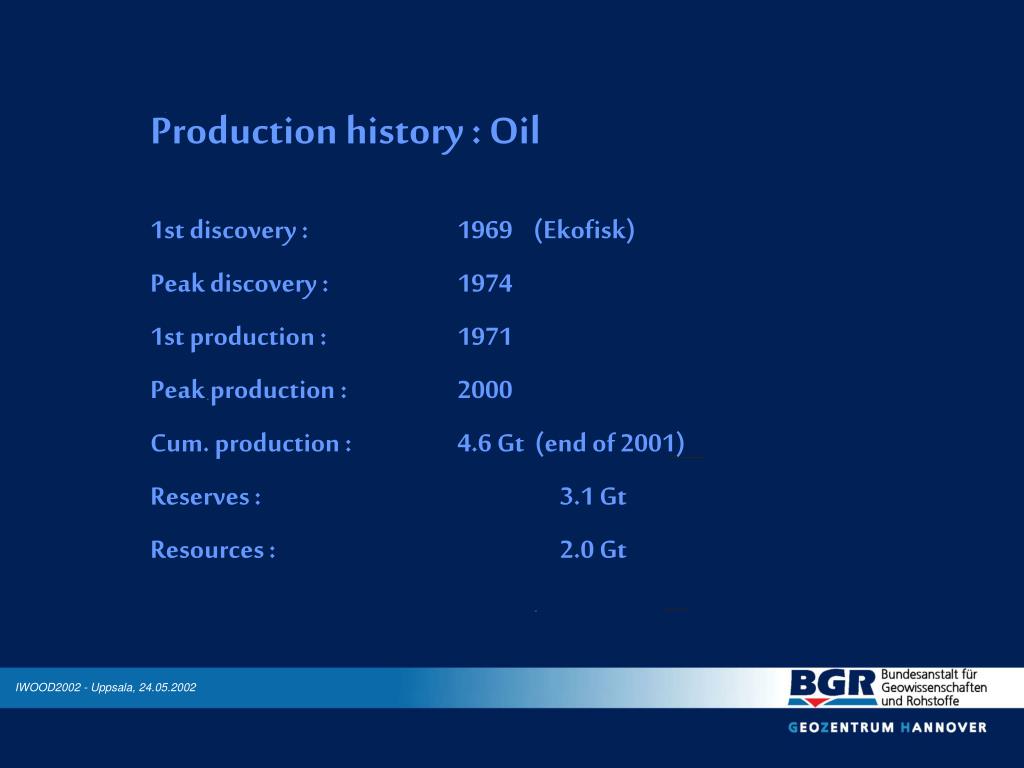

  4. Production history : Oil 1st discovery : 1969 (Ekofisk) Peak discovery : 1974 1st production : 1971 Peak production : 2000 Cum. production : 4.6 Gt (end of 2001) Reserves : 3.1 Gt Resources : 2.0 Gt IWOOD2002 - Uppsala, 24.05.2002

  5. North Sea Oil Production Mt 350 UK Bild Production history Norway 300 Netherlands Germany 250 Denmark 200 150 100 50 0 1970 1980 1990 2000 IWOOD2002 - Uppsala, 24.05.2002

  6. North Sea Cumulative Production and Reserves Gt 10 8 6 4 Reserves 2 Cumulative Production 0 1970 1980 1990 2000 IWOOD2002 - Uppsala, 24.05.2002

  7. North Sea Cumulative Production, Reserves and R/P-Ratio years Gt 10 50 8 40 R/P 30 6 Reserves 4 20 2 10 Cumulative Production 0 0 1970 1980 1990 2000 IWOOD2002 - Uppsala, 24.05.2002

  8. 6 Gt 2 % Gt production until 2026 with an annual decrease of 100% 10 4 % Resources 4 6 % 2 Gt 2 Reserves 3 Gt 50 % depletion mid-point 5 0 31.12.2001 Produced - 2 5 Gt - 4 0% 0 - 6 IWOOD2002 - Uppsala, 24.05.2002

  9. North Sea Production Profile and Giant Fields 350 1050 forecast 300 900 Depletion rate after 2001: 8.5 % 250 750 Reserve additions: 2002 - 2010: 100 Mt/a 2011 - 2025: 50 Mt/a 200 600 Giant Field Discovery in Mt Production Mt/a 150 450 100 300 50 150 0 0 1965 1975 1985 1995 2005 2015 2025 2035 2045 IWOOD2002 - Uppsala, 24.05.2002

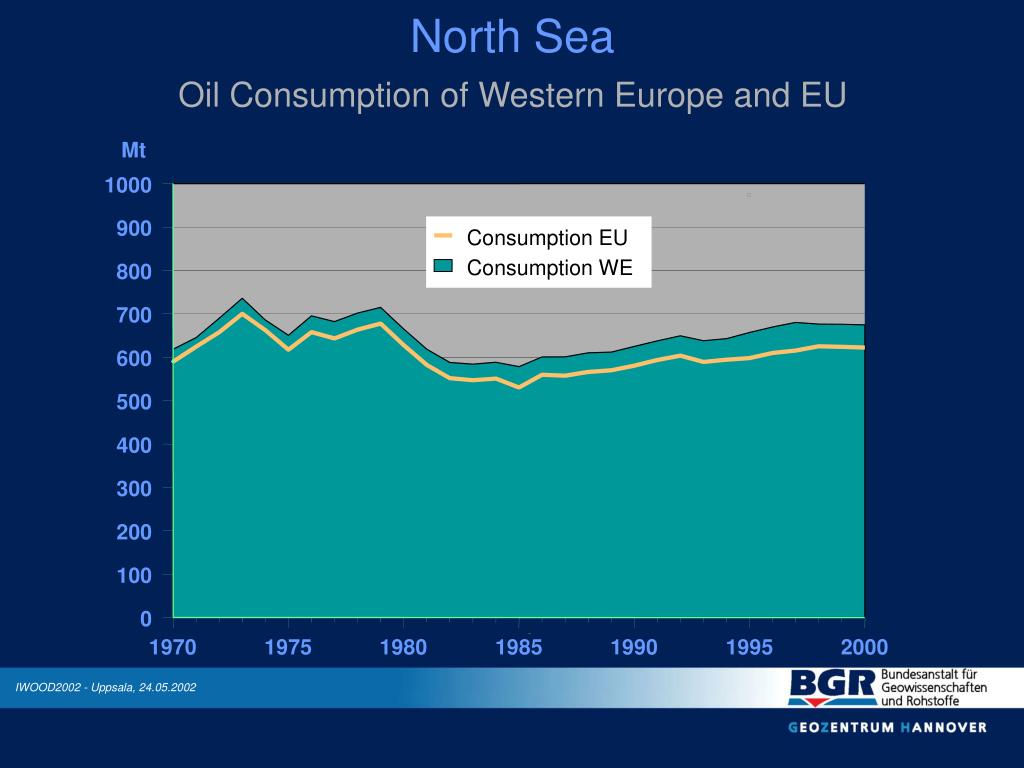

  10. North Sea Oil Consumption of Western Europe and EU Mt 1000 900 Consumption EU Consumption WE 800 700 600 500 400 300 200 100 0 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

  11. North Sea Oil Consumption of Western Europe and EU North Sea's Share to their Oil Supply (%) Mt 50 1000 Share EU 900 Share WE 40 Consumption EU 800 Consumption WE 700 30 600 500 20 400 300 10 200 100 0 0 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

  12. oil  gas IWOOD2002 - Uppsala, 24.05.2002

  13. Production history : Natural Gas 1st discovery : 1965 (West Sole) Peak discovery : 1979 1st production : 1967 Peak production : 2005 ?? Cum. production : 3.0 T.m3 (end of 2001) Reserves : 4.6 T.m3 Resources : 1.7 T.m3 IWOOD2002 - Uppsala, 24.05.2002

  14. North Sea Natural Gas Production G.m³ 250 UK Bild Production history Norway 200 Netherland Germany Denmark 150 100 50 0 1965 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

  15. North Sea Cumulative Production and Reserves T.m³ 8 6 4 Reserves 2 Cumulative Production 0 1965 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

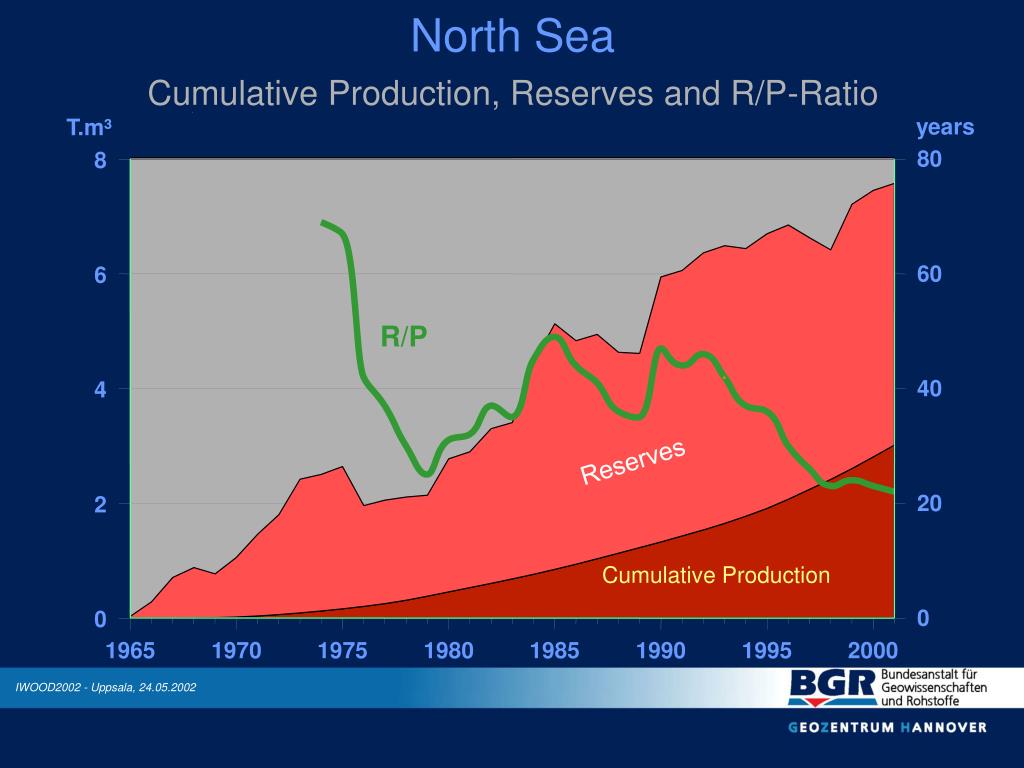

  16. North Sea Cumulative Production, Reserves and R/P-Ratio years T.m³ 80 8 60 6 R/P 40 4 Reserves 20 2 Cumulative Production 0 0 1965 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

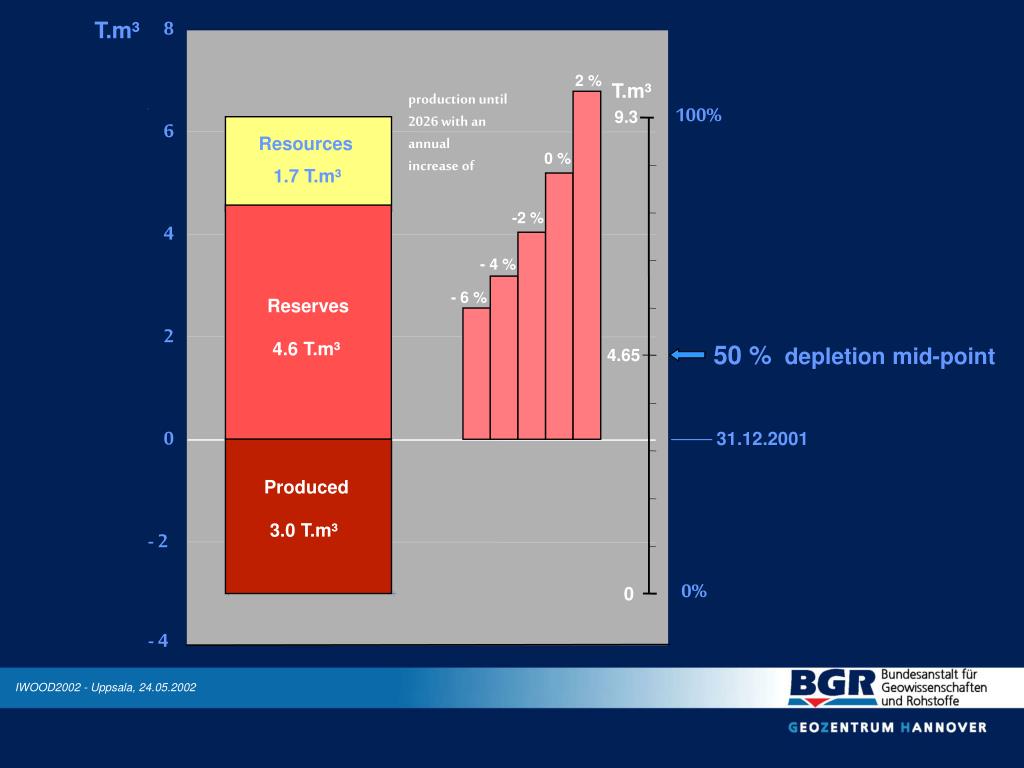

  17. 8 T.m³ 2 % T.m³ production until 2026 with an annual increase of 100% 9.3 6 Resources 0 % 1.7 T.m³ -2 % 4 - 4 % - 6 % Reserves 2 4.6 T.m³ 50 % depletion mid-point 4.65 0 31.12.2001 Produced 3.0 T.m³ - 2 0% 0 - 4 IWOOD2002 - Uppsala, 24.05.2002

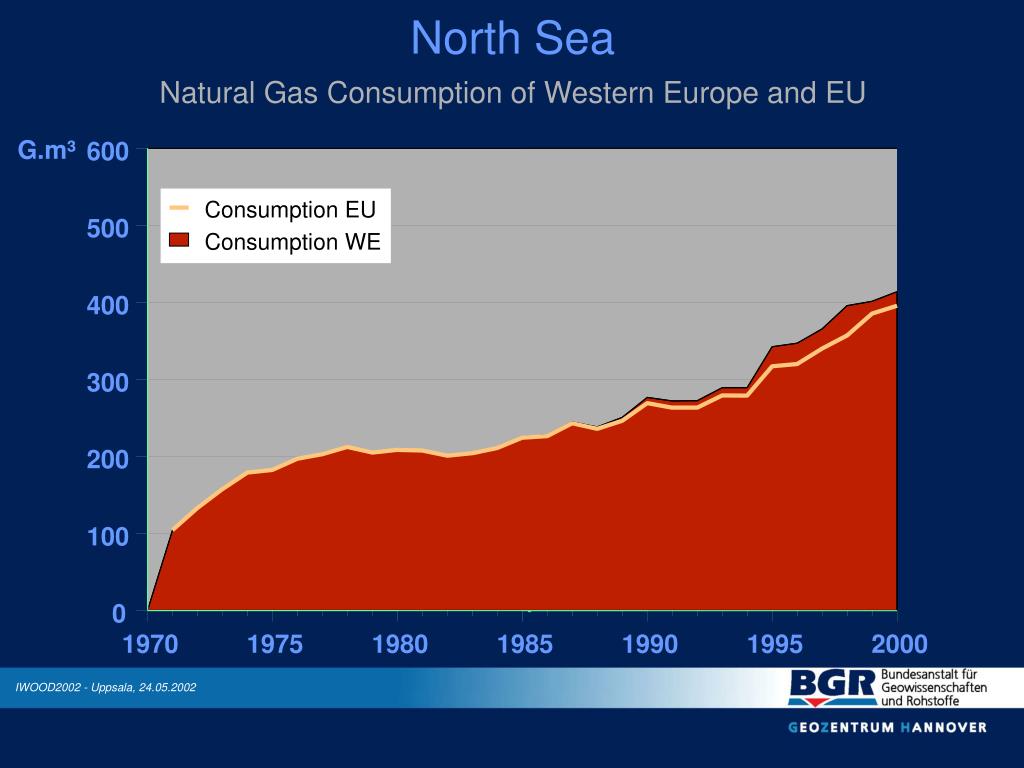

  18. North Sea Natural Gas Consumption of Western Europe and EU G.m³ 600 Consumption EU 500 Consumption WE 400 300 200 100 0 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

  19. North Sea Natural Gas Consumption of Western Europe and EU North Sea's Share to their Gas Supply (%) G.m³ 600 60 Share EU Share WE 500 50 Consumption EU Consumption WE 400 40 300 30 200 20 100 10 0 0 1970 1975 1980 1985 1990 1995 2000 IWOOD2002 - Uppsala, 24.05.2002

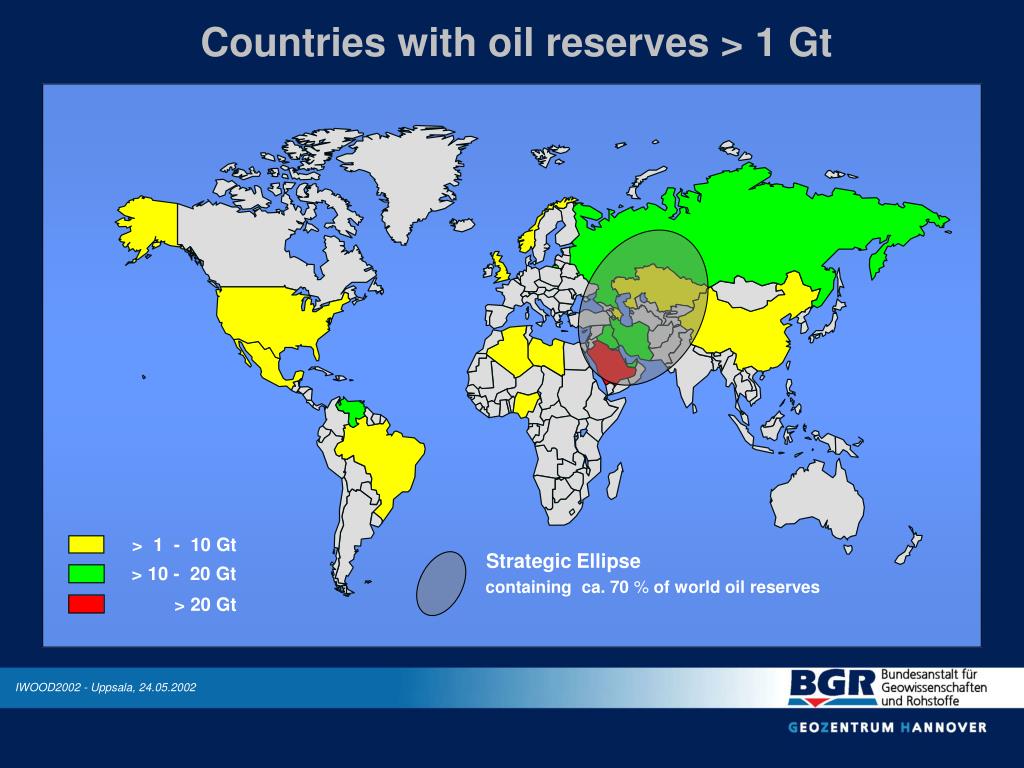

  20. > 1 - 10 Gt Strategic Ellipse > 10 - 20 Gt containing ca. 70 % of world oil reserves > 20 Gt Countries with oil reserves > 1 Gt IWOOD2002 - Uppsala, 24.05.2002

  21. Countries with natural gas reserves > 1 T.m³ > 1 - 5 T.m³ Strategic Ellipse > 5 - 10 T.m³ containing ca. 70 % of world oil reserves > 20 T.m³ IWOOD2002 - Uppsala, 24.05.2002

  22. Reserves Cum. Production Resources 7,947 The Mediterranean -EUR of crude oil and NGL in Mt (Only countries with EUR > 200 Mt) ... Ukraine Moldova A u s t r i a Switzerland R u s s i a Hungary F r a n c e Slovenia Romania Croatia Geor- Bosnia gia Yugos- Herzogo- 323 lavia vina S p a i n Bulgaria Portugal I t a l y Albania Mace- donia T u r k e y Greece Syria 221 S y r i a 1,302 M o r o c c o 544 Leba- non Israel Jordan A l g e r i a T u n e s i a 5,159 2,410 Saudi L i b y a Arabia A l g e r i a E g y p t L i b y a (database: end 2000) IWOOD2002 - Uppsala, 24.05.2002

  23. Reserves Cum. Production Resources 7,161 The Mediterranean - EUR of natural gas in Gm³ (Only countries with EUR > 200 Gm³) F r a n c e Ukraine Moldova Reserves Switzerland A u s t r i a R u s s i a Hungary Cum. 729 Slovenia Romania Production Croatia Geor- Bosnia Resources gia 1,334 Herzogo- Yugos- vina lavia S p a i n Bulgaria Portugal Albania Mace- donia I t a l y Syria T u r k e y Greece Syria A l g e r i a 483 394 M a r o c c o Leba- non Israel Jordan T u n e s i a 2,428 Saudi 2,065 Arabia L i b y a E g y p t (database: end 2000) IWOOD2002 - Uppsala, 24.05.2002

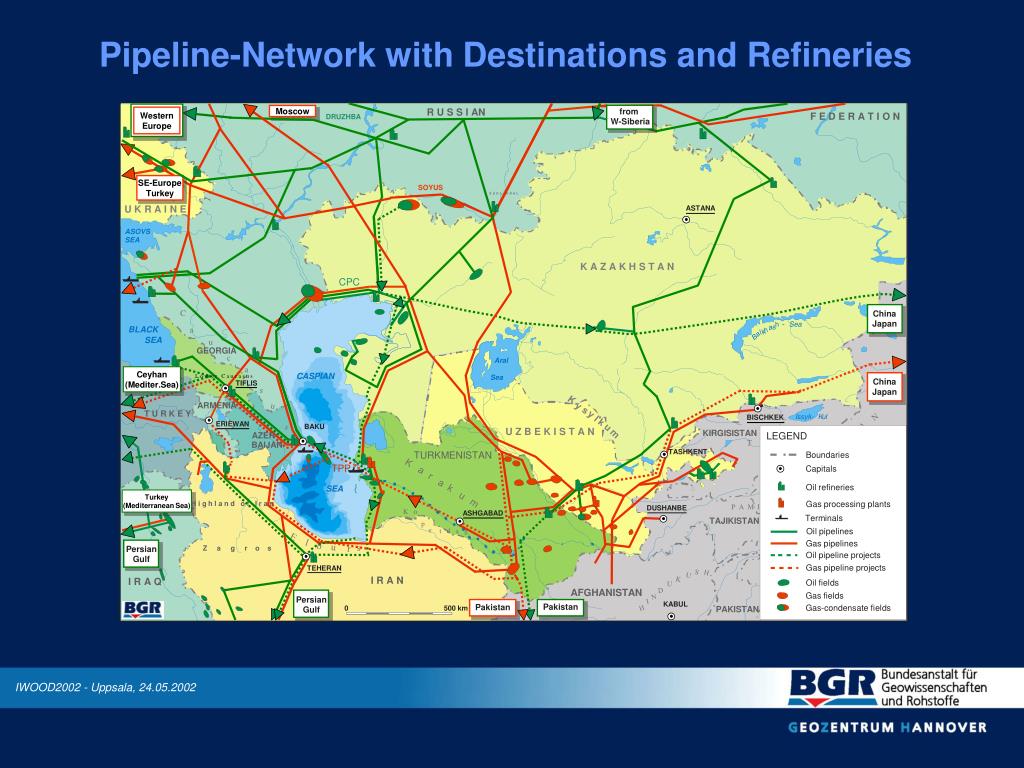

  24. Moscow R U S S I AN from W-Siberia Western Europe F E D E R A T I O N DRUZHBA SE-Europe Turkey SOYUS S Ü D L. U R A L U K R A I N E ASOVS SEA ASTANA K A Z A K H S T A N CPC C China Japan - Sea h s a BLACK a h k l a B SEA u c GEORGIA Aral a Ceyhan (Mediter.Sea) CASPIAN L o w e r C a u c a s u s Sea China Japan s K y ARMENIA u s TIFLIS y T U R K E Y N l Issyk- K ul BISCHKEK k A u s BAKU U Z B E K I S T A N m KIRGISISTAN H LEGEND AZER- C T S I BAIJAN E N TASHKENT ERIEWAN TURKMENISTAN Boundaries K TPP Capitals a r a k Oil refineries SEA u Turkey (Mediterranean Sea) m Gas processing plants H i g h l a n d o f I r a n P A M I R K o Terminals TAJIKISTAN p e Oil pipelines t d a g DUSHANBE E ASHGABAD l Gas pipelines b u s r Persian Gulf Z a g r o s Oil pipeline projects INDIEN Gas pipeline projects S H U I R A N K I R A Q TEHERAN Oil fields U D AFGHANISTAN Gas fields N Persian Gulf I KABUL Pakistan Pakistan Gas-condensate fields H 0 500 km PAKISTAN Pipeline-Network with Destinations and Refineries IWOOD2002 - Uppsala, 24.05.2002

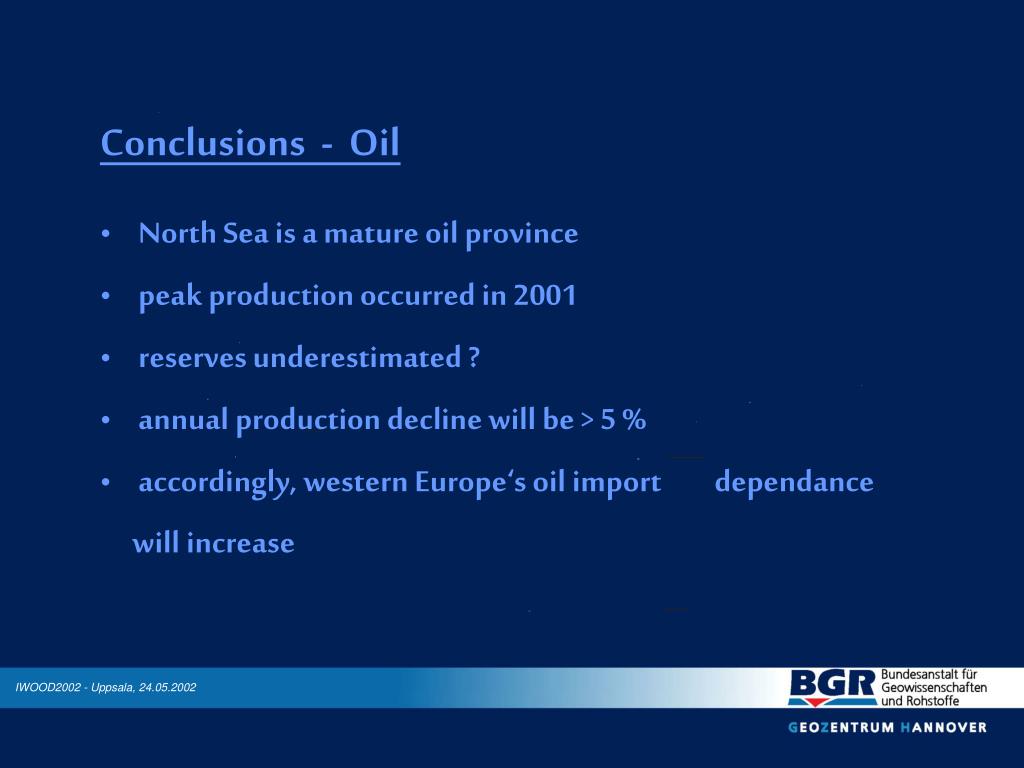

  25. Conclusions - Oil • North Sea is a mature oil province • peak production occurred in 2001 • reserves underestimated ? • annual production decline will be > 5 % • accordingly, western Europe‘s oil import dependance will increase IWOOD2002 - Uppsala, 24.05.2002

  26. Conclusions - Natural Gas • North Sea is a mature gas province • annual production is still increasing • peak production in front - 2005 ? • production can be kept stable for another • 1 – 2 decades • But: due to the increase in demand, western Europe‘s import dependance will rise IWOOD2002 - Uppsala, 24.05.2002

  27. Conclusions - External Supplies • Russia (gas / oil) • Northern Africa (gas / oil) • Middle East (oil / gas?) • Caspian (oil / gas?) • Western Africa (oil) IWOOD2002 - Uppsala, 24.05.2002

  28. IWOOD2002 - Uppsala, 24.05.2002

  29. 55 16 57 23 33 33 Reserven 146 Ressourcen Kum. Förderung Stand:31.12.2001 Gesamtpotential konventionelles Erdöl 363 Mrd. t IWOOD2002 - Uppsala, 24.05.2002

  30. Gesamtpotential konventionelles Erdgas 425 Bill. m³ 164 24 65 91 38 33 18 Reserven Kum. Förderung Ressourcen Stand: 31.12.2001 IWOOD2002 - Uppsala, 24.05.2002

  31. North Sea % Share of world 20 Oil Natural gas 16 12 8 4 0 Reserves Reserves Production Production Resources Resources Consumption Consumption Consumption Consumption W-Europe W-Europe IWOOD2002 - Uppsala, 24.05.2002

  32. German oil production 1930 - 2050 Mt/y 10 6 EUR (estimated ultimate recovery) 320 Mt (10 ) 1968 11 y 14 y produced as per 31.12.2000 255 Mt 8 17 y 1962 20 y remaining: reserves 50 Mt "yet to find" 15 Mt 12 y 14 y 6 1975 on the basis of data from 305 oilfields EOR effective depletion mid-point 4 5y 16 y 2000 at 2050: remaining c. 4 Mt production c. 0.2 Mt 2 1950 34 y 2217 0 cum. prod. up to 1930: c. 2 Mt 1930 1950 2000 2050 remaining produced time 65 Mt 255 Mt 2000 static lifetime of reserves reserves production "yet to find" 1950: post war boom 38 Mt 1.1 Mt 34 yrs. 233 yrs. 1962: max. reserves 113 6.8 17 20 1968: max. production 89 8.3 11 14 1975: depletion mid-point 72 5.8 12 14 2000: current status 50 3.1 16 5 "yet to find" figures on the basis of current EUR Supplemented after HILLER 1997 IWOOD2002 - Uppsala, 24.05.2002
