  1. A Load-Balanced Switch with an Arbitrary Number of Linecards Offense Anwis Das

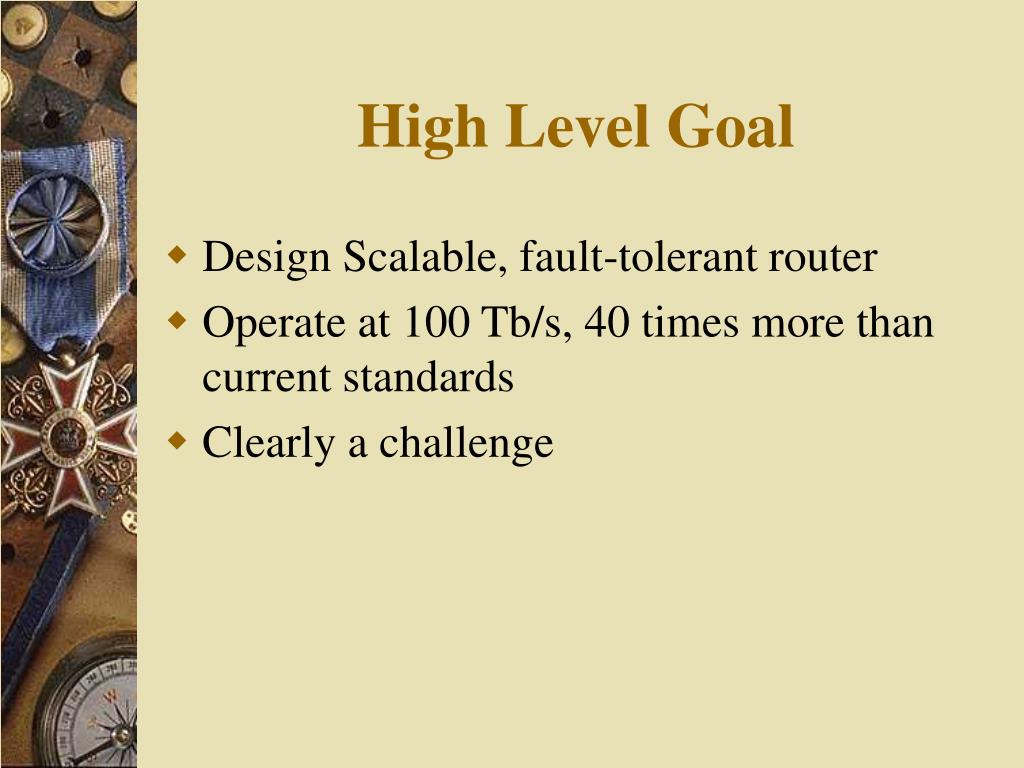

  2. High Level Goal • Design Scalable, fault-tolerant router • Operate at 100 Tb/s, 40 times more than current standards • Clearly a challenge

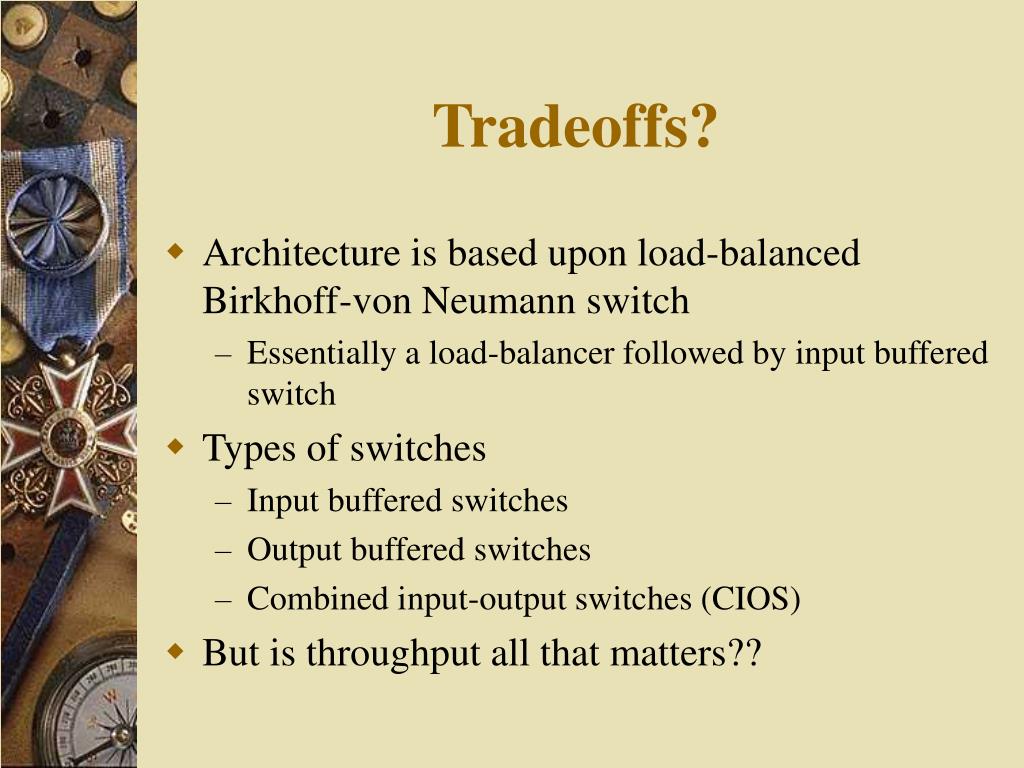

  3. Tradeoffs? • Architecture is based upon load-balanced Birkhoff-von Neumann switch • Essentially a load-balancer followed by input buffered switch • Types of switches • Input buffered switches • Output buffered switches • Combined input-output switches (CIOS) • But is throughput all that matters??

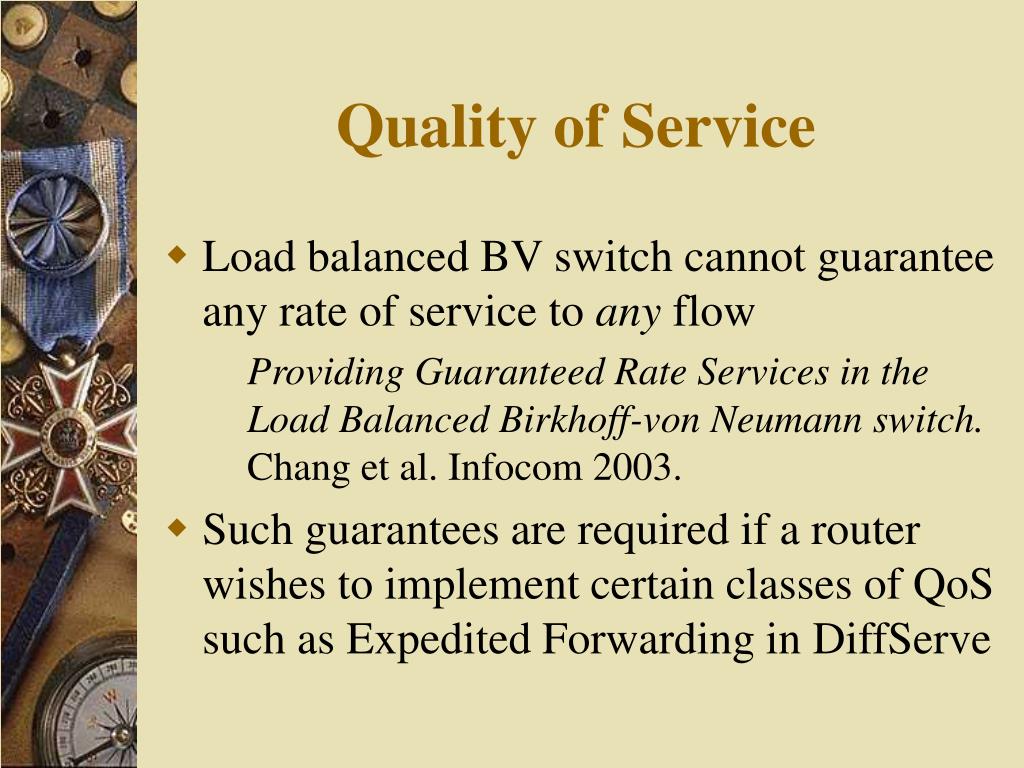

  4. Quality of Service • Load balanced BV switch cannot guarantee any rate of service to any flow Providing Guaranteed Rate Services in the Load Balanced Birkhoff-von Neumann switch. Chang et al. Infocom 2003. • Such guarantees are required if a router wishes to implement certain classes of QoS such as Expedited Forwarding in DiffServe

  5. Flexibility • Original Frame based scheduling allowed for flow guarantees • In this architecture, everything is fixed • Impossible to guarantee any flow any bandwidth without running scheduling algorithm again

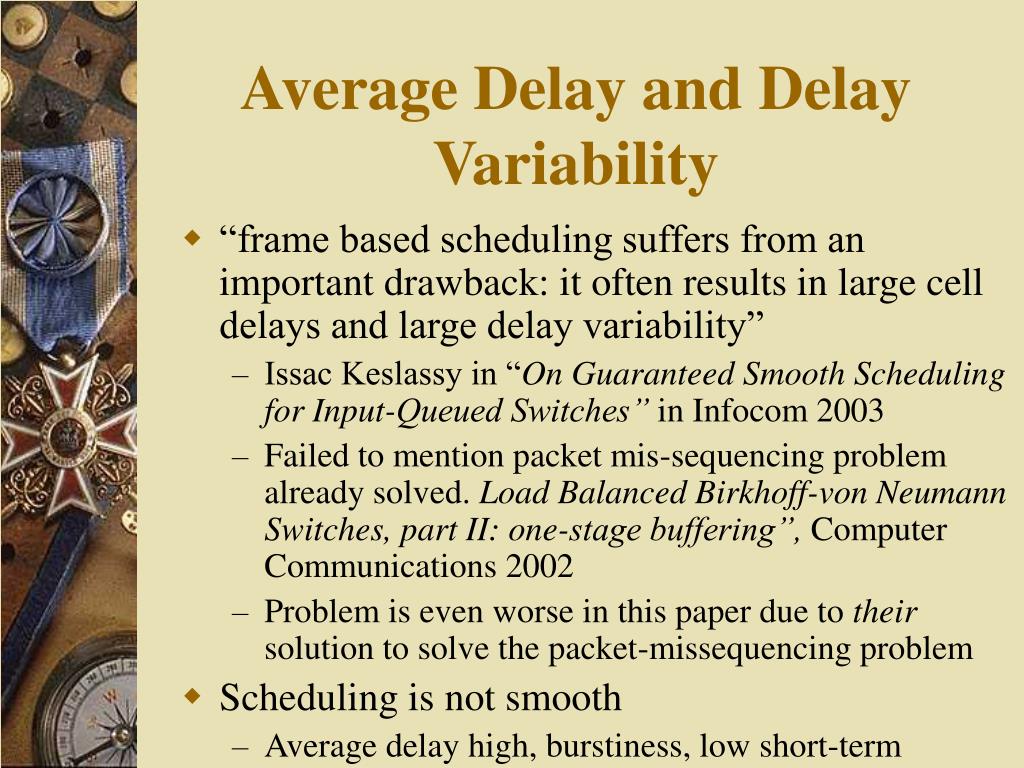

  6. Average Delay and Delay Variability • “frame based scheduling suffers from an important drawback: it often results in large cell delays and large delay variability” • Issac Keslassy in “On Guaranteed Smooth Scheduling for Input-Queued Switches” in Infocom 2003 • Failed to mention packet mis-sequencing problem already solved. Load Balanced Birkhoff-von Neumann Switches, part II: one-stage buffering”, Computer Communications 2002 • Problem is even worse in this paper due to their solution to solve the packet-missequencing problem • Scheduling is not smooth • Average delay high, burstiness, low short-term fairness

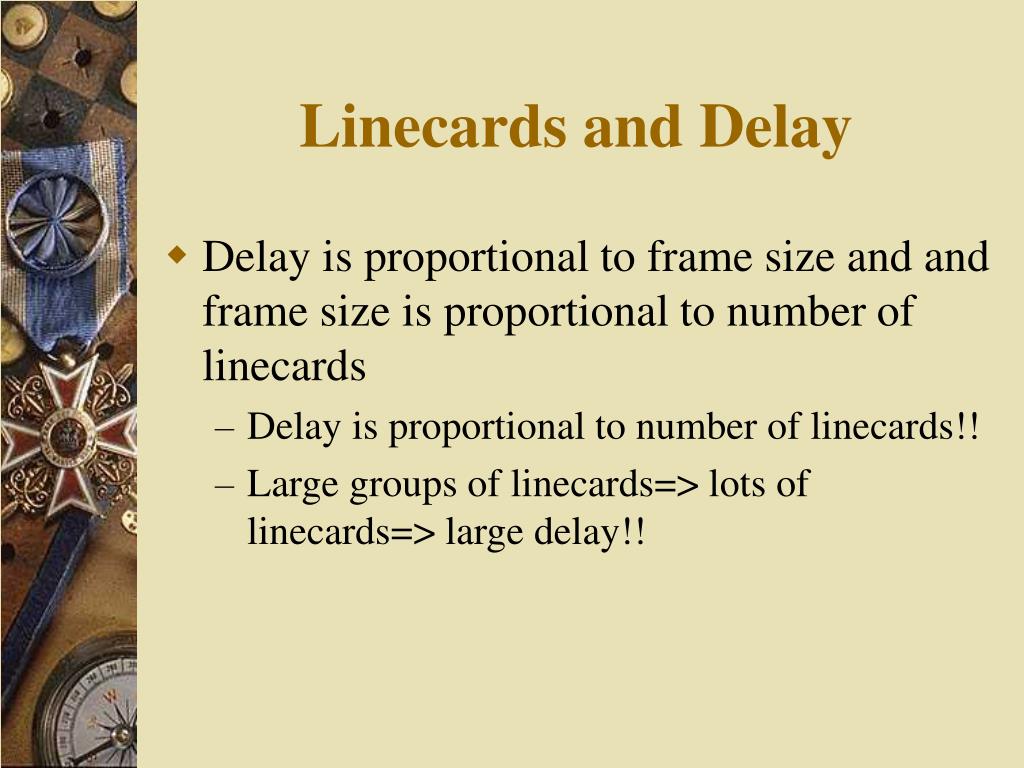

  7. Linecards and Delay • Delay is proportional to frame size and and frame size is proportional to number of linecards • Delay is proportional to number of linecards!! • Large groups of linecards=> lots of linecards=> large delay!!

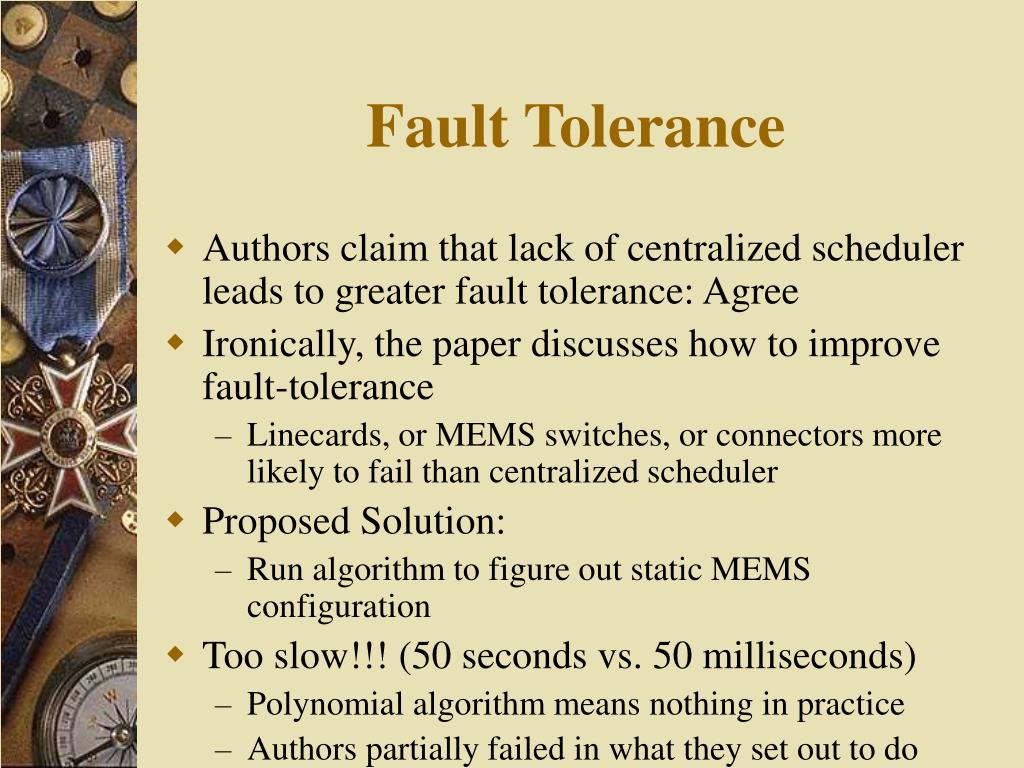

  8. Fault Tolerance • Authors claim that lack of centralized scheduler leads to greater fault tolerance: Agree • Ironically, the paper discusses how to improve fault-tolerance • Linecards, or MEMS switches, or connectors more likely to fail than centralized scheduler • Proposed Solution: • Run algorithm to figure out static MEMS configuration • Too slow!!! (50 seconds vs. 50 milliseconds) • Polynomial algorithm means nothing in practice • Authors partially failed in what they set out to do

  9. Crux of Paper • Outline- Part 1 • L-L, L-G, G-G (“easily deduce”) • Outline- Part 2 • G-G (Interesting, but more about this later) • G-L, L-L (Uninteresting) and similar work already done. “Load Balanced Birkhoff-von Neumann Switches, part I: one-stage buffering”, Computer Communications 2002. • Invoking Santa’s principle, not much original work
