  1. High Speed Links Francois Vasey, CERN PH-ESE • High speed links in LHC and commercial applications • On-going common projects for LHC Phase I upgrades • Towards HL-LHC • Conclusions francois.vasey@cern.ch

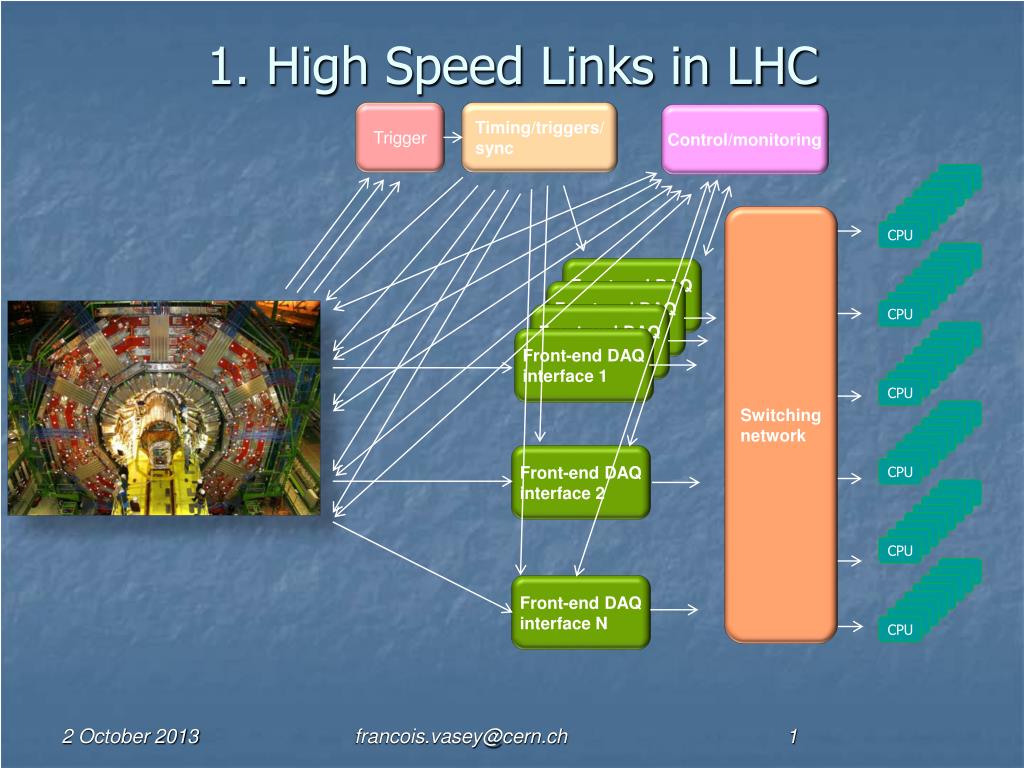

  2. 1. High Speed Links in LHC Trigger Timing/triggers/sync Control/monitoring Switching network CPU Front-end DAQ interface Front-end DAQ interface CPU Front-end DAQ interface Front-end DAQ interface 1 CPU Front-end DAQ interface 2 CPU CPU Front-end DAQ interface N CPU francois.vasey@cern.ch

  3. 1.1 For instance: Link diversity in ATLAS francois.vasey@cern.ch ~15’000

  4. 1.2 For instance: Link diversity in CMS ~60’000 francois.vasey@cern.ch

  5. 1.3 High Speed Optical Links in LHC • Large quantity o(100k), large diversity • Majority running @ o(1Gbps) • From full custom to qualified COTS • Tuned to specific application and environment • Developed by independent teams • Successful adoption of technology in HEP francois.vasey@cern.ch

  6. 1.4 High Speed Optical Links in LHC: Lessons Learned • Increase Link Bandwidth • amortize system cost better • Share R&D effort • use limited resources optimally • Strengthen quality assurance Programs • Identify problems early • Test at system level Joint ATLAS/CMS NOTE ATL-COM-ELEC-2007-001 CMS-IN-2007/066 https://edms.cern.ch/document/882775/3.8 francois.vasey@cern.ch

  7. 1.5 High SpeedOptical Links outside LHC (short distance) • Rapid progress driven by: • Successful standardization effort • 100 GbE standard ratified in 2010 by IEEE • Availability of hardware cores embedded in FPGAs • 50+ x 10G transceivers in modern FPGAs • Commercial availability of MultiSourceAgreement-based hardware • Commodity 10G and 40G devices • Emerging 100G and 400G parallel optics engines • Current LAN rates @ o(10Gbps), ramping up to 40Gbps • Widening performance gap compared to HEP • But consider: • Specific environmental constraints and long qualification time • Long detector development time: vintage 2000 hardware in LHC R&D necessary to keep up, use and develop technology francois.vasey@cern.ch

  8. 2. On-going Development Projects for LHC Phase I Upgrades Initiatives initially aiming at a single target: SLHC • Launched in 2008, timely for phase I upgrades • Working Groups • Microelectronics User Group (MUG) • Optoelectronics Working Group (Opto WG) • Topical WorkshoponElectronicsfor Particle Physics • Common Projects • Rad Hard Optical Link • GigaBit Transceiver (GBT) project (chip-set) • & GBT-FPGA project • Versatile Link (VL) project (opto) • & Gigabit Link Interface Board (GLIB) • Many others … francois.vasey@cern.ch

  9. 2.1 Rad Hard Optical Link Common Project • Requirements: • General • Bi-directional • High data rate: 4.8Gbits/s • Low and constant latency (for TTC and trigger data paths) • Error detection and correction • Environment • Radiation hard ASICs (130nm) and radiation qualified opto-electronics at Front-End • Magnetic Field tolerant devices at Front-End • Flexible chip interface (e-links) to adapt to various architectures • Compatibility with legacy fibre plants • Back-end COTS • High-end FPGAs with embedded transceivers • GBT-FPGA firmware • Parallel optics • Commitment to deliver to LHC experiments in 2014-2015 francois.vasey@cern.ch

  10. 2.2 Impact on System Architecture Timing/triggers/sync Trigger • Custom development for difficult Front-End • Firmware only for FPGA-based Back-End • Evaluation platform for system-tests Switching network CPU CPU Front-end interface Rad-hard optical links CPU Front-end interface CPU Front-end interface CPU DCS network Control/monitoring CPU francois.vasey@cern.ch

  11. 2.3 Optical Link Project Status: GBT ~30 Man-Years • Project started in 2008 • GBT (Serializer/Deserializer) • GBT-Serdes prototype in 2009 • GBTx in 2012 • Packaging in 2013 • 2nd iteration and prod in 2014 • GBLD (Laser Driver) • Final iteration (V4.1/V5) in 2013 • GBTIA (Pin Diode Receiver) • Final iteration (V3) in 2012 • GBTSCA (Slow Control ASIC) • Final version expected in 2014 • GBT-FPGA firmware • Tracking evolution of major FPGA families • Available • Project delivers • Chipset for Front-End • GBT-FPGA Back-End firmware francois.vasey@cern.ch

  12. 2.4 Optical Link Project Status: VL ~40 Man-Years • Kick-off: April08 • Proof of concept: Sep09 • Feasibility demo: Sep11 • Project delivers • Custom built Rad Hard VTRx • Production readiness: Apr14 • Early delivery of rad-soft VTTX to CMS-Cal-Trig: Dec13 • Recommendations for • Fibre and connectors • Backend optics • Evaluation Interface boards (GLIB) • Experiments • Design their own system • Select passive and backend componentsbased on VL recommendations and on their own constraints francois.vasey@cern.ch

  13. 2.5 Packaging and Interconnects Status • GBT • 20x20 BGA with on-package crystal and decoupling capacitors • CERN<>Distributor<>Company<>Company • 5 iterations to freeze design • 1-4 weeks per iteration • 6 months to first prototype • Mask error, re-spin, +2months • VL • High speed PCB simulation and design • Injection-moulded ULTEM 2xLC connector latch and pcb support • Prototyping started 2009, moulded parts delivered 2013 francois.vasey@cern.ch

  14. 2.6 Rad Hard Optical Link Project Effort • 6 years of development • Launched in 2008 • Delivery in 2014-15 • 6 institutes involved • CERN, FNAL, IN2P3, INFN, Oxford, SMU • Estimated 80 Man-Years + 2-3 MCHF material • One of the largest common efforts in the community francois.vasey@cern.ch

  15. 3. Towards HL-LHC • Higher Data-rate • Lower Power • Smaller Footprint • Enhanced Radiation Resistance • Not to be forgotten: • Fast electrical links • Radiation-soft links Not all features in same link francois.vasey@cern.ch

  16. 3.1 Higher Data-Rate and Lower Power • ASICs: migrate to a more advanced technology node: ≤65nm • Qualify technology for environment • Establish stable support framework and design tools for full duration of development • Design new ASICs taking advantage of technology advantages • Either high speed (multiply by two) • Or low power (divide by four) • Opto: qualify new components and emerging technologies • VL opto are already 10Gbps capable • Electrical interconnects and packaging become performance limiters • Build up expertise • Train with relevant simulation and design Tools • Establish relationship with selected suppliers francois.vasey@cern.ch

  17. 3.2 Smaller Footprint VTRx SF-VTRx • GBT package size can be shrunk by limiting the number of IO pads and going to fine pitch BGA • Will affect host board design • VTRx concept has been pushed to its size limit: SF-VTRx • Not sufficient for some tracker layouts • Tracker frontends will need custom packaging • Industry to be approached francois.vasey@cern.ch

  18. 3.3 Enhanced Radiation Resistance Tx • ASICs likely to be OK • Active opto devices OK except for pixels • Tight margins • Are there alternatives for fluences beyond 1016 cm-2 ? • Reconsider Passives? • modulators HL-LHC TK Rx francois.vasey@cern.ch HL-LHC TK

  19. 3.4 Si-Photonics, a paradigm changing technology? • Si • is an excellent optical material with high refractive index (but indirect bandgap) • Is widely available in high quality grade • Can be processed with extreme precision using deep submicron CMOS processing techniques • So, why not build a photonic circuit in a CMOS Si-wafer? francois.vasey@cern.ch

  20. 3.5 Si-Photonics, status in the community • Commercial devices tested • Excellent functional performance • Moderate radiation resistance limited by controller ASIC failure • On-going collaborations with academic and industrial partners • Simulation tools in hands • Selected building blocks under test • No usable conclusion so far, much more work needed • Packaging is challenging • Assess radiation hardness first ! Luxtera QSFP+ Si-Photonics chip francois.vasey@cern.ch

  21. 3.6 Not to be forgotten • High speed electrical data links are not obsolete !!! • Short distance, on-board serial links • Aggregation to high speed opto-hubs • Low mass, highly radiation resistant (HL-LHC pixels) • Develop expertise and tools • Detectors with modest radiation levels may not need custom front-ends • Qualify COTS and/or Radiation-soft components • Shortlist recommended parts • Continuously track market evolution francois.vasey@cern.ch

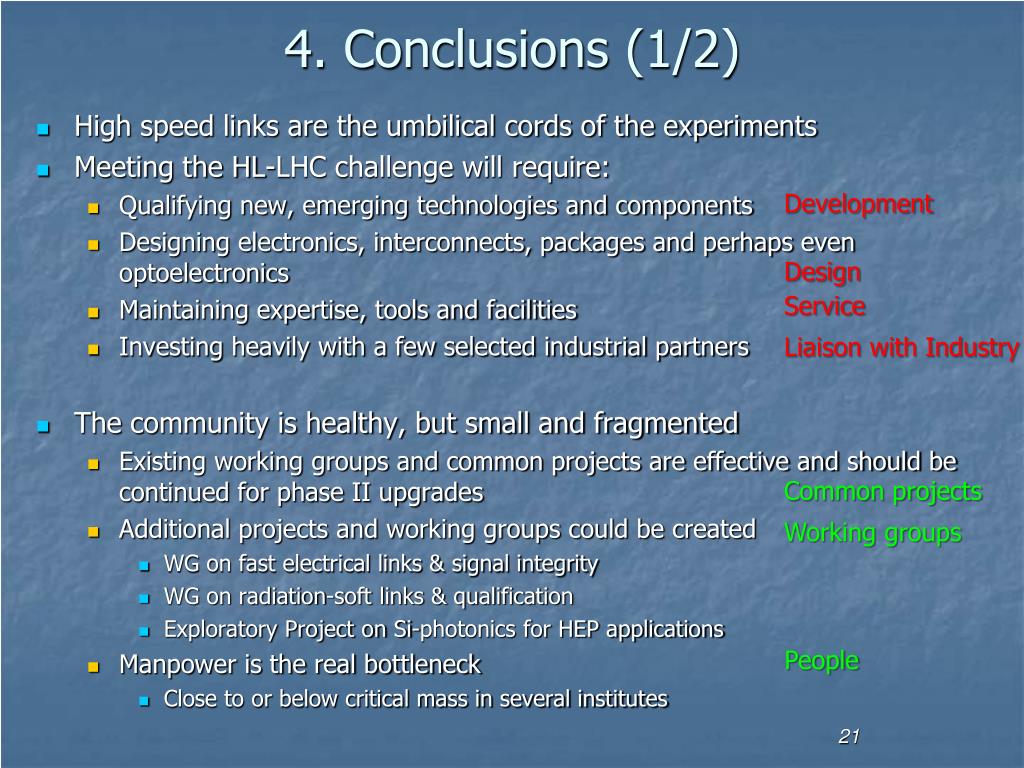

  22. 4. Conclusions (1/2) Development • High speed links are the umbilical cords of the experiments • Meeting the HL-LHC challenge will require: • Qualifying new, emerging technologies and components • Designing electronics, interconnects, packages and perhaps even optoelectronics • Maintaining expertise, tools and facilities • Investing heavily with a few selected industrial partners • The community is healthy, but small and fragmented • Existing working groups and common projects are effective and should be continued forphase II upgrades • Additional projects and working groups could be created • WG on fast electrical links & signal integrity • WG on radiation-soft links & qualification • Exploratory Project on Si-photonics for HEP applications • Manpower is the real bottleneck • Close to or below critical mass in several institutes Design Service Liaison with Industry Common projects Working groups People

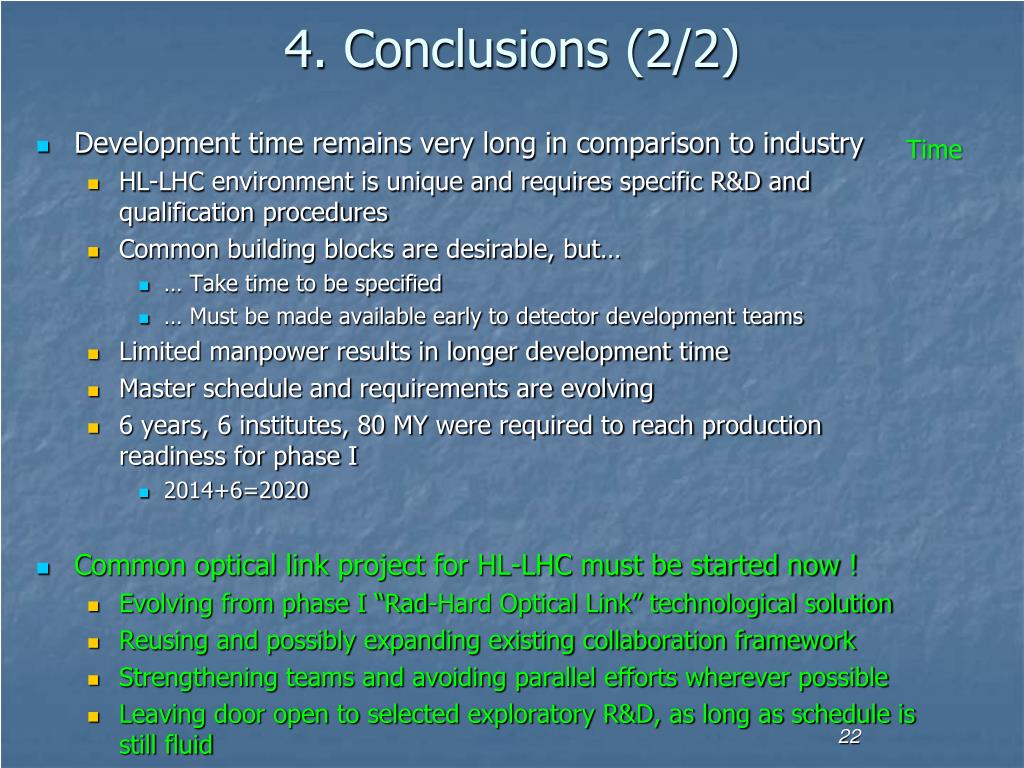

  23. 4. Conclusions (2/2) Time • Development time remains very long in comparison to industry • HL-LHC environment is unique and requires specific R&D and qualification procedures • Common building blocks are desirable, but… • … Take time to be specified • … Must be made available early to detector development teams • Limited manpower results in longer development time • Master schedule and requirements are evolving • 6 years, 6 institutes, 80 MY were required to reach production readiness for phase I • 2014+6=2020 • Common optical link project for HL-LHC must be started now ! • Evolving from phase I “Rad-Hard Optical Link” technological solution • Reusing and possibly expanding existing collaboration framework • Strengthening teams and avoiding parallel efforts wherever possible • Leaving door open to selected exploratory R&D, as long as schedule is still fluid

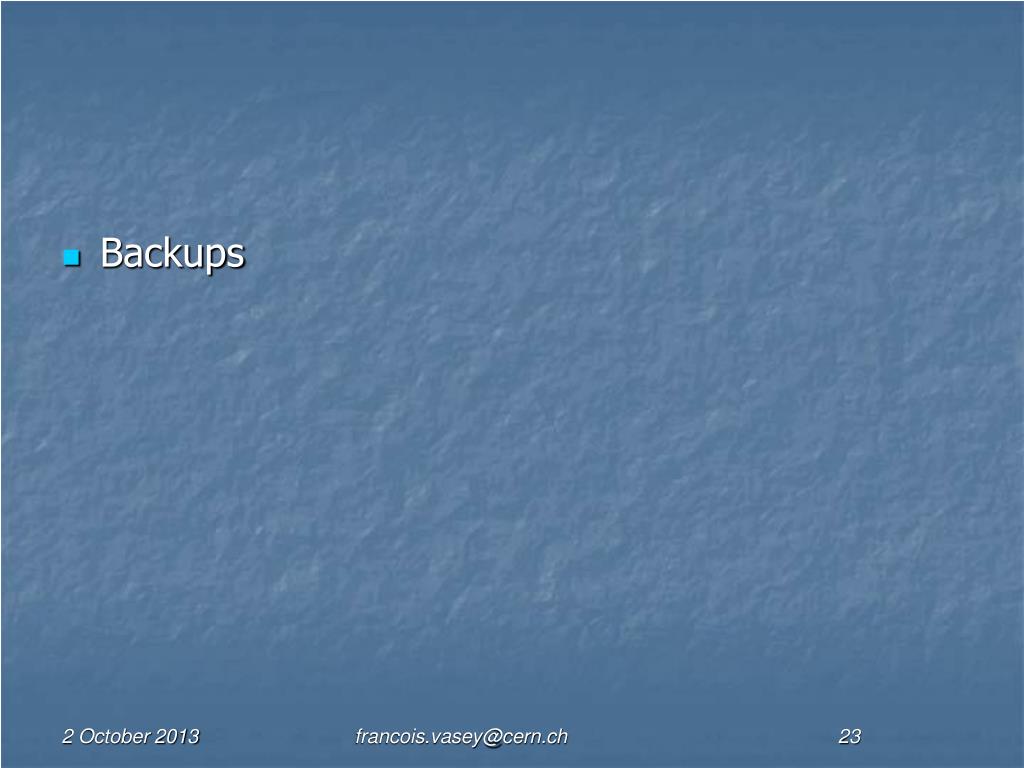

  24. Backups francois.vasey@cern.ch

  25. 1.1 Many different Link types • Readout - DAQ: • Unidirectional • Event frames. • High rate • Point to point • Trigger data: • Unidirectional • High constant data rate • Short and constant latency • Point to point • Detector Control System • Bidirectional • Low/moderate rate (“slow control”) • Bus/network or point to point • Timing: Clock, triggers, resets • Precise timing (low jitter and constant latency) • Low latency • Fan-out network(with partitioning) • Different link types remain physically separate, each with their own specific implementation francois.vasey@cern.ch

  26. 3.5 High Speed Electrical Links francois.vasey@cern.ch
