WBM development

6.4.2011. WBM development. New templates. 1) Distributions of the currents for LV and HV channels at a given time. 2) Operations hours counter based on the TTC partition majority state 3) Switching counter based on the TTC partition majority state Under development:

joie
Télécharger la présentation

WBM development

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 6.4.2011 WBM development

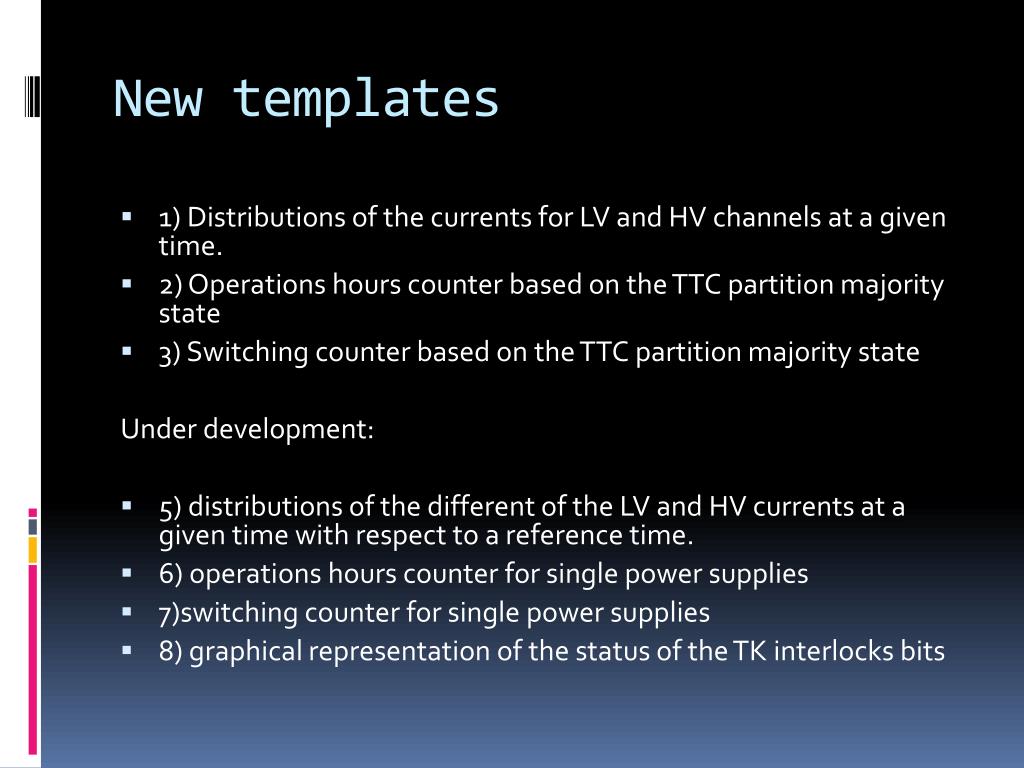

  2. New templates • 1) Distributions of the currents for LV and HV channels at a given time. • 2) Operations hours counter based on the TTC partition majority state • 3) Switching counter based on the TTC partition majority state Under development: • 5) distributions of the different of the LV and HV currents at a given time with respect to a reference time. • 6) operations hours counter for single power supplies • 7)switching counter for single power supplies • 8) graphical representation of the status of the TK interlocks bits

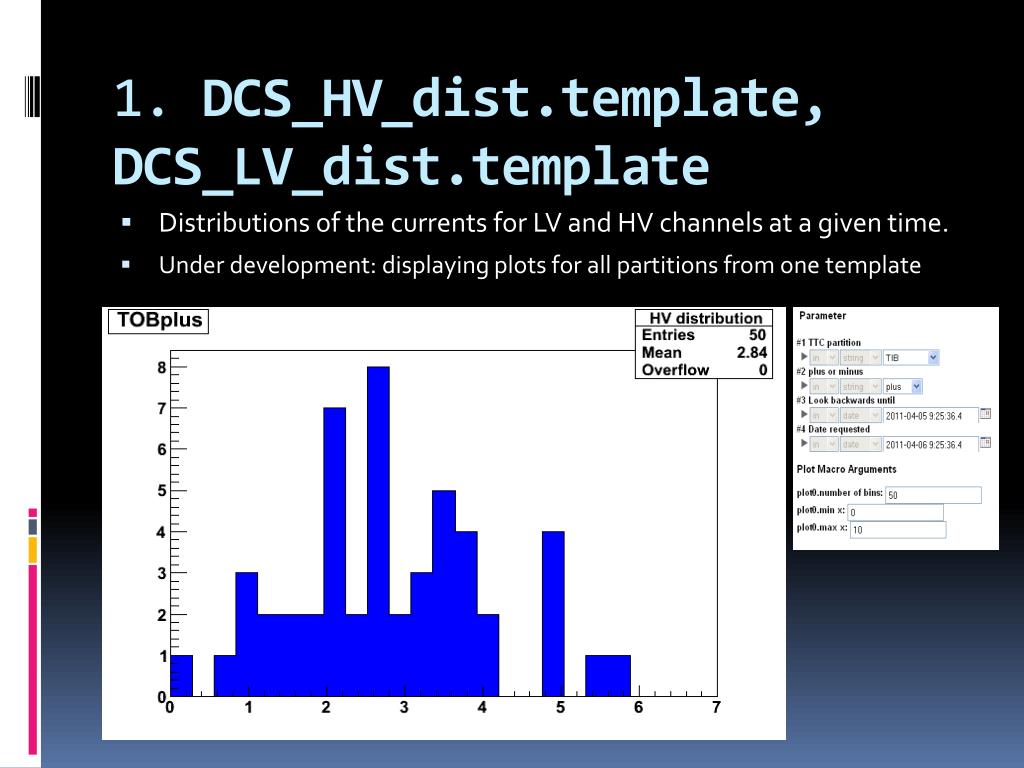

  3. 1. DCS_HV_dist.template, DCS_LV_dist.template • Distributions of the currents for LV and HV channels at a given time. • Under development: displaying plots for all partitions from one template

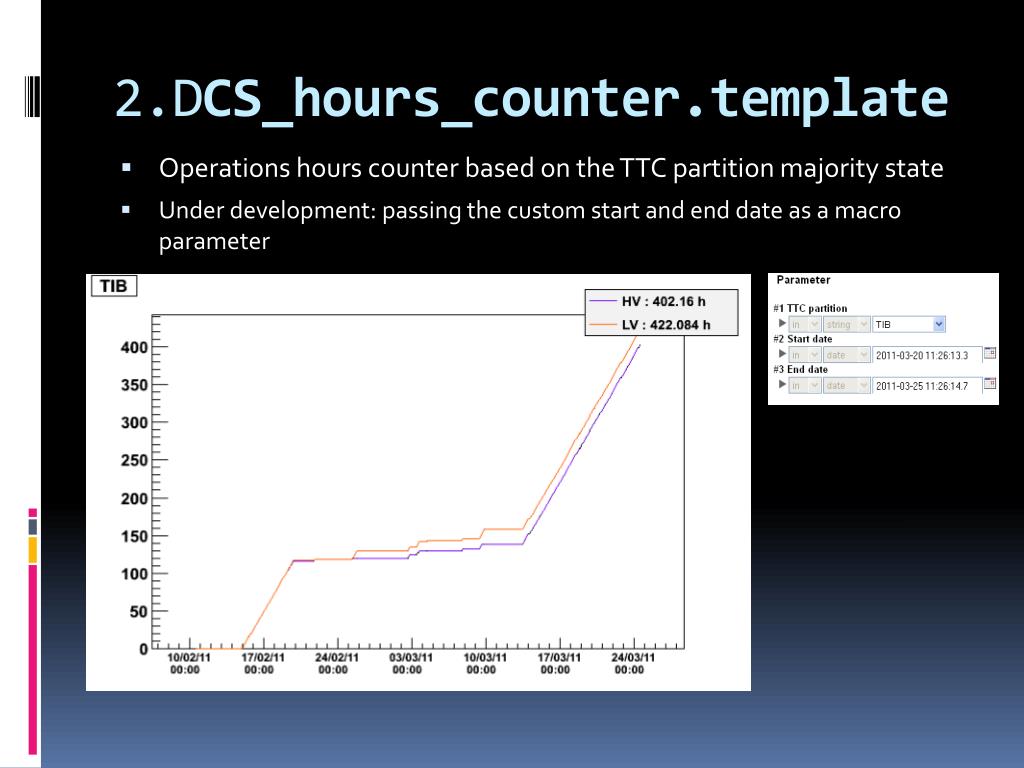

  4. 2.DCS_hours_counter.template • Operations hours counter based on the TTC partition majority state • Under development: passing the custom start and end date as a macro parameter

  5. 3.DCS_switching_counter.template • Switching counter based on the TTC partition majority state • Under development: displaying always all states and in the same order

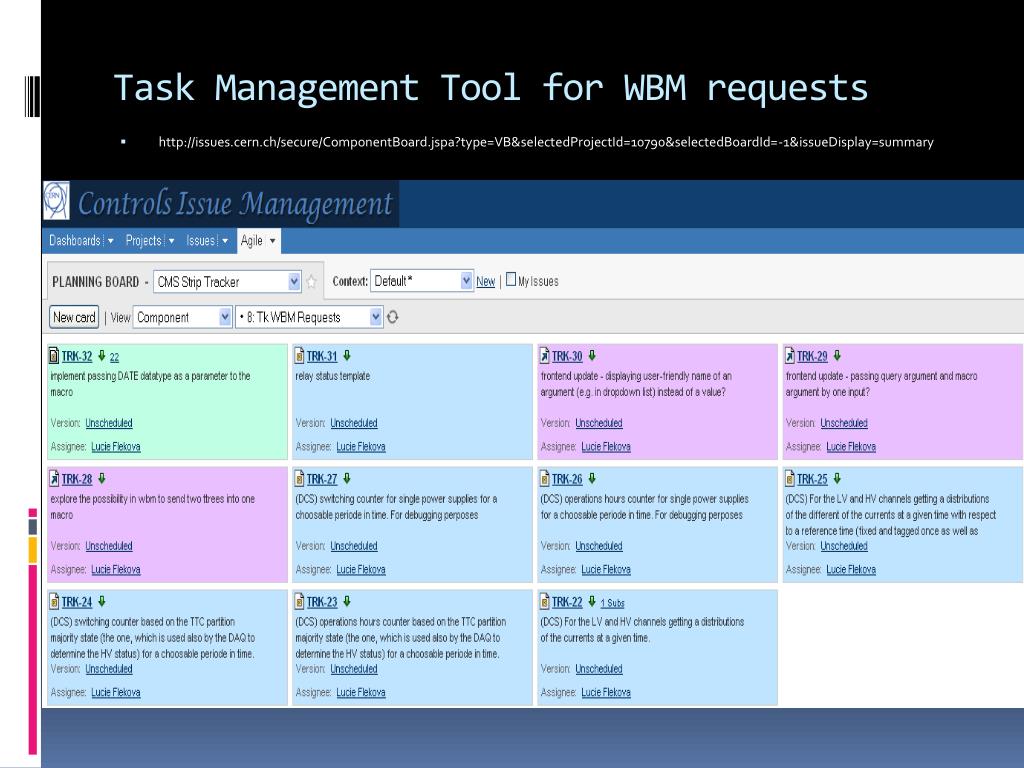

  6. Task Management Tool for WBM requests • http://issues.cern.ch/secure/ComponentBoard.jspa?type=VB&selectedProjectId=10790&selectedBoardId=-1&issueDisplay=summary

  7. Task Management Tool

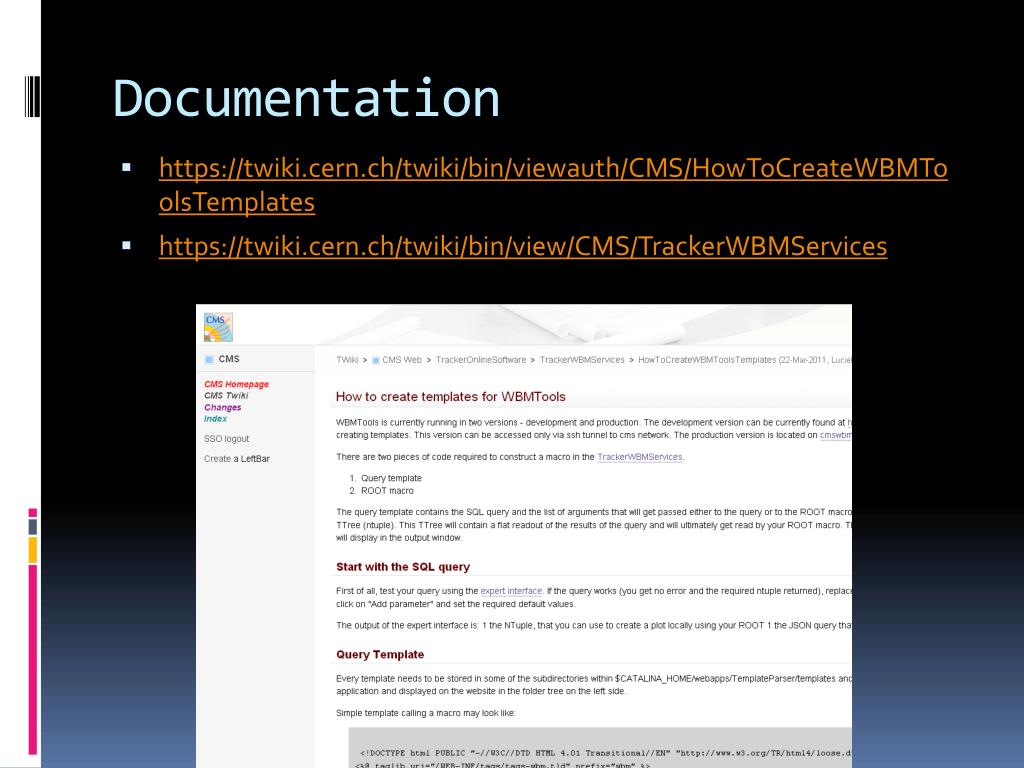

  8. Documentation • https://twiki.cern.ch/twiki/bin/viewauth/CMS/HowToCreateWBMToolsTemplates • https://twiki.cern.ch/twiki/bin/view/CMS/TrackerWBMServices

  9. Below the line

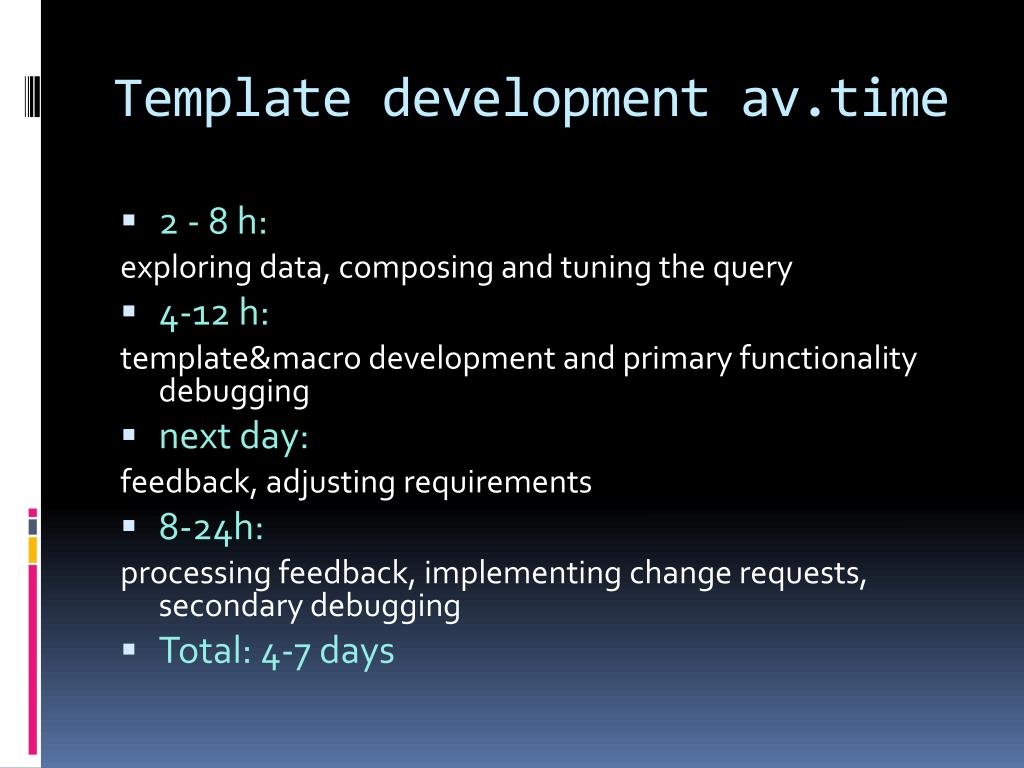

  10. Template development av.time • 2 - 8 h: exploring data, composing and tuning the query • 4-12 h: template&macro development and primary functionality debugging • next day: feedback, adjusting requirements • 8-24h: processing feedback, implementing change requests, secondary debugging • Total: 4-7 days

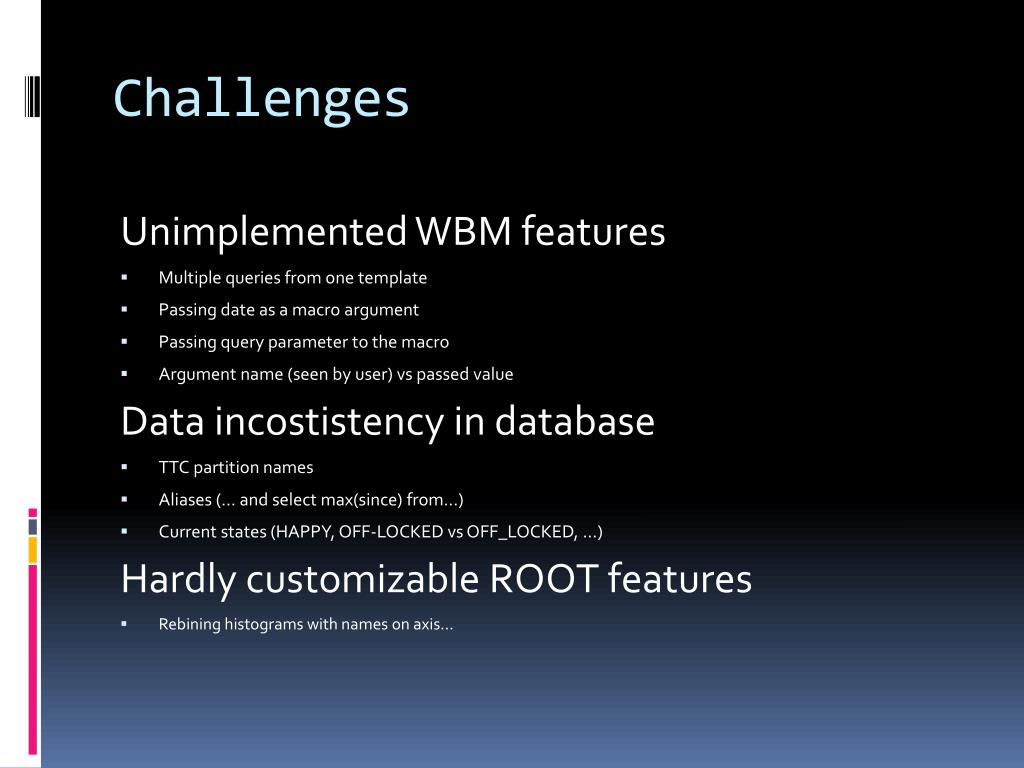

  11. Challenges Unimplemented WBM features • Multiple queries from one template • Passing date as a macro argument • Passing query parameter to the macro • Argument name (seen by user) vs passed value Data incostistency in database • TTC partition names • Aliases (… and select max(since) from…) • Current states (HAPPY, OFF-LOCKED vs OFF_LOCKED, …) Hardly customizable ROOT features • Rebining histograms with names on axis…
