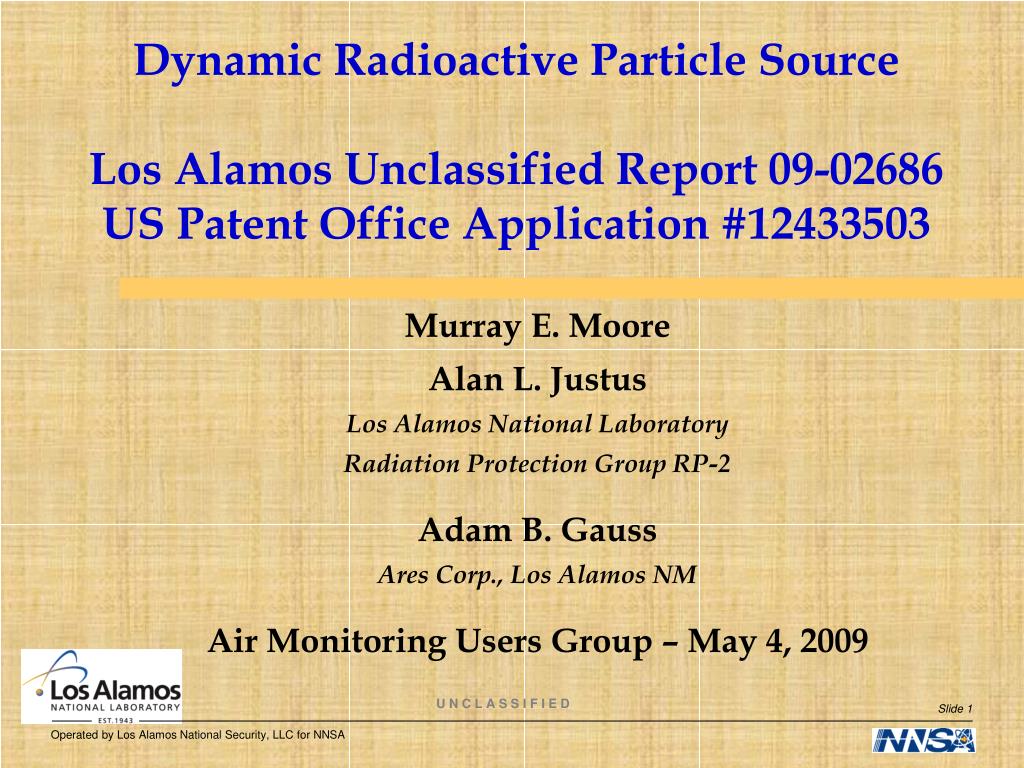

  1. Dynamic Radioactive Particle SourceLos Alamos Unclassified Report 09-02686US Patent Office Application #12433503 Murray E. Moore Alan L. Justus Los Alamos National Laboratory Radiation Protection Group RP-2 Adam B. Gauss Ares Corp., Los Alamos NM Air Monitoring Users Group – May 4, 2009

  2. Dynamic Alpha Particle Source Problem: ** Evaluation of CAM samplers with plutonium aerosols ** Time intensive, expensive, requires special facility. Solution: ** Dynamic Radioactive Particle Source (DRPS) ** Replicates the presence of a plutonium aerosol cloud.

  3. Dynamic Alpha Particle Source Designed to dynamically introduce radioactivity, with the appropriate alpha spectrum.

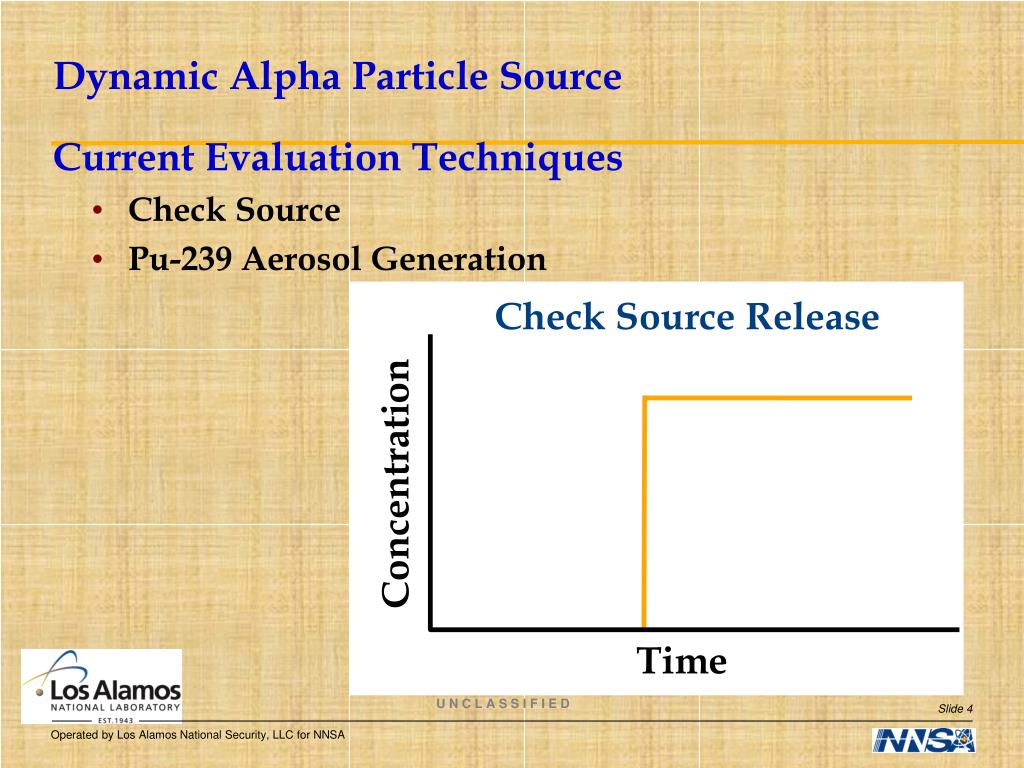

  4. Dynamic Alpha Particle Source Current Evaluation Techniques • Check Source • Pu-239 Aerosol Generation

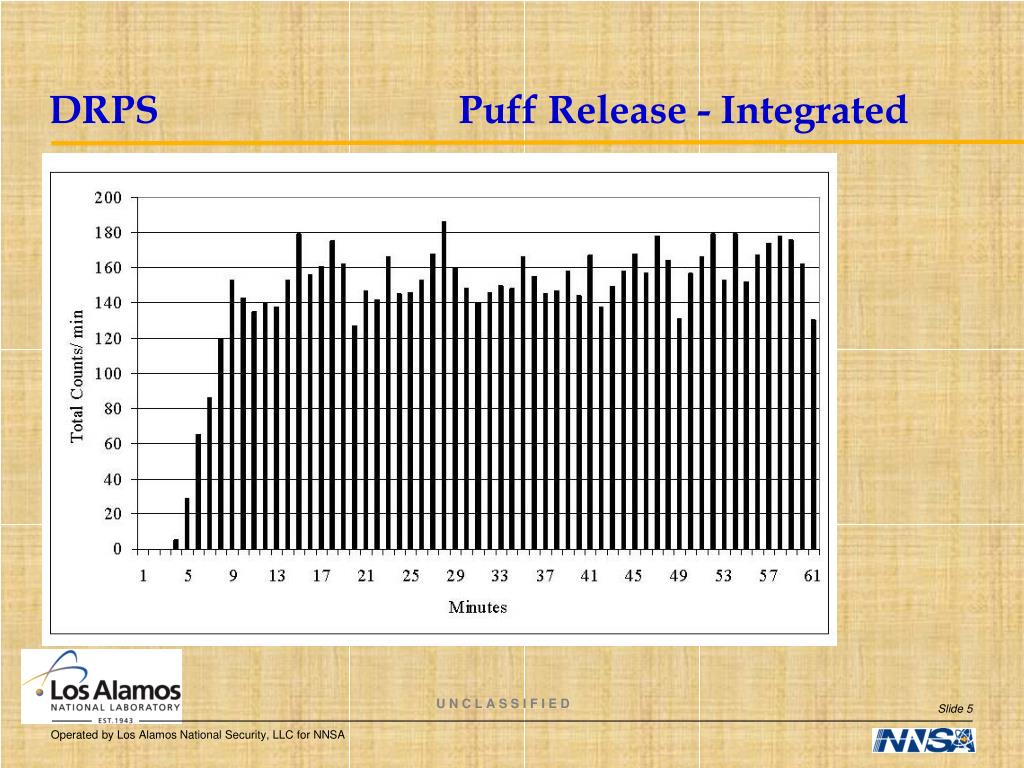

  5. DRPS Puff Release - Integrated

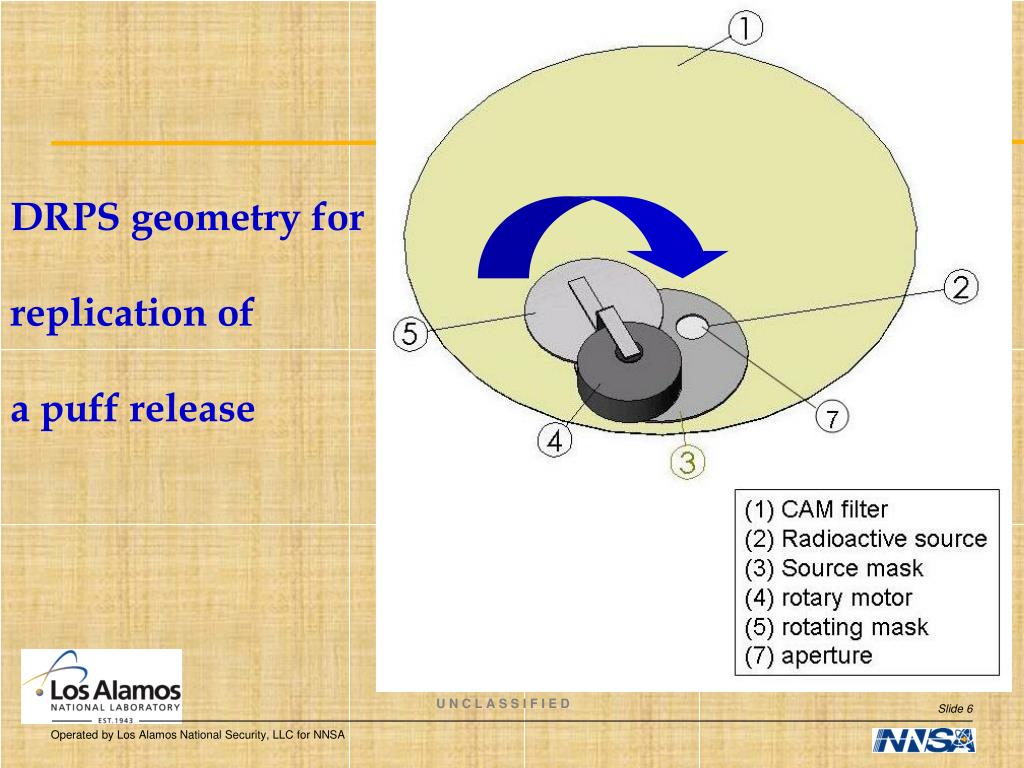

  6. DRPS geometry for replication of a puff release

  7. DRPS geometry for replication of a chronic release

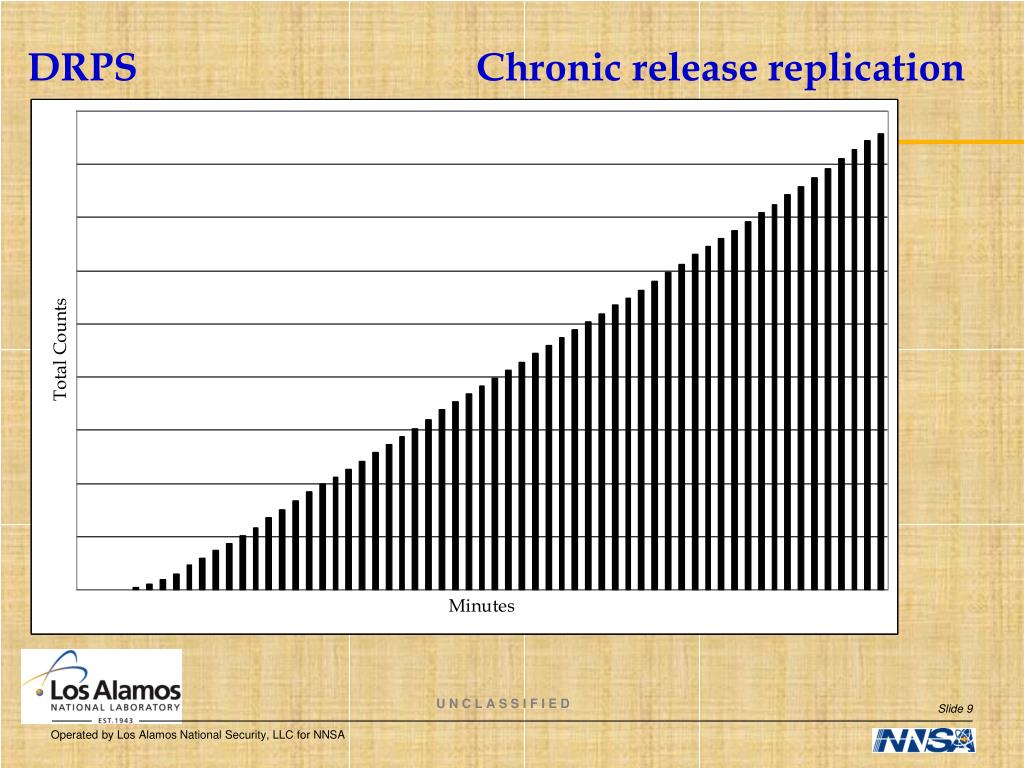

  8. DRPS Chronic release replication

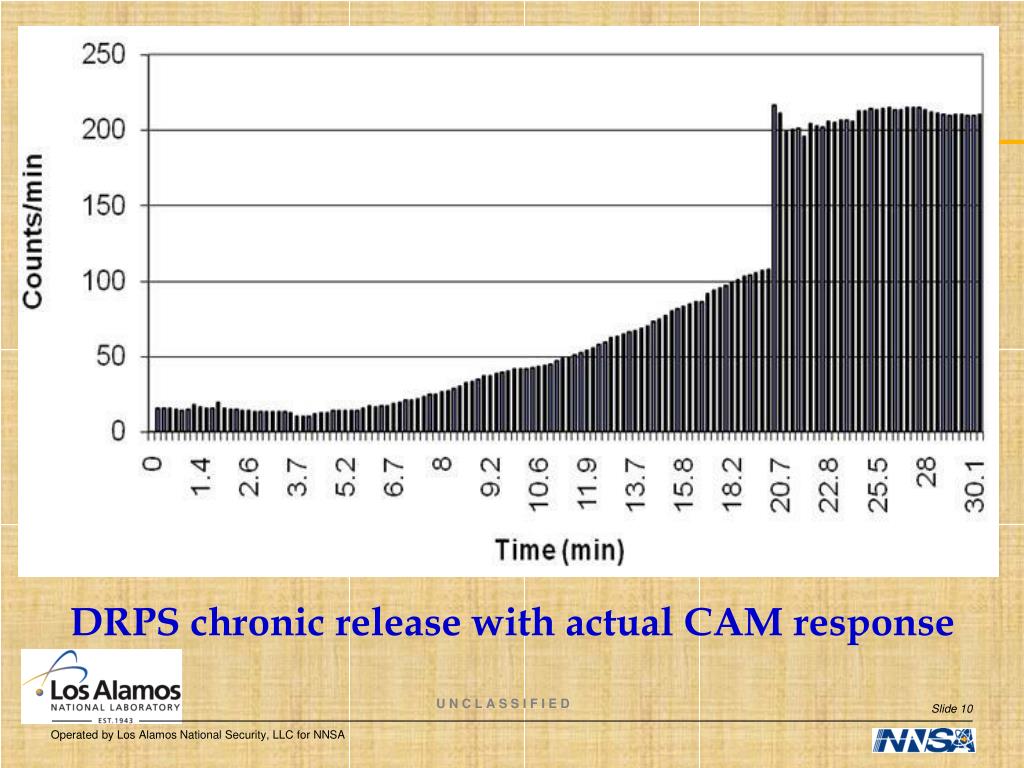

  9. DRPS chronic release with actual CAM response

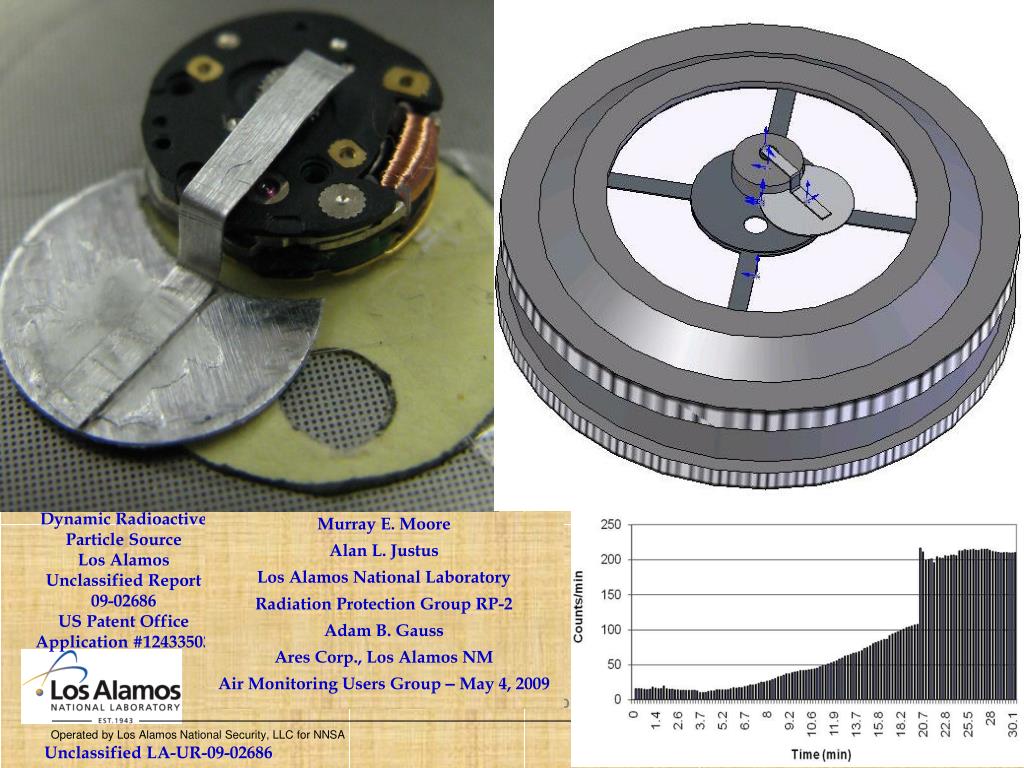

  10. DRPS mounted in a Canberra filter cartridge

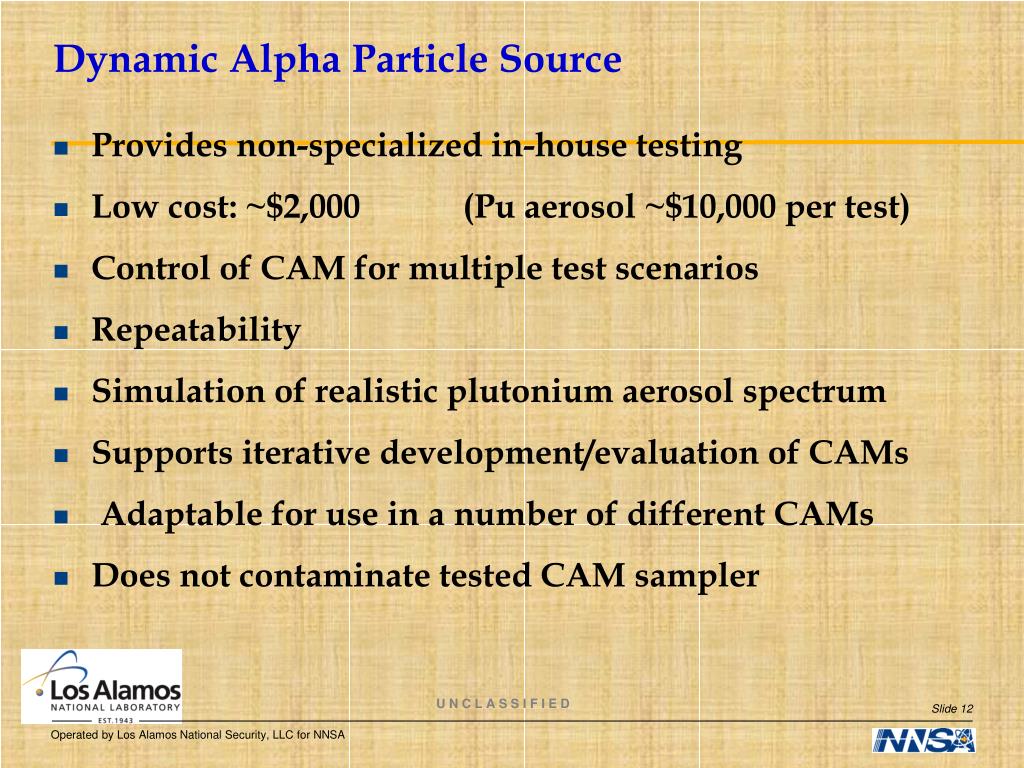

  11. Dynamic Alpha Particle Source • Provides non-specialized in-house testing • Low cost: ~$2,000 (Pu aerosol ~$10,000 per test) • Control of CAM for multiple test scenarios • Repeatability • Simulation of realistic plutonium aerosol spectrum • Supports iterative development/evaluation of CAMs • Adaptable for use in a number of different CAMs • Does not contaminate tested CAM sampler

  12. Dynamic Alpha Particle Source Questions?

  13. Murray E. Moore Alan L. Justus Los Alamos National Laboratory Radiation Protection Group RP-2 Adam B. Gauss Ares Corp., Los Alamos NM Air Monitoring Users Group – May 4, 2009 Dynamic Radioactive Particle SourceLos Alamos Unclassified Report 09-02686US Patent Office Application #12433503 Unclassified LA-UR-09-02686
