Advanced Media and Control Flow in BTS and BSC Systems

This lecture focuses on the intricate media and control flow mechanisms within Base Transceiver Stations (BTS) and Base Station Controllers (BSC). Featuring in-depth analysis of reverse media flow, clock synchronization, and control strategies, this session is ideal for engineers and technicians interested in enhancing their understanding of telecom network architecture. Key topics cover the interplay between various components such as RFIM, UIMU, and DTS, ensuring optimal performance and reliability in communication systems.

jonny
Télécharger la présentation

Advanced Media and Control Flow in BTS and BSC Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. BSSB Call Flow Lecture : 05 Engineer ASAD MEHMOOD

  2. Media Flow Reverse BTS • Media Flow Reverse BSC • Control Flow BSC • CLOCK Flow BSC

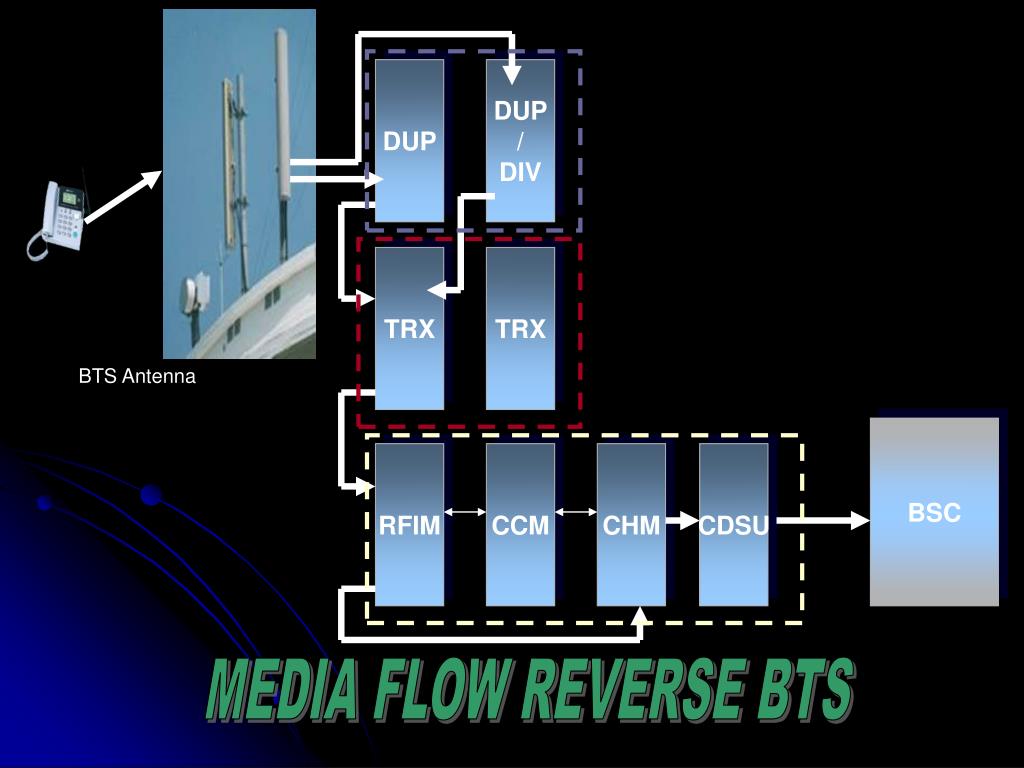

  3. DUP DUP / DIV TRX TRX BTS Antenna BSC RFIM CCM CHM CDSU MEDIA FLOW REVERSE BTS

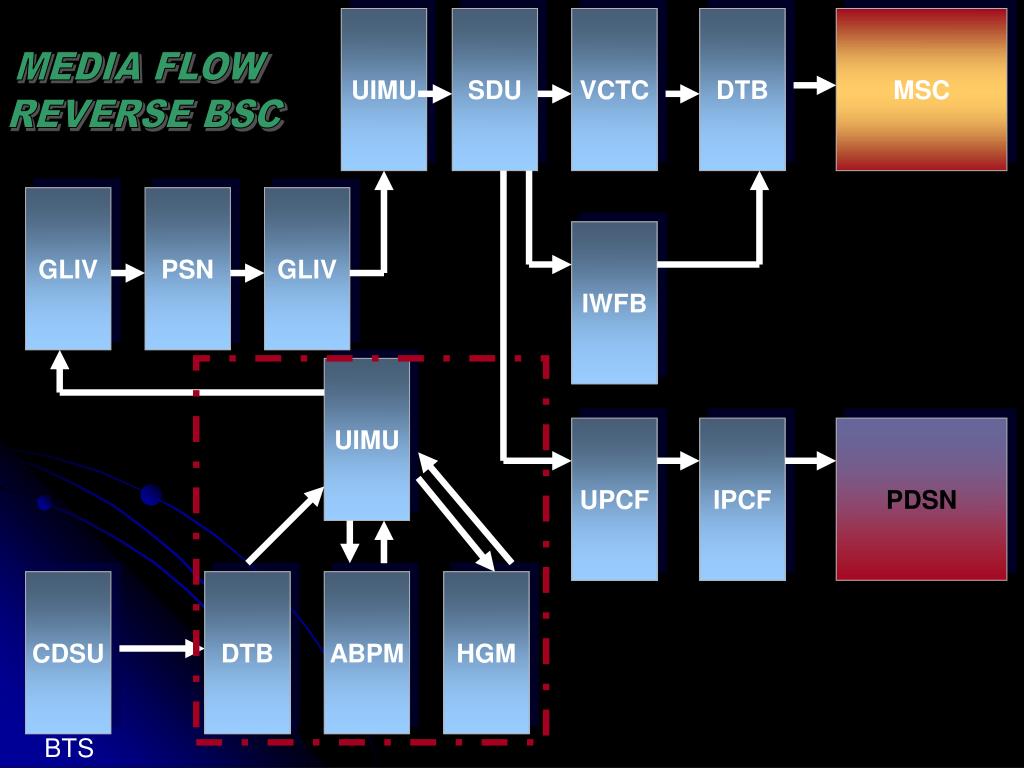

  4. UIMU SDU VCTC DTB MSC MEDIA FLOW REVERSE BSC GLIV PSN GLIV IWFB UIMU UPCF IPCF PDSN CDSU DTB ABPM HGM BTS

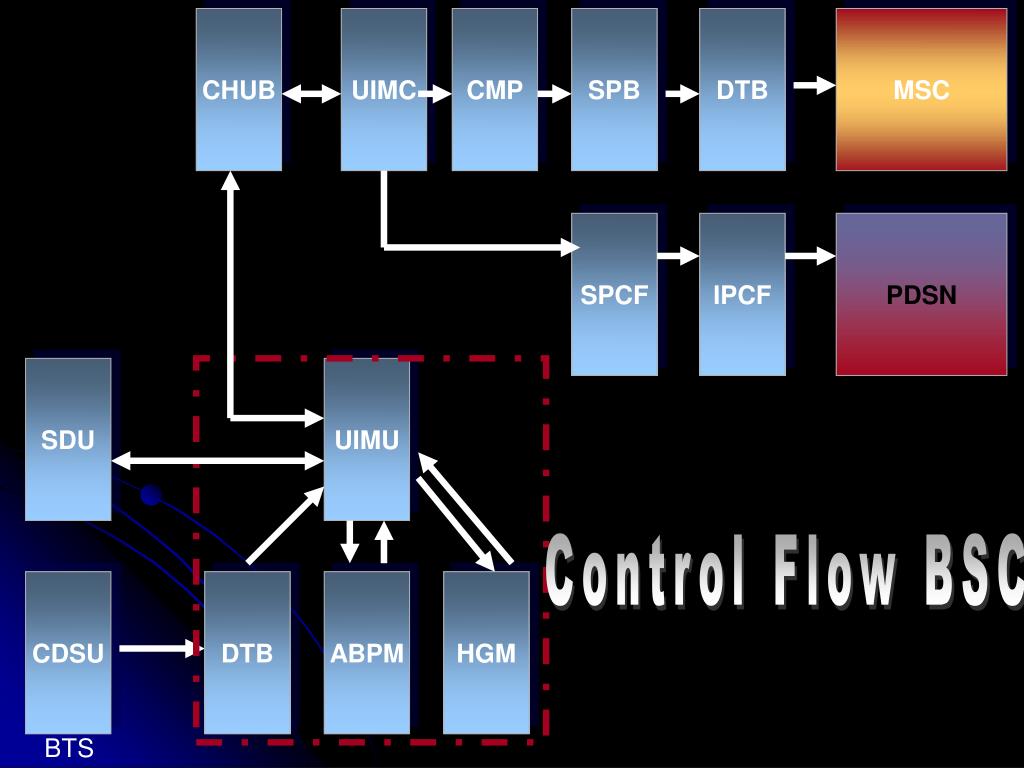

  5. CHUB UIMC CMP SPB DTB MSC SPCF IPCF PDSN SDU UIMU Control Flow BSC CDSU DTB ABPM HGM BTS

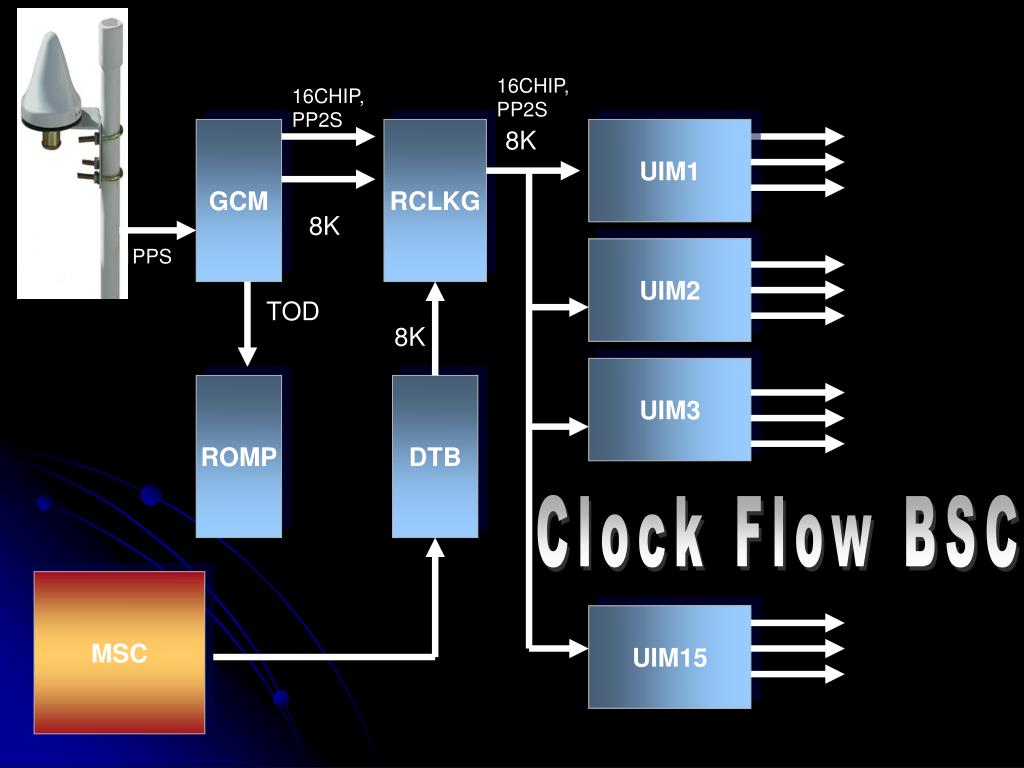

  6. 16CHIP, PP2S 16CHIP, PP2S UIM1 GCM RCLKG 8K 8K UIM2 1PPS TOD 8K UIM3 ROMP DTB Clock Flow BSC MSC UIM15
