Web Design: Fall 2010 Mondays 7-9pm 200 Sutardja-Dai Hall Basic to Advanced Techniques jQuery and AJAX Lecture Code: 788458
Today’s Agenda • Review JavaScript from last lecture • Forms: Post, Get • jQuery APIs • Ajax: jQuery Ajax API • Effects: jQuery Effects API • Events: jQuery Events API • Manipulation: jQuery Maniplation API • Traversing: jQuery Traversing API • Ajax

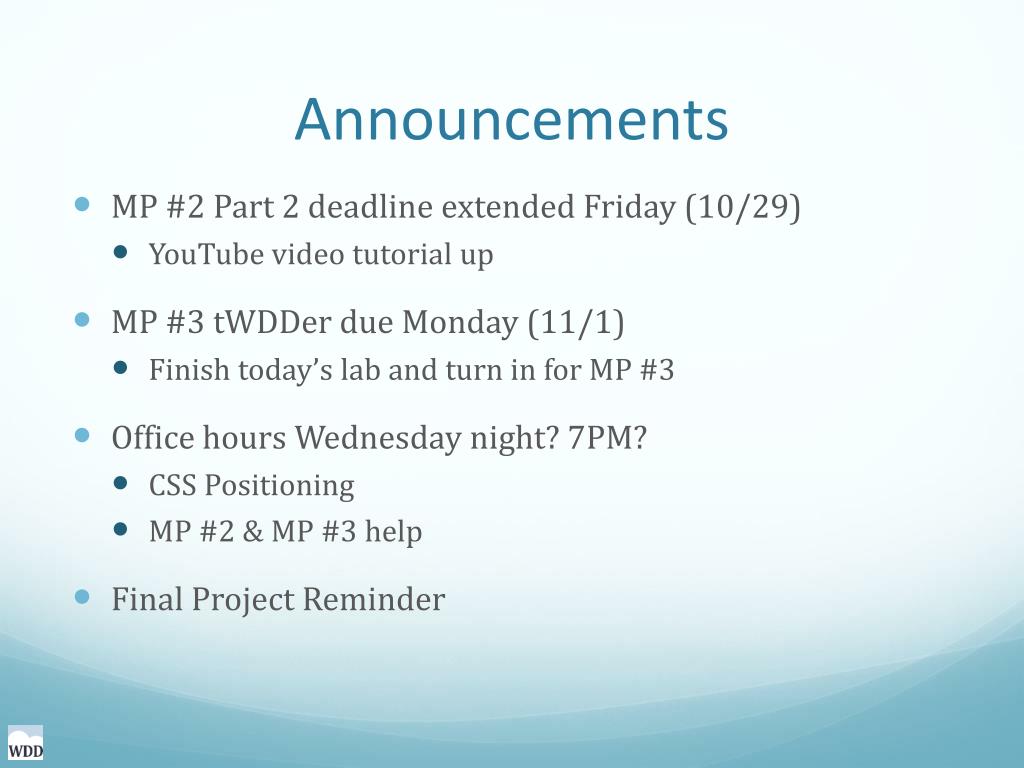

Announcements • MP #2 Part 2 deadline extended Friday (10/29) • YouTube video tutorial up • MP #3 tWDDer due Monday (11/1) • Finish today’s lab and turn in for MP #3 • Office hours Wednesday night? 7PM? • CSS Positioning • MP #2 & MP #3 help • Final Project Reminder
Feedback #1 • Lecture • Summarize key points form prev. lecture • More social interaction (group work) • More live examples • Mini Projects • More screencasted assignments • Help Outside of Class • Office Hours • Workshops • Additional Resources • List of Resources • Photoshop Tutorial • Supplemental Worksheets • Syntax Cheatsheets
Feedback #1 Cont. • Lecturers • Alex • Will provide more examples • Shouldn’t miss any more class (missed a few lectures due to business trips) • Amber • Will talk slower • Jon • Will be more enthusiastic and engaging • Opportunities • ? Last semester had a few recruiters probably because of summer • Ask Alex, Amber, and Jon if you want to get more info on freelance work or working on a project

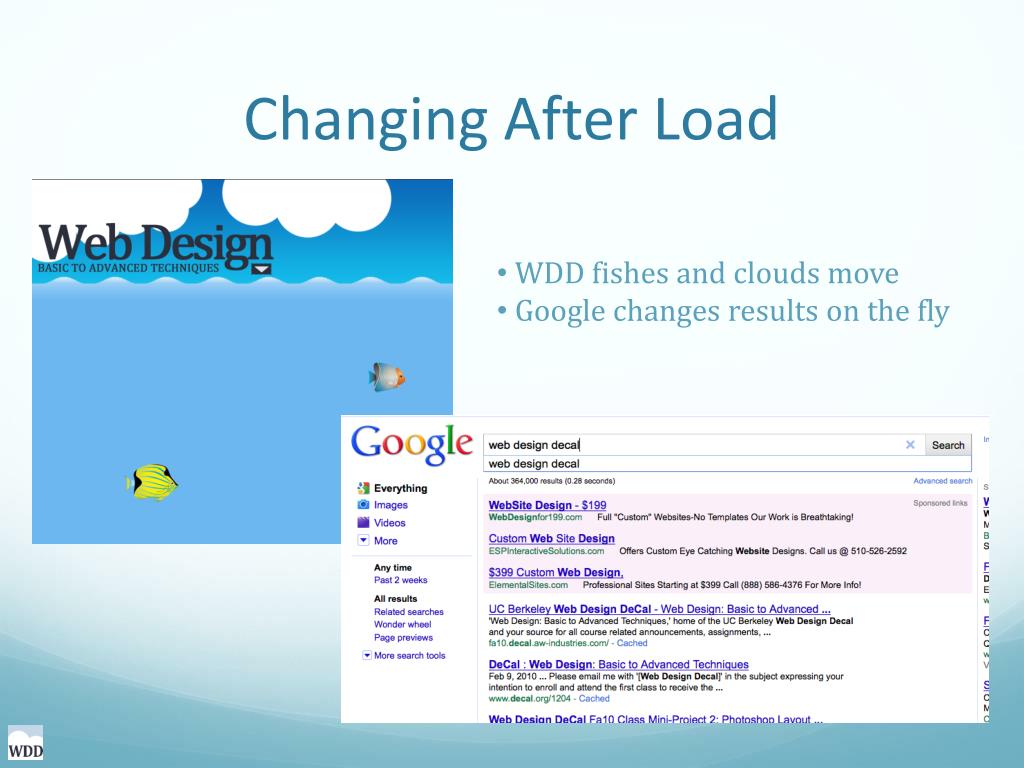

Changing After Load • WDD fishes and clouds move • Google changes results on the fly

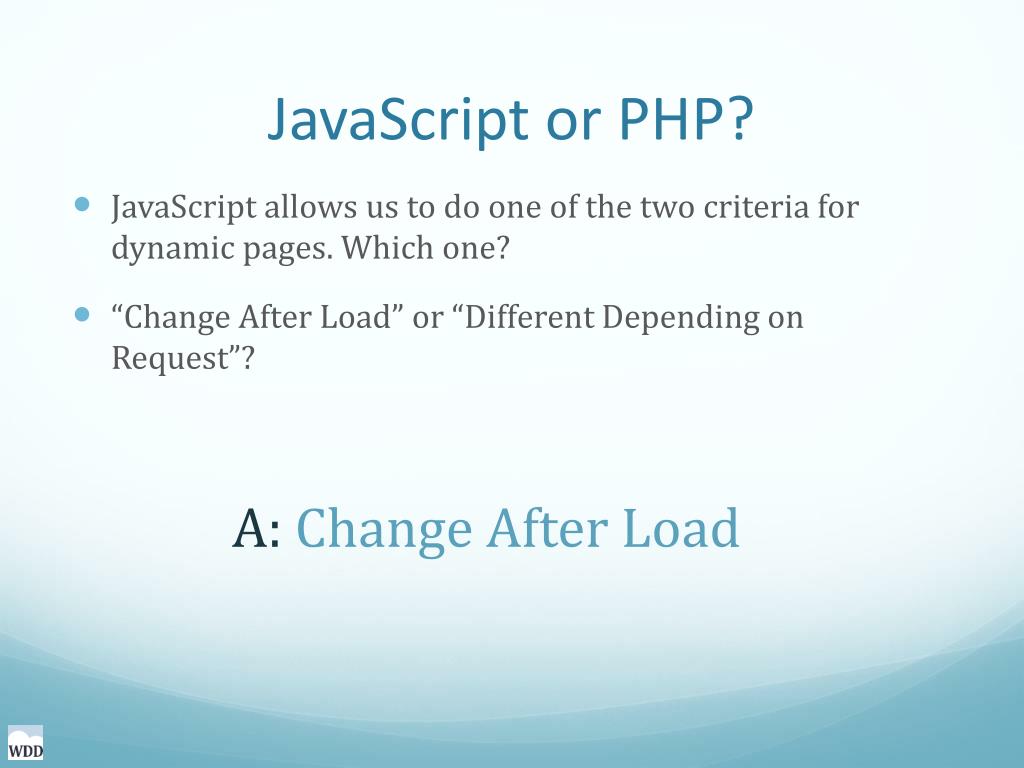

JavaScript or PHP? • JavaScript allows us to do one of the two criteria for dynamic pages. Which one? • “Change After Load” or “Different Depending on Request”? A: Change After Load
What is JavaScript? Client Side Server Side Web Server Serve Website Send HTML and CSS files Send images • Web Browser • HTTP Request (visit website) • Interpret and render received files • Send JavaScript code • Execute JavaScript • PHP and MySQL Runs in your browser – on the client side Q: Why can’t JavaScript serve a different page depending on request? A: Executed on the client side after page load
What does JavaScript do? • “Plays with the blocks” • Modifies HTML and CSS • “Moves blocks around” • Change position of HTML objects via CSS • “Buys new and throws away old blocks” • Can create and delete HTML objects and CSS rules • “Stacks blocks” • Can change nested structure of HTML code • Essentially change HTML and CSS in anyway it wants • Anything you could have created or styled ahead of time in HTML and CSS, JavaScript can create or style after the page has loaded

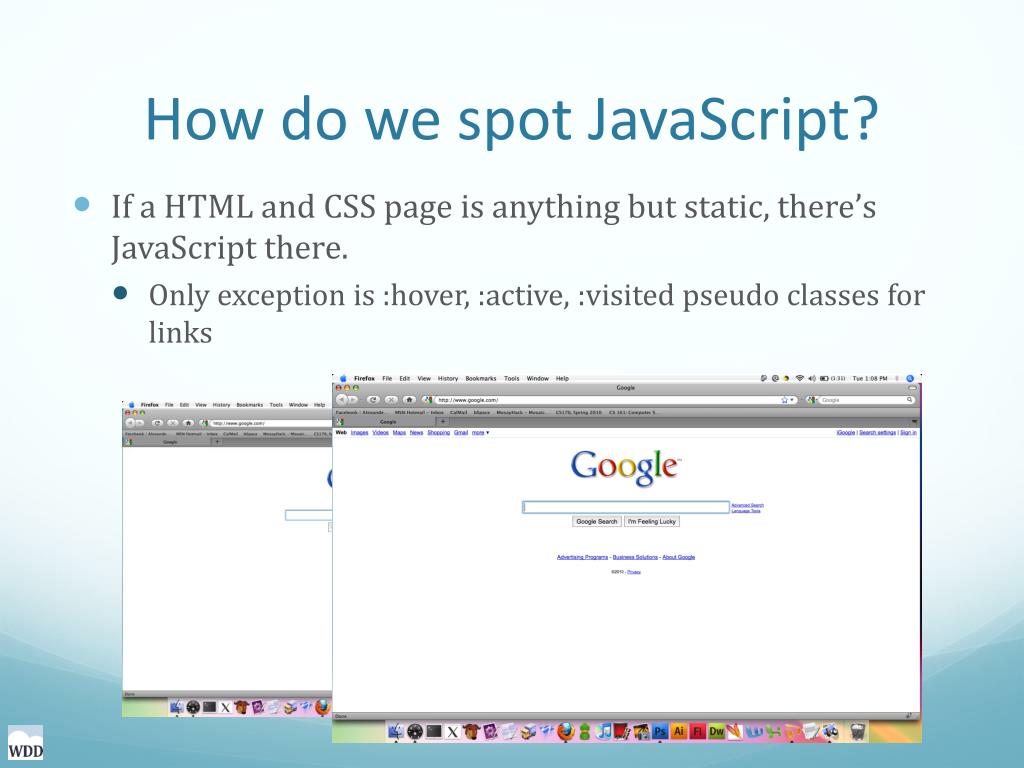

How do we spot JavaScript? • If a HTML and CSS page is anything but static, there’s JavaScript there. • Only exception is :hover, :active, :visited pseudo classes for links
How does JavaScript do it? • Browser represents web page as a DOM tree • DOM = Document Object Model html <html> <head> <title></title> </head> <body> <div> <h1></h1> <p></p> </div> </body> </html> head body title div h1 p

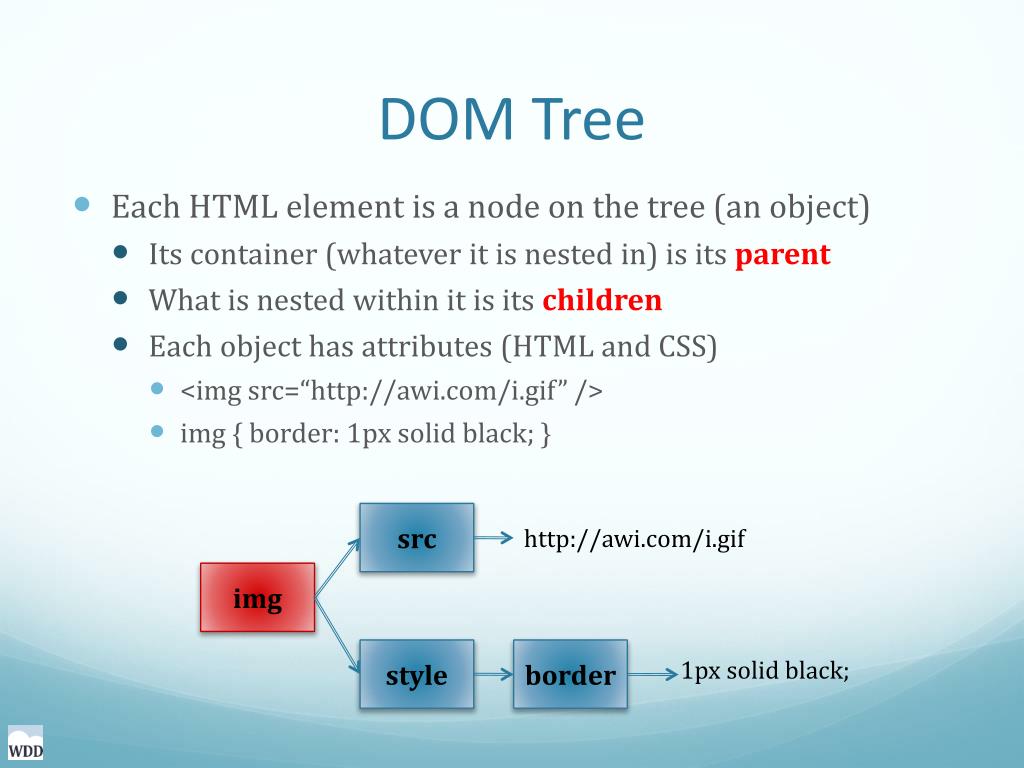

DOM Tree • Each HTML element is a node on the tree (an object) • Its container (whatever it is nested in) is its parent • What is nested within it is its children • Each object has attributes (HTML and CSS) • <img src=“http://awi.com/i.gif” /> • img { border: 1px solid black; } src http://awi.com/i.gif img style border 1px solid black;

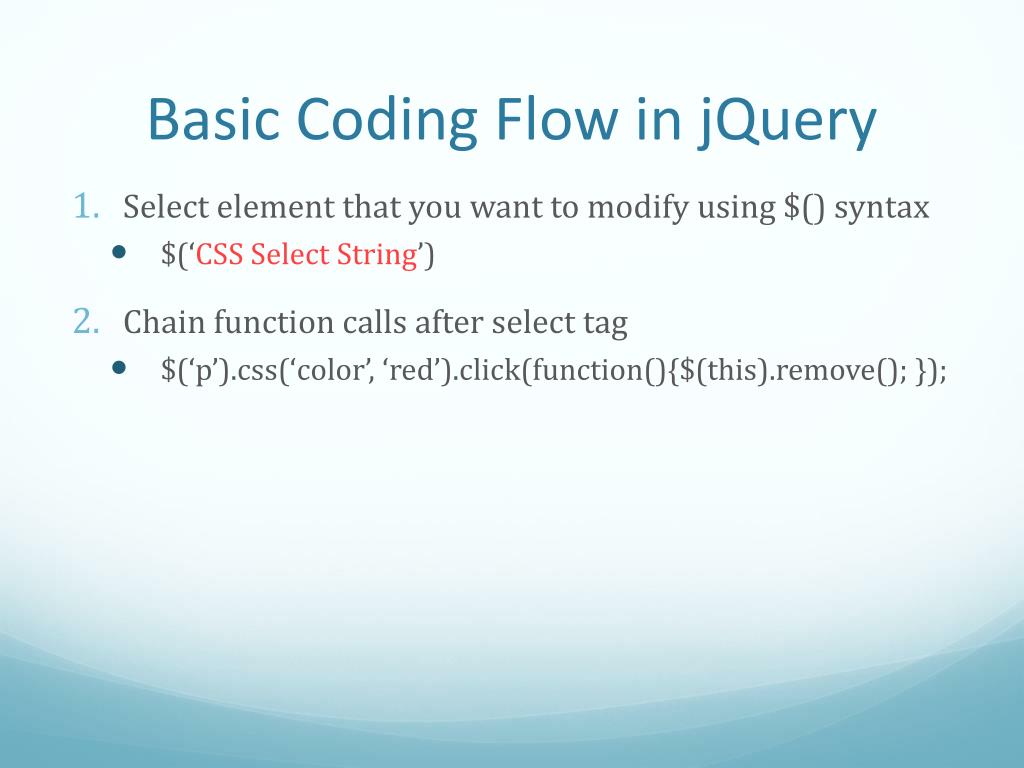

Basic Coding Flow in jQuery • Select element that you want to modify using $() syntax • $(‘CSS Select String’) • Chain function calls after select tag • $(‘p’).css(‘color’, ‘red’).click(function(){$(this).remove(); });
Selecting HTML Elements • jQuery allows us to use CSS selectors in conjunction with $ to select objects in HTML • $(‘#myElement’) gives us the element with id=“myElement” • $(‘img’) gives us an array of all images on page • Selecting elements with $ also gives the element some additional JavaScript functionality which include…

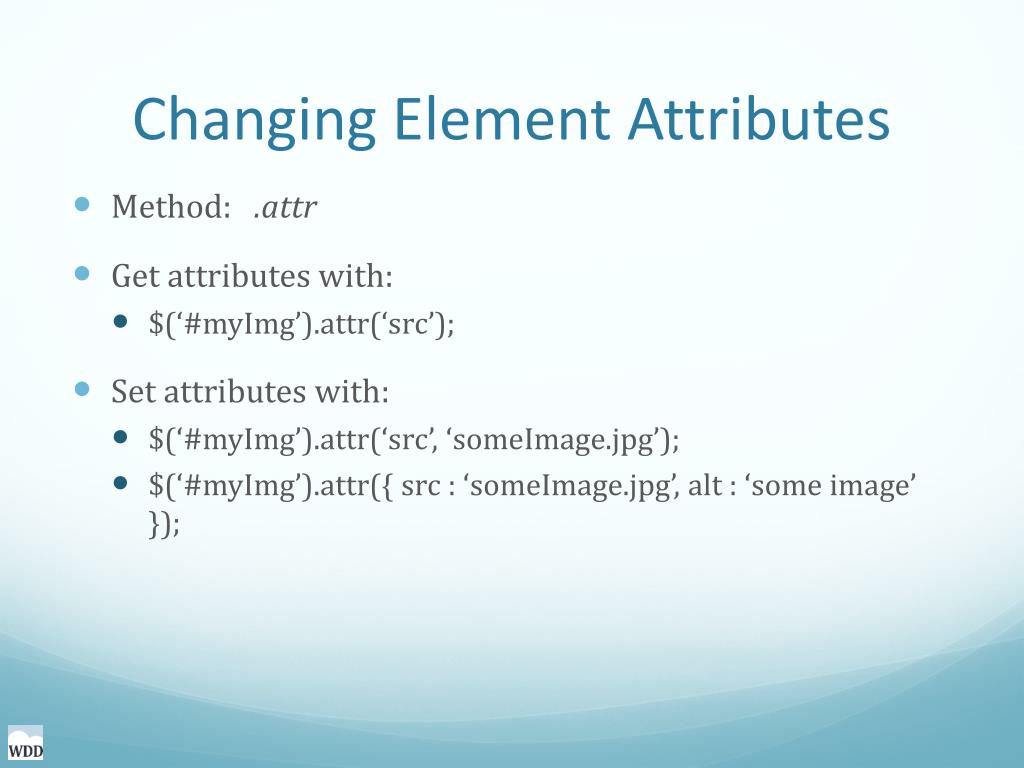

Changing Element Attributes • Method: .attr • Get attributes with: • $(‘#myImg’).attr(‘src’); • Set attributes with: • $(‘#myImg’).attr(‘src’, ‘someImage.jpg’); • $(‘#myImg’).attr({ src : ‘someImage.jpg’, alt : ‘some image’ });
Changing CSS Properties • Method: .css • Get properties with: • $(‘h1’).css(‘color’); • Set properties with: • $(‘h1’).css(‘color’, ‘red’); • $(‘h1’).css({ color: ‘red’, ‘font-weight’ : ‘normal’ });
Adding CSS Class • Method: .addClass • $(‘#myDiv’).addClass(‘header’); • Method: .removeClass • $(‘#myDiv’).removeClass(‘header’);
Event handling • Mouse click • $(“#blah").click(function() { alert("Hello world!"); }); • Hover • $('#blah').mouseover(function() { alert(“Hello world!”); }); • Keyup/down/press, onfocus/blur, etc. • For more, check out the Jquery API: http://api.jquery.com/category/events/
JavaScript Functions • Doesn’t do anything until called • Controlled execution • Repetitive (code reusability) • function doSomething(var1, var2, …){ //body }
Math Functions (Remember from algebra?) • f(x) = x2 + x + 3 • f(1) = 12 + 1 + 3 = 5 • f(x, y) = x3 + y2 + 1 • f(2, 1) = 23 + 12 + 1 = 10 • Basic idea: Functions are machines that take can take an input, do some stuff, then spit a result out. These functions can also have variable number of inputs/arguments.

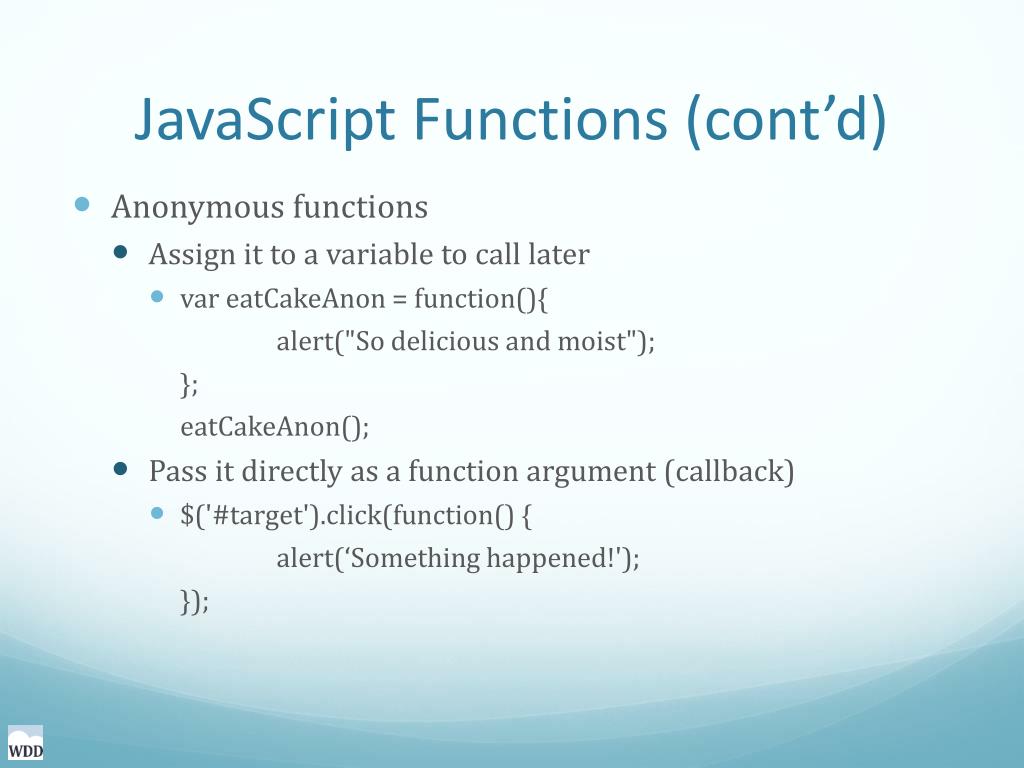

JavaScript Functions (cont’d) • Anonymous functions • Assign it to a variable to call later • var eatCakeAnon = function(){ alert("So delicious and moist"); }; eatCakeAnon(); • Pass it directly as a function argument (callback) • $('#target').click(function() { alert(‘Something happened!'); });
Stringing along jQuery commands • With jQuery you can string along any other jQuery commands, as long as you’ve selected the element first. • $(“div”).attr(title, “newTitle”) • $(“div”).css(background-color, “newColor”); • $(“div”).attr(title, “newTitle”).css(background-color, “newColor”);
.append() vs .appendTo() • $('<p>Test</p>').appendTo('.inner'); • This first creates an HTML element with inner text and appends to all elements in the existimg HTML DOM with class “inner” • $('.inner').append('<p>Test</p>'); • This looks for all element with class “inner” first, then appends “<p>Test</p>” to each one

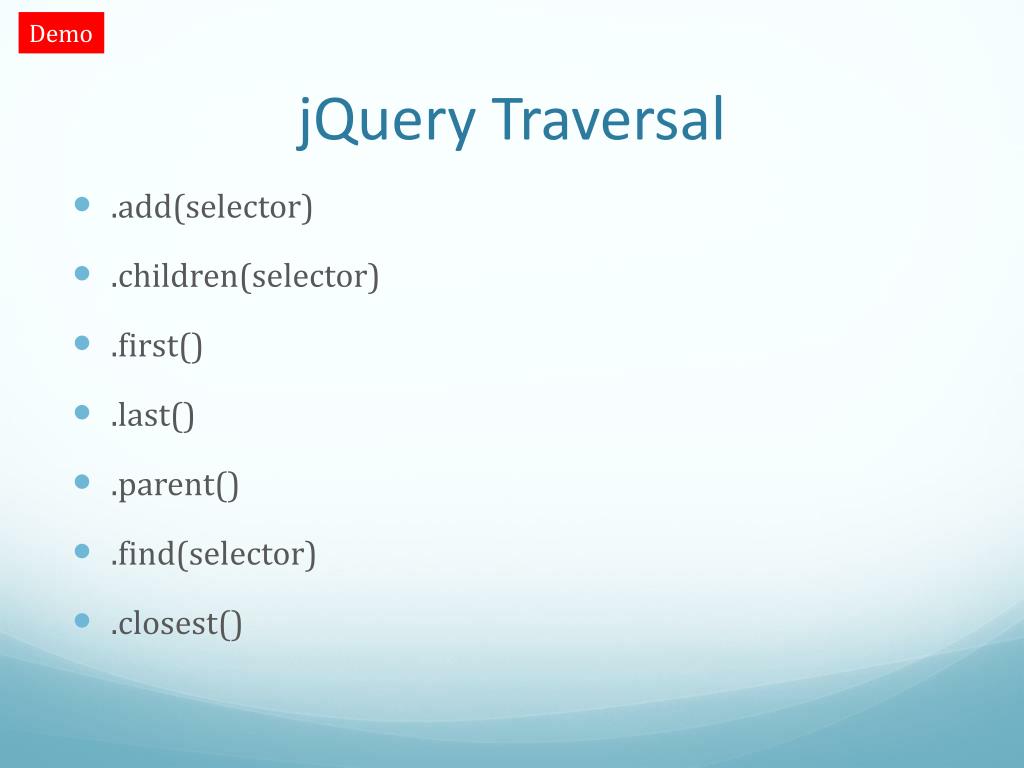

Demo jQuery Traversal • .add(selector) • .children(selector) • .first() • .last() • .parent() • .find(selector) • .closest()

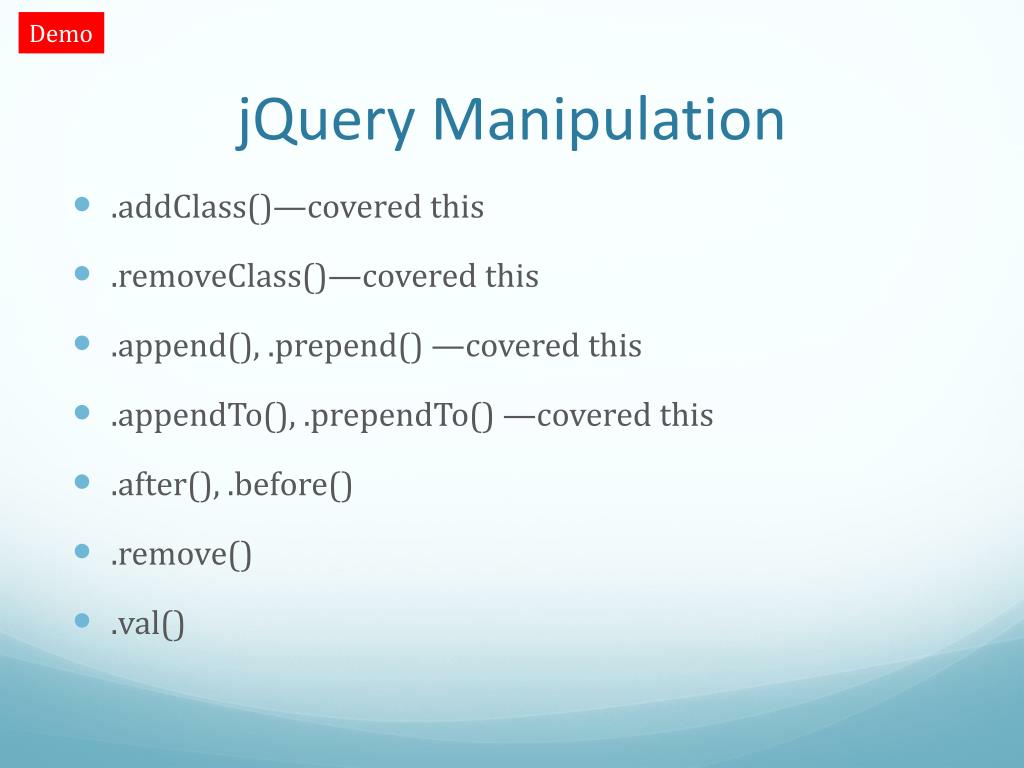

Demo jQuery Manipulation • .addClass()—covered this • .removeClass()—covered this • .append(), .prepend() —covered this • .appendTo(), .prependTo() —covered this • .after(), .before() • .remove() • .val()
Demo jQuery Effects • .slideDown() • .slideUp() • .slideToggle() • .hide() • .show() • .animate()

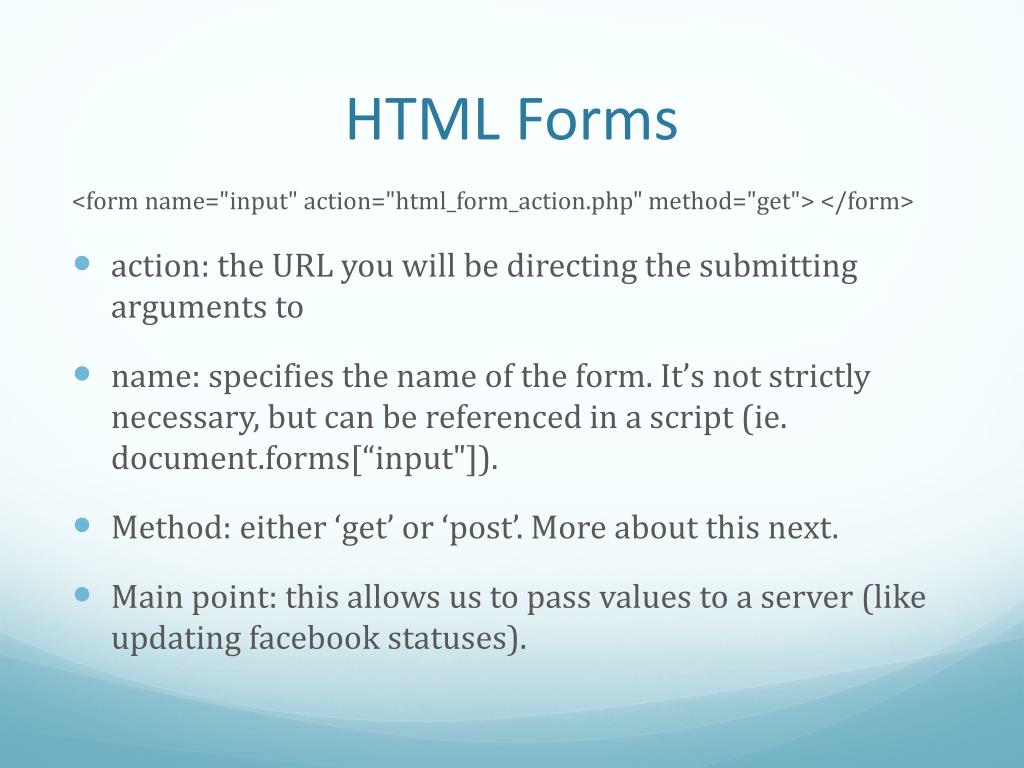

HTML Forms <form name="input" action="html_form_action.php" method="get"> </form> • action: the URL you will be directing the submitting arguments to • name: specifies the name of the form. It’s not strictly necessary, but can be referenced in a script (ie. document.forms[“input"]). • Method: either ‘get’ or ‘post’. More about this next. • Main point: this allows us to pass values to a server (like updating facebook statuses).
GET • A GET request will generate a parameters driven URL • Parameters are passed in the following form: • <URL>?key1=value1&key2=value2&key3=… • ? – lets the browser know anything thereafter are parameters to be passed to the server • Each parameter is formulated by a ‘key=value’ pair. Each ‘key=value’ pair is delaminated (separated) by a ‘&’ character

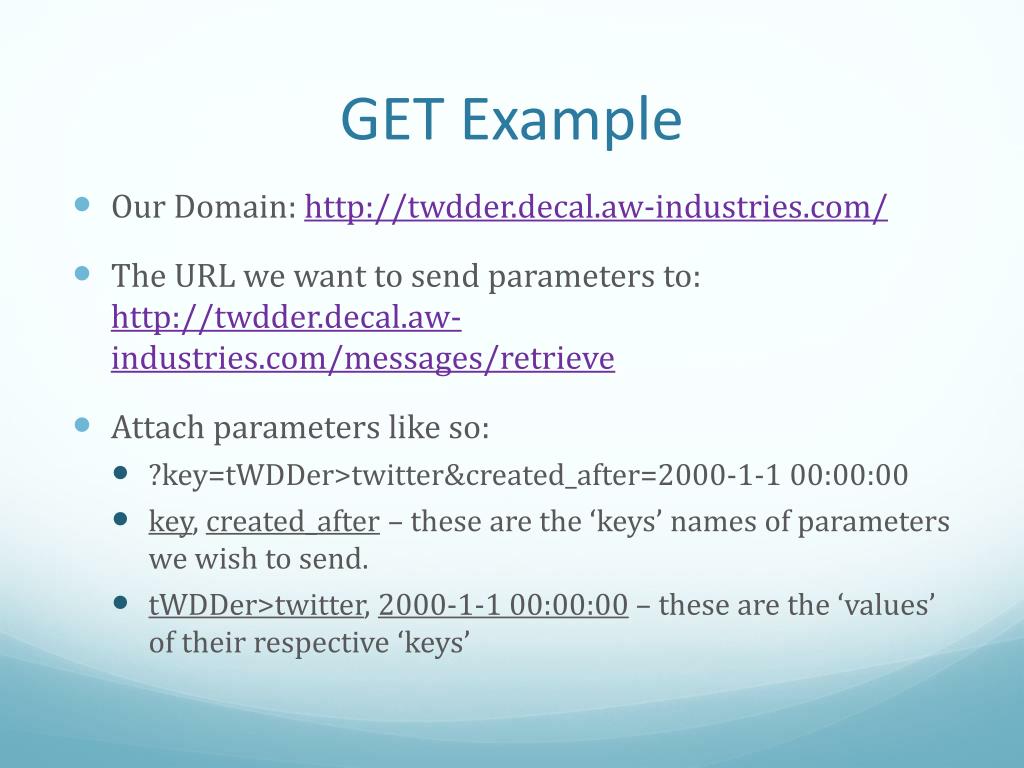

GET Example • Our Domain: http://twdder.decal.aw-industries.com/ • The URL we want to send parameters to: http://twdder.decal.aw-industries.com/messages/retrieve • Attach parameters like so: • ?key=tWDDer>twitter&created_after=2000-1-1 00:00:00 • key, created_after – these are the ‘keys’ names of parameters we wish to send. • tWDDer>twitter, 2000-1-1 00:00:00 – these are the ‘values’ of their respective ‘keys’
POST • Can’t really be visualized, but we can see the results by looking at the web traffic through FireBug. • <form action="form_action.asp“ method=“post”> • First name: <input type="text" name="FirstName" /> • Last name: <input type="text" name="LastName" /> • <input type="submit" value="Submit" /> • </form>

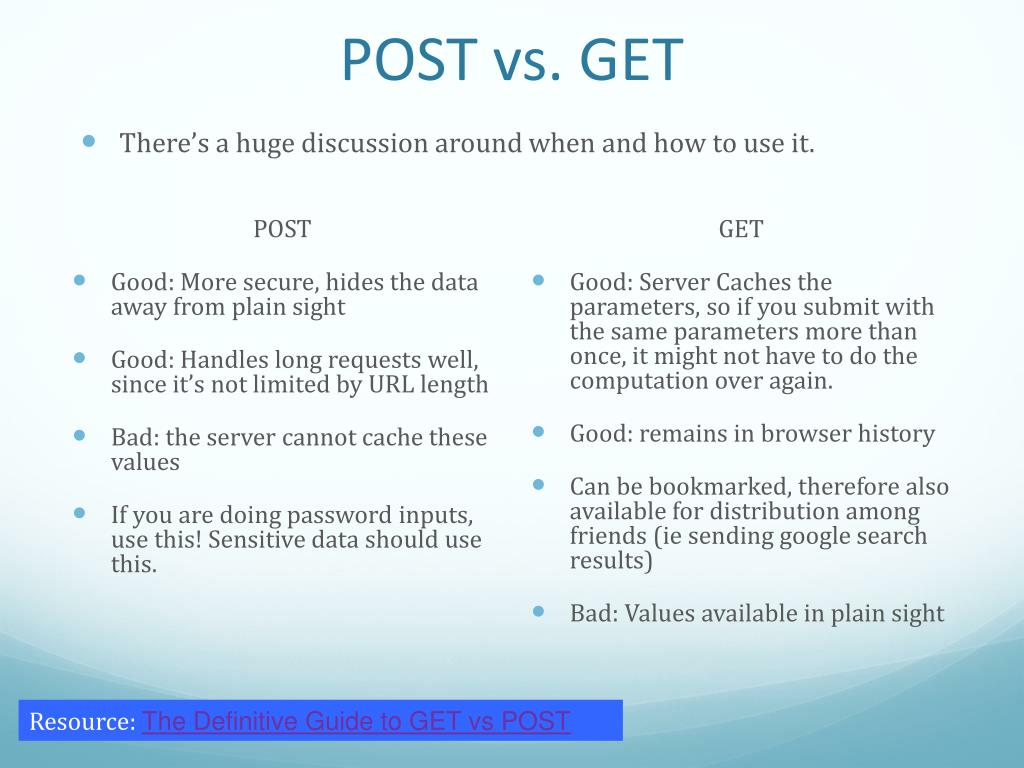

POST Good: More secure, hides the data away from plain sight Good: Handles long requests well, since it’s not limited by URL length Bad: the server cannot cache these values If you are doing password inputs, use this! Sensitive data should use this. GET Good: Server Caches the parameters, so if you submit with the same parameters more than once, it might not have to do the computation over again. Good: remains in browser history Can be bookmarked, therefore also available for distribution among friends (ie sending google search results) Bad: Values available in plain sight POST vs. GET • There’s a huge discussion around when and how to use it. Resource: The Definitive Guide to GET vs POST
What is AJAX? …We’re not talking about your household cleanser!

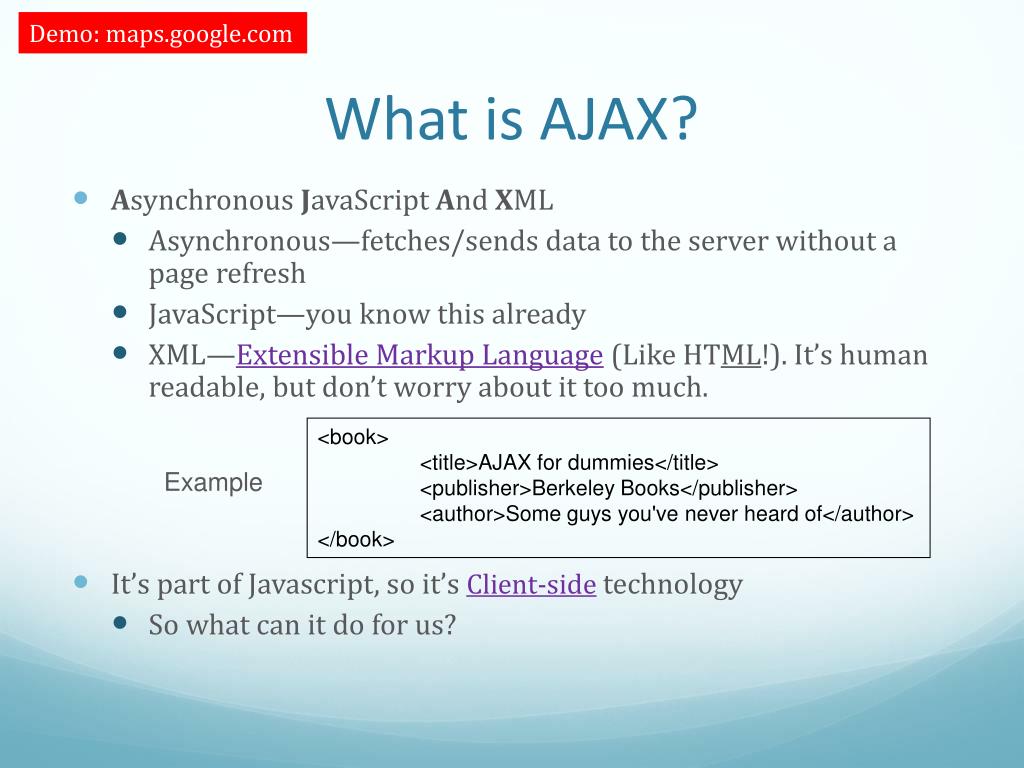

Demo: maps.google.com What is AJAX? • Asynchronous JavaScript And XML • Asynchronous—fetches/sends data to the server without a page refresh • JavaScript—you know this already • XML—Extensible Markup Language (Like HTML!). It’s human readable, but don’t worry about it too much. • It’s part of Javascript, so it’s Client-side technology • So what can it do for us? <book> <title>AJAX for dummies</title> <publisher>Berkeley Books</publisher> <author>Some guys you've never heard of</author> </book> Example
1.a 1.b What’s going on? (just the Ajax view) • Synchronous Actions (Initial load) • You visit http://maps.google.com • Google’s Web Server receives request and serves you the web page. • Asynchronous Actions • Event triggered by zooming (actually .click()). Each magnification “redraws” the map. • Client-side makes Ajax call to retrieve the new map images at the set zoom level. 2.a. 2.b.

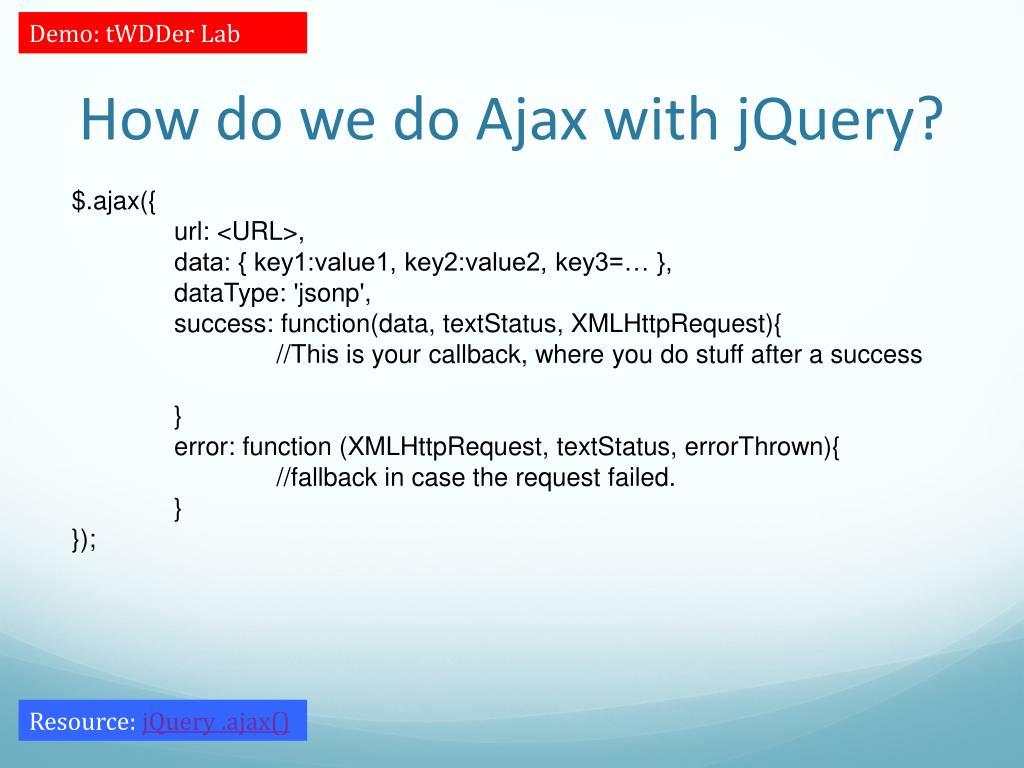

Demo: tWDDer Lab How do we do Ajax with jQuery? $.ajax({ url: <URL>, data: { key1:value1, key2:value2, key3=… }, dataType: 'jsonp', success: function(data, textStatus, XMLHttpRequest){ //This is your callback, where you do stuff after a success } error: function (XMLHttpRequest, textStatus, errorThrown){ //fallback in case the request failed. } }); Resource: jQuery .ajax()
Callbacks • Piece of executable code that is passed as an argument to other code • Allows us control timing of function calls • Allows us to execute X only if Y was sucessful. • Just like the jQuery .click() $("p").click(function () { $(this).slideUp(); });

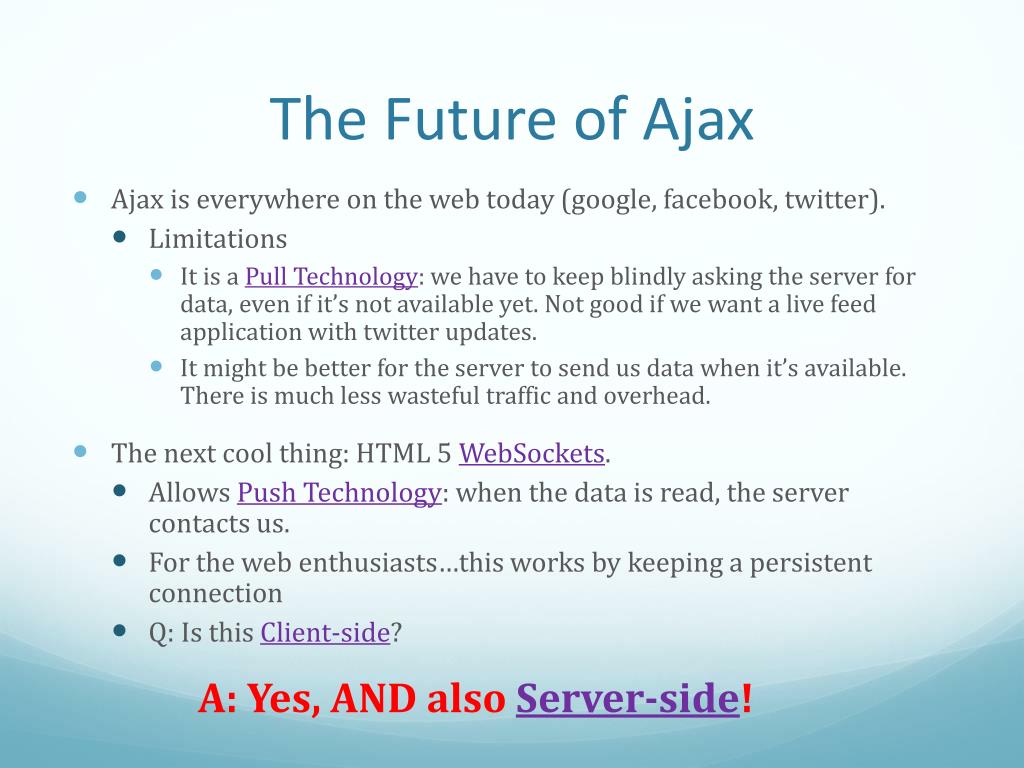

The Future of Ajax • Ajax is everywhere on the web today (google, facebook, twitter). • Limitations • It is a Pull Technology: we have to keep blindly asking the server for data, even if it’s not available yet. Not good if we want a live feed application with twitter updates. • It might be better for the server to send us data when it’s available. There is much less wasteful traffic and overhead. • The next cool thing: HTML 5 WebSockets. • Allows Push Technology: when the data is read, the server contacts us. • For the web enthusiasts…this works by keeping a persistent connection • Q: Is this Client-side? A: Yes, AND also Server-side!

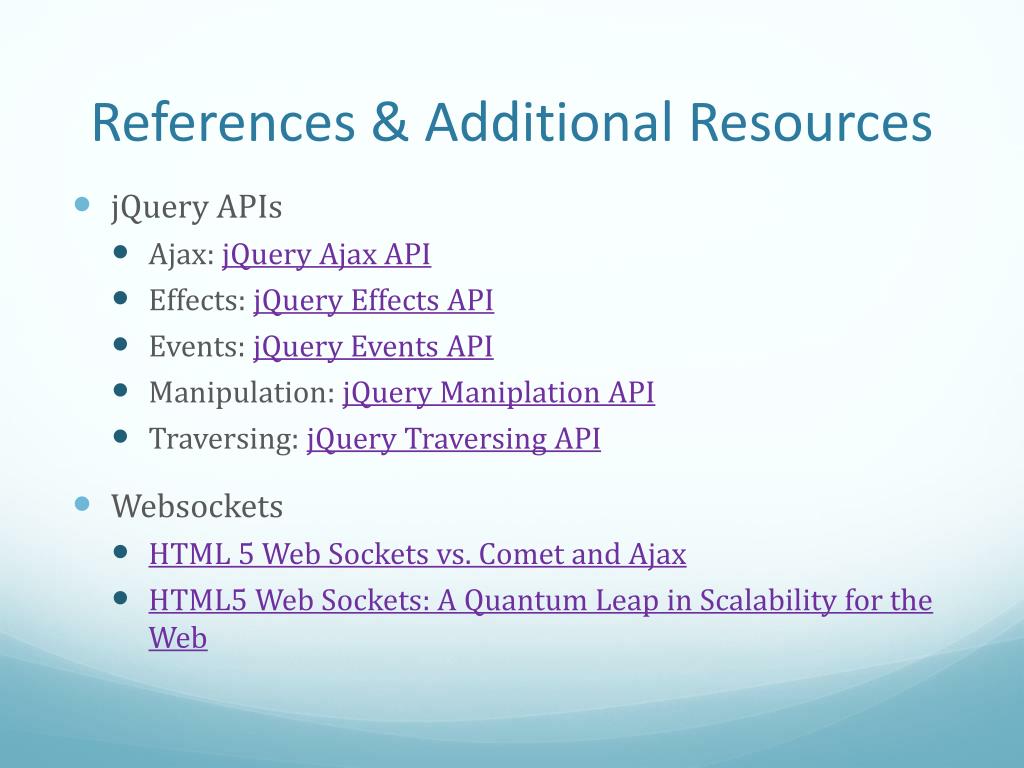

References & Additional Resources • jQuery APIs • Ajax: jQuery Ajax API • Effects: jQuery Effects API • Events: jQuery Events API • Manipulation: jQuery Maniplation API • Traversing: jQuery Traversing API • Websockets • HTML 5 Web Sockets vs. Comet and Ajax • HTML5 Web Sockets: A Quantum Leap in Scalability for the Web
JavaScript Date() – Just a reference… • It is part of plain JavaScript, not jQuery! • To create it, you will need to do • var myDate = new Date(); • Some functions it has • myDate .getTime() - Milliseconds since 1/1/1970 @ 12:00 AM • myDate . getSeconds() - Number of seconds (0-59) • myDate. getMinutes() - Number of minutes (0-59) • myDate . getHours() - Number of hours (0-23) • myDate . getDay() - Day of the week(0-6). 0 = Sunday, ... , • myDate . getDate() - Day of the month (0-31) • myDate . getMonth() - Number of month (0-11) • myDate . getFullYear() - The four digit year (1970-9999) Resources: Javascript Tutorial – Date, JavaScript Date Object
