1. “Enterprise Security”June 2009 Scott Muench – Senior Applications Engineer Steve Lucas – Security Business Manager Rick Weisensale – Security Product Manager © 2009 Tridium, Inc,

2. Welcome! • The goal of TridiumTalk is to share with the Niagara community timely content on sales, products and technical topics.  Each session will last between 45-60 minutes and will be a mix of presentation, demonstrations and Q&A. • This session and past sessions will be posted on our community web site at www.Niagara-Central.com. • The content presented here is representative of Tridium’s Niagara technology and products in general, please contact your channel partner for specific details and pricing. • As a courtesy to others in the conference, please place your phone on mute until the Q&A portion of the program

3. Enterprise Security • Tridium's Enterprise Security is a comprehensive access control and security management solution, developed entirely on the Niagara Framework. The Enterprise application serves as a central management tool for many security JACEs, enabling scalability from single door deployments to multi-building / multi-campus environments. This TridiumTALK takes a look at the product capabilities, platform strategies as well as typical applications. • By integrating today's diverse building systems such as environmental controls, security, lighting, energy, fire and video, the NiagaraAX Framework is creating better buildings-ones that are smarter, use less energy, are more efficient, have lower operating costs, are safer and contribute to a sustainable environment.

4. Agenda • Security Landscape • Platform Approach • Enterprise Security • Introduction • Features • Product Structure • Hardware Overview • Capacities / Architecture • Live Demonstration • More Information • Question and Answer Session

5. Security Landscape Current Situation • Diverse Subsystems • Many Different Manufacturers • Lack of Open Standards • Barriers to Interoperability • Industry Movement to IP • Push to Open Systems Access Control Video Intrusion Fire Identity Mgmt

6. Familiar Problem… Card Access Video Intrusion Fire Identity Mgmt

7. Tridium Strategy • Model subsystem components • Interoperability between disparate manufacturers • Unified user experience Card Access Video Intrusion Fire Identity Mgmt

8. Enterprise Security • Comprehensive access control, security management solution • Scalable from single door to campus environment • Application entirely accessible through standard web browser • No workbench required • Developed on truly open platform • Open architecture • Open framework • Open distribution • Open protocol support • Distributed architecture • Integrates seamlessly with BAS, lighting and energy management systems

9. Product Features • Utilizes standard relational database • Base options of MS SQL 2003 and MySQL • Optional support for Oracle and DB2 • UL 294, C-UL, and CE listed systems available • Supports multiple protocols • oBIX, BACnet, Modbus, SNMP, and other open protocols • Extensive support for legacy devices • Common GUI experience • Built on Niagara Framework • Flexible, adaptable architecture • Common object model • Upgrade path from 1.x product

10. Product Features (cont) • Industry standard Wiegand reader communication protocol • Supports multiple card formats • Extensive data import capabilities • Import card holder data via CSV • Definable supervised input voltage • Flexible card validation to support proprietary card formats • Credential only • Credential + facility code • Entire card format

11. Application Features • Central management of card holder database • Access control • Reader only, reader + keypad, reader or keypad • Schedule unlock on first validation • Intrusion detection • Optional LCD based keypad for zone arm/disarm • Elevator control • Access zones • Anti-Passback • Occupancy counting • Supervisor rule enforcement • Integrated alarm / activity monitoring • Predefined and ad-hoc reporting tools

12. Product Structure • Licensable application on AX supervisor • Existing supervisor • Integrated supervisor • Security only supervisor • Restricted to Security drivers and Security JACEs only • Application licensed by total # of readers • 16, 64, 256, and 1024 reader packs • No limitation / restriction on simultaneous users • Requires Niagara AX 3.4 • Enterprise security parts bundled • Include security application, db driver and 32 reader license • Database software sold separately

13. Integrated Video • Video Integration Functions • Bi-directional alarm interface from Niagara to video products • Alarms from security system can initiate events in video system • Video product events (pixel motion detection, loss of video, etc) can be processed as standard Niagara alarms • Standard Niagara widgets for video support • View live video • Pan / tilt / zoom control • Query and playback stored video • DVR video display management

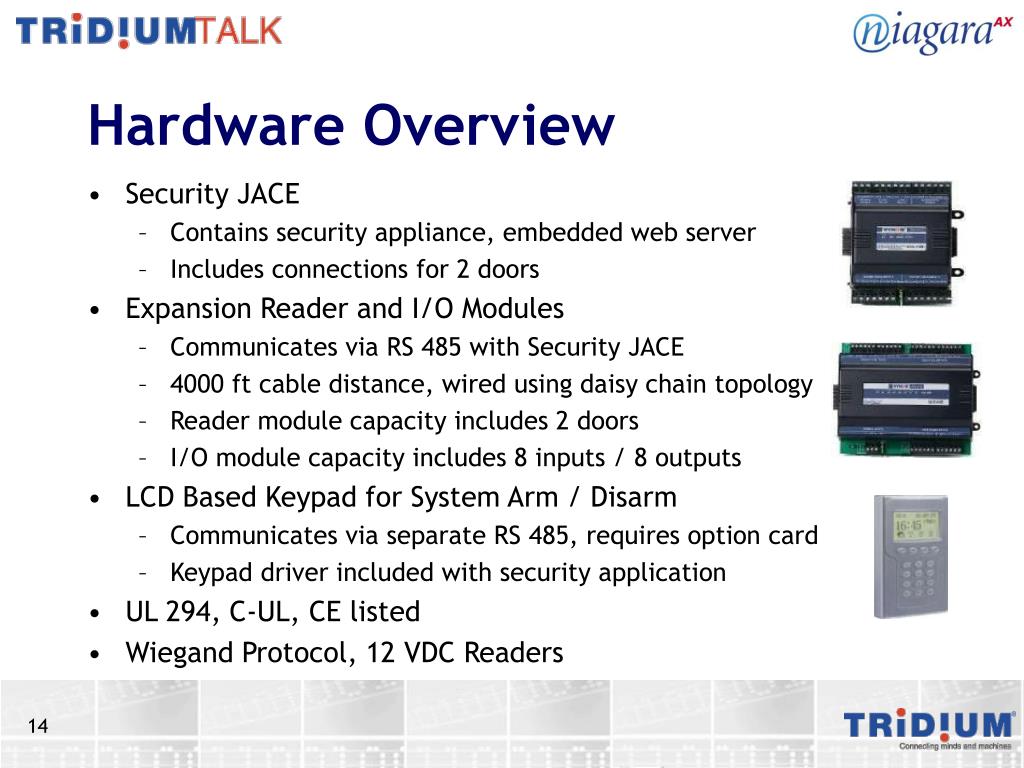

14. Hardware Overview • Security JACE • Contains security appliance, embedded web server • Includes connections for 2 doors • Expansion Reader and I/O Modules • Communicates via RS 485 with Security JACE • 4000 ft cable distance, wired using daisy chain topology • Reader module capacity includes 2 doors • I/O module capacity includes 8 inputs / 8 outputs • LCD Based Keypad for System Arm / Disarm • Communicates via separate RS 485, requires option card • Keypad driver included with security application • UL 294, C-UL, CE listed • Wiegand Protocol, 12 VDC Readers

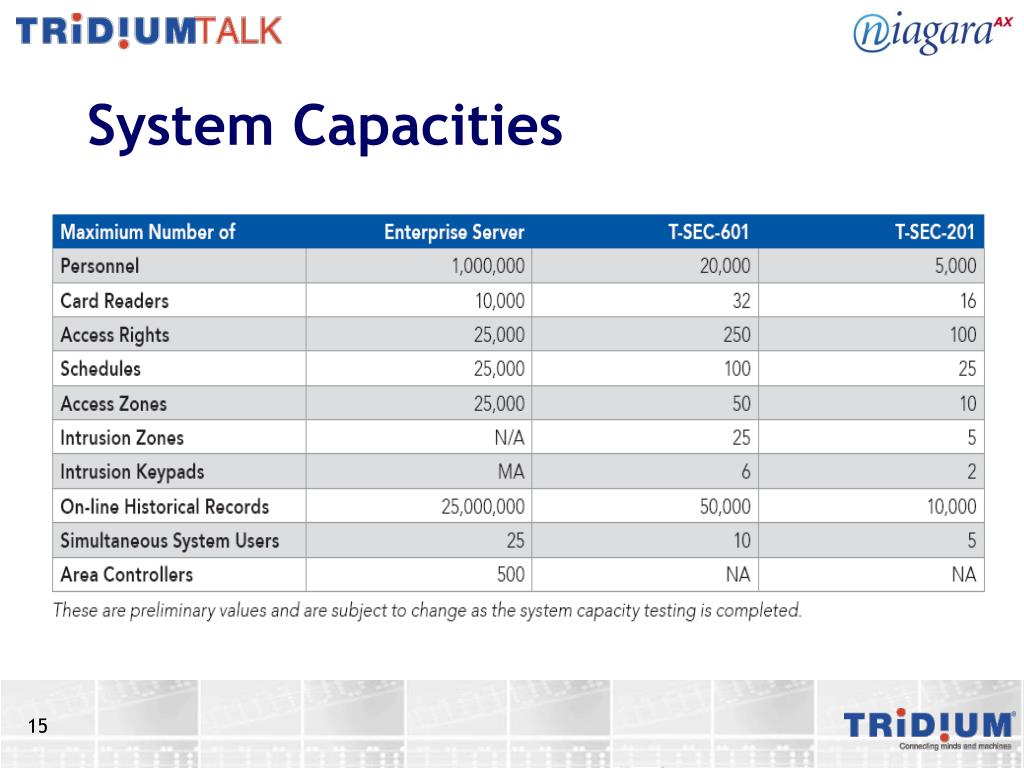

15. System Capacities

16. Security Architecture

17. Integrated Architecture

18. Live Demonstration

19. More Information • For more information visit • www.niagara-central.com • www.tridium.com

20. Question and Answer Session • Select the Q&A icon in the menu bar to type your questions • Feel free to speak up for further discussion • Please introduce yourself, company name, and where you are calling from.

21. Thank you! • We would like your feedback on today’s TridiumTalk • Please take a moment to answer our short survey • If you have any further questions, comments or topic suggestions, please email them to SalesSupport@tridium.com Steve Lucas Rick Weisensale Scott Muench
