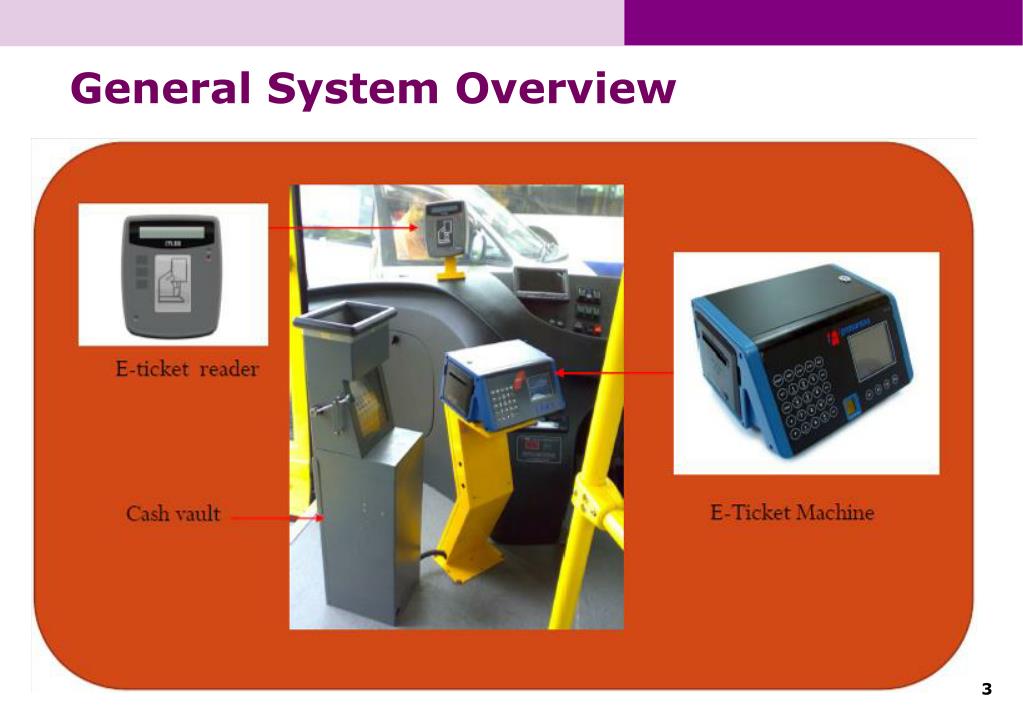

Bus Ticketing Solution Presentation March 2010. RCG Holdings Limited. LSE AIM: RCG HK SE : 802. General System Overview. General System Overview. System Overview System Components Description. Electronic Ticketing Machine (ETM). Mobile Ticketing Machine MTM 2000.
E N D
Bus Ticketing Solution Presentation March 2010 RCG Holdings Limited LSE AIM: RCGHKSE: 802
Mobile Ticketing MachineMTM 2000 MTM-2000 has an optional security features whereby fingerprint reader module and smart card reader can prevent unauthorized users from fiddling the unit. It has also one built in SAM to enhance security. All 29 keypad wordings can be customized as membrane concept is used over the front panel. The graphical user interface over the LCD and the 29 keypad functions can be easily programmed as the MTM-2000 is running on an open based Windows CE 5.0 platform. New application can be updated over the MTM-2000 via USB connectivity. The Mobile Ticketing Machine (MTM-2000) is a very unique machine that comprises of 3.5" color LCD display, fully illuminated 29 keypad with optional fingerprint reader module and smart card insertion slot. It has a built in RFID reader/writer that supports contactless media of type A, B and C of ISO 14443. It has also a built in Wi-Fi to enable wireless data transmission and a built in printer for issuing receipts or tickets.MTM-2000 is versatile to connect to its outside world. It has a RS232 and RS485 communication channels, dry-contact relay connectivity, USB connectors and 12V output power source. With these features, MTM-2000 can be used in Automatic Fare Collection (AFC) systems or Point of Sale (POS) applications. The dry contact relay is accustomed to be connected to cash vault or cash register. The built-in printer is used to print coupons or receipts as a proof of purchase. The 12V output power supply and extra serial communication are for expansion purposes. To store or backup transactions, Wi-Fi connectivity to the server or remotely backup via USB thumb drive can be utilized.
Mobile Ticketing MachineMTM 2000 Features and Benefits: Customizable: - GUI over the LCD and 29 keypad functions are easy customizable as unit is running on Windows CE 5.0 platform - Wordings on the 29 keypad can be customized according to requirement Clarity: - 3.5" Transflective TFT Color Touch Screen with LED backlight for easy viewing and display - 29 keypad are fully illuminated Security: - Fingerprint Sensor (Optional) - Smart card reader (Optional) • SAM slot (Optional) Backend Server Communication: - Built in Wi-Fi for data transaction - USB thumb drive (Alternative)
Mobile Ticketing MachineMTM 2000 Connectivity to External Peripherals : - Serial communication (RS232 and RS485) - Dry contact relay - 12V power supply Compact: - The unit is lightweight under 3kg - It has built in printer, RFID reader/writer, Wi-Fi, buzzer, back-up battery - It is GSM ready and Bluetooth enabled (Optional) Multi Applications: - Unit can be applied in AFC system as ticketing machine inside busses or trams - Unit can act as a POS in locations such as canteen, cinema, bank, post office, restaurant and theme parks Vandalism Proof: - Cable cover panel to protect all connectivity to MTM-2000 - Prevents from unauthorized access to internal mechanism as a key lock is installed
Other Devices Industrial Portable Terminal – IPT 300 Contactless Smartcard Reader
Industrial Portable TerminalIPT 300 IPT300 is an ‘All-In-One” PDA payment terminal. It is well suited for retail sales, distribution, route accounting, on-board ticketing, parking enforcement, on-the-spot billing, In-Flight sales and other credit card payment purposes. IPT300 is powered by Intel PXA270 processor to provide features such as Contact card slot, Magnetic stripe reader, 2” Thermal printer, Wireless LAN, Bluetooth, GSM/GPRS, SD card slot and SAM (Secure Access Module) slots. Barcode and cradle are also available as additional cost. IPT300 is highly customizable to cater for customer specific needs without the optional features.
Industrial Portable TerminalIPT 300 Features and Benefits: • The device is ideal for all smartcard reading and verification purposes due to its compact design and portability. • The use of lithium polymer technology allows battery to be charged repeatedly without affecting its memory and promotes longer battery life span. • User friendly touch screen for easy data entry.. • Multitasking ability as it supports contact and contactless smart cards. • Equipped with quad-band GSM for worldwide usage. • Offers a wider choice of connectivity – USB, LAN, GSM, Bluetooth, IrDA 1.2 • Fast Intel® PXA270 520 MHz processor. • Operates on most commonly used platforms – Window Mobile 5.0
Industrial Portable TerminalIPT 300 Applications: Sales Support The device can be used for sales support. It is ideal for sales payment, sales registration, order management and sales analysis / report. The built-in 2” thermal printer allows issuance of ticket to be performed with ease. Warehousing It can be used for stock management or product tagging and verification. Transportation It can be used by the public transport sector for the purpose of issuance of ticket. Ticketing officers can use the device to check for the validation of ticket. The device can be utilized by law enforcement personnel for fine issuance and vehicle verification (road tax). e-ID The device can be utilized by law enforcement agencies for the verification of identity using finger print and allows instant confirmation with backend data center. The device is ideal for registering voters as the built in optical scanner guarantees that all fingerprints can be successfully captured disregard of their physical condition. It can be used by the immigration personnel for border controlling.

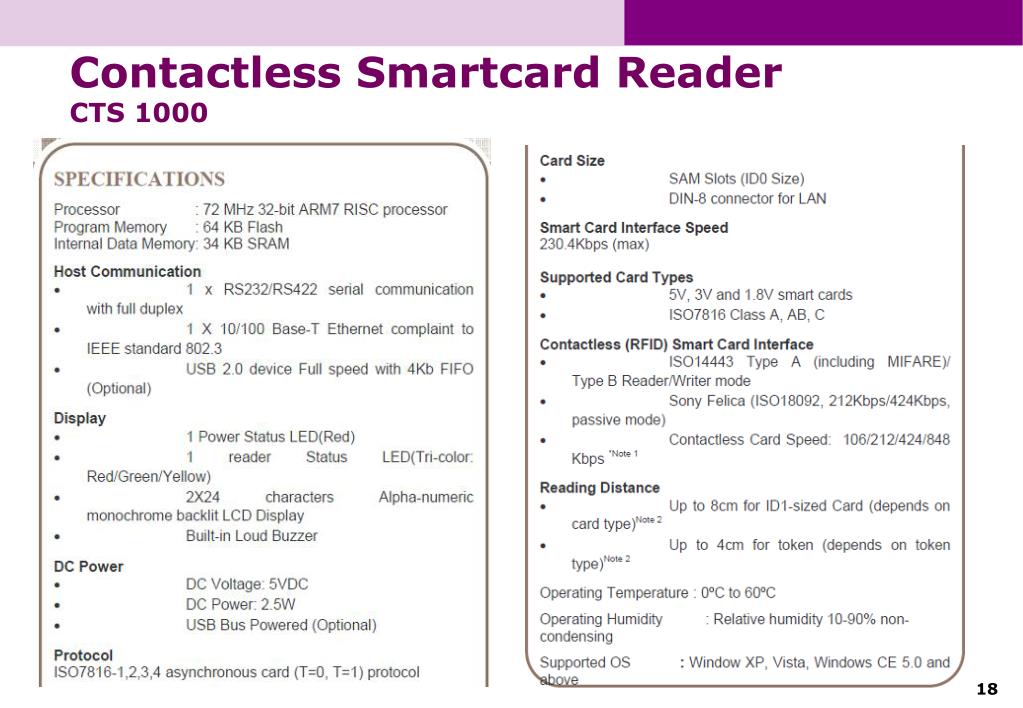

Contactless Smartcard ReaderCTS 1000 • Applications:
Contacts RCG Holdings Limited Lot 1, Jalan Teknologi 3/5 Taman Sains Selangor 1 Kota Damansara 47810 Petaling Jaya Selangor, Malaysia Email:ir@rcg.tv www.rcg.tv
The End Q & A
