  1. Development Steps (1 of 3) • Create prototype “MiceModule” code Done(Malcolm) • Produce working TofRec code that can reconstruct up to the level of space points using digitised simulation: • TofDigits from Monte CarloWork in progress (Aron) • TofDigits from Real Data Done (Aron) • TofSlabHits from TofDigits Work in progress (Aron) • TofSpacePoints from TofSlabHits Work in progress (Aron) • Create data files area for calibration, decoding and modeling files Done (Malcolm) • Produce calibration code for SciFi Done (Malcolm) • Produce decoding code for SciFi Work in progress (Takashi) • Produce calibration files for SciFi Done (Malcolm) • Produce decoding files for SciFi Work in progress (Takashi) • Produce calibration code for TOF Work in Progress (Aron) • Produce decoding code for TOF Done (Aron) Malcolm Ellis - Software Meeting - 31st May 2006

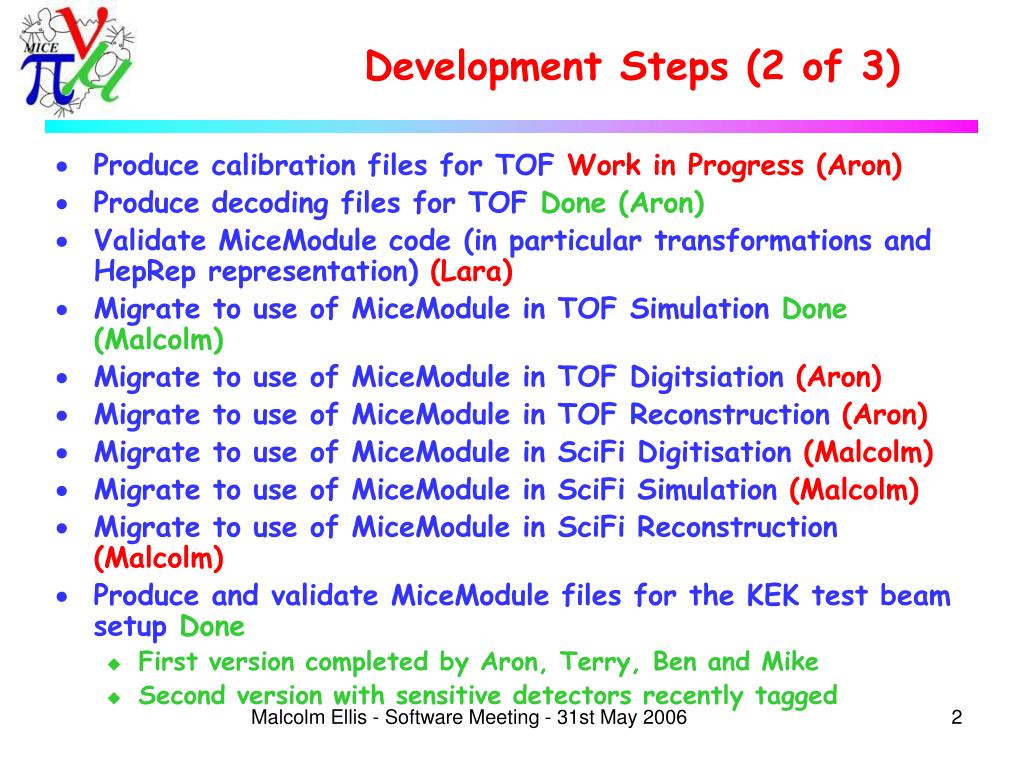

  2. Development Steps (2 of 3) • Produce calibration files for TOF Work in Progress (Aron) • Produce decoding files for TOF Done (Aron) • Validate MiceModule code (in particular transformations and HepRep representation) (Lara) • Migrate to use of MiceModule in TOF Simulation Done (Malcolm) • Migrate to use of MiceModule in TOF Digitsiation (Aron) • Migrate to use of MiceModule in TOF Reconstruction (Aron) • Migrate to use of MiceModule in SciFi Digitisation (Malcolm) • Migrate to use of MiceModule in SciFi Simulation (Malcolm) • Migrate to use of MiceModule in SciFi Reconstruction (Malcolm) • Produce and validate MiceModule files for the KEK test beam setup Done • First version completed by Aron, Terry, Ben and Mike • Second version with sensitive detectors recently tagged Malcolm Ellis - Software Meeting - 31st May 2006

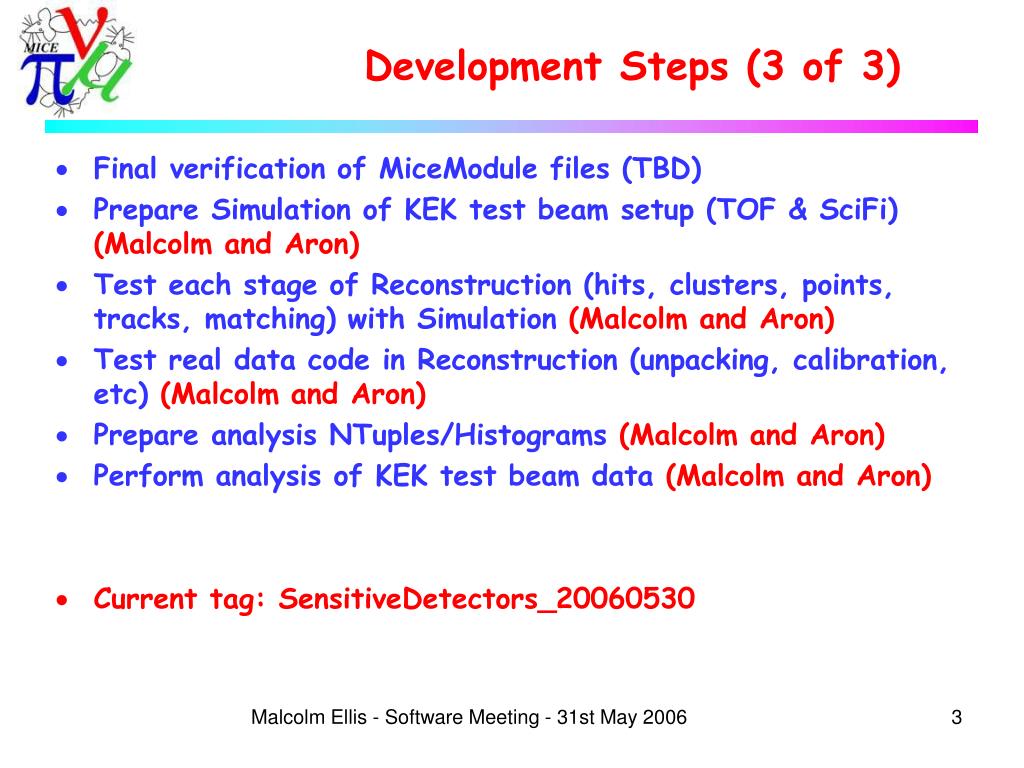

  3. Development Steps (3 of 3) • Final verification of MiceModule files (TBD) • Prepare Simulation of KEK test beam setup (TOF & SciFi) (Malcolm and Aron) • Test each stage of Reconstruction (hits, clusters, points, tracks, matching) with Simulation (Malcolm and Aron) • Test real data code in Reconstruction (unpacking, calibration, etc) (Malcolm and Aron) • Prepare analysis NTuples/Histograms (Malcolm and Aron) • Perform analysis of KEK test beam data (Malcolm and Aron) • Current tag: SensitiveDetectors_20060530 Malcolm Ellis - Software Meeting - 31st May 2006

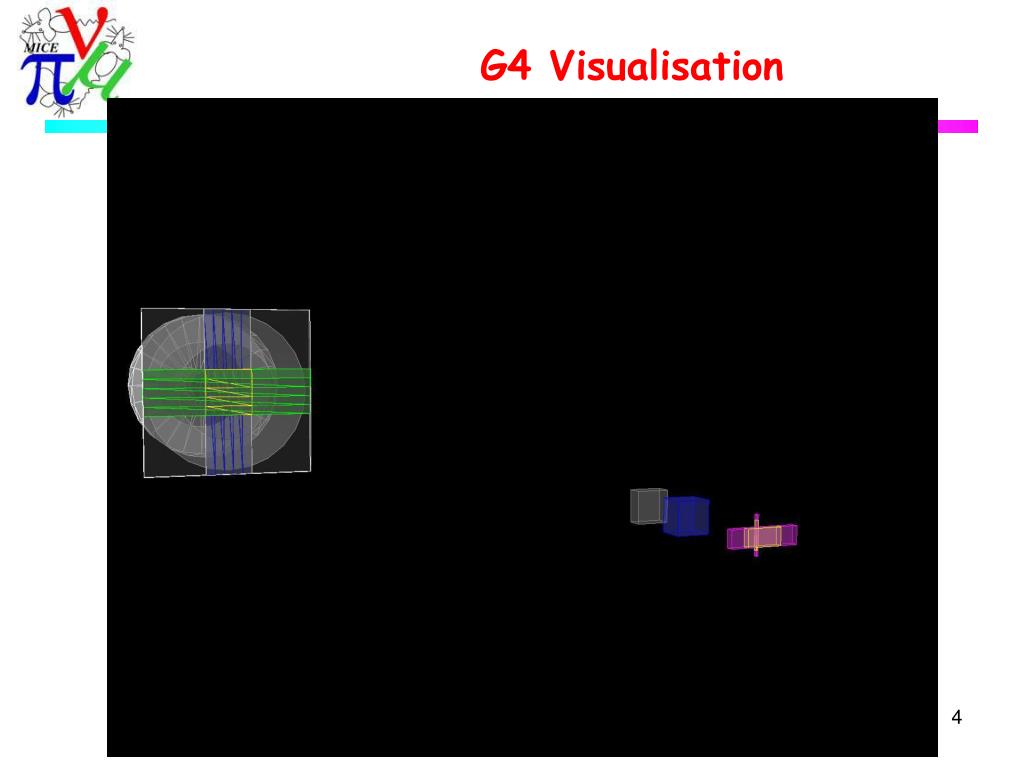

  4. G4 Visualisation Malcolm Ellis - Software Meeting - 31st May 2006

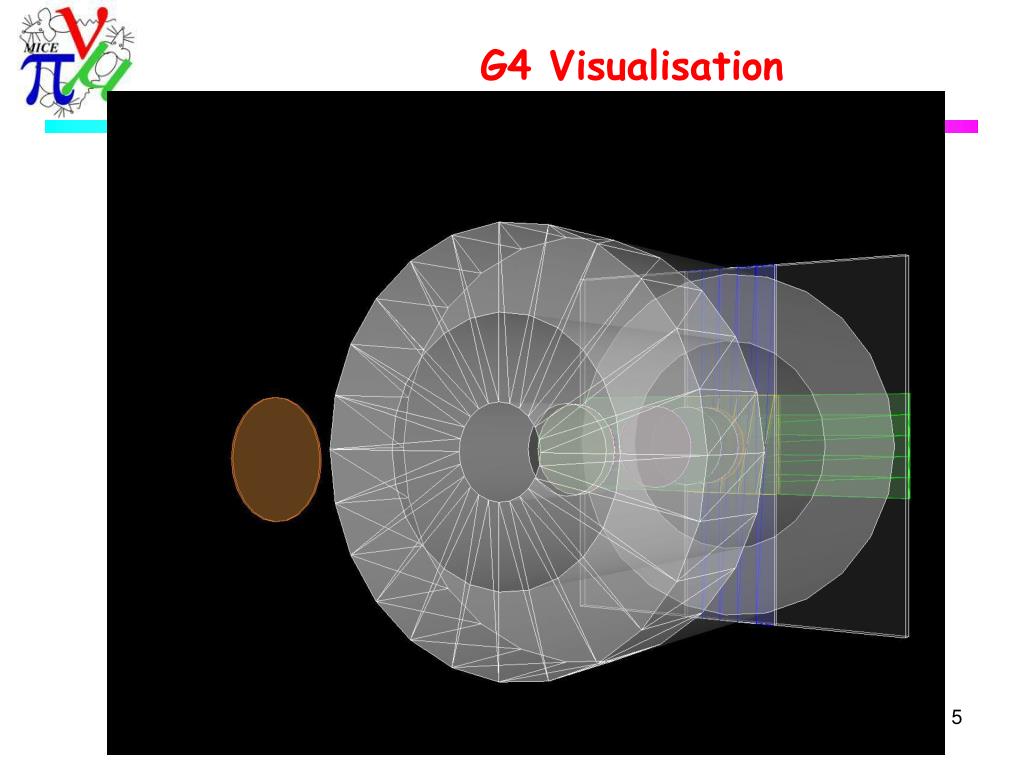

  5. G4 Visualisation Malcolm Ellis - Software Meeting - 31st May 2006

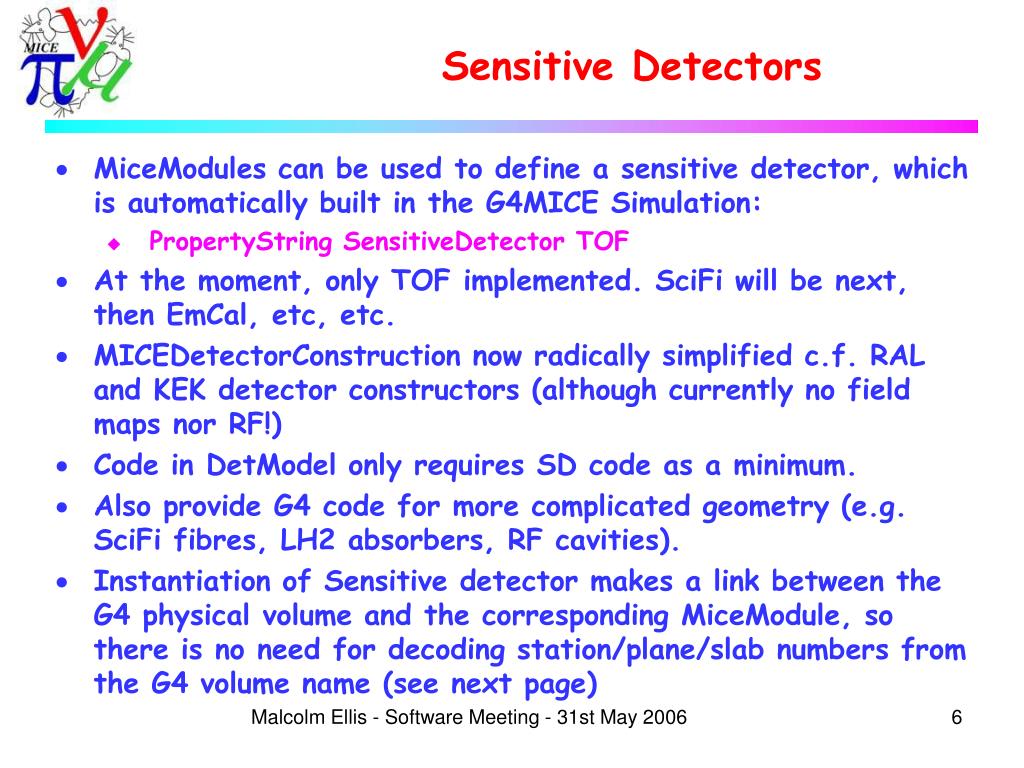

  6. Sensitive Detectors • MiceModules can be used to define a sensitive detector, which is automatically built in the G4MICE Simulation: • PropertyString SensitiveDetector TOF • At the moment, only TOF implemented. SciFi will be next, then EmCal, etc, etc. • MICEDetectorConstruction now radically simplified c.f. RAL and KEK detector constructors (although currently no field maps nor RF!) • Code in DetModel only requires SD code as a minimum. • Also provide G4 code for more complicated geometry (e.g. SciFi fibres, LH2 absorbers, RF cavities). • Instantiation of Sensitive detector makes a link between the G4 physical volume and the corresponding MiceModule, so there is no need for decoding station/plane/slab numbers from the G4 volume name (see next page) Malcolm Ellis - Software Meeting - 31st May 2006

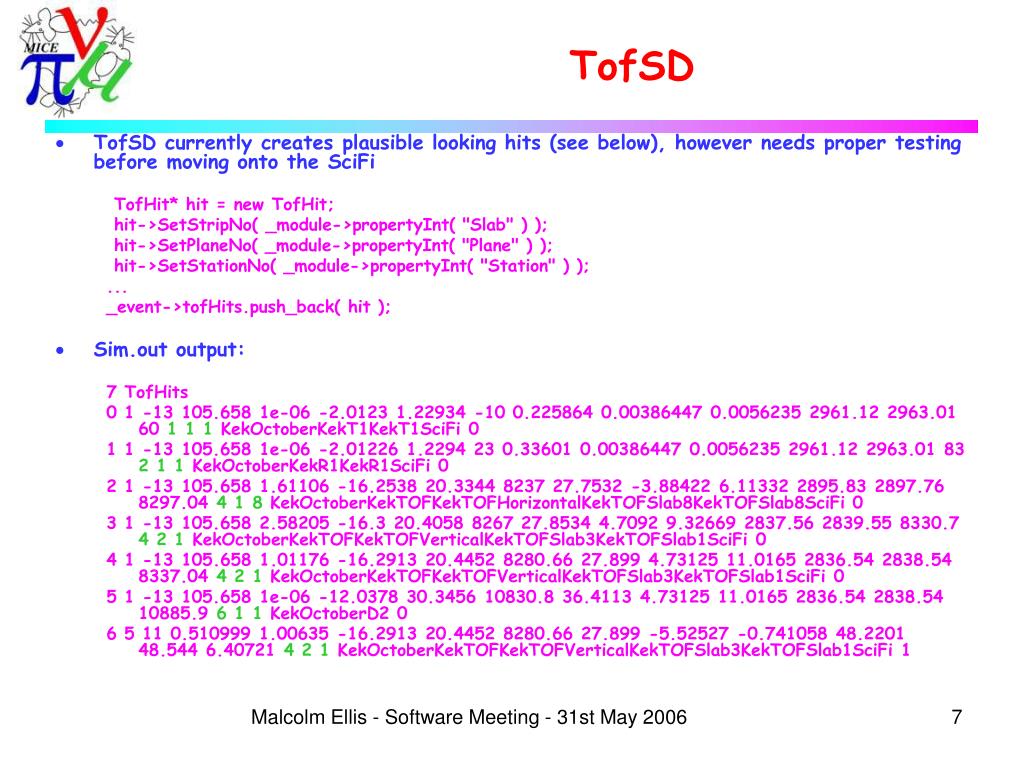

  7. TofSD • TofSD currently creates plausible looking hits (see below), however needs proper testing before moving onto the SciFi TofHit* hit = new TofHit; hit->SetStripNo( _module->propertyInt( "Slab" ) ); hit->SetPlaneNo( _module->propertyInt( "Plane" ) ); hit->SetStationNo( _module->propertyInt( "Station" ) ); ... _event->tofHits.push_back( hit ); • Sim.out output: 7 TofHits 0 1 -13 105.658 1e-06 -2.0123 1.22934 -10 0.225864 0.00386447 0.0056235 2961.12 2963.01 60 1 1 1 KekOctoberKekT1KekT1SciFi 0 1 1 -13 105.658 1e-06 -2.01226 1.2294 23 0.33601 0.00386447 0.0056235 2961.12 2963.01 83 2 1 1 KekOctoberKekR1KekR1SciFi 0 2 1 -13 105.658 1.61106 -16.2538 20.3344 8237 27.7532 -3.88422 6.11332 2895.83 2897.76 8297.04 4 1 8 KekOctoberKekTOFKekTOFHorizontalKekTOFSlab8KekTOFSlab8SciFi 0 3 1 -13 105.658 2.58205 -16.3 20.4058 8267 27.8534 4.7092 9.32669 2837.56 2839.55 8330.7 4 2 1 KekOctoberKekTOFKekTOFVerticalKekTOFSlab3KekTOFSlab1SciFi 0 4 1 -13 105.658 1.01176 -16.2913 20.4452 8280.66 27.899 4.73125 11.0165 2836.54 2838.54 8337.04 4 2 1 KekOctoberKekTOFKekTOFVerticalKekTOFSlab3KekTOFSlab1SciFi 0 5 1 -13 105.658 1e-06 -12.0378 30.3456 10830.8 36.4113 4.73125 11.0165 2836.54 2838.54 10885.9 6 1 1 KekOctoberD2 0 6 5 11 0.510999 1.00635 -16.2913 20.4452 8280.66 27.899 -5.52527 -0.741058 48.2201 48.544 6.40721 4 2 1 KekOctoberKekTOFKekTOFVerticalKekTOFSlab3KekTOFSlab1SciFi 1 Malcolm Ellis - Software Meeting - 31st May 2006
