MIN Based IMSI and TRUE IMSI

MIN Based IMSI and TRUE IMSI. Andrew Hunter QUALCOMM Engineering Services. Overview. Acronym soup MIN, MDN, IRM, MSID IMSI_M, IMSI_T, IMSI_O, IMSI_S How does a Network tell a Mobile what to use? How does a mobile decide how to identify itself (access)

jui
Télécharger la présentation

MIN Based IMSI and TRUE IMSI

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. MIN Based IMSI and TRUE IMSI Andrew Hunter QUALCOMM Engineering Services

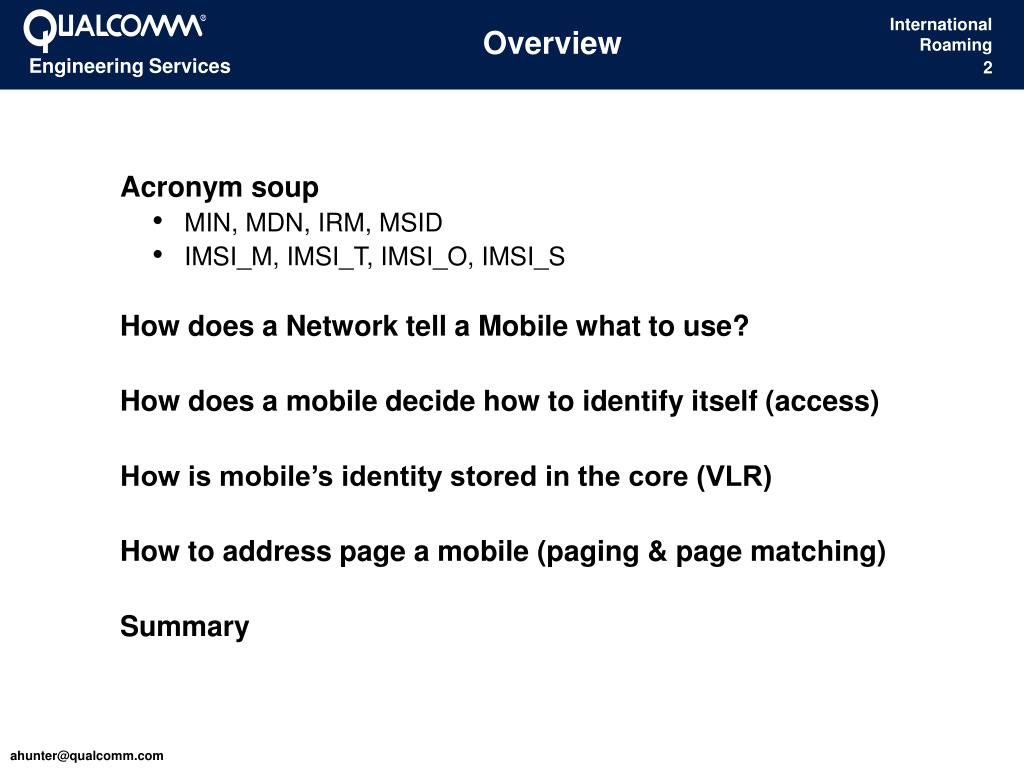

  2. Overview • Acronym soup • MIN, MDN, IRM, MSID • IMSI_M, IMSI_T, IMSI_O, IMSI_S • How does a Network tell a Mobile what to use? • How does a mobile decide how to identify itself (access) • How is mobile’s identity stored in the core (VLR) • How to address page a mobile (paging & page matching) • Summary

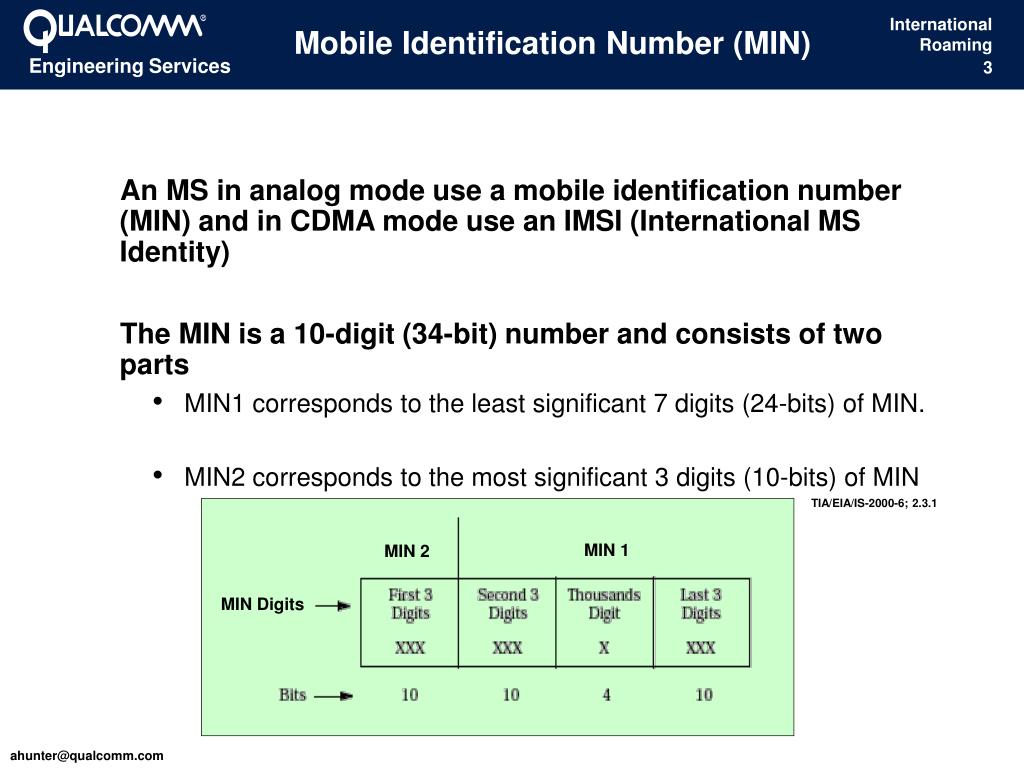

  3. Mobile Identification Number (MIN) MIN 1 MIN 2 MIN Digits • An MS in analog mode use a mobile identification number (MIN) and in CDMA mode use an IMSI (International MS Identity) • The MIN is a 10-digit (34-bit) number and consists of two parts • MIN1 corresponds to the least significant 7 digits (24-bits) of MIN. • MIN2 corresponds to the most significant 3 digits (10-bits) of MIN • TIA/EIA/IS-2000-6; 2.3.1

  4. Mobile Directory Number • A Mobile Directory Number (MDN) is • a dialable number associated with the mobile station through a service subscription. • A Mobile Directory Number is not necessarily the same as the mobile station identification on the air interface, i.e., MIN, IMSI_M or IMSI_T. • An MDN consists of up to 15 digits. • The mobile station has memory space to store at least one • TIA/EIA/IS-2000-5; 2.3.1.4 • Note: - Convention in the North American Numbering • Plan (NANP) often assigned MIN and MDN equal values. • - Wireless Number Portability forced this to change.

  5. Mobile Satation Identification (MSID)Meaning #1 MIN 1 MIN 2 MIN Digits • When the MIN and MDN bond was broken a new term started to be used to avoid confusion • Mobile Station ID is a MIN that cannot be assumed to be the same as the MDN • The MSID is a 10-digit (34-bit) number with the same structure as a MIN

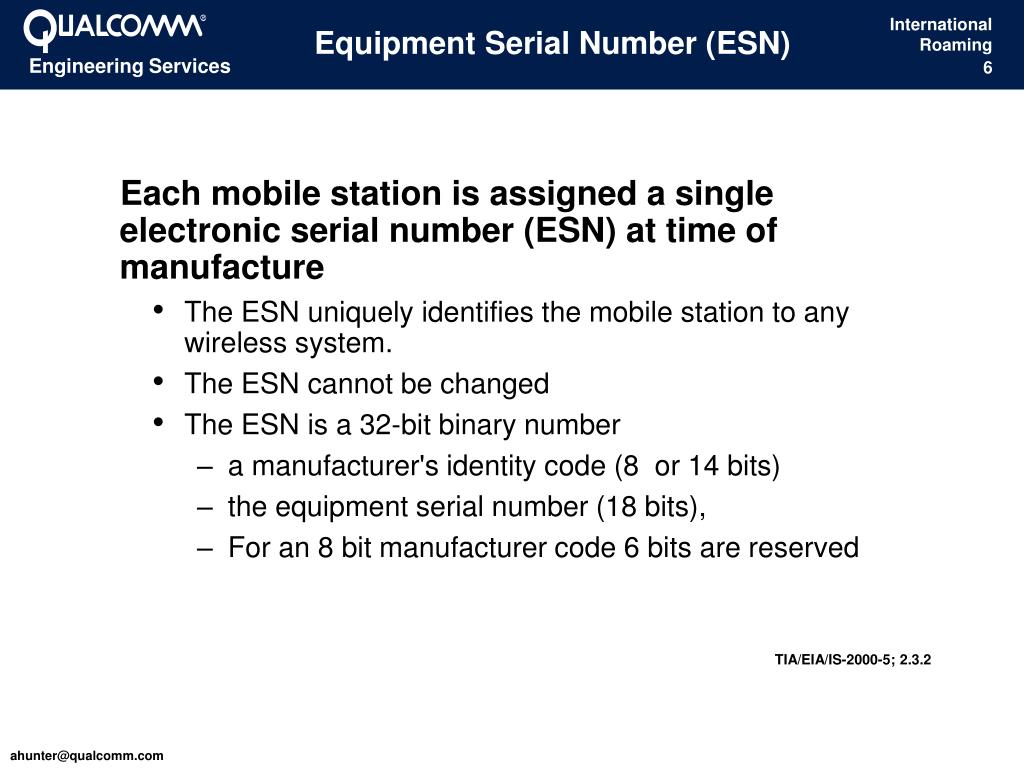

  6. Equipment Serial Number (ESN) • Each mobile station is assigned a single electronic serial number (ESN) at time of manufacture • The ESN uniquely identifies the mobile station to any wireless system. • The ESN cannot be changed • The ESN is a 32-bit binary number • a manufacturer's identity code (8 or 14 bits) • the equipment serial number (18 bits), • For an 8 bit manufacturer code 6 bits are reserved • TIA/EIA/IS-2000-5; 2.3.2

  7. International Roaming Mobile Identification Number (IRM) MIN 1 MIN 2 MIN Digits • An International Roaming Mobile Identification Number (IRM) is • a special form of MIN • only used by countries outside of the North American Numbering Plan (NANP) • IRMs are administered by IFAST and to ensure that they are globally unique. • The IRM is a 10-digit (34-bit) number with the same structure as a MIN.

  8. International MS Identification (IMSI) Number • The IMSI consists of up to 15 numerical characters (0-9). • Mobile Country Code (MCC is the first 3 digits of the IMSI • National MS Identity (NMSI) is formed by the remaining digits. The NMSI comprises • Mobile Network Code (MNC) and • MS Identification Number (MSIN).

  9. The Class of IMSI • An IMSI can be one of two classes, 0 or 1. • Class 0 IMSI • An IMSI that is 15 digits in length - i.e. the National MS Identity (NMSI) is 12 digits in length. • Class 1 IMSI • An IMSI that is less than 15 digits in length is called a class 1 IMSI i.e. the National MS Identity (NMSI) is less than 12 digits in length) • If the MS has a class 1 IMSI, it also has an IMSI_ADDR_NUM • IMSI_ADDR_NUM is equal to the number of digits in the NMSI minus four. • A Class 1 IMSI is rarely encountered in CDMA

  10. IMSI and its various incarnations: IMSI_M, IMSI_T & IMSI_O • MIN Based IMSI (IMSI_M) • An IMSI that contains a MIN in the right-most 10 digits of the NMSI. • Can be a class 0 or a class 1 IMSI. • MIN is the forms the last 10 digits of IMSI_M (IMSI_M_S) • An unassigned IMSI_M is indicated by a 10 digit value equal to an encoding the 4 least-significant digits of the ESN with leading zeros. • True IMSI (IMSI_T) • An IMSI that is not associated with the MIN. • Can be a class 0 or class 1 IMSI. • An unassigned IMSI_T is indicated by a 10 digit value equal to an encoding the 4 least-significant digits of the ESN with leading zeros. • Operational IMSI (IMSI_O) • IMSI value the MS actually uses • Is either the IMSI_M or the IMSI_T • The choice of IMSI_O is based on • the MS assigned IMSI values • IMSI_T_SUPPORTED field of the Extended System Parameters Message

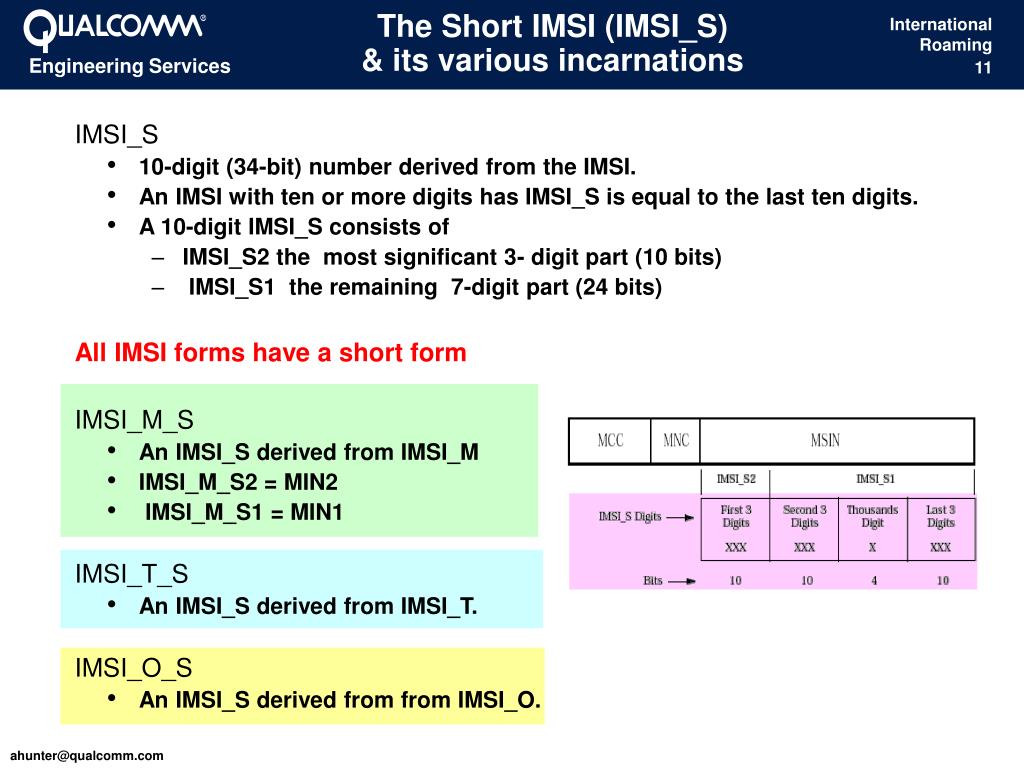

  11. The Short IMSI (IMSI_S) & its various incarnations • IMSI_S • 10-digit (34-bit) number derived from the IMSI. • An IMSI with ten or more digits has IMSI_S is equal to the last ten digits. • A 10-digit IMSI_S consists of • IMSI_S2 the most significant 3- digit part (10 bits) • IMSI_S1 the remaining 7-digit part (24 bits) • All IMSI forms have a short form • IMSI_M_S • An IMSI_S derived from IMSI_M • IMSI_M_S2 = MIN2 • IMSI_M_S1 = MIN1 • IMSI_T_S • An IMSI_S derived from IMSI_T. • IMSI_O_S • An IMSI_S derived from from IMSI_O.

  12. Mobile Country Code & IMSI_11_12 (Mobile Network Code) • Mobile Country Code (MCC) • Three digit ITU specified code identifying the home country. • Some countries have more than one MCC • Comes from the CCITT Recommendation E.212. • IMSI_11_12 • IMSI_11_12 denotes the 11th and 12th digits of the IMSI. • IMSI_T_11_12p is the programmed value for the IMSI_T • IMSI_M_11_12p is the programmed value for the IMSI_M • Mobile Network Code • A two or three digit code allocated within a MCC to a network • A two digit MNC and the IMSI_11_12 are the same thing

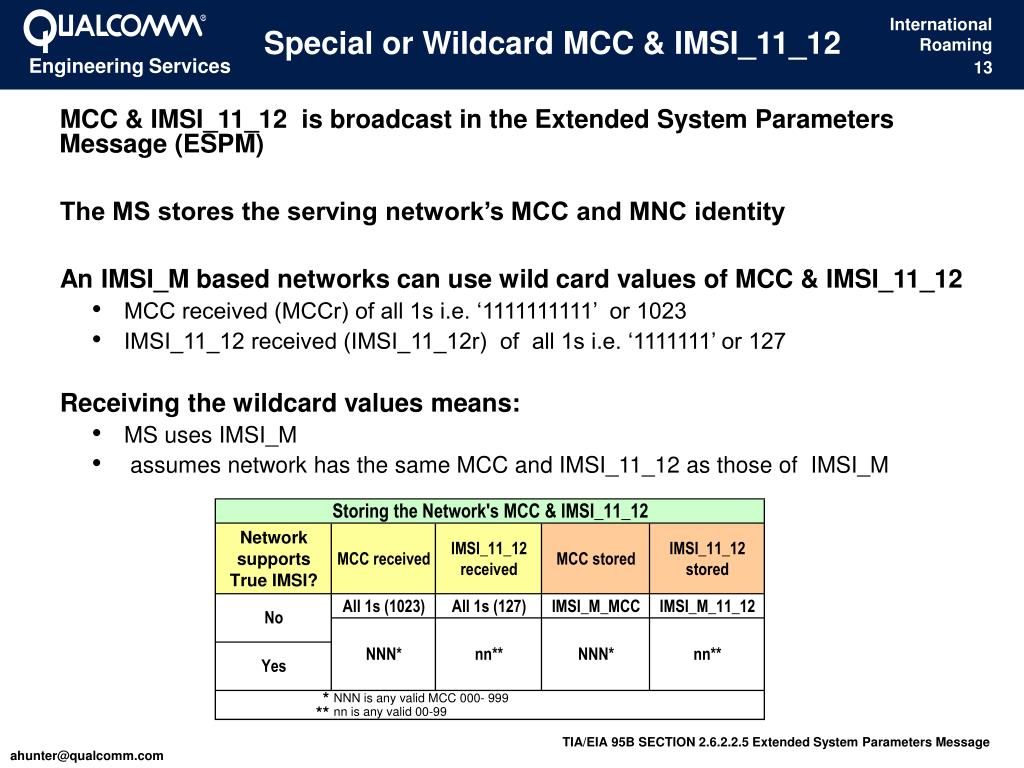

  13. Special or Wildcard MCC & IMSI_11_12 • MCC & IMSI_11_12 is broadcast in the Extended System Parameters Message (ESPM) • The MS stores the serving network’s MCC and MNC identity • An IMSI_M based networks can use wild card values of MCC & IMSI_11_12 • MCC received (MCCr) of all 1s i.e. ‘1111111111’ or 1023 • IMSI_11_12 received (IMSI_11_12r) of all 1s i.e. ‘1111111’ or 127 • Receiving the wildcard values means: • MS uses IMSI_M • assumes network has the same MCC and IMSI_11_12 as those of IMSI_M • TIA/EIA 95B SECTION 2.6.2.2.5 Extended System Parameters Message

  14. How the network declares to the mobile what it wants CDMA Air Interface Serving Network Mobile Station Base Station • True IMSI support is declared in the IMSI_T_SUPPORTED parameter • TMSI requirements declared in the USE_TMSI parameter • The serving network declare how the MS should identify itself by the PREF_MSID_TYPE parameter.

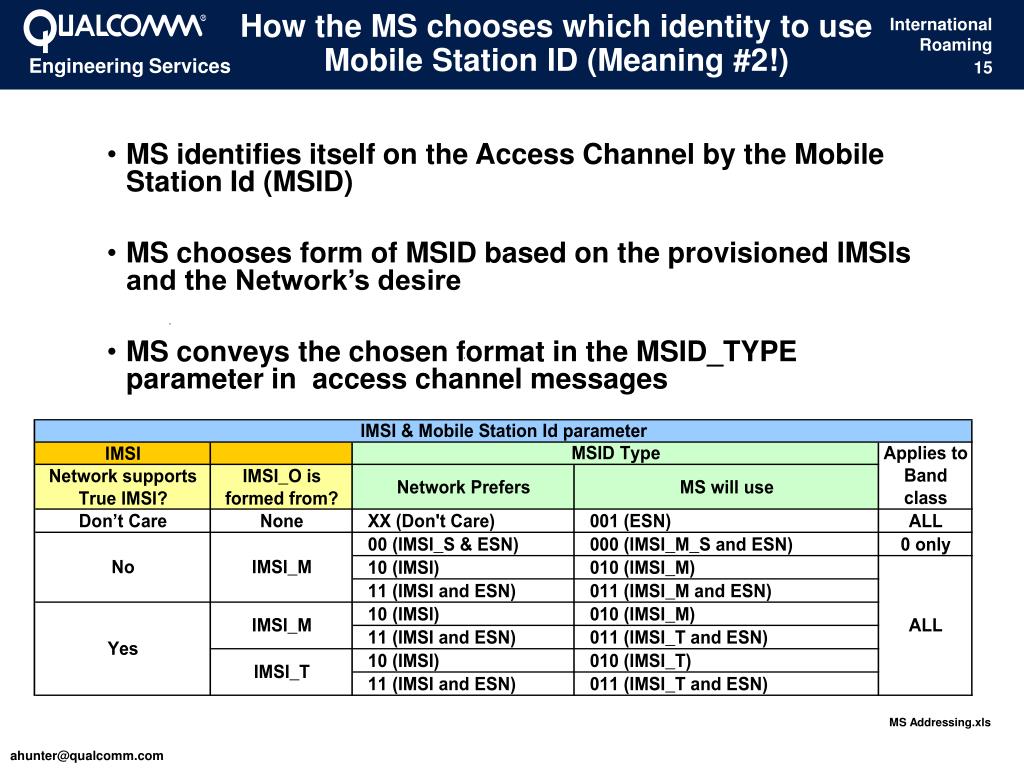

  15. How the MS chooses which identity to useMobile Station ID (Meaning #2!) • MS identifies itself on the Access Channel by the Mobile Station Id (MSID) • MS chooses form of MSID based on the provisioned IMSIs and the Network’s desire • MS conveys the chosen format in the MSID_TYPE parameter in access channel messages MS Addressing.xls

  16. How MS decides how much of the IMSI needs to be sent • A MS can decide to send • 15 digits – MCC + MNC + IMSI_S • 12 digits The MNC + IMSI_S only • 13 digits The MCC + IMSI_S only • 10 digits The IMSI_S only • The combination is determined by • How the network and MS values of MCC compare • How the network and MS values of IMSI_11_12 (IMSI_11_12s) compare. • Coincident values need not be included in the MSID • The combination used is declared by IMSI Class Type (IMSI_Class_0_Type)

  17. Access Today: IMSI_M MS & Network CDMA Air Interface IMSI_M Device IMSI_M Serving Network Base Station 2 1 3 4 5

  18. Access Today: IMSI_M MS & Network CDMA Air Interface IMSI_M Device IMSI_M Serving Network Base Station 2 1 3 4 5

  19. Access Today: IMSI_M MS & Network CDMA Air Interface Roaming Device Serving Network Base Station 2 1 3 4 5

  20. Mobile Identity in the IMSI_M Core MSC/VLR (Assume MCC,IMSI_11_12 = 311,28 ) Serving Network 1 Signaling Network Home Network HLR MAP 3 2 5 4

  21. IMSI_M MS & IMSI_T Network CDMA Air Interface IMSI_M Device IMSI_T Serving Network Base Station 2 1 3 4 5

  22. IMSI_M MS & IMSI_T Network CDMA Air Interface IMSI_M Device IMSI_T Serving Network Base Station 2 1 3 4 5

  23. Mobile Identity in the IMSI_T Core IMSI_M Home Network Serving Network Signaling Network 1 3 MSC/VLR (Assume MCC,IMSI_11_12 = 311,28 ) IMSI_M HLR IMSI_M MAP 2 IMSI_T Home Network IMSI_T HLR 3 4 5

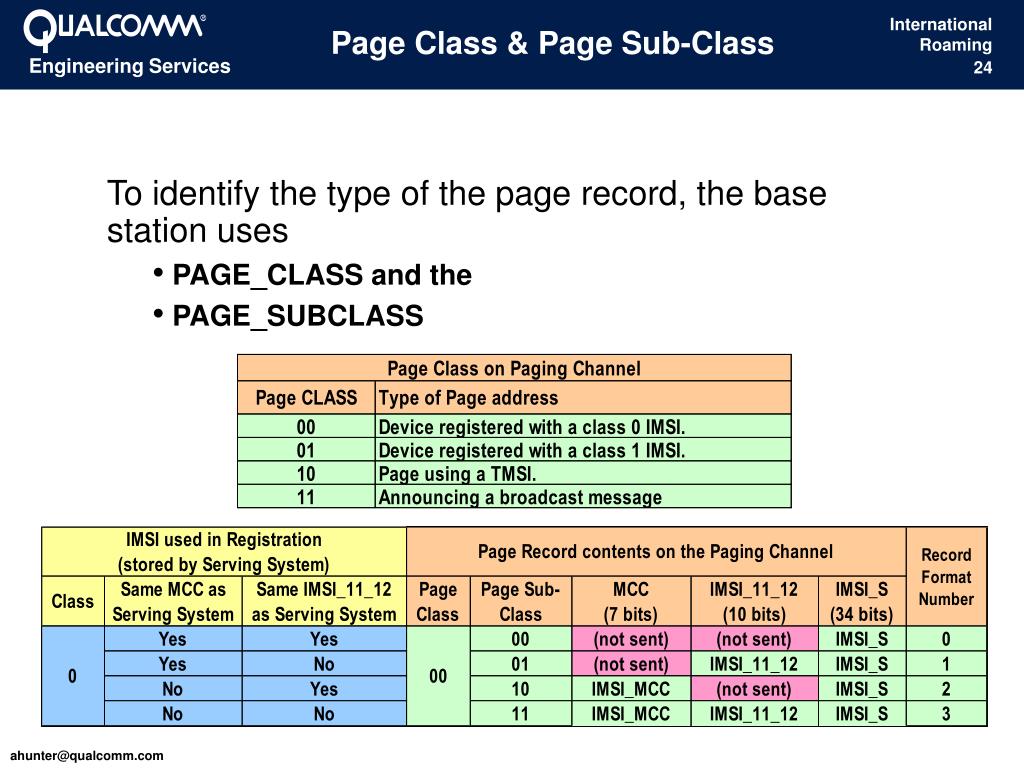

  24. Page Class & Page Sub-Class • To identify the type of the page record, the base station uses • PAGE_CLASS and the • PAGE_SUBCLASS

  25. Page Matching

  26. Page Matching

  27. Paging: IMSI_M MS & Network, Wildcard MCC/MNC CDMA Air Interface Roaming Device Serving Network MSC/VLR (Assume MCC=310 & IMSI_11_12 = 00 ) Base Station 1 2 3 3 4 5

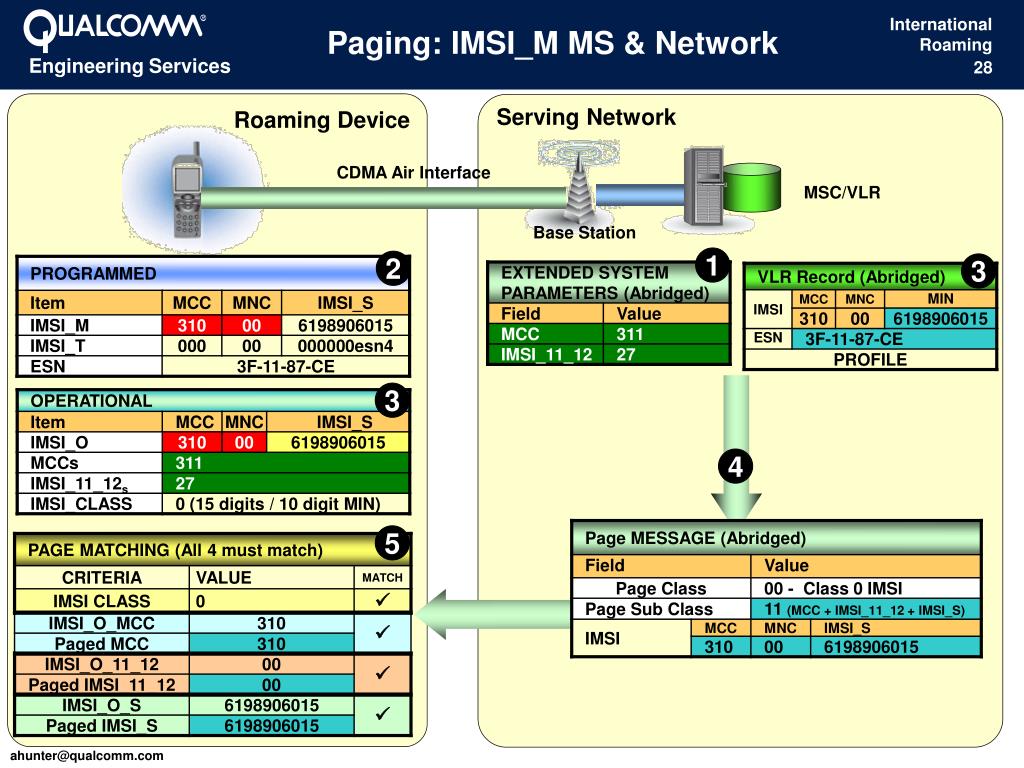

  28. Paging: IMSI_M MS & Network CDMA Air Interface Roaming Device Serving Network MSC/VLR Base Station 1 2 3 3 4 5

  29. Paging: Non-Unique MIN based IMSI & Wildcard MCC/MNC CDMA Air Interface Roaming Device Serving Network MSC/VLR Base Station 1 2 3 3 4 5

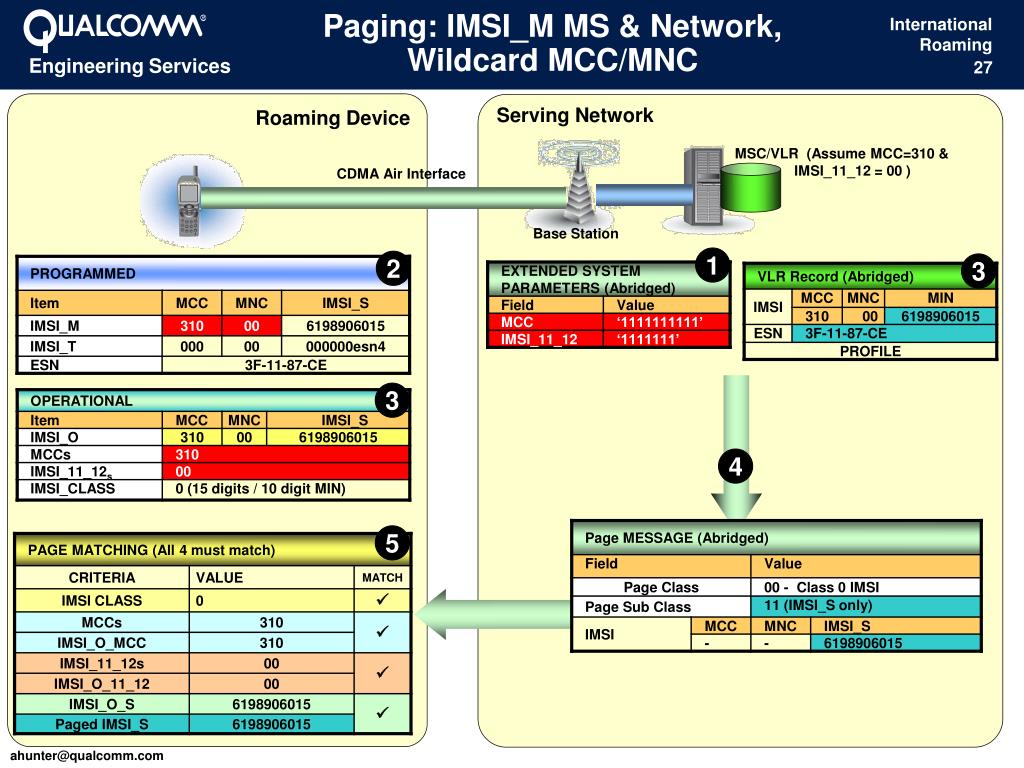

  30. Paging: IMSI_M MS & Network, Wildcard MCC/MNC CDMA Air Interface Roaming Device Serving Network MSC/VLR Base Station 1 2 3 3 4 5

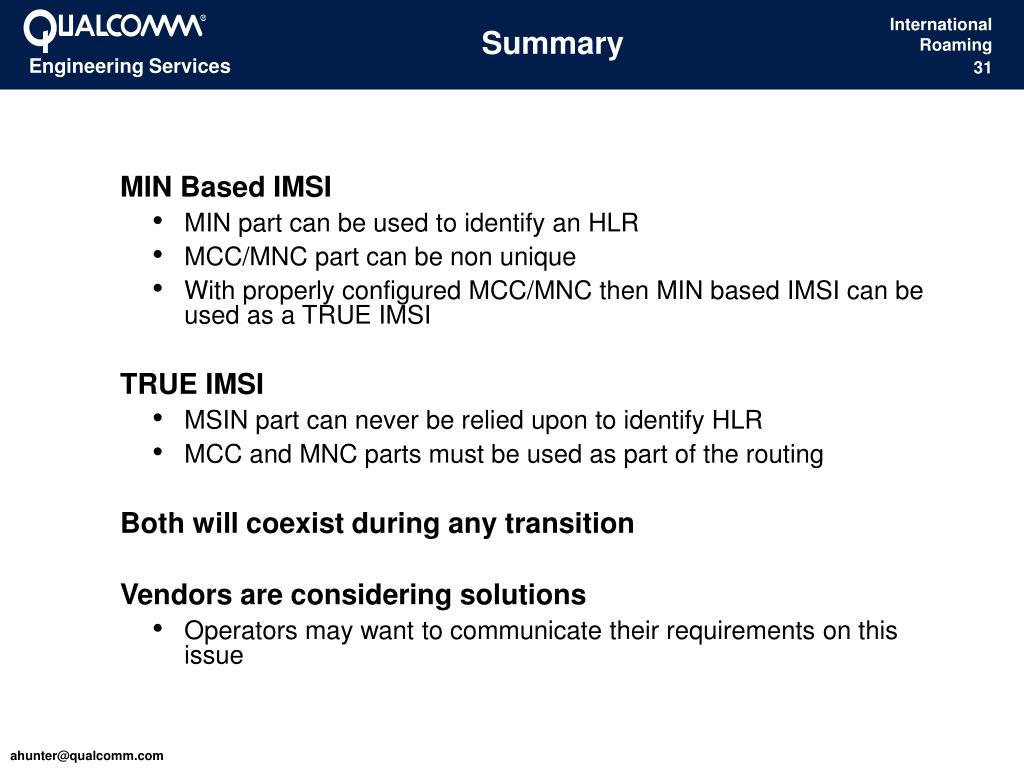

  31. Summary • MIN Based IMSI • MIN part can be used to identify an HLR • MCC/MNC part can be non unique • With properly configured MCC/MNC then MIN based IMSI can be used as a TRUE IMSI • TRUE IMSI • MSIN part can never be relied upon to identify HLR • MCC and MNC parts must be used as part of the routing • Both will coexist during any transition • Vendors are considering solutions • Operators may want to communicate their requirements on this issue
