  1. System transfer functions & Head-related transfer functions (HRTFs) Dr. Duck O. Kim Salamanca, Spain May, 2010

  2. The response of a linear system to any stimulus Is totally predicted by the system’s impulse response, h(t), or the transfer function, H(f). H(f) = Fourier transform of h(t)

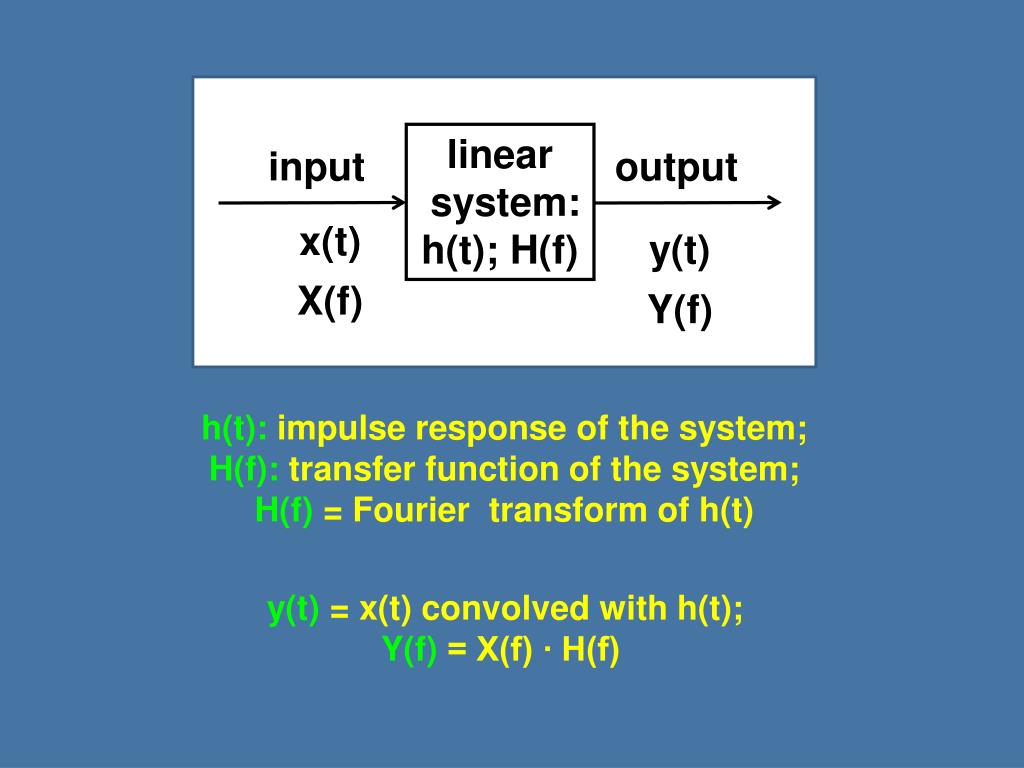

  3. linear system: h(t); H(f) input output x(t) y(t) X(f) Y(f) h(t): impulse response of the system; H(f): transfer function of the system; H(f) = Fourier transform of h(t) y(t) = x(t) convolved with h(t); Y(f) = X(f) ∙ H(f)

  4. HRTF measurement setup for human in an anechoic chamber Kuwada et al., 2010, ARO

  5. HRTF measurement setup for human Kuwada et al., 2010, ARO

  6. human HRIRs & HRTFs Kuwada et al., 2010, ARO

  7. When HRTFs are obtained, one can simulate an external sound source located at any specified position. virtual auditory space (VAS)method Y(f) = X(f) ∙ H(f) Dr. Kuwada will illustrate neural responses obtained with the VAS method.

  8. human HRTFs Kuwada et al., 2010, ARO

  9. human HRTFs Kuwada et al., 2010, ARO

  10. Kuwada et al., 2009, Oto HNS

  11. HRTF measurement setup for rabbit in an anechoic chamber Bishop et al., 2009, ARO Kim et al., 2010, JARO

  12. rabbit outer ear Kim et al., 2010, JARO

  13. rabbit HRIRs & HRTFs Kim et al., 2010, JARO

  14. rabbit HRTFs Kim et al., 2010, JARO

  15. rabbit ILD Kimet al., 2010, JARO

  16. Kim et al., 2010, JARO

  17. rabbit ITD Kim et al., 2010, JARO

  18. Kim et al., 2010, JARO

  19. effect of rabbit’s pinna position on ILD & ITD Kim et al., 2010, JARO

  20. binaural room impulse responses; results from barn owl Kim et al., 2008, Acta Otolar

  21. acoustic cue for sound-source distance; results from barn owl Kim et al., 2008, Acta Otolar
