  1. Appendixfor SRC Training Basic Course Riso Digital Education Center 1

  2. IEEE1284 Cable Print Data Local connection Appendix 1: Local connection Win PC STEP1: Connect IEEE1284 Cable STEP2: Install a Printer Driver into the PC Riso Digital Education Center 2

  3. Local connection Check Point A Win PC B IEEE1284 Cable A: PC (Female DB25 connector) B: IEEE1284 Cable C: CD-ROM for RP series C Riso Digital Education Center 3

  4. Local connection :STEP1 STEP1: Connect IEEE1284 Cable Win PC Riso Digital Education Center 4

  5. Local connection :STEP1 1. Connect a IEEE1284 Cable Win PC IEEE1284 Cable Riso Digital Education Center 5

  6. Local connection :STEP2 STEP2: Install a Printer Driver Win PC IEEE1284 Cable Riso Digital Education Center 6

  7. Local connection :STEP2 1. Double click on My Computer icon Riso Digital Education Center 7

  8. Local connection :STEP2 2. Double click on Printers icon Riso Digital Education Center 8

  9. Local connection :STEP2 3. Double click on Add Printer icon Riso Digital Education Center 9

  10. Local connection :STEP2 4. Click on Next button Riso Digital Education Center 10

  11. Local connection :STEP2 5. Select Local printer then click on Next button Riso Digital Education Center 11

  12. Local connection :STEP2 6. Put a CDROM in the CDROM drive then click on Have Disk button Riso Digital Education Center 12

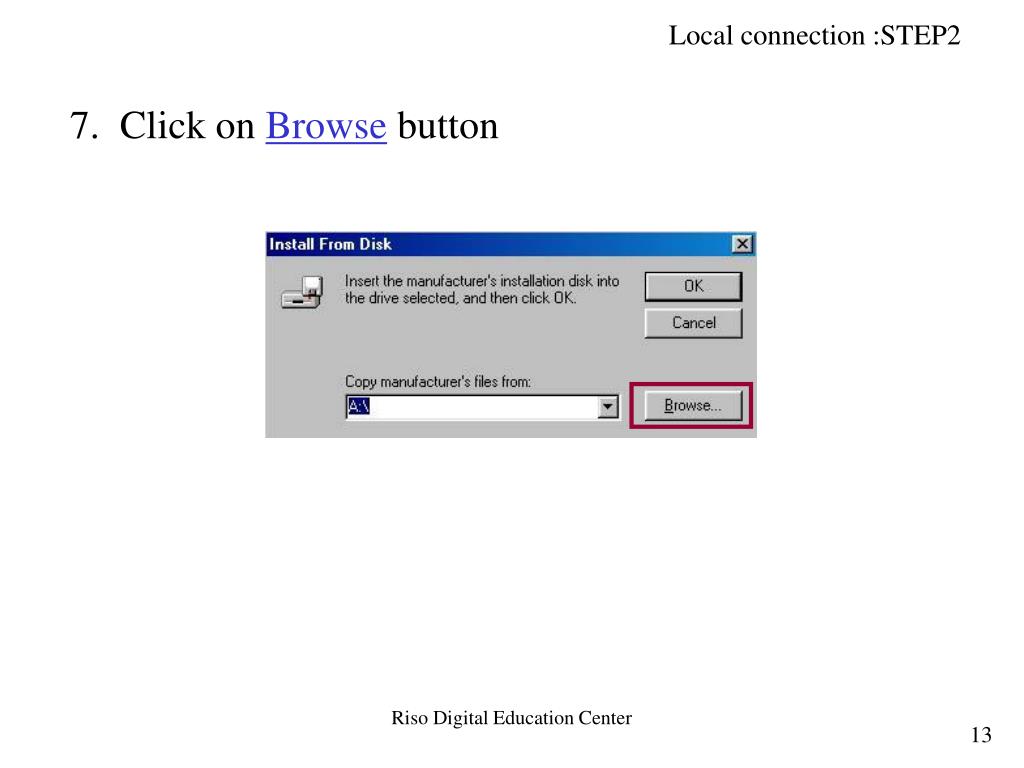

  13. Local connection :STEP2 7. Click on Browse button Riso Digital Education Center 13

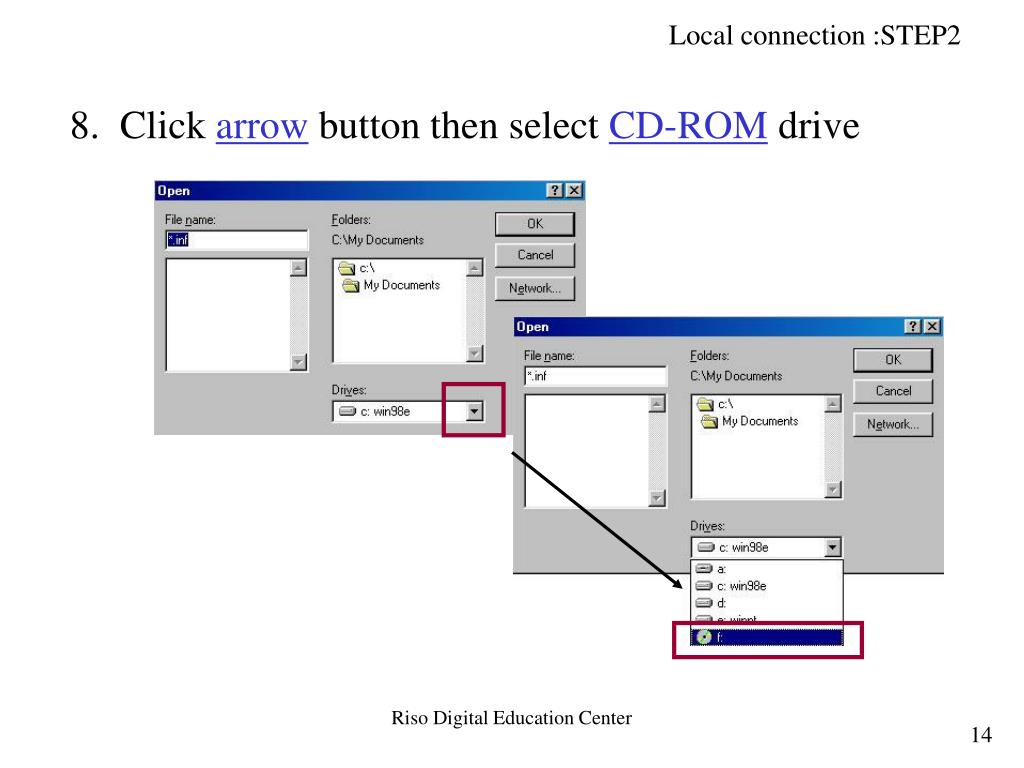

  14. Local connection :STEP2 8. Click arrowbutton then select CD-ROM drive Riso Digital Education Center 14

  15. Local connection :STEP2 9. Double click onlanguage folder Riso Digital Education Center 15

  16. Local connection :STEP2 10. Double click onOS (Operating system) folder Riso Digital Education Center 16

  17. Local connection :STEP2 11. risodrv.inf file appears then click on OK button Note: This file name is vary depending on model. Name of Driver RN series risorp.inf RP series risodrv.inf SC3000 series(Win95/98) risodrv.inf Riso Digital Education Center 17

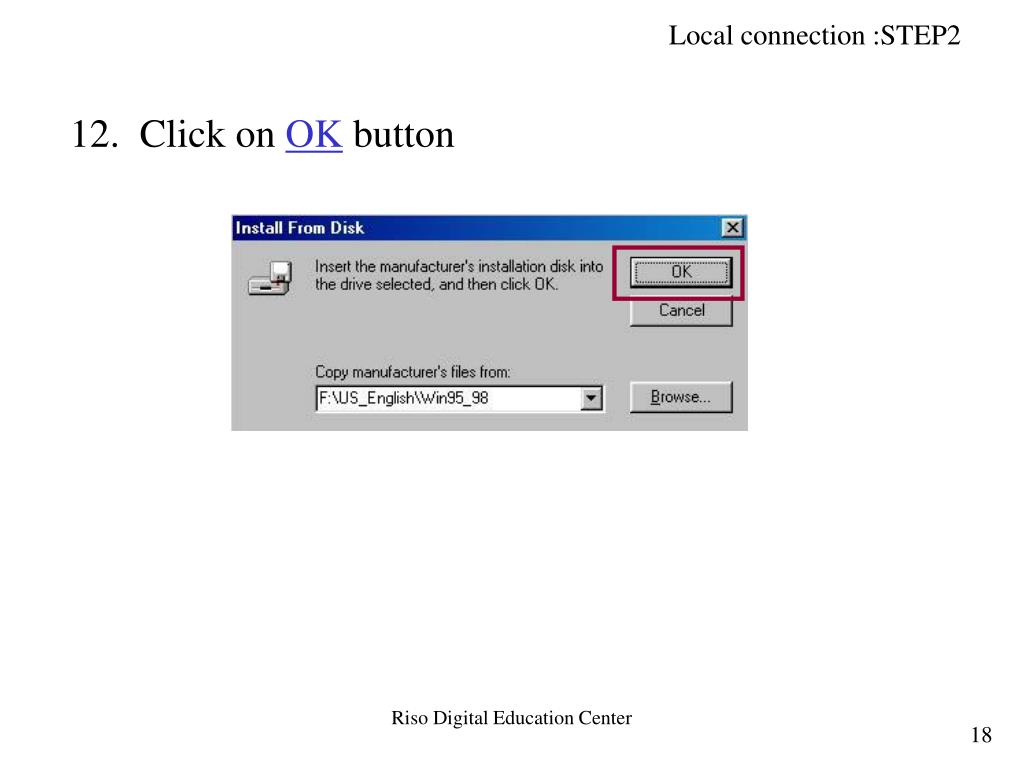

  18. Local connection :STEP2 12. Click on OKbutton Riso Digital Education Center 18

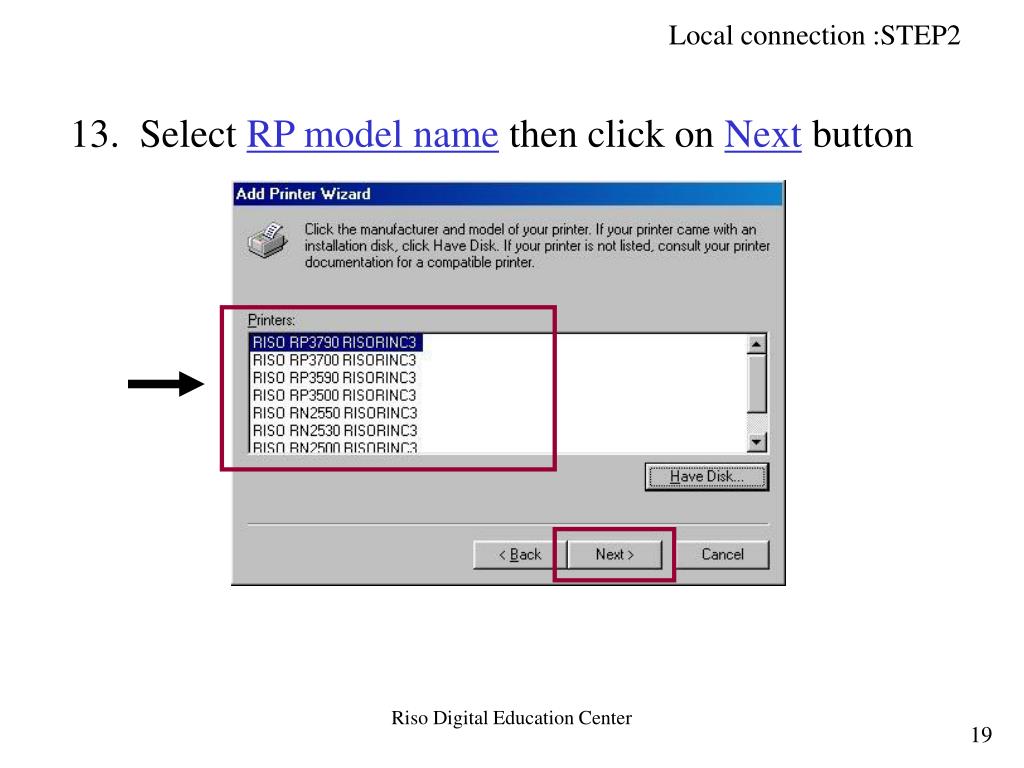

  19. Local connection :STEP2 13. Select RP model name then click on Next button Riso Digital Education Center 19

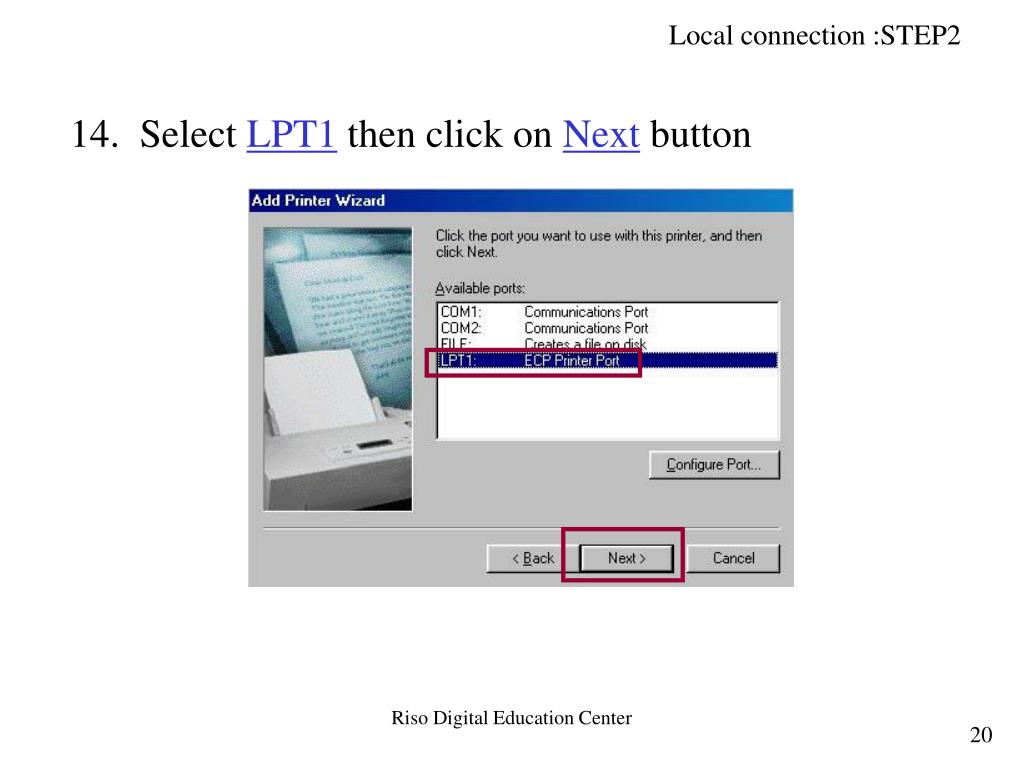

  20. Local connection :STEP2 14. Select LPT1 then click on Nextbutton Riso Digital Education Center 20

  21. Local connection :STEP2 15. Change Printer name if it is necessary then click on Next button Riso Digital Education Center 21

  22. Local connection :STEP2 16. Select Yes to perform a test page then click on Finish button Riso Digital Education Center 22

  23. Local connection :STEP2 17. Click on Yes button Riso Digital Education Center 23

  24. Local connection :STEP2 18. The printer icon appears in Printers folder Riso Digital Education Center 24

  25. TCP/IP protocol Installation(PC) Appendix 2: Install & Configuring the TCP/IP Protocol Riso Digital Education Center 25

  26. TCP/IP protocol Installation(PC) Check Point A Win PC HUB B Network Interface Card C D A: Get TCP/IP parameters (IP Address, Subnet mask, Default Gateway) from the Network Administrator B: Windows 9X CDROM C: UTP Straight Cable D: Empty HUB port Riso Digital Education Center 26

  27. TCP/IP protocol Installation(PC) Install & Configuring TCP/IP Protocol Riso Digital Education Center 27

  28. TCP/IP protocol Installation(PC) 1. Right click on Network Neighborhood icon then select Properties. Riso Digital Education Center 28

  29. TCP/IP protocol Installation(PC) 2. Make sure No TCP/IP protocol is exist in the list. Then click on Add button. Note: If TCP/IP protocol is exist, jump to 5. Riso Digital Education Center 29

  30. TCP/IP protocol Installation(PC) 3. Select Protocol then click on Add button. Riso Digital Education Center 30

  31. TCP/IP protocol Installation(PC) 4. Select Microsoft, several clicks onArrow button to show TCP/IP then select TCP/IPand click on OK button. Riso Digital Education Center 31

  32. TCP/IP protocol Installation(PC) 5. Select TCP/IP protocol then click on Properties button. Riso Digital Education Center 32

  33. TCP/IP protocol Installation(PC) 6. Change radio button from Obtain an IP address automaticallyto Specify an IP address. Riso Digital Education Center 33

  34. TCP/IP protocol Installation(PC) 7. EnterIP address and Subnet Mask which received information from the Network Administrator. Riso Digital Education Center 34

  35. TCP/IP protocol Installation(PC) 8. OpenGatewaytab. Enter Default Gateway received information from the Network Administrator and click Add button . Click on OK button. Riso Digital Education Center 35

  36. TCP/IP protocol Installation(PC) 9. Click on OK button. Riso Digital Education Center 36

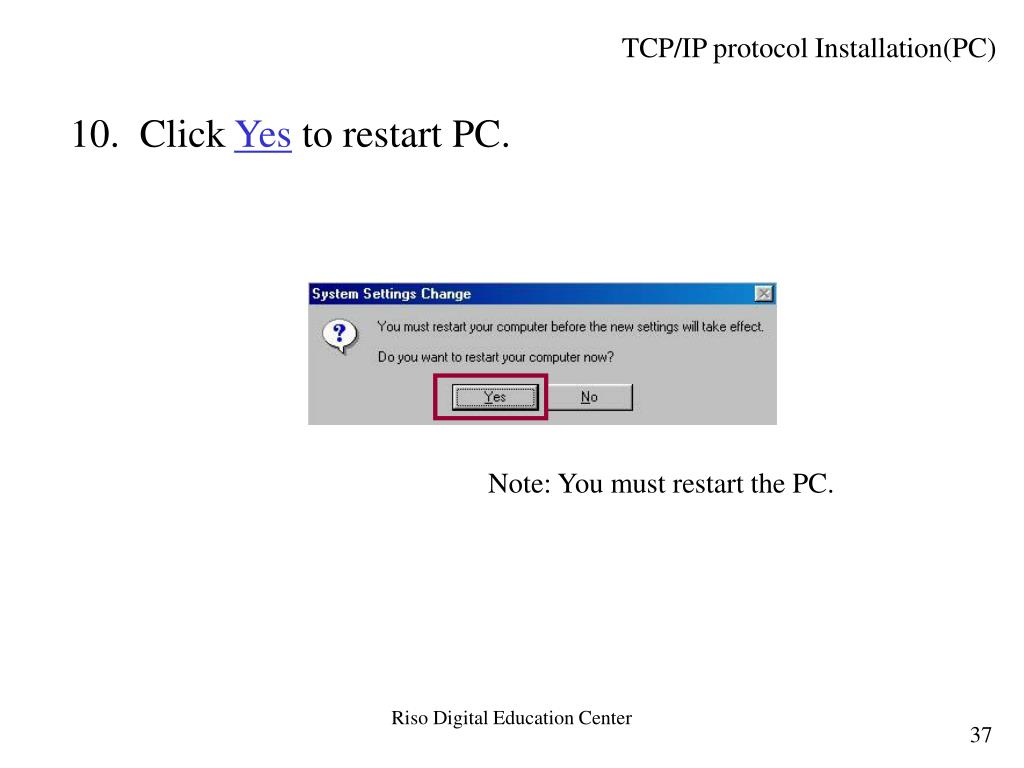

  37. TCP/IP protocol Installation(PC) 10. Click Yes to restart PC. Note: You must restart the PC. Riso Digital Education Center 37

  38. Network Printer Sharing Appendix 3: Network Printer Sharing Client PC Master PC Network Win PC (Service Receive) Win PC (Service Provide) IEEE1284 Cable Print Data STEP1: Confirm communication status between 2 PCs (Master PC – Client PC) STEP2: Install Printer driver into the PC which provide sharing service (Master PC) STEP3: Set sharing service on the Master PC STEP4: Install Printer driver into the PC which receive sharing service (Client PC) Riso Digital Education Center 38

  39. Network Printer Sharing Check Point Master PC Client PC Win PC (Service Receive) Win PC (Service Provide) E A B D D HUB F A: Client PC with network capability B: Master PC with network capability C: Empty HUB port (2 or more) D: UTP straight Cable (2 Cables) E: IEEE1284 Cable F: CD-ROM for RP series C Riso Digital Education Center 39

  40. Network Printer Sharing: STEP1 STEP1: Confirm communication Status Client PC Master PC Win PC (Service Receive) Win PC (Service Provide) HUB a: Check the network component in the Master PC b: Perform communication check from Client PC to Master PC Riso Digital Education Center 40

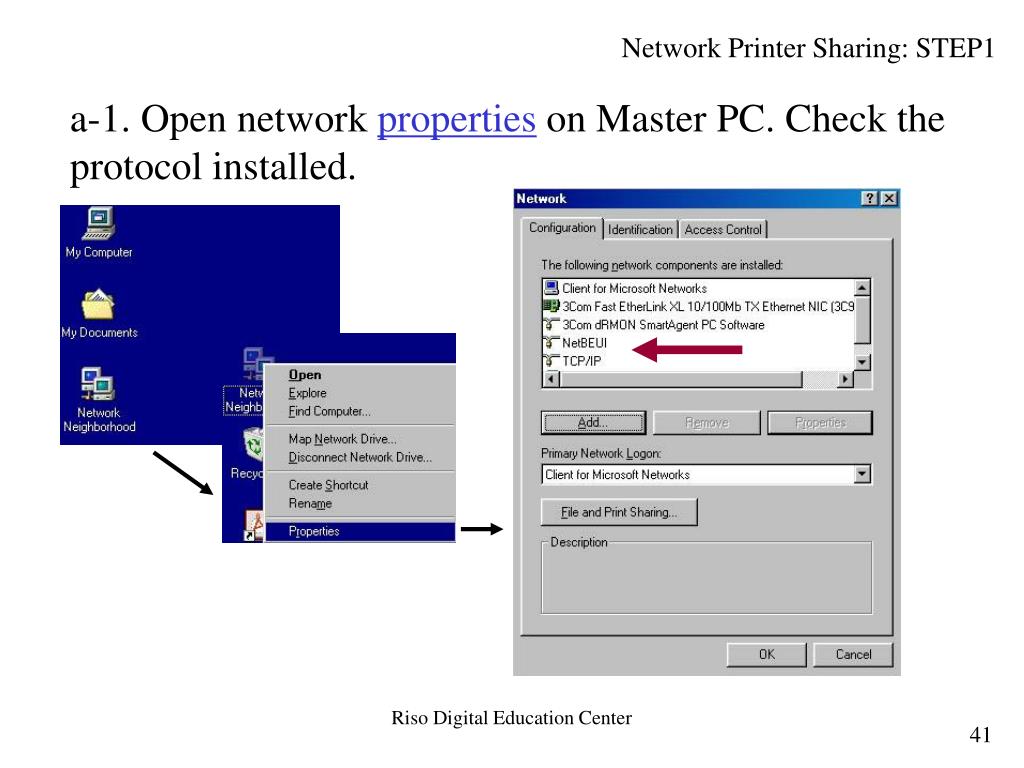

  41. Network Printer Sharing: STEP1 a-1. Open network properties on Master PC. Check the protocol installed. Riso Digital Education Center 41

  42. Network Printer Sharing: STEP1 a-2. Click on File and Print Sharing button. Riso Digital Education Center 42

  43. Network Printer Sharing: STEP1 a-3. Make sure that two columns are marked. Already marked - Click on Cancel button Not marked – Mark in the two columns then click on OK button. Riso Digital Education Center 43

  44. Network Printer Sharing: STEP1 a-4. Make sure that File and Printer sharing…. exist. Then Click on OK button Riso Digital Education Center 44

  45. Network Printer Sharing: STEP1 a-5. Click Yes to restart PC. Note: You must restart the PC. Riso Digital Education Center 45

  46. Network Printer Sharing: STEP1 b-1. Open network properties on Master PC. Open Identification tab. Riso Digital Education Center 46

  47. Network Printer Sharing: STEP1 b-2. Check and note Computer name & Workgroup. Riso Digital Education Center 47

  48. Network Printer Sharing: STEP1 b-3. Click on Cancel button to close window. Riso Digital Education Center 48

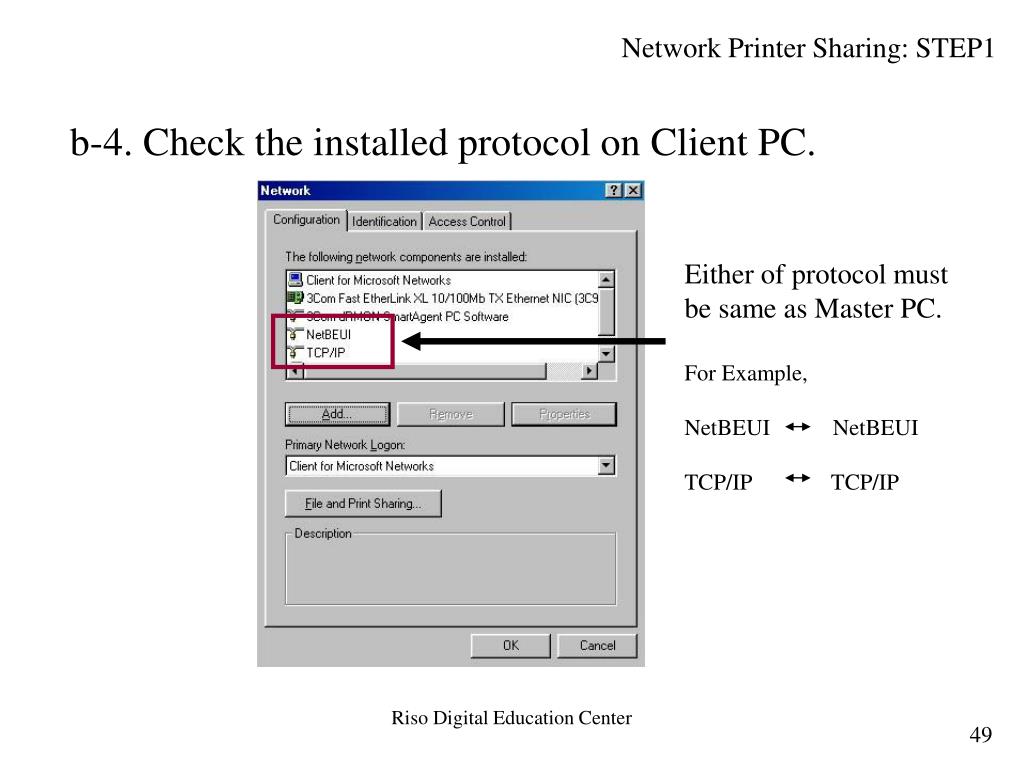

  49. Network Printer Sharing: STEP1 b-4. Check the installed protocol on Client PC. Either of protocol must be same as Master PC. For Example, NetBEUI NetBEUI TCP/IP TCP/IP Riso Digital Education Center 49

  50. Network Printer Sharing: STEP1 b-5. On the Client PC, Select Start – Find – Computer Riso Digital Education Center 50
