Fast, Quasi-Optimal, and Pipelined Instruction-Set Extensions

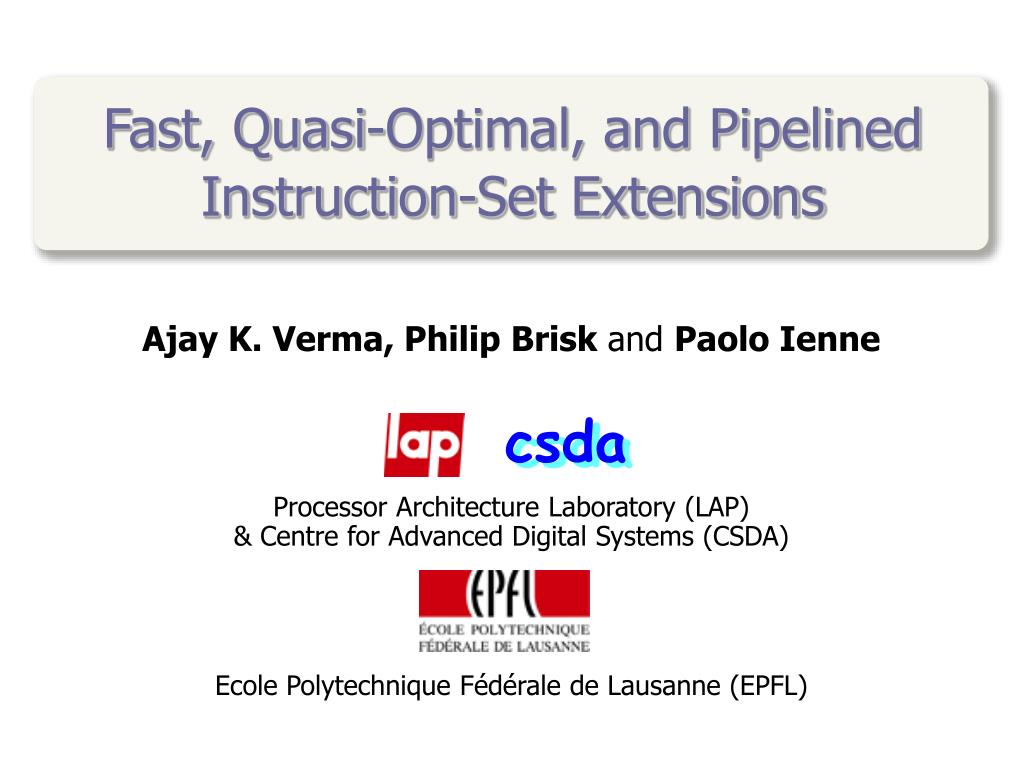

1. csda csda Fast, Quasi-Optimal, and Pipelined Instruction-Set Extensions Ajay K. Verma, Philip Brisk and Paolo Ienne Processor Architecture Laboratory (LAP) & Centre for Advanced Digital Systems (CSDA) Ecole Polytechnique Fédérale de Lausanne (EPFL)

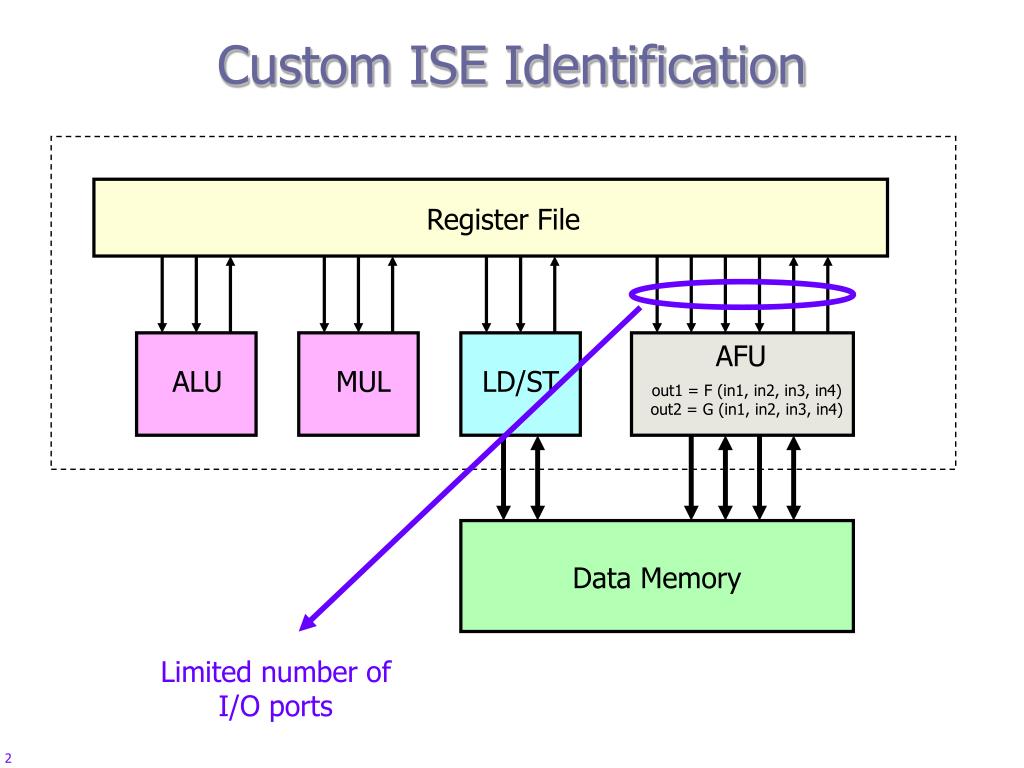

2. Custom ISE Identification Register File AFU ALU MUL LD/ST out1 = F (in1, in2, in3, in4) out2 = G (in1, in2, in3, in4) Data Memory Limited number of I/O ports

3. Outline • Problem formulation • ISE selection • I/O serialisation • Related work • Non-optimality of earlier work • Integer Linear Programming (ILP) formulation • Results • Conclusions

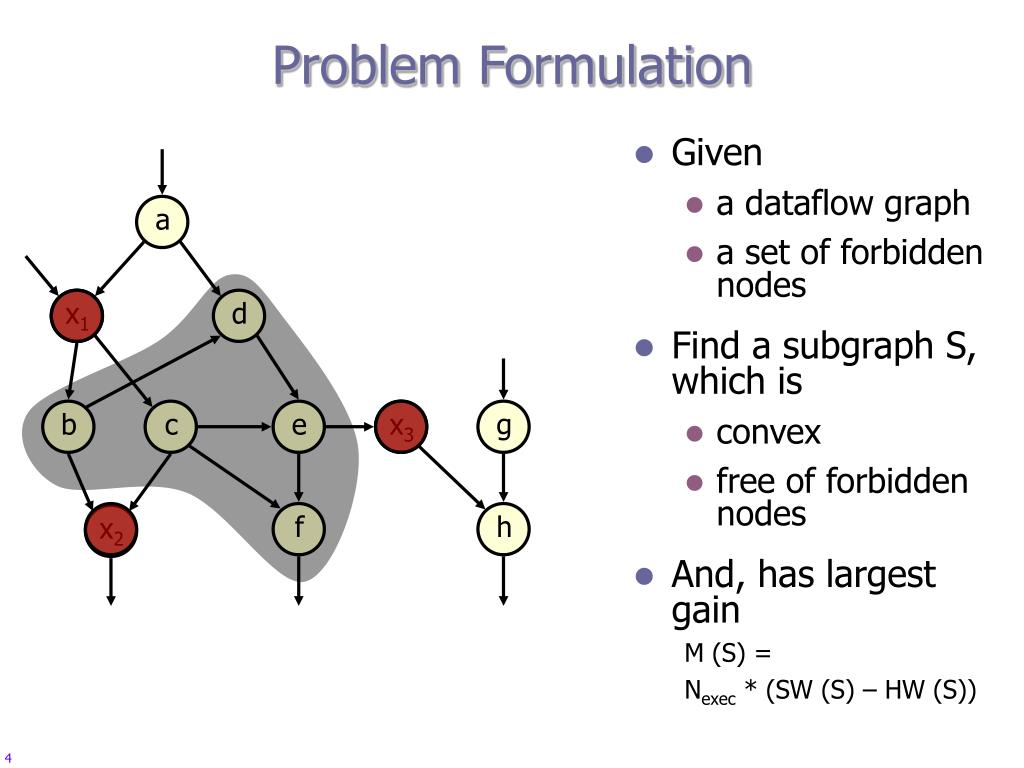

4. a x1 d b c e x3 g f h x2 Problem Formulation • Given • a dataflow graph • a set of forbidden nodes • Find a subgraph S, which is • convex • free of forbidden nodes • And, has largest gain M (S) = Nexec * (SW (S) – HW (S))

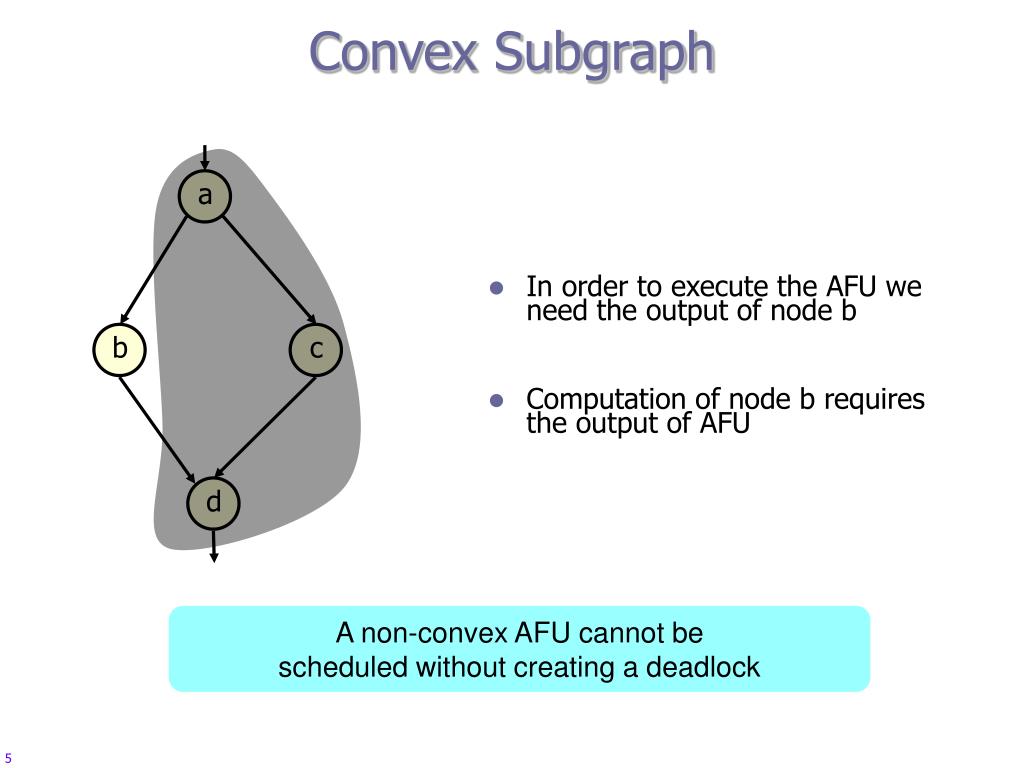

5. Convex Subgraph • In order to execute the AFU we need the output of node b • Computation of node b requires the output of AFU a b c d A non-convex AFU cannot be scheduled without creating a deadlock

6. I/O Serialisation c b d d b c e e f f 2 inputs, 4 outputs Available I/O ports: (1, 2)

7. a x1 d b c e x3 g f h x2 ISE Merit Estimation c b d e f M (S) = Nexec * (SW (S) – HW (S))

8. Related Work • ISE identification under I/O constraints • Search space pruning using I/O and convexity constraints [Atasu03, Clark03, Yu04, Pozzi06, Yu07, Chen07] • ILP based approach [Atasu05] • Pseudo-polynomial time algorithm [Bonzini07] • ISE identification under relaxed I/O constraints • Restricted search space exploration [Pozzi05] • Generation of a semi compact set of connected ISEs [Pothineni07] • I/O serialisation • Exponential time algorithms[Pozzi05, Pothineni07] • Algorithms for specific processor models • Single-issue RISC processor model [Verma07]

9. Earlier Work ISE Selection I/O Serialisation Atasu03 Pozzi05 Chen07 Pothineni07 Bonzini07 Yu07 Exponential time I/O serialisation algorithm Optimal ISEs selection under various I/O constraints

10. Non-Optimality of Earlier Work .6 .6 .5 .5 .2 .2 .6 .6 .3 .3 .5 .5 cycle saved: cycle saved: .6 .6 .5 .5 cycle saved: cycle saved:

11. Our Contributions • Optimal ILP formulation for a large class of processor models • Earlier work consider RISC processor model only • Single run • In the earlier work ISE selection was done for various I/O constraints • ISE selection and I/O scheduling together • Another source of non-optimality of earlier work

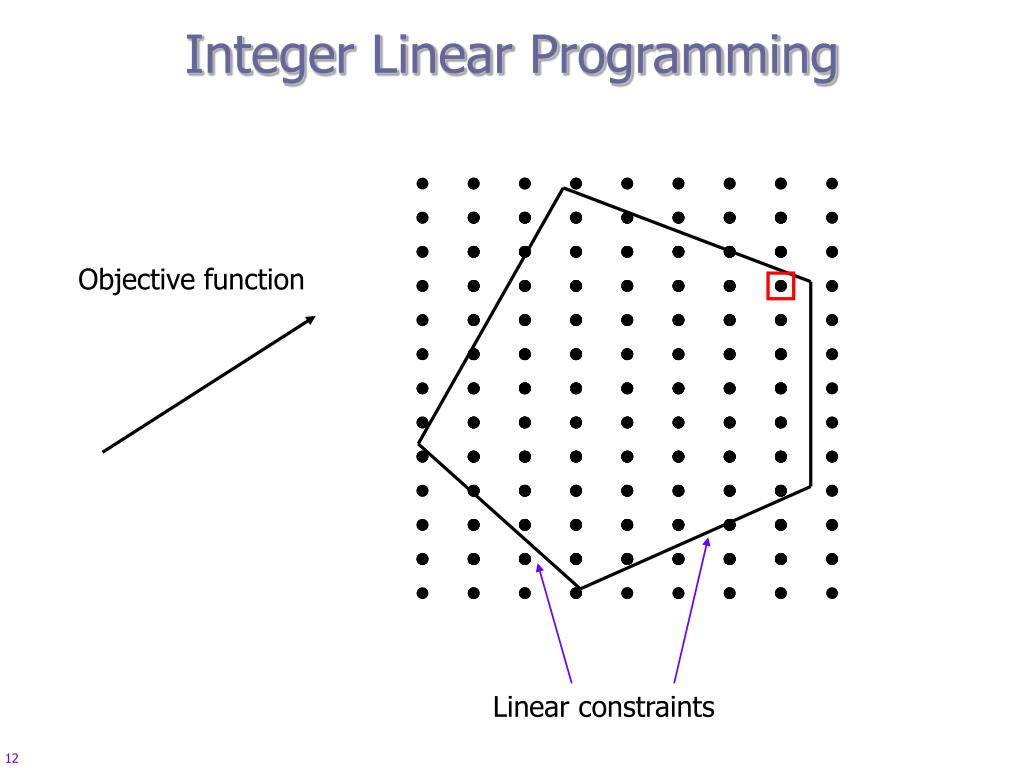

12. Integer Linear Programming Objective function Linear constraints

13. ILP Formulation • Linear constraints • No forbidden nodes • Convexity constraints • I/O serialisation based constraints • I/O access per cycle based constraints • Objective function • Saving in cycles should be maximum

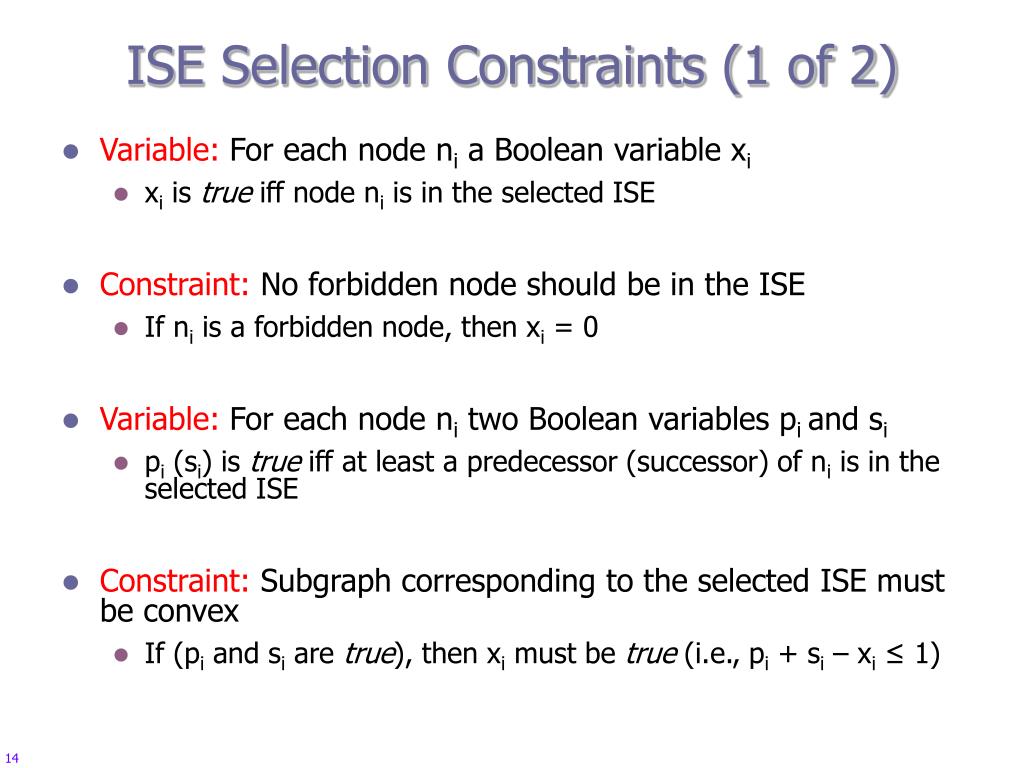

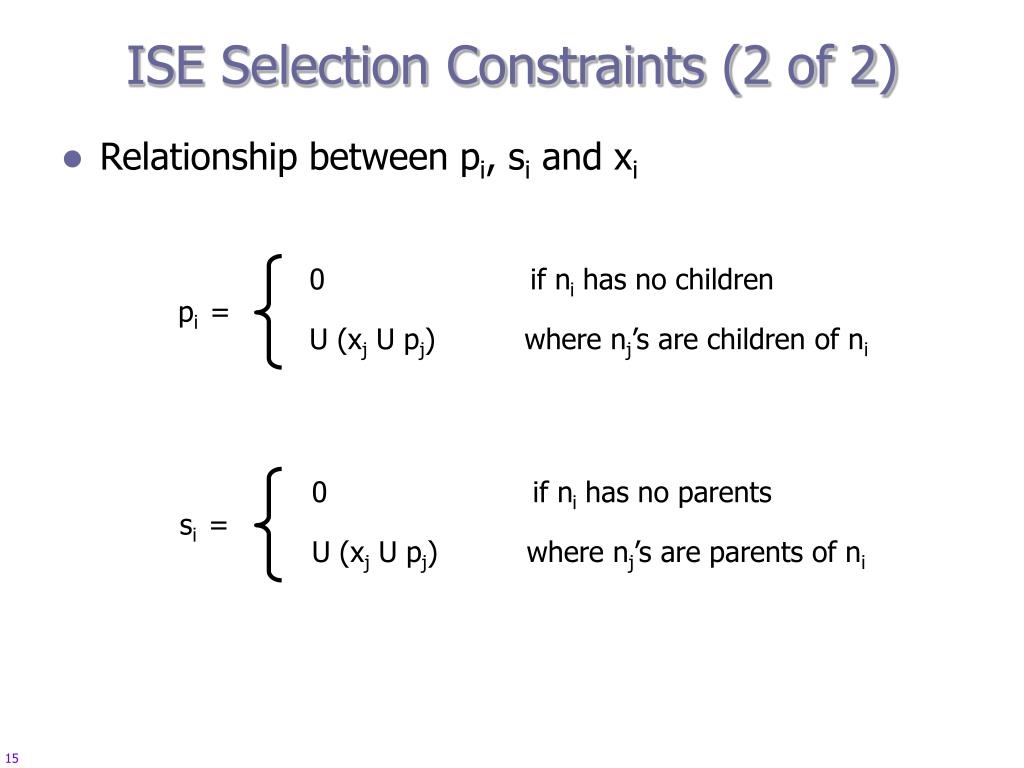

14. ISE Selection Constraints (1 of 2) • Variable: For each node ni a Boolean variable xi • xi is true iff node ni is in the selected ISE • Constraint: No forbidden node should be in the ISE • If ni is a forbidden node, then xi = 0 • Variable: For each node ni two Boolean variables pi and si • pi (si) is true iff at least a predecessor (successor) of ni is in the selected ISE • Constraint: Subgraph corresponding to the selected ISE must be convex • If (pi and si are true), then xi must be true (i.e., pi + si – xi≤ 1)

15. ISE Selection Constraints (2 of 2) • Relationship between pi, si and xi 0 if ni has no children pi = U (xj U pj) where nj’s are children of ni 0 if ni has no parents si = U (xj U pj) where nj’s are parents of ni

16. I/O Serialisation Based Constraints (1 of 3) • Variable: An integer variable intDelayi • Denotes the cycle in which node ni is executed, e.g., • intDelay1 = 0 • intDelay4 = 1 • intDelay5 = 2 • Variable: A real variable fractionalDelayi • Denotes the smallest time after intDelayi cycle when output of ni are available, e.g., • fractionalDelay3 = HW (n3) • fractionalDelay4 = HW (n3) + HW (n4) • Variable: An integer variable ρij • Denotes the number of stages across the edges between the nodes ni and nj , e.g., • ρ13 = 1 • ρ34 = 0 • ρ25 = 2 n1 n2 n3 n4 n5

17. I/O Serialisation Based Constraints (2 of 3) • Constraint: The difference between the cycles of predecessor and successor node is the same as number of latches on the edge connecting them, e.g., • intDelay4 = intDelay3 + ρ34 • intDelay5 = intDelay2 + ρ25 • Constraint: The total number of stages is the same as the last cycle in which an output node is computed, e.g., • R = intDelay5 + ρ57 • R = intDelay2 + ρ26 n1 n2 n3 n4 n5 n7 n6 Extra latches on output edges are created in order to realize an imaginary sink node

18. I/O Serialisation Based Constraints (3 of 3) • Constraint: fractionalDelay of a node depends on the fractionalDelay of its predecessor nodes, e.g., • Case 1: if node is the first node in the cycle • fractionalDelay3 = HW (n3) • Case 2: if node is not the first node in the cycle • fractionalDelay4 = fractionalDelay3 + HW (n4) • Constraint: fractionalDelay of a node should never exceed the cycle time, e.g., • fractionalDelay3≤ λ • fractionalDelay4≤ λ n1 n2 n3 n4 n5 n7 n6

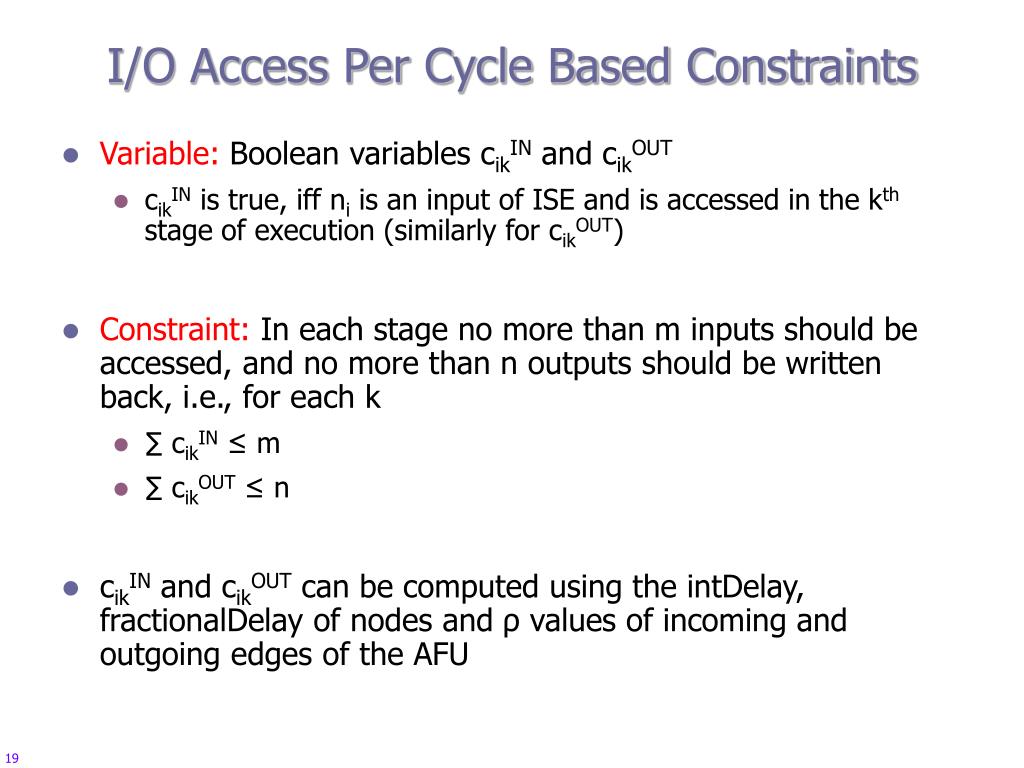

19. I/O Access Per Cycle Based Constraints • Variable: Boolean variables cikIN and cikOUT • cikIN is true, iff ni is an input of ISE and is accessed in the kth stage of execution (similarly for cikOUT) • Constraint: In each stage no more than m inputs should be accessed, and no more than n outputs should be written back, i.e., for each k • ∑ cikIN ≤ m • ∑ cikOUT ≤ n • cikIN and cikOUT can be computed using the intDelay, fractionalDelay of nodes and ρ values of incoming and outgoing edges of the AFU

20. Objective Function • Saving in cycles should be maximized • SW (S) – HW (S) should be maximum SW (S) = ∑ xi SW (ni) HW (S) = R Any processor model where SW (S) and HW (S) can be computed using linear inequalities, can be handled using ILP

21. Experimental Setup Input dataflow graph exp / subopt ISE selection Atasu03 ISE selection Atasu03 ILP method exp / opt No serialisation I/O serialisation Pozzi05

22. Results (1 of 3) adpcmcoder adpcmdecoder No pipelining Pozzi’s algorithm ILP method viterbi

23. Results (2 of 3) Benchmark:aes Biggest dataflow graph:703 After 3 minutes After an hour Pozzi’s algorithm takes several hours on this benchmark, and produces inferior results

24. Results (3 of 3) The best AFU with 22 inputs and 22 outputs
