  1. Master’s Project Presentation End-to-End GMPLS Signaling in CHEETAH Project Xiangfei Zhu xzhu@cs.virginia.edu 5/5/2005

  2. Outline • CHEETAH project overview • GMPLS signaling overview • End host software for GMPLS signaling • External GMPLS signaling Engine for Cisco 15454 • Network setup and experiments • Conclusion and future work

  3. CHEETAH Project • CHEETAH: Circuit-switched High-speed End-to-End Transport ArcHitecture[1] • Supported by NSF Experimental Infrastructure Networks (EIN) Project • Goal: • enable dynamically controlled rate-guaranteed connections between end hosts • Application: • eScience community, especially, Terascale Supernova Initiative (TSI ) • High speed file transfer • Remote visualization

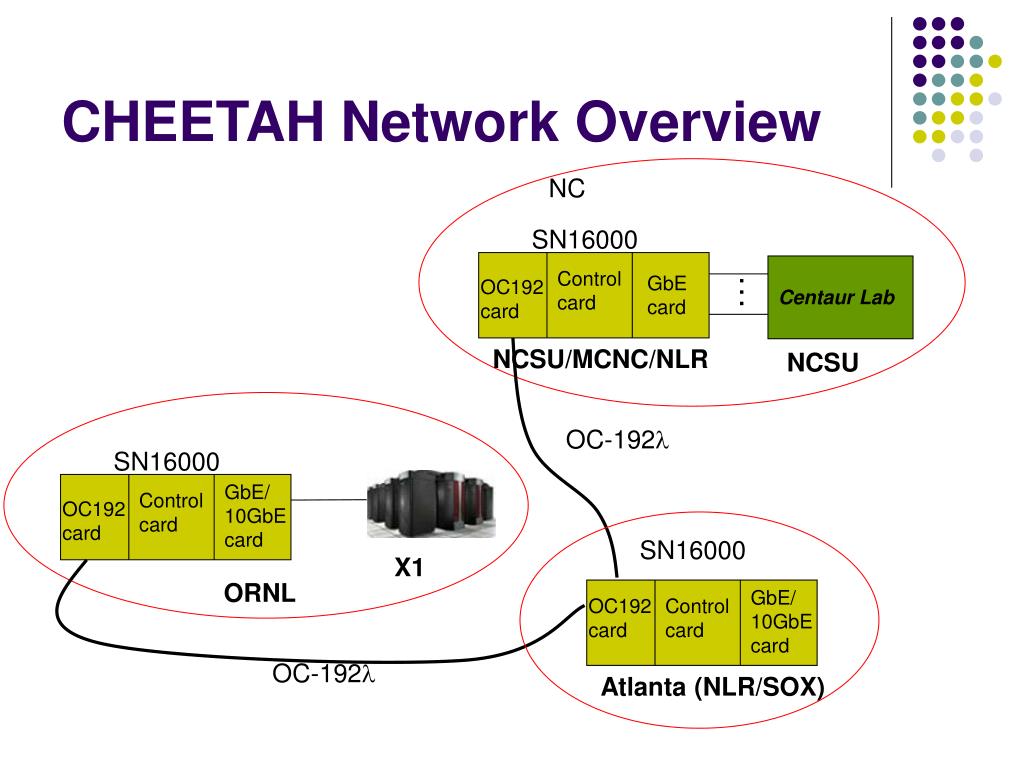

  4. CHEETAH Network Overview NC SN16000 Centaur Lab Control card GbE card OC192 card OC192 card … NCSU/MCNC/NLR NCSU OC-192 SN16000 GbE/ 10GbE card Control card OC192 card SN16000 X1 ORNL GbE/ 10GbE card OC192 card Control card OC-192 Atlanta (NLR/SOX)

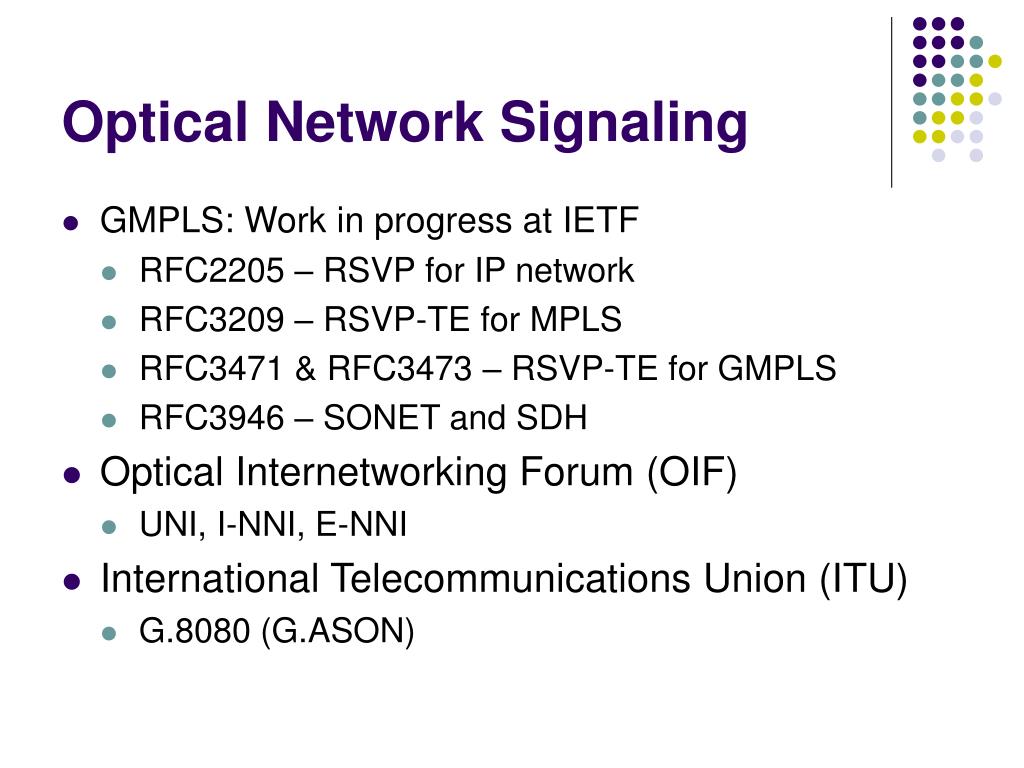

  5. Optical Network Signaling • GMPLS: Work in progress at IETF • RFC2205 – RSVP for IP network • RFC3209 – RSVP-TE for MPLS • RFC3471 & RFC3473 – RSVP-TE for GMPLS • RFC3946 – SONET and SDH • Optical Internetworking Forum (OIF) • UNI, I-NNI, E-NNI • International Telecommunications Union (ITU) • G.8080 (G.ASON)

  6. Vendor Support to GMPLS • Some vendors provide varying-level support for GMPLS in their products • eg: CIENA CoreDirector, Sycamore SN16000, etc. • Successful multi-vendor GMPLS interoperability demo at ISOCORE • The implementation of GMPLS signaling by different vendors are basically compatible

  7. University GMPLS Code • KOM RSVP Engine – Technische Universitat Darmstadt [7] • partial support of RFC 2205, 2210 & 3209 • Dragon RSVP-TE code – MAX/ISI[4] • partial support of RFC 3471, 3473 & 3946 • Use of the university GMPLS code • GMPLS client on end hosts • External GMPLS engine

  8. My contributions • Implement a GMPLS software for end host – “Bandwidth manager” • Integrating GMPLS signaling with • Admission control • OCS (Optical Connectivity Service) • Integrate with 15454 control software • CHEETAH network setup and interoperability test with Sycamore SN16000

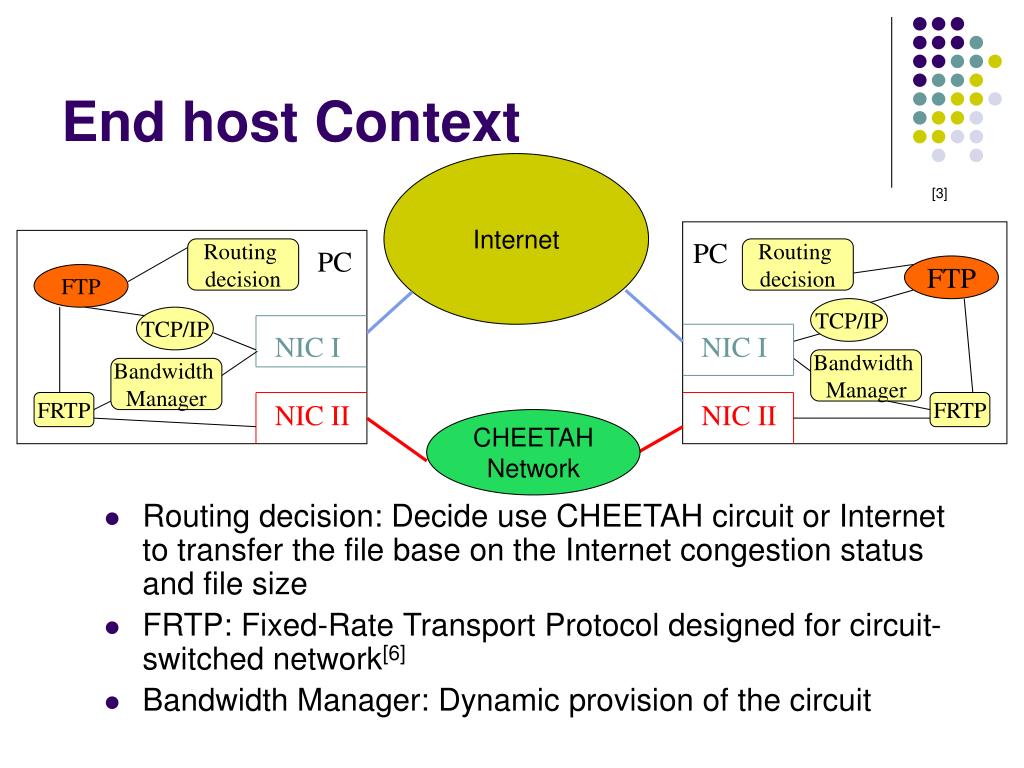

  9. Routing decision Routing decision End host Context Internet [3] PC PC FTP FTP TCP/IP TCP/IP NIC I NIC I Bandwidth Manager Bandwidth Manager FRTP NIC II NIC II FRTP CHEETAH Network • Routing decision: Decide use CHEETAH circuit or Internet to transfer the file base on the Internet congestion status and file size • FRTP: Fixed-Rate Transport Protocol designed for circuit-switched network[6] • Bandwidth Manager: Dynamic provision of the circuit

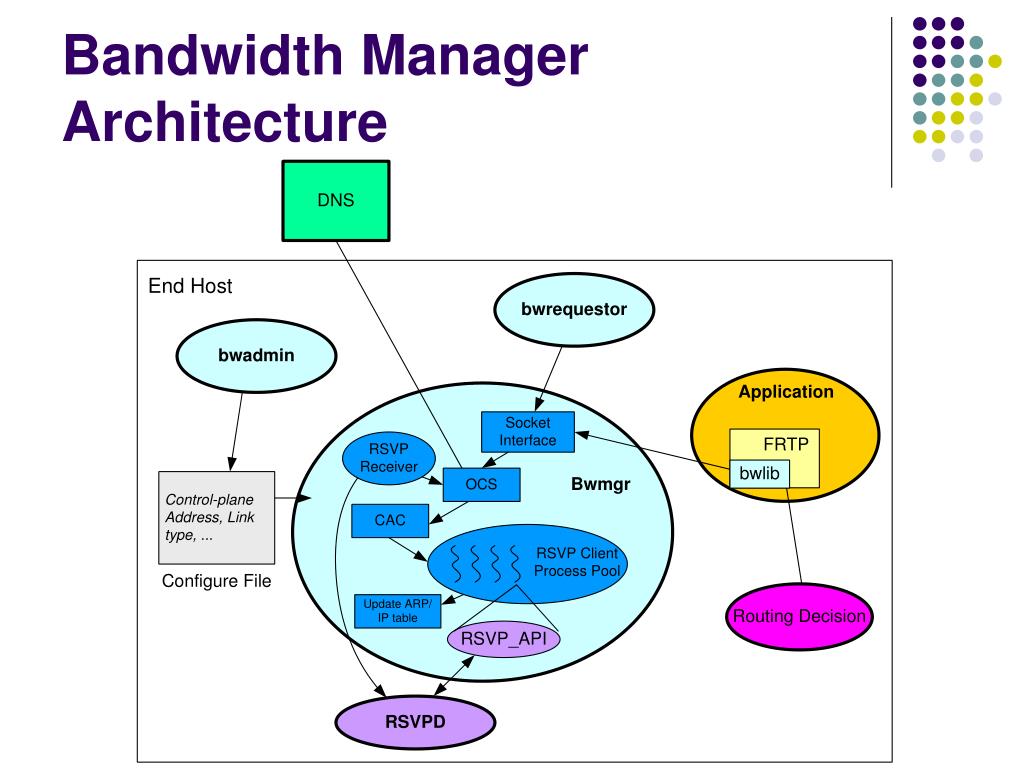

  10. Bandwidth Manager Architecture

  11. Bandwidth Manager Daemon • Read the configuration from a configuration file. • Initiate circuit setup. • Accept the bandwidth request • Check if destination is in CHEETAH network (OCS) • Bandwidth management (CAC) • Create RSVP session and send out PATH message • Update ARP/IP table • Accept the circuit setup requests • Listen to PATH message • If it is a new session • Perform CAC • Create a new session and send back RESV • Update ARP/IP table PATH

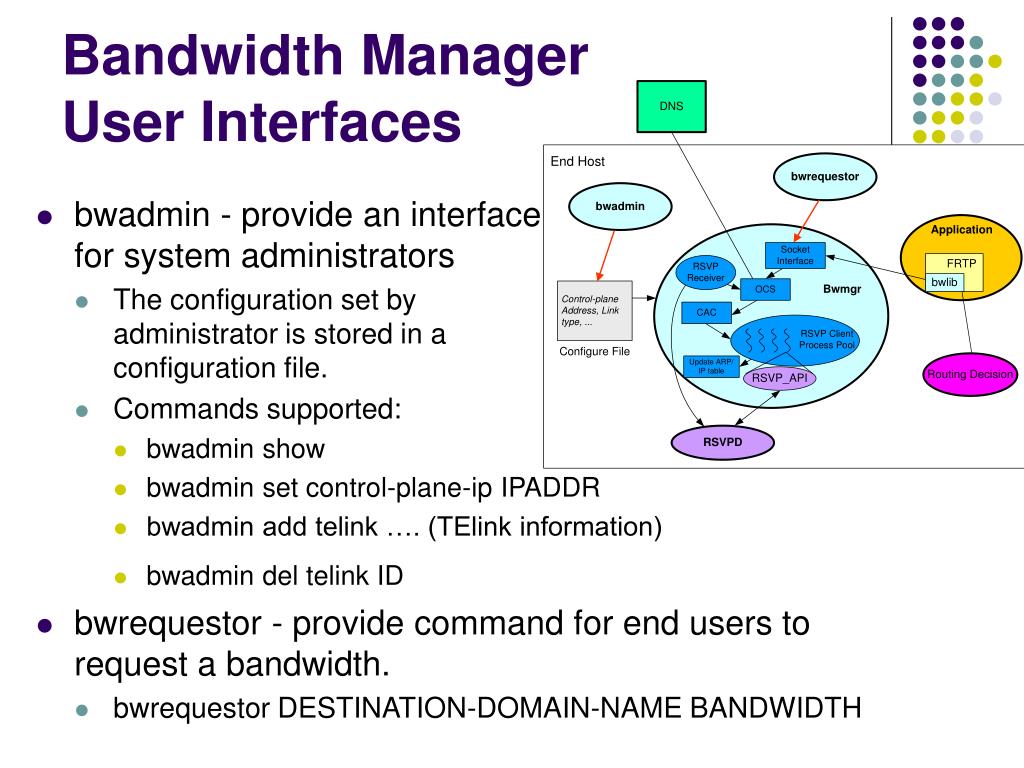

  12. Bandwidth Manager User Interfaces • bwadmin - provide an interfacefor system administrators • The configuration set by administrator is stored in a configuration file. • Commands supported: • bwadmin show • bwadmin set control-plane-ip IPADDR • bwadmin add telink …. (TElink information) • bwadmin del telink ID • bwrequestor - provide command for end users to request a bandwidth. • bwrequestor DESTINATION-DOMAIN-NAME BANDWIDTH

  13. Bandwidth Manager Configuration File • The configuration file includes: • The control-plane address of the node • TE-link information: • TE-link ID • Bandwidth and type (Ethernet/SONET) • Interface types (numbered or unnumbered) of the two interfaces (local and remote) • IP (numbered interface) / IFID (unnumbered) of each interface • A sample configuration file control-plane-IP = 128.143.137.155 # TE-Links # TELinkID bandwidth(unit: Mbit) link type (0-Ethernet, 1-SONET) local interface type (0-unnumbered, 1-numbered) local interface IP/ID remote interface type (0-unnumbered, 1-numbered) remote interface IP/ID TELink1 1000 0 0 1 0 1 TELink2 500 0 1 192.168.2.1 1 192.168.2.2

  14. My contributions • Implement a GMPLS software for end host – “Bandwidth manager” • Integrating GMPLS signaling with • Admission control • OCS (Optical Connectivity Service) • Integrate with 15454 control software • CHEETAH network setup and interoperability test with Sycamore SN16000

  15. External GMPLS Engine for Equipment without GMPLS Capability • Dragon’s VLSR (Virtual Label Switching Router)[4] as an external GMPLS engine. • RSVP-TE message parsing and construction is done • Fabric programming module for some Ethernet switches through SNMP • Adopt VLSR for Cisco 15454 • Monfox TL1 Library • Allows for an external program to provision circuits by issuing TL1 commands to 15454 • Difficulty: Library in Java while the Dragon code is in C++ • Figured out how to integrate Java code with C++ through CNI (Cygnus Native Interface) (by Lingling Cui) • Integrate Dragon’s RSVP-TE software with 15454 control software

  16. External GMPLS Engine for CISCO 15454 RESV PATH

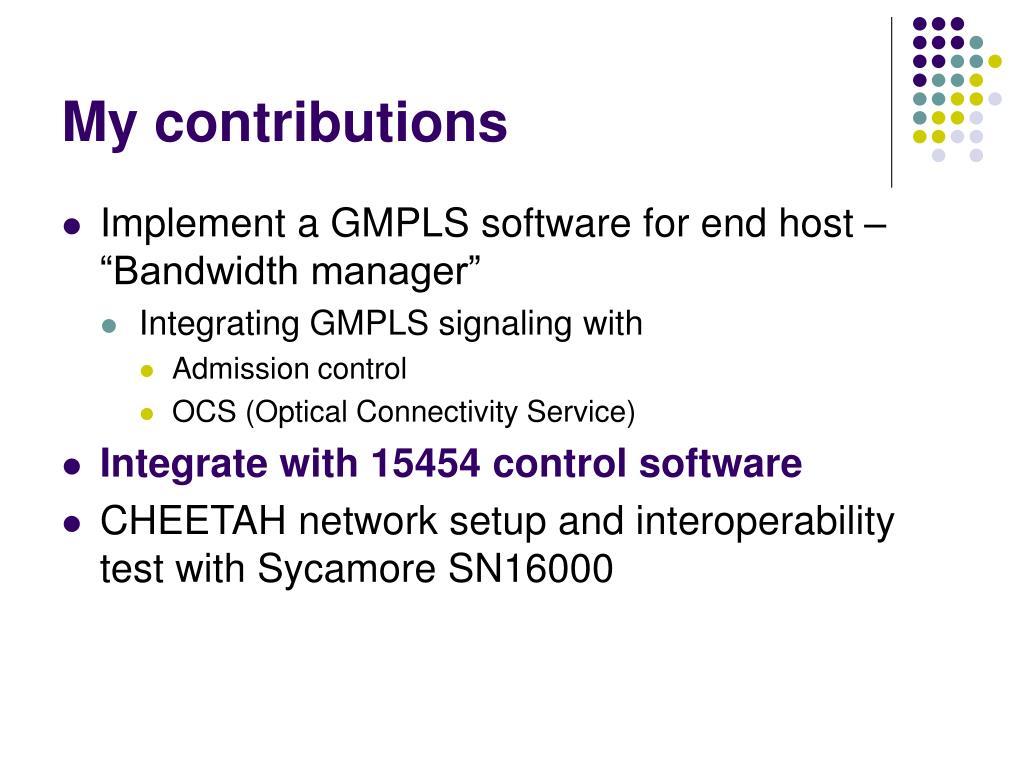

  17. My contributions • Implement a GMPLS software for end host – “Bandwidth manager” • Integrating GMPLS signaling with • Admission control • OCS (Optical Connectivity Service) • Integrate with 15454 control software • CHEETAH network setup and interoperability test with Sycamore SN16000

  18. July 26, 2004 First interoperability at Sycamore

  19. July 26, 2004 First interoperability at Sycamore RESV message PATH message Did find some bugs in Dragon’s code but bugs were fixed on-the-fly

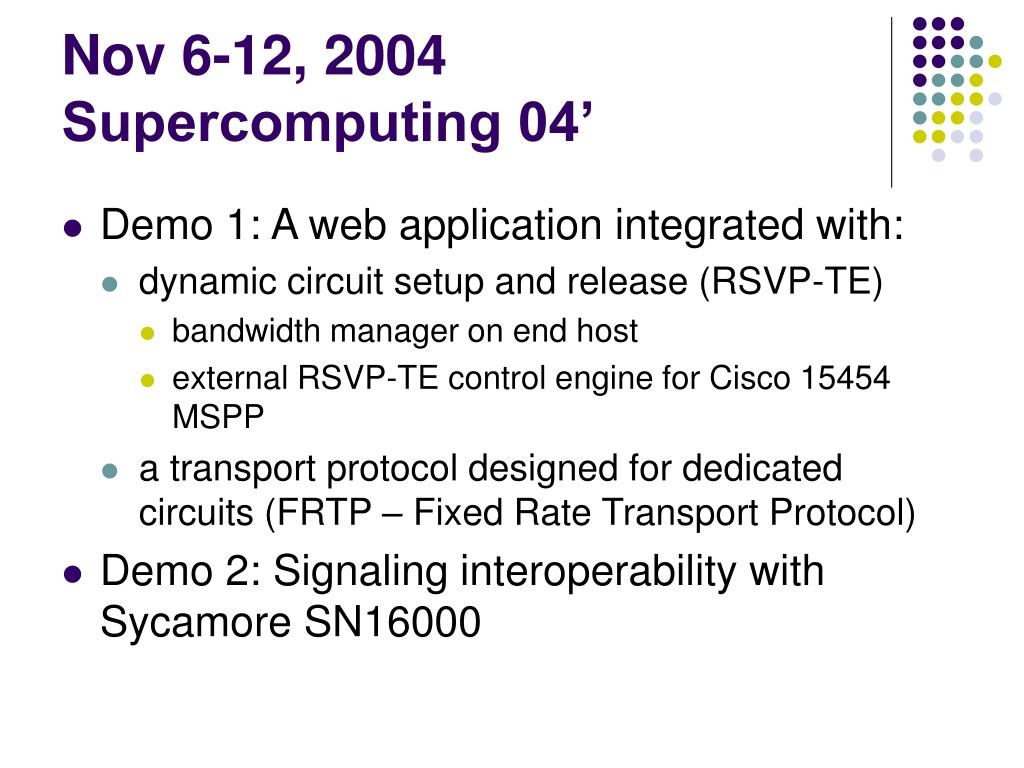

  20. Nov 6-12, 2004 Supercomputing 04’ • Demo 1: A web application integrated with: • dynamic circuit setup and release (RSVP-TE) • bandwidth manager on end host • external RSVP-TE control engine for Cisco 15454 MSPP • a transport protocol designed for dedicated circuits (FRTP – Fixed Rate Transport Protocol) • Demo 2: Signaling interoperability with Sycamore SN16000

  21. Mar 23, 2005CHEETAH NC Deployment NC SN16000 SN16000 Centaur Lab Control card Control card GbE card GbE card OC192 card OC192 card OC192 card OC192 card … NCSU/MCNC/NLR NCSU/MCNC/NLR NCSU OC-192 SN16000 GbE/ 10GbE card Control card OC192 card SN16000 X1 ORNL GbE/ 10GbE card OC192 card Control card OC-192 Atlanta (NLR/SOX)

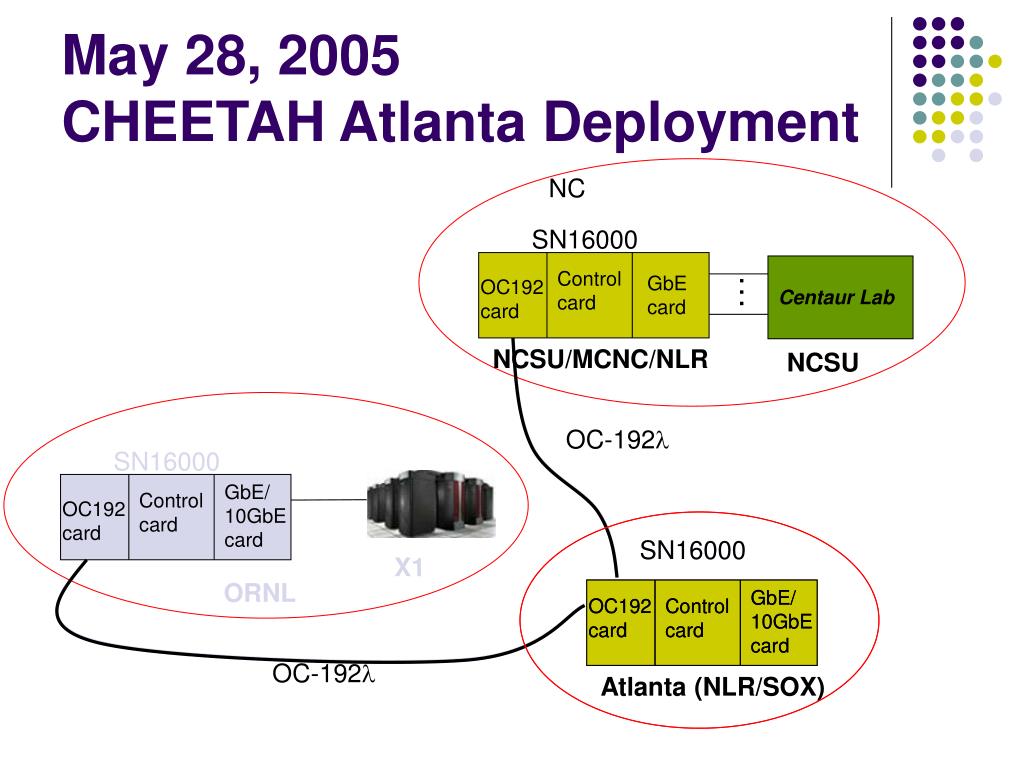

  22. May 28, 2005 CHEETAH Atlanta Deployment NC SN16000 Centaur Lab Control card GbE card OC192 card OC192 card … NCSU/MCNC/NLR NCSU OC-192 SN16000 GbE/ 10GbE card Control card OC192 card SN16000 SN16000 X1 ORNL GbE/ 10GbE card GbE/ 10GbE card OC192 card OC192 card Control card Control card OC-192 Atlanta (NLR/SOX) Atlanta (NLR/SOX)

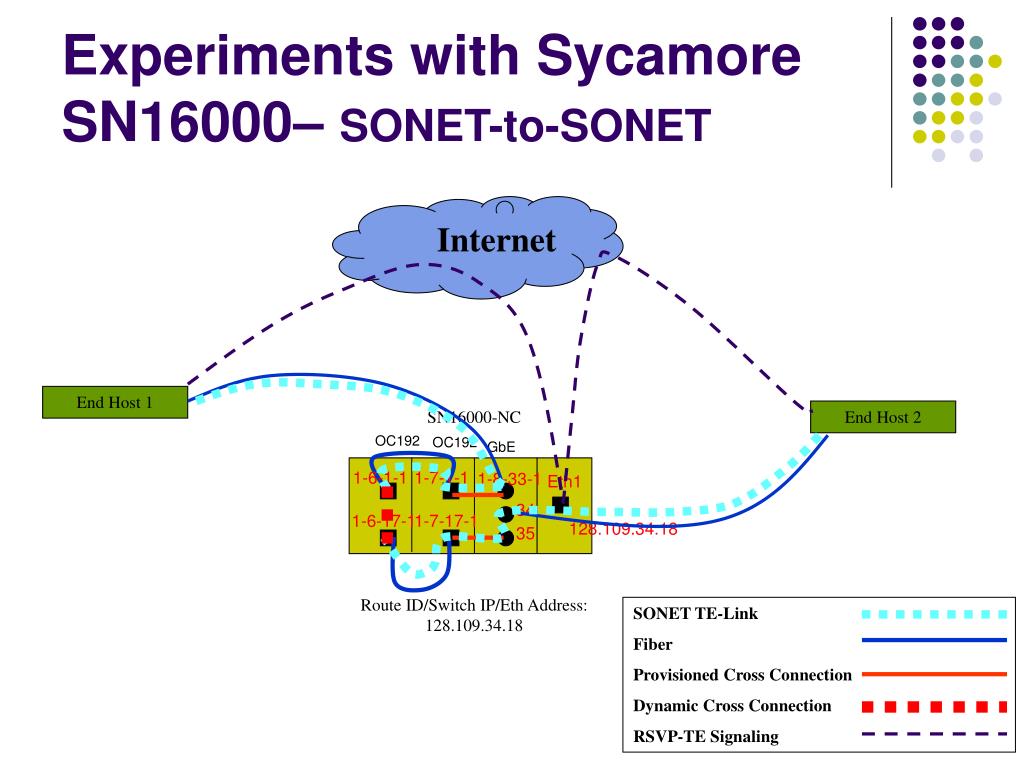

  23. SONET TE-Link Fiber Provisioned Cross Connection Dynamic Cross Connection RSVP-TE Signaling Experiments with Sycamore SN16000– SONET-to-SONET Internet End Host 1 SN16000-NC End Host 2 OC192 OC192 GbE 1-6-1-1 1-7-1-1 1-8-33-1 Eth1 34 1-6-17-1 1-7-17-1 128.109.34.18 35 Route ID/Switch IP/Eth Address: 128.109.34.18

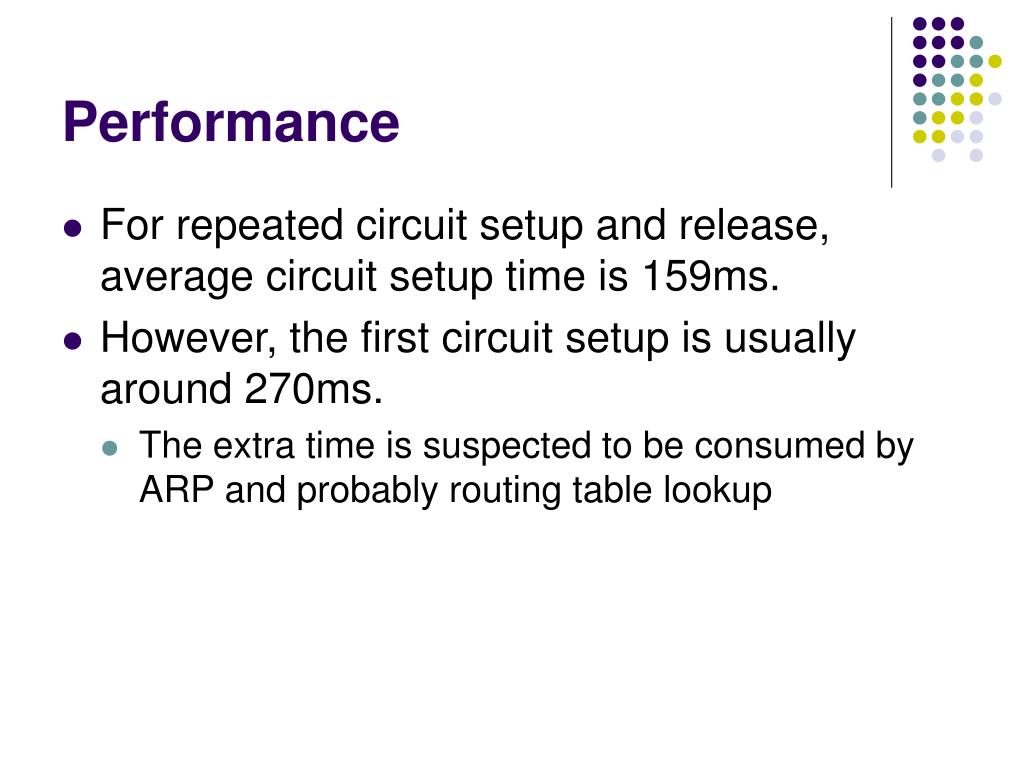

  24. Performance • For repeated circuit setup and release, average circuit setup time is 159ms. • However, the first circuit setup is usually around 270ms. • The extra time is suspected to be consumed by ARP and probably routing table lookup

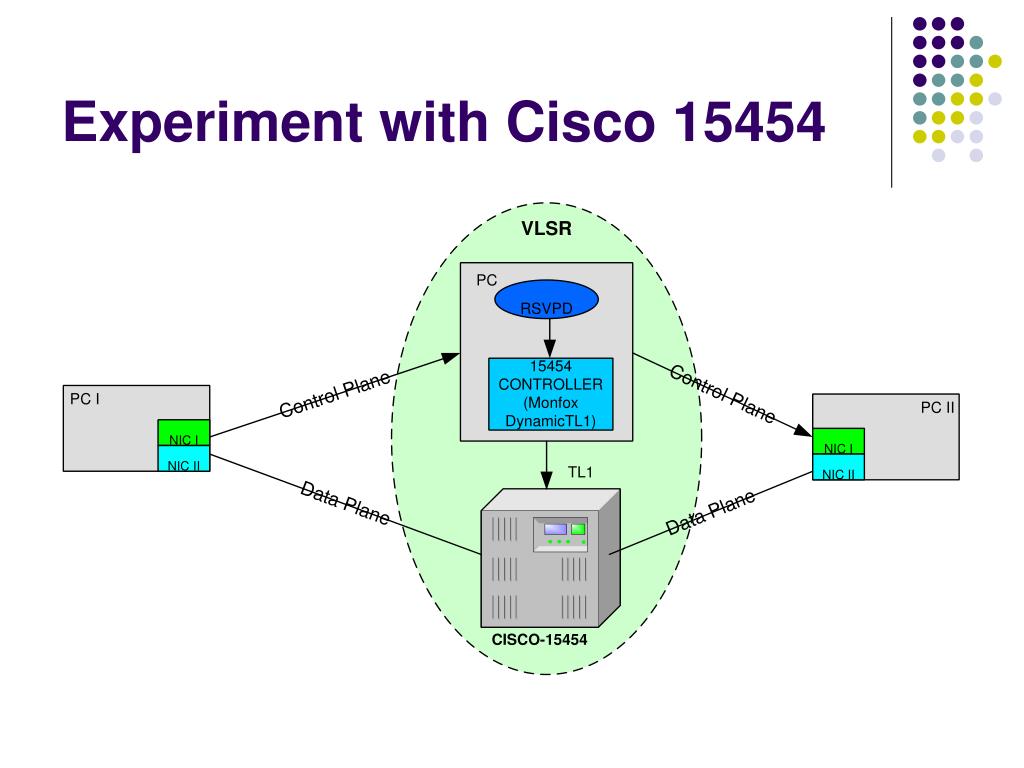

  25. Experiment with Cisco 15454

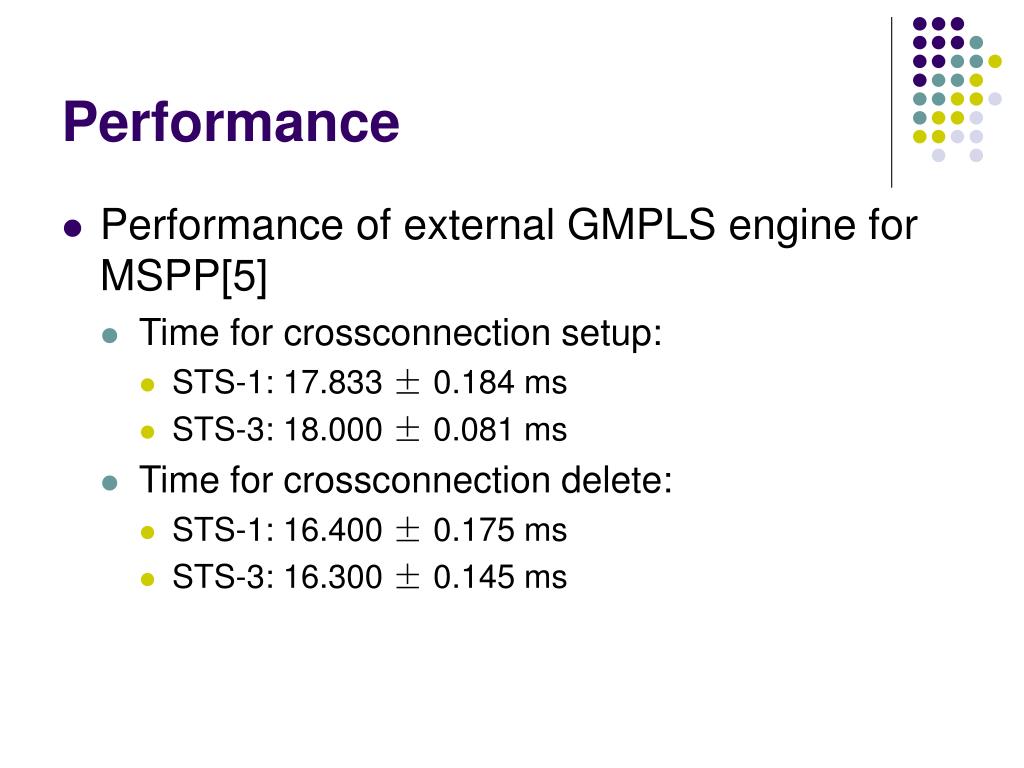

  26. Performance • Performance of external GMPLS engine for MSPP[5] • Time for crossconnection setup: • STS-1: 17.833 ± 0.184 ms • STS-3: 18.000 ± 0.081 ms • Time for crossconnection delete: • STS-1: 16.400 ± 0.175 ms • STS-3: 16.300 ± 0.145 ms

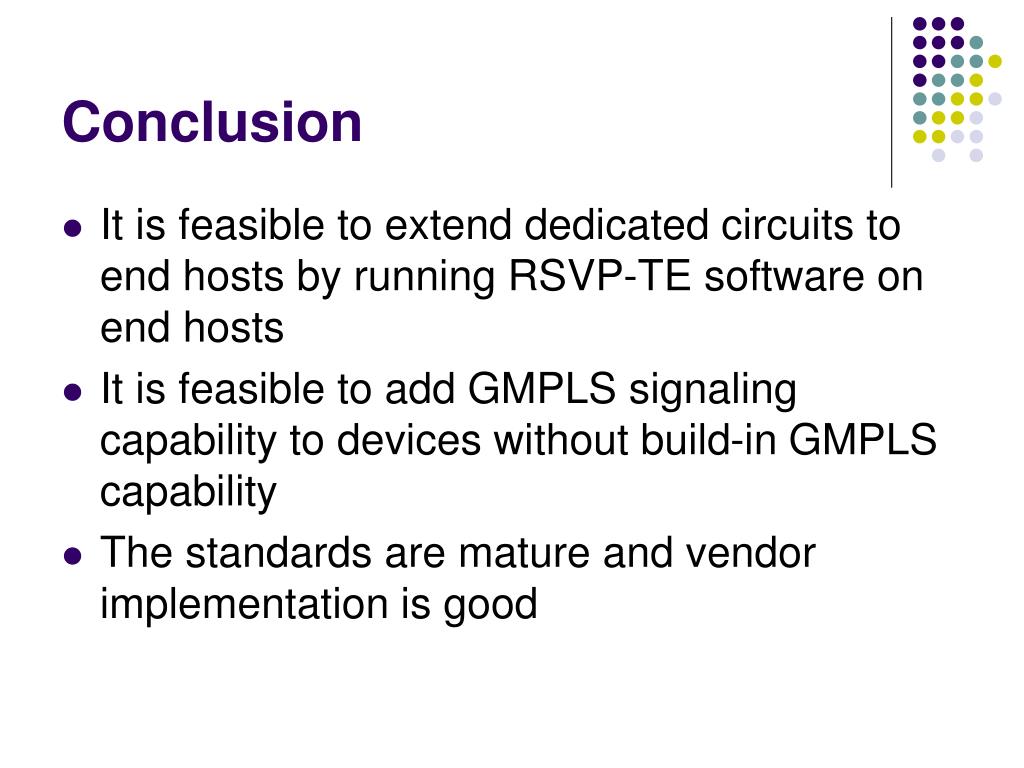

  27. Conclusion • It is feasible to extend dedicated circuits to end hosts by running RSVP-TE software on end hosts • It is feasible to add GMPLS signaling capability to devices without build-in GMPLS capability • The standards are mature and vendor implementation is good

  28. Future Work • Development part • Complete the implementation • Hand out to scientists to use • Research part • Bandwidth scheduling of circuit-switched network • Immediate call vs. scheduled call • Distributed bandwidth scheduling

  29. Thank you!

  30. Reference [1] http://cheetah.cs.virginia.edu/ [2] CHEETAH overview, John H. Moore, Xuan Zheng, Malathi Veeraraghavan, http://cheetah.cs.virginia.edu/networks/Cheetah%20Overview.jpg [3] CHEETAH network, Malathi Veeraraghavan, Nagi Rao, July 7, 2004 [4] http://dragon.east.isi.edu/ [5] External Switch Control Software, Lingling Cui, CHEETAH project year 1 demo, September 01, 2004 [6] X. Zheng, A. P. Mudambi, and M. Veeraraghavan, FRTP: Fixed Rate Transport Protocol -- A modified version of SABUL for end-to-end circuits, Pathnets2004 on Broadnet2004, Sept. 2004, San Jose, CA [7] KOM RSVP Engine, http://www.kom.e-technik.tu-darmstadt.de/rsvp/ [8] Monfox DynamicTL1 SDK, http://www.monfox.com/dtl1_sdk.html

  31. Acronym • CHEETAH – Circuit-switched High-speed End-to-End Transport ArcHitecture • RSVP – Resource Reservation Protocol • RSVP-TE – RSVP – Traffic Engineering • GMPLS – Generalized Multiple Protocol Label Switching • SONET – Synchronous Optical NETwork • SDH – Synchronous Digital Hierarchy • IETF – Internet Engineering Task Force • RFC – Requests for Comments • UNI – User-Network Interface • I-NNI – Internal-Network-Network Interface • E-NNI – External-Network-Network Interface
