Simultaneous Equations

kalkin avatar
kalkin
41 diapositives · 2.1K Views · Aug 10, 2014

Simultaneous Equations. Solving Sim. Equations Graphically. Graphs as Mathematical Models. Solving Simple Sim. Equations by Substitution. Solving Simple Sim. Equations by elimination. Solving harder type Sim. equations. Starter Questions. Simultaneous Equations. S5 Int2. Straight Lines.

#simultaneous equations #simultaneous equations ppt #powerpoint #presentation
Simultaneous Equations - slide 1
01 / 41Simultaneous Equations
1 / 17

Télécharger la présentation

Simultaneous Equations
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

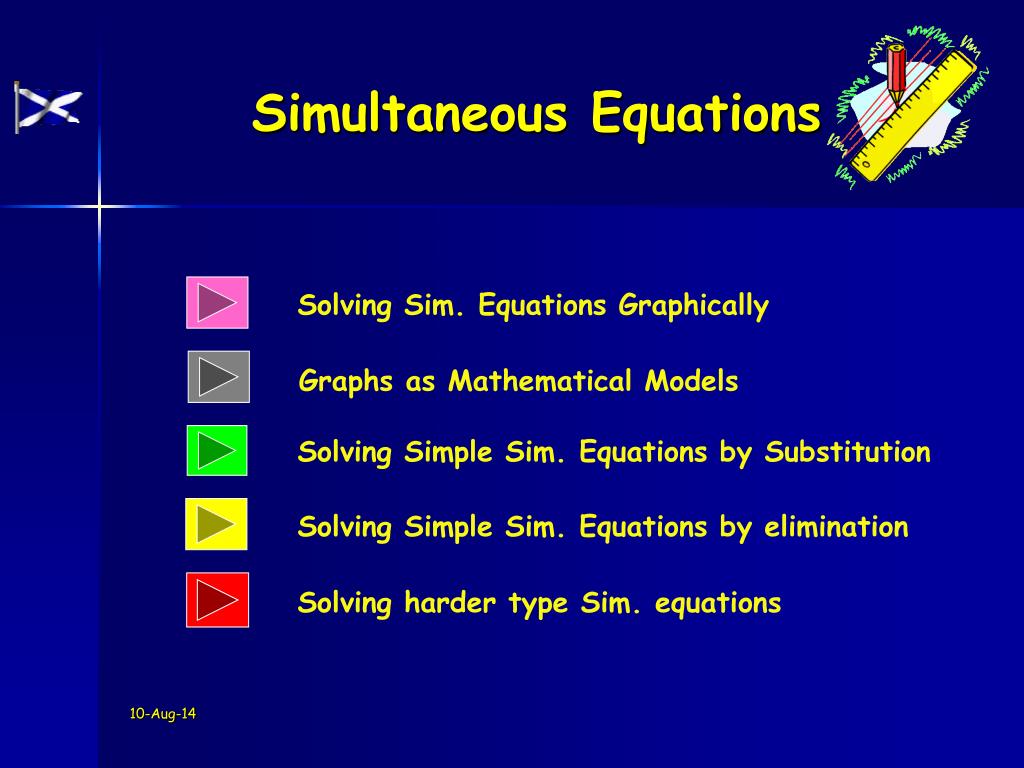

  1. Simultaneous Equations Solving Sim. Equations Graphically Graphs as Mathematical Models Solving Simple Sim. Equations by Substitution Solving Simple Sim. Equations by elimination Solving harder type Sim. equations

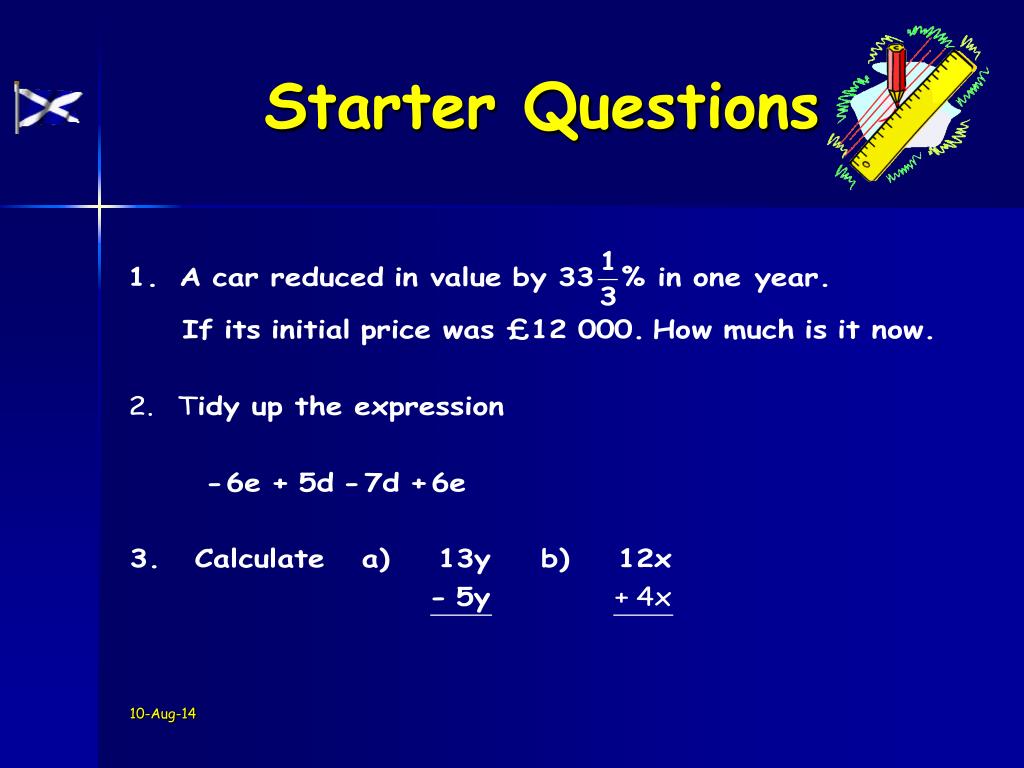

  2. Starter Questions

  3. Simultaneous Equations S5 Int2 Straight Lines Learning Intention Success Criteria • To solve simultaneous equations using graphical methods. • Interpret information from a line graph. • Plot line equations on a graph. • 3. Find the coordinates were 2 lines intersect ( meet)

  4. Q. Find the equation of each line. (1,3) Q. Write down the coordinates were they meet.

  5. Q. Find the equation of each line. Q. Write down the coordinates where they meet. (-0.5,-0.5)

  6. Q. Plot the lines. (1,1) Q. Write down the coordinates where they meet.

  7. Now try Exercise 2 Ch7 (page 84 )

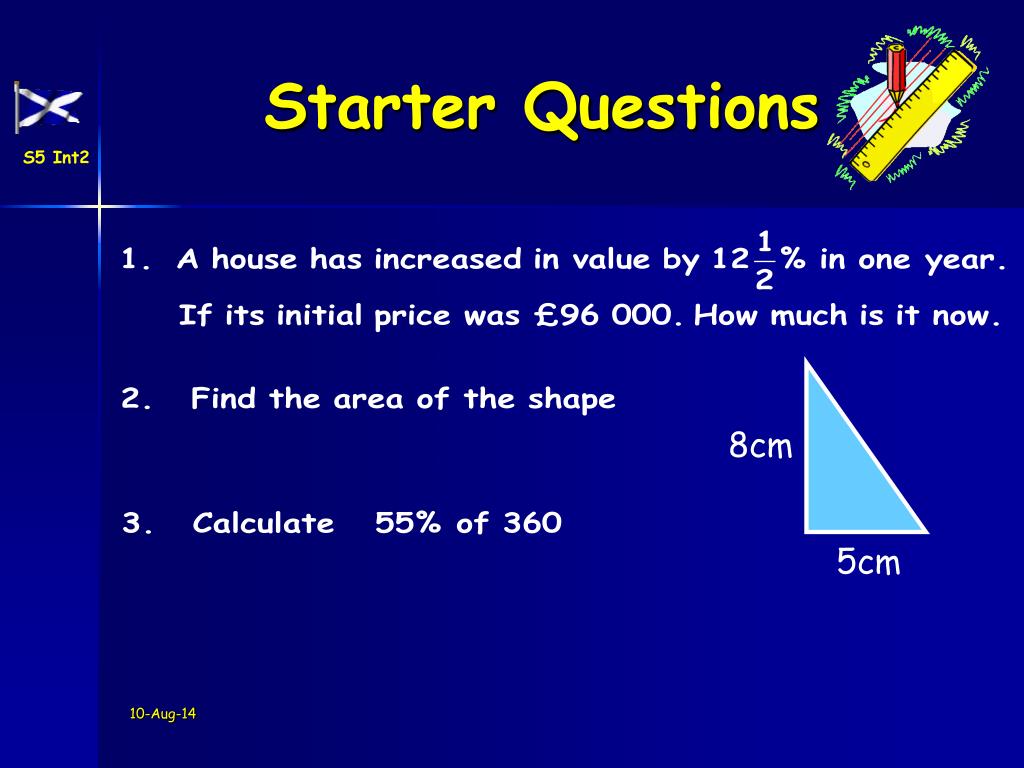

  8. S5 Int2 Starter Questions 8cm 5cm

  9. Simultaneous Equations Straight Lines Learning Intention Success Criteria • To use graphical methods to solve real-life mathematical models • Draw line graphs given a table of points. • 2. Find the coordinates were 2 lines intersect ( meet)

  10. We can use straight line theory to work out real-life problems especially useful when trying to work out hire charges. • Q. I need to hire a car for a number of days. • Below are the hire charges charges for two companies. • Complete tables and plot values on the same graph. 160 180 200 180 240 300

  11. Summarise data ! Who should I hire the car from? Arnold Total Cost £ Up to 2 days Swinton Over 2 days Arnold Swinton Days

  12. Key steps 1. Fill in tables 2. Plot points on the same graph ( pick scale carefully) 3. Identify intersection point ( where 2 lines meet) 4. Interpret graph information.

  13. Now try Exercise 3 Ch7 (page 85 )

  14. S5 Int2 Starter Questions

  15. Simultaneous Equations S5 Int2 Straight Lines Learning Intention Success Criteria • To solve pairs of equations by substitution. 1. Apply the process of substitution to solve simple simultaneous equations.

  16. Example 1 Solve the equations y = 2x y = x+1 by substitution

  17. y = 2x y = x+1 At the point of intersection y coordinates are equal: 2x = x+1 so we have 2x - x = 1 Rearranging we get : x = 1 Finally : Sub into one of the equations to get y value y = 2x = 2 x 1 = 2 y = x+1 = 1 + 1 = 2 OR The solution is x = 1 y = 2 or (1,2)

  18. Example 1 Solve the equations y = x + 1 x + y = 4 by substitution (1.5, 2.5)

  19. y = x +1 y =-x+ 4 The solution is x = 1.5 y = 2.5 (1.5,2.5) At the point of intersection y coordinates are equal: x+1 = -x+4 so we have 2x = 4 - 1 Rearranging we get : 2x = 3 x = 3 ÷ 2 = 1.5 Finally : Sub into one of the equations to get y value y = x +1 = 1.5 + 1 = 2.5 y = -x+4 = -1.5 + 4 = 2 .5 OR

  20. Now try Ex 4 Ch7 (page88 )

  21. Starter Questions

  22. Simultaneous Equations Straight Lines Learning Intention Success Criteria • To solve simultaneous equations of 2 variables. • Understand the term simultaneous equation. • Understand the process for solving simultaneous equation of two variables. • 3. Solve simple equations

  23. Example 1 Solve the equations x + 2y = 14 x + y = 9 by elimination

  24. Step 1: Label the equations x + 2y = 14 (1) x + y = 9 (2) Step 2: Decide what you want to eliminate Eliminate x by subtracting (2) from (1) x + 2y = 14 (1) x + y = 9 (2) y = 5

  25. Step 3: Sub into one of the equations to get other variable Substitute y = 5 in (2) x + y = 9 (2) x + 5 = 9 x = 9 - 5 The solution is x = 4 y = 5 x = 4 Step 4: Check answers by substituting into both equations ( 4 + 10 = 14) x + 2y = 14 x + y = 9 ( 4 + 5 = 9)

  26. Example 2 Solve the equations 2x - y = 11 x - y = 4 by elimination

  27. Step 1: Label the equations 2x - y = 11 (1) x - y = 4 (2) Step 2: Decide what you want to eliminate Eliminate y by subtracting (2) from (1) 2x - y = 11 (1) x - y = 4 (2) x = 7

  28. Step 3: Sub into one of the equations to get other variable Substitute x = 7 in (2) x - y = 4 (2) 7 - y = 4 y = 7 - 4 The solution is x =7 y =3 y = 3 Step 4: Check answers by substituting into both equations ( 14 - 3 = 11) 2x - y = 11 x - y = 4 ( 7 - 3 = 4)

  29. Example 3 Solve the equations 2x - y = 6 x + y = 9 by elimination

  30. Step 1: Label the equations 2x - y = 6 (1) x + y = 9 (2) Step 2: Decide what you want to eliminate Eliminate y by adding (1) and (2) 2x - y = 6 (1) x + y = 9 (2) x = 15 ÷ 3 = 5 3x = 15

  31. Step 3: Sub into one of the equations to get other variable Substitute x = 5 in (2) x + y = 9 (2) 5 + y = 9 y = 9 - 5 The solution is x = 5 y = 4 y = 4 Step 4: Check answers by substituting into both equations ( 10 - 4 = 6) 2x - y = 6 x + y = 9 ( 5 + 4 = 9)

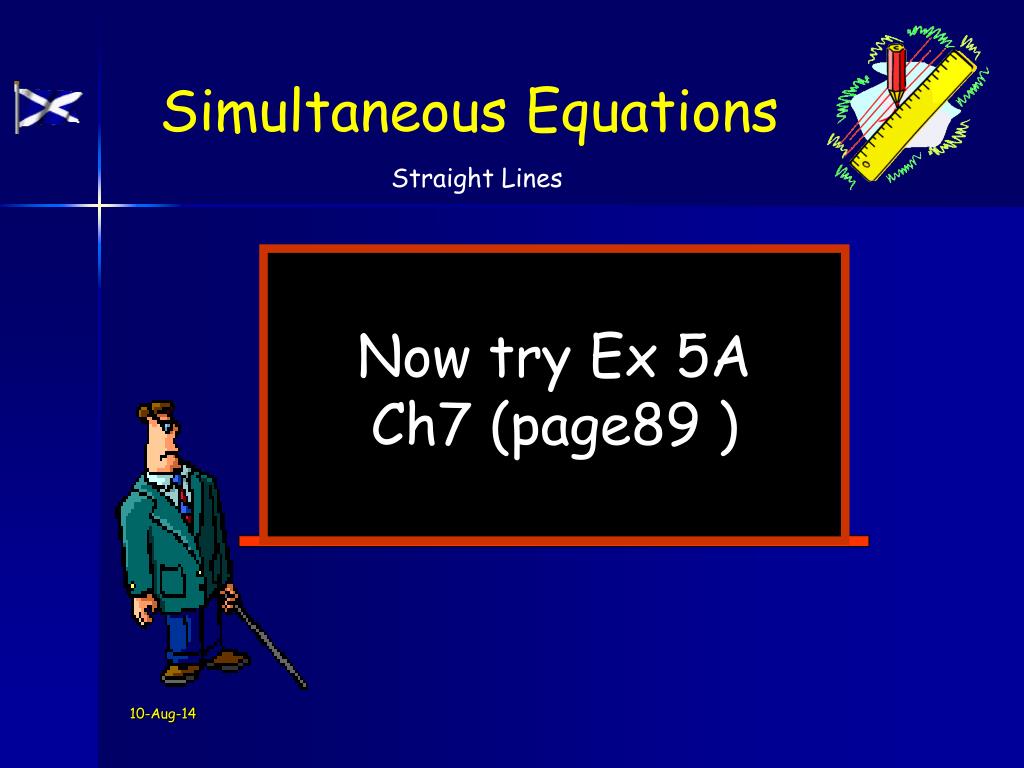

  32. Now try Ex 5A Ch7 (page89 )

  33. Starter Questions

  34. Simultaneous Equations Straight Lines Learning Intention Success Criteria • To solve harder simultaneous equations of 2 variables. 1. Apply the process for solving simultaneous equations to harder examples.

  35. Example 1 Solve the equations 2x + y = 9 x - 3y = 1 by elimination

  36. Step 1: Label the equations 2x + y = 9 (1) x -3y = 1 (2) Step 2: Decide what you want to eliminate Adding Eliminate y by : (1) x3 2x + y = 9 x -3y = 1 6x + 3y = 27 (3) x - 3y = 1(4) (2) x1 7x = 28 x = 28 ÷ 7 = 4

  37. Step 3: Sub into one of the equations to get other variable Substitute x = 4 in equation (1) 2 x 4 + y = 9 y = 9 – 8 y = 1 The solution is x = 4 y = 1 Step 4: Check answers by substituting into both equations ( 8 + 1 = 9) 2x + y = 9 x -3y = 1 ( 4 - 3 = 1)

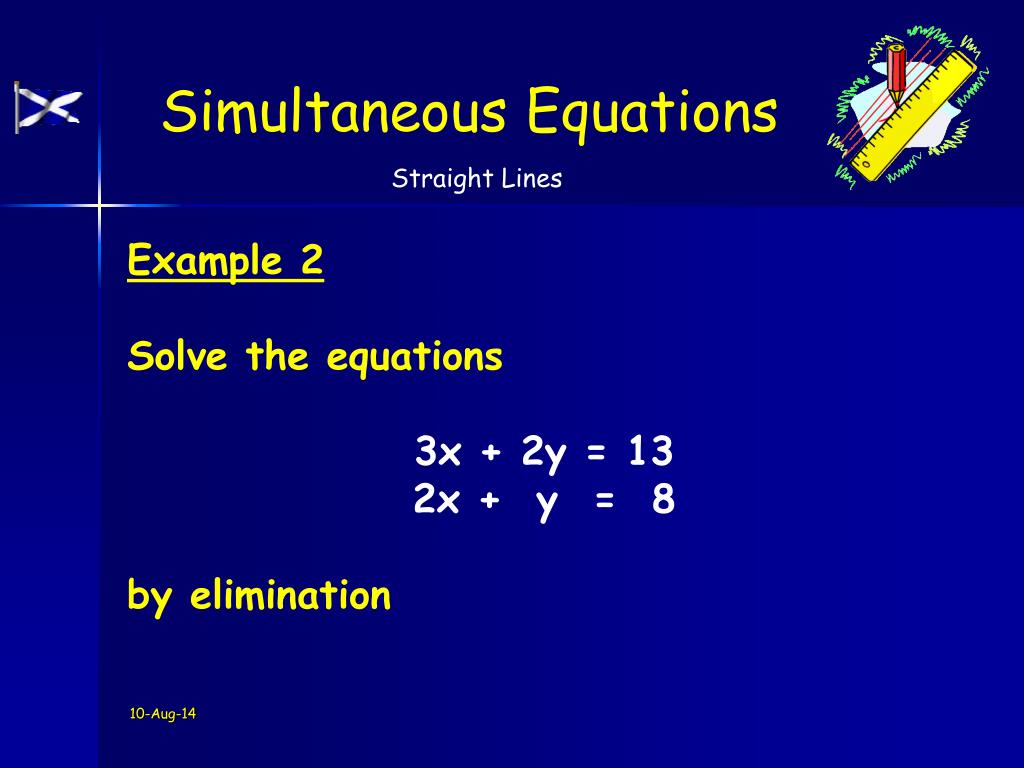

  38. Example 2 Solve the equations 3x + 2y = 13 2x + y = 8 by elimination

  39. Step 1: Label the equations 3x + 2y = 13 (1) 2x + y = 8 (2) Step 2: Decide what you want to eliminate Subtract Eliminate y by : (1) x1 3x + 2y = 13 2x + y = 8 3x + 2y = 13 (3) 4x + 2y = 16(4) (2) x2 -x = -3 x = 3

  40. Step 3: Sub into one of the equations to get other variable Substitute x = 3 in equation (2) 2 x 3 + y = 8 y = 8 – 6 y = 2 The solution is x = 3 y = 2 Step 4: Check answers by substituting into both equations ( 9 + 4 = 13) 3x + 2y = 13 2x + y = 8 ( 6 + 2 = 8)

  41. Now try Ex 5B Ch7 (page90 )
