Presentation Transcript


  1. Logic Experiment 4 老師:伍紹勳 助教:江長庭 鄭仲傑

  2. BCD Adder Equipment: IC:7408 x 1、7432 x 1、7483 x 2、7447(DCBA) x 1、LED x 1、7-Segment LED x 1

  3. Review BCD number addition >9 => add 6 Tens digit Units digit Two units digit decimal number ex: 7+8=15 BCD : 0 1 1 1 +1 0 0 0 1 1 1 1 +0 1 1 0 0 0 0 1 0 1 0 1 Determine whether to add 6 or not !!!!

  4. Binary Sum BCD Sum K T8 T4 T2 T1C S8 S4 S2 S1 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 1 0 0 0 0 1 1 2 0 0 0 1 0 0 0 0 1 0 2 3 0 0 0 1 1 0 0 0 1 1 3 4 0 0 1 0 0 0 0 1 0 0 4 5 0 0 1 0 1 0 0 1 0 1 5 6 0 0 1 1 0 0 0 1 1 0 6 7 0 0 1 1 1 0 0 1 1 1 7 8 0 1 0 0 0 0 1 0 0 0 8 9 0 1 0 0 1 0 1 0 0 1 9 A 0 1 0 1 0 1 0 0 0 0 10 B 0 1 0 1 1 1 0 0 0 1 11 C 0 1 1 0 0 1 0 0 1 0 12 D 0 1 1 0 1 1 0 0 1 1 13 E 0 1 1 1 0 1 0 1 0 0 14 F 0 1 1 1 1 1 0 1 0 1 15 10 1 0 0 0 0 1 0 1 1 0 16 11 1 0 0 0 1 1 0 1 1 1 17 12 1 0 0 1 0 1 1 0 0 0 18 13 1 0 0 1 1 1 1 0 0 1 19 T2T1 00 01 11 10 00 01 11 1 1 1 1 10 1 1 T8T4 When to add 6? 1. T8 T4 T2 T1 > 9 T8T4 + T8T2 2. Carry is 1 F = T8T4 + T8T2 + K

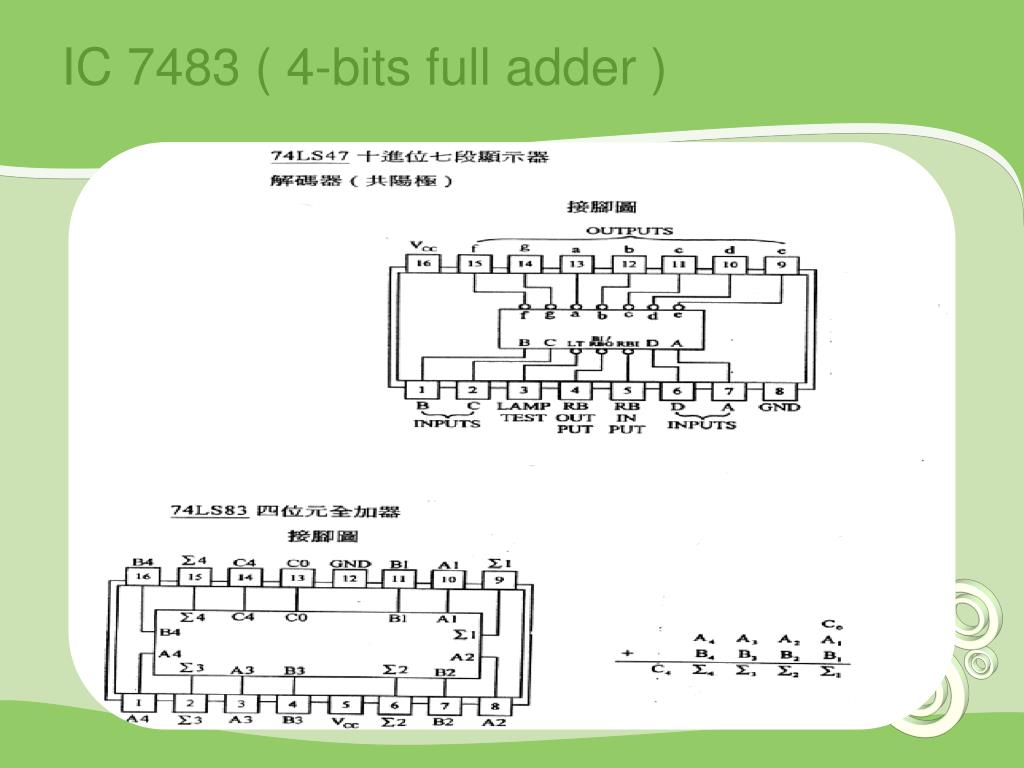

  5. IC 7483 ( 4-bits full adder )

  6. a b f g e c dp d 7-Segment LED Vcc Vcc

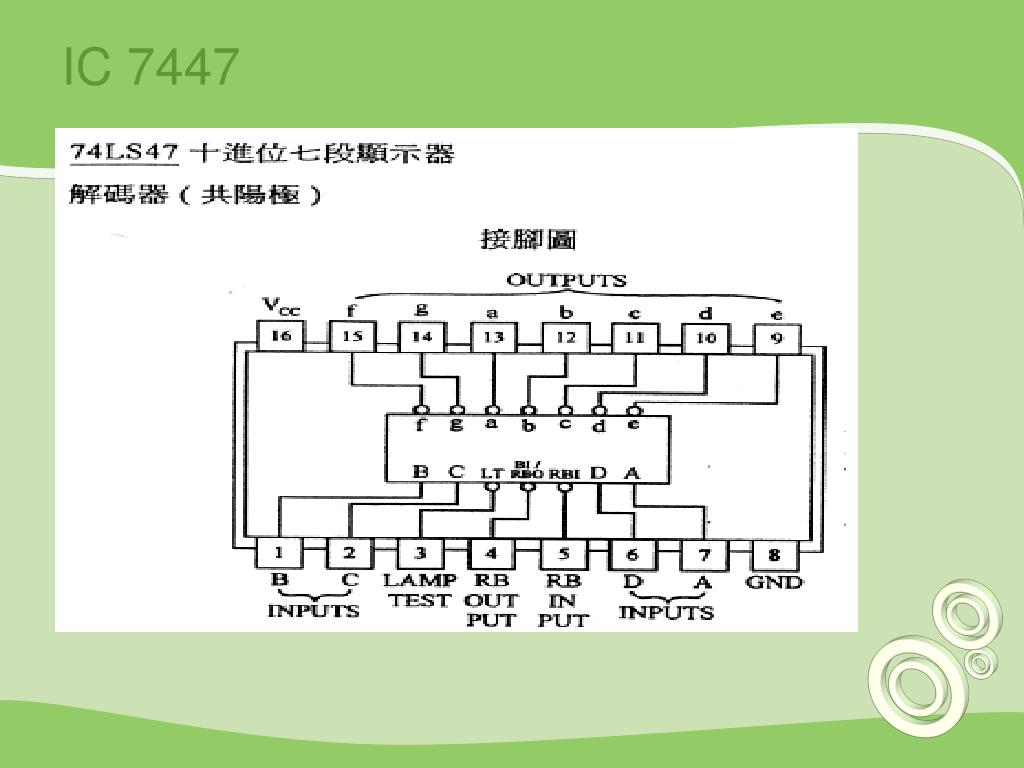

  7. IC 7447

  8. 務必加上電阻 A,K connect to +5V dp not connect

  9. 22 ohm

  10. Requirement Input不能大於9 Two units digit decimal number addition in BCD Input : two BCD number Output : units digit – 7-Segment LED tens digit – LED

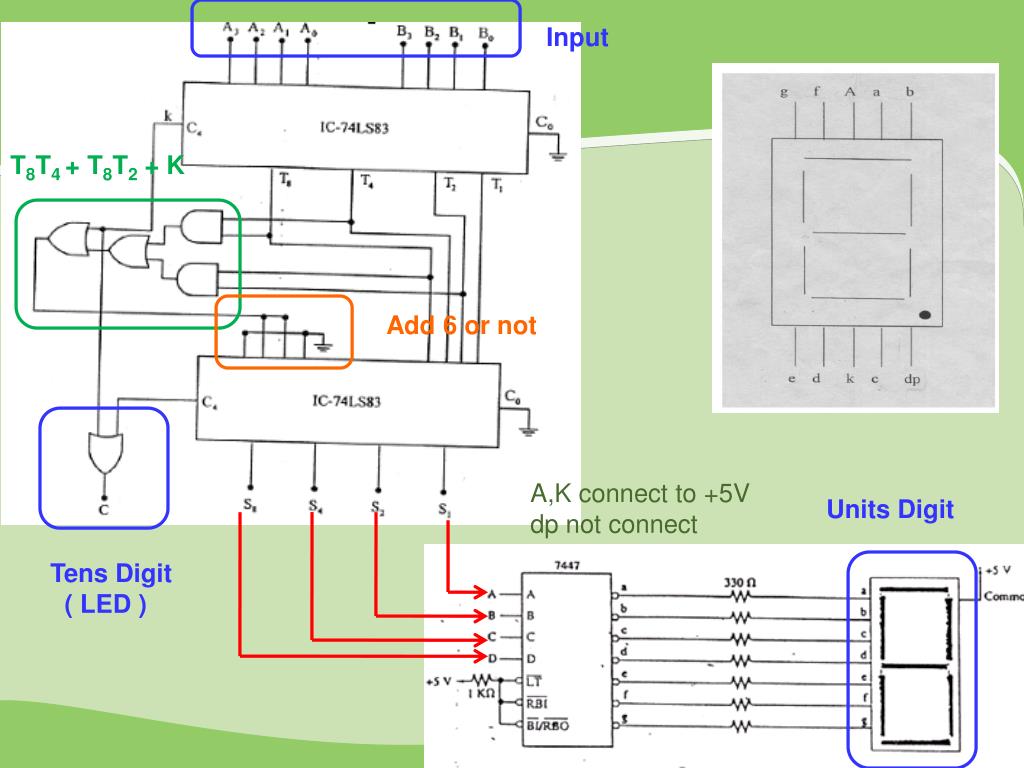

  11. Input T8T4 + T8T2 + K Add 6 or not A,K connect to +5V dp not connect Units Digit Tens Digit ( LED )
