Logic Experiment 9

Logic Experiment 9. 老師：伍紹勳 助教：江長庭 鄭仲傑. Equipment. IC ： 221Ω 電阻 x 4 、 7476 x 2 、 7400(NAND) x 1 、 LED x 4 、微動開關* 1. Review. Edge Trigger Positive-Edge-Trigger Negative-Edge-Trigger. Trigger Input Output. Negative edge. Positive edge. SR Latch - Debouncing. 微動開關. R. GND.

salali
Télécharger la présentation

Logic Experiment 9

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Logic Experiment 9 老師：伍紹勳 助教：江長庭 鄭仲傑

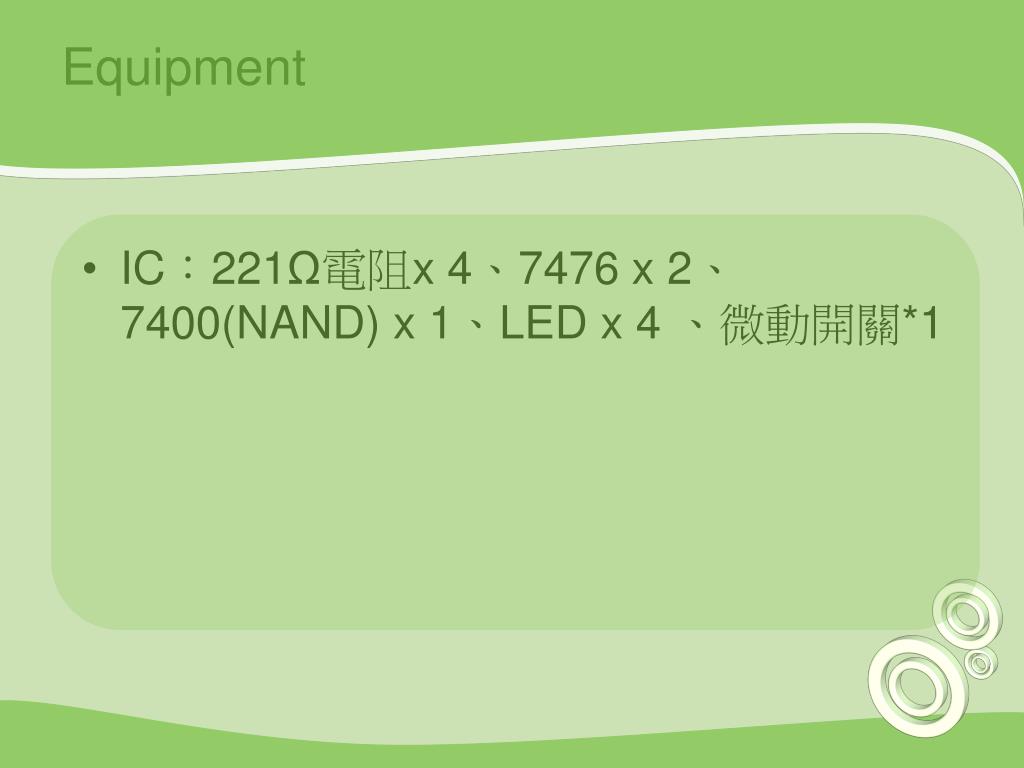

  2. Equipment IC：221Ω電阻x 4、7476 x 2、7400(NAND) x 1、LED x 4 、微動開關*1

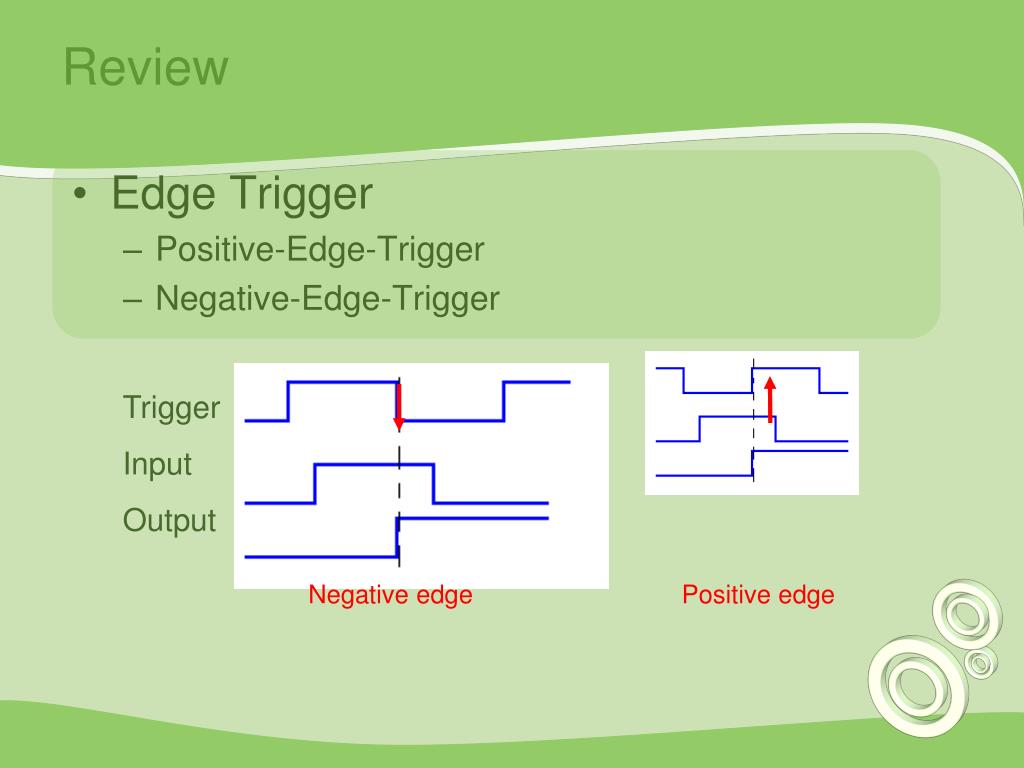

  3. Review • Edge Trigger • Positive-Edge-Trigger • Negative-Edge-Trigger Trigger Input Output Negative edge Positive edge

  4. SR Latch - Debouncing

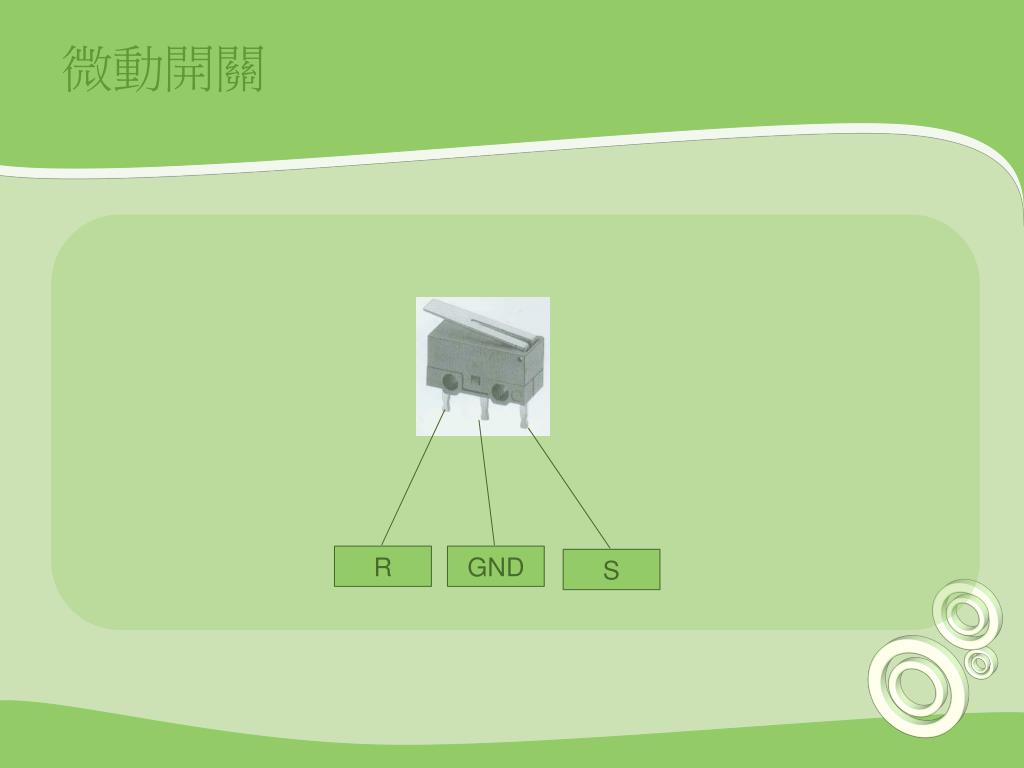

  5. 微動開關 R GND S

  6. JK flip-flop (JK FF)

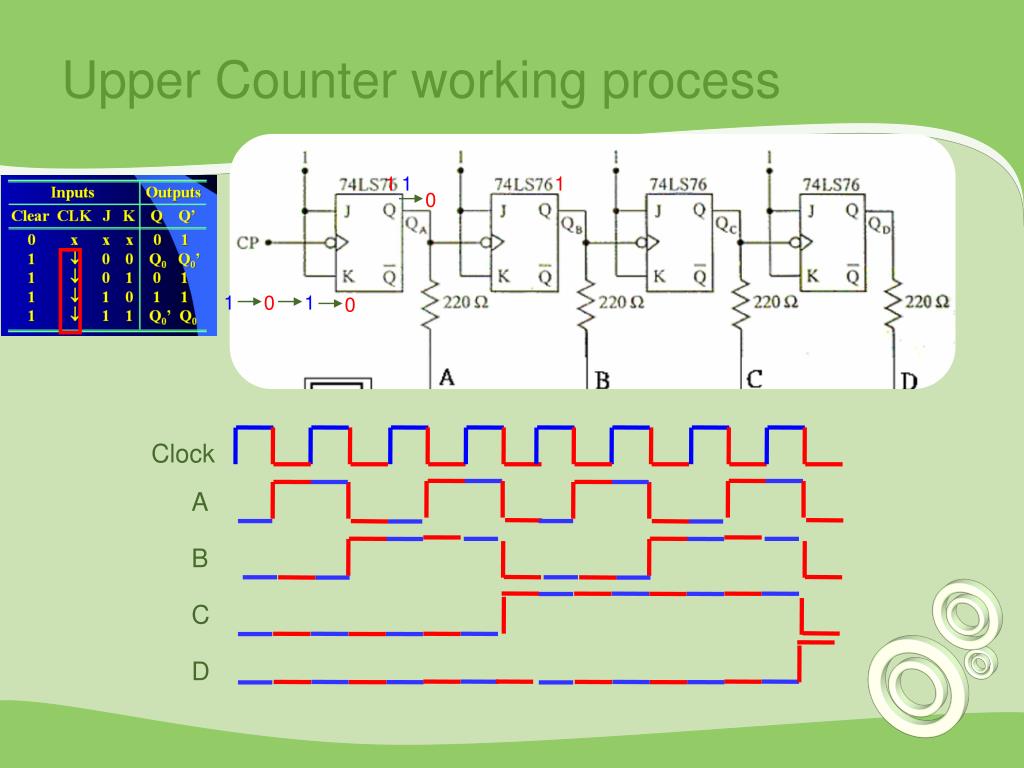

  7. 0 0 0 1 Clock A B C D Upper Counter working process 1 1 1 1

  8. 7476 (JK FF) Preset: Setting FF asynchronously Clear: Clear FF asynchronously
