  1. Experiment 9 Digital Alarm System

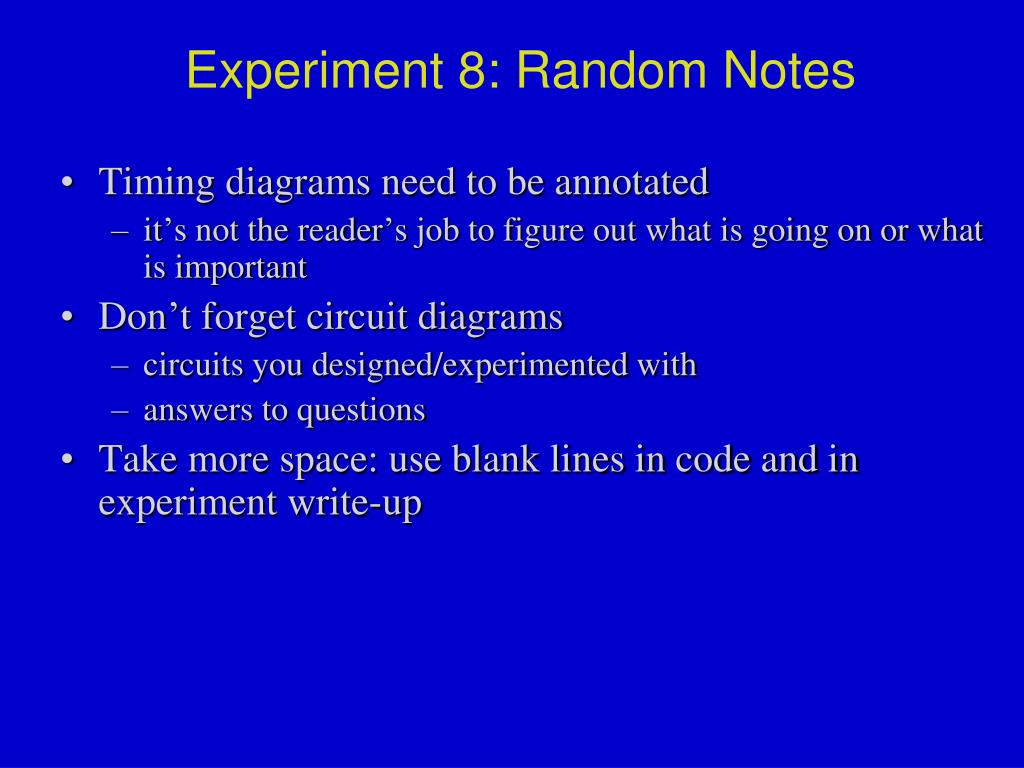

  2. Experiment 8: Random Notes • Timing diagrams need to be annotated • it’s not the reader’s job to figure out what is going on or what is important • Don’t forget circuit diagrams • circuits you designed/experimented with • answers to questions • Take more space: use blank lines in code and in experiment write-up

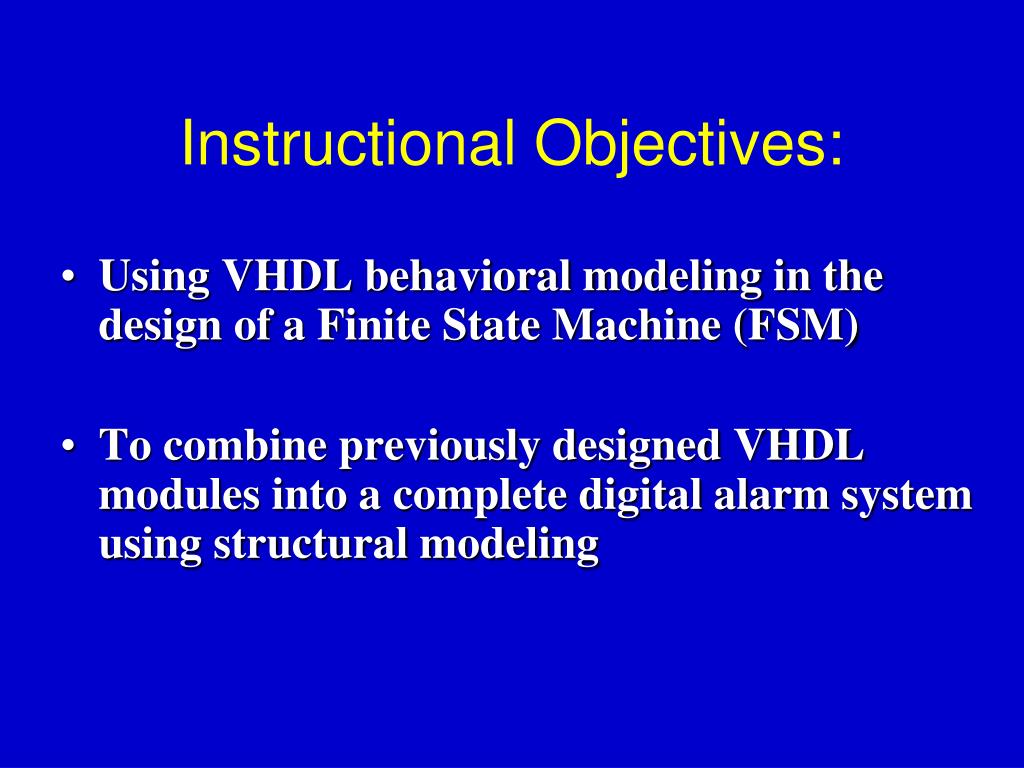

  3. Instructional Objectives: • Using VHDL behavioral modeling in the design of a Finite State Machine (FSM) • To combine previously designed VHDL modules into a complete digital alarm system using structural modeling

  4. Finite State Machine • A Finite State Machine (FSM) is a digital circuit whose state changes based on both the current state (of the FSM) and the current inputs • The outputs of a FSM are functions of the current state (Moore Model) --or-- functions current state and current inputs (Mealy Model) • Synchronous FSMs change their state with respect to a clock input and maintain their state (store their state) in flip-flops

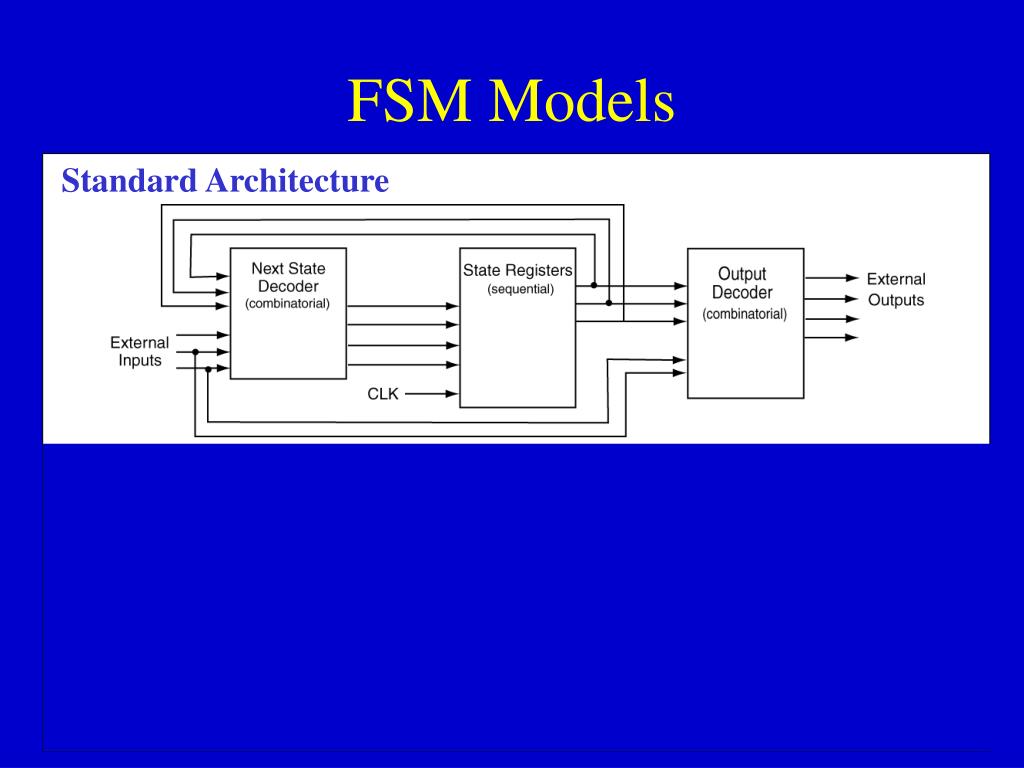

  5. FSM Models Standard Architecture VHDL Behavioral Model

  6. VHDL Behavioral Models for FSM VHDL Dependent PS/NS Architecture: Y’s External Control (CLR, En, PRE) • State Memory • Clock Edge • Synchronization • Ext. Controls • (clr, en, preset) • Next State Sequencing • Output Decoder Z’s X’s Ref: Low-Carb VHDL Tutorial CPE 169 Experiment 9 • Dependent PS / NS Coding Style: (2 Processes) • Synchronous Process • Clocking / Control (clears, enables, presets) • Combinatorial Process • Next State Sequencing • Output Decoding Logic

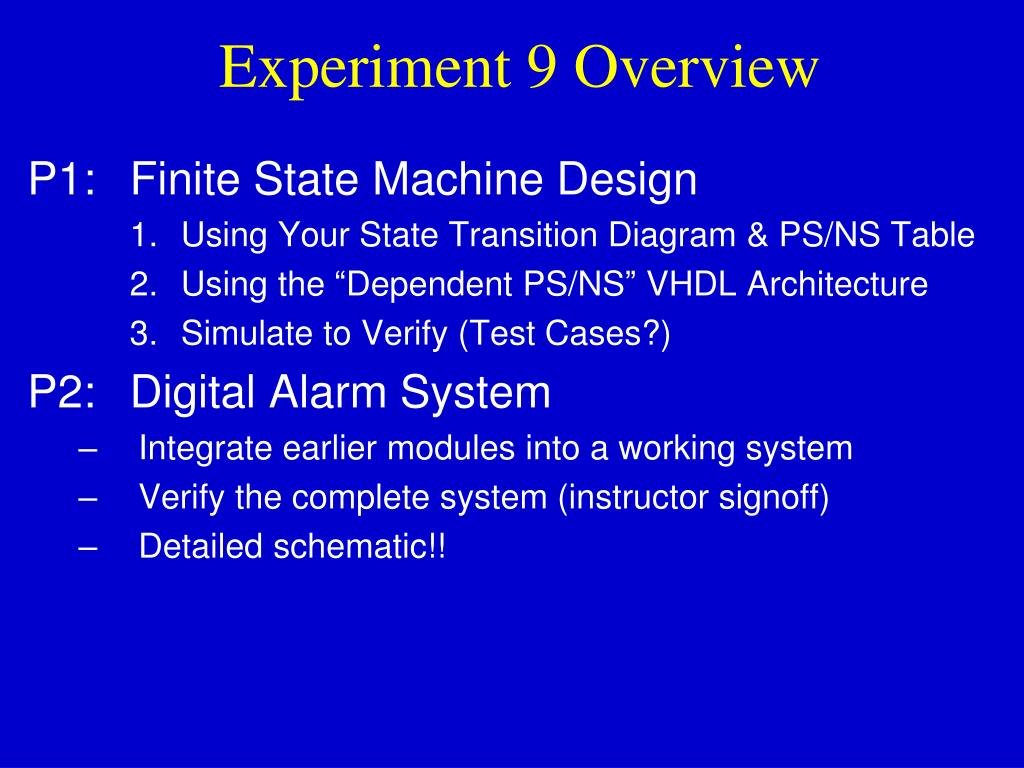

  7. Experiment 9 Overview P1: Finite State Machine Design • Using Your State Transition Diagram & PS/NS Table • Using the “Dependent PS/NS” VHDL Architecture • Simulate to Verify (Test Cases?) P2: Digital Alarm System • Integrate earlier modules into a working system • Verify the complete system (instructor signoff) • Detailed schematic!!
