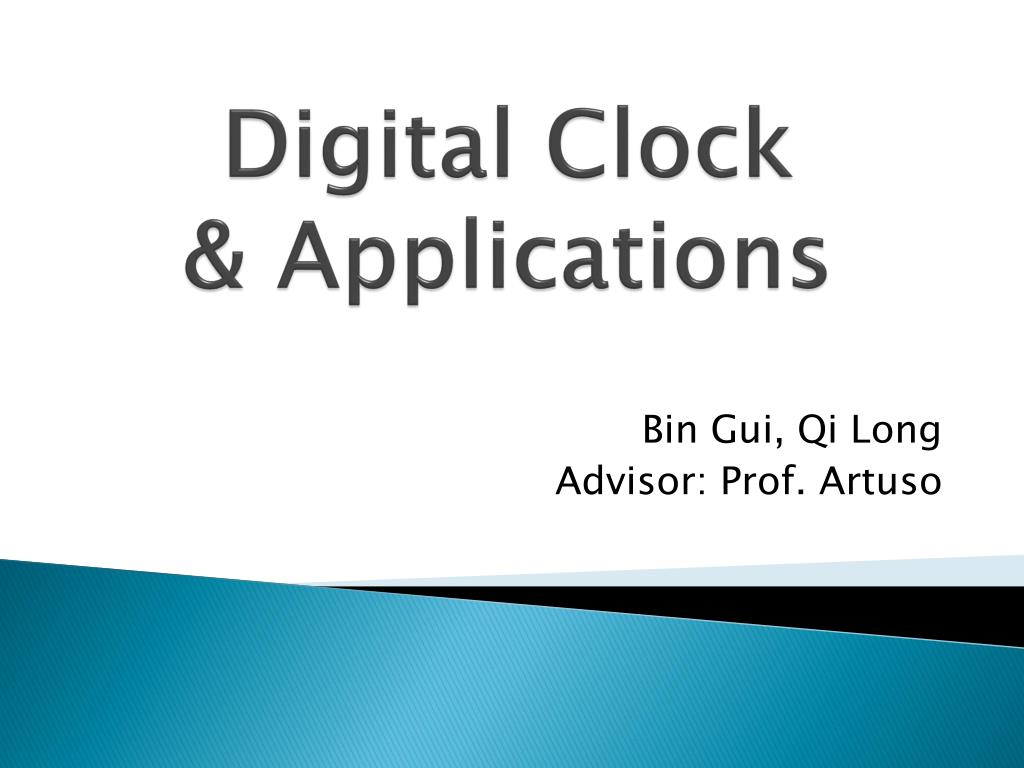

  1. Digital Clock& Applications Bin Gui, Qi Long Advisor: Prof. Artuso

  2. Outline • Goal • Structure • Block diagram • Seven-segment display • Applications • Date & Time Alarm • Data Error Alarm • Summary Bin & Qi

  3. Goal • A digital clock is a type of clock that displays the time digitally and is widely used in daily life. • In the experiment, we originally planed to do some hardware work to design and produce a digital clock, but due to the limit of the equipments, also the suggestions from Prof. Artuso, we decided to simulate the digital clock in the LabView. • The Goal of our project is to design a digitalclock on labview that can be used in two ways: • Date & Time Alarm • Data Error Alarm Bin & Qi

  4. Time and Date Time & Date Alarm Data Error Alarm Front Panel Bin & Qi

  5. Time & Date Alarm Time and Date Data Error Alarm Block Diagram Bin & Qi

  6. Seven-segment Display • A seven-segment display is a form of electronic display device for displaying decimal numerals that is an alternative to the more complex dot-matrix displays. • Seven-segment displays are widely used in digital clocks, electronic meters, and other electronic devices for displaying numerical information. Bin & Qi

  7. Structure and truth table Seven-segment displays are made with seven LEDs. They are aligned in a pattern that represents the number '8' (see figure 1). Seven-segment truth table Cluster Seven Booleans Figure 1 Bin & Qi

  8. Block Diagram Beep Get Date/Time String Get Date/Time In Seconds Time and Date Index Array Quotient & Remainder Bin & Qi

  9. Decoder Process Quotient : 2 Remainder : 5 10:09:23 12/14 23 Checking overflow Bin & Qi

  10. Setting time and date Getting time and date Time & Date Alarm • An alarm clock is a clock that is designed to make a loud sound at a specific time. • The primary use of these clocks is to awaken people from their sleep in order to start their days in the mornings, but can also be used for short naps; they are sometimes used for other reminders as well. • To stop the sound, a button or handle on the clock needs to be pressed, and some stop automatically after a few minutes if left unattended. Control panel Block diagram Bin & Qi

  11. Checking Error Sound Player Data Error Alarm This simulates the experiment, such as when the temperature of the chip or detector is higher than the critical point, the alarm will ring and the time will be recorded. Bin & Qi

  12. Summary • We could simulate digital clock in LabView and have some applications of it. • It is a great experience of cooperation. • Thanks very much for the help from Marina and Ray, etc. Thank you! Bin & Qi
