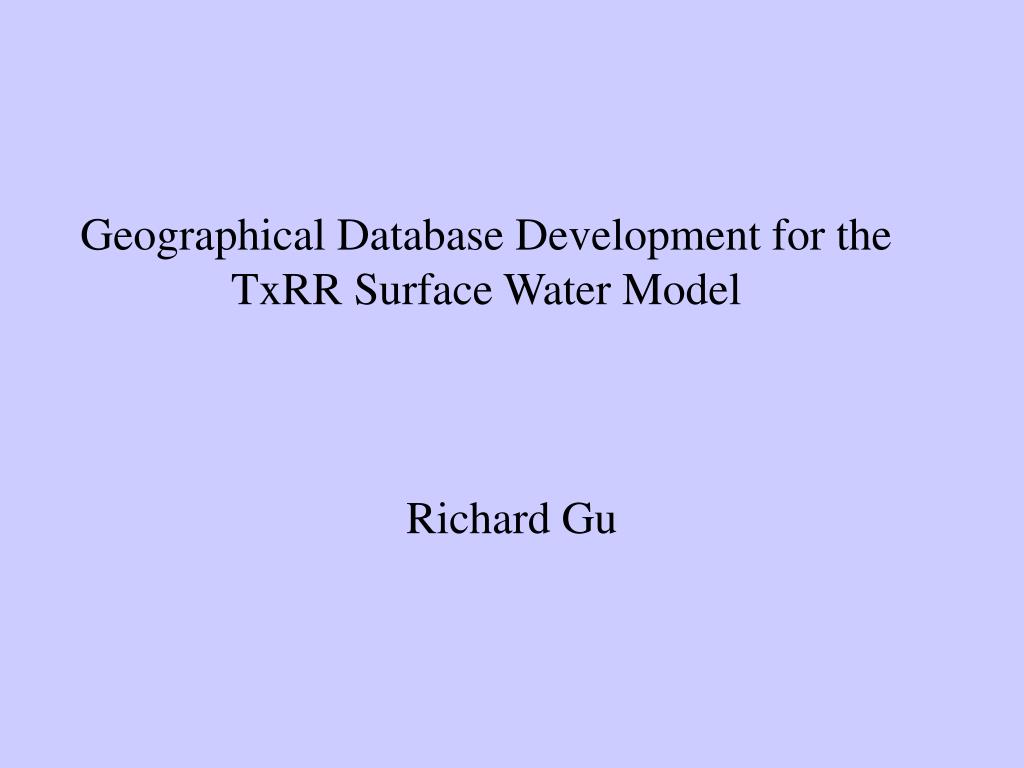

  1. Geographical Database Development for the TxRR Surface Water Model Richard Gu

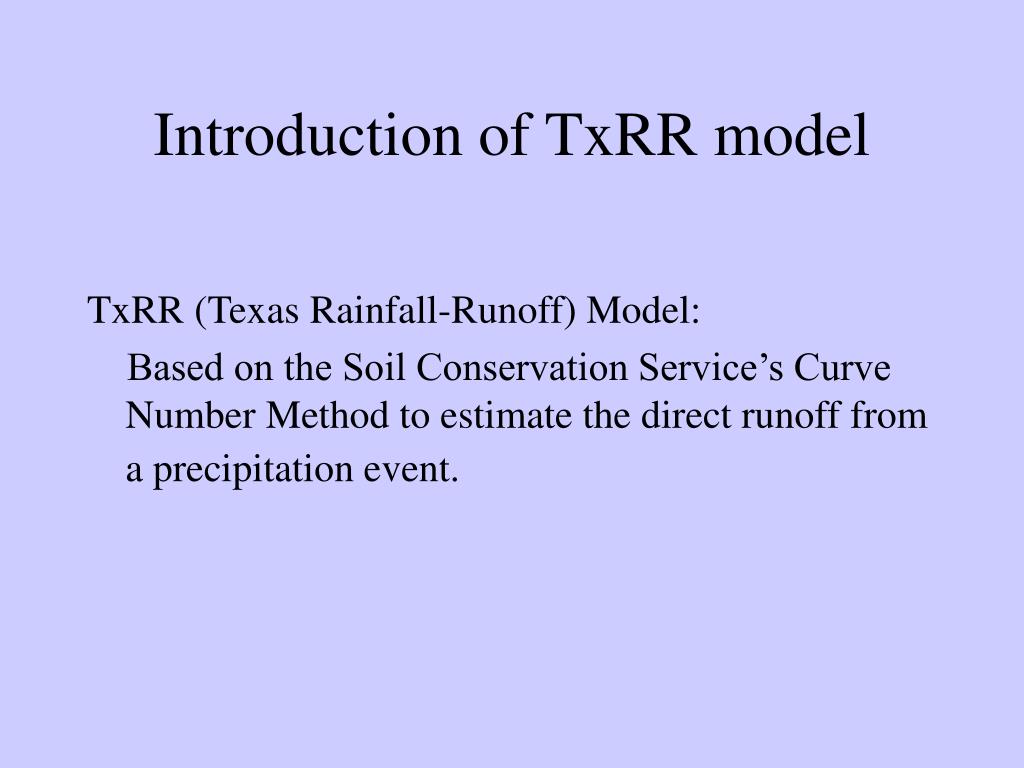

  2. Introduction of TxRR model TxRR (Texas Rainfall-Runoff) Model: Based on the Soil Conservation Service’s Curve Number Method to estimate the direct runoff from a precipitation event.

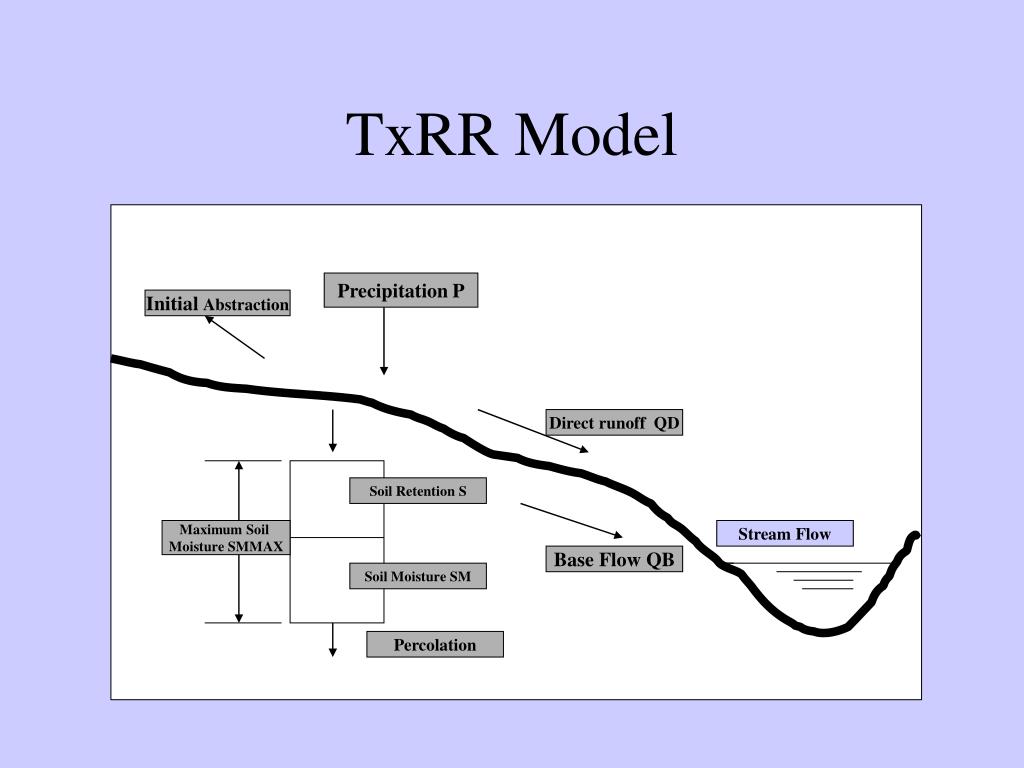

  3. TxRR Model Precipitation P InitialAbstraction Direct runoff QD Soil Retention S Maximum Soil Moisture SMMAX Stream Flow Base Flow QB Soil Moisture SM Percolation

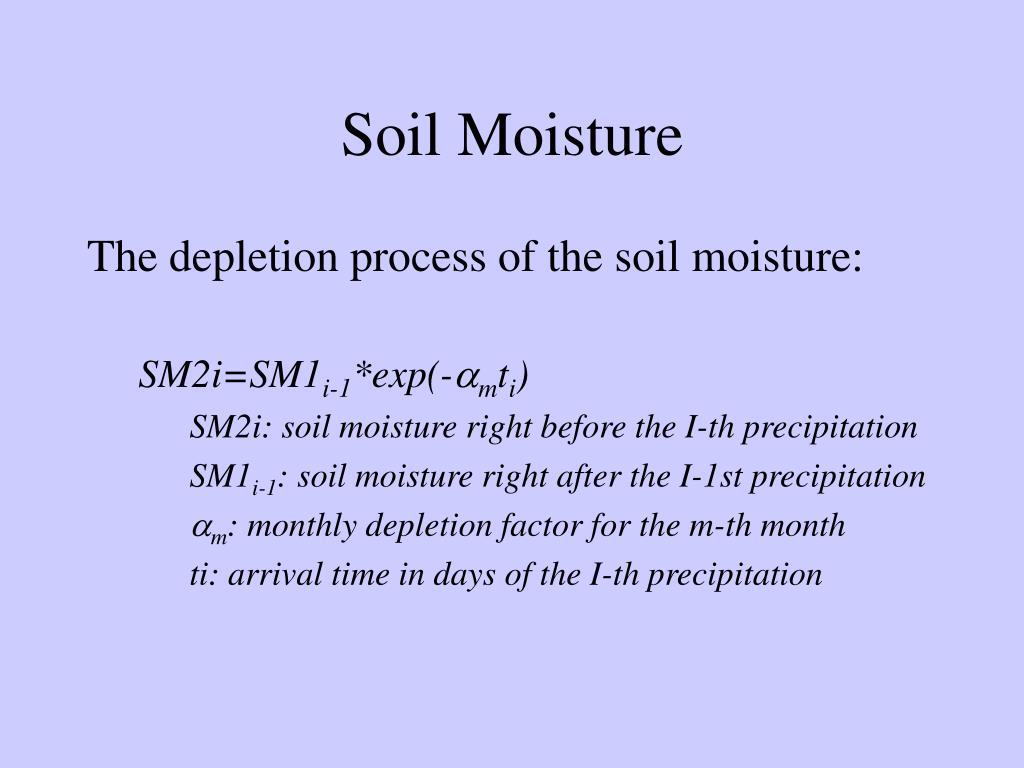

  4. Soil Moisture The depletion process of the soil moisture: SM2i=SM1i-1*exp(-amti) SM2i: soil moisture right before the I-th precipitation SM1i-1: soil moisture right after the I-1st precipitation am: monthly depletion factor for the m-th month ti: arrival time in days of the I-th precipitation

  5. Soil Retention Si=SMMAX-SM2i Si: soil retention SMMAX: maximum soil moisture

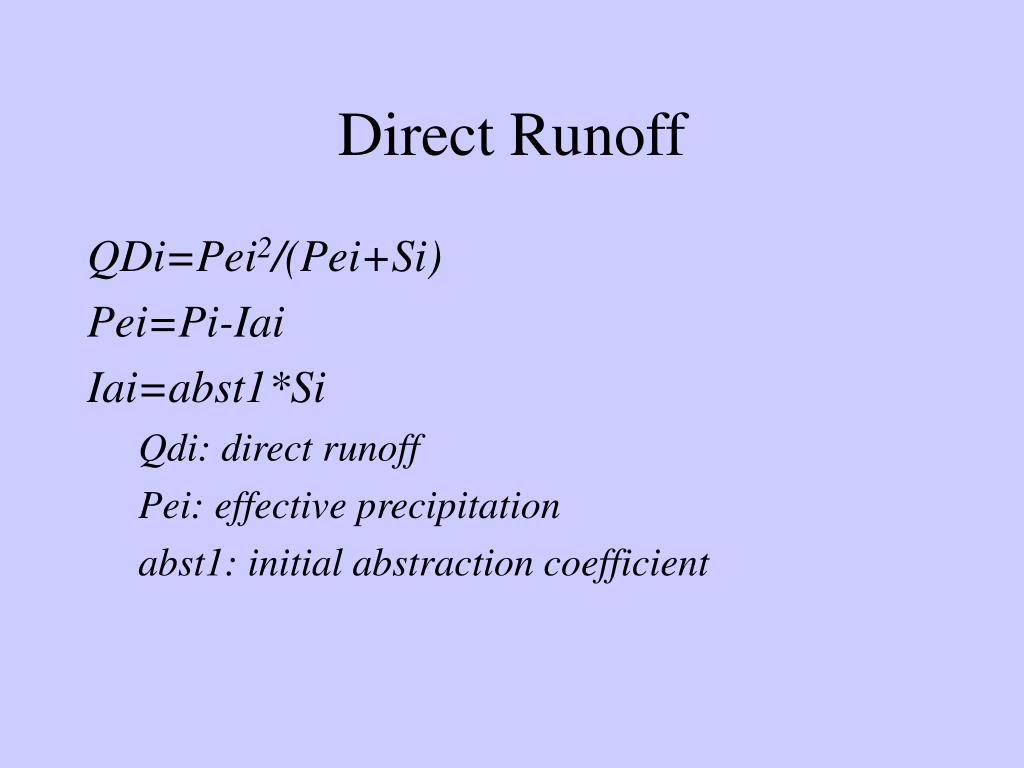

  6. Direct Runoff QDi=Pei2/(Pei+Si) Pei=Pi-Iai Iai=abst1*Si Qdi: direct runoff Pei: effective precipitation abst1: initial abstraction coefficient

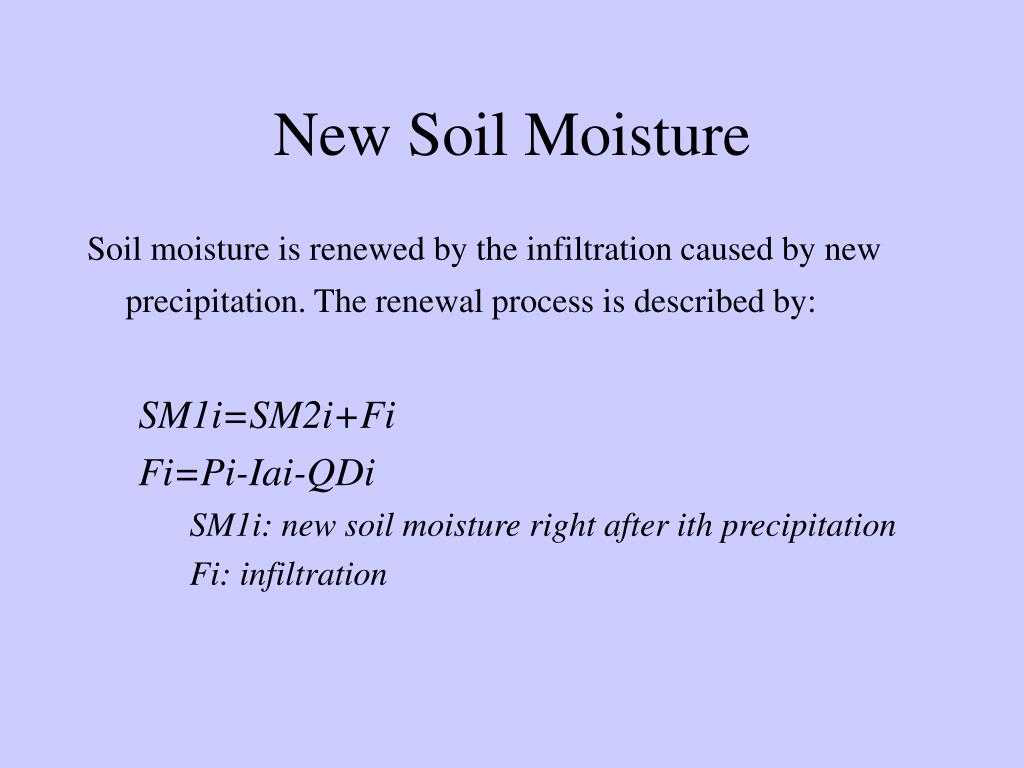

  7. New Soil Moisture Soil moisture is renewed by the infiltration caused by new precipitation. The renewal process is described by: SM1i=SM2i+Fi Fi=Pi-Iai-QDi SM1i: new soil moisture right after ith precipitation Fi: infiltration

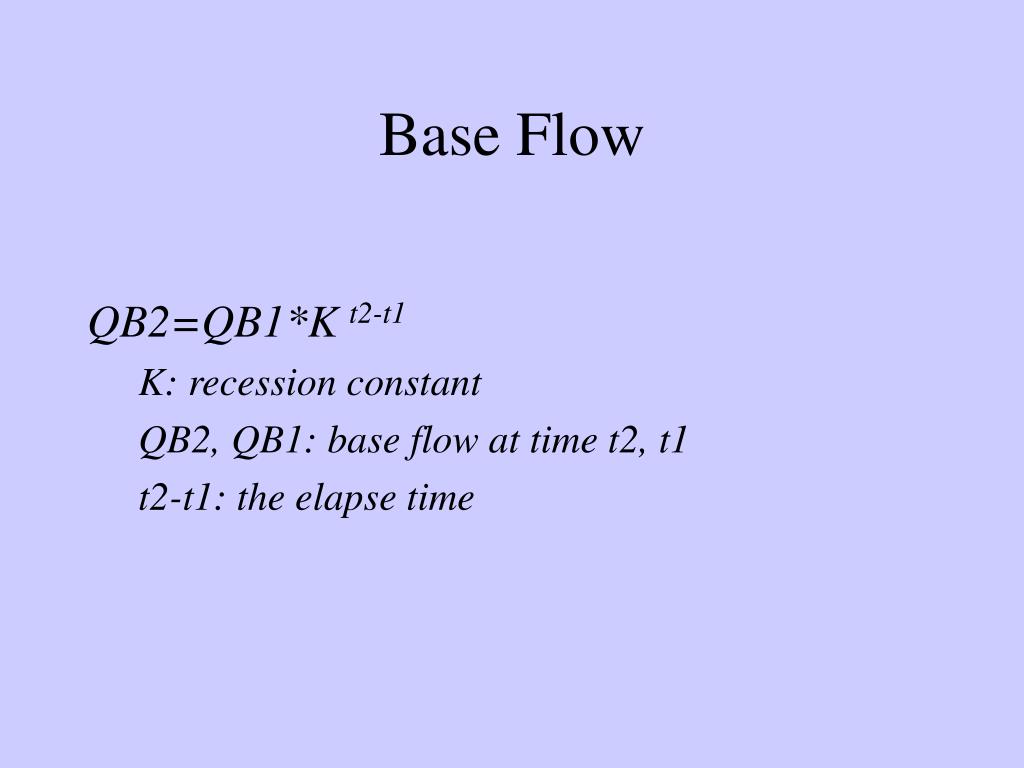

  8. Base Flow QB2=QB1*K t2-t1 K: recession constant QB2, QB1: base flow at time t2, t1 t2-t1: the elapse time

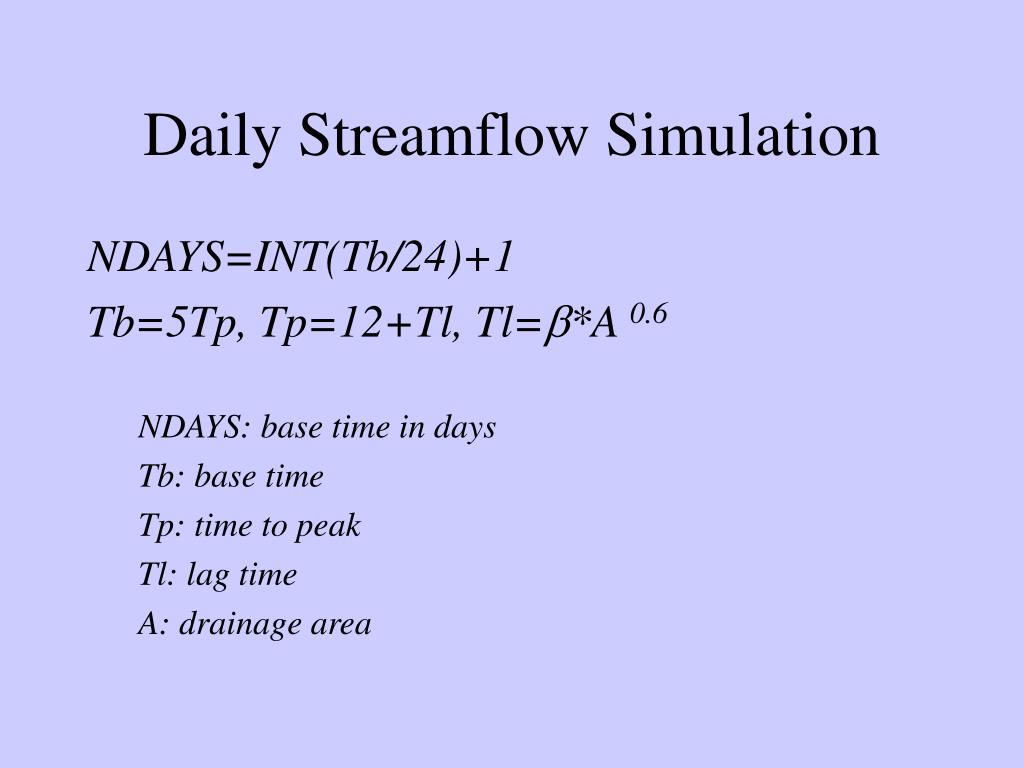

  9. Daily Streamflow Simulation NDAYS=INT(Tb/24)+1 Tb=5Tp, Tp=12+Tl, Tl=b*A 0.6 NDAYS: base time in days Tb: base time Tp: time to peak Tl: lag time A: drainage area

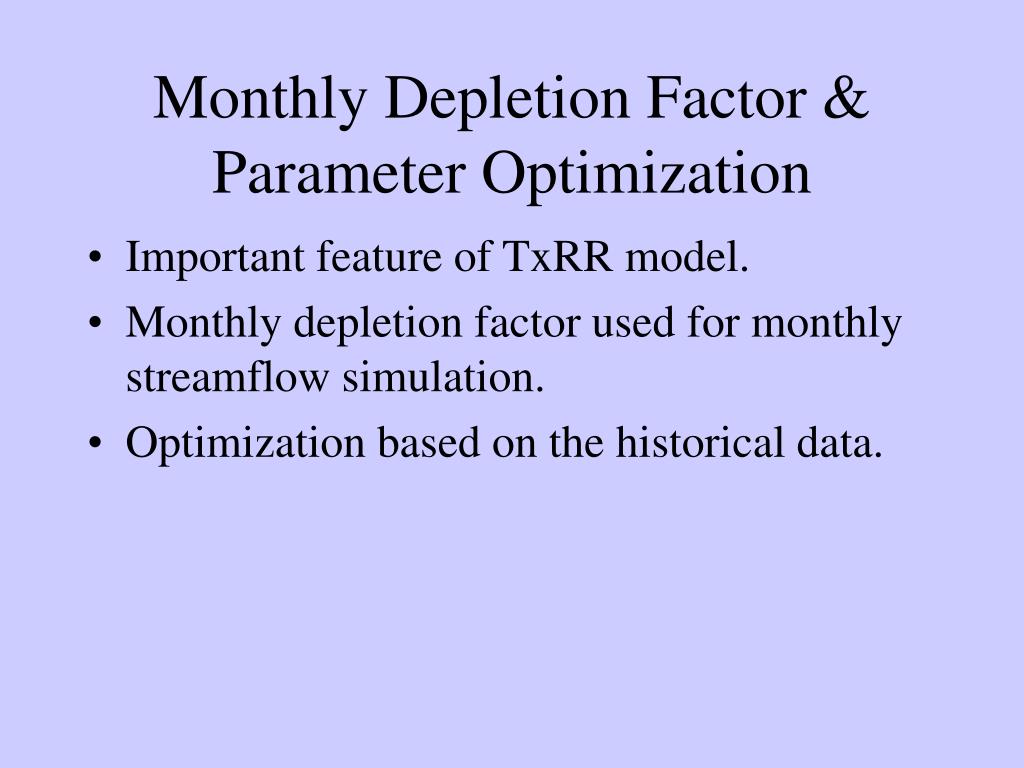

  10. Monthly Depletion Factor & Parameter Optimization • Important feature of TxRR model. • Monthly depletion factor used for monthly streamflow simulation. • Optimization based on the historical data.

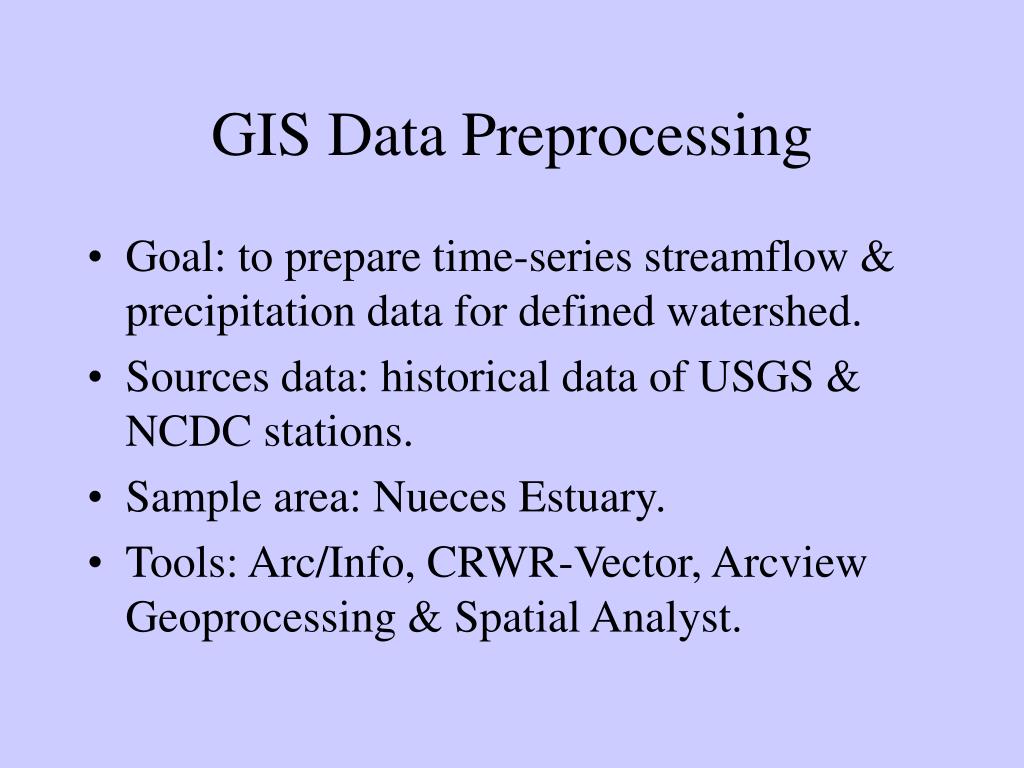

  11. GIS Data Preprocessing • Goal: to prepare time-series streamflow & precipitation data for defined watershed. • Sources data: historical data of USGS & NCDC stations. • Sample area: Nueces Estuary. • Tools: Arc/Info, CRWR-Vector, Arcview Geoprocessing & Spatial Analyst.

  12. DSS database

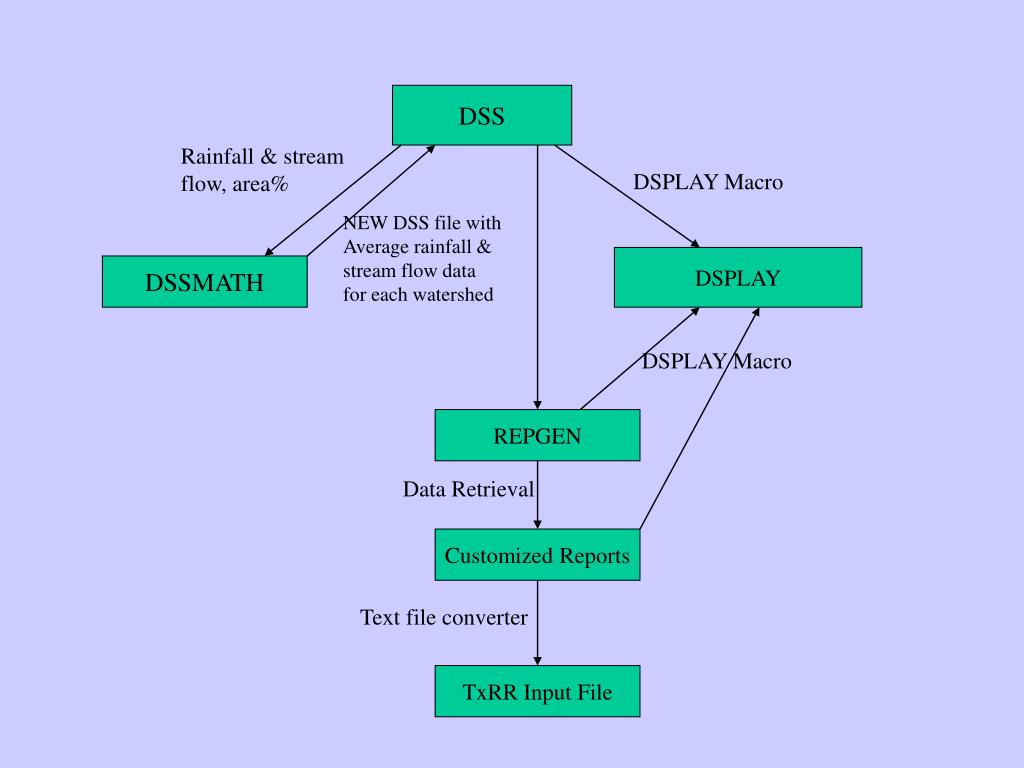

  13. DSS Rainfall & stream flow, area% DSPLAY Macro NEW DSS file with Average rainfall & stream flow data for each watershed DSPLAY DSSMATH DSPLAY Macro REPGEN Data Retrieval Customized Reports Text file converter TxRR Input File

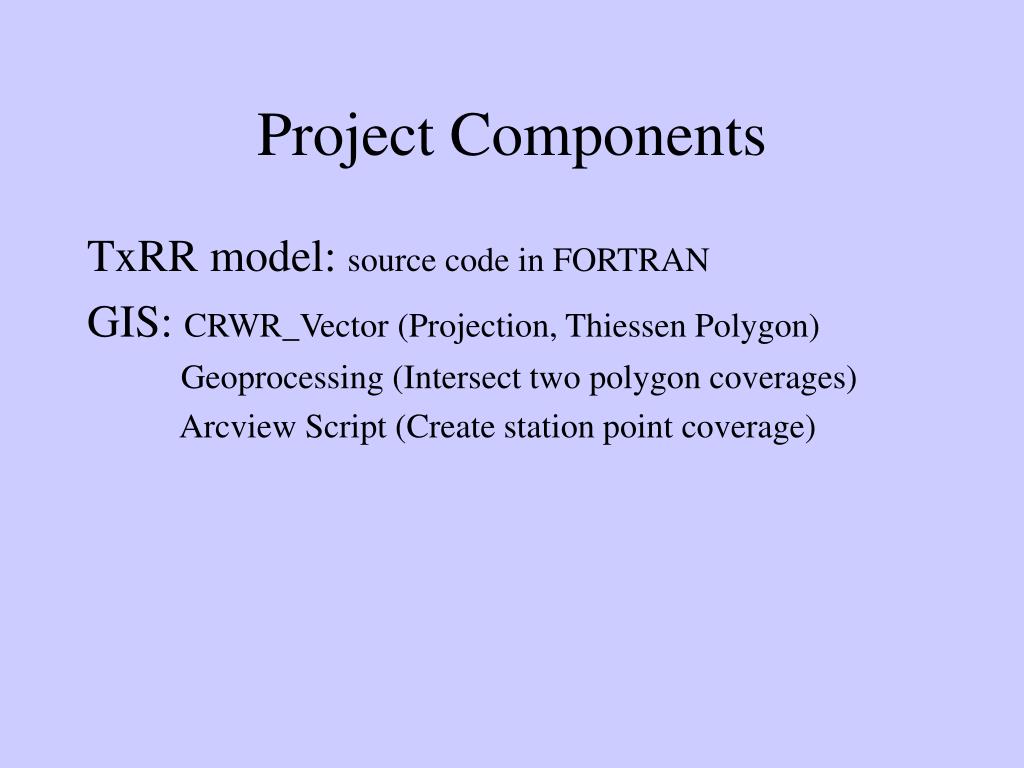

  14. Project Components TxRR model: source code in FORTRAN GIS: CRWR_Vector (Projection, Thiessen Polygon) Geoprocessing (Intersect two polygon coverages) Arcview Script (Create station point coverage)

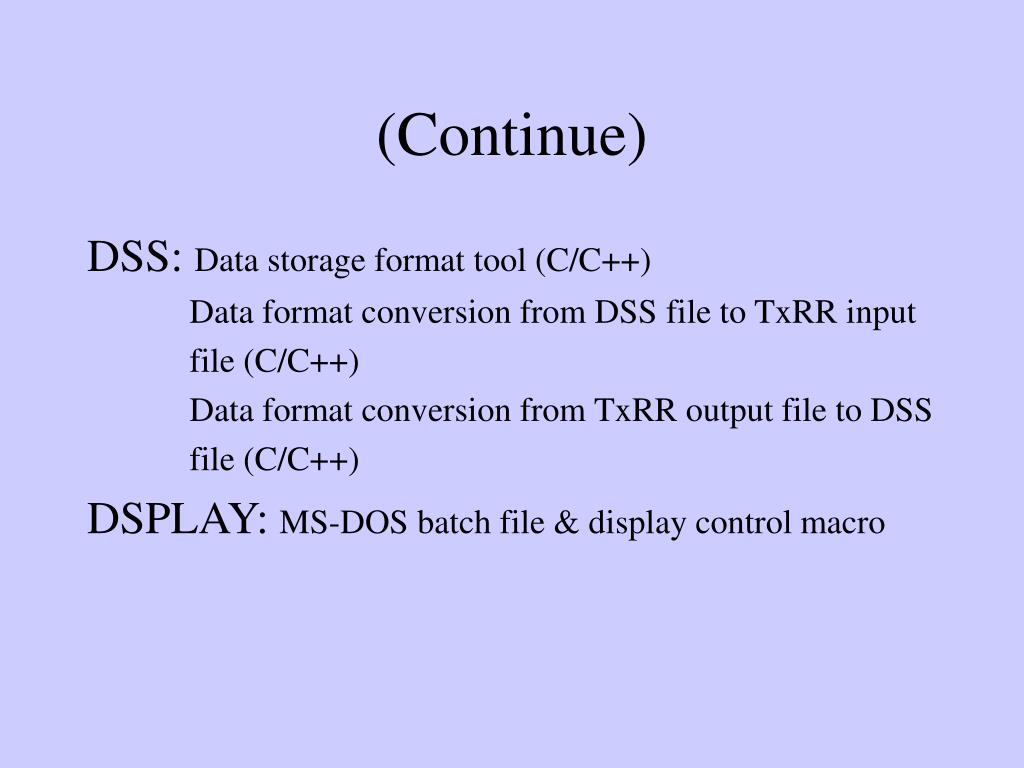

  15. DSS: Data storage format tool (C/C++) Data format conversion from DSS file to TxRR input file (C/C++) Data format conversion from TxRR output file to DSS file (C/C++) DSPLAY: MS-DOS batch file & display control macro (Continue)

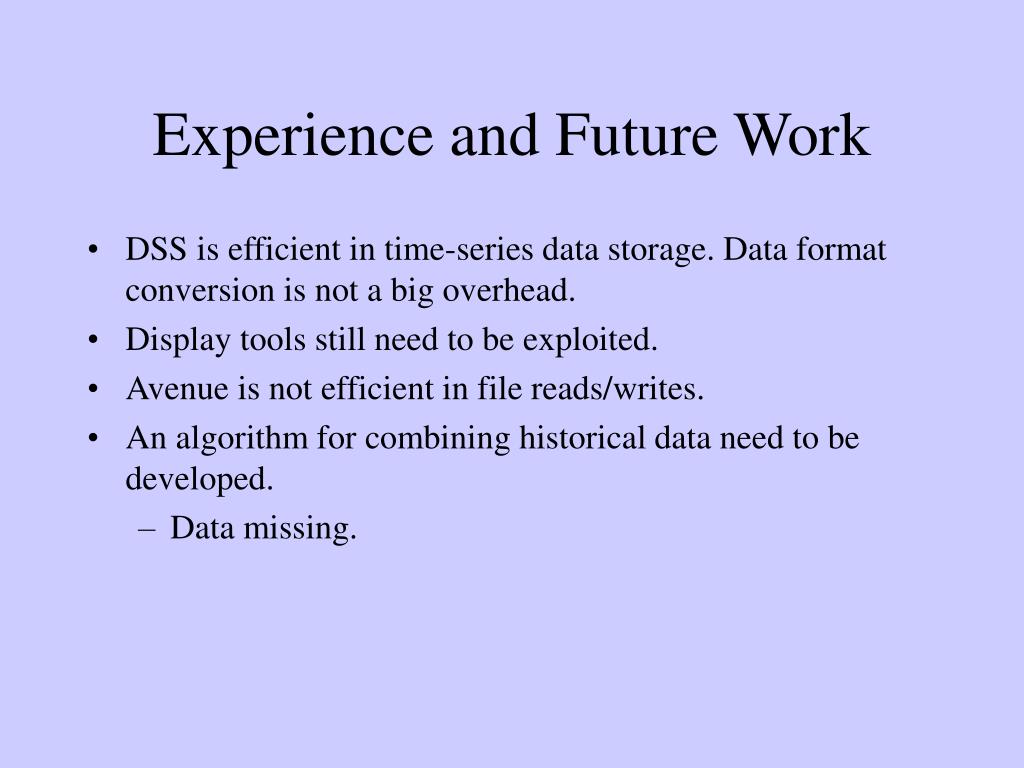

  16. Experience and Future Work DSS is efficient in time-series data storage. Data format conversion is not a big overhead. Display tools still need to be exploited. Avenue is not efficient in file reads/writes. An algorithm for combining historical data need to be developed. Data missing.
