CONSTRUCTION MANAGEMENT AND ADMINISTRATION UNIT-V Optimisation

Unit-V: List of topics Introduction Optimisation through linear programming Formulation of LPP Applications of linear programming Graphical method Advantages of LP Limitations of LP Simplex method References: “Operations Research” by SD Sharma “Optimization Methods” D Nagesh Kumar, IISc, Bangalore NPTEL web

Introduction Optimization is the selection of a best element (with regard to some criteria) from some set of available alternatives • Numerical Methods of Optimization • Linear programming • Integer programming • Quadratic programming • Nonlinear programming • Stochastic programming • Dynamic programming • Combinatorial optimization • Infinite-dimensional optimization • Constraint satisfaction

Optimisation through linear programming Linear programming is a technique for determining an optimum schedule of interdependent activities in view of the available resources and constraints Programming is just another word for planning and refers to the process of determining a particular plan of action from amongst several alternatives The word linear stands for indicating that all relationships involved in a particular problem are linear Linear programming indicates the right combination of the various decision variables which can be best employed to achieve the objective taking full account of the practical limitations with in which the problem must be solved Linear programming problems consist of a linear objective (cost) function (consisting of a certain number of variables) which is to be minimized or maximized subject to a certain number of constraints

Formulation of LP problems Let x1 be the number of products of type A; x2 be the number of products of type B Total Profit, P=2*x1+3*x2 (objective function) constraints Non-negativity constraints Production allocation problem: A firm manufactures two types of products A and B and sells them at a profit of Rs.2 on type A and Rs.3 on type B. Each product is processed on two machines G and H. type A requires 01 minute of processing time on G and 02 minutes on H; type B requires 01 minute on G and 01 minute on H. The machine G is available for not more than 6hours 40 minutes while machine H is available for 10hours during any working day. Formulate the problem as a LPP. 1*x1+1*x2 <=400; 2*x1+1*x2 <=600 ; x1>=0; x2 >=0

Formulation of LP problems Let x1 1000 be the number of bottles of medicine A x2 1000 be the number of bottles of medicine B Total Profit, P=8000*x1+7000*x2 (objective function) Constraints Non-negativity constraints 3*x1+1*x2 <=66; 1*x1+1*x2 <=45 ; x1<=20; x2 <=40; x1>=0; x2 >=0 The manufacturer of patent medicines is proposed to prepare a production plan for medicines A and B. there are sufficient ingredients available to make 20000 bottles of medicine A and 40000 bottles of medicine B, but there are only 45000 bottles into which either of the medicines can be filled. Further it takes 3hours to prepare enough material to fill 1000 bottles of medicine A and one hour to prepare enough material to fill 1000 bottles of medicine B, and there are 66 hours available for this operation. The profit is Rs.8 per bottle for medicine A and Rs.7 per bottle for medicine B. Formulate the problem as a Linear Programming Problem.

General formulation of LP problem In order to find the values of n decision variables x1, x2,..…xn to maximize or minimize the objective function z = c1x1+ c2x2+ c3x3+……....cnxn and also satisfy m-constraints: a11x1+a12x2+…….a1jxj….….a1nxn (<= or >=)b1 a21x1+a22x2+……..a2jxj……..a2nxn (<= or >=)b2 : : : : : ai1x1+ai2x2+……...aijxj………ainxn (<= or >=)bi : : : : : am1x1+am2x2+…….amjxj…….amnxn (<= or >=)bm Also non-negativity constraints x1 >=0, x2 >=0,….xj >=0,….xn>=0

Applications of LP Personal assignment problem Transportation problem Efficiencing on operation of system of dams Optimum estimation of executive compensation Agricultural applications Military applications Production management Marketing management Manpower management Physical distribution

Graphical method (eg.1)

Step 1: consider each inequality constraint as equation and Plot all the constraints one by one on a graph paper

Step 2: Identify the common region of all the constraints

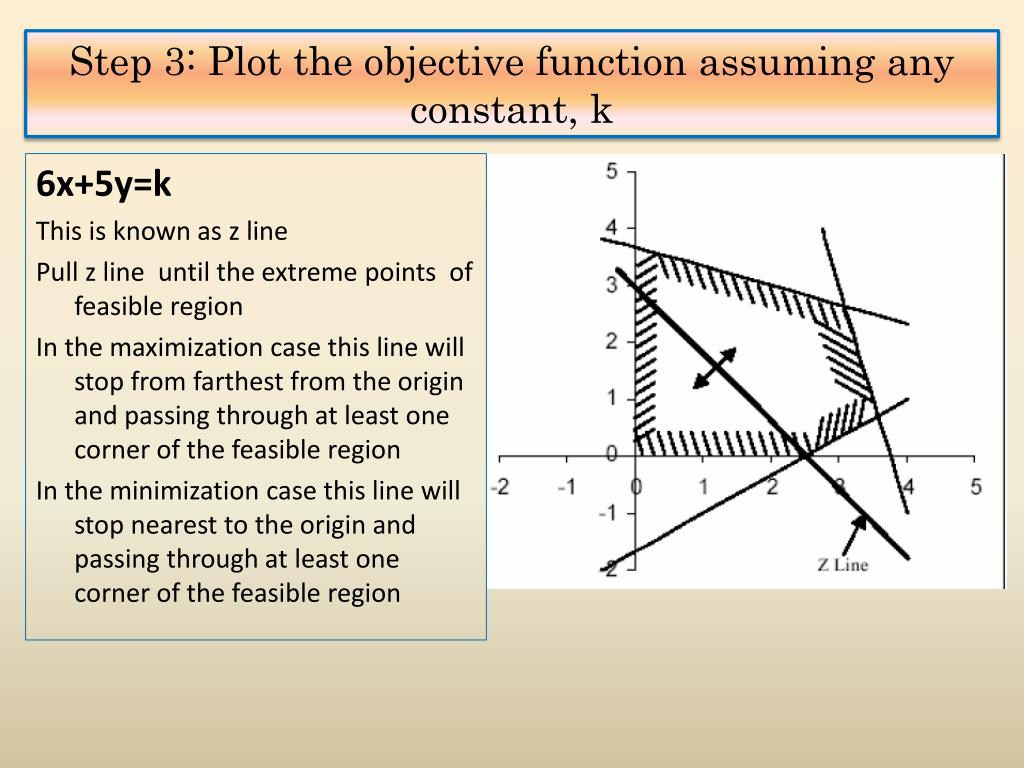

Step 3: Plot the objective function assuming any constant, k 6x+5y=k This is known as z line Pull z line until the extreme points of feasible region In the maximization case this line will stop from farthest from the origin and passing through at least one corner of the feasible region In the minimization case this line will stop nearest to the origin and passing through at least one corner of the feasible region

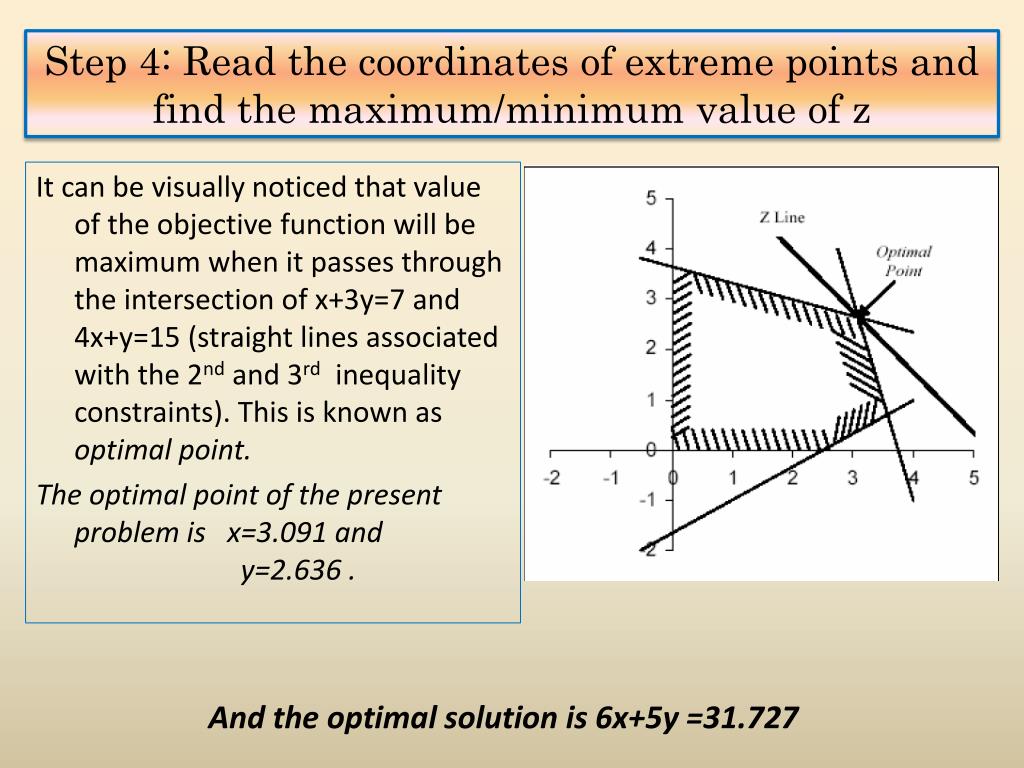

Step 4: Read the coordinates of extreme points and find the maximum/minimum value of z And the optimal solution is 6x+5y =31.727 It can be visually noticed that value of the objective function will be maximum when it passes through the intersection of x+3y=7 and 4x+y=15 (straight lines associated with the 2nd and 3rd inequality constraints). This is known as optimal point. The optimal point of the present problem is x=3.091 and y=2.636 .

Graphical method (eg.2) Let x1 1000 be the number of bottles medicine A x2 1000 be the number of bottles of medicine B Total Profit, P=8000*x1+7000*x2 (objective function) (constraints) 3x1+x2 <=66; x1+x2 <=45 ; x1<=20; x2 <=40; x1>=0; x2 >=0 The manufacturer of patent medicines is proposed to prepare a production plan for medicines A and B. there are sufficient ingredients available to make 20000 bottles of medicine A and 40000 bottles of medicine B, but there are only 45000 bottles into which either of the medicines can be filled. Further it takes 3hours to prepare enough material to fill 1000 bottles of medicine A and one hour to prepare enough material to fill 1000 bottles of medicine B, and there are 66 hours available for this operation. The profit is Rs.8 per bottle for medicine A and Rs.7 per bottle for medicine B. Formulate the problem as a LPP.

Step 1: consider each inequality constraint as equation and Plot all the constraints one by one on a graph paper 3x1+x2 <=66; x1+x2 <=45 ; x1<=20; x2 <=40; x1>=0; x2 >=0 x1<=20 3x1+x2 <=66 x2 <=40 x1+x2 <=45

Step 2: Identify the common region of all the constraints 3x1+x2 <=66; x1+x2 <=45 ; x1<=20; x2 <=40; x1>=0; x2 >=0 x1<=20 3x1+x2 <=66 x2 <=40 Feasible region x1+x2 <=45

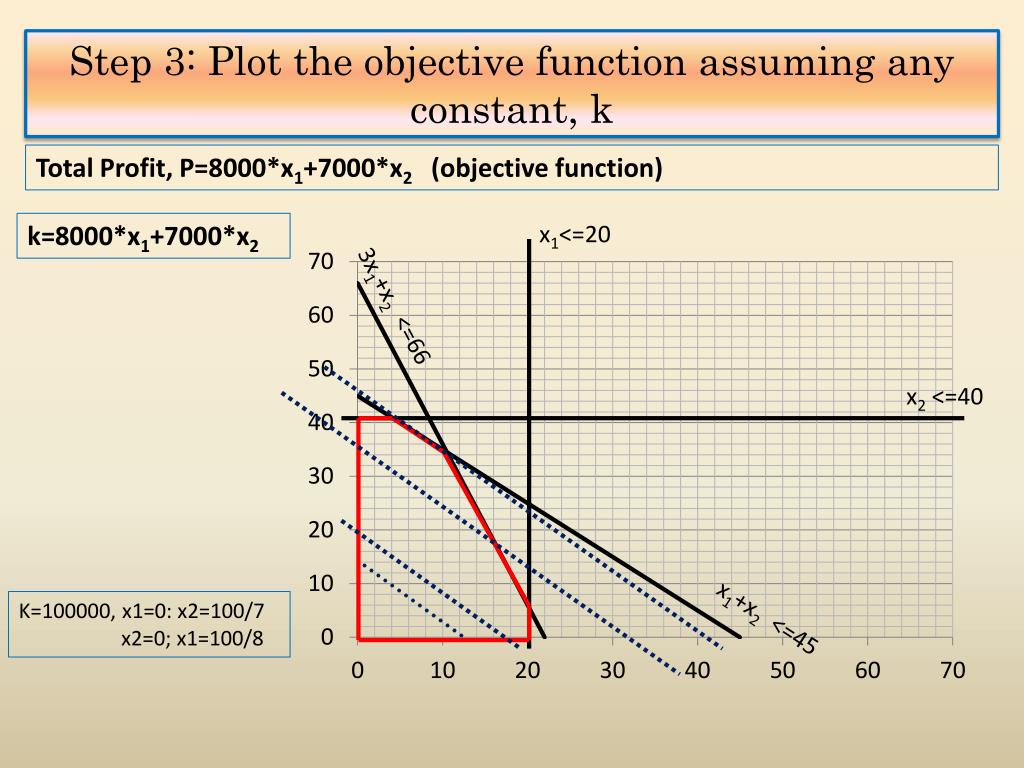

Step 3: Plot the objective function assuming any constant, k Total Profit, P=8000*x1+7000*x2 (objective function) k=8000*x1+7000*x2 x1<=20 3x1+x2 <=66 x2 <=40 K=100000, x1=0: x2=100/7 x2=0; x1=100/8 x1+x2 <=45

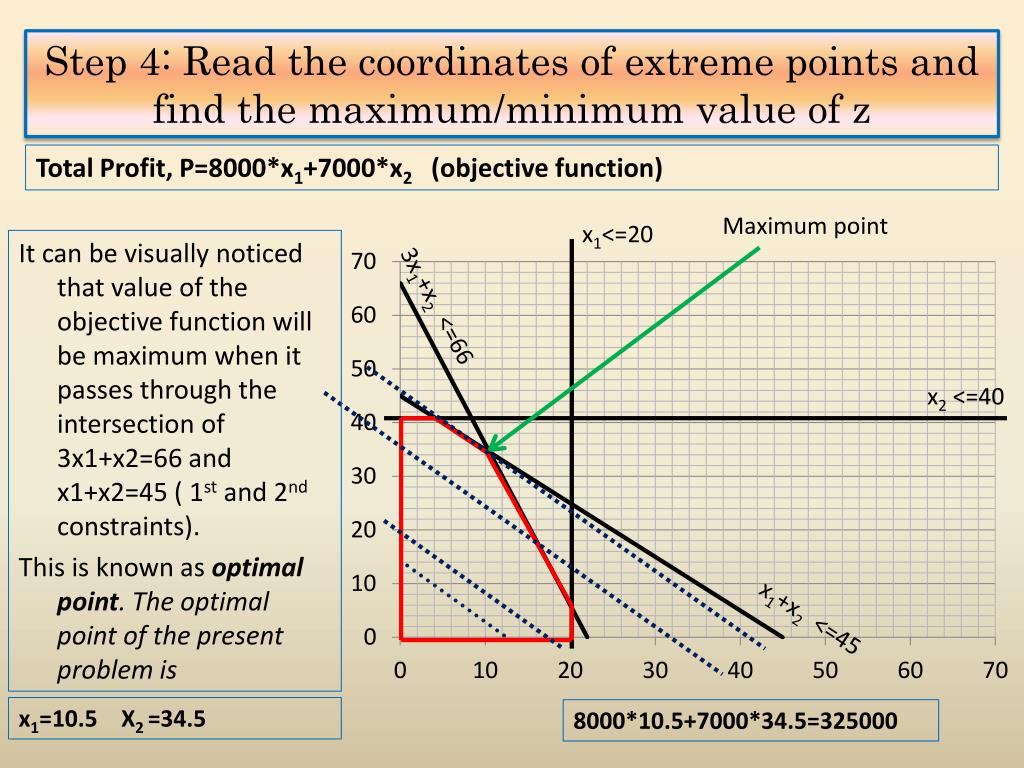

Step 4: Read the coordinates of extreme points and find the maximum/minimum value of z Total Profit, P=8000*x1+7000*x2 (objective function) Maximum point x1<=20 3x1+x2 <=66 x2 <=40 x1+x2 <=45 x1=10.5 X2 =34.5 8000*10.5+7000*34.5=325000 It can be visually noticed that value of the objective function will be maximum when it passes through the intersection of 3x1+x2=66 and x1+x2=45 ( 1st and 2nd constraints). This is known asoptimal point. The optimal point of the present problem is

Graphical method (eg.3) • Minimize z=1.5x1+2.5x2 • Subject to : x1+3x2>=3 • x1+x2>=2 • x1, x2 >=0

Step 1: consider each inequality constraint as equation and Plot all the constraints one by one on a graph paper x1+3x2>=3 x1+x2>=2 x1, x2 >=0 x1+x2 >=2 x1+3x2 >=3

Step 2: Identify the common region of all the constraints x1+3x2>=3 x1+x2>=2 x1, x2 >=0 x1+x2 >=2 Feasible region x1+3x2 >=3

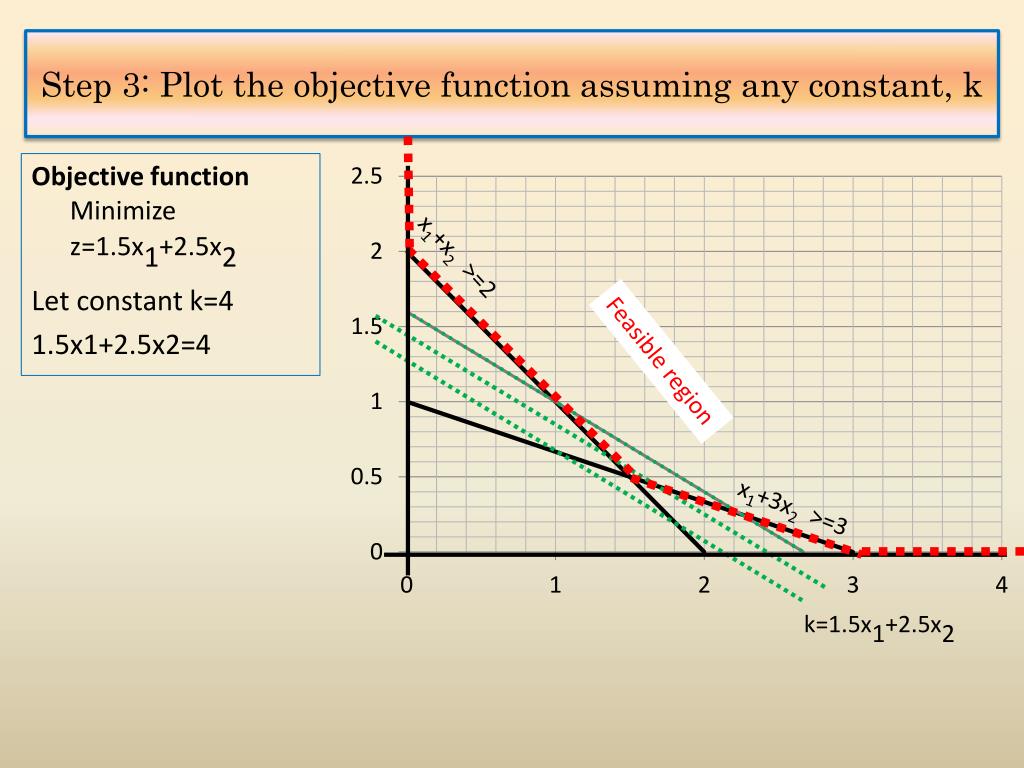

Step 3: Plot the objective function assuming any constant, k x1+x2 >=2 Feasible region x1+3x2 >=3 k=1.5x1+2.5x2 Objective function Minimize z=1.5x1+2.5x2 Let constant k=4 1.5x1+2.5x2=4

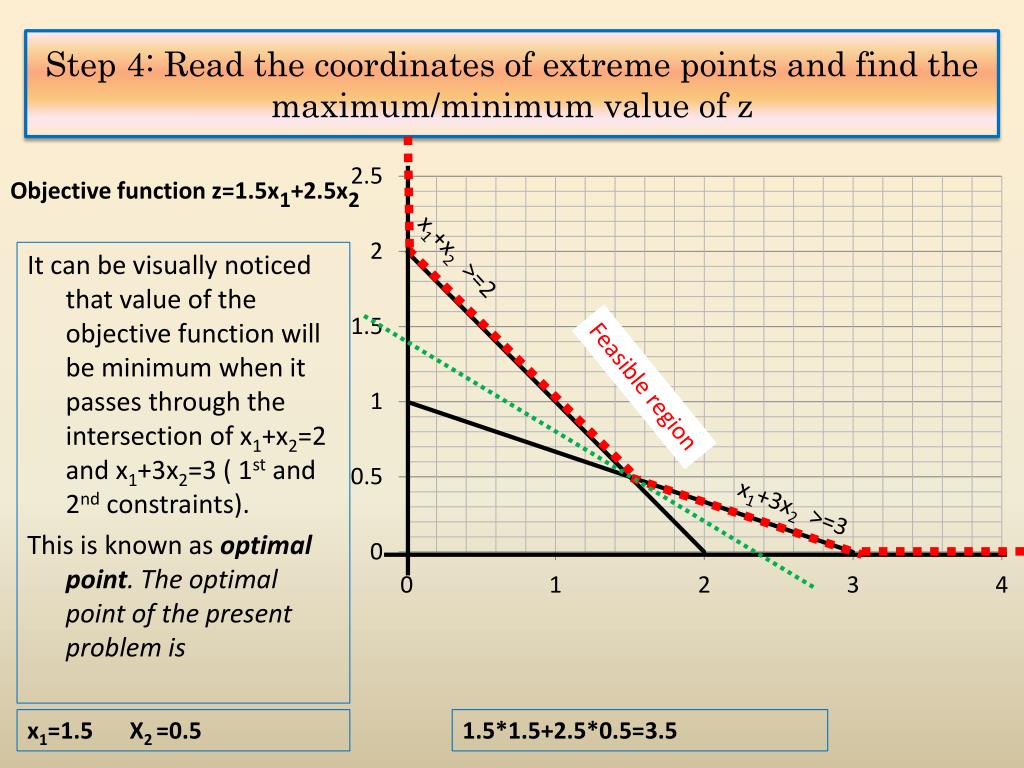

Step 4: Read the coordinates of extreme points and find the maximum/minimum value of z Objective function z=1.5x1+2.5x2 x1+x2 >=2 Feasible region x1+3x2 >=3 x1=1.5 X2 =0.5 1.5*1.5+2.5*0.5=3.5 It can be visually noticed that value of the objective function will be minimum when it passes through the intersection of x1+x2=2 and x1+3x2=3 ( 1st and 2nd constraints). This is known asoptimal point. The optimal point of the present problem is

Slack and Surplus variables Slack variables: if a constraint has ≤ sign, in order to make it an equality, we have to add something positive to the left hand side. The non-negative variable which is added to the left hand side of the constraint to convert it into equation is called the slack variable Eg. x1+x2 ≤ 4 2x1+4x2 ≤5 We add slack variables x3, x4 ≥0 x1+x2 +x3 =4 2x1+4x2 +x4 =5

Slack and Surplus variables Surplus variables: if a constraint has ≥ sign, in order to make it an equality, we have to subtract something non-negative from its left hand side. The non-negative variable which is subtracted from to the left hand side of the constraint to convert it into equation is called the surplus variable Eg. x1+x2 ≥ 4 2x1+4x2 ≥5 We subtract surplus variables x3, x4 ≥0 x1+x2 -x3 =4 2x1+4x2 -x4=5

Standard form of LP Problem • All the constraints should be converted to equations except for the non-negativity restrictions which remain as inequalities • The right side element of each constraint should be made non-negative (if not) • Eg. 3x-4y≥-4 3x-4y-z=-4 -3x+4y+z = 4 • All variables must have non-negative values • The objective function should be of maximization form Min. f(x)= - Max. [--f(x)] Min. z = c1x1+c2x2+…+cnxn Max.(-z), i.e. Max z’≈ - c1x1-c2x2-..…-cnxnwith z=-z’.

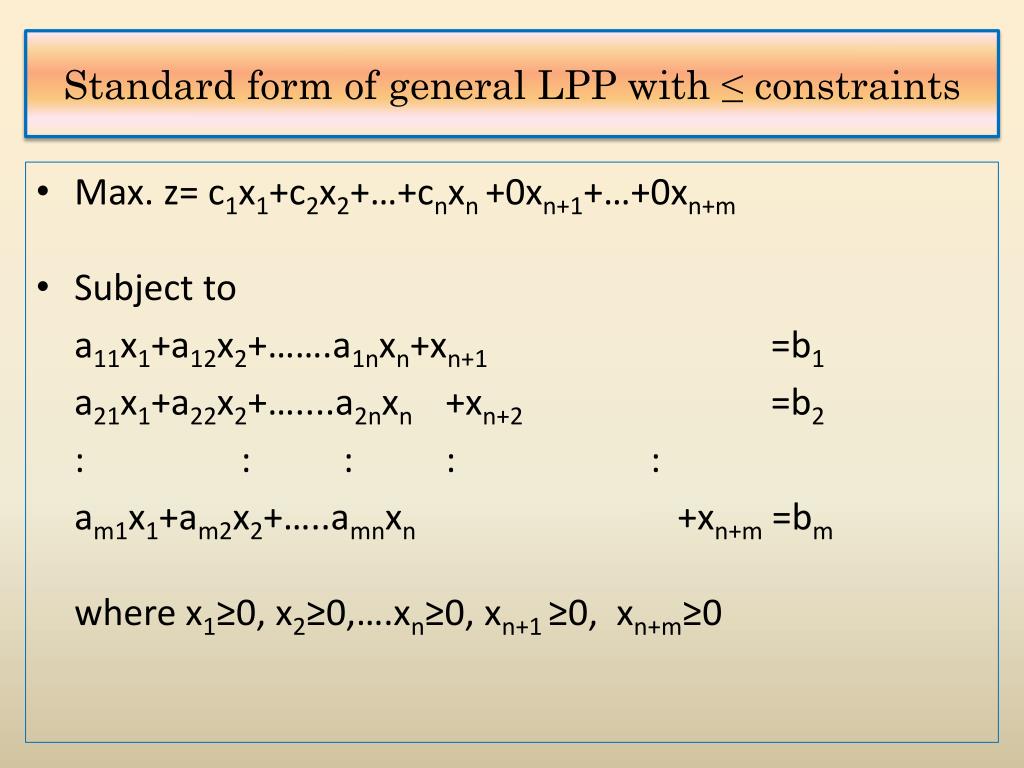

Standard form of general LPP with ≤ constraints Max. z= c1x1+c2x2+…+cnxn+0xn+1+…+0xn+m Subject to a11x1+a12x2+…….a1nxn+xn+1 =b1 a21x1+a22x2+…....a2nxn +xn+2 =b2 : : : : : am1x1+am2x2+…..amnxn +xn+m =bm where x1≥0, x2≥0,….xn≥0, xn+1 ≥0, xn+m≥0

Matrix form of LP Problem Maximize z = CXT (objective function) • Subject to A X = b, b≥0 (Constraint equation) • X≥0 (No-negativity restriction) Where X=(x1, x2, …xn, xn+1, ……xn+m) C= (c1, c2,…cn, 0, 0, 0….0) and b= (b1, b2, ……,bm) A= a11 a12 . . .a1n 1 0 . . . 0 a21 a22 . . .a2n 0 1 . . . 0 . . . . . . . . . . am1 am2 . . .amn 0 0 1

Assumptions in LPP • Proportionality • Objective function and every constraint function must be linear • Additivity • A machine takes x hours of processing time for product A and for product B it takes y hours then for both A&B together it take x+y hours time • Multiplicativity • 1hour for 1product then 10hours for 10products • The total profit from N no.of units is the unit profit times the no.of units sold • Divisibility • It means that the fractional levels of variables must be permissible besides integral values • Deterministic • All the parameters in the linear programming models are assumed to be known exactly

Advantages of LP Linear programming technique helps in making the optimum utilization of productive resources. It also indicates how a decision maker can employ his productive factors most effectively by choosing and allocating these resources The quality of decision may also be improved by linear programming techniques. The user of this technique becomes more objective and less subjective Linear programming technique provides practically applicable solutions since there might be other constraints operating out side the problem which must also be taken into consideration just because, so many units must be produced does not mean that all those can be sold. So the necessary modification of its mathematical solution is required for the sake of convenience to the decision maker In production processes, high lighting of bottlenecks is the most significant advantage of this technique. For example, when bottlenecks occur, some machines cannot meet the demand while others remain idle for some time

Limitations of LP In some problems objective functions and constraints are not linear. Generally, in real life situations concerning business and industrial problems constraints are not linearly treated to variables There is no guarantee of getting integer valued solutions, for example, in finding out how many men and machines would be required to perform a particular job, rounding off the solution to the nearest integer will not give an optimal solution. Integer programming deals with such problems LP model does not take into consideration the effect of time and uncertainty. Thus the model should be defined in such a way that any change due to internal as well as external factors can be incorporated Sometimes large-scale problems cannot be solved with LP techniques even when the computer facility is available. Such difficulty may be removed by decomposing the main problem into several small problems and then solving them separately Parameters appearing in the model are assumed to be constant. But in real life situations they are neither constant nor deterministic LP deals with only single objective, whereas in real life situations problems come across with multi-objectives. Goal programming and multi-objective programming deals with such problems

Some Important definitions • Solution to LPP: Any set X={x1, x2,..…xn+m} of variables is called a solution to LP problem, if it satisfies the set of constraints only • Feasible solution (FS): Any set X={x1, x2,..…xn+m} of variables is called a Feasible solution to LP problem, if it satisfies the set of constraints and non negativity restrictions also • Basic solution (BS): it is a solution obtained by setting any n variables (among m+n variables) equal to zero and solving for remaining m variables, provided the determinant of the coefficients of these m variables is non-zero. Such m variables are called basic variables and remaining n zero-valued variables are called non-basic variables • Basic Feasible solution (BFS): it is a basic solution which also satisfies the non negativity restrictions, that is all basic variables are non-negative • Non-degenerate BFS: it is the basic feasible solution which has exactly m basic variables are positive and the remaining n variables will be all zero • Degenerate BFS: a basic feasible solution is called degenerate, if one or more basic variables are zero valued

Some Important definitions Optimum Basic Feasible Solution: a basic feasible solution is said to be optimum, if it also optimizes (maximize/minimize) the objective function Unbounded Solution: if the value of the objective function z can be increased or decreased indefinitely, such solutions are called unbounded solutions

Canonical form of standard LPP Canonical form of standard LPP is a set of equations consisting of the ‘objective function and all the ‘equality constraints’ (standard form of LPP) expressed in canonical form. Understanding the canonical form of LPP is necessary for studying simplex method, the most popular method of solving LPP Let us consider a set of three equations with three variables for ease of discussion. The system of equations can be transformed in such a way that a new set of three different equations are obtained, each having only one variable with nonzero coefficient. This can be achieved by some elementary operations

Canonical form of standard LPP cont... • The following operations are known as elementary operations. • Any equation Er can be replaced by kEr, where k is a nonzero constant • Any equation Er can be replaced by Er + kEs, where Es is another equation of the system and k is as defined above • Note that the transformed set of equations through elementary operations is equivalent to the original set of equations. Thus, solution of the transformed set of equations will be the solution of the original set of equations too • Now, let us transform the above set of equations (A0, B0 and C0) through elementary operations

Canonical form of standard LPP cont... → Note that variable x is eliminated from equations B0 and C0 to obtain B1 and C1 respectively. Equation A0 in the previous set is known as pivotal equation. Following similar procedure, y is eliminated from A1 and C1 as follows, considering B1 as pivotal equation.

Canonical form of standard LPP cont... Finally, z is eliminated form A2 and B2 as follows, considering C2 as pivotal equation Thus we end up with another set of equations which is equivalent to the original set having one variable in each equation. Transformed set of equations, (A3, B3 and C3), thus obtained are said to be in canonical form Operation at each step to eliminate one variable at a time, from all equations except one, is known as pivotal operation

Simplex method Simplex method is the most popular method used for the solution of Linear Programming Problems (LPP) Solution of a LPP, if exists, lies at one of the vertices of the feasible region. All the basic solutions can be investigated one-by-one to pick up the optimal solution. For 10 equations with 15 variables there exists 15C10= 3003 basic feasible solutions. Too large number to investigate one-by-one. This can be overcome by simplex method

General procedure of Simplex method General form of given LPP is transformed to its canonical form Find a basic feasible solution of the LPP (there should exist at least one). Move to an adjacent basic feasible solution which is closest to the optimal solution among all other adjacent vertices. Repeat until optimum solution is achieved. Step three involves ‘Simplex Algorithm’

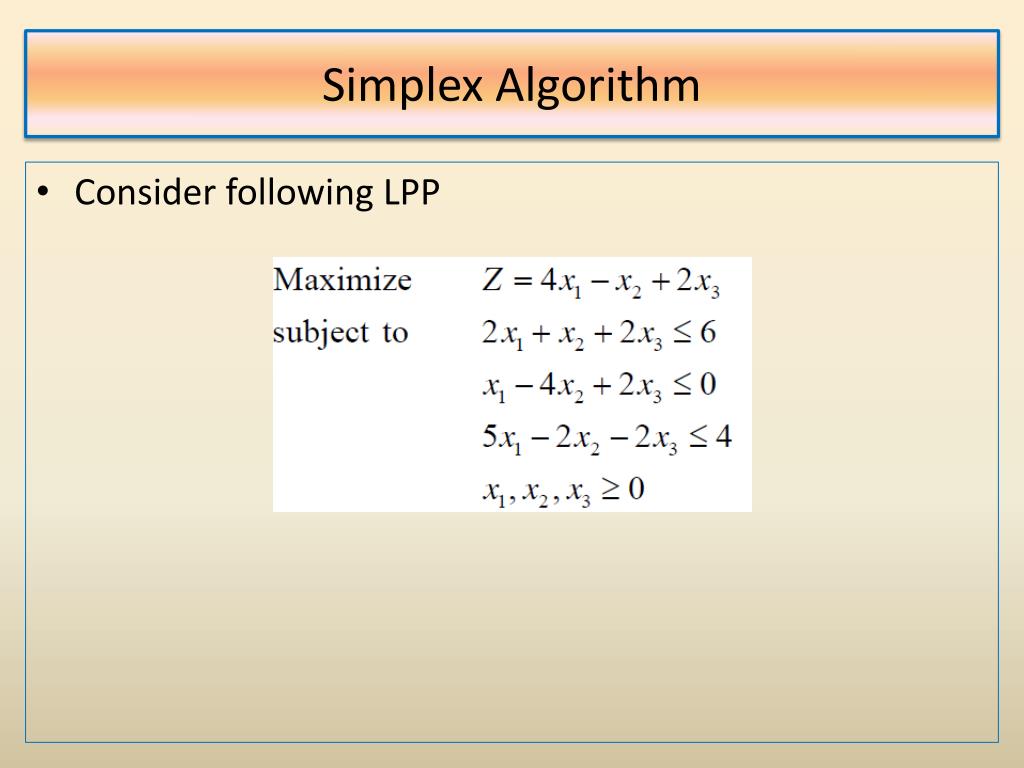

Simplex Algorithm Consider following LPP

Simplex Algorithm …contd. LPP is to be transformed to its standard form

Simplex Algorithm …contd. Basic feasible solution of above canonical form is x4 = 6, x5= 0, x6= 4 , x1= x2= x3= 0 and Z= 0 Set of equations, including the objective function is to be transformed to canonical form

Simplex Algorithm …contd. Symbolized form The left-most column is known as basis as this is consisting of basic variables The coefficients in the first row (C1,....,C6) are known as cost coefficients

Simplex Algorithm …contd. This completes first step of algorithm. After completing each step (iteration) of algorithm, following three points are to be examined: • Is there any possibility of further improvement? • If any one of the cost coefficients is negative further improvement is possible • Which non-basic variable is to be entered into the basis? • Entering variable is decided such that the unit change of this variable should have maximum effect on the objective function. Thus the variable having the coefficient which is minimum among all cost coefficients is to be entered, i.e., xs is to be entered if cost coefficient cs is minimum • Which basic variable is to be exited from the basis? • After deciding the entering variable xs, xr(from the set of basic variables) is decided to be the exiting variable if br/crs is minimum for all possible r, provided crsis positive. • Crsis considered as pivotal element to obtain the next canonical form

Simplex Algorithm …contd. • Entering variable : • c1is minimum (-4), thus, x1is the entering variable for the next step of calculation • Exiting variable: • r may take any value from 4, 5 and 6 • It is found that b4/c41 = 6/2=3, b5/c51=0/1 , b6/c61=4/5 • As , b5/c51 is minimum r=5 thus x5 is to be exited • c51 ( = 1) is considered as pivotal element and x5 is replaced by x1in the basis. Thus a new canonical form is obtained through pivotal operation

Simplex Algorithm …contd. Pivotal operation Pivotal row is transformed by dividing it with the pivotal element. In this case, pivotal element is 1. for other rows: Let the coefficient of the element in the pivotal column of a particular row be “l”. Let the pivotal element be “m”. Then the pivotal row is multiplied by ‘l / m’ and then subtracted from that row to be transformed. This operation ensures that the coefficients of the element in the pivotal column of that row becomes zero, e.g., Z row: l = -4 , m = 1. So, pivotal row is multiplied by l / m = -4 / 1 = -4, obtaining -4x1+16x2-8x3+0x4-4x5+0x6=0 . This is subtracted from Z row, obtaining 0x1-5x2+6x3+0x4+4x5+0x6+z=0, The other two rows are also suitably transformed.

-(-4/1*E3-E1) Simplex Algorithm …contd. -(2/1*E3-E2) -(5/1*E3-E4) After the pivotal operation, the canonical form obtained as follows The basic solution of above canonical form is x1= 0, x4= 6, x6= 4, x2= x3= x5= 0 and Z= 0 Note that cost coefficient c2is negative. Thus optimum solution is not yet achieved. Further improvement is possible

Simplex Algorithm …contd. Entering variable: c2is minimum (-15), thus, x2 is the entering variable for the next step of calculation Exiting variable: r may take any value from 4, 1 and 6. However, c12 is negative (-4). Thus, r may be either 4 or 6. It is found that b4/c42=6/9=0.667 and b6/c62=4/18 =0.22. As b6/c62 is minimum, r is 6. Thus x6 is to be exited. c62 ( = 18) is considered as pivotal element and x6 is to be replaced by x2 in the basis Thus another canonical form is obtained

Simplex Algorithm …contd. -(-15/18*E4-E1) -(9/18*E4-E2) -(-4/18*E4-E3) (E4/18) The canonical form obtained after third iteration The basic solution of above canonical form is x1= 8/9, x2= 2/9, x4= 4, x3= x5= x6= 0 and Z= 10/3. Note that cost coefficient c3 is negative. Thus optimum solution is not yet achieved. Further improvement is possible

Simplex Algorithm …contd. Entering variable: c3is minimum (-4), thus, x3 is the entering variable for the next step of calculation Exiting variable: x4 is the exiting variable. Thus c43 ( = 4) is the pivotal element and x4is to be replaced by x3 in the basis. Thus another canonical form is obtained
