Extended Static Checking for Reliable Software Development in C, M3, and Java

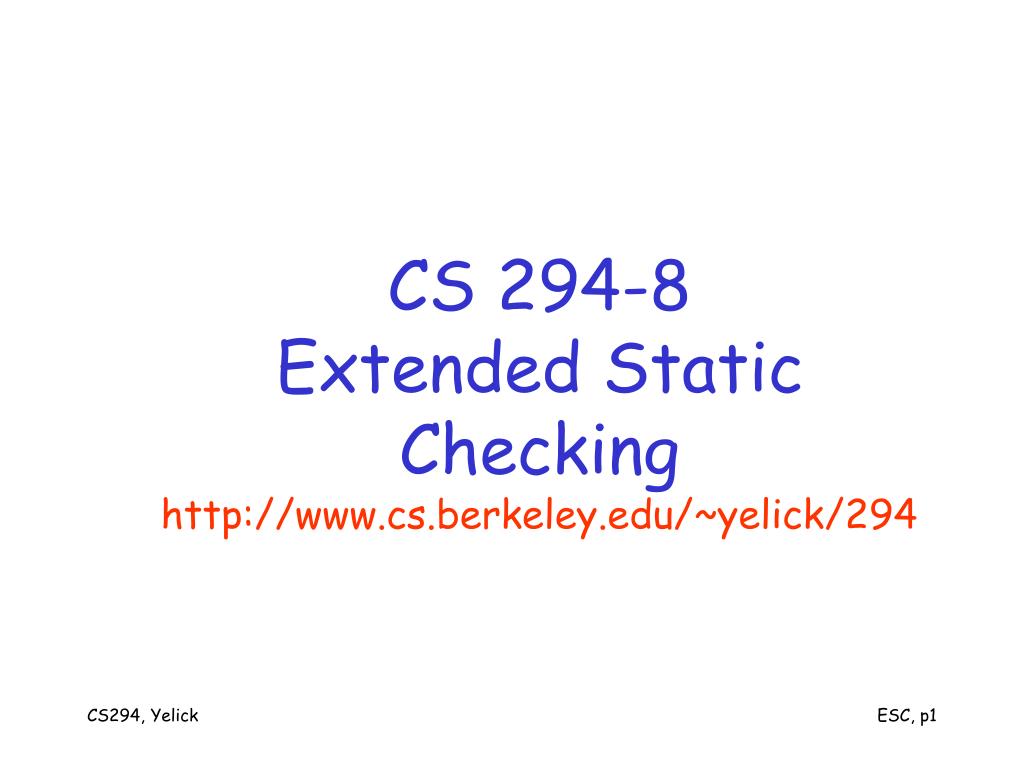

1. CS 294-8Extended Static Checkinghttp://www.cs.berkeley.edu/~yelick/294

2. Agenda • Intro and recap • Overview of ESC (M3 and Java) • Comparison and Discussion

3. Two Themes in Reliable Software • Limit scope of errors: • Prevent buggy/malicious app from doing harm to others • Both direct (access to data) and indirect (hogging resources) are important • The OS may be viewed a special: • the “trusted arbiter” of limited resources • Make the program itself run correctly • Adhere to some reasonable programming discipline • Need to specify the discipline

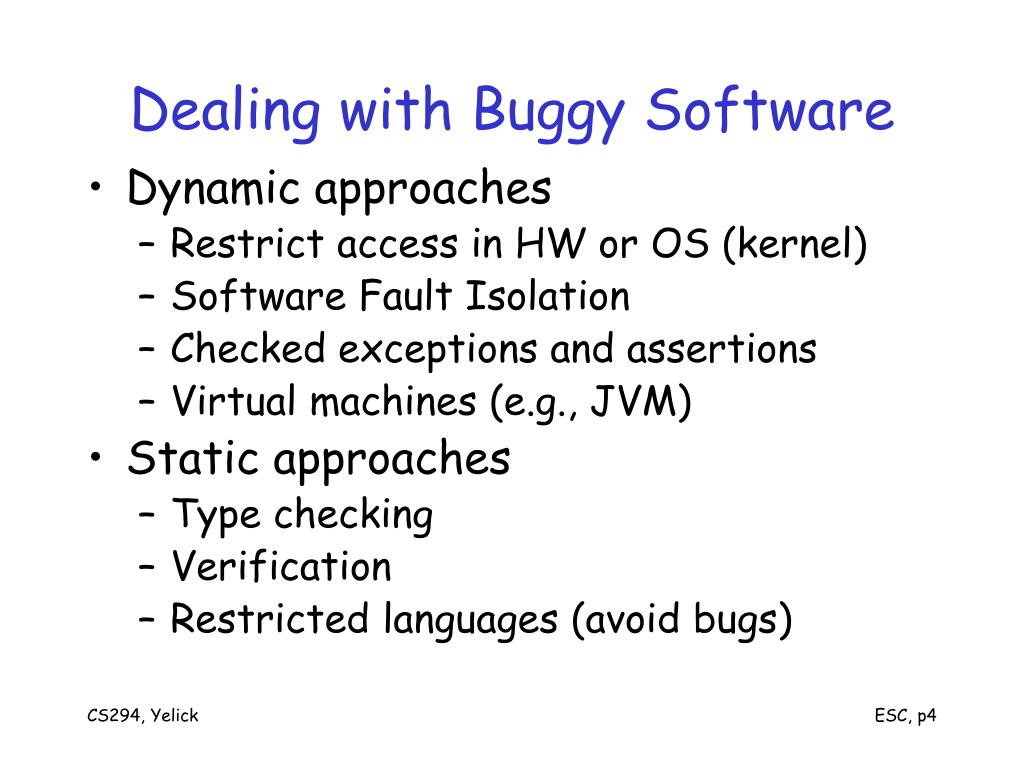

4. Dealing with Buggy Software • Dynamic approaches • Restrict access in HW or OS (kernel) • Software Fault Isolation • Checked exceptions and assertions • Virtual machines (e.g., JVM) • Static approaches • Type checking • Verification • Restricted languages (avoid bugs)

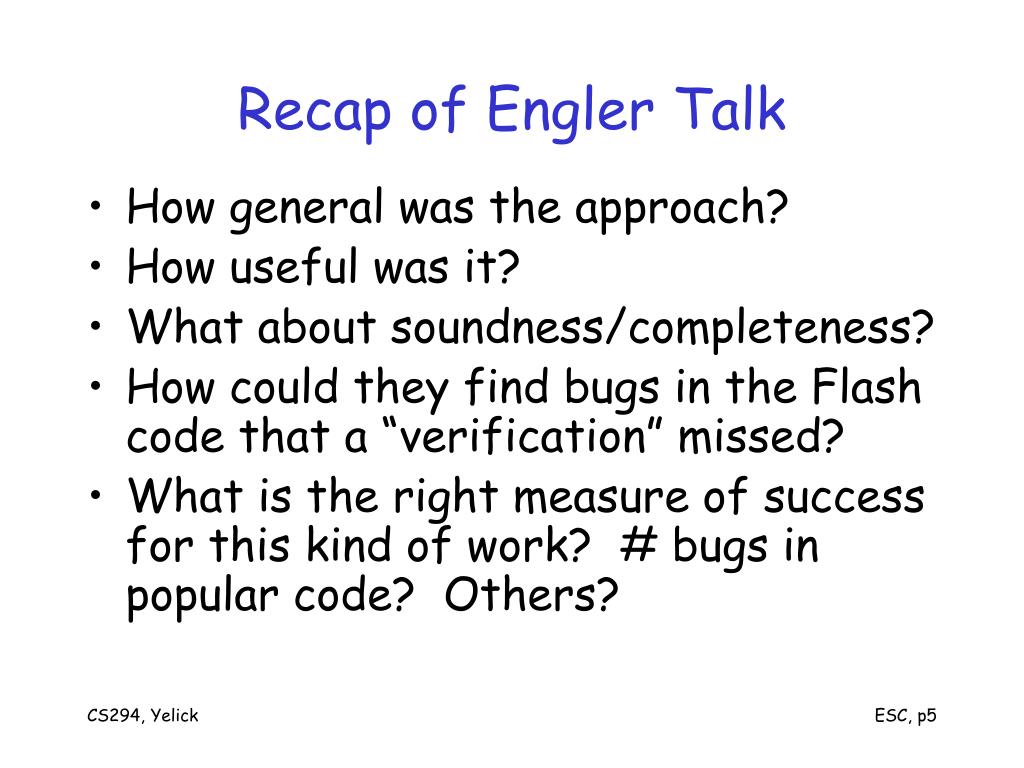

5. Recap of Engler Talk • How general was the approach? • How useful was it? • What about soundness/completeness? • How could they find bugs in the Flash code that a “verification” missed? • What is the right measure of success for this kind of work? # bugs in popular code? Others?

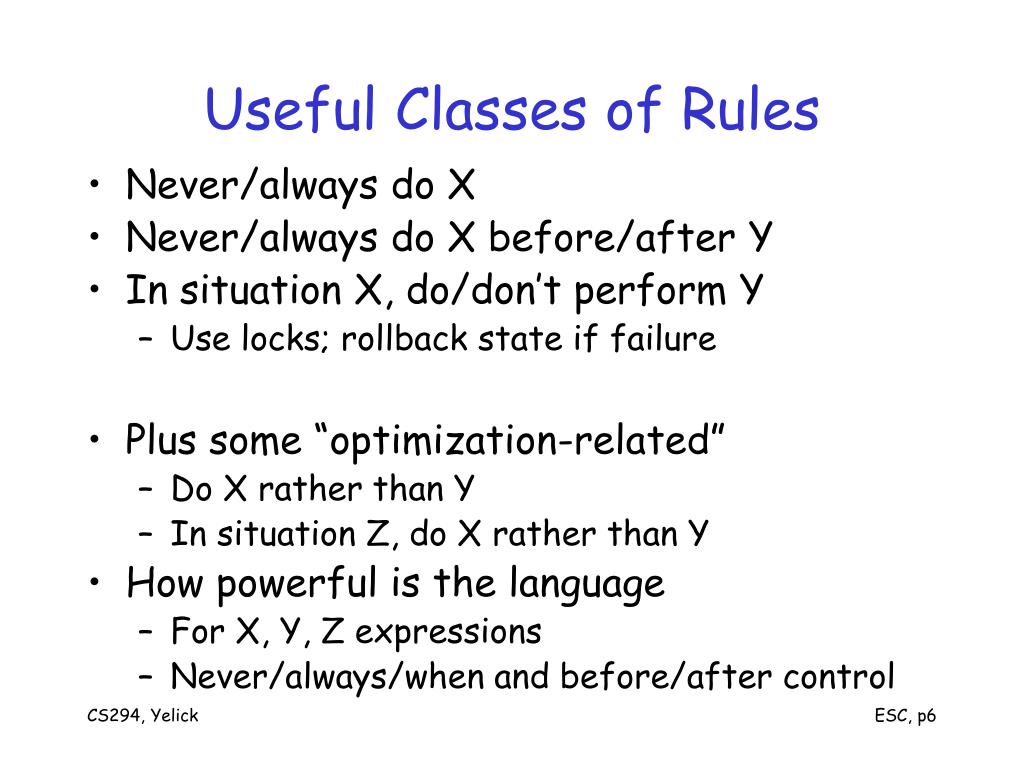

6. Useful Classes of Rules • Never/always do X • Never/always do X before/after Y • In situation X, do/don’t perform Y • Use locks; rollback state if failure • Plus some “optimization-related” • Do X rather than Y • In situation Z, do X rather than Y • How powerful is the language • For X, Y, Z expressions • Never/always/when and before/after control

7. Extended Static Checking • Similar goals to the MC work • Check certain properties of programs • Not full verification • Differences • Requires specifications rather than state machine • Uses a theorem prover engine • Emphasis: control vs. abstraction • Languages: C vs. M3&Java

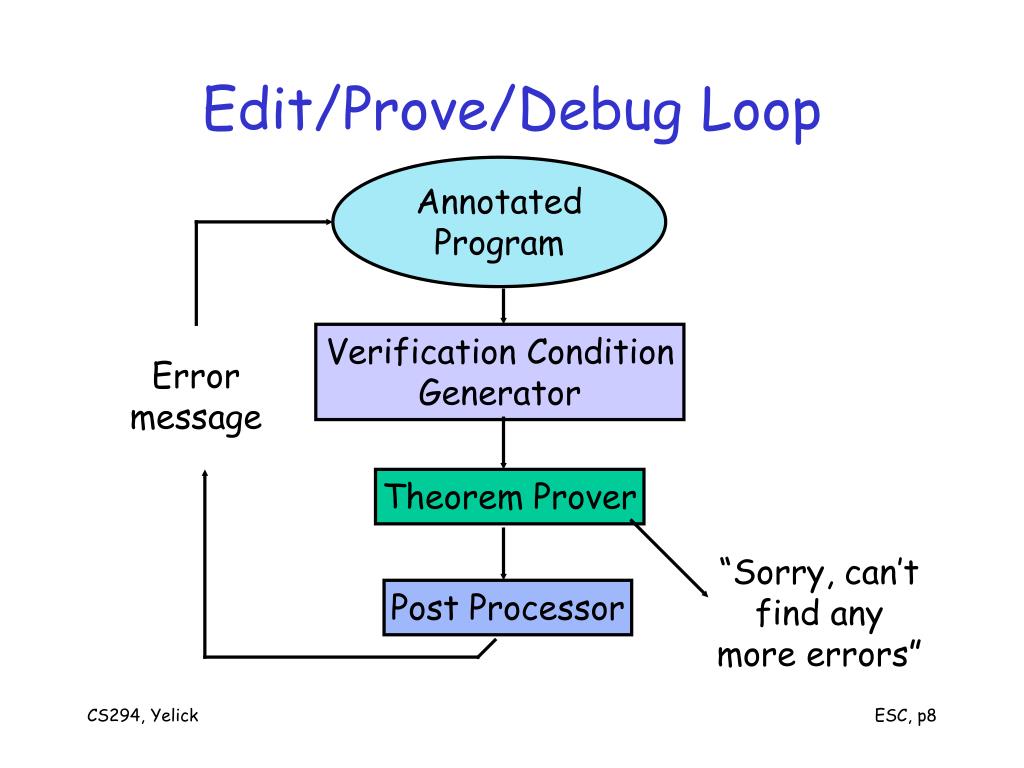

8. Edit/Prove/Debug Loop Annotated Program Verification Condition Generator Error message Theorem Prover “Sorry, can’t find any more errors” Post Processor

9. Default Errors in ESC • ESC acts like a power lint; it checks: • Array bounds errors • Subrange errors • Null derefs • Narrowing type cast error • Missing returns • Exceptions not declared • Divide or mod by zero

10. ESC Specification Language • Programmer can add specifications: • Procedures and methods • Abstraction • Concurrency • Invariants: loop, module, assertion • ESC/Java allows for Java expressions in writing annotations

11. Procedures in ESC • Procedure and methods: • Modifies: list of all variable that could be modified • Requires (precondition) • Ensures (postcondition)

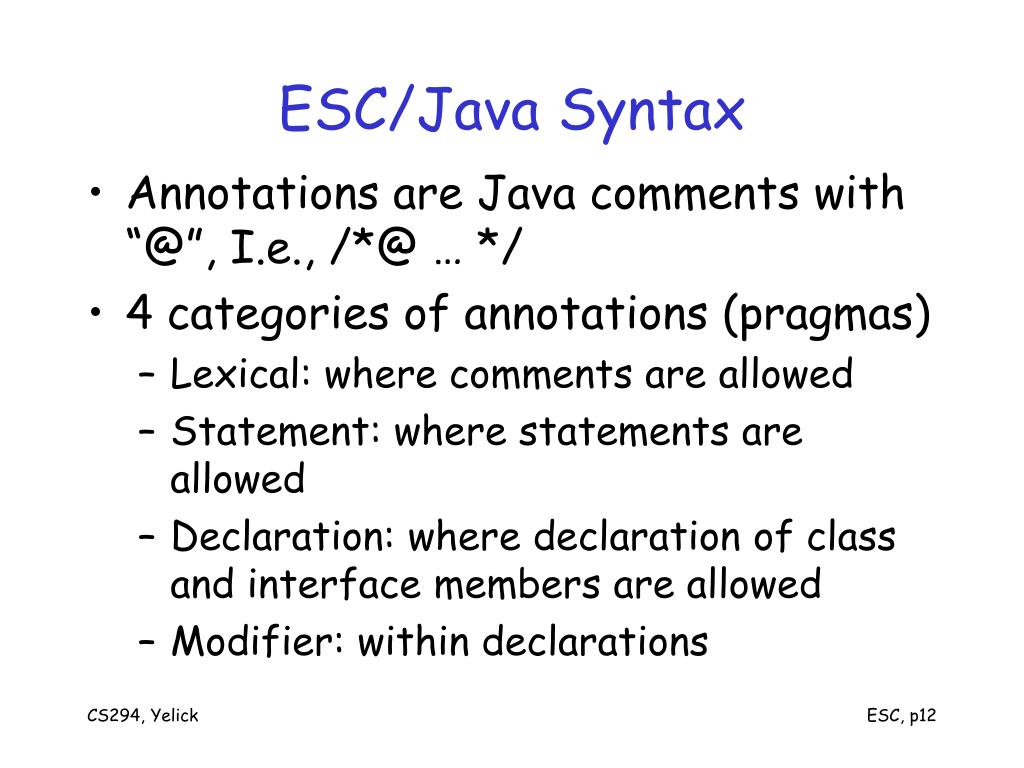

12. ESC/Java Syntax • Annotations are Java comments with “@”, I.e., /*@ … */ • 4 categories of annotations (pragmas) • Lexical: where comments are allowed • Statement: where statements are allowed • Declaration: where declaration of class and interface members are allowed • Modifier: within declarations

13. ESC/Java Pragmas • Requires E; assume E in body of method and warn if can’t be proven at call sites • Modifies S; will assume calls only modify these fields (does not check body) • Ensures E; assumes true after calls, and proves for body • Assume E; assume E is true and ignore branches where it is false • Assert E; issue a warning if E cannot be proved • Nowarn L; turn off these warnings

14. Concurrency in ESC • ESC provides support for concurrent programs: • Accessing protected variables without a lock • Acquiring locks out of order (for deadlock avoidance) • The programmer needs to specify • which variables are protected and • what order locks should be acquired • Specified using general axiom facility • <* SPEC AXIOM (ALL [v: VBT.T] v < v.parent) *> • Where “<“ denote lock acquisition order

15. Concurrency in ESC • Note that this may be more restrictive than necessary, but is reasonable (?) practice. • Having a global lock acquisition order • Protecting a shared variable by a fixed lock • Example: INTERFACE Rd; … TYPE T <: MUTEX; <* SPEC GetChar(rd) MODIFIES state[rd] REQUIRES valid[rd] AND sup(LL) < rd *>

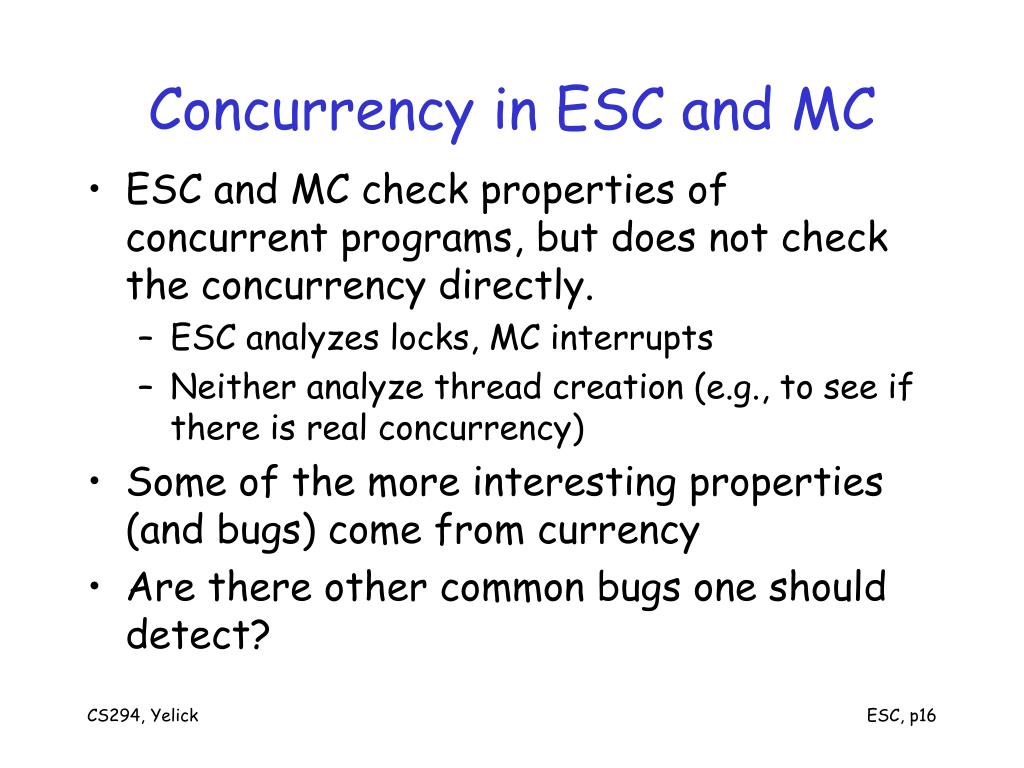

16. Concurrency in ESC and MC • ESC and MC check properties of concurrent programs, but does not check the concurrency directly. • ESC analyzes locks, MC interrupts • Neither analyze thread creation (e.g., to see if there is real concurrency) • Some of the more interesting properties (and bugs) come from currency • Are there other common bugs one should detect?

17. Abstractions in ESC • ESC takes on global analysis and thus abstraction as a primary focus. • Problem: specifications need to describe variable modifications that are not in scope • Solution: Use abstract variables in the specification. May have axioms on those variables (as in SPEC)

18. Data Abstraction in ESC • Downward closure • Modifying an abstract variable implies license to modify concrete ones • Lack of soundness • Need to link modifications of concrete and abstract variables • Depends maps DEPENDS Rd.state[rd: Rd.T] ON rd.st, rd.lo, rd.cur, rd.hi, rd.buff, rd.buff^

19. Comparisons to MC • Could everything done in MC framework be done in ESC? Consider X after Y • Make Y’s spec ensure some property “P” • E.g., interrupt = off • Make X’s spec ensure ~P • E.g., interrupt = on • Give all other procedures • Requires: interrupt on • Ensures: interrupt on • Last point is key to simplicity: property enforced globally without adding specs everywhere

20. Comparison: ESC and MC • Choice of language is critical • Modula 3 and Java, vs. • C • Differences in • Popularity • Classes of errors that arise • C is the easy case

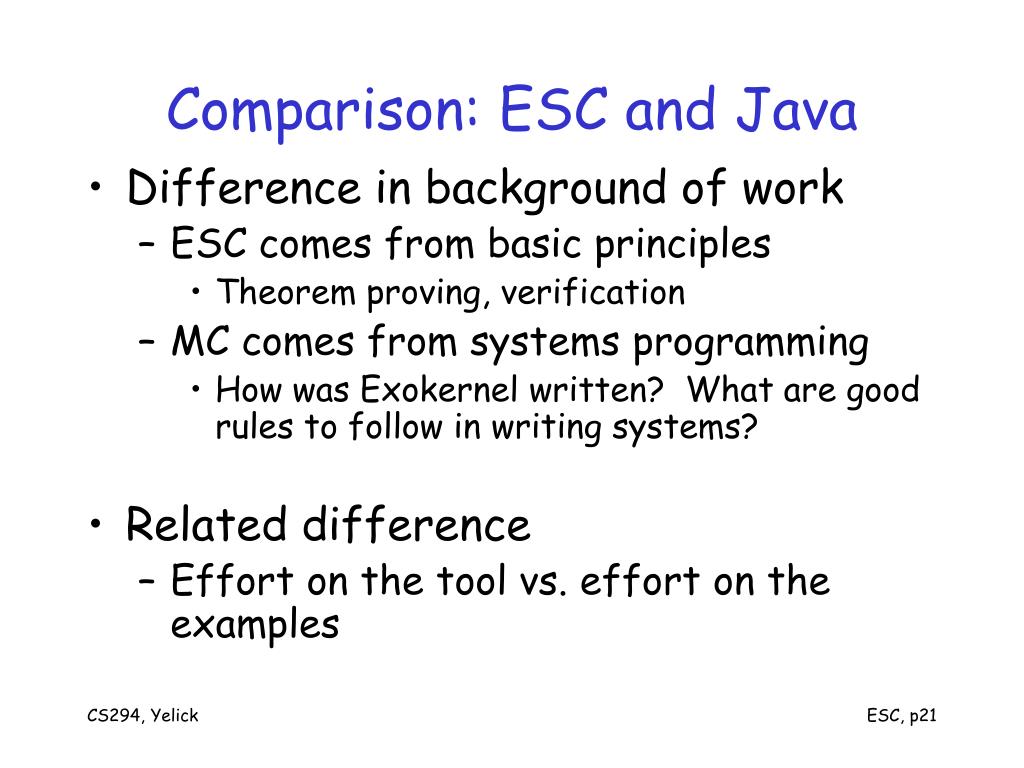

21. Comparison: ESC and Java • Difference in background of work • ESC comes from basic principles • Theorem proving, verification • MC comes from systems programming • How was Exokernel written? What are good rules to follow in writing systems? • Related difference • Effort on the tool vs. effort on the examples

22. Thoughts for Thursday • Larus will be talking about an alternate programming style for servers • Events vs. threads • Related to Telegraph, Ninja, others? • What programming problems likely to arise in this style? • How could checkers help?
