Improved Non- Ionizing Radiation Tolerance of CMOS Sensors

Improved Non- Ionizing Radiation Tolerance of CMOS Sensors Dennis Doering 1 *, Michael Deveaux 1 , Melissa Domachowski 1 , Michal Koziel 1 , Christian Müntz 1 , Paul Scharrer 1 , Joachim Stroth 1,2 1 Institut für Kernphysik, Goethe University Frankfurt/M, Germany

kaveri
Télécharger la présentation

Improved Non- Ionizing Radiation Tolerance of CMOS Sensors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Improved Non-Ionizing Radiation Tolerance of CMOS Sensors Dennis Doering1*, Michael Deveaux1, Melissa Domachowski1, Michal Koziel1, Christian Müntz1, Paul Scharrer1, Joachim Stroth1,2 1Institut für Kernphysik, Goethe University Frankfurt/M, Germany 2GSI Helmholtzzentrum für Schwerionenforschung, Darmstadt, Germany • Outline • CMOS MonolithicActive Pixel Sensors • Non-ionizingradiationdamageeffects • MAPS withhigh-resistivityepitaxiallayer • Radiation tolerance • Triangleof non-ionizingradiationhardness

  2. CMOS Monolithic Active Pixel Sensors • Used by industry (digital camera) • Have been modified for charged particle detection since 1999 by IPHC Strasbourg • Foreseen for STAR, CBM, ALICE, ILC… => Sharing of R&D costs. Current compromise Optimized for one parameter Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  3. Design of a MAPS 10-40 µm => a few µm resolution N+ 50 µm SiO2 P-Well N+ P+ Sensingdiode P- Epitaxial Layer Substrate P+ ~50 µm thinsensors ⇒ Low material budget High granularity ⇒ Goodspatialresolution Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  4. Charge spectrum Diode Epitaxial Layer Particle e- e- Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  5. Non-ionizingradiationdamageeffect Diode Epitaxial Layer Defects due to radiation Particle Charge losses due torecombinationatradiation-induceddefects e- Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  6. Influenceofradiationdamageandpixelpitch Large pixelpitch Large pixelpitch Diode Epitaxial Layer Defects due toradiation Small pixelpitch Small pixelpitch Diode Epitaxial Layer e- e- Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  7. Pixel pitcheffect In mostofthecases, thewholechargecanbedetected. Little lossesfor larger pixelpitchevenunirradiated Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  8. Pixel pitcheffect Signal lossesdepend on thepixelpitch. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  9. Pixel pitcheffect Smallerpixelpitchimprovesradiationtolerance. Drawback: NumberofpixelReadout time Power consumption Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  10. High-resistivity New CMOS processavailable: High-resistivity: Decreaseofdopingconcentration in epitaxiallayer. Low-resistivity ~ 30 Ωcm High-resistivity ~1k Ωcm Sensingdiode SiO2 depletedvolume P-Well N+ P+ P- Epitaxial Layer Substrate P+ • Larger depletedvolumes: • ⇒ Acceleratedchargecollection • ⇒ Improved non-ionizingradiationtolerance Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  11. MIMOSA-18 AHR MIMOSA-18 AHR: Analog sensorwithhigh-resistivityEpitaxial Layer. Main features: High-resistivity ~1k Ωcm EPI layer 2.5V-3V depletionvoltage Pixel pitchfrom 25µm down to 10µm Irradiation upto 3·1014neq/cm² @ TRIGA reactor (Ljubljana/Slovenia) Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

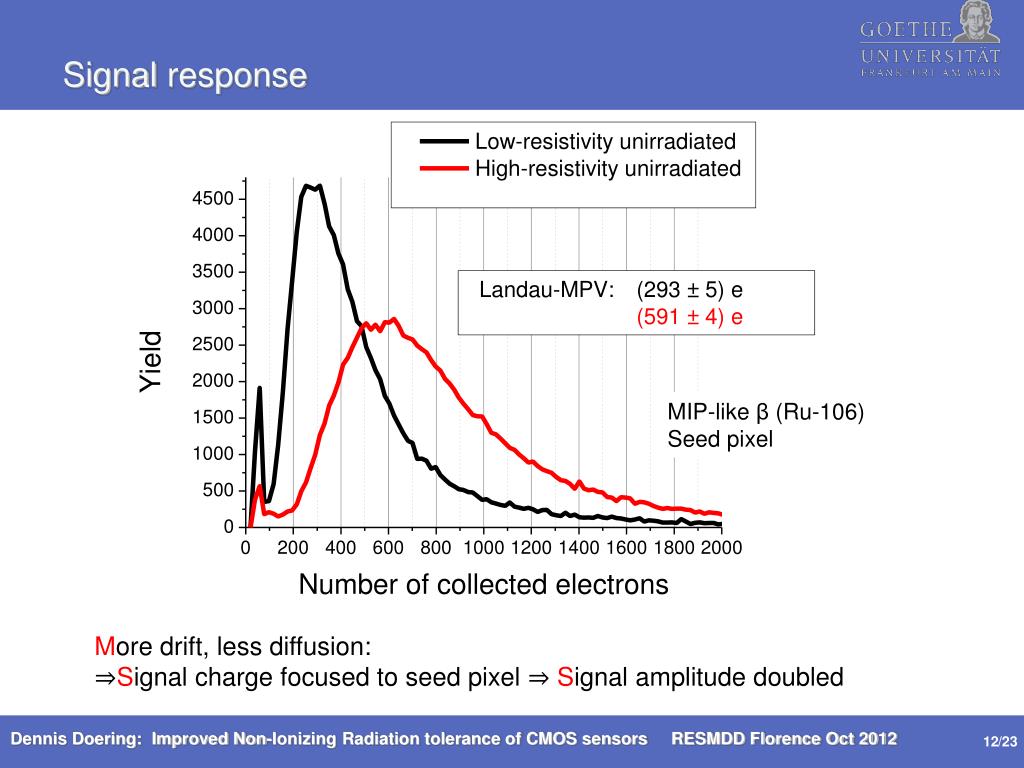

  12. Signal response MIP-likeβ (Ru-106) Seedpixel More drift, less diffusion: ⇒Signal charge focused to seed pixel ⇒Signal amplitude doubled Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

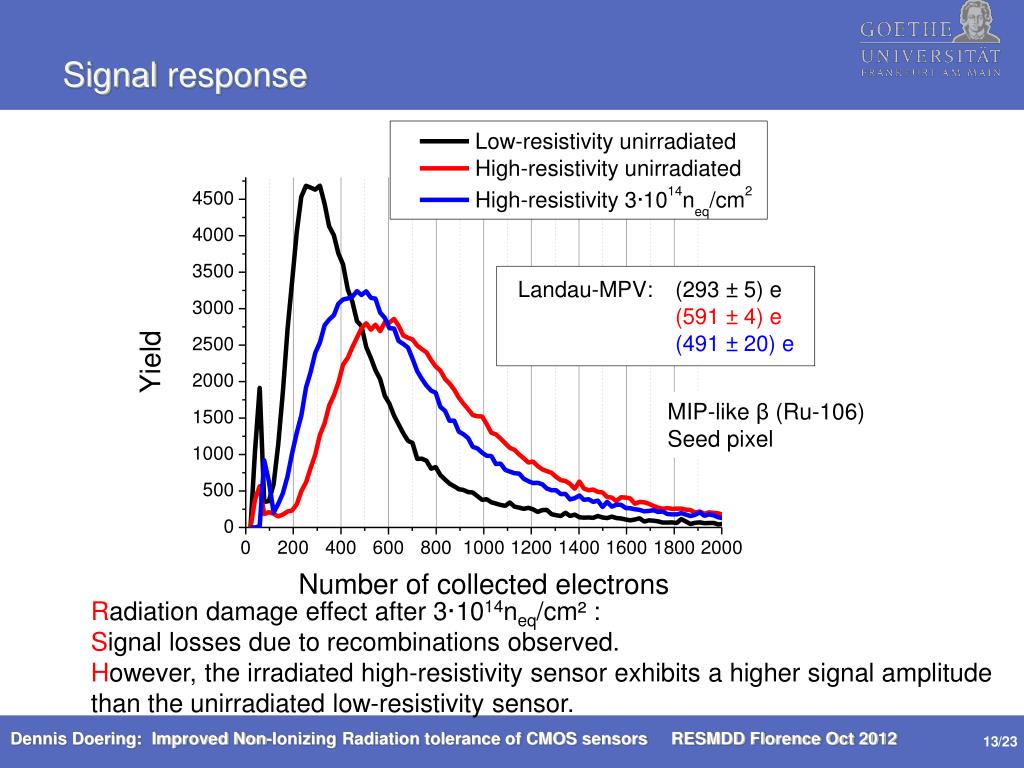

  13. Signal response MIP-likeβ (Ru-106) Seedpixel Radiation damageeffect after 3·1014neq/cm² : Signal losses due torecombinationsobserved. However, theirradiatedhigh-resistivitysensorexhibits a highersignalamplitudethantheunirradiatedlow-resistivitysensor. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  14. Noise Radiation damage Substantial increase in thebulknoiseisobserved. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  15. Noise Radiation damage Useoftemperaturedependenceofbulknoise Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  16. Noise Cooling Radiation damage Noise isalleviatedto a factorof 2 withdecreasingtemperature. Expect further noise reduction in case of faster readout. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  17. Signal to Noise ratio S/N limit (MIPS) Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  18. Signal to Noise ratio (High-resistivity) S/N limit (MIPS) Error bars: Fit uncertainty + 10% noiseuncertainty Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  19. Signal to Noise ratio High-resistivity S/N limit (MIPS) Error bars: Fit uncertainty + 10% noiseuncertainty Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  20. Signal to Noise ratio High-resistivity S/N limit (MIPS) Error bars: Fit uncertainty + 10% noiseuncertainty Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  21. Radiation tolerance Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  22. Summary • Radiation tolerance studies up to 3·1014neq/cm² • Results: • CMOS sensors based on high-resistivity epitaxial layer exhibit substantially improved performance, (S/N ~ doubled) • Radiation tolerancedepends on thepixelpitch • Laboratory test indicates: • Radiation tolerance is beyond 3·1014neq/cm² (Pitch 10µm, cooled sensor) • Outlook: • Ionizing radiation hardness addressed by MIMOSA-32 – fabricated in an 0.18µm process -> S. Senyukov (next talk) Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  23. Triangle of non-ionizing radiation tolerant MAPS Resistivity Temperature Pitch Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  24. BACKUP Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  25. Radiation tolerance Sensor: - Mi-18 AHR, SB-Pixel, 10 µm pitch - Epitaxiallayer: 400 W cm, 15 µm Irradiation: - fast reactorneutrons (Triga, Ljubljana) - Chip not poweredduringirradiation - Dose: 3 · 1014neq/cm² + O(3 MRad) Gain ok 3 · 1014neq/cm² + O(3 MRad) Not irradiated CCE ok Noise increases => Compensatewithcooling. Noise increases <20% lessentries Thinneractive vol.? Fe-55 (X-rays) Ru-106 (b-rays) 490e (MPV) <20% lesssignal Thinneract. vol.? 620e (MPV) 99% det. eff. after irrad. Preliminaryconclusion: Sensor tolerates 3 · 1014neq/cm², tobeconfirmed in beam test Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  26. Pixel with 12µm and 25µm pitch (Fe-55) Seedpixelcluster MIMOSA-18 AHR 12µm (A1) MIMOSA-18 AHR 25µm (A2) Fe-55 X-ray CCE shifted CCE ok gain ok 12 µm pitch: Average CCE isconstant. 25µm pitch: Shifttolowervaluesasobserved in sensorsbased on lowresistivity EPI layer. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  27. Pixel with 12µm and 25µm pitch (Fe-55) Cluster of 25 pixel => Larger diffusionpaths 12 µm pitch: Shiftofclusterpeaknowvisible ⇒ somesignalcharges lost which diffuse longerdistance (toneighborpixels) 25µm pitch: Dramaticshift ⇒ 12µm pixelpitch: in a partofEpitaxiallayersignal lost due torecombinationcanbeneglected Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  28. Temperaturemeasurementwithinfraredcamera Huber system CC 815 -70°C - + 35°C Infrared MIMOSA-18 Sensor isoperating Camerapaint T ofsensor T ofcooling liquid -3°C /-20°C Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  29. High resistivity Standard: 13 Ω cm; NA≈1015 cm-3 High resistivity: 400 Ω cm; NA≈3.3 1013 cm-3 Size ofthe depletedzone Doping concentration • Idea: Decreasingthedopingconcentrationfrom 1015shouldincreasethesizeofthedepletedzone: • Improvedperformanceexpected. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  30. Applicationsof MAPS STAR-Experiment CBM-Experiment (FAIR, GSI) Possible ITS-Upgrade ALICE International Linear Collider MAPS are developed for applications as vertex detector since 1999 at IPHC (Strasbourg). Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  31. MIMOSA-26 - Working horse since several years Pixel column Sensingpart • 21.2 x 10.6 mm² 1152 discriminators Digital part zero suppr. logic On-chip voltage regulators JTAG slow control Output memories Read out time: ~100 µs => ~ 10k frames/second Radiation tolerance: >300 kRad; > Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012

  32. Pixel pitcheffect Photons (Fe-55) Summedclustercharge Signal lossesdepend on thepixelpitch. Dennis Doering: Improved Non-Ionizing Radiation tolerance of CMOS sensors RESMDD Florence Oct 2012
