Presentation Transcript

  1. Partial Derivatives Written by Dr. Julia Arnold Professor of Mathematics Tidewater Community College, Norfolk Campus, Norfolk, VA With Assistance from a VCCS LearningWare Grant

  2. In this lesson you will learn • about partial derivatives of a function of two variables • about partial derivatives of a function of three or more variables • higher-order partial derivative

  3. Partial derivatives are defined as derivatives of a function of multiple variables when all but the variable of interest are held fixed during the differentiation. Definition of Partial Derivatives of a Function of Two Variables If z = f(x,y), the the first partial derivatives of f with respect to x and y are the functions fx and fy defined by Provided the limits exist.

  4. To find the partial derivatives, hold one variable constant and differentiate with respect to the other. Example 1: Find the partial derivatives fx and fy for the function

  5. To find the partial derivatives, hold one variable constant and differentiate with respect to the other. Example 1: Find the partial derivatives fx and fy for the function Solution:

  6. Notation for First Partial Derivative For z = f(x,y), the partial derivatives fx and fy are denoted by The first partials evaluated at the point (a,b) are denoted by

  7. Example 2: Find the partials fx and fy and evaluate them at the indicated point for the function

  8. Example 2: Find the partials fx and fy and evaluate them at the indicated point for the function Solution:

  9. The slide which follows shows the geometric interpretation of the partial derivative. For a fixed x, z = f(x0,y) represents the curve formed by intersecting the surface z = f(x,y) with the plane x = x0. represents the slope of this curve at the point (x0,y0,f(x0,y0)) In order to view the animation, you must have the power point in slide show mode. Thanks to http://astro.temple.edu/~dhill001/partial-demo/ For the animation.

  10. Definition of Partial Derivatives of a Function of Three or More Variables If w = f(x,y,z), then there are three partial derivatives each of which is formed by holding two of the variables In general, if where all but the kth variable is held constant

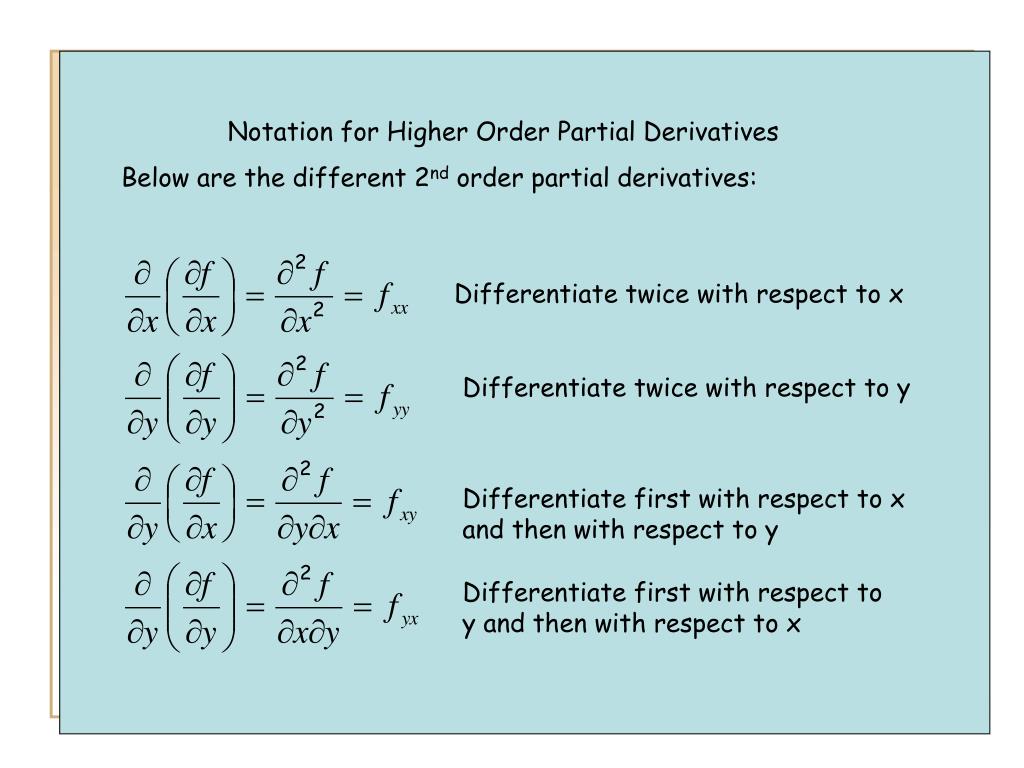

  11. Notation for Higher Order Partial Derivatives Below are the different 2nd order partial derivatives: Differentiate twice with respect to x Differentiate twice with respect to y Differentiate first with respect to x and then with respect to y Differentiate first with respect to y and then with respect to x

  12. Theorem If f is a function of x and y such that fxy and fyx are continuous on an open disk R, then, for every (x,y) in R, fxy(x,y)= fyx(x,y) Example 3: Find all of the second partial derivatives of Work the problem first then check.

  13. Example 3: Find all of the second partial derivatives of Notice that fxy = fyx

  14. Example 4: Find the following partial derivatives for the function a. b. c. d. e. Work it out then go to the next slide.

  15. Example 4: Find the following partial derivatives for the function a. Again, notice that the 2nd partials fxz = fzx b.

  16. c. e. Notice All Are Equal d.

  17. For comments on this presentation you may email the author Dr. Julia Arnold at jarnold@tcc.edu.
