  1. Web Load Balancing Through More Accurate Sever Report C. Edward Chow and Indira Semwal Department of Computer Science University of Colorado Springs In the 2nd PDCAT conference

  2. Outline • 1. Introduction • 2. Related Research • 3. Apache Web Server with Accurate Server Load Reporting • 4. Webstone Benchmarking Result • 5. Conclusion

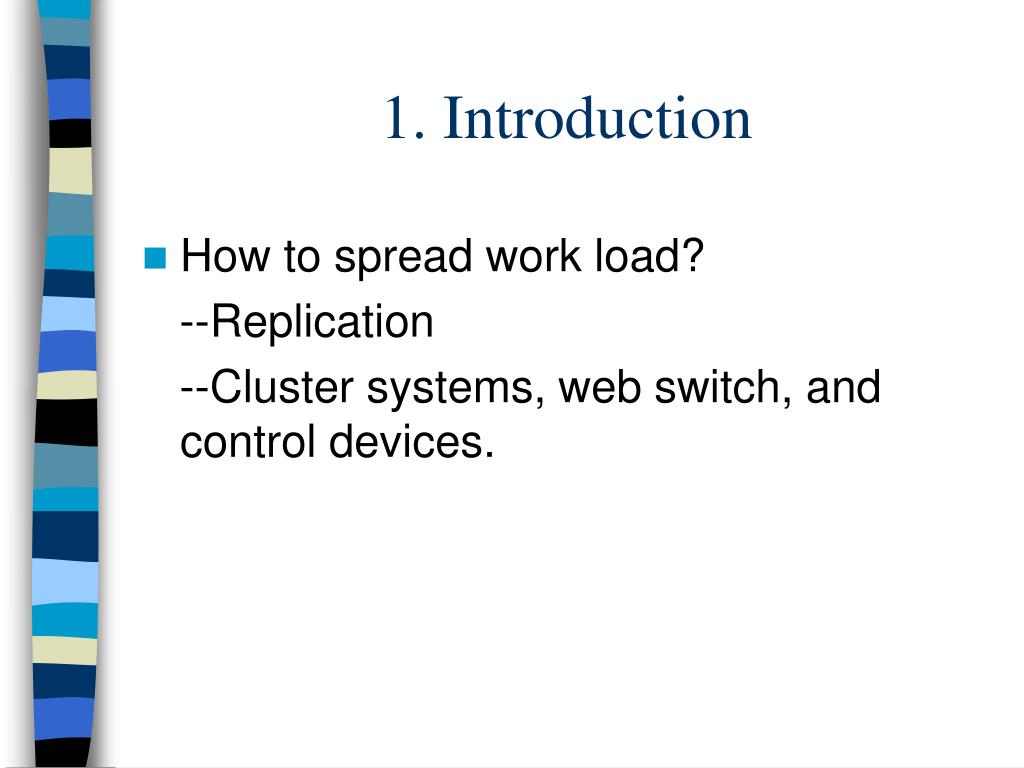

  3. 1. Introduction • How to spread work load? --Replication --Cluster systems, web switch, and control devices.

  4. Introduction(cont.)

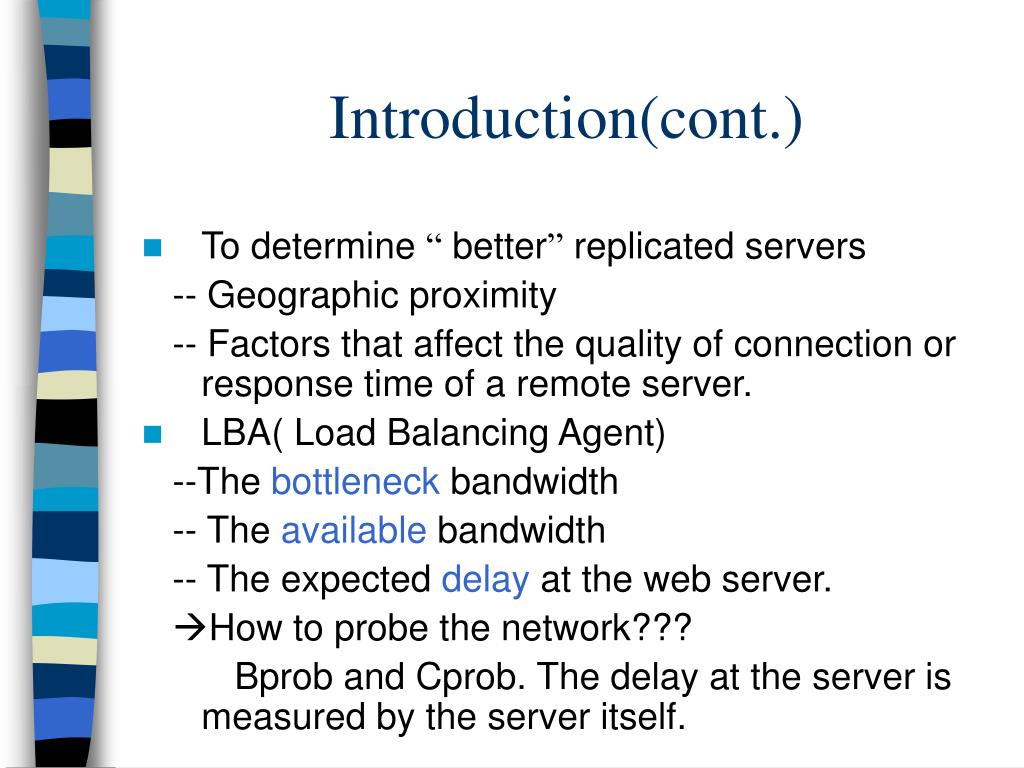

  5. Introduction(cont.) • To determine “ better” replicated servers -- Geographic proximity -- Factors that affect the quality of connection or response time of a remote server. • LBA( Load Balancing Agent) --The bottleneck bandwidth -- The available bandwidth -- The expected delay at the web server. How to probe the network??? Bprob and Cprob. The delay at the server is measured by the server itself.

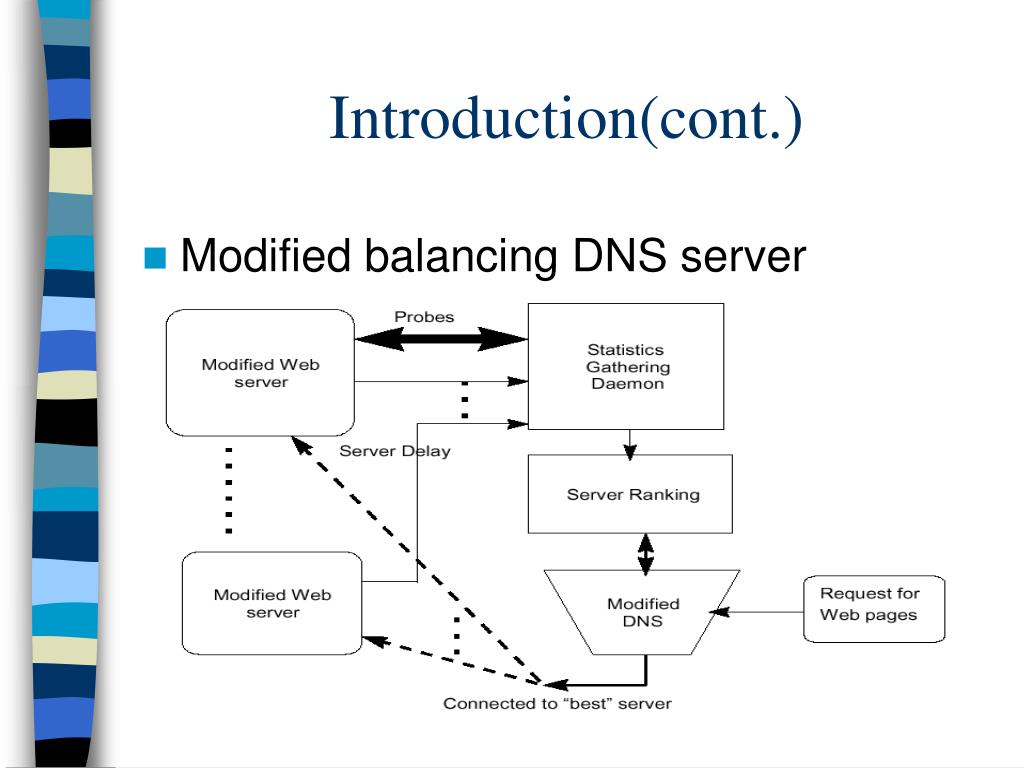

  6. Introduction(cont.) • Modified balancing DNS server

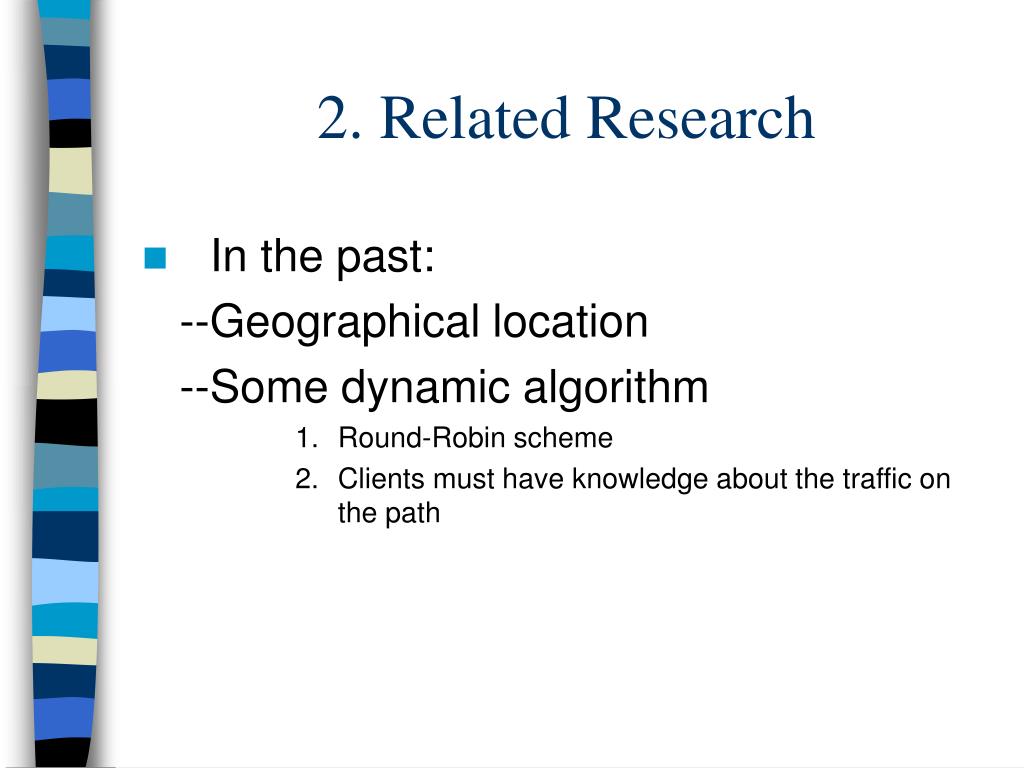

  7. 2. Related Research • In the past: --Geographical location --Some dynamic algorithm • Round-Robin scheme • Clients must have knowledge about the traffic on the path

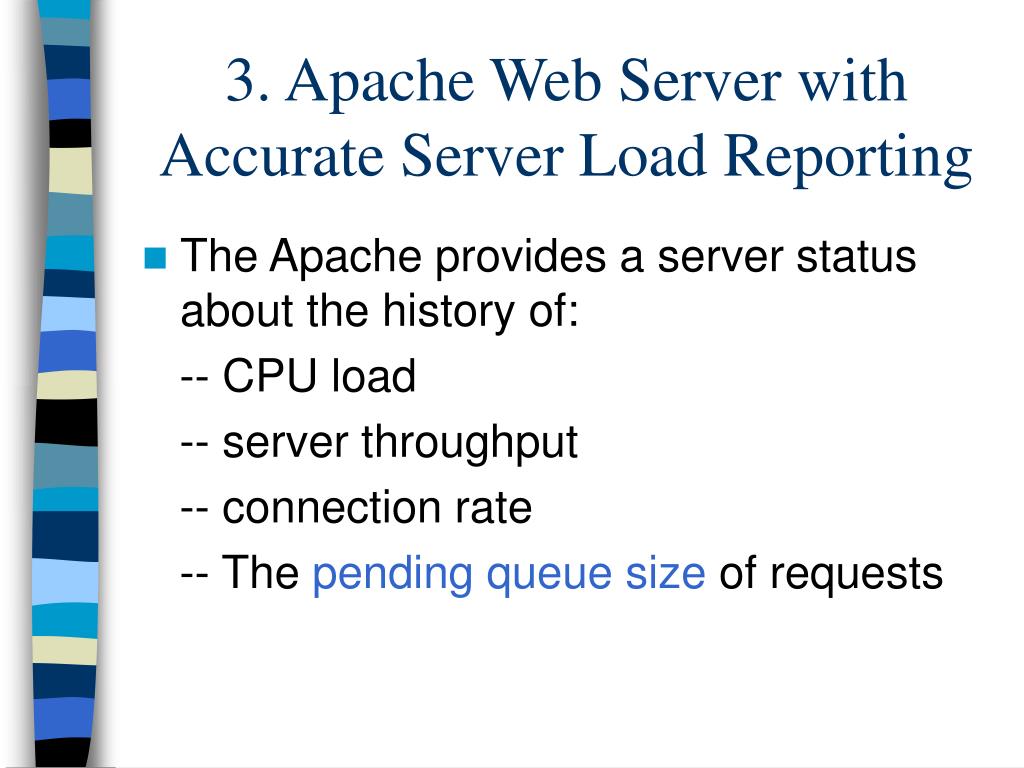

  8. 3. Apache Web Server with Accurate Server Load Reporting • The Apache provides a server status about the history of: -- CPU load -- server throughput -- connection rate -- The pending queue size of requests

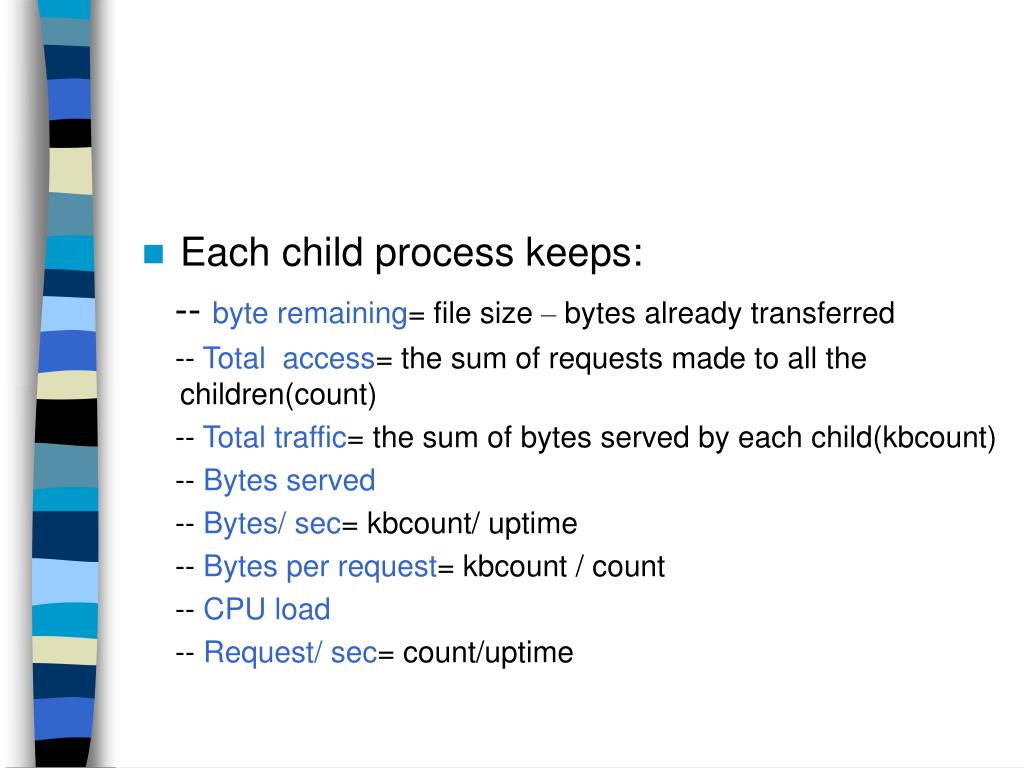

  9. Each child process keeps: -- byte remaining= file size – bytes already transferred -- Total access= the sum of requests made to all the children(count) -- Total traffic= the sum of bytes served by each child(kbcount) -- Bytes served -- Bytes/ sec= kbcount/ uptime -- Bytes per request= kbcount / count -- CPU load -- Request/ sec= count/uptime

  10. Statue handler Child Speed=( the sum of Bytes sent/ the sum of time)/ N Average Speed= the sum of child speed / The number of alive children precesses Time left= B/ Average Speed

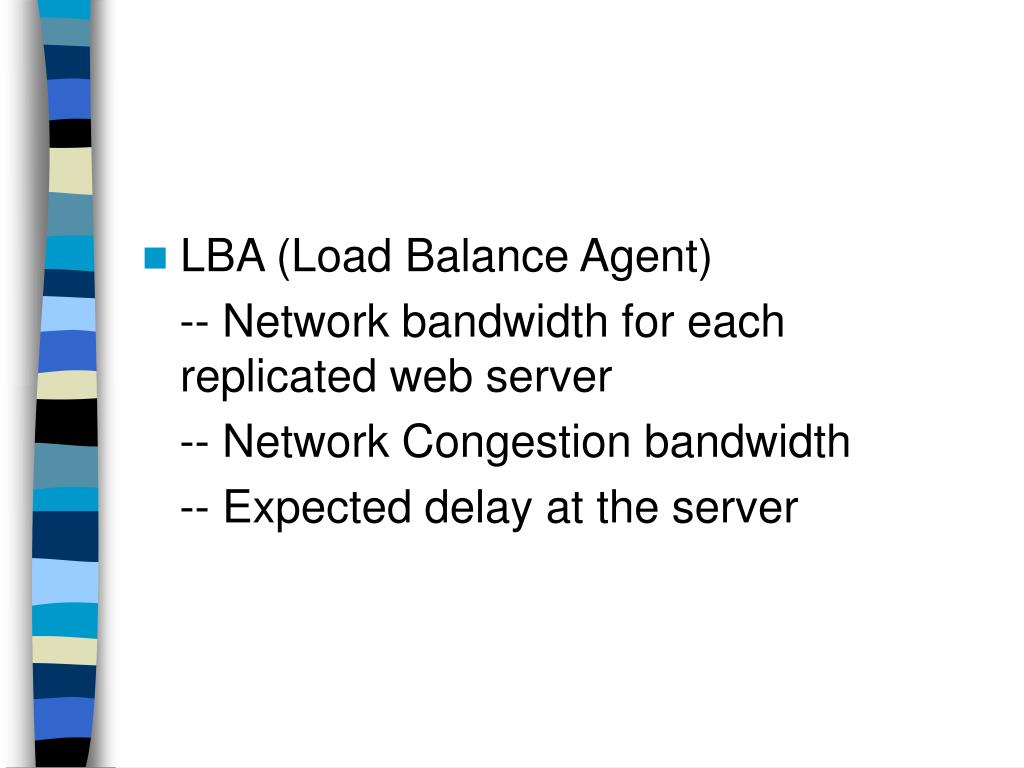

  11. LBA (Load Balance Agent) -- Network bandwidth for each replicated web server -- Network Congestion bandwidth -- Expected delay at the server

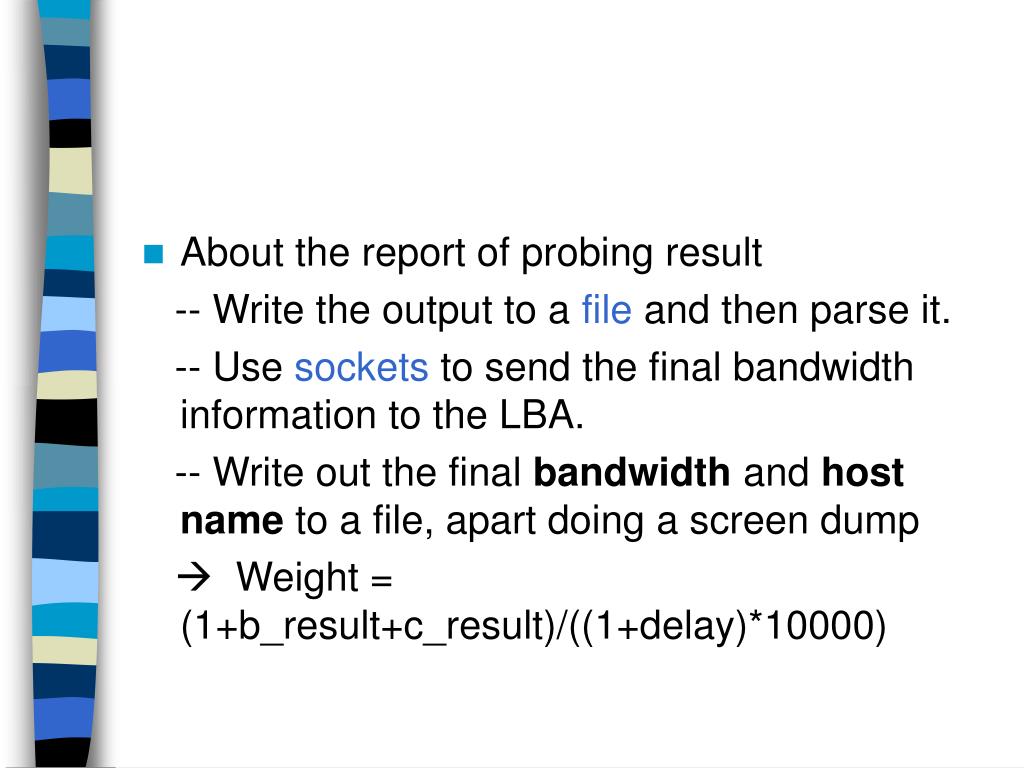

  12. About the report of probing result -- Write the output to a file and then parse it. -- Use sockets to send the final bandwidth information to the LBA. -- Write out the final bandwidth and host name to a file, apart doing a screen dump  Weight = (1+b_result+c_result)/((1+delay)*10000)

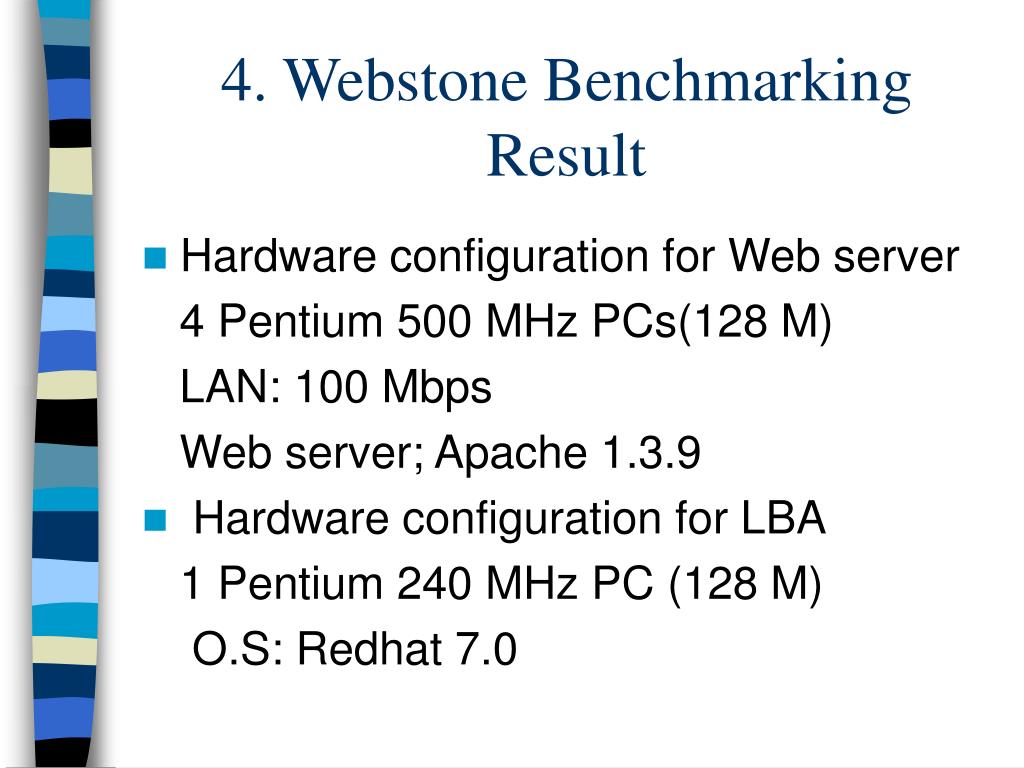

  13. 4. Webstone Benchmarking Result • Hardware configuration for Web server 4 Pentium 500 MHz PCs(128 M) LAN: 100 Mbps Web server; Apache 1.3.9 • Hardware configuration for LBA 1 Pentium 240 MHz PC (128 M) O.S: Redhat 7.0

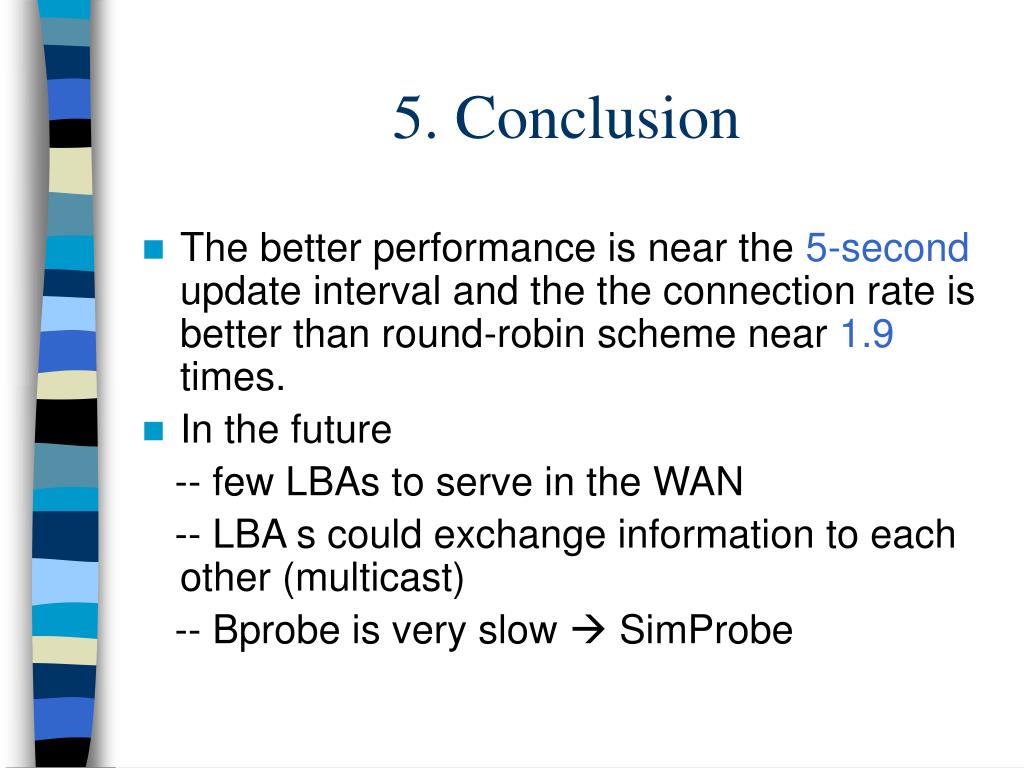

  14. 5. Conclusion • The better performance is near the 5-second update interval and the the connection rate is better than round-robin scheme near 1.9 times. • In the future -- few LBAs to serve in the WAN -- LBA s could exchange information to each other (multicast) -- Bprobe is very slow  SimProbe
