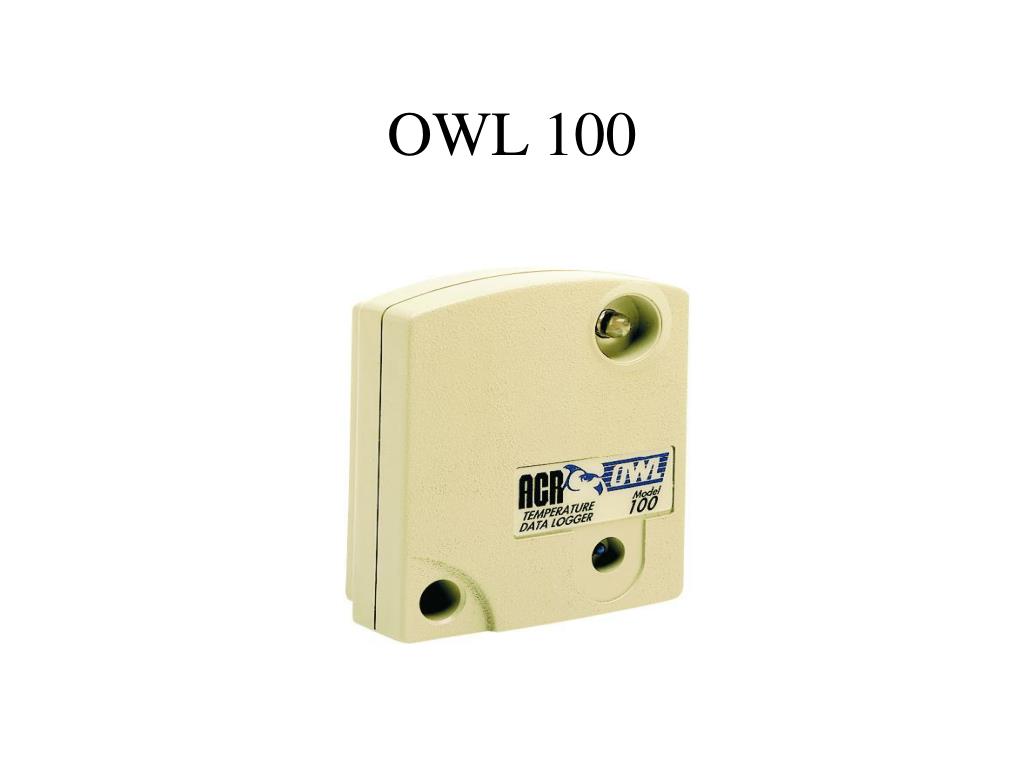

  1. OWL 100

  2. Features • Offers temperature recording in a small, water-resistant enclosure • Uses an NTC thermistor • Configurable by a few, easy key strokes

  3. Application • Testing and balancing HVAC systems • Monitoring temperature of perishable goods • Verifying food processes • Providing environmental data

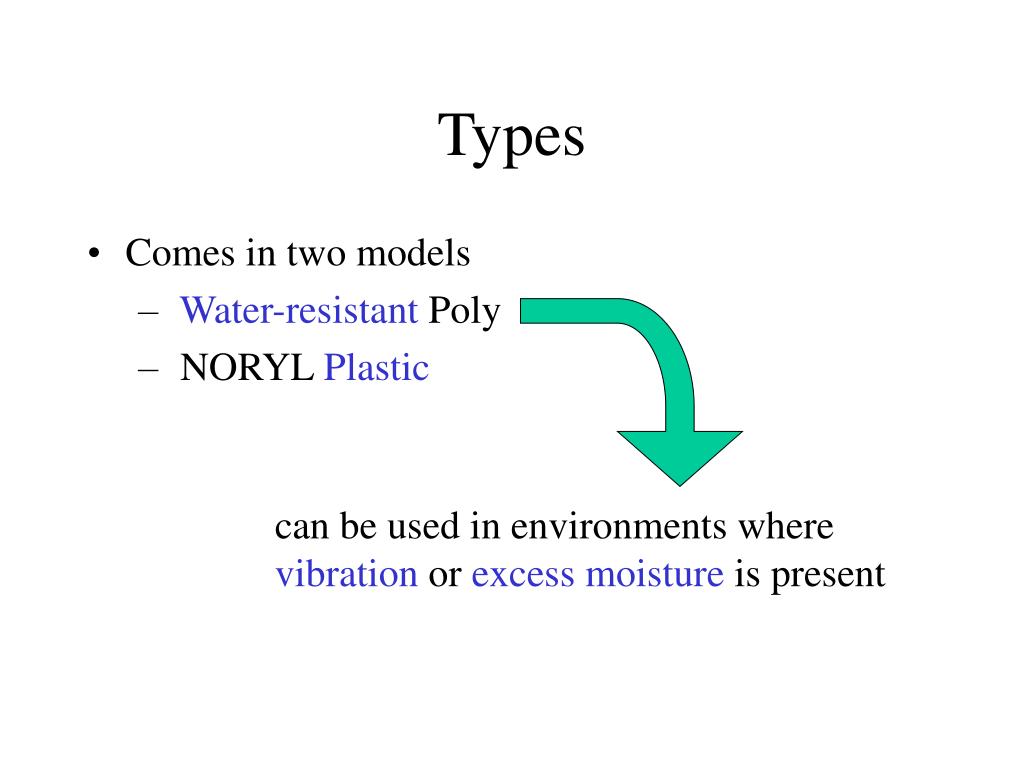

  4. Types • Comes in two models • Water-resistant Poly • NORYL Plastic can be used in environments where vibration or excess moisture is present

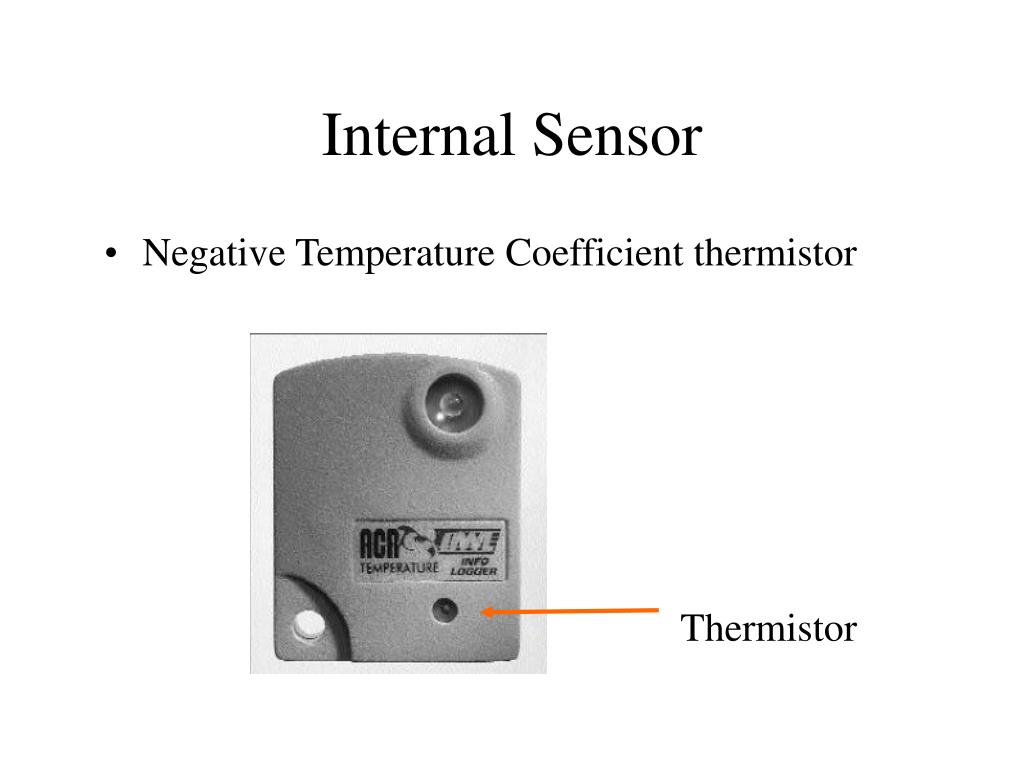

  5. Internal Sensor • Negative Temperature Coefficient thermistor Thermistor

  6. Memory • 32 KB it can store 32767 readings • Can record 23 days non-stop • with a sampling rate of 1 minute

  7. Easy Setup Sample Rate Equation Range

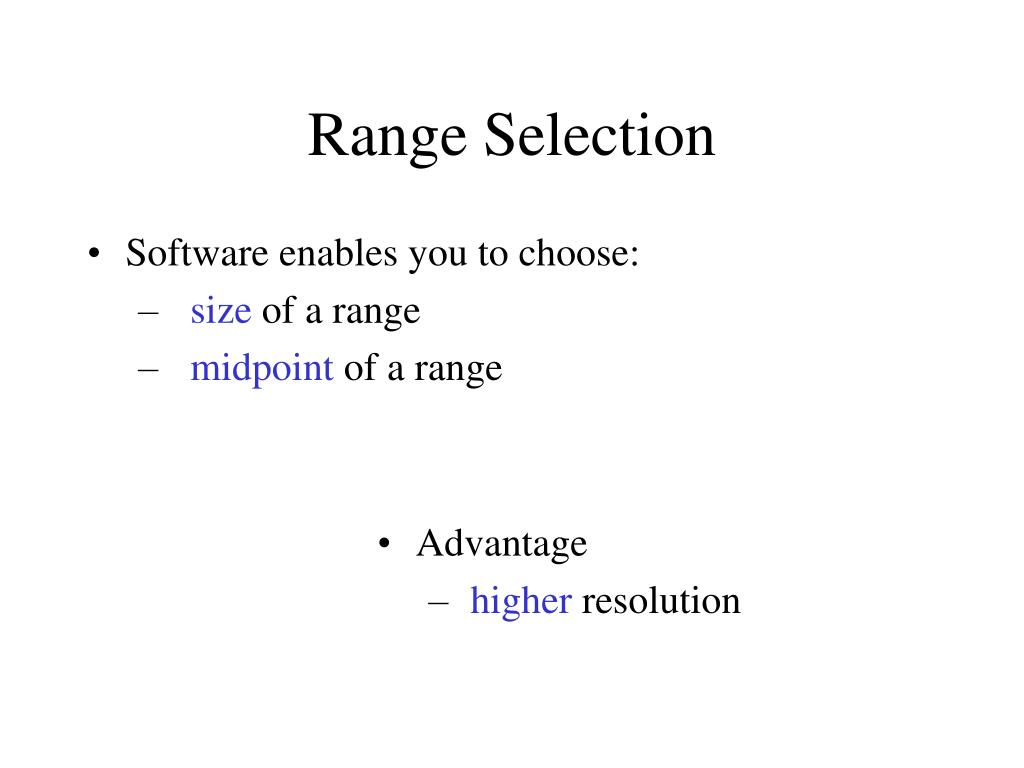

  8. Range Selection • Software enables you to choose: • size of a range • midpoint of a range • Advantage • higher resolution

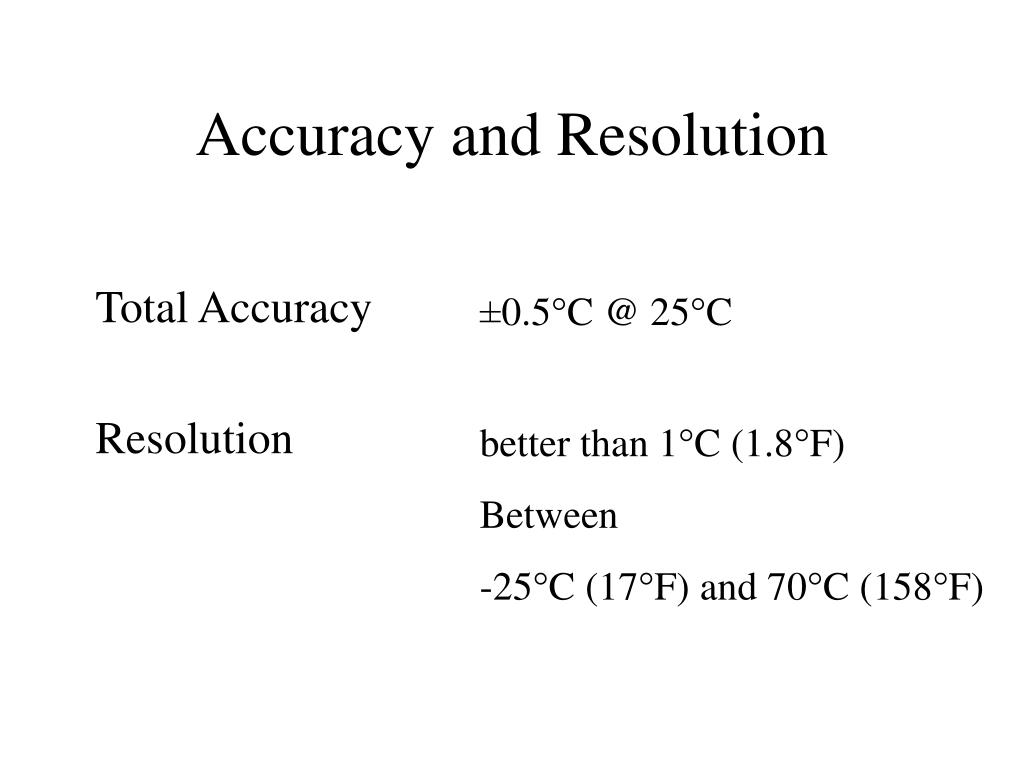

  9. Accuracy and Resolution Total Accuracy Resolution ±0.5°C @ 25°C better than 1°C (1.8°F) Between -25°C (17°F) and 70°C (158°F)
