Scalar. a quantity described by magnitude only. examples include:. time, length, speed, temperature, mass, energy. Vector. a quantity described by magnitude and direction. examples include:. velocity, displacement, force, momentum, electric and magnetic fields.

keith-jensen
Télécharger la présentation

Scalar

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Scalar a quantity described by magnitudeonly examples include: time, length, speed, temperature, mass, energy Vector a quantity described bymagnitudeanddirection examples include: velocity, displacement, force, momentum, electric and magnetic fields

  2. Vectors are usually named with capital letters with arrows above the letter. They are represented graphically as arrows. The length of the arrow corresponds to the magnitude of the vector. The direction the arrow points is the vector direction. Examples include: A = 20 m/s at 35° NE B = 120 lb at 60° SE C = 5.8 mph/s west

  3. Vector Addition vectors may be added graphically or analytically Triangle (Head-to-Tail) Method 1. Draw the first vector with the proper length and orientation. 2. Draw the second vector with the proper length and orientation originating from the head of the first vector. 3. The resultant vector is the vector originating at the tail of the first vector and terminating at the head of the second vector. 4. Measure the length and orientation angle of the resultant.

  4. Example: A = 11 N @ 35° NE Find the resultant of A and B. B = 18 N @ 20° NW B 20° NW R R =14.8 N @57° NW A 57° NW 35° NE

  5. Parallelogram (Tail-to-Tail) Method 1. Draw both vectors with proper length and orientation originating from the same point. 2. Complete a parallelogram using the two vectors as two of the sides. 3. Draw the resultant vector as the diagonal originating from the tails. 4. Measure the length and angle of the resultant vector.

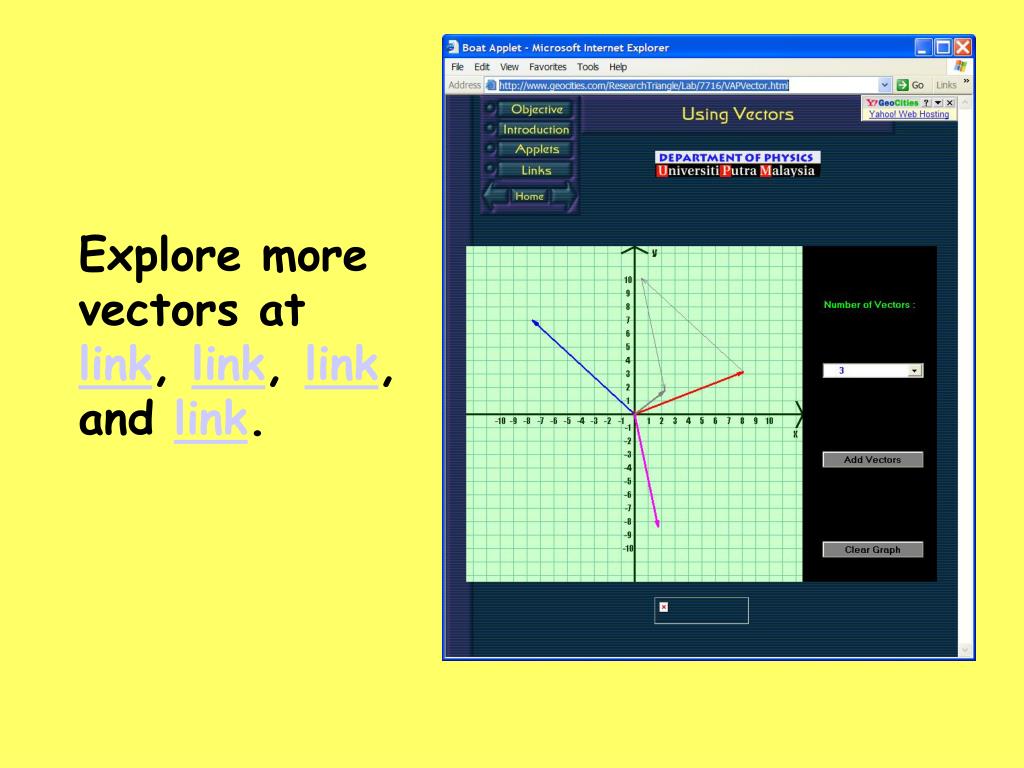

  6. Explore more vectors at link, link, link, and link.

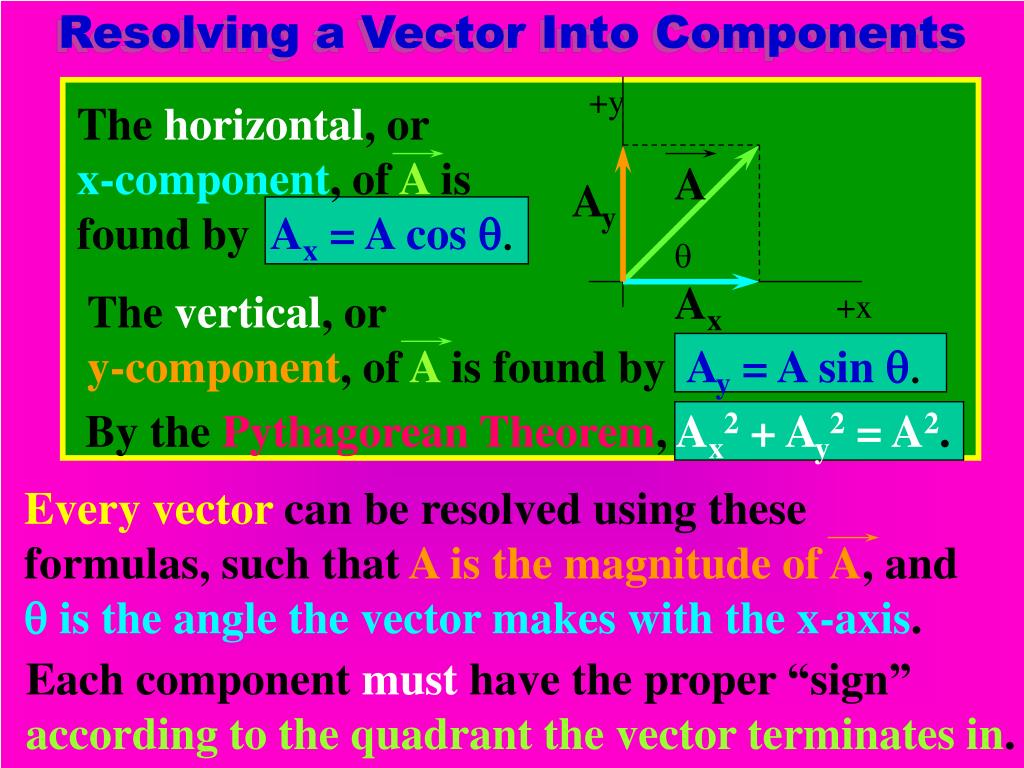

  7. Resolving a Vector Into Components +y The horizontal, or x-component, of A is found by Ax = A cos q. A Ay q Ax The vertical, or y-component, of A is found by Ay = A sin q. +x By the Pythagorean Theorem, Ax2 + Ay2 = A2. Every vector can be resolved using these formulas, such that A is the magnitude of A, and q is the angle the vector makes with the x-axis. Each component must have the proper “sign” according to the quadrant the vector terminates in.

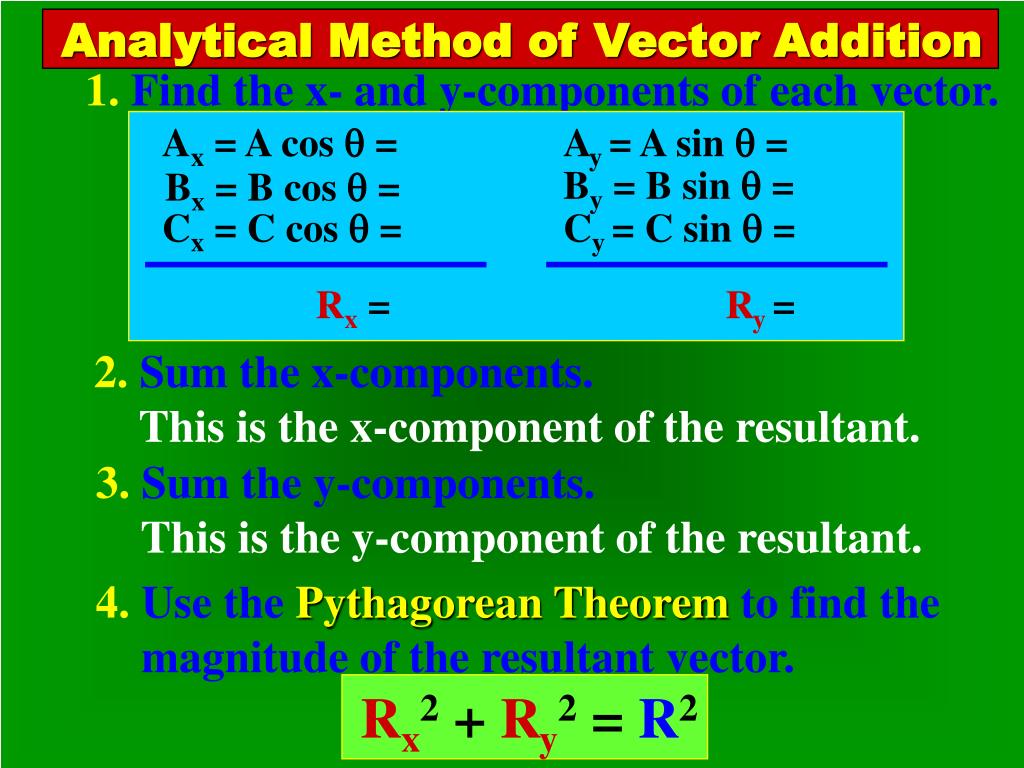

  8. Analytical Method of Vector Addition 1.Find the x- and y-components of each vector. Ax = A cos q = Ay = A sin q = By = B sin q = Bx = B cos q = Cx = C cos q = Cy = C sin q = Rx= Ry = 2.Sum the x-components. This is the x-component of the resultant. 3.Sum the y-components. This is the y-component of the resultant. 4.Use the Pythagorean Theorem to find the magnitude of the resultant vector. Rx2 + Ry2 = R2
