  1. Understanding our Isis Example Program Ken Birman

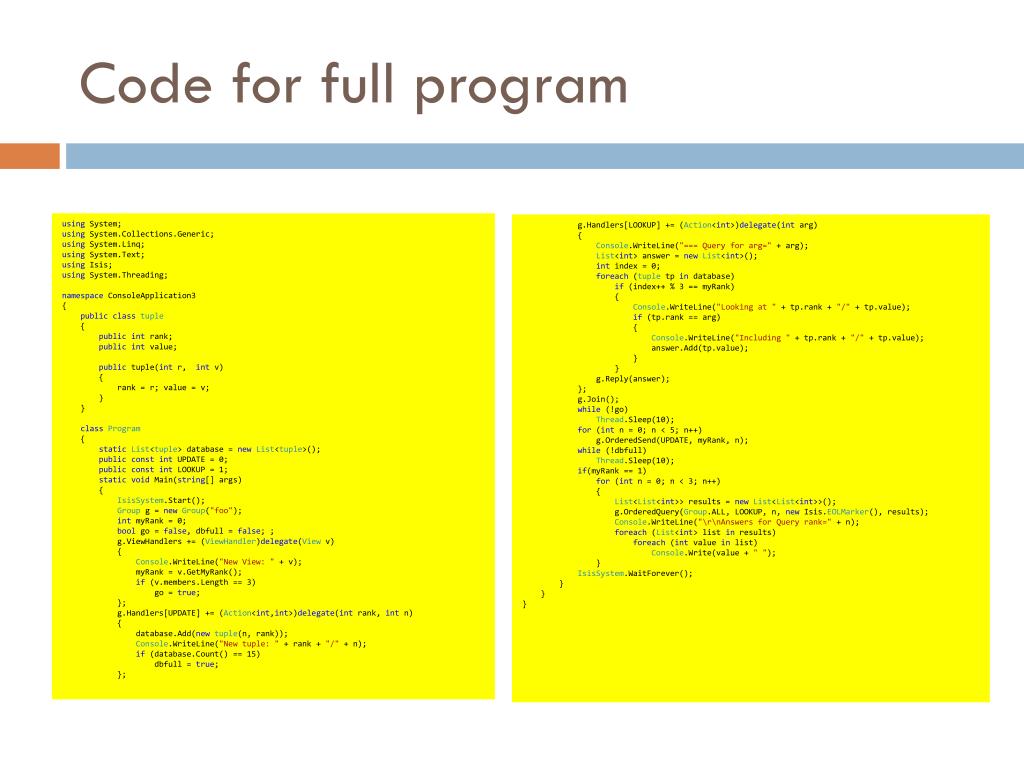

  2. Code for full program using System; usingSystem.Collections.Generic; usingSystem.Linq; usingSystem.Text; using Isis; usingSystem.Threading; namespace ConsoleApplication3 { publicclasstuple { publicint rank; publicint value; public tuple(int r, int v) { rank = r; value = v; } } classProgram { staticList<tuple> database = newList<tuple>(); publicconstint UPDATE = 0; publicconstint LOOKUP = 1; staticvoid Main(string[] args) { IsisSystem.Start(); Group g = newGroup("foo"); intmyRank = 0; bool go = false, dbfull = false; ; g.ViewHandlers += (ViewHandler)delegate(View v) { Console.WriteLine("New View: " + v); myRank = v.GetMyRank(); if (v.members.Length == 3) go = true; }; g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { database.Add(newtuple(n, rank)); Console.WriteLine("New tuple: " + rank + "/" + n); if (database.Count() == 15) dbfull = true; }; g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { Console.WriteLine("=== Query for arg=" + arg); List<int> answer = newList<int>(); int index = 0; foreach (tupletpin database) if (index++ % 3 == myRank) { Console.WriteLine("Looking at " + tp.rank + "/" + tp.value); if (tp.rank == arg) { Console.WriteLine("Including " + tp.rank + "/" + tp.value); answer.Add(tp.value); } } g.Reply(answer); }; g.Join(); while (!go) Thread.Sleep(10); for (int n = 0; n < 5; n++) g.OrderedSend(UPDATE, myRank, n); while (!dbfull) Thread.Sleep(10); if(myRank == 1) for (int n = 0; n < 3; n++) { List<List<int>> results = newList<List<int>>(); g.OrderedQuery(Group.ALL, LOOKUP, n, newIsis.EOLMarker(), results); Console.WriteLine("\r\nAnswers for Query rank=" + n); foreach (List<int> list in results) foreach (int value in list) Console.Write(value + " "); } IsisSystem.WaitForever(); } } }

  3. What the program does • Forms a process group • When there are 3 members, each of the 3 simultaneously sends updates to the group • They store these updates in “tuple” objects, as a list, called the “database” list. • Then 2 members wait (Isis.WaitForEver) while the 3rd member sends queries to the list • The queries are designed to select a subset of the data • We “subdivide” the work of searching the list

  4. What the program does • First member startsthe system • If several start atsame time, a Consensus within Isis2 decides which will be the first member • When it calls g.Join(),group is created • We see a first Viewreport staticvoid Main(string[] args) { IsisSystem.Start(); Group g = newGroup("foo"); . . . g.Join(); while (!go) Thread.Sleep(1); . . . }

  5. Consensus “in action”: IsisSystem.Start() • Step 1: Discovery • “Is anyone running Isis?” • Step 2: Collision • They hear each other! • Consensus: The process withthe smallest id is pickedby fault-tolerant algorithm • Step 3: A starts first. B and C are added next Copy A B C Step 1 {A, B, C} Step 2 {A, B, C} {A, B, C} Add B Add C B added C added

  6. Notice: A “wins the race” A is active before B,C • IsisSystem.Start() finishes first in A • B and C join “in background” but user code is already running in A Copy A B C Step 1 {A, B, C} Step 2 {A, B, C} {A, B, C} Add B Add C B added C added

  7. FLP impact? • It is impossible to guarantee progress for a correct consensus protocol that tolerates even one fault • Clearly Isis2 startup is solving consensus • Thus we can guarantee that startup will succeed • However, we can make it “very likely” that it will succeed, and this is enough

  8. What does A do now? Type signature g.ViewHandlers+= (ViewHandler)delegate(View v) { . . . Code for when a new membership view is defined . . . }; g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { . . . Code for doing an UPDATE action . . . }; g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { . . . Code for doing a LOOKUP action . . . }; g.Join(); Anonymous method

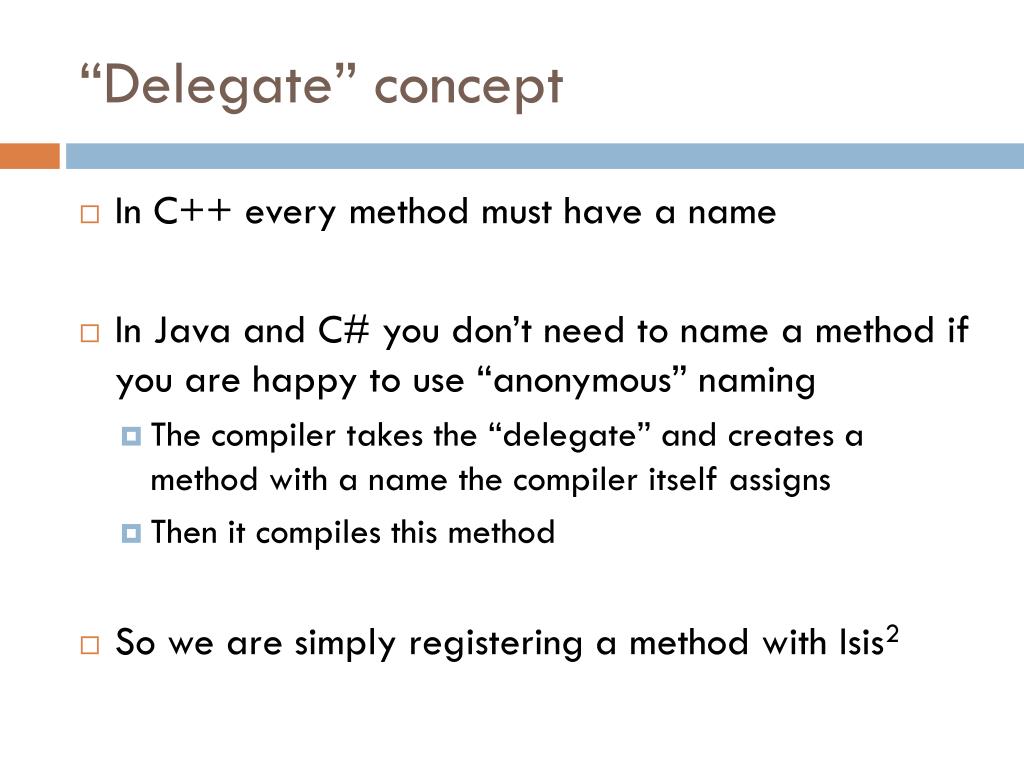

  9. “Delegate” concept • In C++ every method must have a name • In Java and C# you don’t need to name a method if you are happy to use “anonymous” naming • The compiler takes the “delegate” and creates a method with a name the compiler itself assigns • Then it compiles this method • So we are simply registering a method with Isis2

  10. What does A do now? g.ViewHandlers+= (ViewHandler)delegate(View v) { . . . Code for when a new membership view is defined . . . }; g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { . . . Code for doing an UPDATE action . . . }; g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { . . . Code for doing a LOOKUP action . . . }; g.Join();

  11. Variables in a delegate • Arguments are provided during the “upcall” • But a delegate can also access variables that were accessible in the method where it is placed • Thus our delegates can use variables created by the Main method. • We use this to access the “database” variable

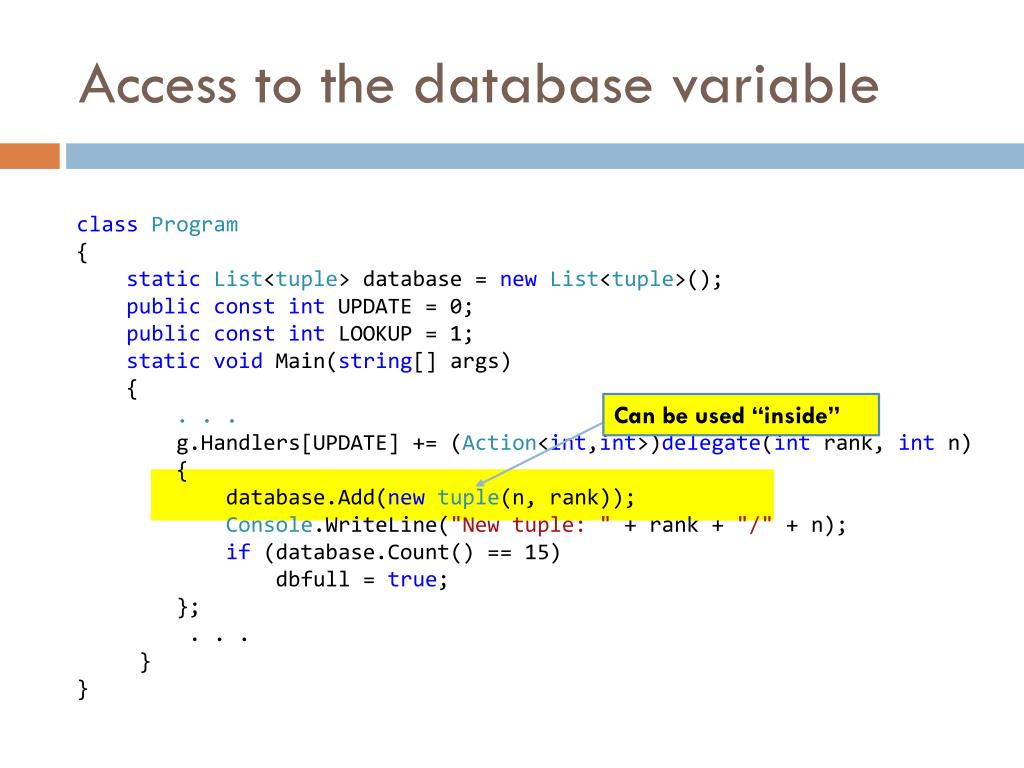

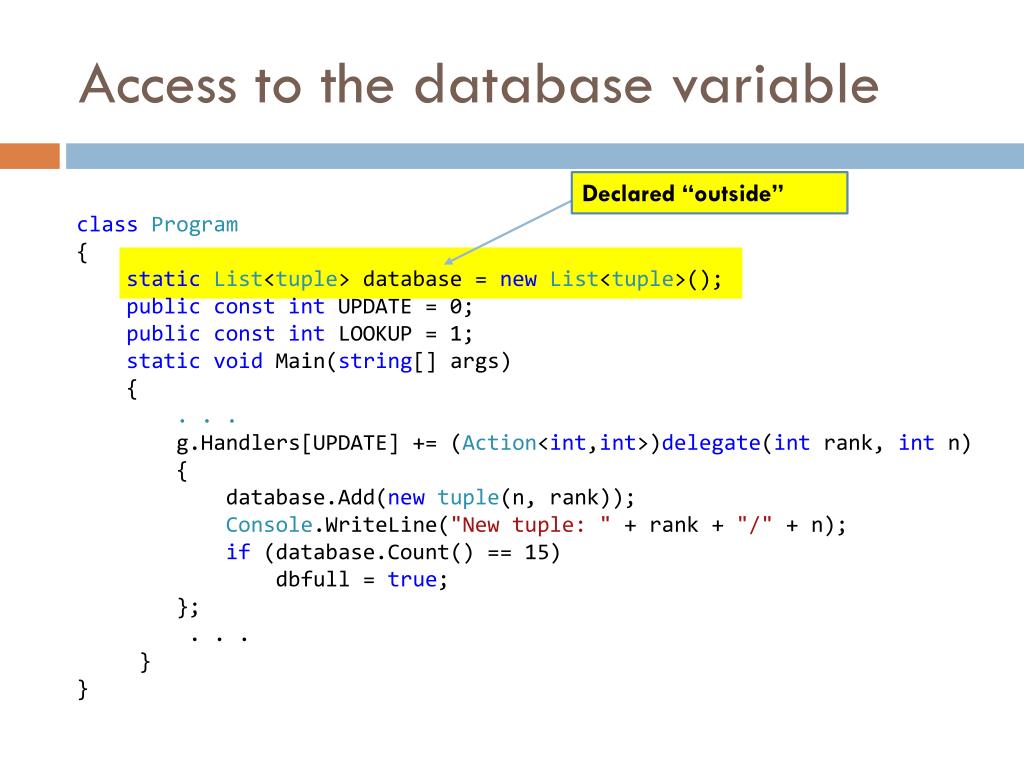

  12. Access to the database variable Declared “outside” classProgram { staticList<tuple> database = newList<tuple>(); publicconstint UPDATE = 0; publicconstint LOOKUP = 1; staticvoid Main(string[] args) { . . . g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { database.Add(newtuple(n, rank)); Console.WriteLine("New tuple: " + rank + "/" + n); if (database.Count() == 15) dbfull = true; }; . . . } }

  13. Access to the database variable classProgram { staticList<tuple> database = newList<tuple>(); publicconstint UPDATE = 0; publicconstint LOOKUP = 1; staticvoid Main(string[] args) { . . . g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { database.Add(newtuple(n, rank)); Console.WriteLine("New tuple: " + rank + "/" + n); if (database.Count() == 15) dbfull = true; }; . . . } } Can be used “inside”

  14. But the methods don’t run yet! g.ViewHandlers+= (ViewHandler)delegate(View v) { . . . Code for when a new membership view is defined . . . }; g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { . . . Code for doing an UPDATE action . . . }; g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { . . . Code for doing a LOOKUP action . . . }; g.Join(); If group does not exist, creates it. A will run this first

  15. What the program does • So… the three members try to start Isis2, but A “wins” • As a result, A runs the g.Join() first • A “new view” event occurs with 1 member Isis: Searching for the Isis ORACLE... New View: View[gname=<foo>, gaddr=(0:224.0.69.120/0:0), viewid=0; 1 members={ [(5656)]}, hasFailed=[*-], nextIncomingMSGID={ <0:0> 0:0 }, StableTo={ ** 0 }, joining={ [(5656)]}, leaving={ []}, IamLeader = True g.ViewHandlers += (ViewHandler)delegate(View v) { Console.WriteLine("New View: " + v); myRank= v.GetMyRank(); if(v.members.Length == 3) go = true; };

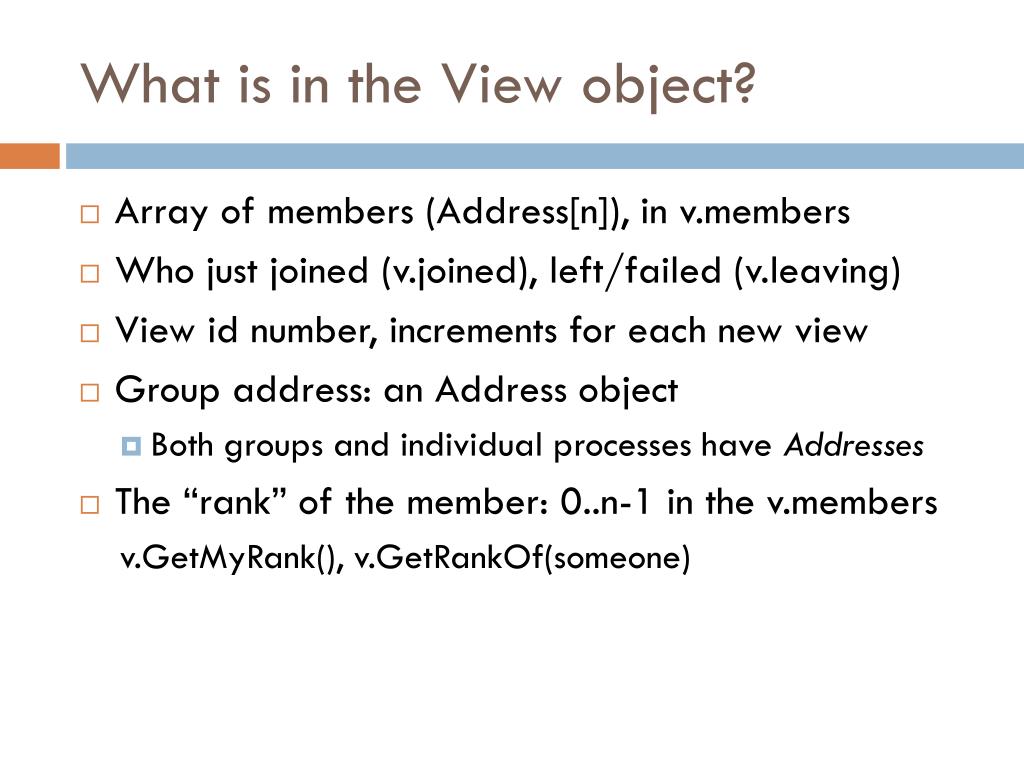

  16. What is in the View object? • Array of members (Address[n]), in v.members • Who just joined (v.joined), left/failed (v.leaving) • View id number, increments for each new view • Group address: an Address object • Both groups and individual processes have Addresses • The “rank” of the member: 0..n-1 in the v.members v.GetMyRank(), v.GetRankOf(someone)

  17. What is in the View object? • Group “foo” has Address (0:224.0.69.120/0:0) • There is one member: (5656). It just joined. • If “long format” is used, we would also see the host IPv4 address: (5656:123.64.88.2:2345/1212) • The viewid is 0: the group was just created Isis: Searching for the Isis ORACLE... New View: View[gname=<foo>, gaddr=(0:224.0.69.120/0:0), viewid=0; 1 members={ [(5656)]}, hasFailed=[*-], nextIncomingMSGID={ <0:0> 0:0 }, StableTo={ ** 0 }, joining={ [(5656)]}, leaving={ []}, IamLeader = True

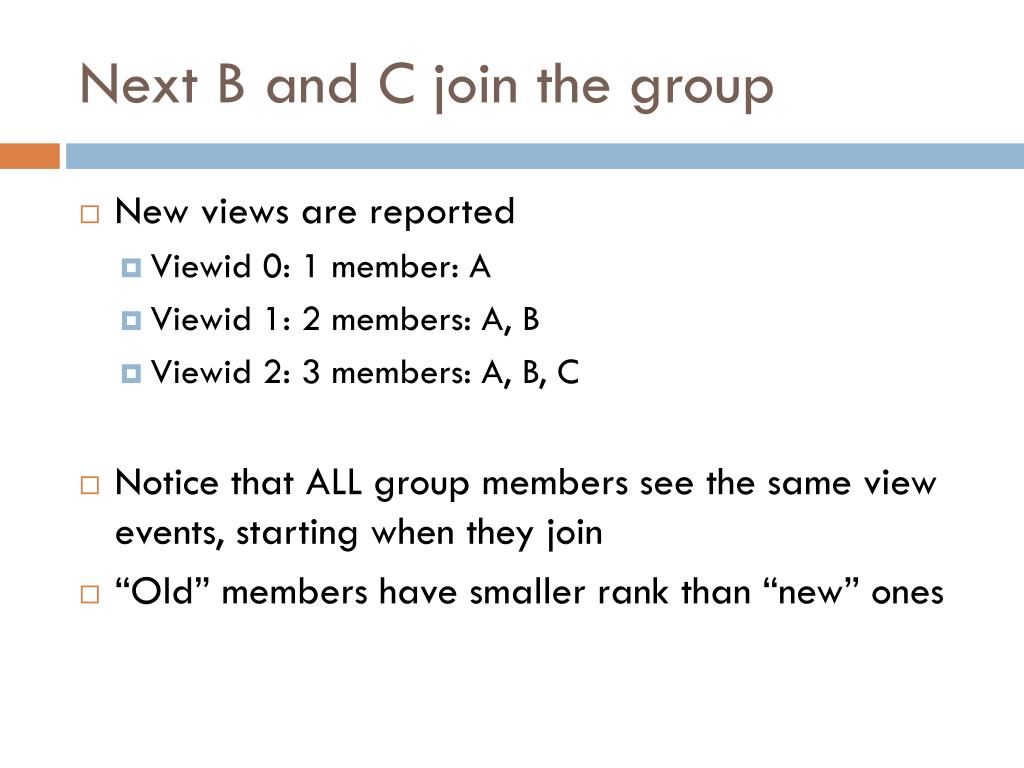

  18. Next B and C join the group • New views are reported • Viewid 0: 1 member: A • Viewid 1: 2 members: A, B • Viewid 2: 3 members: A, B, C • Notice that ALL group members see the same view events, starting when they join • “Old” members have smaller rank than “new” ones

  19. State transfer • Our sample program didn’t transfer any state to the joining member. • Homework task: Add state transfer • State: contents of the List<Address> database • In an Isis2 group, the state consists only of the state-machine replicated data you associate with the group • You do not need to include every variable! • In our sample program, the state was “empty” until after 3 members join, so state transfer was not needed

  20. What did the program do next? • Look closely at the View event handler • Each member • Notes its “rank”, in the variable myRank • myRank=0 in A, 1 in B, 2 in C • Sets boolean “go” to true when 3 members are in the View that was just reported g.ViewHandlers += (ViewHandler)delegate(View v) { Console.WriteLine("New View: " + v); myRank= v.GetMyRank(); if(v.members.Length == 3) go = true; };

  21. What did the program do next? • Now look at the Main method after g.Join • Every member loops, sleeping for 10ms at a time • So it checks go 100 times/second • When go becomes true, we pass the “barrier” • Homework: Replace “go” with a C# Semaphore: • Semaphore go = new Semaphore(0, int.MaxValue); • go.WaitOne() …. go.Release(1) while(!go) Thread.Sleep(10);

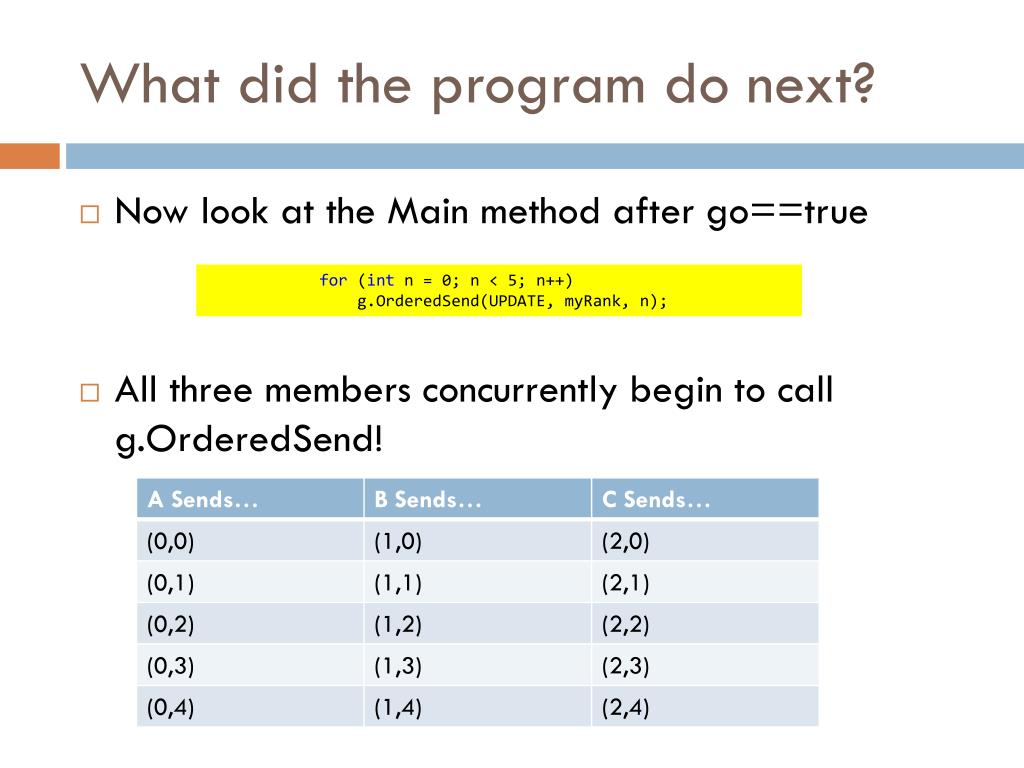

  22. What did the program do next? • Now look at the Main method after go==true • All three members concurrently begin to call g.OrderedSend! for (int n = 0; n < 5; n++) g.OrderedSend(UPDATE, myRank, n);

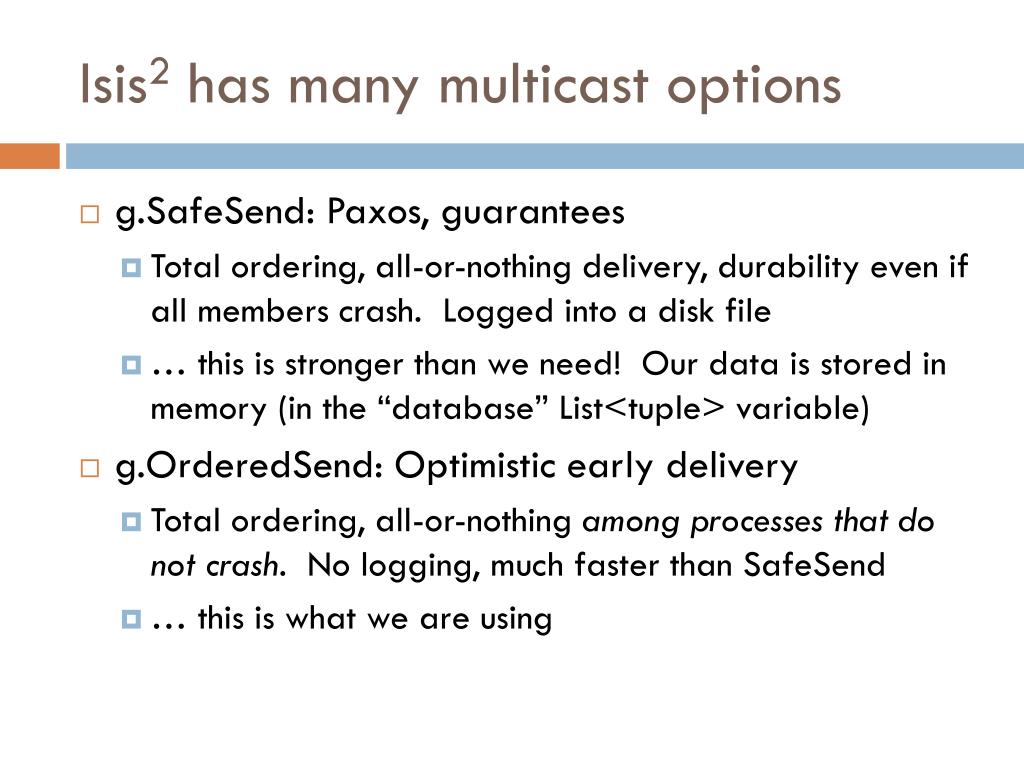

  23. Isis2 has many multicast options • g.SafeSend: Paxos, guarantees • Total ordering, all-or-nothing delivery, durability even if all members crash. Logged into a disk file • … this is stronger than we need! Our data is stored in memory (in the “database” List<tuple> variable) • g.OrderedSend: Optimistic early delivery • Total ordering, all-or-nothing among processes that do not crash. No logging, much faster than SafeSend • … this is what we are using

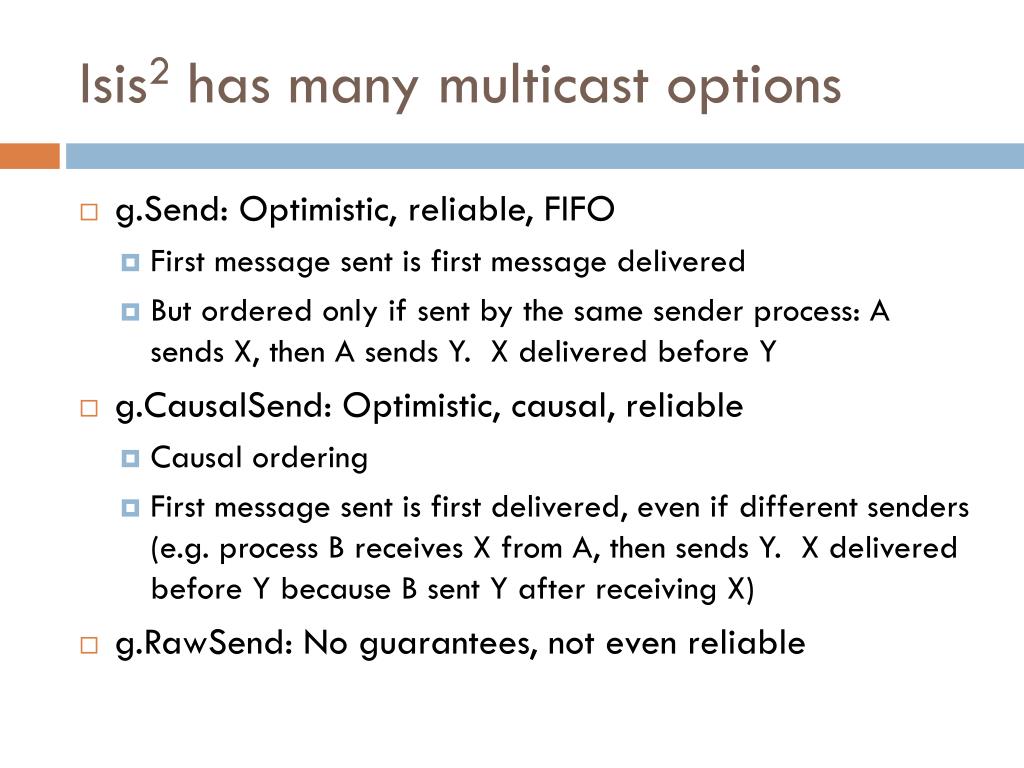

  24. Isis2 has many multicast options • g.Send: Optimistic, reliable, FIFO • First message sent is first message delivered • But ordered only if sent by the same sender process: A sends X, then A sends Y. X delivered before Y • g.CausalSend: Optimistic, causal, reliable • Causal ordering • First message sent is first delivered, even if different senders (e.g. process B receives X from A, then sends Y. X delivered before Y because B sent Y after receiving X) • g.RawSend: No guarantees, not even reliable

  25. With g.Send… • Our multicasts could arrive in different orders • All database copies would have identical content but perhaps the order in the list would differ • We saw this on Tuesday • With OrderedSend, all databases look the same • State machine replication in “practice” • Homework: In what ways does our application rely on ordering? Would the code break if we used g.Send and not g.OrderedSend? • Homework: Do we know what the ordering in database will be before the program ran, or are there multiple possible outcomes?

  26. Receiving the multicasts • The members get upcalls to the multicast event handler. In fact these are done on a different thread: the “multicast and view delivery thread” • dbfull becomes true when database has 15 items. • Homework: replace dbfull with a Semaphore g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { database.Add(newtuple(rank, n)); Console.WriteLine("New tuple: " + rank + "/" + n); if (database.Count() == 15) dbfull = true; };

  27. What is a “tuple”? • A simple object that stores a rank and a value publicclasstuple { publicint rank; publicint value; public tuple(int r, int v) { rank = r; value = v; } }

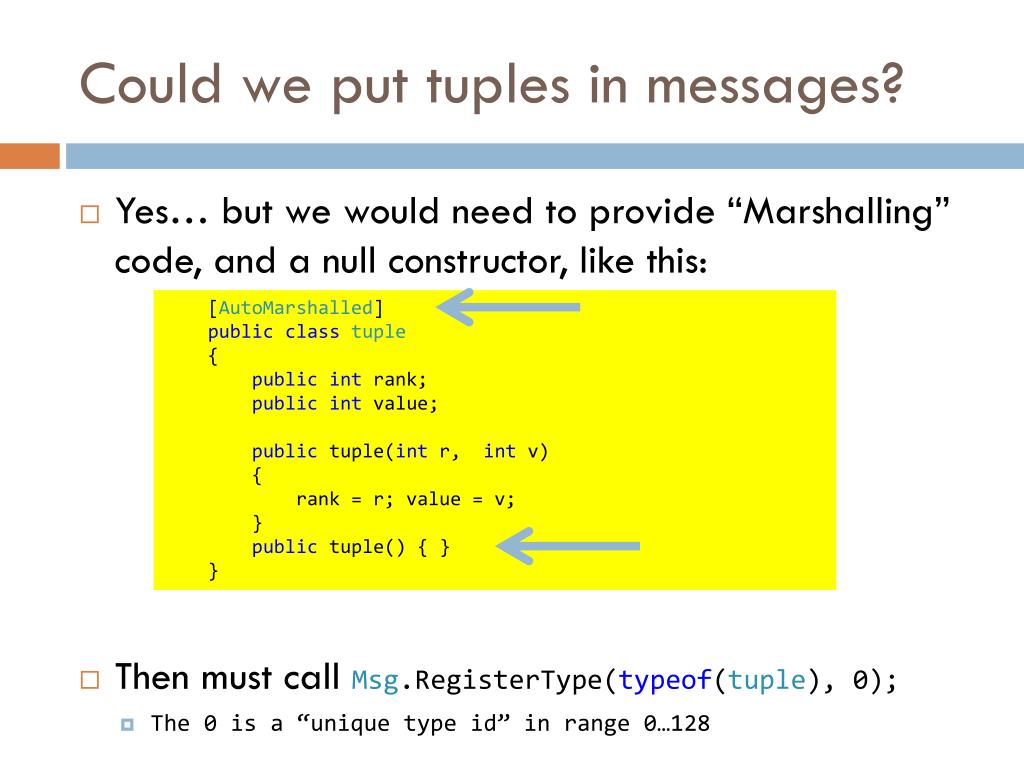

  28. Could we put tuples in messages? • Yes… but we would need to provide “Marshalling” code, and a null constructor, like this: • Then must call Msg.RegisterType(typeof(tuple), 0); • The 0 is a “unique type id” in range 0…128 [AutoMarshalled] publicclasstuple { publicint rank; publicint value; public tuple(int r, int v) { rank = r; value = v; } publictuple() { } }

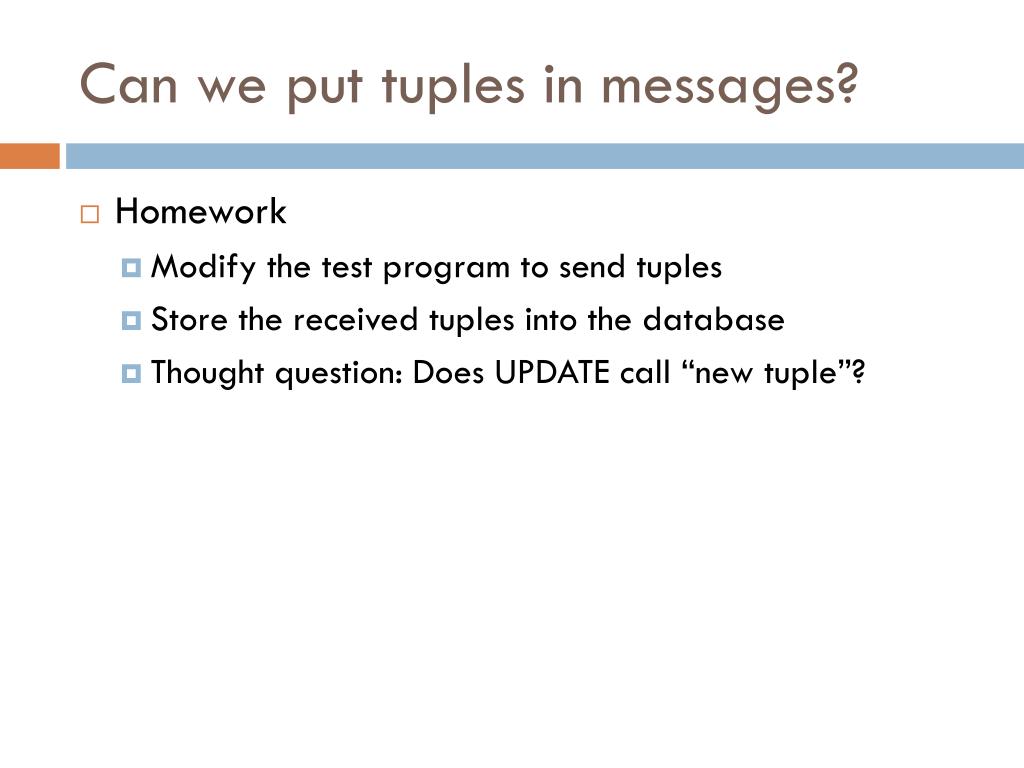

  29. Can we put tuples in messages? • Homework • Modify the test program to send tuples • Store the received tuples into the database • Thought question: Does UPDATE call “new tuple”?

  30. What happens next? • Recall that tuple 15 sets dbfull to true • Look at Main again • … all three programs (A, B and C) pass the while g.OrderedSend(UPDATE, myRank, n); while (!dbfull) Thread.Sleep(10);

  31. What happens next? • Recall that tuple 15 sets dbfull to true • Look at Main again • … all three programs (A, B and C) pass the while g.OrderedSend(UPDATE, myRank, n); while (!dbfull) Thread.Sleep(10);

  32. What happens next? • Only member 1 (B) executes the last code: • B creates a “results” list, then issues an OrderedQuery asking for ALL responses • It does this three times: with n=0, n=1, n=2 • Each time it simply prints the list of responses if(myRank== 1) for (int n = 0; n < 3; n++) { List<List<int>> results = newList<List<int>>(); g.OrderedQuery(Group.ALL, LOOKUP, n, newIsis.EOLMarker(), results); Console.WriteLine("\r\nAnswers for Query rank=" + n); foreach(List<int> list in results) foreach(int value in list) Console.Write(value + " "); }

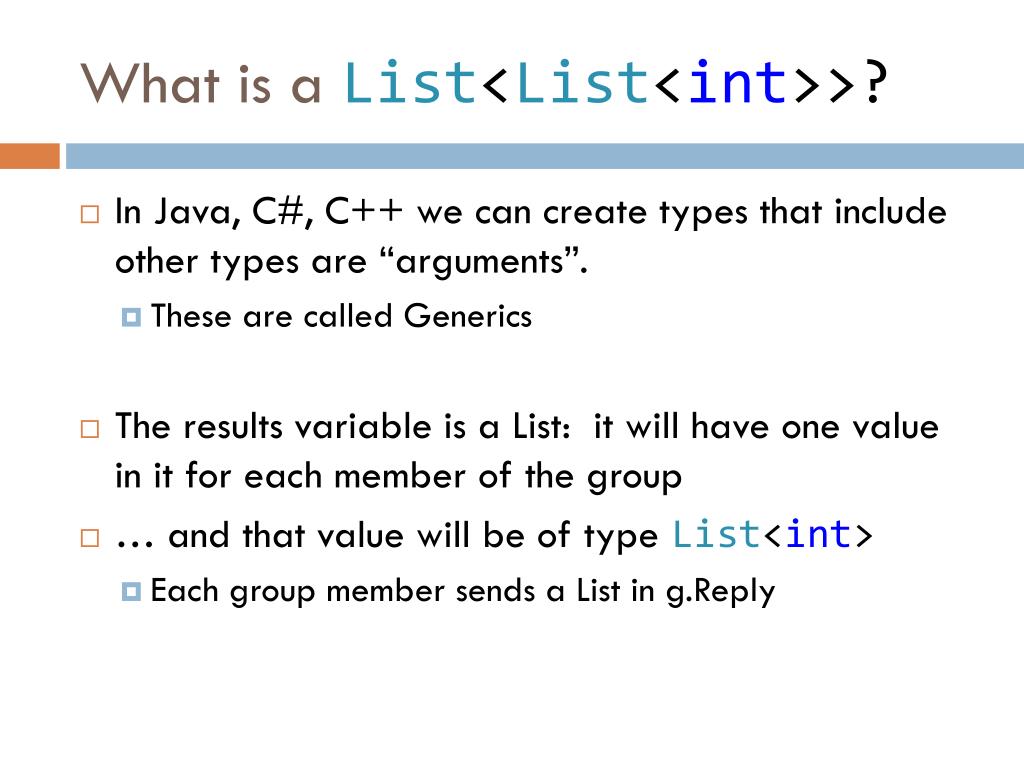

  33. What is a List<List<int>>? • In Java, C#, C++ we can create types that include other types are “arguments”. • These are called Generics • The results variable is a List: it will have one value in it for each member of the group • … and that value will be of type List<int> • Each group member sends a List in g.Reply

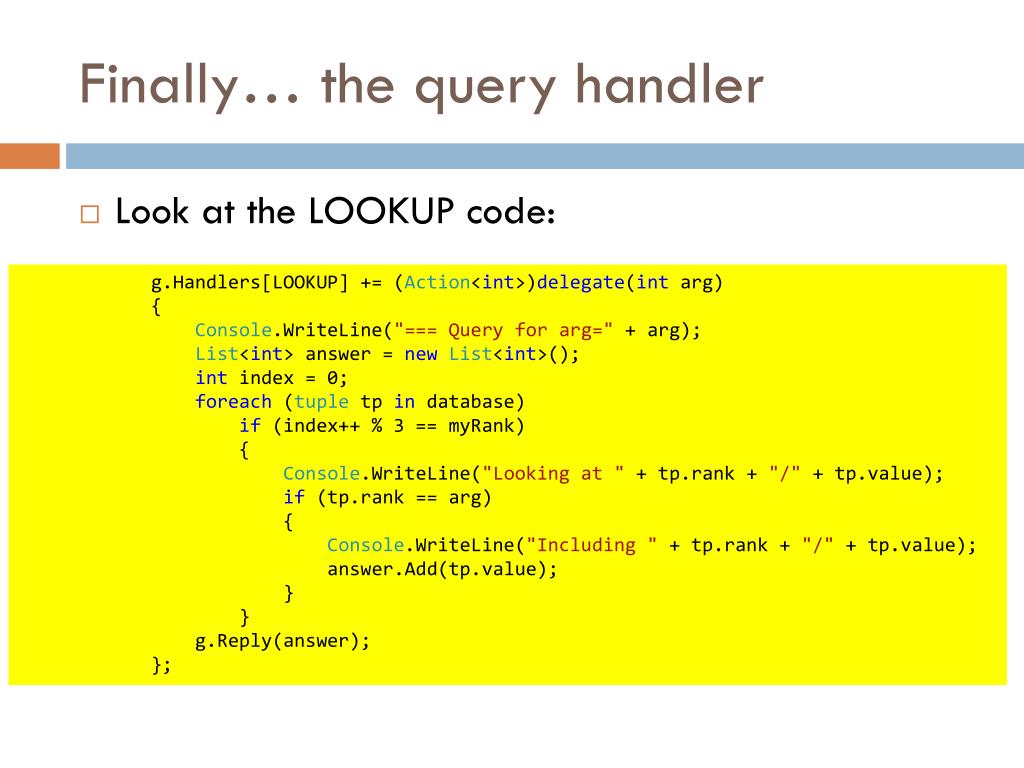

  34. Finally… the query handler • Look at the LOOKUP code: g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { Console.WriteLine("=== Query for arg=" + arg); List<int> answer = newList<int>(); int index = 0; foreach (tupletpin database) if (index++ % 3 == myRank) { Console.WriteLine("Looking at " + tp.rank + "/" + tp.value); if (tp.rank == arg) { Console.WriteLine("Including " + tp.rank + "/" + tp.value); answer.Add(tp.value); } } g.Reply(answer); };

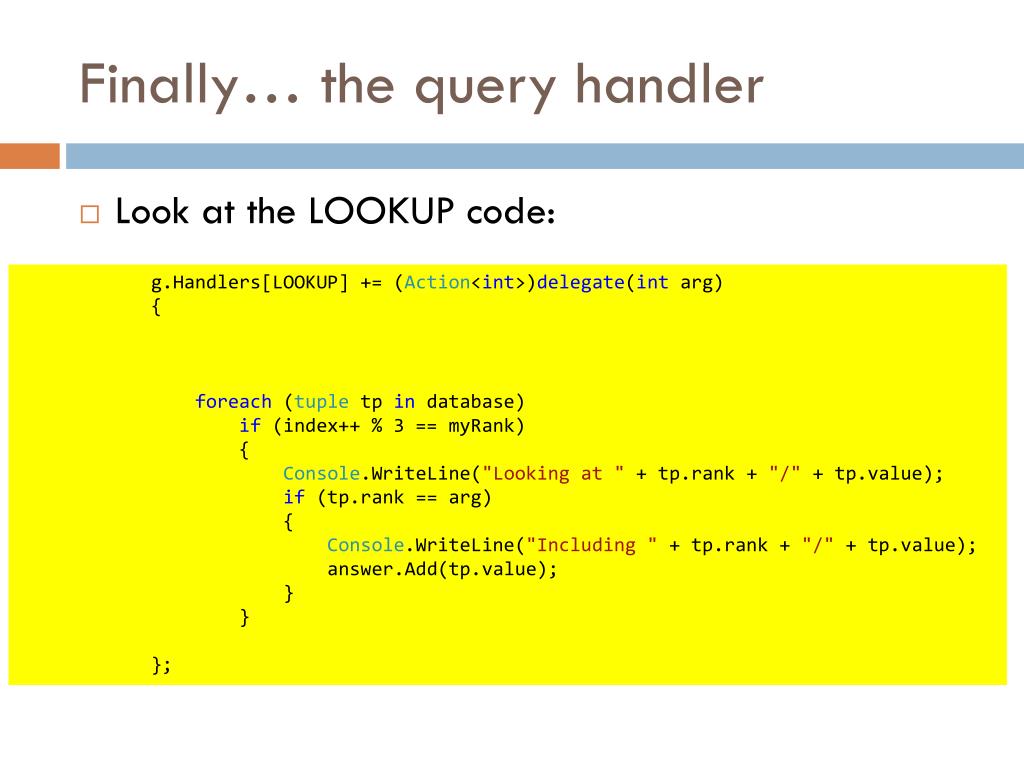

  35. Finally… the query handler • … simplified version: g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { Console.WriteLine("=== Query for arg=" + arg); List<int> answer = new List<int>(); int index = 0; foreach (tupletpin database) if (index++ % 3 == myRank) { Console.WriteLine("Looking at " + tp.rank + "/" + tp.value); if (tp.rank == arg) { Console.WriteLine("Including " + tp.rank + "/" + tp.value); answer.Add(tp.value); } } g.Reply(answer); };

  36. Each member… • Has identical data in the database (g.OrderedSend). • … but has a different value of myRank: 0, 1 or 2

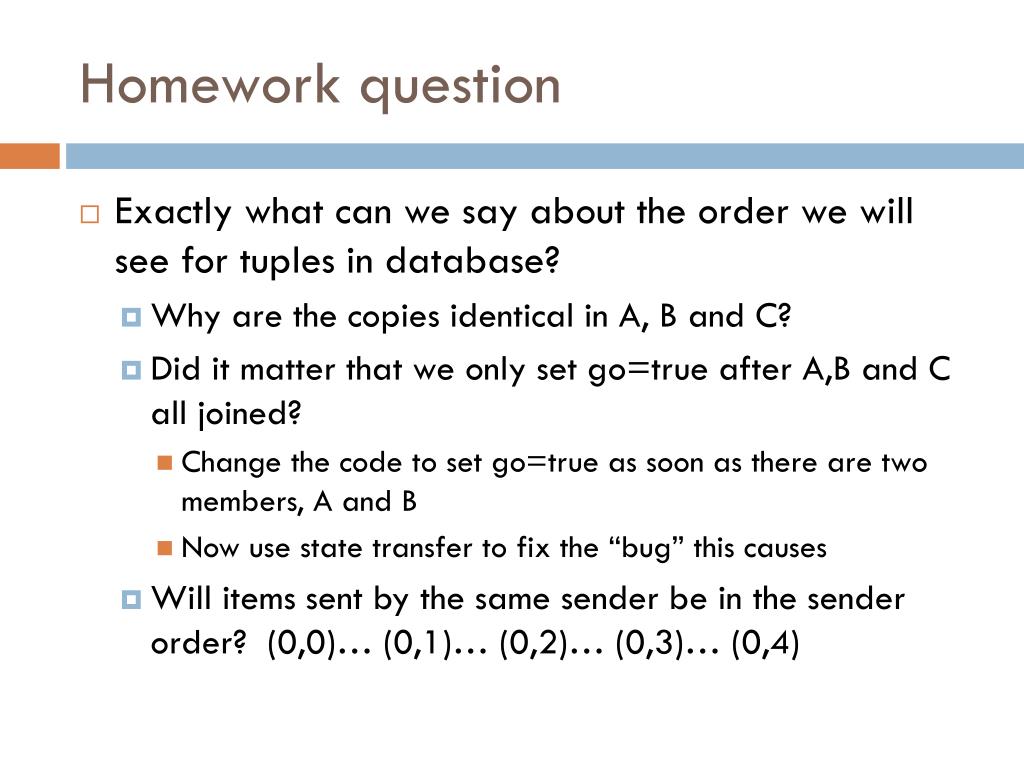

  37. Homework question • Exactly what can we say about the order we will see for tuples in database? • Why are the copies identical in A, B and C? • Did it matter that we only set go=true after A,B and C all joined? • Change the code to set go=true as soon as there are two members, A and B • Now use state transfer to fix the “bug” this causes • Will items sent by the same sender be in the sender order? (0,0)… (0,1)… (0,2)… (0,3)… (0,4)

  38. Finally… the query handler • Look at the LOOKUP code: g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { Console.WriteLine("=== Query for arg=" + arg); List<int> answer = newList<int>(); int index = 0; foreach (tupletpin database) if (index++ % 3 == myRank) { Console.WriteLine("Looking at " + tp.rank + "/" + tp.value); if (tp.rank == arg) { Console.WriteLine("Including " + tp.rank + "/" + tp.value); answer.Add(tp.value); } } g.Reply(answer); };

  39. Finally… the query handler • Look at the LOOKUP code: g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { Console.WriteLine("=== Query for arg=" + arg); List<int> answer = new List<int>(); int index = 0; foreach (tupletpin database) if (index++ % 3 == myRank) { Console.WriteLine("Looking at " + tp.rank + "/" + tp.value); if (tp.rank == arg) { Console.WriteLine("Including " + tp.rank + "/" + tp.value); answer.Add(tp.value); } } g.Reply(answer); };

  40. A, B and C each scan 5 tuples • Each one looks for rank==n, where n was from the Query sender (n=0… then n=1… then n=2) • How many items will each one find? • Thought question: how many items have rank=0? • … 5 have rank=0 • But which member will “see” these tuples?

  41. … we cannot know! • Perhaps “luck” will cause all of these to be scanned by A! But perhaps in a second run, A will see none • The situation depends on the data in database, and the order was not fully determined • Thus until we know the order, we cannot be sure which items A will look at, and until we know that, we cannot know how many will have rank=0

  42. … but we DO know that • Every tuple is scanned exactly once • And thus every rank=0 tuple will be seen by some member. • Example: perhaps A finds (0,1) and (0,3) • … and B finds none • … while C finds (0,0), (0,2) and (0,4) • Each sends its own List<int>: A sends { 1, 3 }, etc

  43. Back to the leader (process B) • Again, look at code in Main • Results is a “List of List<int>” if(myRank== 1) for (int n = 0; n < 3; n++) { List<List<int>> results = newList<List<int>>(); g.OrderedQuery(Group.ALL, LOOKUP, n, newIsis.EOLMarker(), results); Console.WriteLine("\r\nAnswersfor Query rank=" + n); foreach(List<int> list in results) foreach(int value in list) Console.Write(value + " "); }

  44. Back to the leader (process B) • Again, look at code in Main • Perhaps results will have {1,3},{},{0,2,4} • So output will be 1 3 0 2 4 if(myRank== 1) for (int n = 0; n < 3; n++) { List<List<int>> results = new List<List<int>>(); g.OrderedQuery(Group.ALL, LOOKUP, n, new Isis.EOLMarker(), results); Console.WriteLine("\r\nAnswers for rank=" + n); foreach(List<int> list in results) foreach(int value in list) Console.Write(value + " "); }

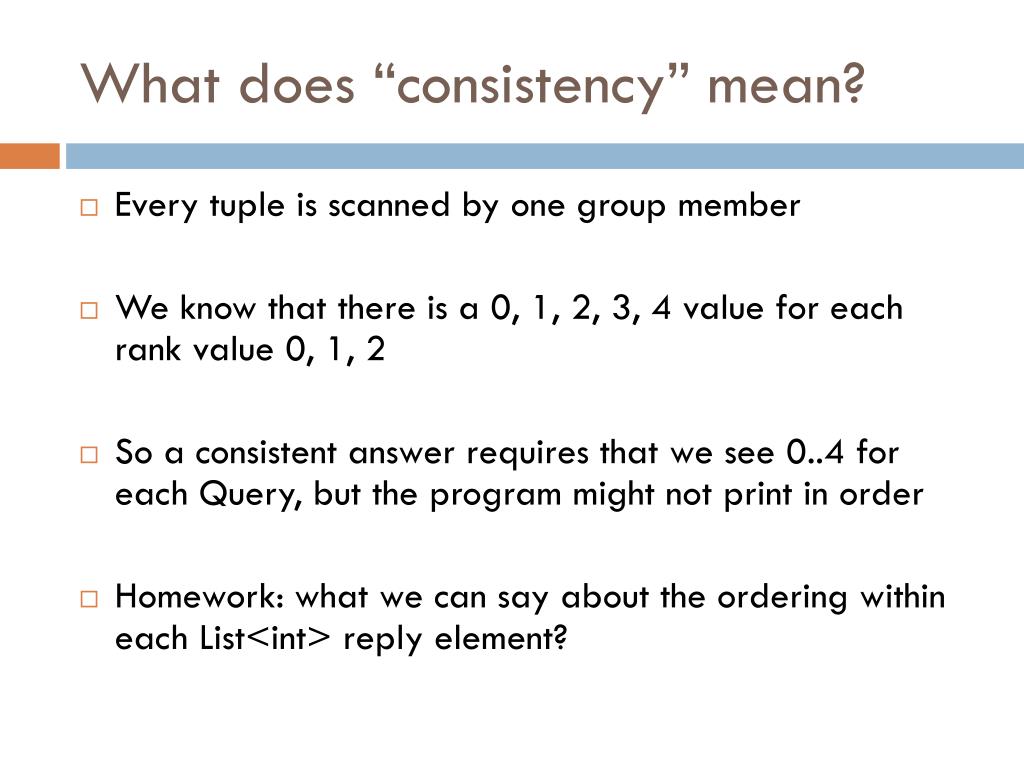

  45. What does “consistency” mean? • Every tuple is scanned by one group member • We know that there is a 0, 1, 2, 3, 4 value for each rank value 0, 1, 2 • So a consistent answer requires that we see 0..4 for each Query, but the program might not print in order • Homework: what we can say about the ordering within each List<int> reply element?

  46. Which result came first? • In the results list we do not know which part of the result came from A, which from B and which from C • Homework: • Add a second value to the reply giving the rank of the member that sent each list • Modify the output to show this information Answers for Query rank=0 [Member with myRank=0 sent {1,2}] [Member with myRank=2 sent {}] [Member with myRank=1 sent {0,3,4}]

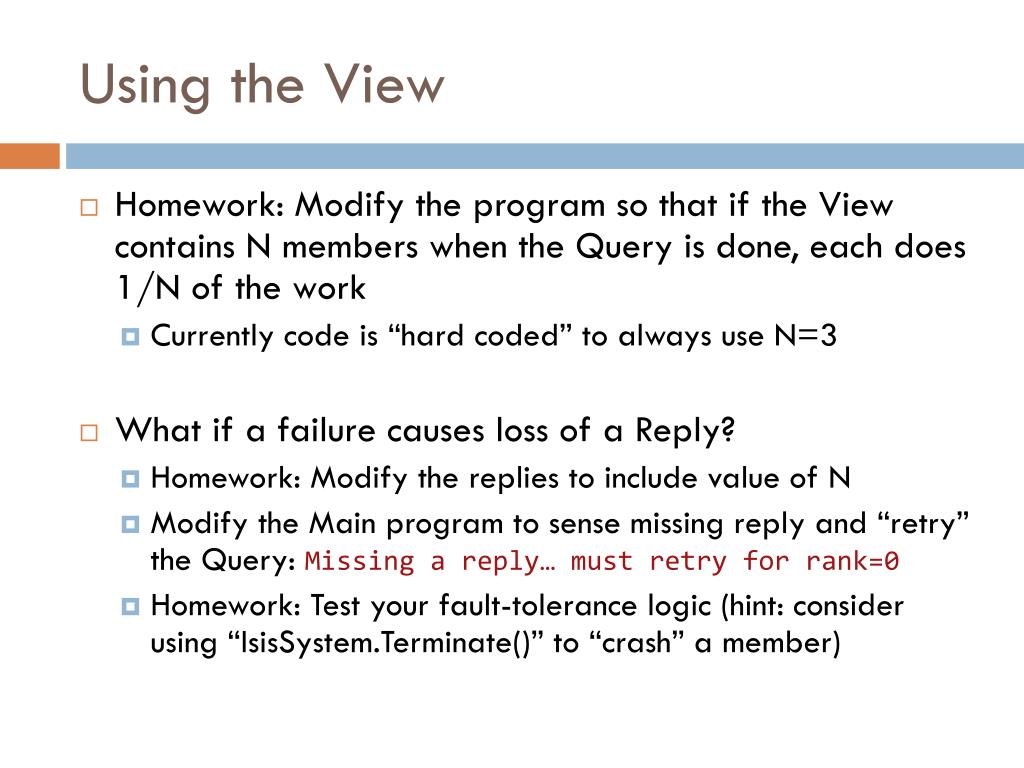

  47. Using the View • Homework: Modify the program so that if the View contains N members when the Query is done, each does 1/N of the work • Currently code is “hard coded” to always use N=3 • What if a failure causes loss of a Reply? • Homework: Modify the replies to include value of N • Modify the Main program to sense missing reply and “retry” the Query: Missing a reply… must retry for rank=0 • Homework: Test your fault-tolerance logic (hint: consider using “IsisSystem.Terminate()” to “crash” a member)

  48. Code for full program using System; usingSystem.Collections.Generic; usingSystem.Linq; usingSystem.Text; using Isis; usingSystem.Threading; namespace ConsoleApplication3 { publicclasstuple { publicint rank; publicint value; public tuple(int r, int v) { rank = r; value = v; } } classProgram { staticList<tuple> database = newList<tuple>(); publicconstint UPDATE = 0; publicconstint LOOKUP = 1; staticvoid Main(string[] args) { IsisSystem.Start(); Group g = newGroup("foo"); intmyRank = 0; bool go = false, dbfull = false; ; g.ViewHandlers += (ViewHandler)delegate(View v) { Console.WriteLine("New View: " + v); myRank = v.GetMyRank(); if (v.members.Length == 3) go = true; }; g.Handlers[UPDATE] += (Action<int,int>)delegate(int rank, int n) { database.Add(newtuple(n, rank)); Console.WriteLine("New tuple: " + rank + "/" + n); if (database.Count() == 15) dbfull = true; }; g.Handlers[LOOKUP] += (Action<int>)delegate(intarg) { Console.WriteLine("=== Query for arg=" + arg); List<int> answer = newList<int>(); int index = 0; foreach (tupletpin database) if (index++ % 3 == myRank) { Console.WriteLine("Looking at " + tp.rank + "/" + tp.value); if (tp.rank == arg) { Console.WriteLine("Including " + tp.rank + "/" + tp.value); answer.Add(tp.value); } } g.Reply(answer); }; g.Join(); while (!go) Thread.Sleep(10); for (int n = 0; n < 5; n++) g.OrderedSend(UPDATE, myRank, n); while (!dbfull) Thread.Sleep(10); if(myRank == 1) for (int n = 0; n < 3; n++) { List<List<int>> results = newList<List<int>>(); g.OrderedQuery(Group.ALL, LOOKUP, n, newIsis.EOLMarker(), results); Console.WriteLine("\r\nAnswers for Query rank=" + n); foreach (List<int> list in results) foreach (int value in list) Console.Write(value + " "); } IsisSystem.WaitForever(); } } }
