1. Microsoft .NET Interoperability for Beginners Vjekoslav Babic (Fortempo)

2. About me Vjekoslav Babić consultant, trainer, blogger, author Twitter: @vjekob Mibuso: Vjeko Blog: vjeko.com Author of many How Do I… videos for MSDN and PartnerSourcefor NAV 2013 and NAV 2013 R2 Co-author of “Implementing Microsoft Dynamics NAV 2009” book

3. How Other People See Programmers

4. How Programmers See Other People

7. What Do Programmers Really Do? • Most of the time?

9. So, What Do Programmers Do Most of the Time?

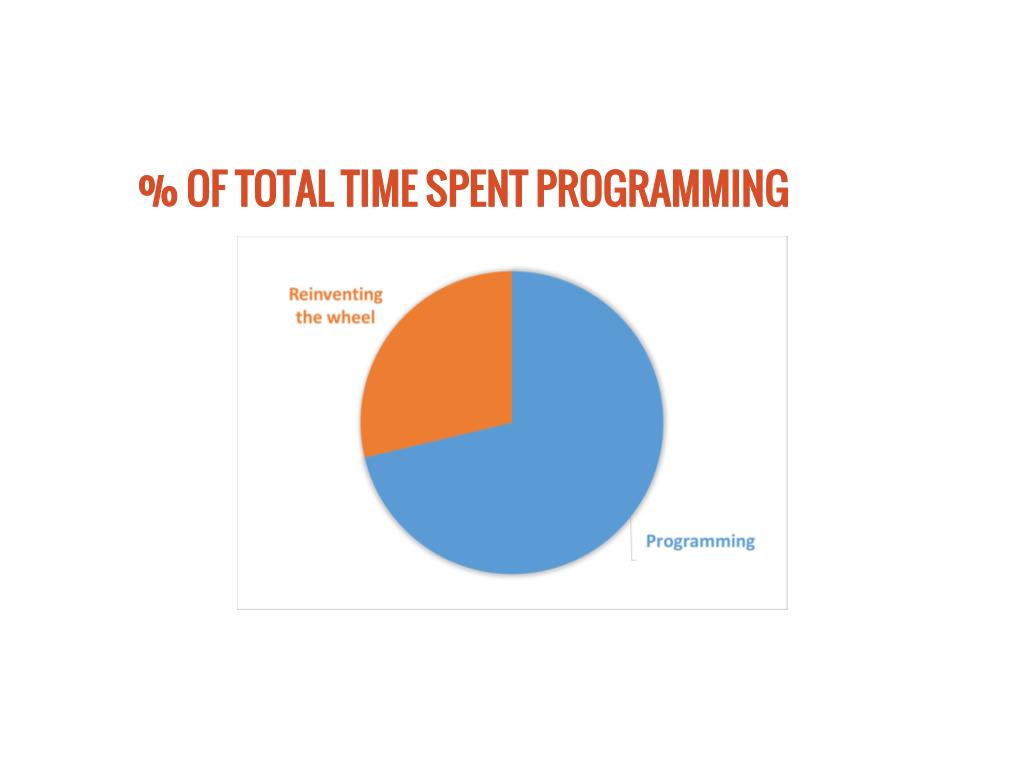

10. % Of Total Time Spent Programming

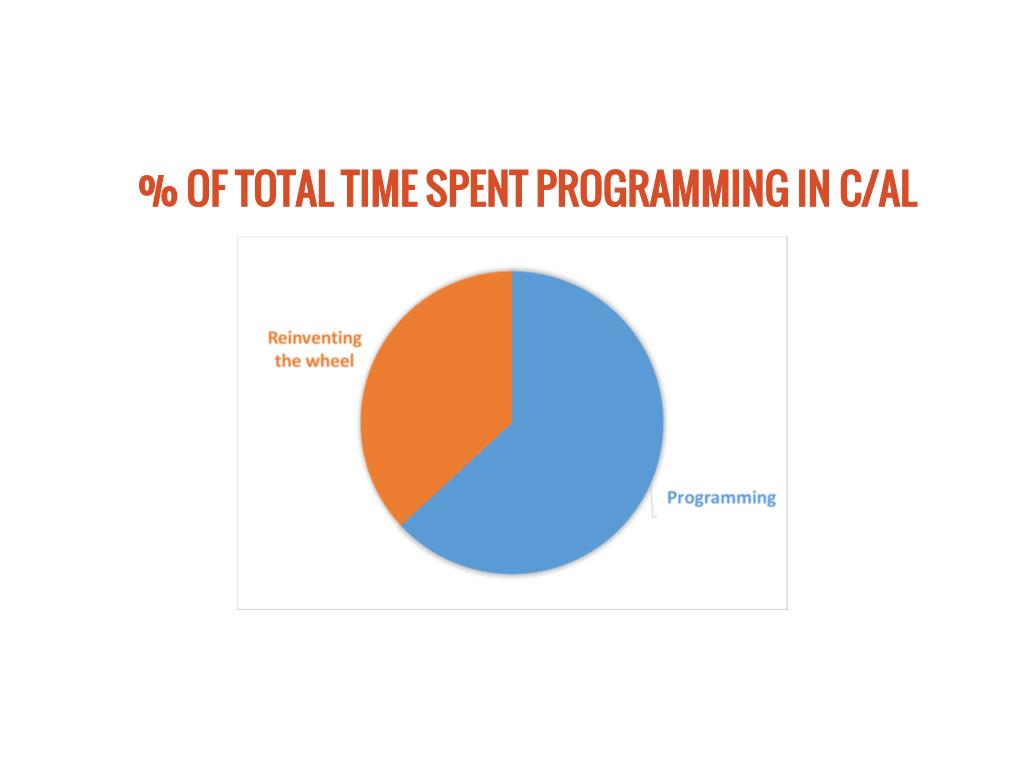

11. % Of Total Time Spent Programming in C/AL

12. 37.5% of All Statistics AreJust Made UpOn The Spot

13. What are we doing here today? • Basic Concepts • Constructors • Methods • Overloading • Events • Enumerations • Slightly Advanced Concepts • Classes and Interfaces • Arrays and Collections • Enumerators • Generics • Reflection • Creating Assemblies • Creating Control Add-ins

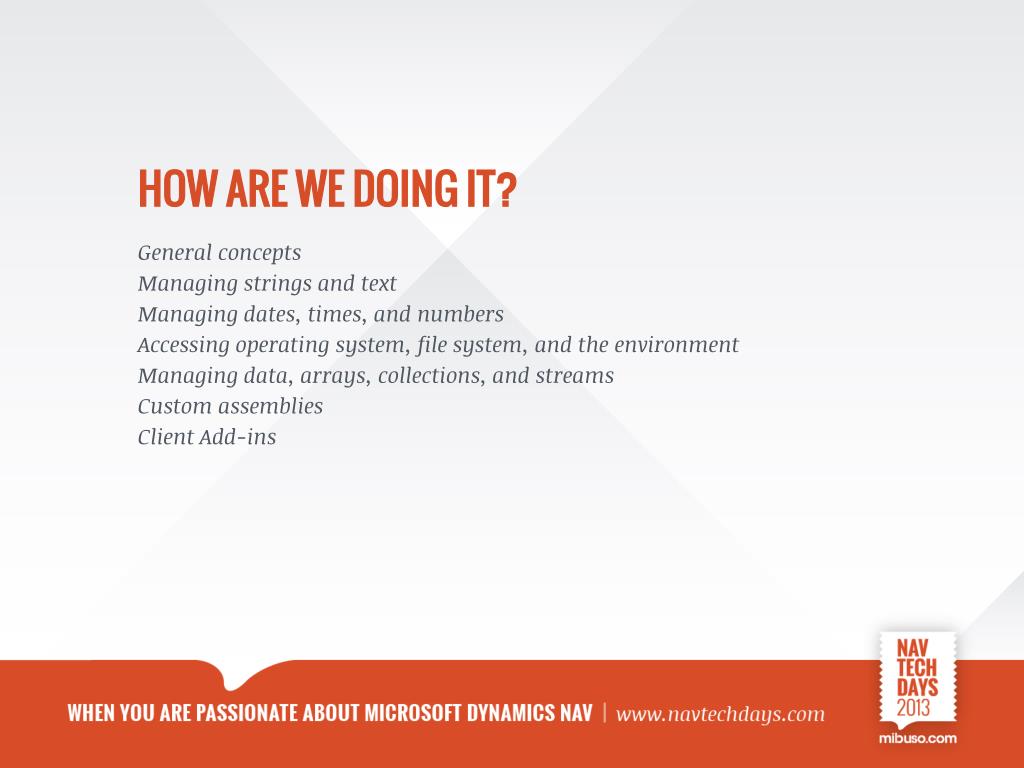

14. How Are We Doing It? • General concepts • Managing strings and text • Managing dates, times, and numbers • Accessing operating system, file system, and the environment • Managing data, arrays, collections, and streams • Custom assemblies • Client Add-ins

15. Part One • General concepts

16. Assemblies • Building blocks of the .NET Framework • Assemblies can be: • Executable files (EXE) • Dynamic Link Libraries (DLL) • Assemblies can be deployed to: • Single application: any folder accessible to a .NET application • All applications: Global Assembly Cache (GAC)

17. Type • .NET Framework is strongly-typed, very similar to C/AL • Types can be: • Simple • Complex • .NET is object-oriented: • Types can be inherited • Two types of complex types: • Classes • Interfaces

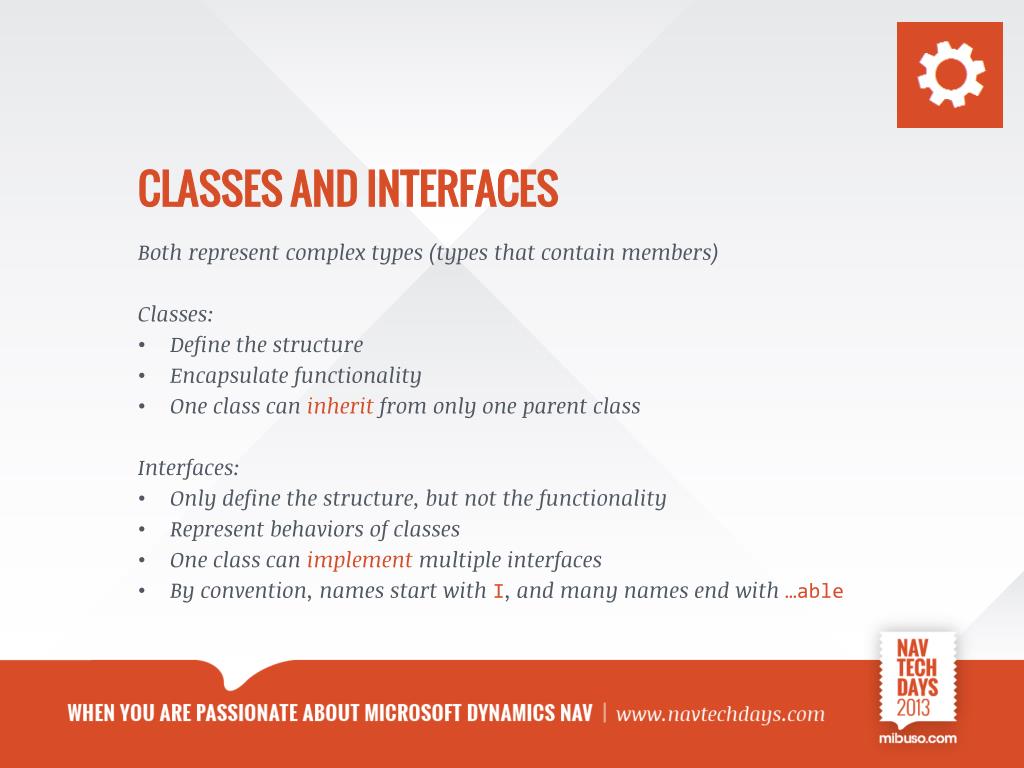

18. Classes and Interfaces • Both represent complex types (types that contain members) • Classes: • Define the structure • Encapsulate functionality • One class can inherit from only one parent class • Interfaces: • Only define the structure, but not the functionality • Represent behaviors of classes • One class can implement multiple interfaces • By convention, names start with I, and many names end with …able

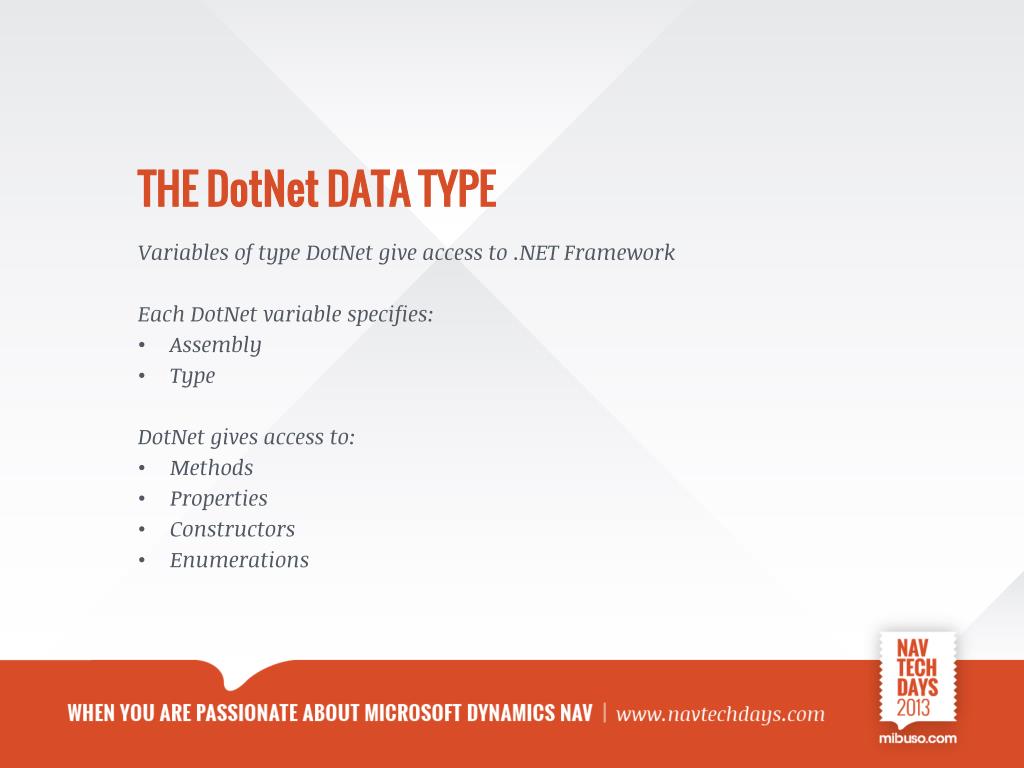

19. The DotNet Data Type • Variables of type DotNet give access to .NET Framework • Each DotNet variable specifies: • Assembly • Type • DotNet gives access to: • Methods • Properties • Constructors • Enumerations

20. Important: Case Sensitivity • All .NET Framework identifiers are CASE SENSITIVE

21. Part TWO • Managing strings and text

22. System.String • A powerful class to handle text information. • Maps fully and directly to Text data type in C/AL.

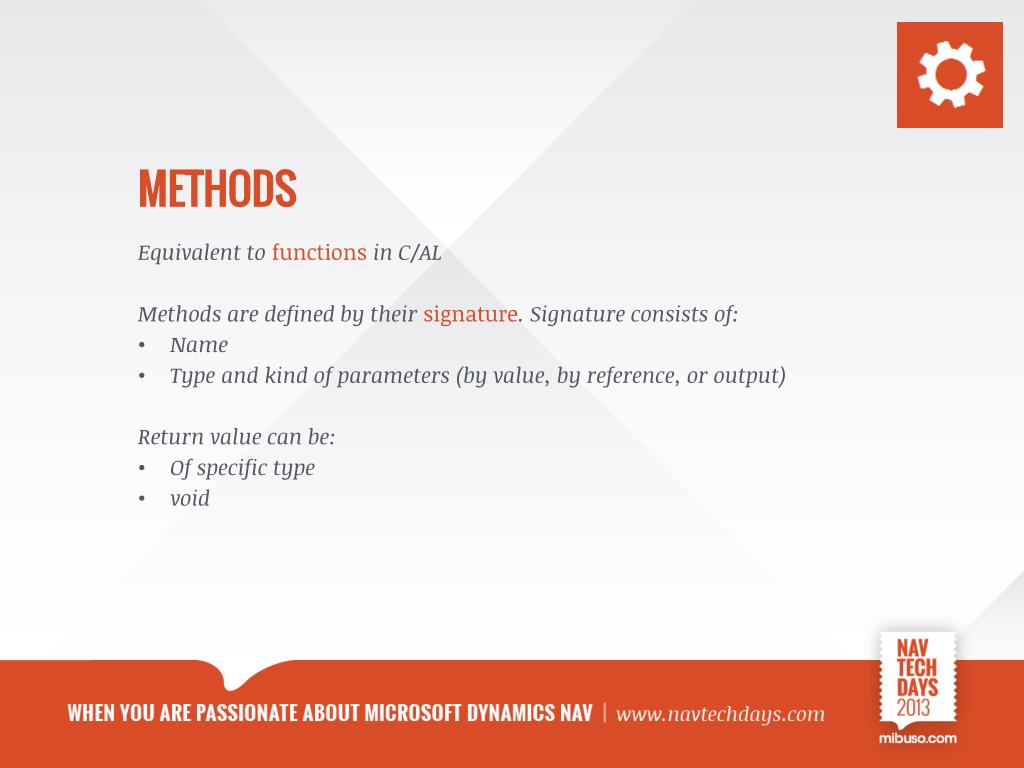

23. Methods • Equivalent to functionsin C/AL • Methods are defined by their signature. Signature consists of: • Name • Type and kind of parameters (by value, by reference, or output) • Return value can be: • Of specific type • void

24. System.String Points of Interest

25. System.Text.StringBuilder • A very powerful class to handle large text data efficiently.

26. Constructors • Create an instance of a class. • There is no equivalent in C/AL to constructors. • CREATE function for instantiating automation objects is the closest • Typically used to: • Initialize the default state of an object • Execute default initialization logic • Limit instantiation

27. Syntax of a Constructor • The name of the constructor always matches the class name. • This probably looks confusing in C/AL: • StringBuilder:= StringBuilder.StringBuilder; • (why in the Earth do we need all those StringBuilders?) • Replace the StringBuildervariable name with s, and it’s more manageable: • s := s.StringBuilder; • The syntax of the constructor in C/AL is the following: • Variable := Variable.[Class Name]({argument1, …});

28. System.Diagnostics.Stopwatch • A simple and useful class to handle time measurements.

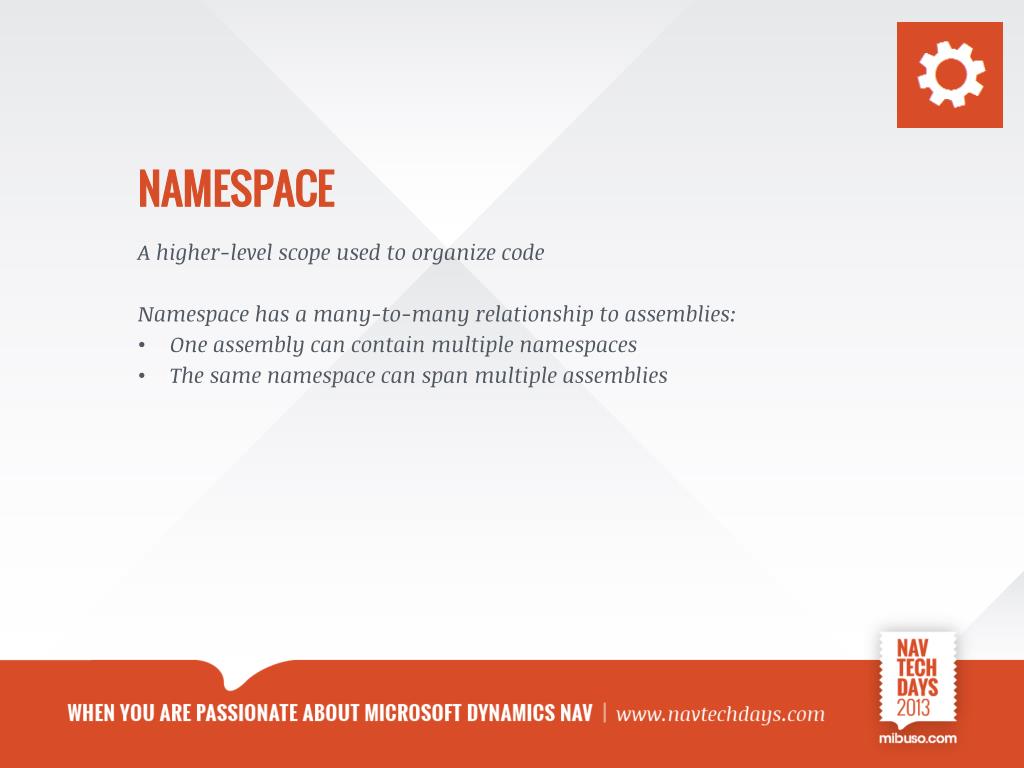

29. Namespace • A higher-level scope used to organize code • Namespace has a many-to-many relationship to assemblies: • One assembly can contain multiple namespaces • The same namespace can span multiple assemblies

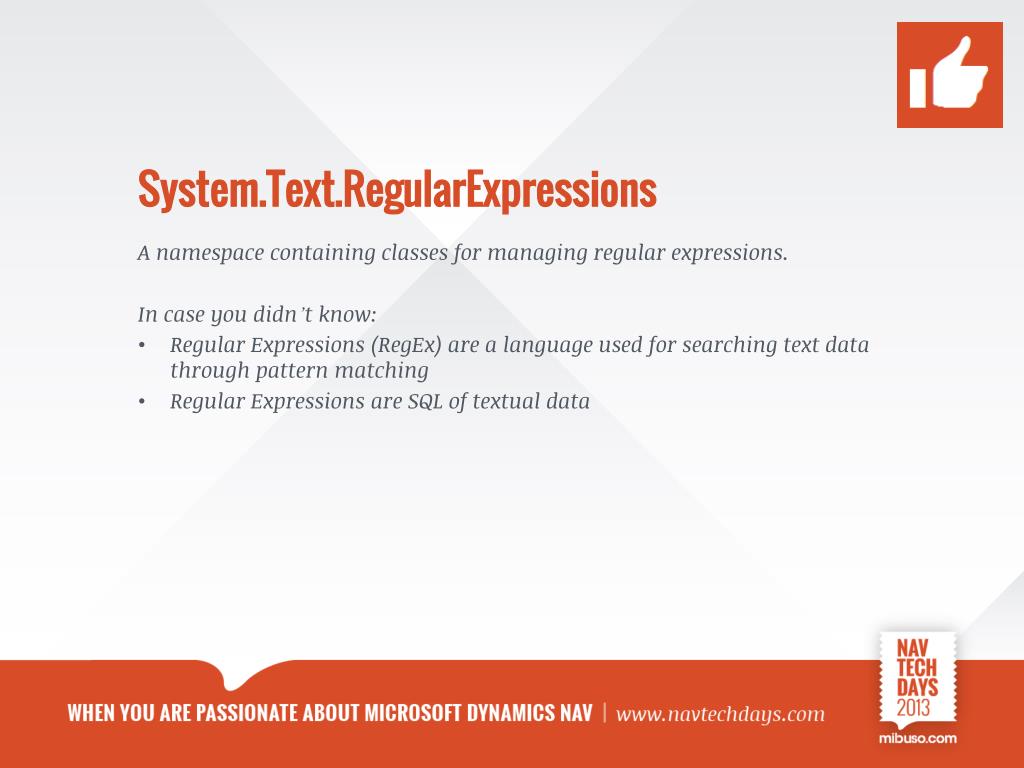

30. System.Text.RegularExpressions • A namespace containing classes for managing regular expressions. • In case you didn’t know: • Regular Expressions (RegEx) are a language used for searching text data through pattern matching • Regular Expressions are SQL of textual data

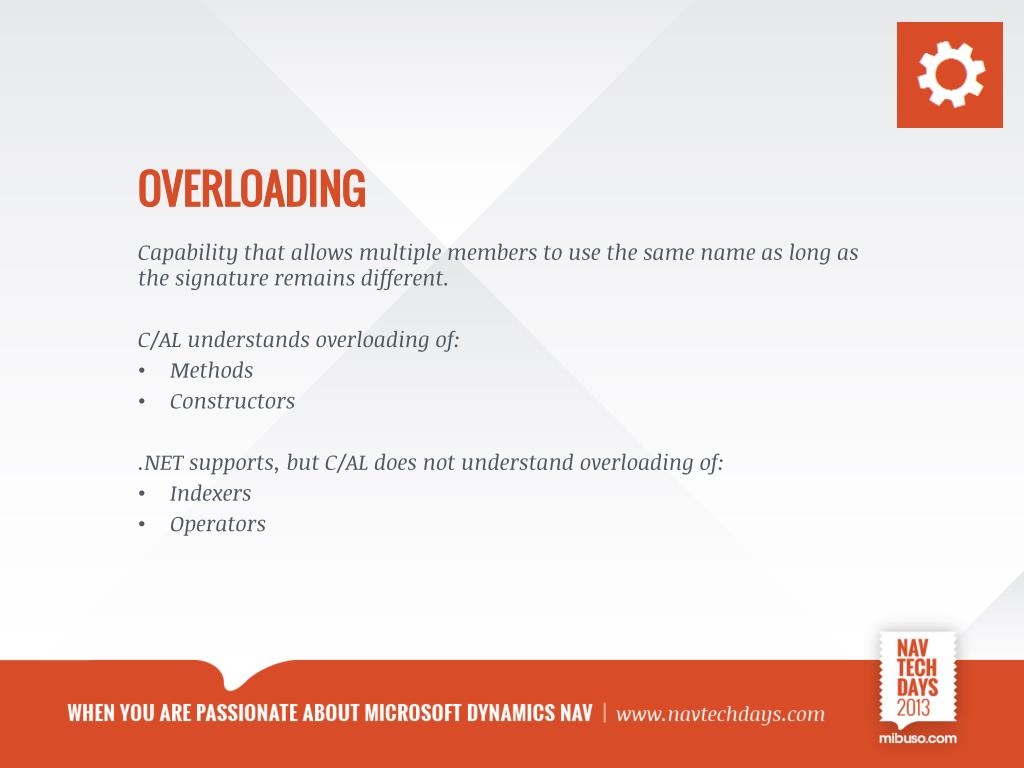

31. Overloading • Capability that allows multiple members to use the same name as long as the signature remains different. • C/AL understands overloading of: • Methods • Constructors • .NET supports, but C/AL does not understand overloading of: • Indexers • Operators

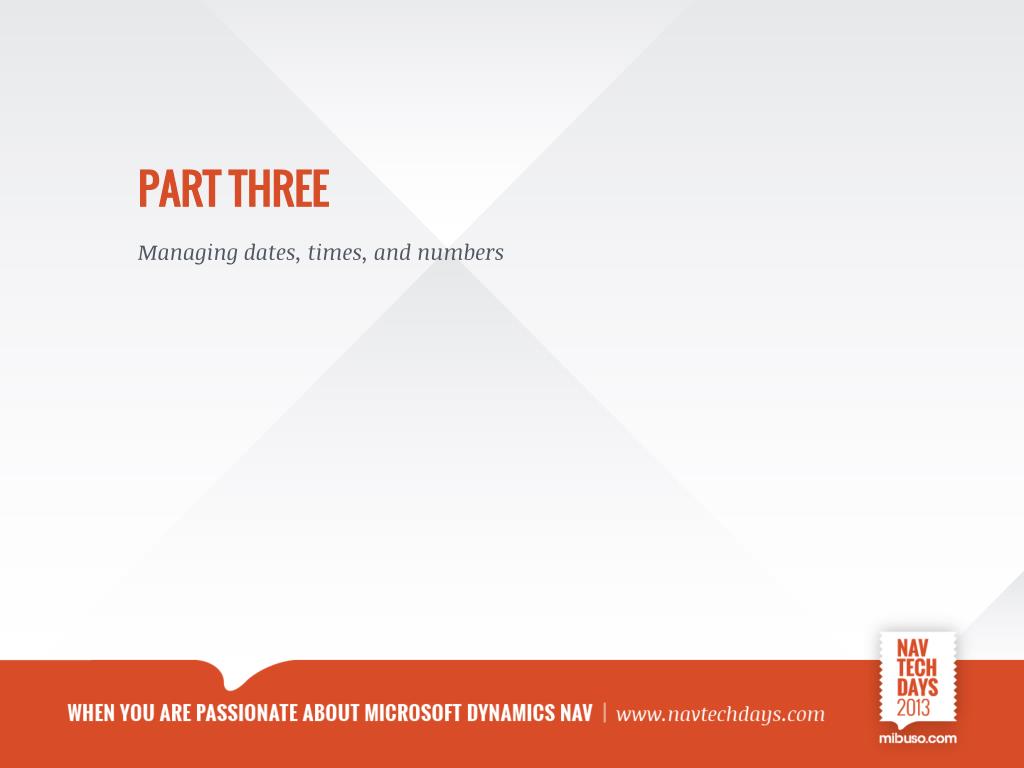

32. Part Three • Managing dates, times, and numbers

33. System.DateTime • Manages date and time information. • Maps fully and directly to DateTimedata type in C/AL. • Many useful properties and methods.

34. Properties and Fields • Properties and Fields are members of complex classes that contain a value. • Property: • Always accessible from C/AL • Can be gettable, settable, or both • Field: • Never accessible from C/AL

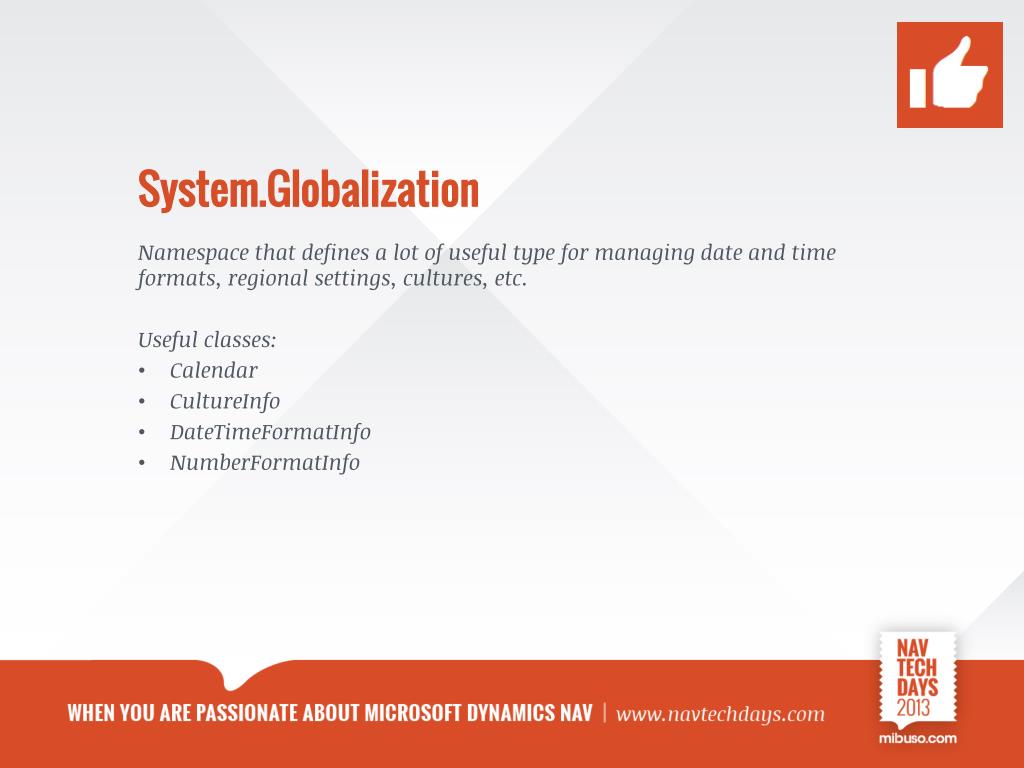

35. System.Globalization • Namespace that defines a lot of useful type for managing date and time formats, regional settings, cultures, etc. • Useful classes: • Calendar • CultureInfo • DateTimeFormatInfo • NumberFormatInfo

36. System.Globalization.Calendar • Manages time division into years, months, weeks, days, etc.

37. System.Globalization.CultureInfo • Provides access to culture information. Cultures are the heart of the .NET localization/globalization functionality.

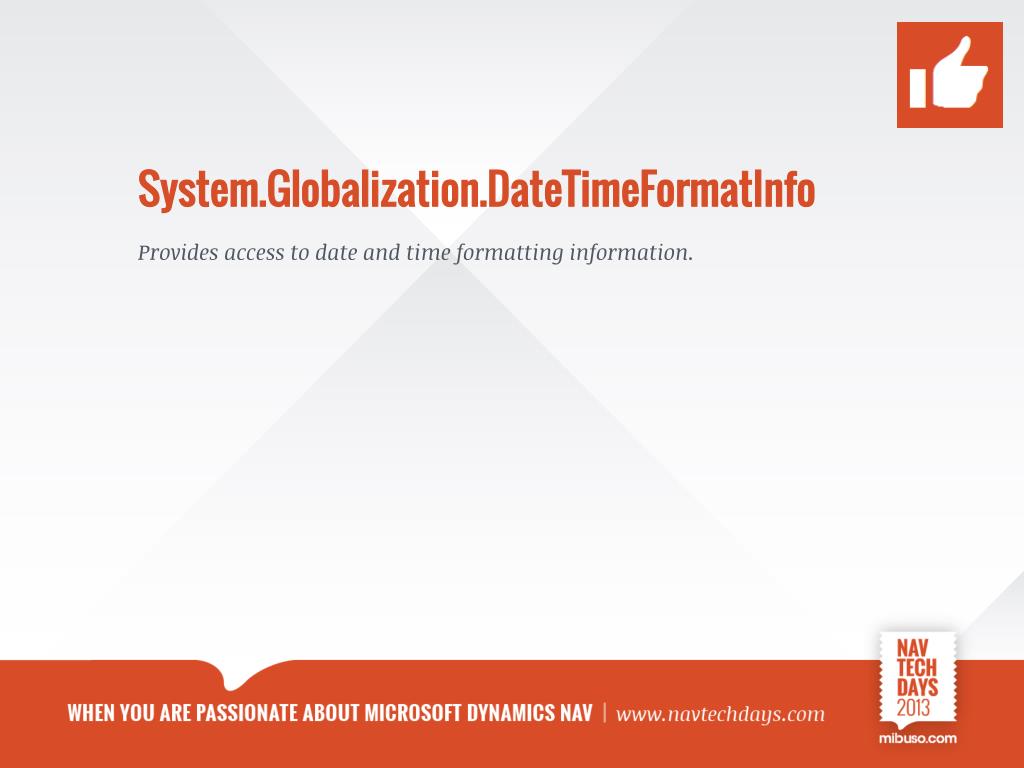

38. System.Globalization.DateTimeFormatInfo • Provides access to date and time formatting information.

39. System.Globalization.NumberFormatInfo • Provides access to number formatting information.

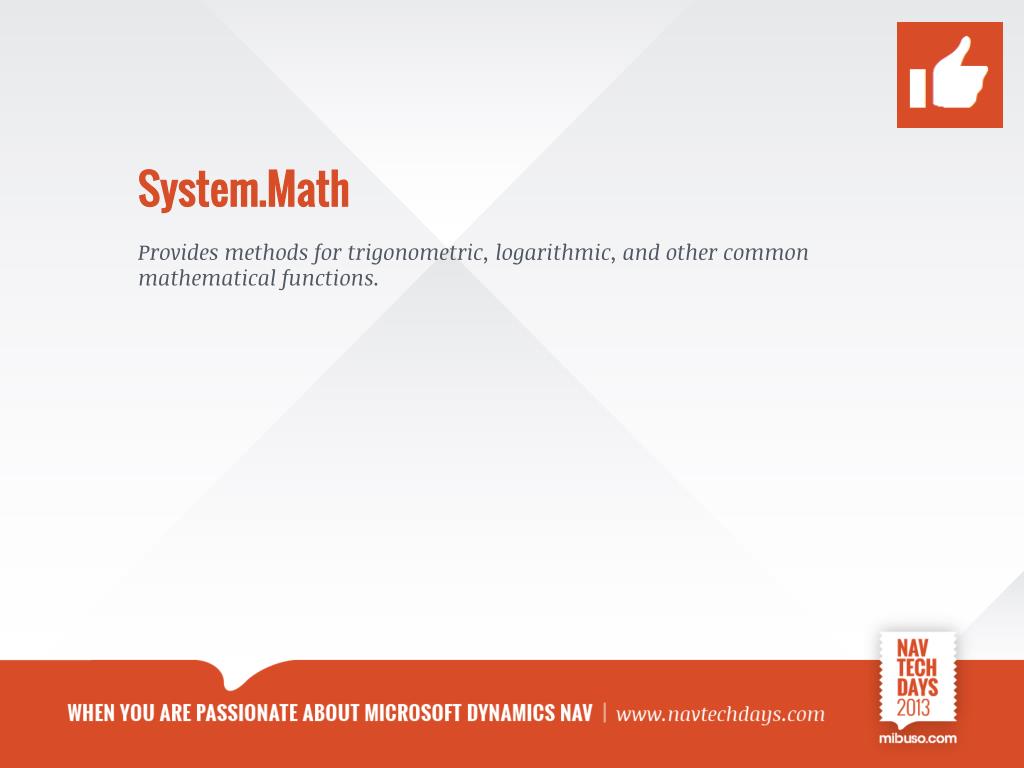

40. System.Math • Provides methods for trigonometric, logarithmic, and other common mathematical functions.

41. System.Numerics.BigInteger • Represents an arbitrarily large integer value, without any theoretical upper or lower bounds.

42. System.Convert • Converts a base data type to another base data type.

43. Part Four • Accessing operating system, file system, and the environment

44. System.IO • Namespace that provides many useful input and output classes.

45. System.IO.File • Provides static methods for the creation, copying, deletion, moving, and opening of files.

46. Static objects and methods • Static classes cannot be instantiated • Static methodscan be called on classes • Static classes and members are sharedfor the whole application domain • Microsoft Dynamics NAV Server runs as a single application domain

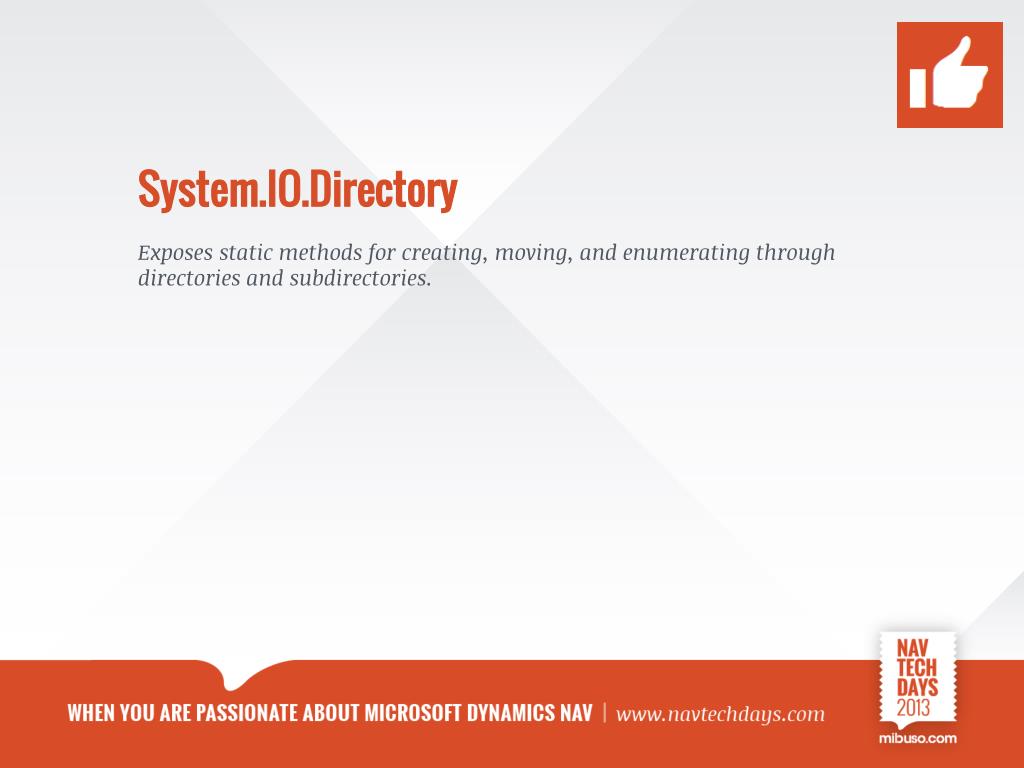

47. System.IO.Directory • Exposes static methods for creating, moving, and enumerating through directories and subdirectories.

48. System.IO.Path • Performs operations on String instances that contain file or directory path information.

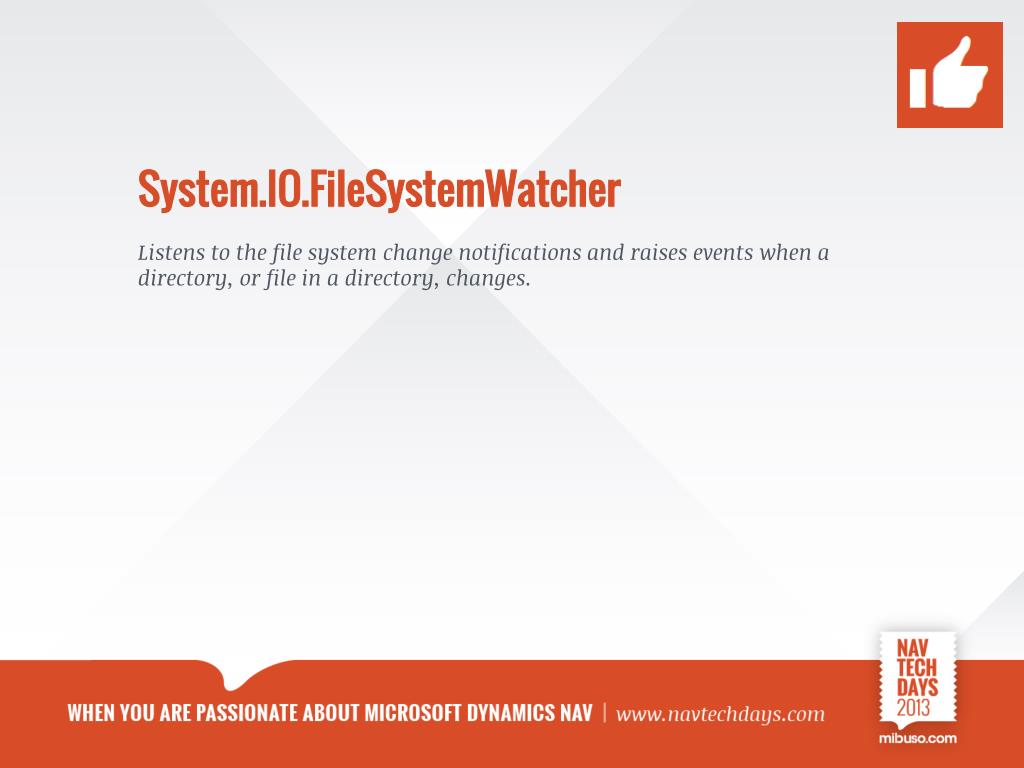

49. System.IO.FileSystemWatcher • Listens to the file system change notifications and raises events when a directory, or file in a directory, changes.

50. Events • Enable a class to notify other classes when something of interest happens. • Equivalent to C/AL triggers. • Events are not automatically exposed. • You must first set the WithEventsproperty. • Events can run be: • Server-Side: default behavior, if RunOnClientis No • Client-Side: if RunOnClientis Yes
