  1. Matching Lecture 11

  2. Topics • ID parade Frames • Matching Examples • Fuzzy Matching • Metric Spaces • Scales of measurement

  3. ID Parade Frames • Classifying volunteers as clean • Matching suspect to volunteers • Reservation of parade facility, officers, volunteers • Managing long-running process from decision to hold parade to payment of volunteers • Accounting – payment to volunteers and billing of police authorites • Historical record and analysis

  4. Merging multiple frames • Each frame produces its own model of the actors. • E.g. Models of volunteer • For matching with suspect • For classification • For payment • For reservation • For database, problem is called ‘view integration’

  5. Miscellaneous Matching applications • Many systems have a matching task at their core: • Shazam – sound sample matching • De-duping mailing lists • CD DB - CD recognition • COTS selection • IS development selection • fingerprint matching • patient/donor matching for transplant surgery • blood typing and matching • patients to clinical trials • interns to placements in hospitals • DNA samples • search request to locate relevant documents • incoming news items to information subscribers • number plate recognition in London’s Congestion Congestion Charging System • speech and writing recognition • patterns to material to minimise wastage

  6. Shazam - 2580 • Shazam is a mobile phone application • It can recognise 1.7 million tracks from a 30 sec sample – new tracks added at 5,000 a week • The track details are texted back within about 30secs • It costs 50p + 9p call charge (surcharge only if successful) • Your personal page shows the tracks you have tagged • www.shazam.com

  7. De-duping A catalogue from O’Reilly C Wallace West England University Coldharbour Lane Frenchay Bristol BS16 1QY Ms C Wallace Univ. of the West of England Frenchay Campus Coldharbour Lane Bristol BS16 1QY One person or two? Mailing lists are reported with 25 – 40% duplicates.

  8. CD DB • Database of 2.5 million CD’s, track details and supporting matter run by gracenote (www.gracenote.com) • Used by media players to obtain track info • Player sends signature of CD [sequence of track lengths in 1/4sec] to match against the database (via HTTP) • Application searches DB for best match and returns track info to media player. • Matching algorithm described in US Patent 6,061,680

  9. Commercial Of the Shelf Software (COTS) • Software exists for most business needs: • payroll • order processing • general ledger • human resources • e-commerce • e.g. SAP, SAGE .. • but analysts need to match business needs to COTS capability, and customise generic software for local business rules.

  10. Chatbots • Chatbots like ALICE simulate a human response to typed input • Most are for fun or annoyance • Increasingly being used for customer service, helpdesks, marketing • Based on matching patterns in text • The patterns are in an XML application called AIML

  11. Police ID parade • Currently: • Suspect matched to Volunteers visually by officer • Information System • Suspect and Volunteers modelled in database • System provides list of matching volunteers

  12. Matching in general • Matching task typically involve: • two sets of individuals : e.g. • the suspect / sampled track / DNA sample - The Requirement • the volunteers / 1.7 million stored tracks / DNA on file – The Resource • ‘adequate’ representations of both • a ‘fitness’ function which calculates how well matched a Resource is to the Requirement • a process to achieve the matching goal • Matching processes: • Single or Batch? • Single: One Req to many Resources • Batch: Many Reqs to many Resources (e.g. cutting) • Automatic, Interactive, Assistive • Automatic: Matching fully automated • Interactive: User makes final selection, adjusts weights • Assistive : Computer produces analyses which aid human selection

  13. Single Allocation • Allocation to a single Requirement: • ‘long list’ the Resources - eliminate the obviously unsuitable • compute fitness between Requirement and each remaining Resource • rank the Resources in fitness order for a ‘short list’ • ? user selection from short list on basis of additional information unknown to system • Interactive • User adjusts: • description of Requirement (e.g the search term in Google) • fitness function (e.g. the weights in the ID parade) • and retries

  14. Simple Matching • Resource and Requirement are of the same kind • Fitness = least distance between objects • String Matching • Levenshtein distance • Soundex and Metaphone • Age difference

  15. String Matching • How close are two strings – words, DNA sequences? • Levenshtein distance • is the number of single character edits required to change one to the other using the operations of: • inserting a letter • deleting a letter • replacing a letter • E.g. • Distance(receipt,tecept) = 2 • Distance(receipt,reciept) = 2 • Need a theory of why the strings are different • Better theory for typing would be to count transposition as 1 edit instead of 2 • Better theory for texting would be to count a replace by a letter on the same key less than a letter on a different key. • mutations in DNA matching

  16. Soundex and Metaphone • Surnames in English have multiple spellings for similar sounds • Wallace and Wallis, Smith and Smythe • Errors caused by similar phonetics having different spelling • Useful where sound-text transliteration occurs in data capture • e.g. Smith and Smythe • Soundex (Odell and Russell 1922) reduces every word to a letter and 3 digits – S530 for both • Metaphone (Philips 1990) smarter about English phonetics – SM0 for both • Double Metaphone – improved and two codes – one english, one ‘foreign’ • Comparison of algorithms

  17. Matching is subjective • How close are two ages? • Is the answer different for the identity parade and a dating agency? distance 0.0 age Suspect Volunteer Ideal Person Date

  18. Multi-valued Matching • How to combine multiple values to create a single distance? • Age and Height are different to Build, Eye-colour, Gender and Ethnic origin. • Distance in 2-D space: Sqrt(dx^2 + dy^2) dy y dx x

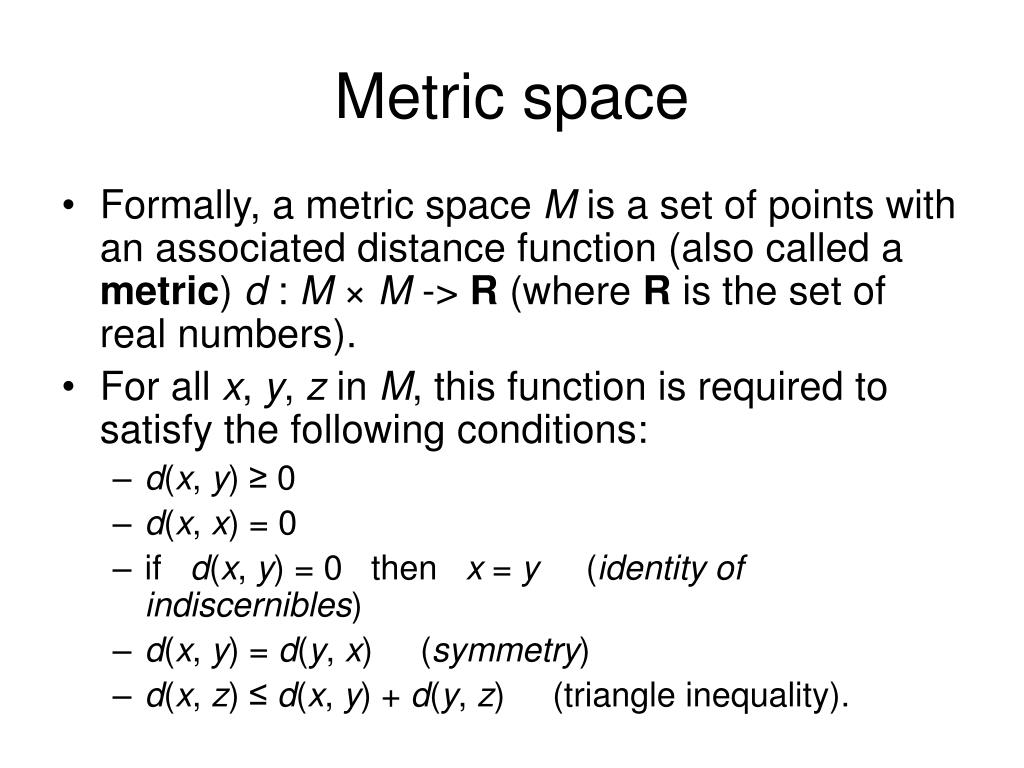

  19. Metric space • Formally, a metric space M is a set of points with an associated distance function (also called a metric) d : M × M -> R (where R is the set of real numbers). • For all x, y, z in M, this function is required to satisfy the following conditions: • d(x, y) ≥ 0 • d(x, x) = 0 • if   d(x, y) = 0   then   x = y     (identity of indiscernibles) • d(x, y) = d(y, x)     (symmetry) • d(x, z) ≤ d(x, y) + d(y, z)     (triangle inequality).

  20. Multi-attribute matching • Extract shows a simple Excel spreadsheet containing a suspect age, weight and gender, and the same attributes for 10 volunteers • Representation • Age is measured in years • Height in cm • Gender is M or F • Fitness function • Calculate difference between suspect and volunteer attributes • Normalise differences to 0…1 • Multiple by weights to express importance of each attribute • Sum of squared differences as Fitness function • Best fit volunteer has minimum value for Fitness

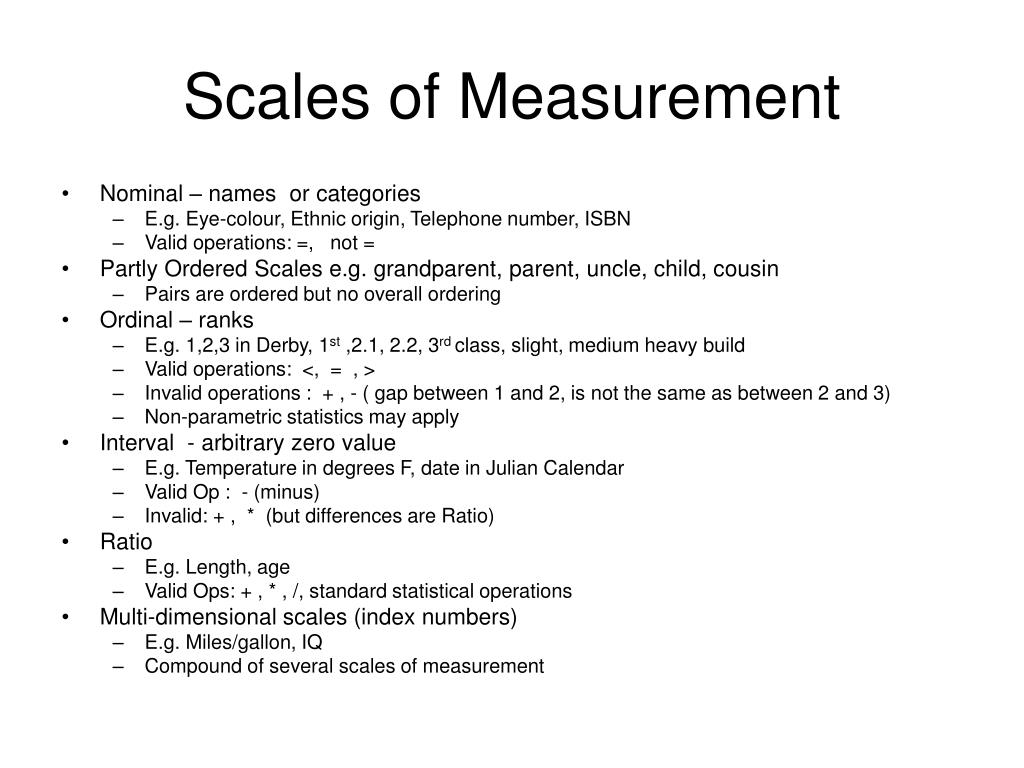

  21. Scales of Measurement • Nominal – names or categories • E.g. Eye-colour, Ethnic origin, Telephone number, ISBN • Valid operations: =, not = • Partly Ordered Scales e.g. grandparent, parent, uncle, child, cousin • Pairs are ordered but no overall ordering • Ordinal – ranks • E.g. 1,2,3 in Derby, 1st ,2.1, 2.2, 3rd class, slight, medium heavy build • Valid operations: <, = , > • Invalid operations : + , - ( gap between 1 and 2, is not the same as between 2 and 3) • Non-parametric statistics may apply • Interval - arbitrary zero value • E.g. Temperature in degrees F, date in Julian Calendar • Valid Op : - (minus) • Invalid: + , * (but differences are Ratio) • Ratio • E.g. Length, age • Valid Ops: + , * , /, standard statistical operations • Multi-dimensional scales (index numbers) • E.g. Miles/gallon, IQ • Compound of several scales of measurement

  22. Suspect/Volunteer attributes • Nominal – names or codes • Ordinal – ranks • Interval - no zero value • Ratio

  23. Transforming and Scaling • To combine different attributes, we need to transform Nominal, Ordinal and Interval values to Ratio scales • This cannot be done objectively, so judgement involved • Scaling and weights need to be adjustable to fine-tune matching • => Learning Frame (later)

  24. Sensitivity Analysis • Arbitrary weights can be adjusted to see what effect their variation has on the final selection • ? How much would each weight have to change before the first choice is demoted? • Excel analysis
