Service Representatives (SR)

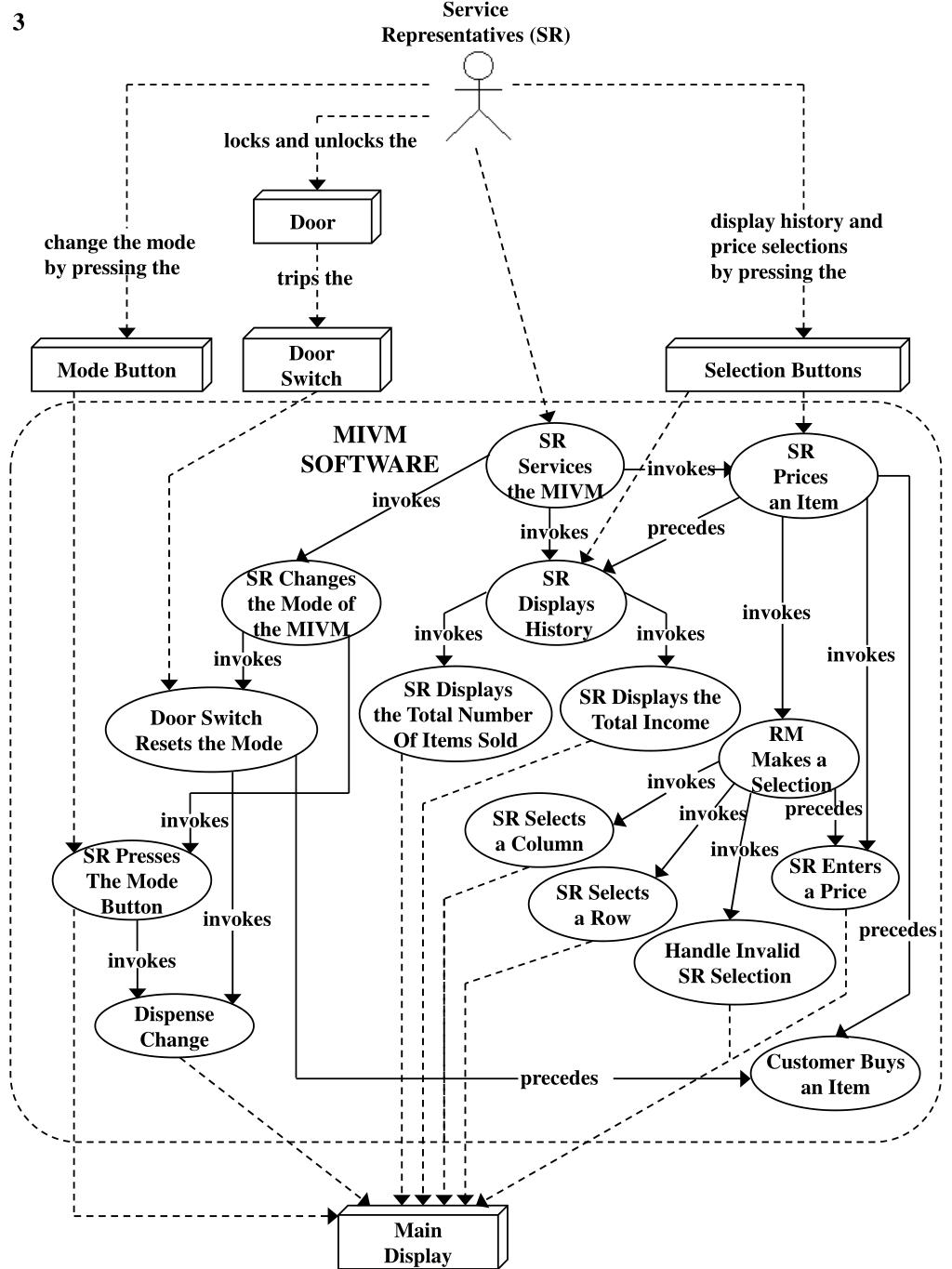

Service Representatives (SR). 3. locks and unlocks the. Door. display history and price selections by pressing the. change the mode by pressing the. trips the. Door Switch. Mode Button. Selection Buttons. MIVM SOFTWARE. SR Services the MIVM. SR Prices an Item. invokes.

kera
Télécharger la présentation

Service Representatives (SR)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Service Representatives (SR) 3 locks and unlocks the Door display history and price selections by pressing the change the mode by pressing the trips the Door Switch Mode Button Selection Buttons MIVM SOFTWARE SR Services the MIVM SR Prices an Item invokes invokes precedes invokes SR Changes the Mode of the MIVM SR Displays History invokes invokes invokes invokes invokes SR Displays the Total Number Of Items Sold SR Displays the Total Income Door Switch Resets the Mode RM Makes a Selection invokes precedes SR Selects a Column invokes invokes invokes SR Presses The Mode Button SR Enters a Price SR Selects a Row invokes precedes Handle Invalid SR Selection invokes Dispense Change Customer Buys an Item precedes Main Display

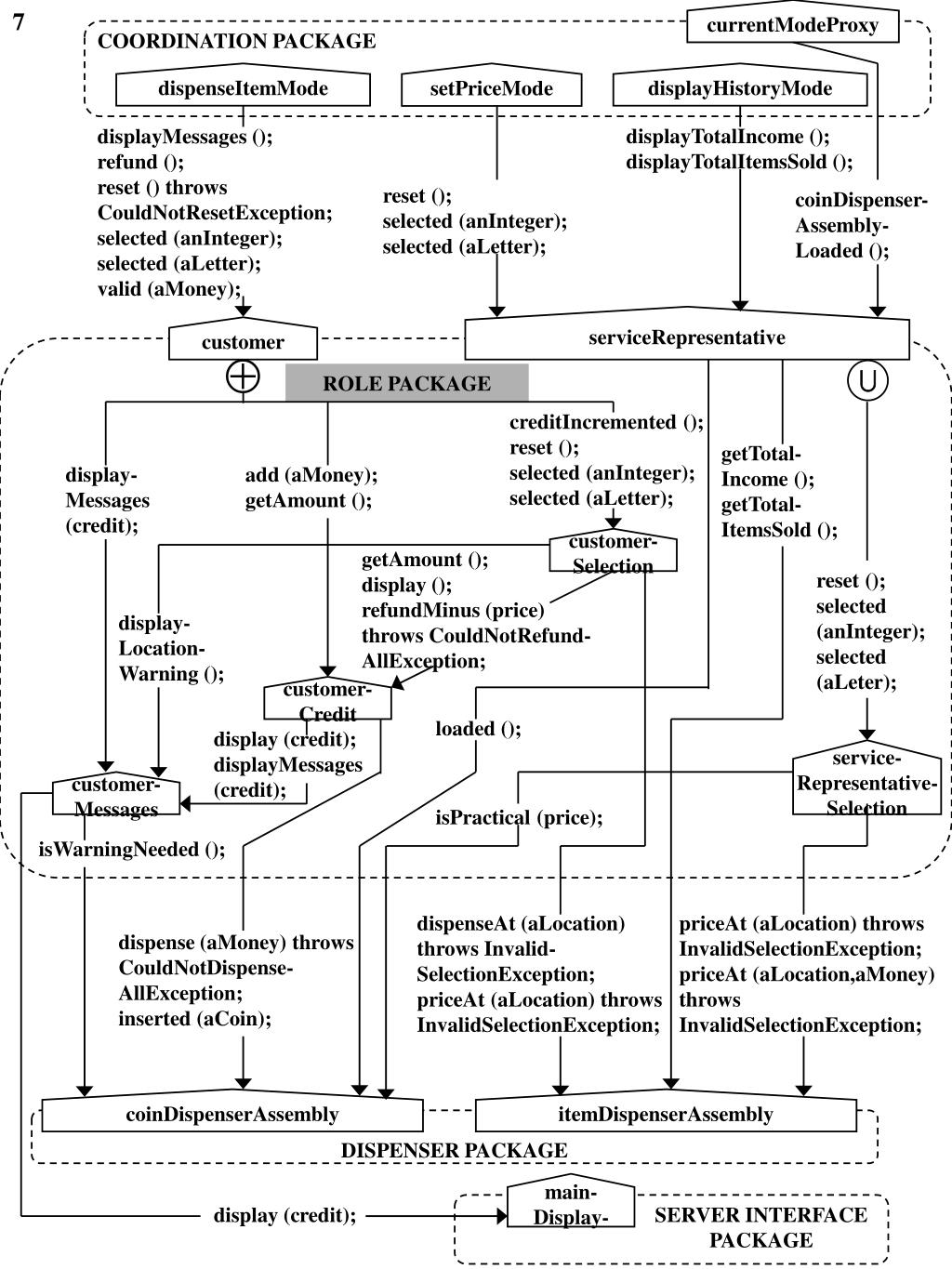

  2. currentModeProxy dispenseItemMode displayHistoryMode setPriceMode 7 COORDINATION PACKAGE serviceRepresentative displayTotalIncome (); displayTotalItemsSold (); displayMessages (); refund (); reset () throws CouldNotResetException; selected (anInteger); selected (aLetter); valid (aMoney); reset (); selected (anInteger); selected (aLetter); coinDispenser-Assembly-Loaded (); customer   ROLE PACKAGE creditIncremented (); reset (); selected (anInteger); selected (aLetter); getTotal- Income (); getTotal- ItemsSold (); display-Messages (credit); add (aMoney); getAmount (); customer- Selection getAmount (); display (); refundMinus (price) throws CouldNotRefund-AllException; reset (); selected (anInteger); selected (aLeter); display-Location-Warning (); customer- Credit service- Representative- Selection loaded (); display (credit); displayMessages (credit); customer- Messages isPractical (price); isWarningNeeded (); dispenseAt (aLocation) throws Invalid-SelectionException; priceAt (aLocation) throws InvalidSelectionException; priceAt (aLocation) throws InvalidSelectionException; priceAt (aLocation,aMoney) throws InvalidSelectionException; coinDispenserAssembly itemDispenserAssembly dispense (aMoney) throws CouldNotDispense-AllException; inserted (aCoin); DISPENSER PACKAGE main- Display- display (credit); SERVER INTERFACE PACKAGE

  3. 10 HandleMoney HandleSelection CurrentModeProxy Operations: changeMode (); doorLocked (); refund (); selected (anInteger); selected (aLetter); valid (aMoney);  1 1 1 DispenseItemMode DisplayHistoryMode SetPriceMode Operations: displayMessages (); refund (); reset (); selected (anInteger); selected (aLetter); valid (aMoney); Operations: reset (); selected (anInteger); selected (aLetter); Operations: reset (); selected (anInteger); selected (aLetter); service representative task {complete,disjoint} ServiceRepresentativeMode Operations: refund (); valid (aMoney); used by {complete,disjoint} ActualMode Operations: reset (); actual versus proxy {complete,disjoint} Mode  Operations: refund (); valid (aMoney); Operations: selected (anInteger); selected (aLetter);
