  1. Fast detectors and cameras ---Philippe Feautrier, Jean-Luc Gach, Philippe Balard, Christian Guillaume, Mark Downing, Eric Stadler, Yves Magnard, Sandy Denney, Wolfgang Suske, Paul Jorden, Patrick Wheeler, Michael Skegg, Peter Pool, Ray Bell, David Burt, Javier Reyes, Manfred Meyer, Norbert Hubin, Dietrich Baade, Markus Kasper, Robin Arsenault, Thierry Fusco Philippe.Feautrier@obs.ujf-grenoble.fr Fast detectors - Opticon Board Malta

  2. The conclusion of FP6 Fast detectors FP6 Fast detectors - Opticon Board Malta

  3. Demonstration of the e2v CCD220 AO detector withOCamThursday at Coffee/Lunch breaksESO council room Split frame transfer 8-output back-illuminated e2v-L3Vision CCD. • 240 x 240 pixels • 8 EMCCD ouputs • Frame rate: 1300 frames/sec • Noise ~ 0.5 e • Peltier cooled @ - 45 °C Fast detectors - Opticon Board Malta

  4. Fast detectors - Opticon Board Malta

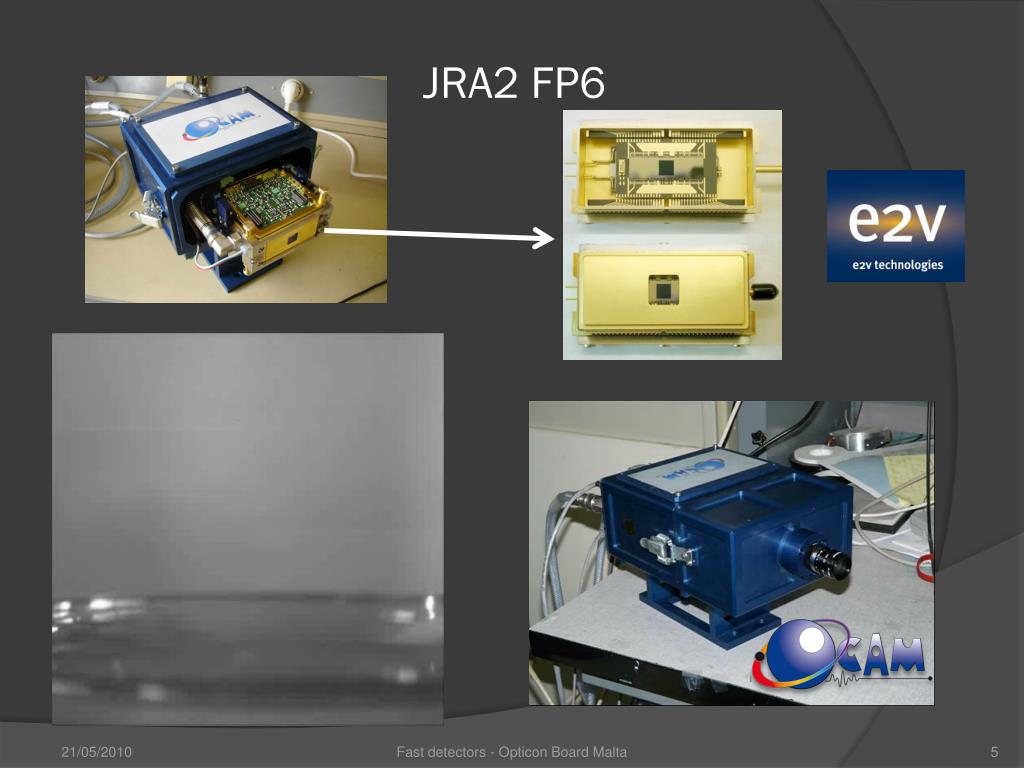

  5. JRA2 FP6 Fast detectors - Opticon Board Malta

  6. Multiplication gain and Dark 0 1 2 3 Dark events Amp 5 7 6 5 4 Standard silicon Temperature: -40°C Frame rate: 1360 fps Fast detectors - Opticon Board Malta

  7. Dark Current (e/pixel/frame) Gain=10 Gain=1000 Minimum specification - 45°C Temperature (°C) Single dark + CIC events • CCD temperature: -40°C • Standard Si • One of the 8 outputs • Frame rate: 1360 fps • Multiplication gain: x 1150 •  65 darkevents / output (120 x 60 pixels) Fast detectors - Opticon Board Malta

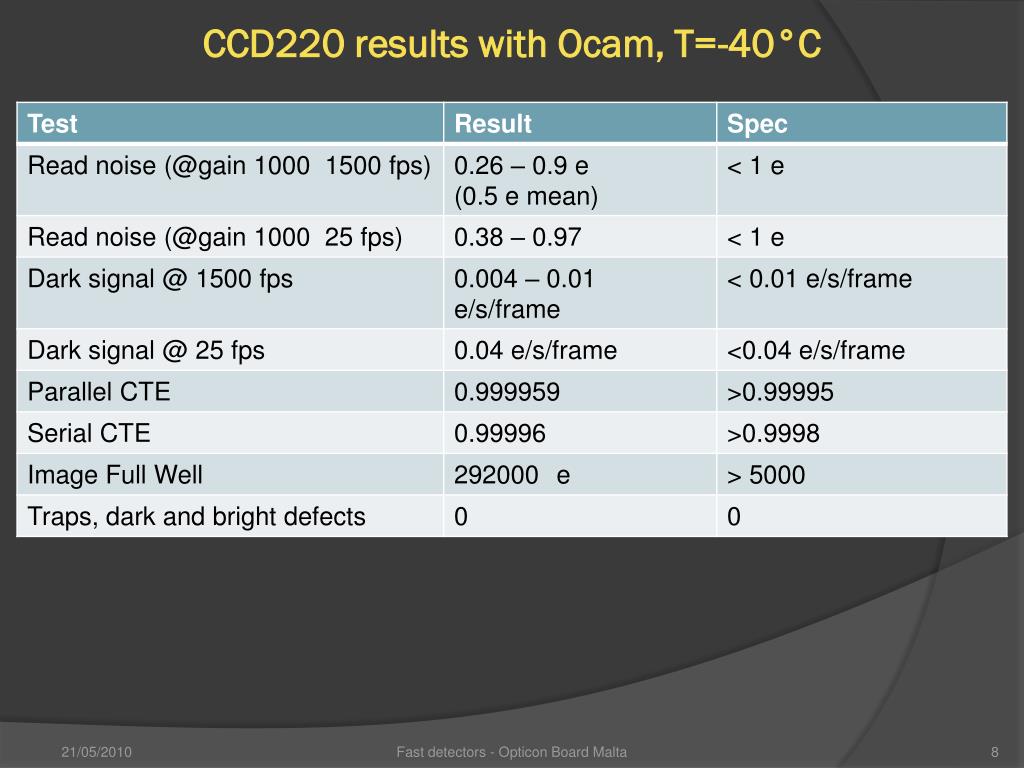

  8. CCD220 results with Ocam, T=-40°C Fast detectors - Opticon Board Malta

  9. CCD220 measured QE (standard Si) Fast detectors - Opticon Board Malta

  10. OCamtechnology in Europe ESO WFS camera basedon the Ocamtechnology. Ocam : WFS camera for Grantecan Delivery of 2 systems Sept 2010 Fast detectors - Opticon Board Malta

  11. Creation of a startup company Fast detectors - Opticon Board Malta

  12. Ocam II is the commercial version of Ocam I • Improved reliability • Improved performances • Improved environmental conditions (can work with air and water temperature up to 40°C) • Detector safety (over-illumination) • More compact for integration on telescope OCam I Fast detectors - Opticon Board Malta

  13. The beginning of FP7 Fast detectors for LGS Fast detectors - Opticon Board Malta

  14. LGSD specifications LGSD = Laser Guide Star Detector • 24 µm pixels, 100% fill-factor • 84 x 84 sub-apertures (goal 126 x 126) • 20 x 20 pixels per sub-aperture (to cover spot elongation)  1680x1680 pixels • 400-800 Hz (for various AO modules) • RON < 3e-(goal 1 e-), QE > 85% • Good image lag, charge diffusion, PRNU, cross-talk, non-linearity, cosmetics, RON and dark current variations, stability w.r.t. environment (for centroiding quality) • Low latency, fully packaged • Goal: Possible re-use for NGSs WF Sensing Sodium layer LLT Pupil plane Detector plane Fast detectors - Opticon Board Malta

  15. Previous ESO developments • 2007: 4 Feasibility studies for EELT LGS WFS detector, 50 k€ each, 2 of them funded by FP6-ELT Design Study  “Market survey” • 2008-2009: 3 Technology Demonstrator contracts, 400 k€ each, 2 of them funded by FP6-ELT Design Study  “Manufacture of a small array of pixels to prove noise performance” Teledyne (USA) E2v (UK) Sarnoff (USA) Fast detectors - Opticon Board Malta

  16. The current FP7 phase : NGSD • Natural Guide Star Detector = Scaled Down Demonstrator for the LGSD. • Its purpose is : • 1) To develop a detector that can be used for first light NGS application for the EELT • 2) To demonstrate the feasibility of the LGSD, without the high costs associated with more engineering tasks such as: • Integral Peltier package, and/or • Extension of the dimensions of the device such that stitching is required. • Specifications are identical to the LGSD ones, except for: • 672 x 672 pixels instead of 1680 x1680 • 4 e- RON instead of 3 e- • Relaxed image lag (5 % instead of 2 %) • Manufacturers standard package (simple packaging to keep costs down) • No Peltier cooler Fast detectors - Opticon Board Malta

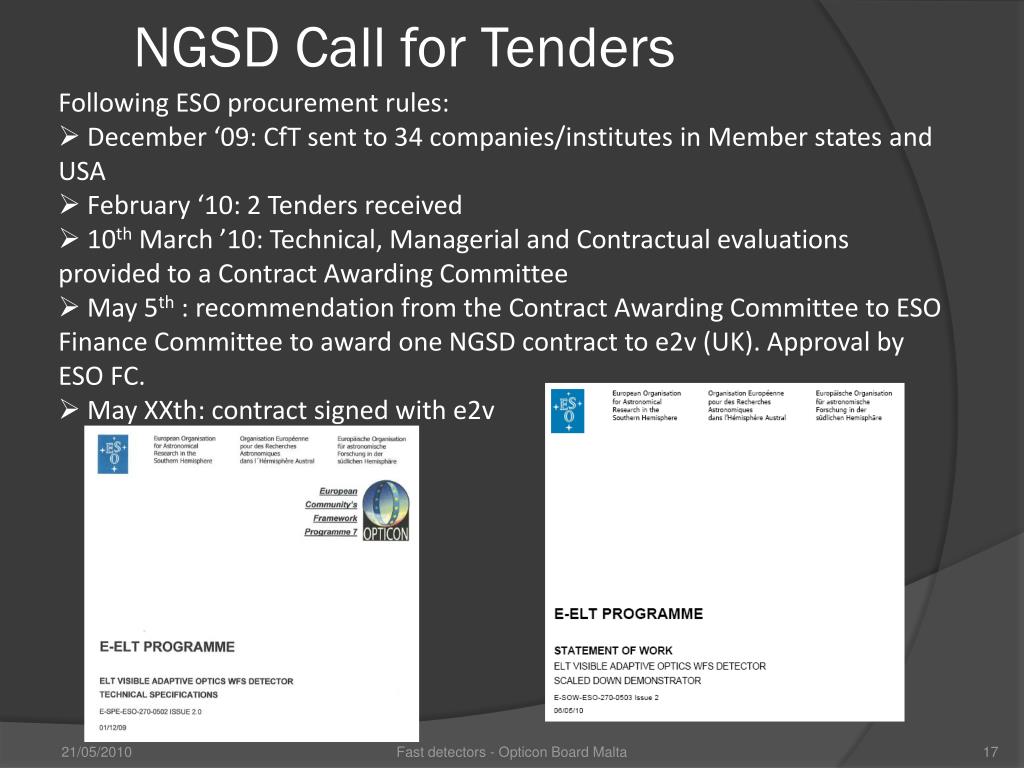

  17. NGSD Call for Tenders • Following ESO procurement rules: • December ‘09: CfT sent to 34 companies/institutes in Member states and USA • February ‘10: 2 Tenders received • 10th March ’10: Technical, Managerial and Contractual evaluations provided to a Contract Awarding Committee • May 5th : recommendation from the Contract Awarding Committee to ESO Finance Committee to award one NGSD contract to e2v (UK). Approval by ESO FC. • May XXth: contract signed with e2v Fast detectors - Opticon Board Malta

  18. Plans for the future Stabilize the World leadership of Europe on Fast Detectors and Cameras Fast detectors - Opticon Board Malta

  19. Firsts of this technology: • - Visible CMOS detector for the first time in astronomy • - Back-side illuminated CMOS • Build-in Digital Outputs • But no real testing possibility of this detector outside e2v and production camera not planned, just prototypes . Fast detectors - Opticon Board Malta

  20. XAO detectors for 3rd generation of instruments and ELT • À compléter…. Fast detectors - Opticon Board Malta

  21. Opticon FP7 call 2 detector proposal : beyond what was already developped (à revoir…). Same philosophy as previous successful detector activities : few goals, few partners with world class know how … • WP1 Upgrade of OCam to operate the CCD220 at 2.5-3 kHz frame rate for XAO instruments such as SPHERE and EPICS (following FP6 activities), improve noise (<< 1e), and characterize the system. Industrialize it. • WP2 Develop a production camera system for LGS CMOS detectors to test the detector in the labs and that will be used afterward on the VLT and E-ELT (following FP7 call 1 activities). Develop interface with Sparta RTC. Industrialize it. Actors (preliminary): • LAOG: management/system, camera head, detector/system characterization • LAM : camera controllers, interface with Sparta. • ESO (interface CMOS controller/Sparta, specifications, end user on telescope) • Industrial partners Fast detectors - Opticon Board Malta

  22. WP description for FP7 Phase 2 FastDectors and cameras Fast detectors - Opticon Board Malta

  23. WP2 Organization Fast detectors - Opticon Board Malta

  24. WP2.1 Management • Scope : management of the WP Fast Detectors and Cameras. • Lead : CNRS (LAOG – P. Feautrier) • CNRS/LAOG will coordinate the WP2 activity, prepare the key specifications for the other WPs, monitor the WPs, organize study and design reviews, prepare the regular reports and detailed work plans for the OPTICON management. • Funding: 50 K€. Fast detectors - Opticon Board Malta

  25. WP2.2 CCD220/Ocam 2.5 kHz • Scope: upgrade 3rdgen VLT Instruments and prepare XAO for ELT (EPICS) • Goal: decrease Ocam current noise down to 0.1-0.2 e and increase speed to 2.5 kHz (goal 3 kHz) with redesign of the controller. Prepare industrialization. • New generation of amplifiers and gained experience during FP6 allows to increase speed and noise performances of Ocam allowing to use the CCD220 for the third generation of XAO system and prepare XAO for ELT. • This means a complete redesign of Ocam for this goal. Partners: LAM (lead), controller. LAOG : camera head, camera testing Fast detectors - Opticon Board Malta

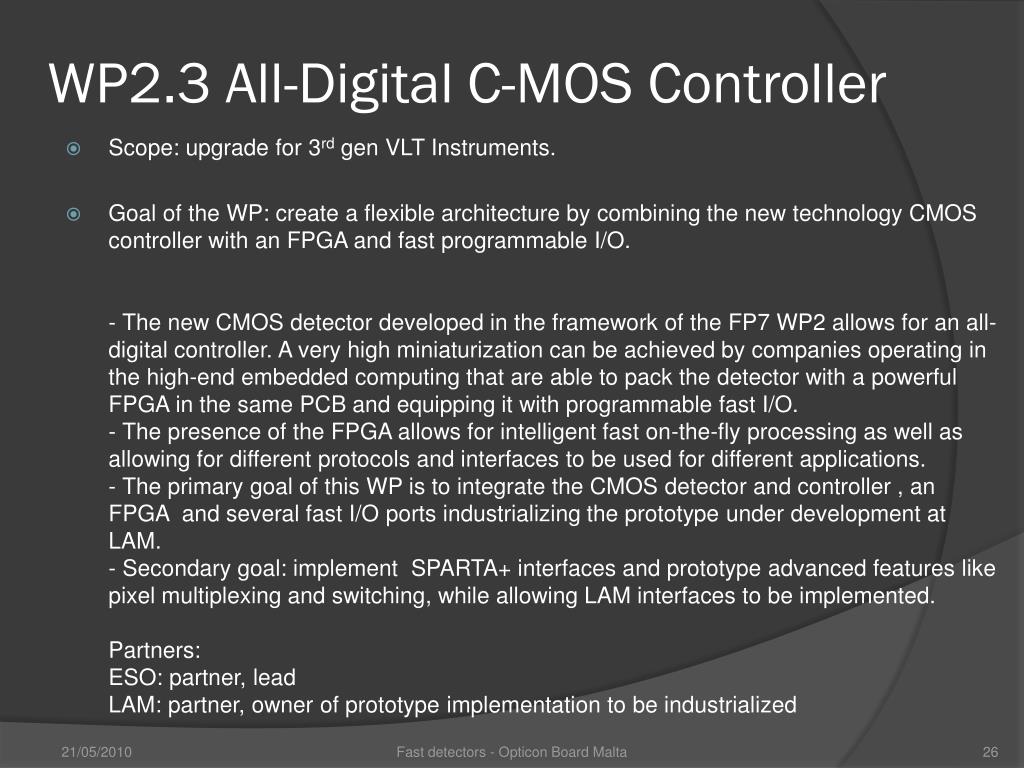

  26. WP2.3 All-Digital C-MOS Controller • Scope: upgrade for 3rd gen VLT Instruments. • Goal of the WP: create a flexible architecture by combining the new technology CMOS controller with an FPGA and fast programmable I/O. - The new CMOS detector developed in the framework of the FP7 WP2 allows for an all-digital controller. A very high miniaturization can be achieved by companies operating in the high-end embedded computing that are able to pack the detector with a powerful FPGA in the same PCB and equipping it with programmable fast I/O. - The presence of the FPGA allows for intelligent fast on-the-fly processing as well as allowing for different protocols and interfaces to be used for different applications. - The primary goal of this WP is to integrate the CMOS detector and controller , an FPGA and several fast I/O ports industrializing the prototype under development at LAM. - Secondary goal: implement  SPARTA+ interfaces and prototype advanced features like pixel multiplexing and switching, while allowing LAM interfaces to be implemented. Partners: ESO: partner, lead LAM: partner, owner of prototype implementation to be industrialized Fast detectors - Opticon Board Malta

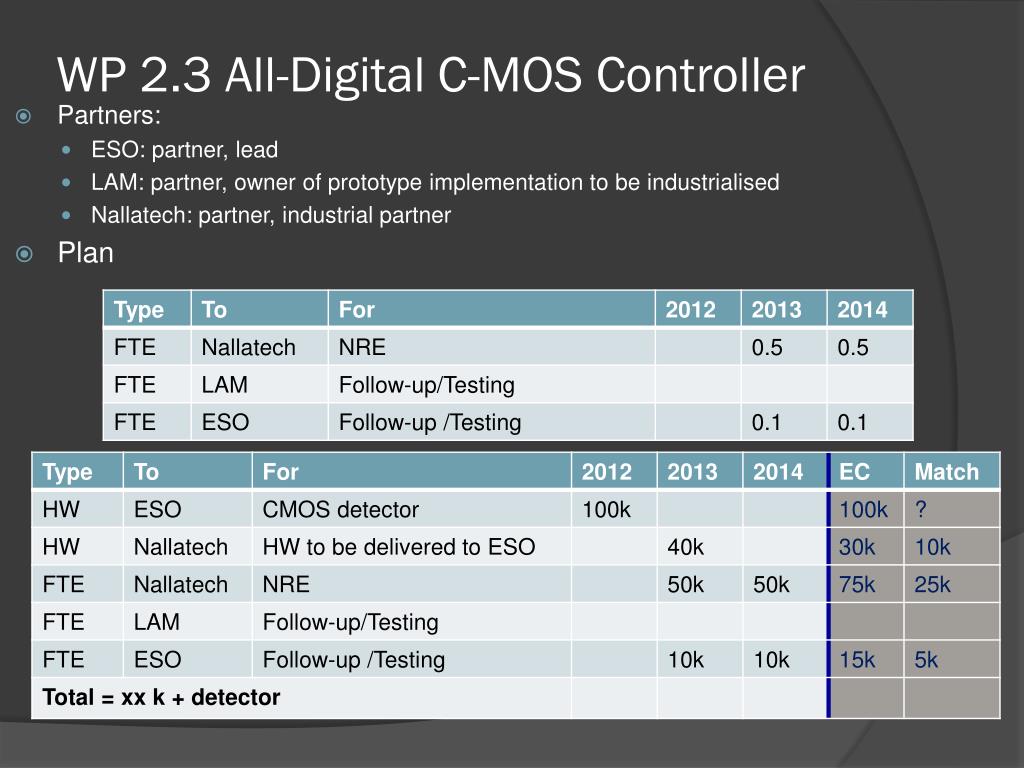

  27. WP 2.3 All-Digital C-MOS Controller • Partners: • ESO: partner, lead • LAM: partner, owner of prototype implementation to be industrialised • Nallatech: partner, industrial partner • Plan
