Transfection of alternative cell lines

Transfection of alternative cell lines. RAW 264.7 3T3-L1 J774 AtT-20. Expression of YFP in Electroporated WEHI 231 cells. Phase. CMV_YFP. 30-60% transfection efficiency. Expression of YFP in electroporated WEHI 231 and HEK293 cells. WEHI 231 293.

kerry
Télécharger la présentation

Transfection of alternative cell lines

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Transfection of alternative cell lines RAW 264.7 3T3-L1 J774 AtT-20

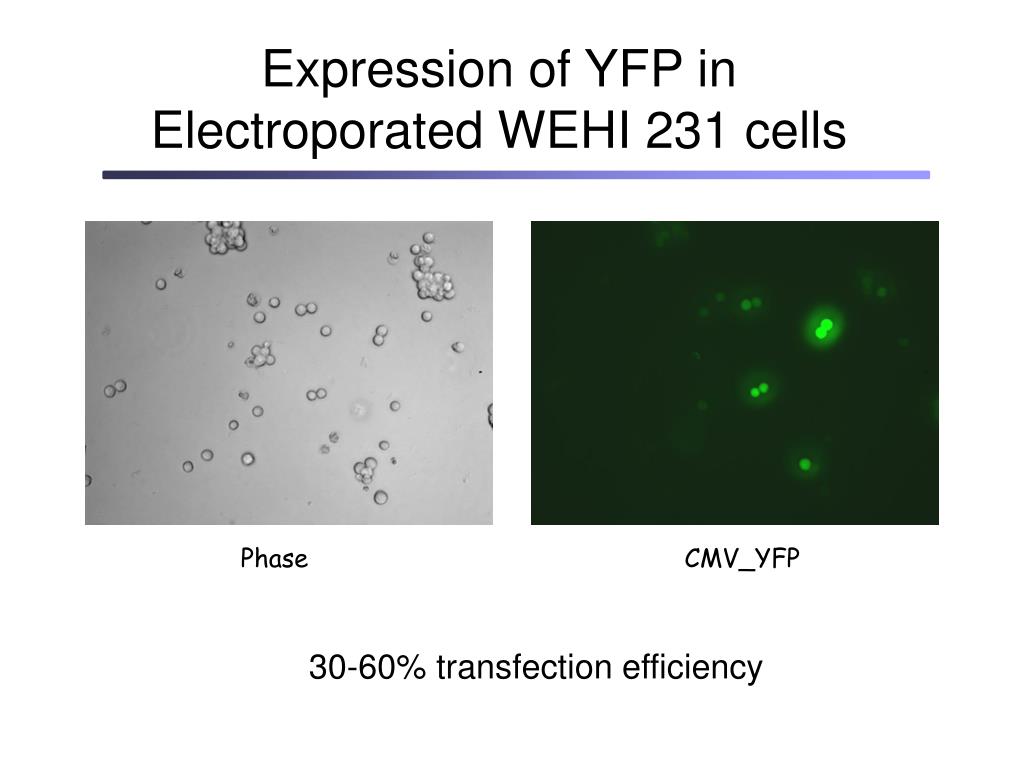

  2. Expression of YFP in Electroporated WEHI 231 cells Phase CMV_YFP 30-60% transfection efficiency

  3. Expression of YFP in electroporated WEHI 231 and HEK293 cells WEHI 231 293 YFP positive control Ctrl YFP1 YFP2 Ctrl YFP1 YFP2 M KDa 63.8 49.5 37.4 YFP 26.0 20.5 Anti-GFP (JL-8) blot Total cell lysate from ~1 mil cells per lane

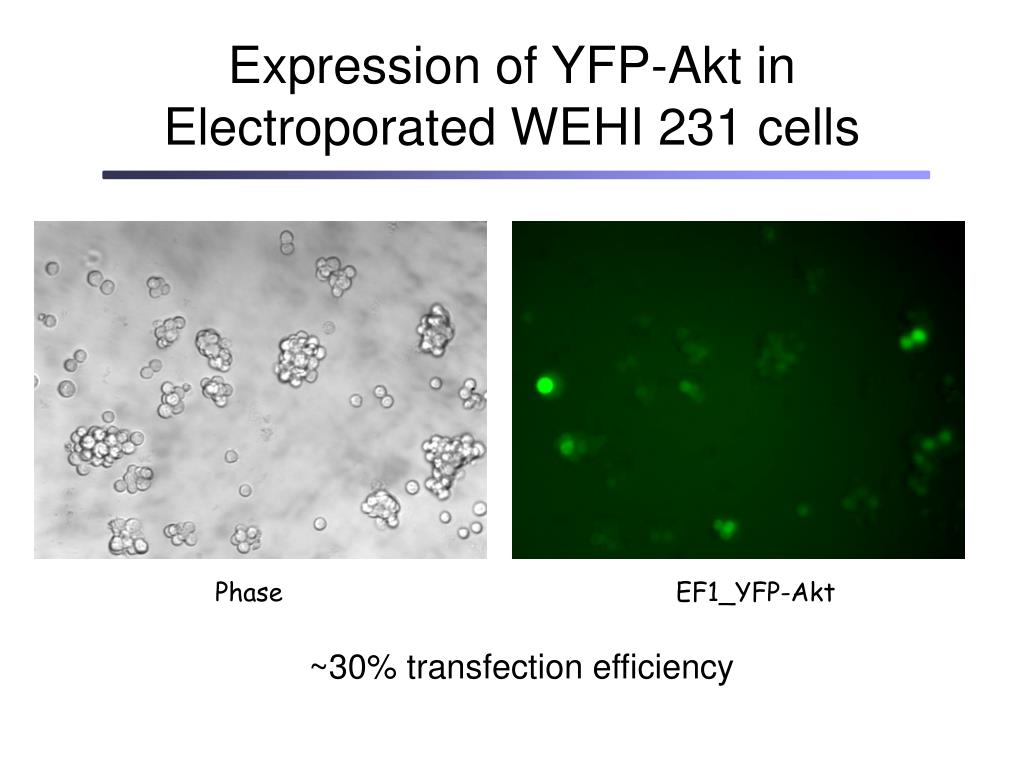

  4. Expression of YFP-Akt in Electroporated WEHI 231 cells Phase EF1_YFP-Akt ~30% transfection efficiency

  5. Expression of YFP-Akt in electroporated WEHI 231 and HEK293 cells WEHI-231 293 YFP positive control Ctrl YFP-Akt Ctrl YFP-Akt KDa M 182.9 113.7 80.9 YFP-Akt 63.8 49.5 37.4 YFP 26.0 20.5 Anti-GFP (JL-8) blot Total cell lysate from ~1 mil cells per lane

  6. Expression of FLAG-Stat3 in retrovirus infected and selected WEHI 231 M TCL IP 120.0 FLAG-Stat3 83.8 65.8 Anti-Flag Blot ~200,000 cells in TCL lane ~24 mil cells in IP lane

  7. Lipofectamine2000 FuGene6 Effectene SuperFect GenePorter2 Electroporation Retrovirus infection CMV_YFP EF1_YFP Transfection Tests on Alternative Cells

  8. RAW264.7 Transfection Summary

  9. Lipofection of RAW 264.7 5 ug DNA, 10 ul of Lipofectamine2000 (6-well plate) Phase CMV_YFP Phase EF-1_YFP

  10. Lipofection of RAW 264.7 • By FACS, 60-70% of the live cells are expressing 24 hrs post-transfection • By Trypan Blue exclusion, the lipofection kills 20-30% of the cells (when the lipid is left on the cells overnight) 5 ug DNA, 10 ul of Lipofectamine2000 in a 6-well plate

  11. Microscopy of YFP Fusion Protein Expression in RAW 264.7 cells EF-1_ YFP-Jnk1 Phase ~35% trnsfxn efficiency EF-1_ YFP-p38MAPK Phase

  12. Western Blot of YFP Fusion Protein Expression in RAW 264.7 YFP control (20ng) EF1_YFP-p38MAPK CMV_YFP-p70S6 EF1_YFP-p70S6 EF1_YFP-Jnk1 CMV_Jnk1-YFP no DNA CMV_YFP EF1_YFP M KDa 120.0 YFP-p70S6kinase 83.8 YFP-Jnk1 YFP-p38MAPK 65.8 50.1 38.6 YFP 27.5 ~ 200,000 cells (or ~20 ug of total protein) loaded per lane

  13. Expression level comparison RAW 264.7, transiently transfected ~100ng of signaling protein per 1x106 WEHI 231, stably infected and selected ~25ng of signaling protein per 1x106

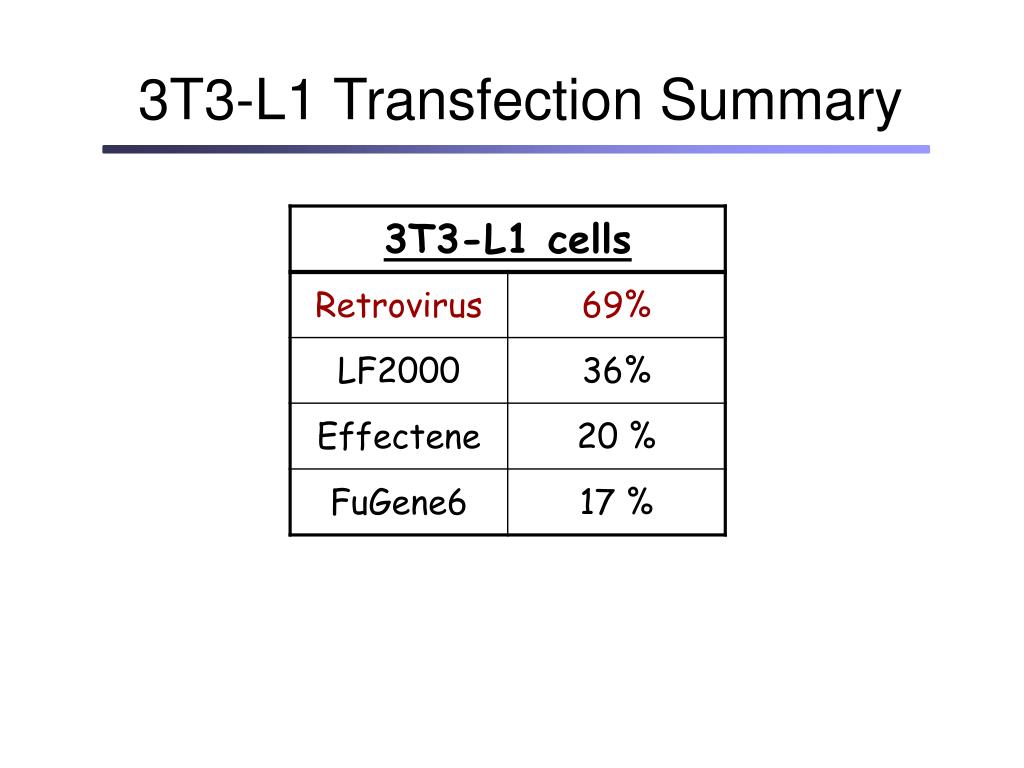

  14. 3T3-L1 Transfection Summary

  15. J774 Transfection Summary

  16. Lipofection of AtT-20 cells 2.5 ug DNA, 10 ul of Lipofectamine2000 (6-well plate) CMV_YFP Phase 70-80% Transfection efficiency

  17. Transfection Summary • Transfection efficiency of RAW 264.7 cells using Lipofectamine2000 is high (~30-70% depending on DNA construct) • Protein expression level is ~4X higher in RAW cells compared WEHI 231 • Transfection efficiency of ~30-70% for 3T3-L1 cells depending on method used • Poor transfection efficiency in J774 cells • High transfection efficiency in AtT-20 cells • All conditions need to be optimized and repeated

  18. Acknowledgements Dallas Cell Lab Robert Hsueh Yan Ni Richard Davis Protein Chemistry Lab Farah El Mazouni Deepa Sethuraman Robert Cox
