Advanced Superheat Control System: Innovations for Enhanced Efficiency and Performance

The Advanced Superheat Control System incorporates cutting-edge technology to improve evaporator performance and energy efficiency. Key features include an enhanced superheat control algorithm that enables a “Set & Forget” commissioning process, resulting in lower evaporator discharge temperatures and tighter temperature control. Our system benefits from remote wireless interfaces, intelligent diagnostics, and an electronic “anti-hunt” mechanism. Designed for durability and reliability, the system uses waterproof electronics and low-temperature, high-impact materials, making it an efficient and robust solution for modern cooling needs.

kesia
Télécharger la présentation

Advanced Superheat Control System: Innovations for Enhanced Efficiency and Performance

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

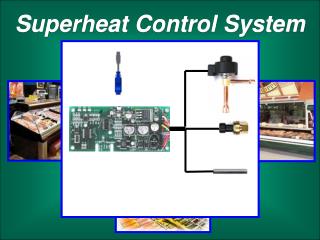

  1. Superheat Control System

  2. Superheat Control System System Components Production Intent System

  3. Superheat Control System • Technology Innovations • Enhanced superheat control algorithm • Labor saving “Set & Forget” commissioning • Improved evaporator performance • Efficiency and temperature pull down • Lower evaporator discharge temperatures • Tighter temperature control • Electronic “anti-hunt” “ballast bulb” • Patent disclosure • Compressor protection algorithm

  4. Case Superheat Control System

  5. Superheat Control System • Technology Innovations • Remote wireless IR interface • Intelligent diagnostics • Electronic LED semaphore • With alarm buffering • Case performance “signature” and history capture • Sensor “failsafe” provision • Low mass, rapid response temperature sensor • Enhanced, low cost, electronic expansion valve

  6. Control System Intelligent Diagnostics

  7. Superheat Control System • Packaging Innovations • Low pressure thermoplastic overmold • Waterproofs electronics • FDA (NSF) and UL approved • Low temp, high impact qualified • Inherent cable stain relief • Electronics lay out accommodates mold flow process • Multiple pre-fabricated, low temp, water proof cables and cable quick connects

  8. Kitting • Customer Inputs: • Controller Kit • Controller module • Power input cable assembly • Valve / Sensor Kits • Pressure & temperature sensors with cables, expansion valve & stator (1.5 ton), (3 ton), & (5 ton) • Individual components set up as service parts

  9. Superheat Control System
