Maximal Voluntary Effort

Maximal Voluntary Effort. Group 2. Jamar Hand Dynamometer. It is used to evaluate a person’s Maximum Voluntary Effort, based on hand dynamometer tests. This test has been used for over 35 years for compensation determinations. It accommodates various hand sizes and has 5 positions.

kesler
Télécharger la présentation

Maximal Voluntary Effort

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Maximal Voluntary Effort Group 2

  2. Jamar Hand Dynamometer • It is used to evaluate a person’s Maximum Voluntary Effort, based on hand dynamometer tests. • This test has been used for over 35 years for compensation determinations. • It accommodates various hand sizes and has 5 positions..

  3. Work places: • Shelf Stockers • Construction • Administrative Assistant

  4. Place of Employment

  5. Happy Wrists

  6. Sore Wrists

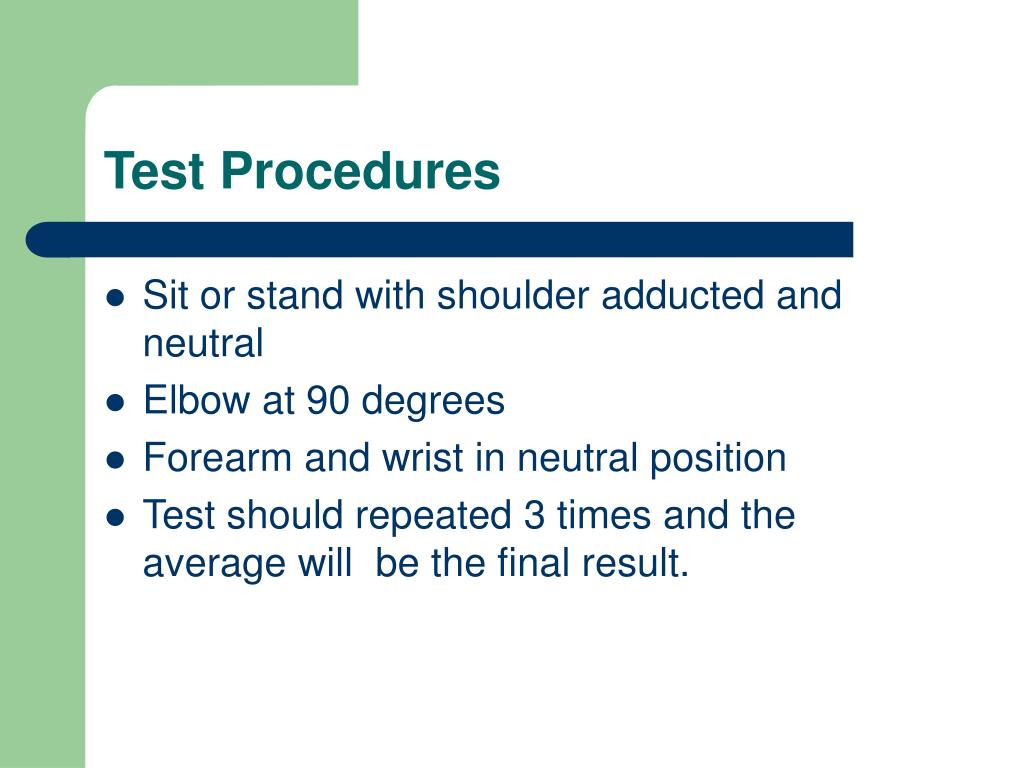

  7. Test Procedures • Sit or stand with shoulder adducted and neutral • Elbow at 90 degrees • Forearm and wrist in neutral position • Test should repeated 3 times and the average will be the final result.

  8. Set the adjustable handle to desired spacing • Rotate the red peak-hold needle counter clockwise to 0 • Start with the smallest grip setting, right and then the left. • Record reading • Reset and redo alternating 3 times left and right side. • Evaluee can take a break (no more than 2 minutes)

  9. How is the test measured? • The test is measured by the coefficient of variation • CofV= Standard Deviation /Mean X 100

  10. Our Data

  11. Normative Data

  12. Interpretation of Results • It is based on the following three outcomes: • CofV does not exceed the cut point for any trials. This means the evaluee has demonstrated max effort • CofV exceeds the cut point for fewer than three trials. This means that the evaluee has demonstrated a max voluntary effort in this test. - CofV exceeds the cut point for three trials. The evaluee has not demonstrated max voluntary effort on the test.

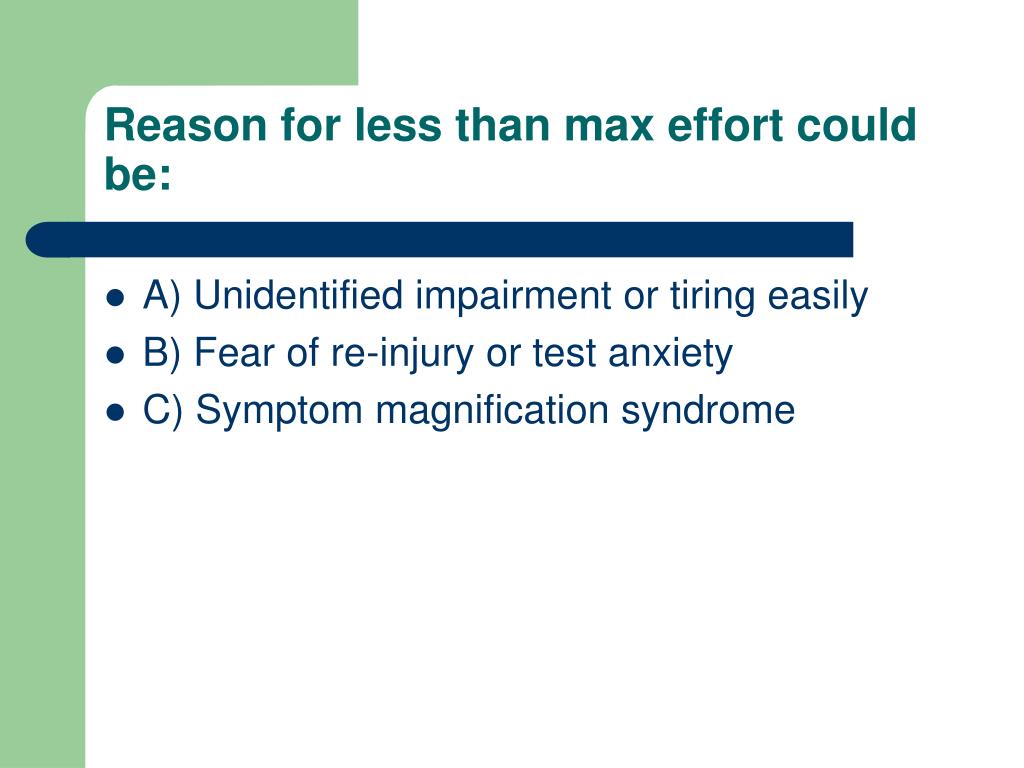

  13. Reason for less than max effort could be: • A) Unidentified impairment or tiring easily • B) Fear of re-injury or test anxiety • C) Symptom magnification syndrome

  14. To help distinguish between three possible interpretations • 1) Unidentified impairment • 2) Fear Response • 3) Symptom magnification syndrome

  15. Rapid Exchange Grip Test: • It helps to identify maximal grip strength in individuals with whom the evaluator is not believe the evaluee is giving maximal effort. It also will add further validity to the original JAMAR MVE findings.

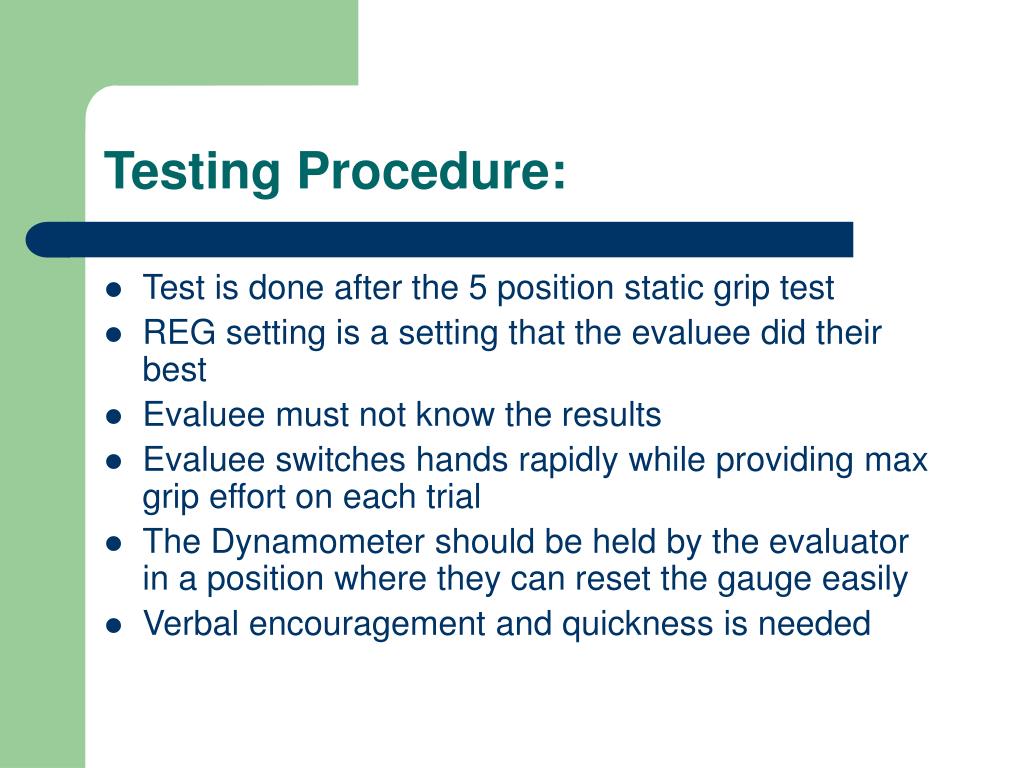

  16. Testing Procedure: • Test is done after the 5 position static grip test • REG setting is a setting that the evaluee did their best • Evaluee must not know the results • Evaluee switches hands rapidly while providing max grip effort on each trial • The Dynamometer should be held by the evaluator in a position where they can reset the gauge easily • Verbal encouragement and quickness is needed

  17. Results • Positive: If the score is greater than or equal to the static score. Suggests lack of full effort • Negative- If the score is less than (around 15%) than the static score.

  18. Jamer Hydraulic Gauge • It is designed for use in hand strength testing applications- Specifically the measurement of tip, key and palmer pinch. • Can also be used as a diagnostic, or as a means of monitoring progress of rehabilitation of the hand.

  19. Tip Pinch- Thumb tip to index finger tip • Key Pinch- Thumb pad to lateral aspect of the middle phalanx of index finger • Palmer Pinch- Thumb pad to pads of index and middle finger

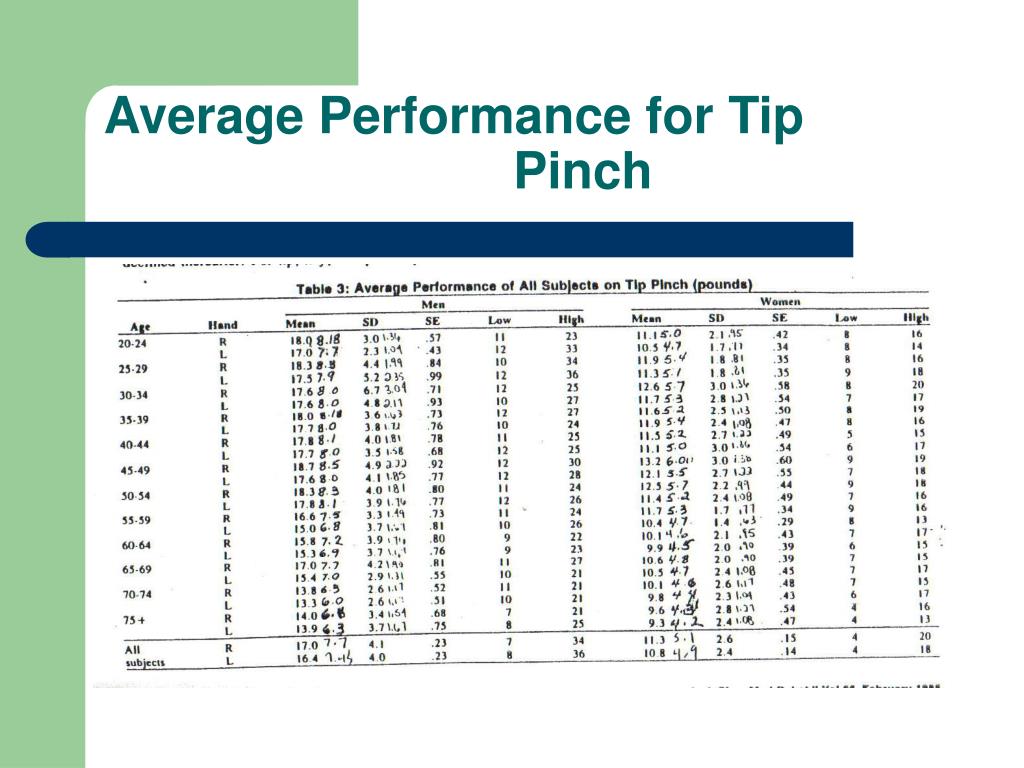

  20. Average Performance for Tip Pinch

  21. Average Performance for Key Pinch

  22. Average Performance for Palmar Pinch

  23. Alternatives • Smedley Hand Dynamometer • for measuring grip strength, fatigue rate, and recovery rate. The dominant hand should be 10% stronger than the nondominant hand. This comparison is frequently used in neuropsychological test batteries to assess function of the nervous system.
