  1. Significant Digits Measuring with Precision

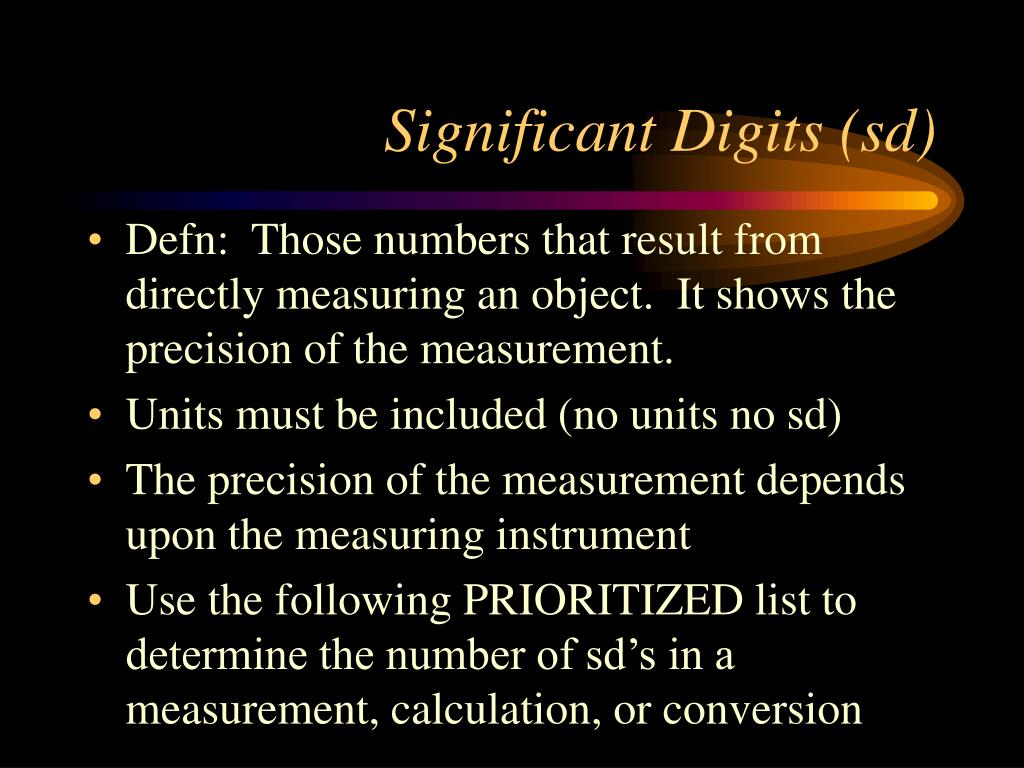

  2. Significant Digits (sd) • Defn: Those numbers that result from directly measuring an object. It shows the precision of the measurement. • Units must be included (no units no sd) • The precision of the measurement depends upon the measuring instrument • Use the following PRIORITIZED list to determine the number of sd’s in a measurement, calculation, or conversion

  3. Samples a. 234 m b. 1678 cm c. 0.23 g SD’s and precision a. 3 sd to the m b. 4 sd to the cm c. 2 sd to the cg Rule 1: All nonzero digits are significant (they were measured)

  4. Samples a. 202 mm b. 1003 cm c. 0.200105 m SD’s and precision a. 3 sd to the mm b. 4 sd to the cm c. 6 sd to the mm Rule 2: All zeros between nonzero (or significant) digits are significant

  5. Samples: a. 200 cm b. 109,000 m c. 1,000,000 mm d. 200 cm e. 200 cm SD’s and precision a. 1 sd to the m b. 3 sd to the km c. 1 sd to the km d. 3 sd to the cm (the bar over the zero indicates the last measured zero) e. 2 sd to the dm Rule 3: Zeros to the right of a nonzero digit but to the left of an understood decimal are NOT significant unless otherwise indicated.

  6. Samples a. 0.0032 m b. 0.01294 g c. 0.00000002 L SD’s and precision a. 2 sd to the .1 mm b. 4 sd to the .01 mg c. 1 sd to the .01 mL Rule 4: All zeros to the right of a decimal point but to the left of a nonzero digit are NOT significant.

  7. Samples a. 20.00 g b. 0.07080 mm c. 1.0400 cm d. 45.00 SD’s and precision a. 4 sd to the cg b. 4 sd to the .01 mm c. 5 sd to the mm d. 0 sd Rule 5: All zeros to the right of a decimal point and following a nonzero digit are significant

  8. How to use this information when converting/evaluating measures • Examine the number & go through rules IN ORDER • Rule 1 - underline any nonzero digits • Rule 2 - underline any zeros between these • Rule 3 - place an ‘n’ under the zeros right of the last nonzero and before the understood decimal • Rule 4 - place an ‘n’ under the zeros to the left of the last nonzero but right of the decimal • Rule 5 - underline zeros right of the last nonzero and right of a decimal • Count the number of underlined digits = # sd

  9. Atlantic Ocean Pacific Ocean Sig Figs – The Alternate Method

  10. Finding Sig Figs using the A & P • “A” stands for Absent and Atlantic • “P” stands for Present and Pacific P 20 400 m A • Place the number in the middle of the U.S. • Ask – “Is the decimal point Absent or Present?”

  11. NO Decimal Point – it is Absent A P Numbers Without Decimal Points • If the decimal point is Absent think “A” – Absent = Atlantic • Start from the Atlantic coast & move through the number 20 400 m • Count the first nonzero digit you hit & every number to the left of it as significant digits The 2, 0, & 4 are significant There are 3 sd with precision to the 100 m or hm

  12. Decimal Point – it is Present A P Numbers With Decimal Points • If the decimal point is Present think “P” – Present = Pacific • Start from the Pacific coast & move through the number 0.00920 dg • Count the first nonzero digit you hit & every number to the right of it as significant digits The 9, 2, & 0 are significant There are 3 sd with a precision of .00001 dg or mg

  13. 1.040 cm 300 cm Find how many sd’s & precision Ans: 4 sd to the .001 cm Ans: 2 sd to the 10 cm (dm) 202 mm 45.006 Ans: 3 sd to the 1 mm Ans: 0 sd – no unit

  14. How to use SD rules when multiplying • Find the number of significant digits in each of the starting numbers and note the lowest number of significant digits • ex. 2.40 cm x 3 cm (lowest # of sd is 1) • Multiply the measurements • Round the product to the lowest # of sd found in #1 • 2.40 cm x 3 cm = (7.2 cm2) = 7 cm2
