  1. 8 Position Tolerancing Fundamentals

  2. Complete feature control frames for position tolerances, properly using the diameter symbol, material condition modifiers, and datum references. • Sketch the proper location and shape for position tolerance zones. • Describe the effect of an MMC, LMC, or RFS modifier on a position tolerance.

  3. Provide examples that prove the validity of the MMC concept as it applies to position tolerances. • Calculate position tolerances for simple fixed and floating fastener conditions. • Calculate the allowable bonus tolerance for a produced part on which a position tolerance is specified at MMC.

  4. Position Tolerances • May be used on single or multiple features • Tolerance zone shape determined by functional requirements for feature • Material condition modifiers are appropriate

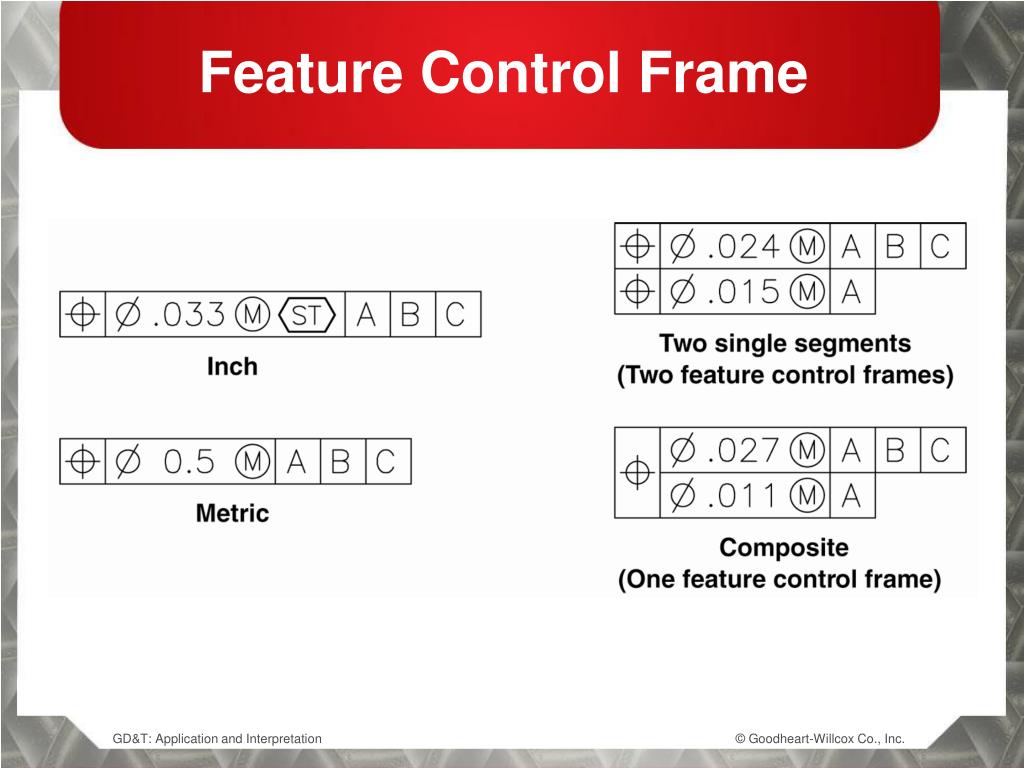

  5. Feature Control Frame

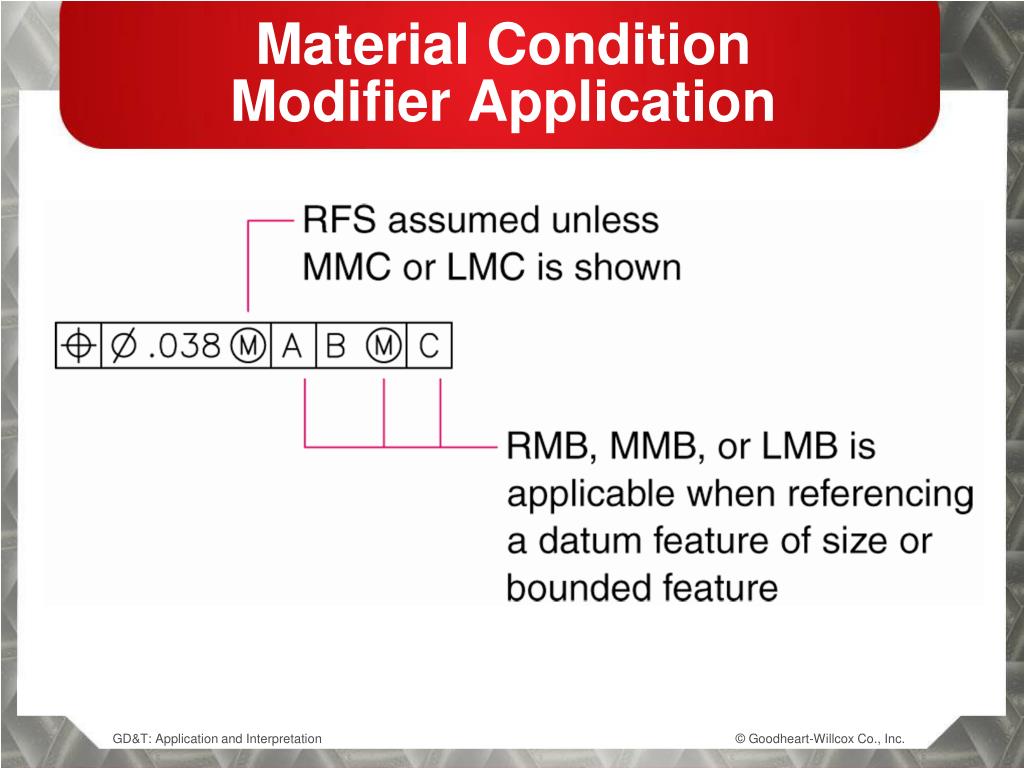

  6. Material Condition Modifier Application

  7. Basic Dimensions • Must be used to define location when position tolerances are applied to features • Defines true position

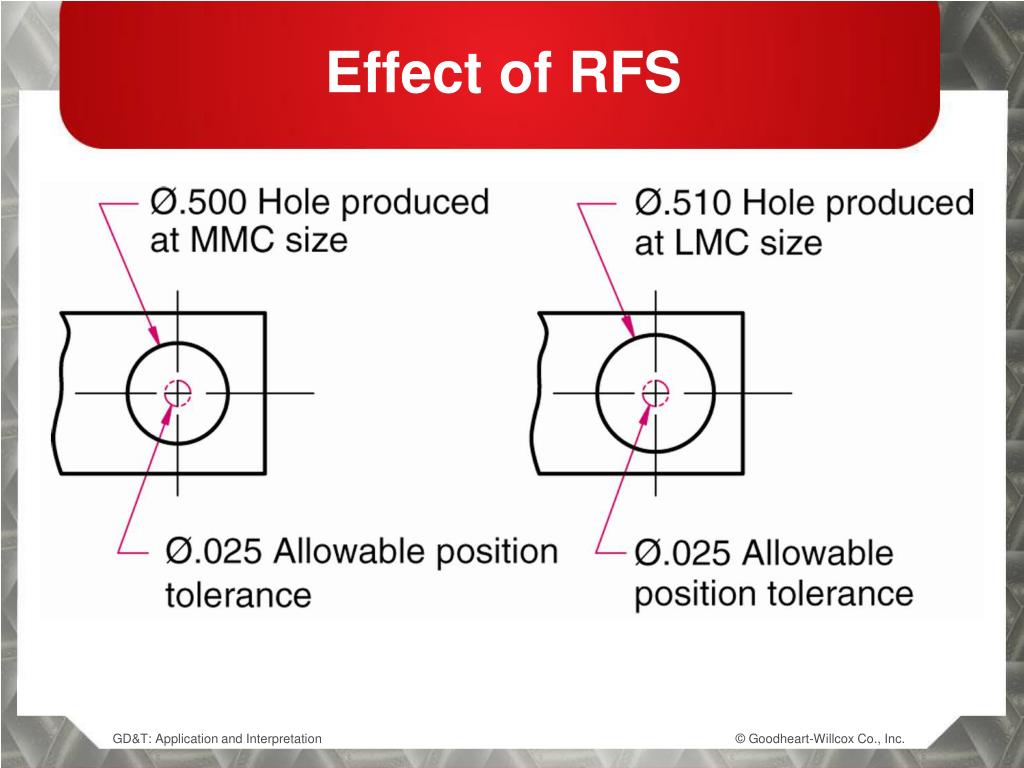

  8. Effect of RFS

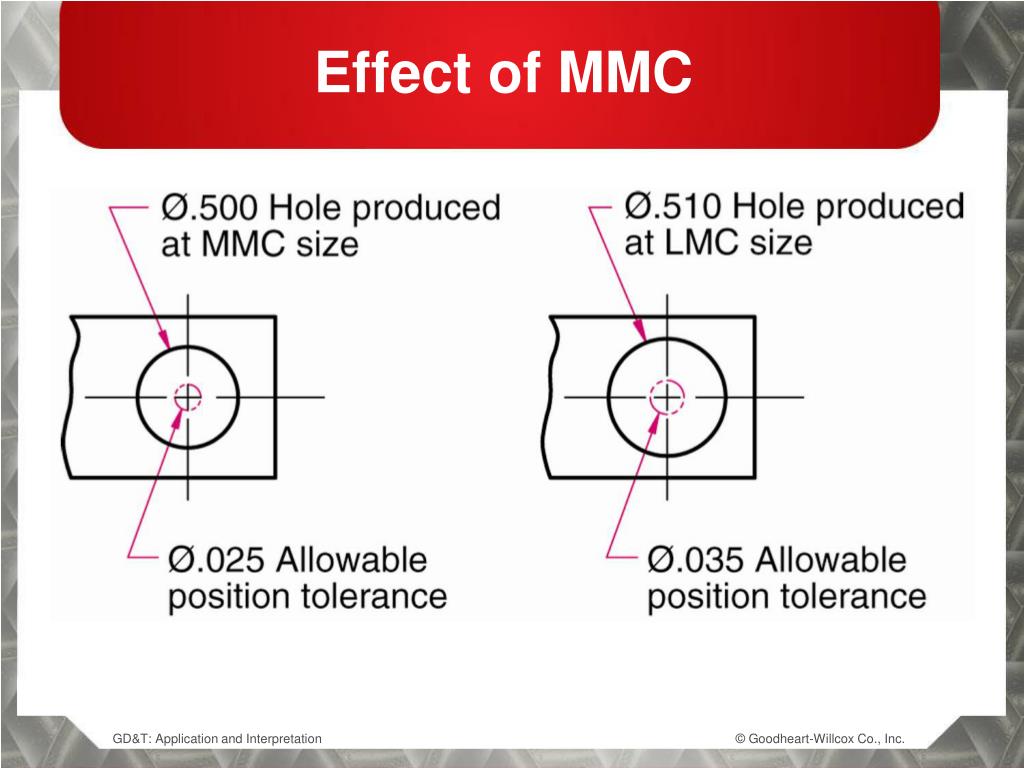

  9. Effect of MMC

  10. Proof of MMC Concept

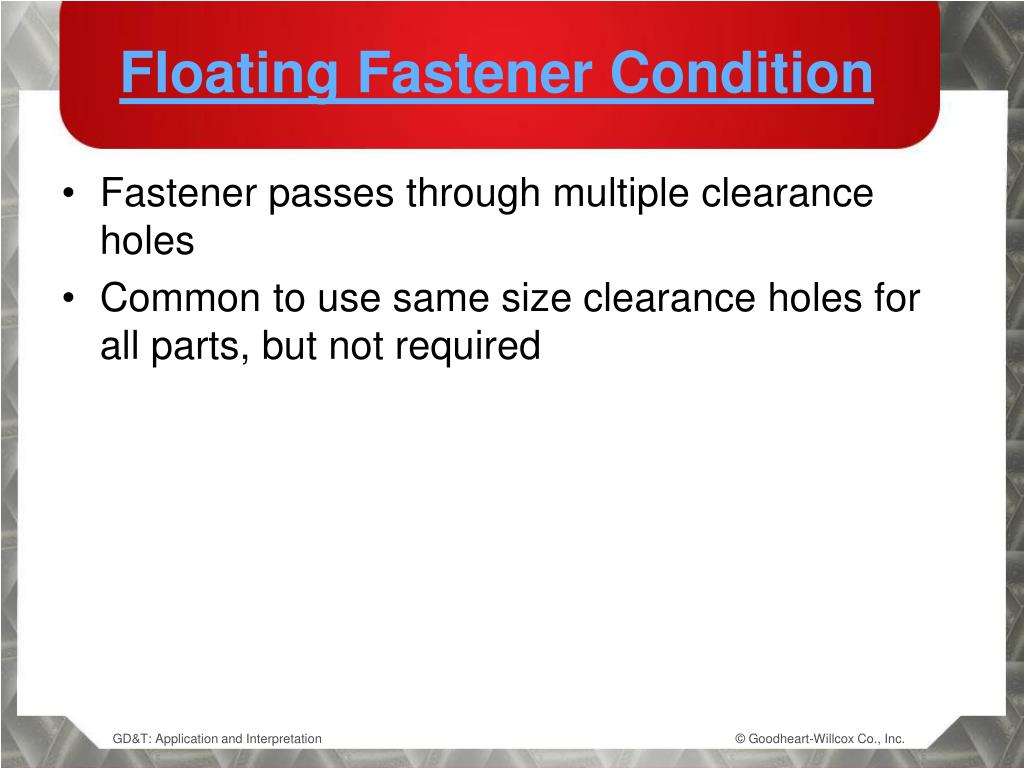

  11. Floating Fastener Condition • Fastener passes through multiple clearance holes • Common to use same size clearance holes for all parts, but not required

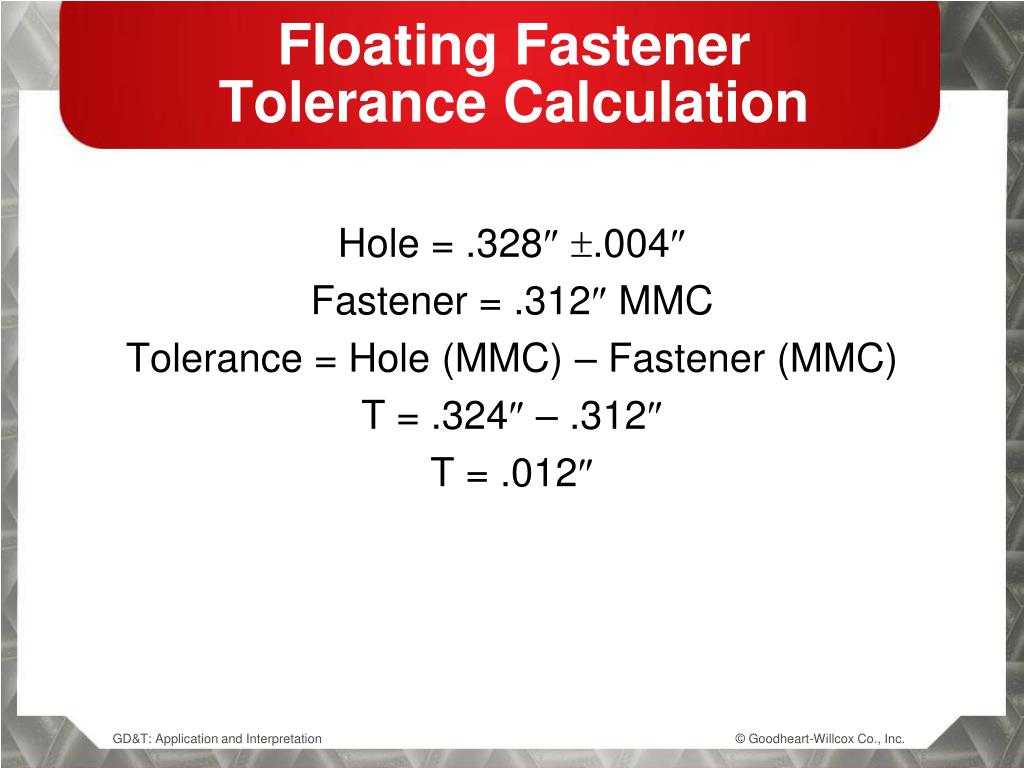

  12. Floating Fastener Tolerance Calculation Hole = .328.004 Fastener = .312 MMC Tolerance = Hole (MMC) – Fastener (MMC) T = .324 – .312 T = .012

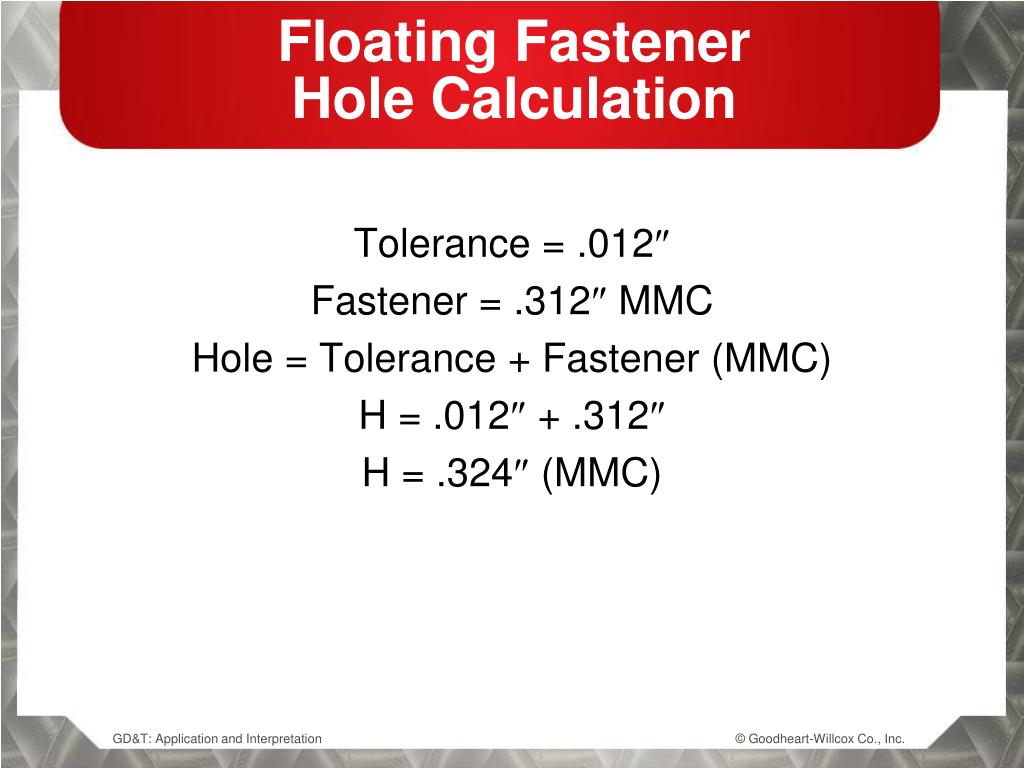

  13. Floating Fastener Hole Calculation Tolerance = .012 Fastener = .312 MMC Hole = Tolerance + Fastener (MMC) H = .012 + .312 H = .324 (MMC)

  14. Fixed Fastener Condition • Fastener passes through multiple holes, one fixes fastener location • Fastener fixed by threads, press fit, or taper

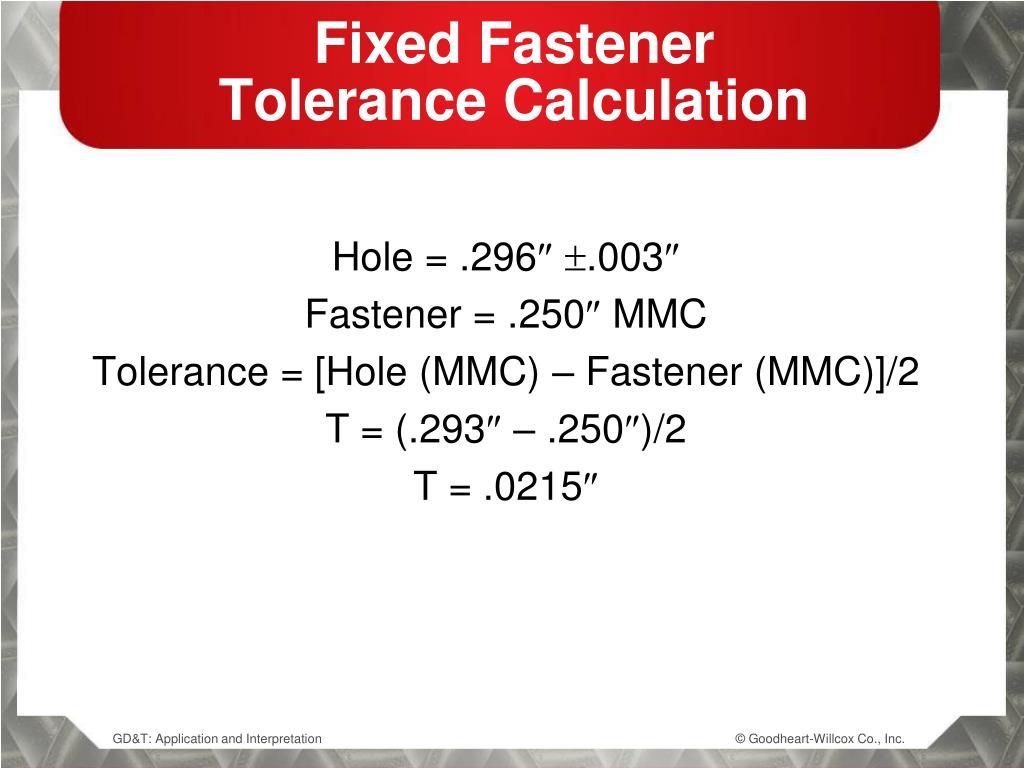

  15. Fixed Fastener Tolerance Calculation Hole = .296.003 Fastener = .250 MMC Tolerance = [Hole (MMC) – Fastener (MMC)]/2 T = (.293 – .250)/2 T = .0215

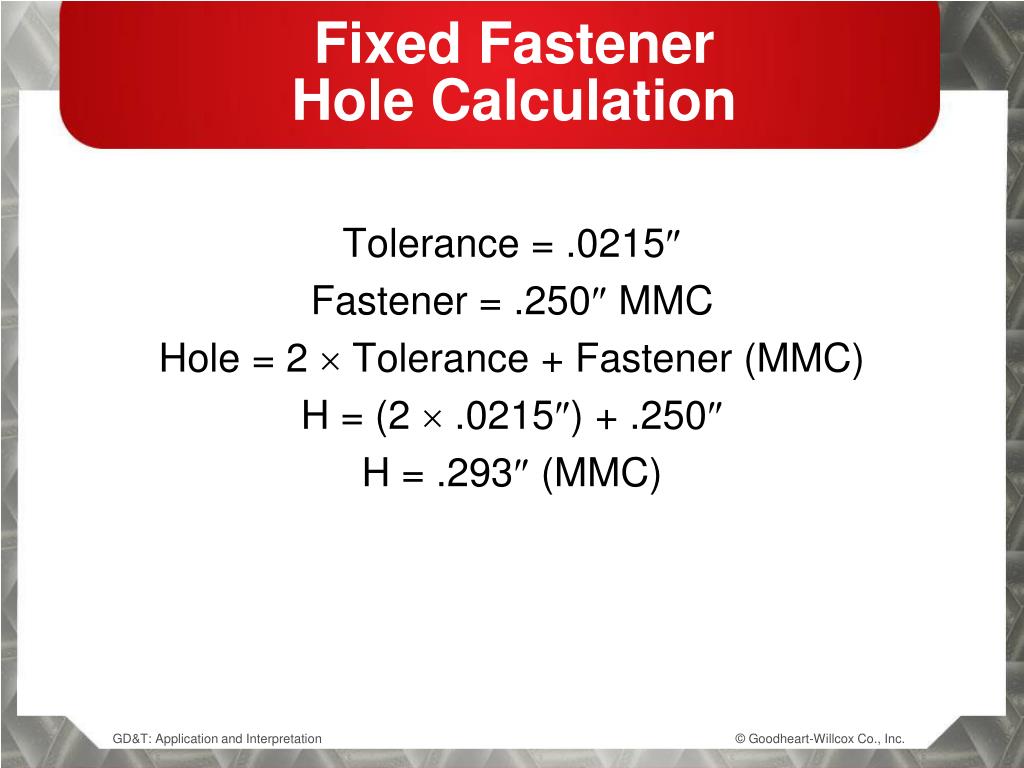

  16. Fixed Fastener Hole Calculation Tolerance = .0215 Fastener = .250 MMC Hole = 2  Tolerance + Fastener (MMC) H = (2  .0215) + .250 H = .293 (MMC)

  17. Advantages of Position Tolerances over Coordinate Tolerances • Clearer definition of requirements • Is no standard defining coordinate location tolerances • Increased tolerance zone area • Bonus tolerance is available

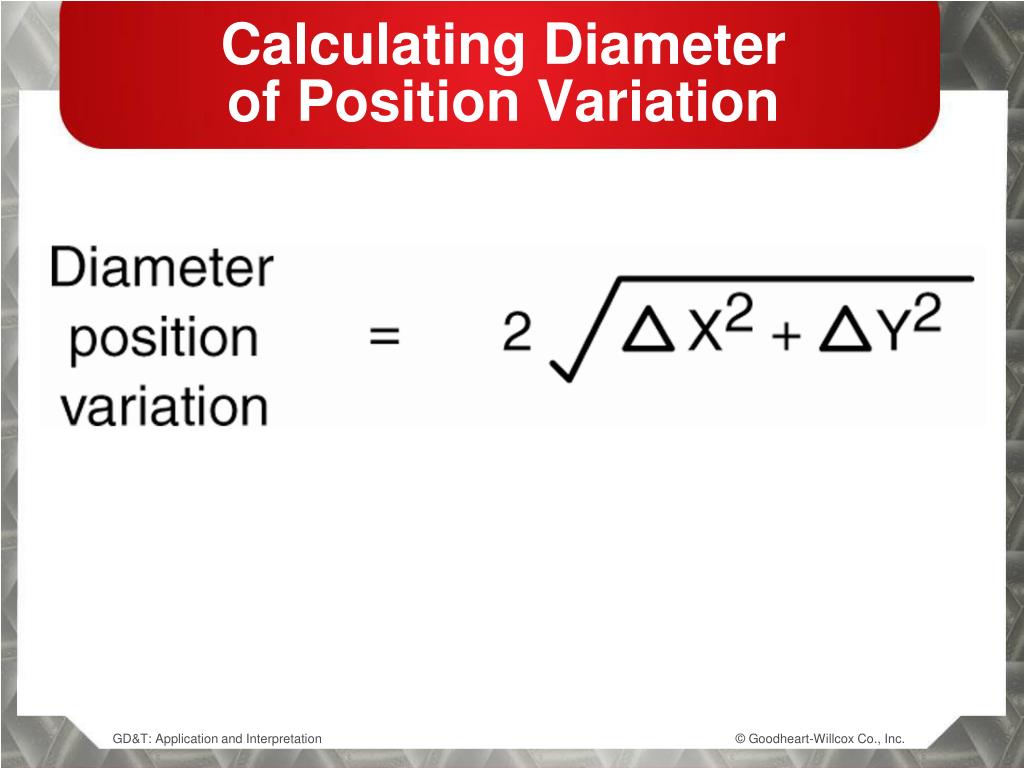

  18. Calculating Diameter of Position Variation

  19. Paper Gaging Position Variation • Center of graph is true position • Plot delta coordinate values for feature locations on graph • Create concentric circles representing tolerance zones at same scale as the graph grid

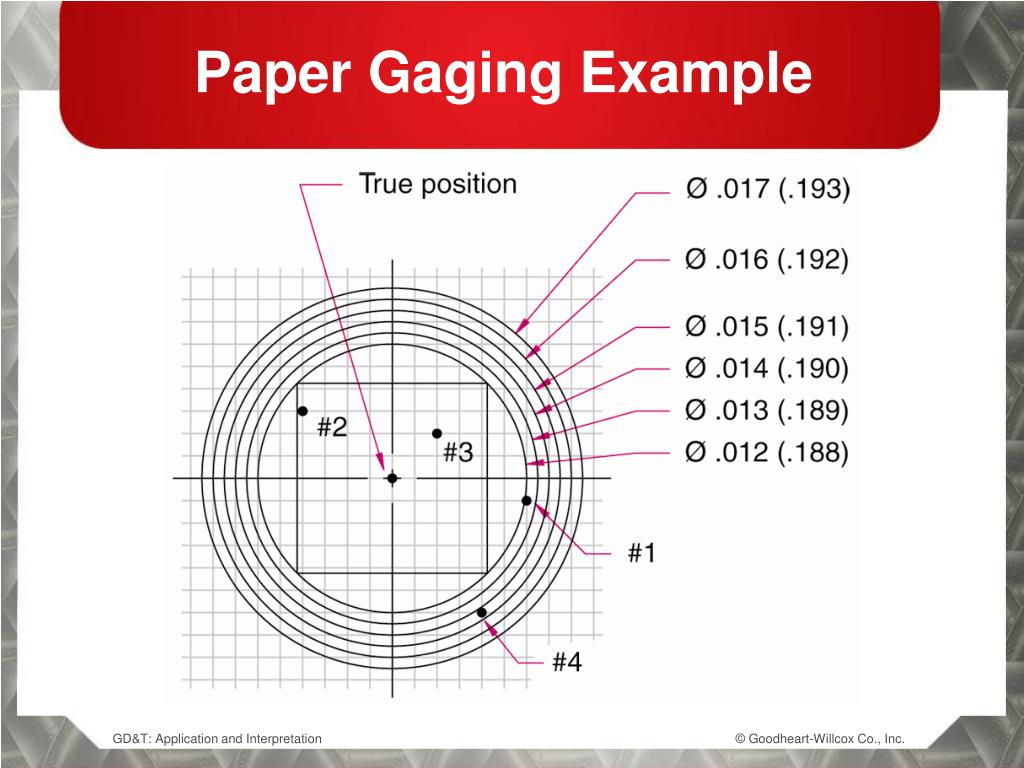

  20. Paper Gaging Example

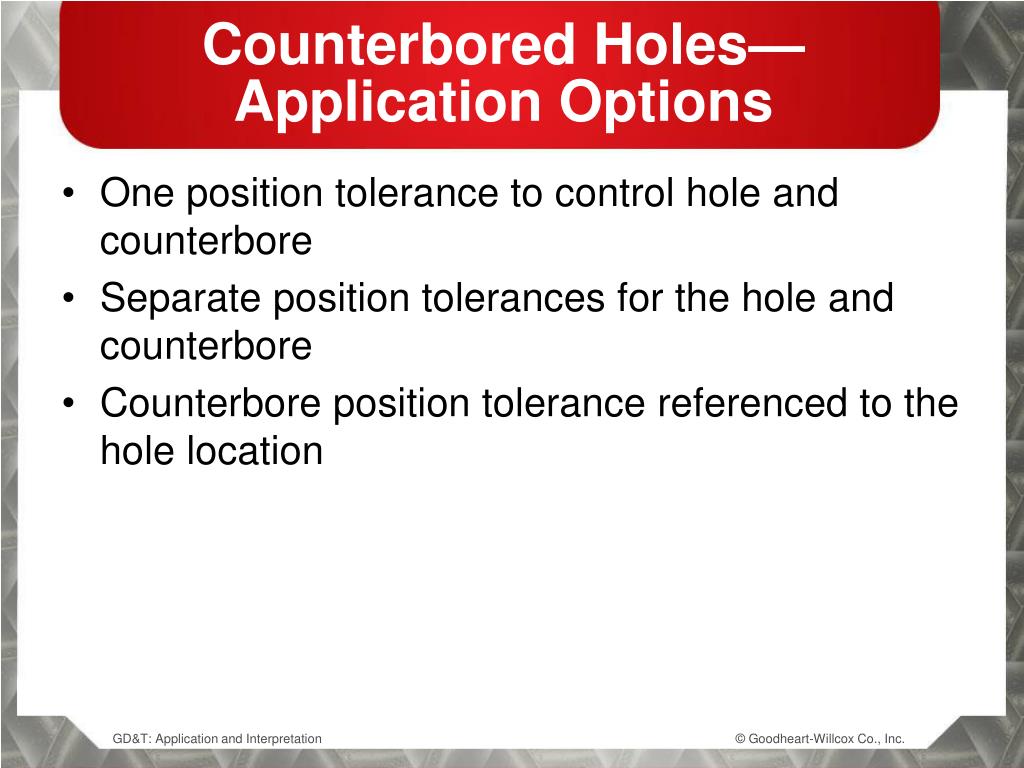

  21. Counterbored Holes—Application Options • One position tolerance to control hole and counterbore • Separate position tolerances for the hole and counterbore • Counterbore position tolerance referenced to the hole location

  22. Threads—Application • Position tolerance applied to pitch axis • Position tolerance may be applied to minor or major diameter in rare cases

  23. Projected Tolerance Zone

  24. Bidirectional Position Tolerance

  25. Noncylindrical Features of Size • Slots, tabs, rails • No diameter symbol in the feature control frame • Do not place the feature control frame on an extension line • Defines the total width of the tolerance zone

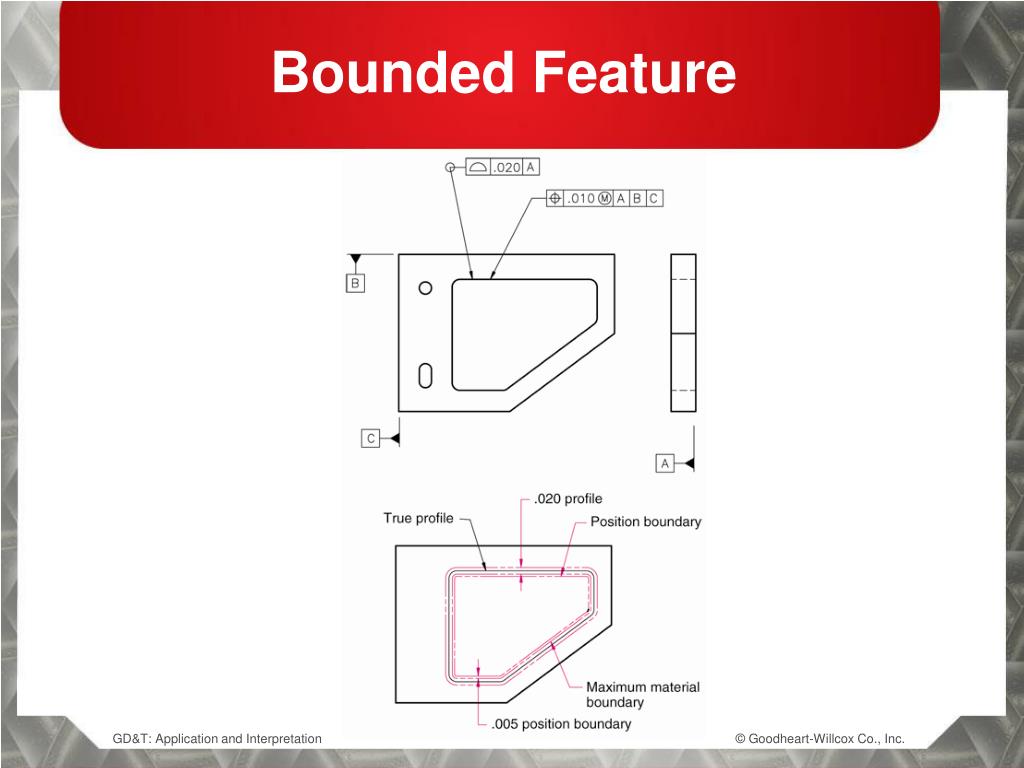

  26. Bounded Feature
